Hardware Replacement Guide
IdeaCentre K3 Series
31047005
Machine type: 10062/7727

Hardware Replacement Guide
© Copyright Lenovo 2010. All rights reserved.
LENOVO products, data, computer software, and services have been developed
exclusively at private expense and are sold to governmental entities as commercial
items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use,
reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer
software, or services are delivered pursuant a General Services Administration
“GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth
in Contract No. GS-35F-05925.
© 2010. Lenovo

Contents
Overview...................................................................................... 1
Chapter 1 Locations ................................................................. 5
Locating components and connectors...........................................5
Identifying parts on the system board ............................................9
Chapter 2 Replacing hardware.............................................. 11
General information......................................................................11
Removing the computer cover.....................................................11
Removing the front bezel .............................................................13
Replacing a memory module .......................................................14
Replacing the hard disk drive.......................................................15
Replacing an optical drive ............................................................16
Replacing the system fan assembly .............................................17
Replacing the heat sink assembly ................................................20
Replacing a PCI adapter ..............................................................22
Replacing the CPU ......................................................................28
Replacing the keyboard ...............................................................31
Replacing the mouse ...................................................................32
Replacing the external speaker ....................................................33
Completing the installation ...........................................................33
Chapter 3 Appendix. ............................................................... 35
Declaration ..................................................................................35
Trademarks..................................................................................36

1
Hardware Replacement Guide
Overview
This guide is intended to be used by customers who are replacing Customer
Replaceable Units (CRUs) as well as trained service personnel who are replacing
Field Replaceable Units (FRUs). In this guide, CRUs and FRUs will often be referred
to as parts.
Note: Trained service personnel should refer to the Hardware Maintenance
Manual (HMM) for parts ordering information.
This guide does not include procedures for the replacement of all parts. It is
expected that trained service personnel are already able to replace cables, switches,
and certain mechanical parts without the need for step-by-step procedures.
Note: Use only parts provided by Lenovo®.
The description of the TV-Tuner card in this manual applies only to those computer
models that have the TV-Tuner card installed, and therefore does not apply to
models without a TV-Tuner card.
This guide contains instructions for replacing the following parts:
• Memorymodules
• Harddiskdrive
• Opticaldrive
• Heatsink,Fan
• CPU
• VGAcard
• Keyboard,Mouse(wired)
• Externalspeakers
Safety information for replacing CRUs
Do not open your computer or attempt any repairs before reading the “Important
safety information” in the Safety and Warranty Guide that was included with your
computer. An electronic copy of the Safety and Warranty Guide can also be
obtained online from the Lenovo® Support Web site at:
http://consumersupport.lenovo.com.

2Hardware Replacement Guide
Additional information resources
The most up-to-date information for your computer is available online at:
http://consumersupport.lenovo.com.
You can find the following information:
• CRUremovalandinstallation
• Publications
• Troubleshooting
• Parts
• Linkstootherusefulsourcesofinformation
Tools required
To disassemble the computer, you will need the following tools:
• Wristgroundingstrapandconductivematforpreventingelectrostatic
discharge
• Flatscrewdriver
• Phillipsscrewdriver
• Hexscrewdriver
• Plasticatscrewdriver
• Plastictweezers
Note: The screws used for the different components will vary in size. During
the disassembly procedure, group the screws with their corresponding
components to avoid a mismatch when replacing the components.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer
components.
When replacing a part, do not open the antistatic packaging containing the new
part until the defective part has been removed from the computer and you are
ready to install the new part.
When handling parts and other computer components, the following precautions
should be taken in order to avoid static electricity damage:
• Limityourmovements,assuchmovementscancausethebuild-upofstatic
electricity.

3
Hardware Replacement Guide
• Alwayshandlepartsandothercomputercomponentswithcare,including
handling adapters, memory modules, system boards, and microprocessors by
their edges. Never touch any exposed circuitry.
• Preventothersfromtouchingthepartsandothercomputercomponents.
• Beforereplacinganewpart,rstplacetheantistaticpackagingcontainingthe
part against a metal expansion slot cover or other unpainted metal surface on
the computer for at least two seconds. This will reduce static electricity in the
package and your body.
• Whenpossible,removethenewpartfromitsantistaticpackagingandinstallit
directly into the computer without setting the part down. If this is not possible,
placethepartontopofitsanti-staticpackagingonasmooth,atsurfaceprior
to installing it.
• Donotplacepartsonthecomputercoverorothermetalsurface.

4Hardware Replacement Guide

5
Hardware Replacement Guide
Locations
Chapter
This chapter provides illustrations to help you locate the various connectors,
controls and components in your computer. To remove the computer cover, refer
to the section in this manual entitled “Removing the computer cover”.
Locating components and connectors
The following illustrations will help you to locate the various components and
connectors in your computer.
Internal components
The following illustration shows the components inside your computer.
18
7
6
5
4
3
2

6Hardware Replacement Guide
Power supply PCI Express adapter card
System fan Memory modules
Microprocessor fan and heat sink Hard disk drive
PCI Express adapter connector Optical drive

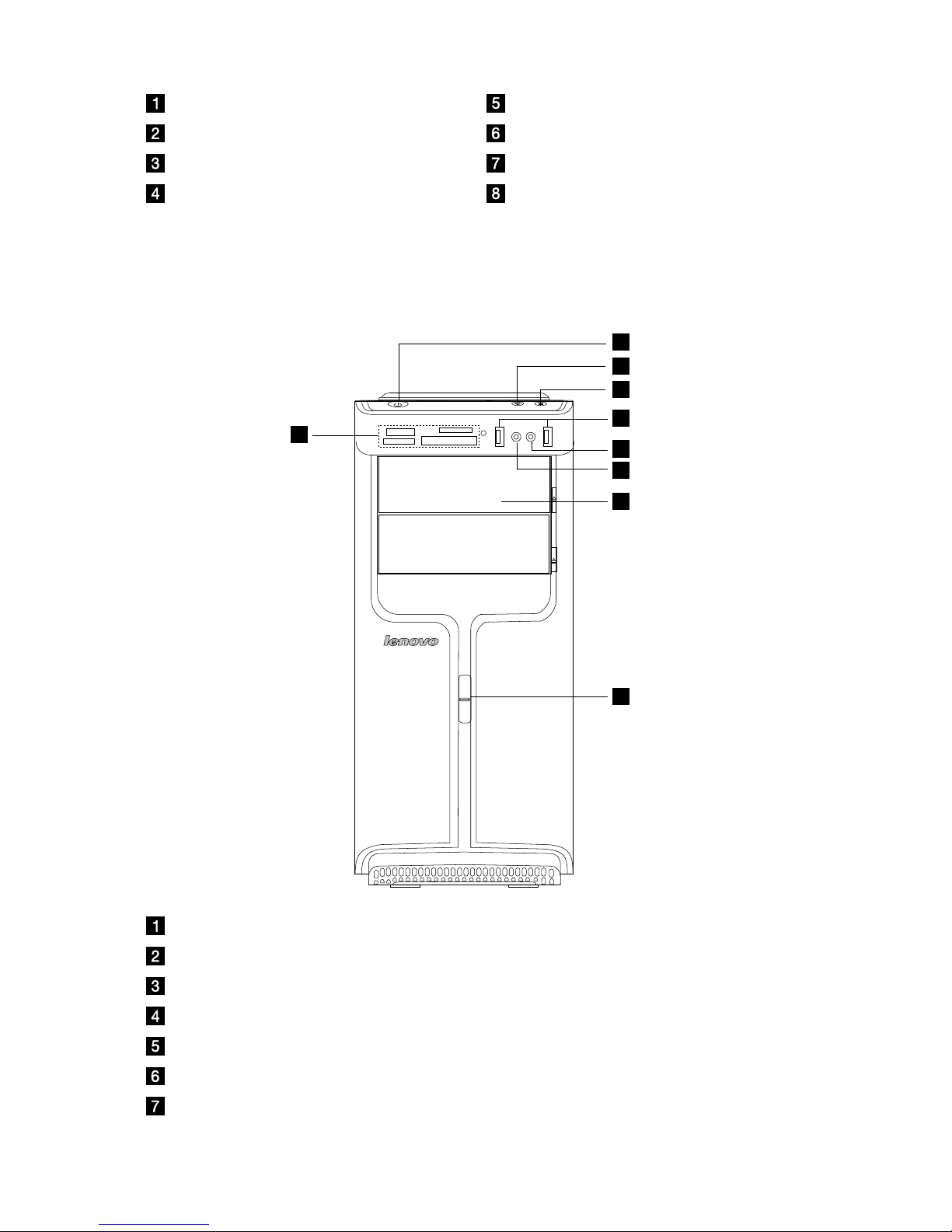

Front view
The two following illustrations show the location of the connectors on the front of
the computer.
9
8
3
1
2
4
5
6
7
Power button
Power dial indicator ON/OFF
File backup button
USBconnector
Microphone connector
Headphone connector
Memory card reader (selected models only)

7
Hardware Replacement Guide

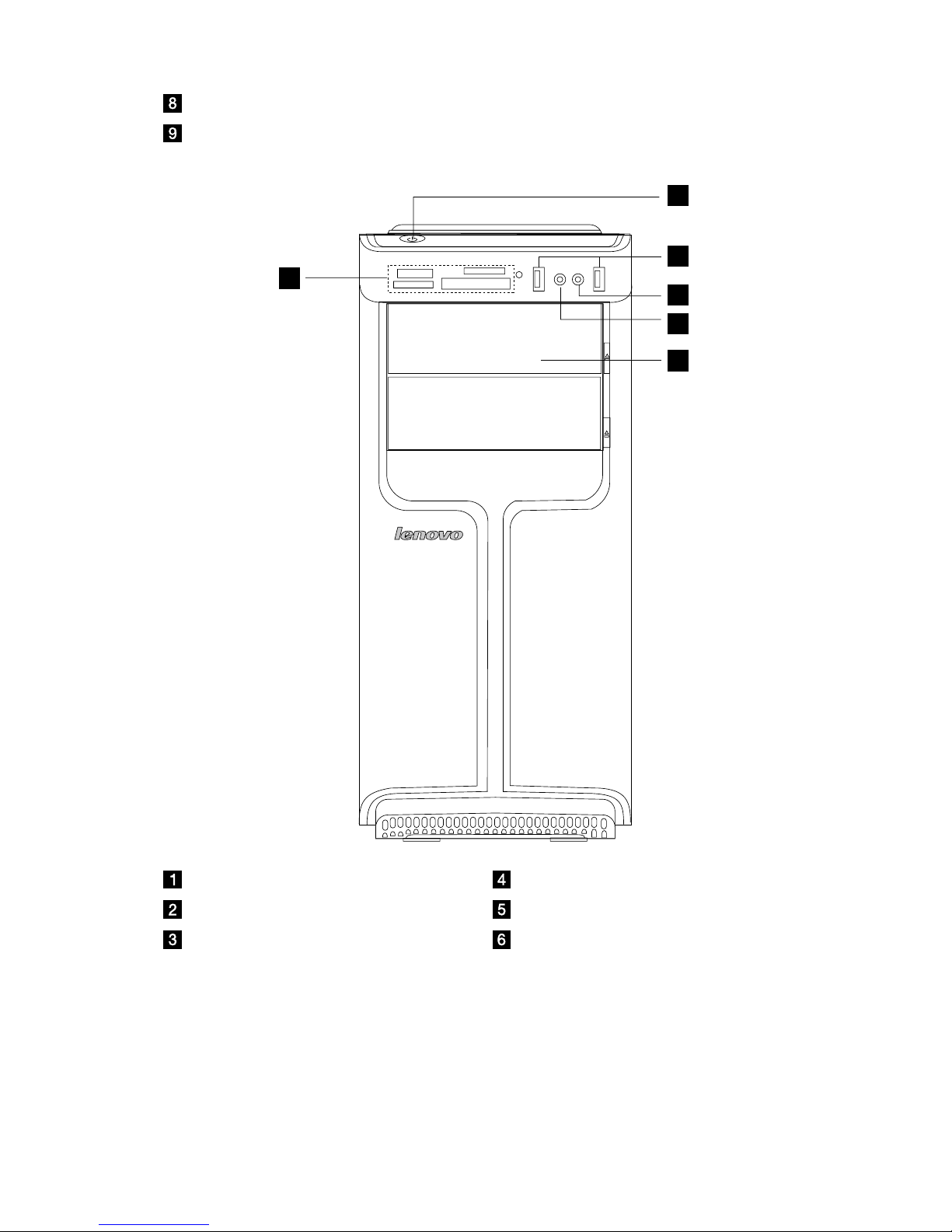

Optical drive (some models are equipped with only one optical drive)
Power dial switch
3
1
2
4
5
6
Power button Headphone connector
USBconnector Memory card reader
Microphone connector Optical drive

8Hardware Replacement Guide

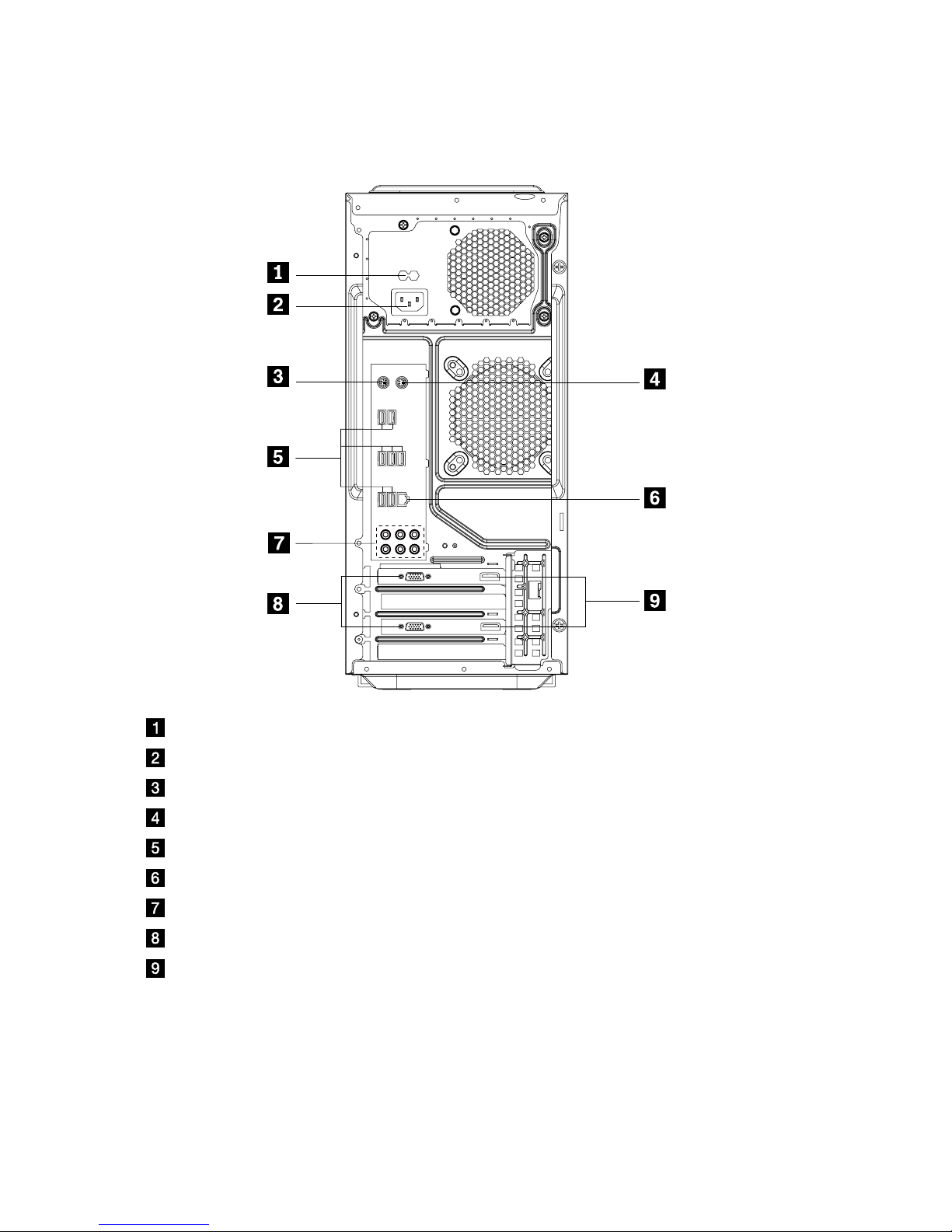

Rear view
The following illustration shows the location of the connectors on the rear of the
computer.
Voltage selection switch (selected models only)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
USBconnectors(7)
Ethernet connector
7.1 Audio connectors (6)
On-board VGA connector (selected models only)
HDMI port (2)

9
Hardware Replacement Guide

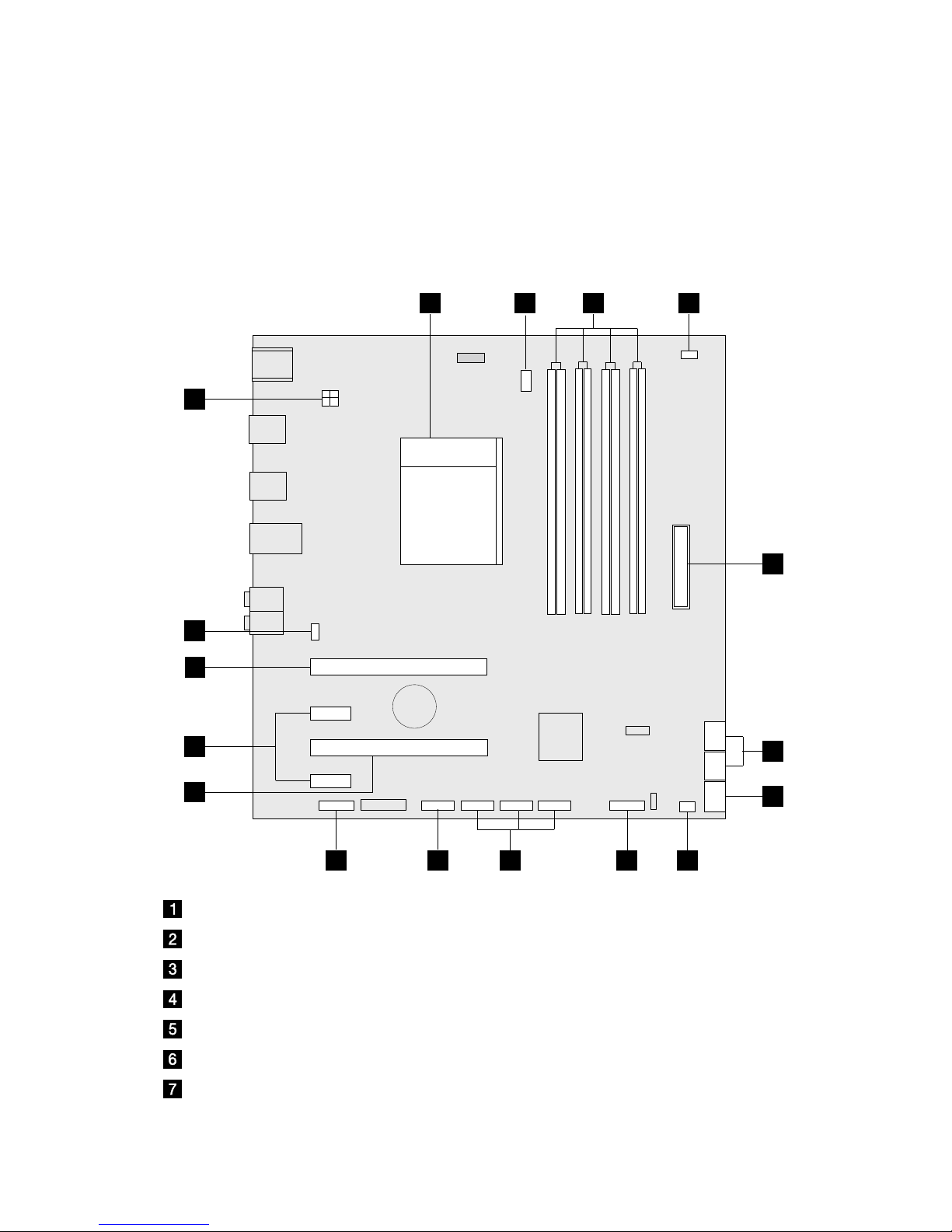

Identifying parts on the system board
The system board (also known as the “mainboard” or “motherboard”) is the main
circuit board in your computer. It provides basic computer functions and supports
a variety of devices that are factory-installed or that you can install later.
The following illustration shows the locations of the different parts on the system
board.
9 8
7
4
6
1
17
2
3
5
101112
13
14
15
16
Microprocessor and heat sink
Microprocessor fan connector
Memory connectors (4)
Thermal sensor header connector
Power connector
SATA connectors (4)
eSATA connector

10 Hardware Replacement Guide
Power fan connector
Front panel connector
FrontUSBconnectors(3)
Serial (com2) connector
Front audio connectors
PCI Express X 16 graphics adapter connector
PCI Express X 1 adapter connectors (2)
PCI Express X 16 graphics adapter connector
System fan connector
12V power connector

11
Hardware Replacement Guide
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com.
Note: Use only parts provided by Lenovo.
General information
Pre-disassembly instructions
Beforeproceedingwiththedisassemblyprocedure,makesurethatyoudothe
following:
1. Turn off the power to the system and all peripherals.
2. Unplug all power and signal cables from the computer.
3. Placethesystemonaat,stablesurface.
Removing the computer cover
Attention:
Turn off the computer and wait 3 to 5 minutes to let the computer cool
before removing the computer cover.
To remove the computer cover:
1. Remove any media (diskettes, CDs, or memory cards) from the drives, shut
down the computer, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
Replacing hardware
Chapter

12 Hardware Replacement Guide
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. Refer to “Locating connectors on the rear of the computer”.

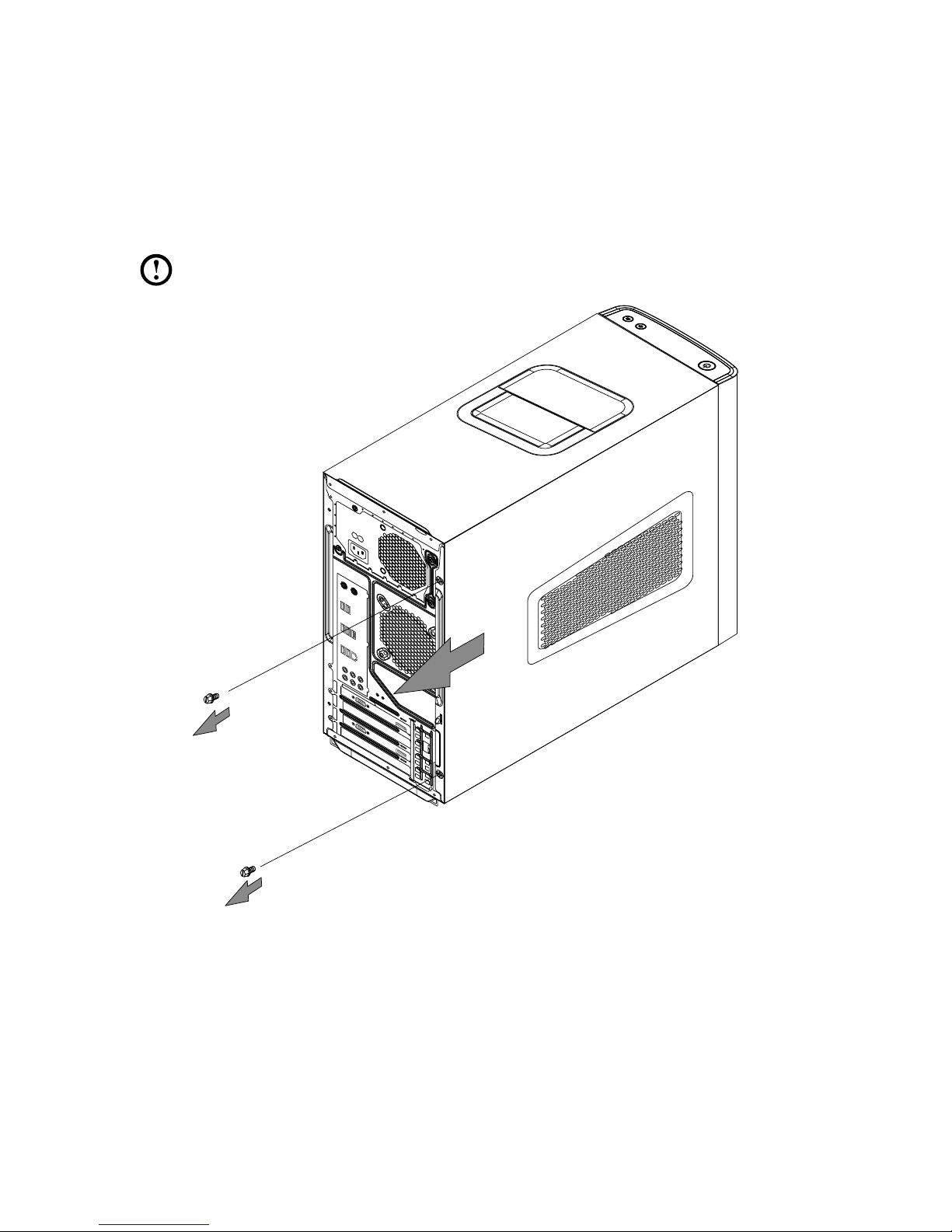

4. Remove the two screws that secure the computer cover at the rear of the
chassis.
5. Slide the computer cover to the rear of the chassis to remove.
Note: For this procedure, it helps to lay the computer on its side.

13
Hardware Replacement Guide

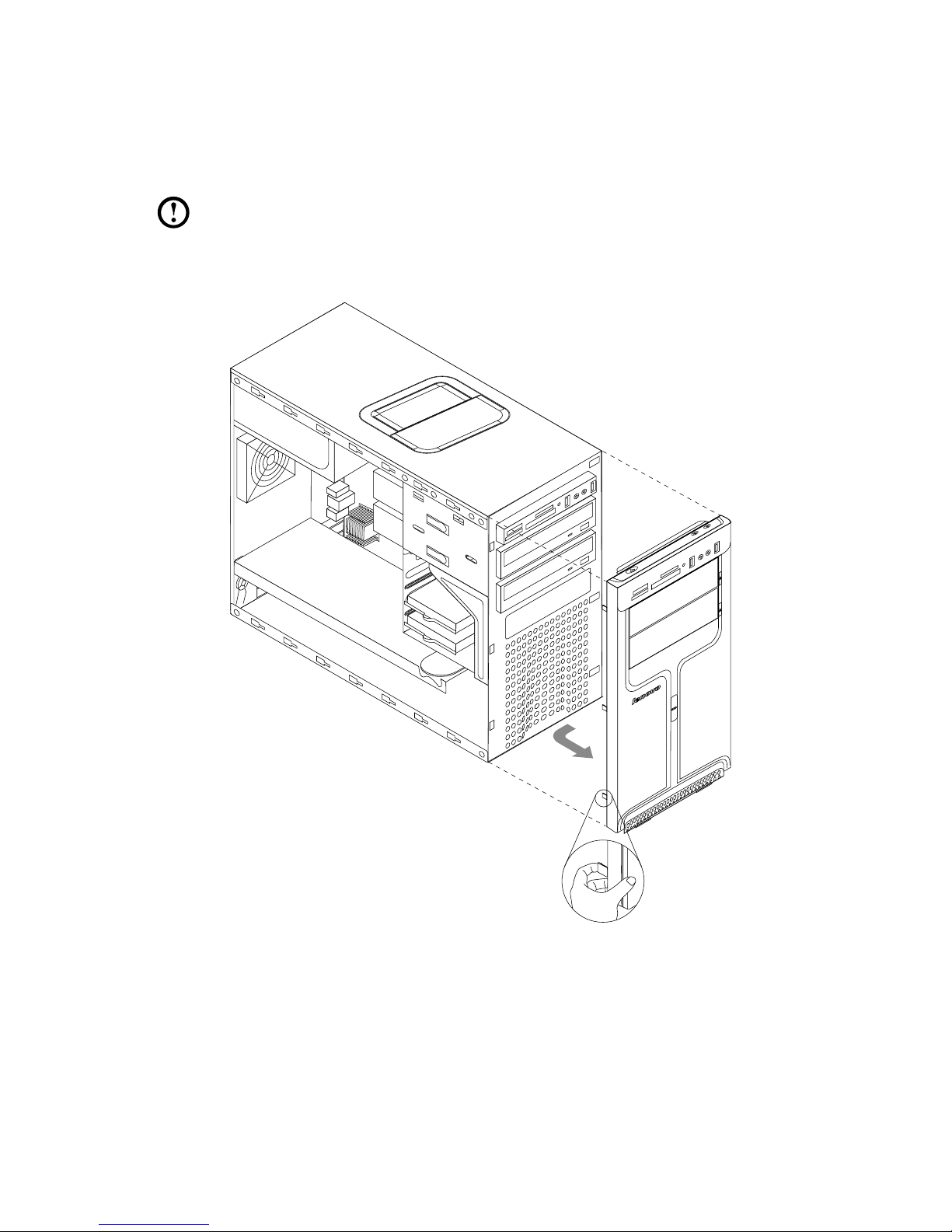

Removing the front bezel
To remove the front bezel:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Remove the front bezel by releasing the three plastic tabs inside the chassis
and push the bezel outward as shown.
3. To reinstall the bezel, align the plastic tabs on the bottom of the bezel with the
corresponding holes in the chassis, and then snap it into position at the bottom
and top of the chassis.
4. Refer to the “Completing the installation”.

14 Hardware Replacement Guide
Replacing a memory module
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com.
To replace a memory module:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Locate the memory module connectors. Refer to “Locating components”.
3. Remove the memory module to be replaced by opening the retaining clips as shown.
4. Position the new memory module over the memory connector. Make sure
that the notch on the memory module aligns correctly with the connector
key on the system board. Push the memory module straight down into the
connector until the retaining clips close.
5. Refer to the “Completing the installation”.

15
Hardware Replacement Guide
Replacing the hard disk drive
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com.
To replace the hard disk drive:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Disconnect the data and power cables from the hard disk drive.

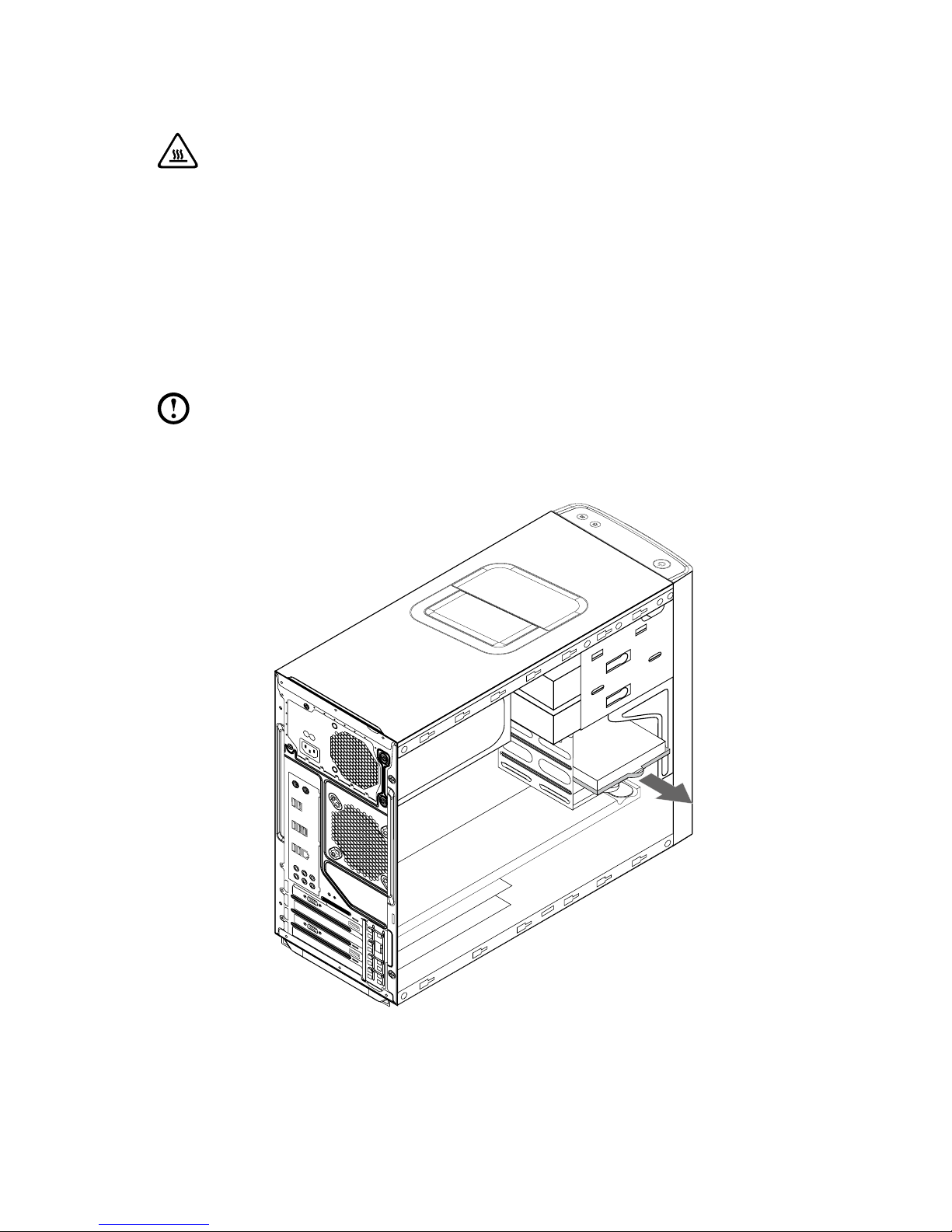

3. Use the plastic handle to slide the hard disk drive out of the drive bay.
4. Slide the new hard disk drive into the drive bay.
5. Twist the drive bay into place.
6. Connect the power and signal cables to the hard disk drive. Refer to “Identifying
parts on the system board”.

16 Hardware Replacement Guide
7. Refer to the “Completing the installation”.
Replacing an optical drive
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
To replace an optical drive
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Remove the front bezel. Refer to “Removing the front bezel”.
3. Disconnect the data and power cables from the rear of the optical drive.
4. Press the release button and push the optical drive straight out of the front of
the chassis.

17
Hardware Replacement Guide
5. Slide the new optical drive into the bay from the front until it snaps into
position.
6. Connect the data and power cables to the drive.
7. Install the front bezel. Refer to the steps 3 of the “Removing the front bezel”.
8. Install the computer cover. Refer to “Completing the installation”.
Replacing the system fan assembly
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
To replace the system fan assembly:
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Locate the system fan assembly. Refer to “Identifying parts on the system
board”.
3. Disconnect the system fan assembly cable from the system board. Refer to
“Identifying parts on the system board”.
