Lenovo IdeaCentre Mini 01IRH8 User manual

IdeaCentre Mini
User Guide

Read this first
Before using this documentation and the product it supports, ensure that you read and understand the
following:
• Safety and Warranty Guide
• Generic Safety and Compliance Notices
• Setup Guide
First Edition (March 2023)
© Copyright Lenovo 2022.
LIMIT D AND R STRICT D RIGHTS NOTIC : If data or software is delivered pursuant to a General Services
Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-
35F-05925.

Contents
A out this documentation . . . . . . . . iii
Chapter 1. Meet your computer. . . . . 1
Front . . . . . . . . . . . . . . . . . . . . 1
Rear . . . . . . . . . . . . . . . . . . . . 2
Features and specifications . . . . . . . . . . . 3
USB specifications . . . . . . . . . . . . . . 3
Operating environment . . . . . . . . . . . . . 4
Chapter 2. Get started with your
computer . . . . . . . . . . . . . . . . . 7
Work with Windows . . . . . . . . . . . . . . 7
Windows help information . . . . . . . . . . 7
Connect an external display . . . . . . . . . . . 8
Chapter 3. Explore your computer . . . 9
Lenovo Vantage. . . . . . . . . . . . . . . . 9
Set the power plan . . . . . . . . . . . . . . 9
Transfer data . . . . . . . . . . . . . . . . 10
Connect to a Bluetooth-enabled device. . . . 10
Purchase accessories . . . . . . . . . . . . 10
Chapter 4. CRU replacement . . . . . 11
CRU list . . . . . . . . . . . . . . . . . . 11
Remove or replace a CRU . . . . . . . . . . . 11
Power cord. . . . . . . . . . . . . . . 11
Computer stand . . . . . . . . . . . . . 12
Computer cover . . . . . . . . . . . . . 14
Bottom cover . . . . . . . . . . . . . . 15
Memory module . . . . . . . . . . . . . 17
Power supply assembly . . . . . . . . . . 18
M.2 solid-state drive . . . . . . . . . . . 19
Coin-cell battery. . . . . . . . . . . . . 20
System fan . . . . . . . . . . . . . . . 22
Chapter 5. Help and support . . . . . 23
Frequently asked questions . . . . . . . . . . 23
Self-help resources . . . . . . . . . . . . . 23
Call Lenovo . . . . . . . . . . . . . . . . 25
Before you contact Lenovo . . . . . . . . 25
Lenovo Customer Support Center . . . . . . 26
Purchase additional services. . . . . . . . . . 26
Appendix A. Notices and
trademarks . . . . . . . . . . . . . . . 27
© Copyright Lenovo 2022 i

ii IdeaCentre Mini User Guide

A out this documentation
• This guide applies to the Lenovo product models listed below. Illustrations in this guide may look slightly
different from your product model.
Model name Machine types (MT)
IdeaCentre Mini 01IRH8 90W2, 90W3
• For further compliance information, refer to the Generic Safety and Compliance Notices at https://
pcsupport.lenovo.com/docs/generic_notices.
• Depending on the model, some optional accessories, features, and software programs might not be
available on your computer.
• Depending on the version of the operating systems and programs, some user interface instructions might
not be applicable to your computer.
• Documentation content is subject to change without notice. Lenovo makes constant improvements to the
documentation of your computer, including this User Guide. To get the latest documentation, go to https://
pcsupport.lenovo.com.
• Microsoft® makes periodic feature changes to the Windows® operating system through Windows Update.
As a result, some information in this documentation might become outdated. Refer to Microsoft resources
for the latest information.
© Copyright Lenovo 2022 iii

iv IdeaCentre Mini User Guide

Chapter 1. Meet your computer
Front
Item Description Item Description
1 Power button 2 Always On USB-A 3.2 Gen 2 connector
3USB-C® (3.2 Gen 2) connector 4 Headset connector
Power indicator
Show the system status of your computer.
• On: The computer is on.
• Off: The computer is off or in hibernation mode.
• Blinking: The computer is in standby mode.
Headset connector
The headset connector is compatible with:
• Headsets with a 3.5mm (0.14 inch), CTIA-compliant TRRS (4-pole) plug.
Note: This headset connector does not support standalone external microphones with a TRS (3-pole) plug
or headsets with an OMTP-compliant TRRS (4-pole) plug.
Always On USB-A 3.2 Gen 2 connector
With the Always On USB feature enabled, the Always On USB 3.2 connector Gen 2 can charge a USB-
compatible device when the computer is on, off, in sleep mode, or in hibernation mode.
Related topics
• “USB specifications” on page 3.
© Copyright Lenovo 2022 1

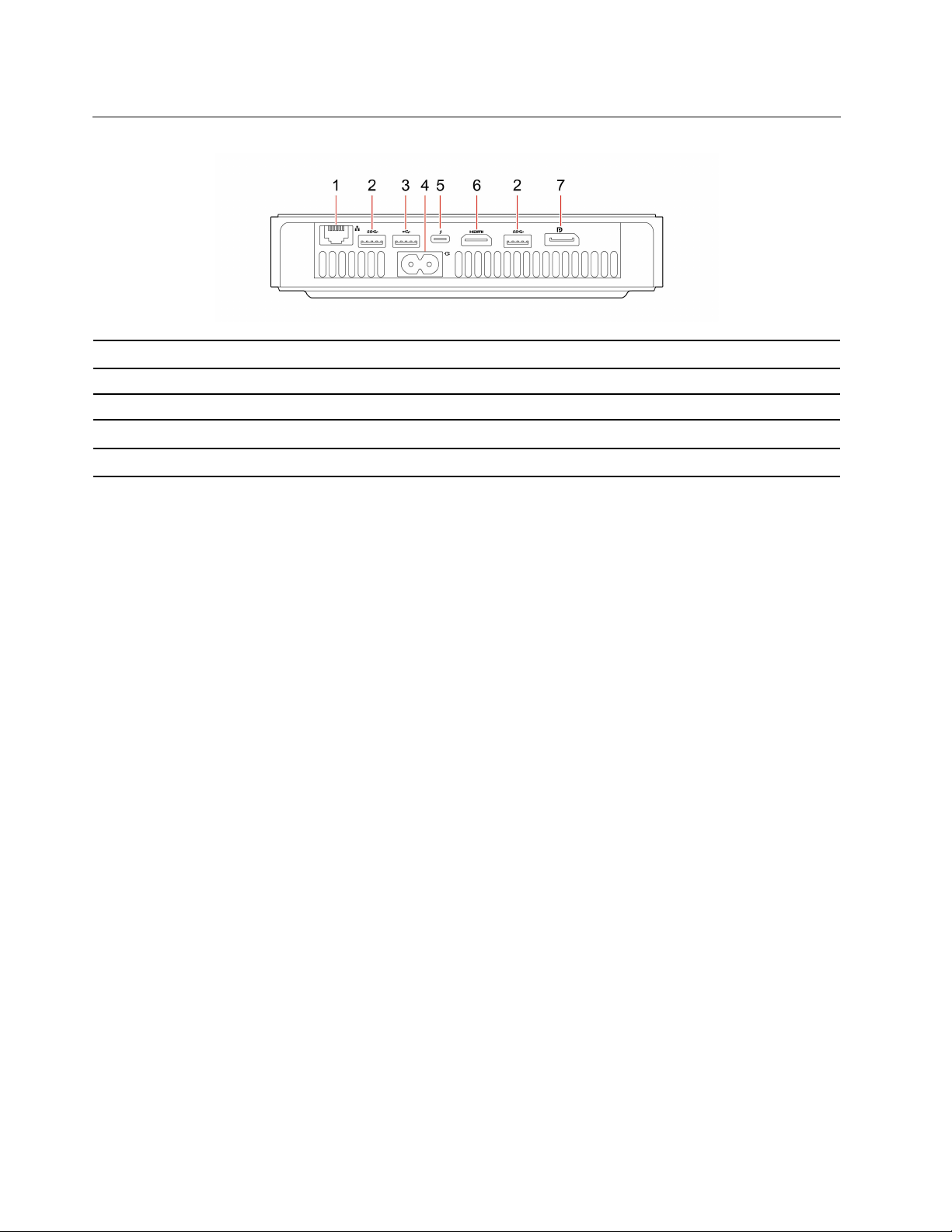

Rear
Item Description Item Description
1 thernet connector 2 USB-A 3.2 Gen 2 connectors
3 USB-A 2.0 connector 4 Power cord connector
5Thunderbolt™ 4 (USB-C) connector 6 HDMI™ 2.1 TMDS connector
7DisplayPort™ 1.4 out connector
Related topics
• “Connect an external display” on page 8.
• “USB specifications” on page 3.
2IdeaCentre Mini User Guide

Features and specifications
Specifications Descriptions
Hardware To view the hardware information of your computer, type device manager in the
Windows search box and then press nter.
Power supply • 150-watt automatic voltage-sensing power supply
Adapta ility for power supply • Mainland China: 220 V±22 V, 50 Hz±1 Hz
• Adaptive voltage positioning: 100 V to 240 V, 50/60 Hz
Microprocessor To view the microprocessor information of your computer, type system
information in the Windows search box and then press nter.
Memory Up to two double data rate 4 (DDR4) small outline dual in-line memory modules
(SODIMMs)
Storage device
• M.2 solid-state drive
To view the storage drive capacity of your computer, type disk management in the
Windows search box and then press nter.
Note: The storage drive capacity indicated by the system is less than the nominal
capacity.
Expansion • 2 Memory slots
• 2 M.2 solid-state drive slots
Network features
• Bluetooth
• 2.5 G thernet LAN
• Wireless LAN
USB specifications
Note: Depending on the model, some USB connectors might not be available on your computer.
Chapter 1.Meet your computer 3

Connector name Description
• USB-A 2.0 connector
• USB-A 3.2 Gen 2 connector
Connect USB-compatible devices, such as a USB
keyboard, USB mouse, USB storage device, or USB
printer.
• USB-C (3.2 Gen 2) connector
• Thunderbolt 3 (USB-C) connector
• Thunderbolt 4 (USB-C) connector
• Charge USB-C compatible devices with the output
voltage and current of 5 V and 3 A.
• Connect to an external display:
– USB-C to VGA: 1920 x 1200 pixels, 60 Hz
– USB-C to DP: 3840 x 2160 pixels, 60 Hz
• Connect to USB-C accessories to help expand your
computer functionality. To purchase USB-C
accessories, go to https://www.lenovo.com/accessories.
Statement on USB transfer rate
Depending on many factors such as the processing capability of the host and peripheral devices, file
attributes, and other factors related to system configuration and operating environments, the actual transfer
rate using the various USB connectors on this device will vary and will be slower than the data rate listed
below for each corresponding device.
USB device Data rate (G it/s)
3.2 Gen 1 / 3.1 Gen 1 5
3.2 Gen 2 / 3.1 Gen 2 10
3.2 Gen 2 × 2 20
Thunderbolt 3 (USB-C) 40
Thunderbolt 4 (USB-C) 40
Operating environment
Temperature
• Operating: From 10°C (50°F) to 35°C (95°F)
• Storage or transportation: From -40°C (-40°F) to 60°C (140°F)
4IdeaCentre Mini User Guide

Relative humidity
• Operating: 20%-80% (non-condensing)
• Storage: 20%-90% (non-condensing)
Altitude
• Operating: -15.2 m (-50 ft) to 3048 m (10,000 ft)
• Storage: -15.2 m (-50 ft) to 10668 m (35,000 ft)
Chapter 1.Meet your computer 5

6IdeaCentre Mini User Guide

Chapter 2. Get started with your computer
Work with Windows
The following table contains Windows frequently used settings. You can learn the basics and start working
with Windows right away.
To configure settings, type the corresponding keywords in the Windows search box and select the best
match. Follow the on-screen instructions to customize settings.
Table 1. Basic settings
Functions Descriptions Search y
keywords
Control Panel View or change Windows settings, including hardware and software setup
and configuration.
Control Panel
Connect to Wi-Fi
networks
For models with a wireless LAN module, you can connect your computer to
a Wi-Fi® network. Click the network icon in the Windows notification area,
and then select a network for connection.
Note: The wireless LAN module on your computer may support different
standards. For some countries or regions, use of 802.11ax may be disabled
according to local regulations.
Wi-Fi
Connect to wired
networks
For models with an thernet (RJ45) connector, you can use an thernet
cable to connect your computer to a wired network.
—
Airplane mode Airplane mode is a convenient setting to turn all wireless communications of
your computer on and off. You may need to turn it on when boarding an
airplane.
Airplane mode
Night light mode Night light is a switch in Windows that you can turn on and off. When it is
turned on, your screen shows warmer colors and the amount of emitted
blue light is reduced. nabling night light reduces the chances of developing
eye fatigue or eye strain.
Note: For more guidance on reducing eye fatigue or eye strain, go to
https://www.lenovo.com/us/en/compliance/visual-fatigue.
Night light
Adjust color
temperature
If night light mode is turned on, you can adjust the color temperature of the
screen.
Note: Selected Lenovo computers are low blue light certified. These
computers are tested with night light turned on and color temperature set to
the default value of 48.
Night light
Windows
Updates
Microsoft periodically releases feature and security updates to the Windows
operating system. Updates that are applicable to your Windows version are
downloaded automatically when your computer is connected to the
Internet. When updates are downloaded, you are prompted to restart the
computer to install these updates. You can also manually check if there are
available updates for the installed version of Windows.
Attention: Only use Windows Update to download and install updates.
Updates downloaded from other sources may include security risks.
Windows Updates
Windows help information
If the on-screen instructions cannot solve your problem, refer to the following to get the online Windows help
information.
© Copyright Lenovo 2022 7

• Type Get Help or Tips in the Windows search box and then press nter. When the app opens, type the
problem description and select the matched result.
• Visit Microsoft support Web site: https://support.microsoft.com. nter what you are looking for in the
search box and get search results.
Connect an external display
Connect a projector or a monitor to your computer to give presentations or expand your workspace.
Connect a wireless display
nsure that both your computer and the wireless display support Miracast®.
Press the Windows and K Keys, and then select a wireless display to connect.
Change display settings
To change display settings, type display settings in the Windows search box and then press nter.
8IdeaCentre Mini User Guide

Chapter 3. Explore your computer
Lenovo Vantage
The preinstalled Lenovo Vantage is a customized one-stop solution to help you maintain your computer with
automated updates and fixes, configure hardware settings, and get personalized support.
Access Lenovo Vantage
Type Lenovo Vantage in the search box and then press nter.
To download the latest version of Lenovo Vantage, go to Microsoft Store and search by the app name.
Key features
Lenovo Vantage enables you to:
• Know the device status easily and customize device settings.
• Download and install U FI BIOS, firmware and driver updates to keep your computer up-to-date.
• Monitor your computer health, and secure your computer against outside threats.
• Scan your computer hardware and diagnose hardware problems.
• Look up warranty status (online).
• Access User Guide and helpful articles.
Notes:
• The available features vary depending on the computer model.
• Lenovo Vantage makes periodic updates of the features to keep improving your experience with your
computer. The description of features might be different from that on your actual user interface.
Set the power plan
For N RGY STAR® compliant computers, the following power plan takes effect when your computers have
been idle for a specified duration:
• turn off the display: After 10 minutes
• put the computer to sleep: After 10 minutes
To awaken the computer from Sleep mode, press any key on your keyboard.
To change or customize a power plan:
1. Type power plan in the Windows search box and then press nter.
2. Customize a power plan of your preference.
© Copyright Lenovo 2022 9

Transfer data
Quickly share your files using the built-in Bluetooth technology among devices with the same features. You
also can install a disc or media card to transfer data.
Connect to a Bluetooth-ena led device
You can connect all types of Bluetooth-enabled devices to your computer, such as a keyboard, a mouse, a
smartphone, or speakers. To ensure that the connection is successful, place the devices 10 meters (33 feet),
at most, from the computer.
1. Click the action center icon in the Windows notification area. nable the Bluetooth feature.
2. Click the bluetooth options to add a bluetooth device, and then follow the on-screen instructions.
Purchase accessories
Lenovo has a number of hardware accessories and upgrades to help expand the capabilities of your
computer. Options include memory modules, storage devices, network cards, power adapters, keyboards,
mice, and more.
To shop at Lenovo, go to https://www.lenovo.com/accessories.
10 IdeaCentre Mini User Guide

Chapter 4. CRU replacement
Customer Replaceable Units (CRUs) are parts that can be replaced by the customer. Lenovo computers
contain the following types of CRUs:
• Self-service CRUs: Refer to parts that can be replaced easily by customers themselves or by trained
service technicians at an additional cost.
• Optional-service CRUs: Refer to parts that can be replaced by customers with a greater skill level.
Trained service technicians can also provide service to replace the parts under the type of warranty
designated for the customer’s machine.
If you intend on installing the CRU, Lenovo will ship the CRU to you. CRU information and replacement
instructions are shipped with your product and are available from Lenovo at any time upon request. You
might be required to return the defective part that is replaced by the CRU. When return is required: (1) return
instructions, a prepaid shipping label, and a container will be included with the replacement CRU; and (2) you
might be charged for the replacement CRU if Lenovo does not receive the defective CRU within thirty (30)
days of your receipt of the replacement CRU. For full details, see the Lenovo Limited Warranty
documentation at:
https://www.lenovo.com/warranty/llw_02
CRU list
The following is the CRU list of your computer.
Self-service CRUs
• Computer stand*
• Power cord
Optional-service CRUs
• Bottom cover
• Computer cover
• Coin-cell battery
• M.2 solid-state drive
• Memory module
• Power supply assembly
• System fan
* for selected models
Remove or replace a CRU
This section provides instructions on how to remove or replace a CRU.
Power cord
Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
© Copyright Lenovo 2022 11

For access, do the following:
1. Turn off the computer and remove all connected devices and cables.
2. Disconnect the computer from ac power and all connected cables.
Removal procedure
Computer stand
Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
For access, do the following:
1. Turn off the computer and remove all connected devices and cables.
2. Disconnect the computer from ac power and all connected cables.
12 IdeaCentre Mini User Guide

Replacement procedure
Chapter 4.CRU replacement 13

Computer cover
Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
Before you open the computer cover, turn off the computer and wait several minutes until the computer is
cool.
For access, do the following:
1. Turn off the computer and remove all connected devices and cables.
2. Place a soft, clean towel or cloth on the desk or surface. Hold the sides of your computer and gently lay
it down so that the computer cover is facing up.
3. Remove the computer stand. See “Computer stand” on page 12.

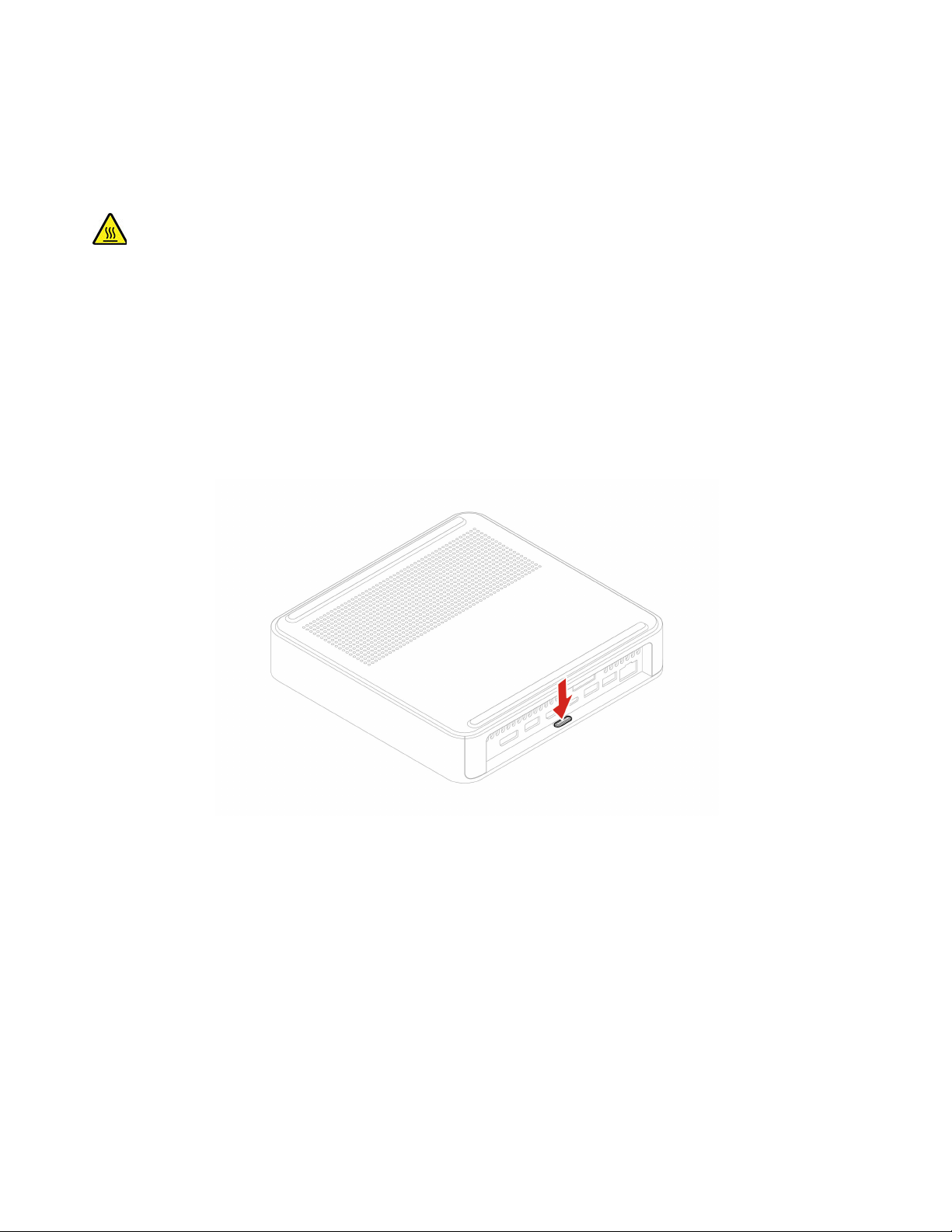

Removal procedure
14 IdeaCentre Mini User Guide
