Overview
This guide is intended to be used by customers who are replacing Customer
Replaceable Units (CRUs) as well as trained service personnel who are replacing
Field Replaceable Units (FRUs). In this document, CRUs and FRUs will be referred
to as parts.
This guide does not include procedures for all parts. It is expected that cables,
switches, and certain mechanical parts can be replaced by trained service personnel
without the need for step-by-step procedures.
This guide contains instructions for replacing the following parts:
Note: Use only the parts provided by Lenovo
™
.
vPower supply
vSystem board
vMicroprocessor
vHard disk drive
vDiskette drive
vOptical drive
vMemory module
vPCI adapter card
vInternal speaker
vKeyboard
vMouse
Safety information for replacing CRUs
Do not open your computer or attempt any repair before reading the “Important
safety information” in the Quick Reference that was included with your computer.
To obtain acopy of the Quick Reference go to the World Wide Web at
http://www.lenovo.com/think/support.
Safety information for replacing FRUs
Do not open your computer or attempt any repair before reading the “Important
safety information” in the Hardware Maintenance Manual (HMM) for the computer.
To obtain acopy of the HMM,go to the World Wide Web at
http://www.lenovo.com/think/support.
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find the following information:
vCRU removal and installation instructions
vCRU removal and installation videos
vPublications
vTroubleshooting information
©Lenovo 2005. Portions ©IBM Corp. 2005. v

vParts information
vDownloads and drivers
vLinks to other useful sources of information
vSupport phone list
To access this information, point your browser to
http://www.lenovo.com/think/support
Tools required
To replace some parts in your computer, you might need aflat-blade or Phillips
screwdriver.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer
components and parts.
When replacing apart, do not open the static-protective package containing the
new part until the defective part has been removed from the computer and you are
ready to install the new part.
When you handle parts and other computer components, take these precautions to
avoid static-electricity damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the edges.
Never touch any exposed circuitry.
vPrevent others from touching the parts and other computer components.
vBefore you replace anew part, touch the static-protective package containing the
part to ametal expansion-slot cover or other unpainted metal surface on the
computer for at least two seconds. This reduces static electricity in the package
and your body.
vWhen possible, remove the new part from the static-protective packaging and
install it directly in the computer without setting the part down. When this is
not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
vDo not place the part on the computer cover or other metal surface.
vi Hardware Replacement Guide

Chapter 1. Locations
This chapter provides illustrations to help locate the various connectors, controls
and components of the computer. To open the computer cover, see “Opening the
cover” on page 5.
Locating the connectors on the front of your computer
The following illustration shows the location of connectors on the front of the
computer.
1 Headphone connector 3 USB connector
2 Microphone connector 4 USB connector
©Lenovo 2005. Portions ©IBM Corp. 2005. 1

Locating the connectors on the rear of your computer
The following illustration shows the location of connectors on the rear of the
computer.
1 Power cord connector 10 Ethernet connector
2 Rope clip holes 11 USB connectors
3 Serial connector (some models) 12 VGA monitor connector
4 Cable lock latch 13 Parallel connector
5 PCI adapter connector 14 Audio line in connector
6 PCI adapter connector 15 Audio line out connector
7 Serial connector 16 USB connectors
8 Standard keyboard connector 17 PCI Express x16 graphics adapter
connector (some models)
9 Standard mouse connector 18 Power supply diagnostic LEDs
2Hardware Replacement Guide

Locating components

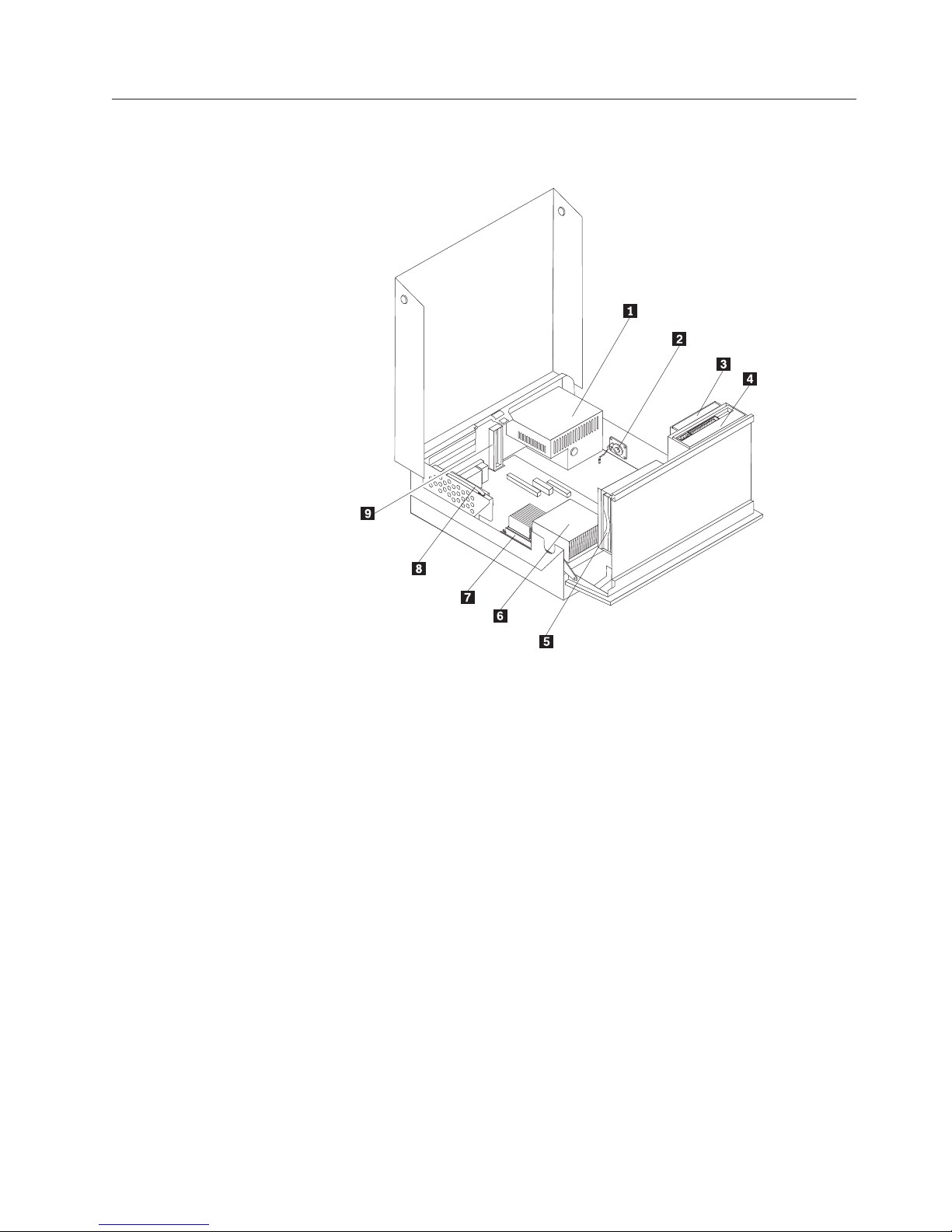

The following illustration will help you locate the various components in your
computer.
1 Power supply assembly 6 Microprocessor and heat sink
2 Internal speaker 7 Memory module
3 Diskette drive 8 PCI riser assembly
4 Optical drive 9 PCI Express x16 graphics adapter connector
(some models)
5 Hard disk drive
Chapter 1. Locations 3

Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices.
The following illustration shows the locations of parts on the system board.
1 Internal speaker connector 12 Fan connector 2
2 Serial connector 2(COM2) 13 Memory connector 1
3 PCI Express x16 graphics adapter
connector
14 Memory connector 2
4 Power connector 15 Memory connector 3
5 PATA primary IDE connector 16 Memory connector 4
6 Diskette drive connector 17 Battery
7 12v power connector 18 PCI riser connector
8 Microprocessor heat sink 19 Chassis intrusion switch
9 Fan connector 120 SATA connectors
10 Front panel connector 21 Clear CMOS/Recovery jumper
11 Microprocessor
4Hardware Replacement Guide

Chapter 2. Replacing hardware
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Quick Reference that was included with your computer or in the
Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Quick
Reference or HMM,go to http://www.lenovo.com/think/support.
Note: Use only the parts provided by Lenovo.
Opening the cover
Important
Turn off your computer and wait 3to 5minutes to let the computer cool
before opening the computer cover.
To open the computer cover:
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.
4. Remove the floor stand, if attached.
5. Remove any locking devices such as acable lock that secure the cover.

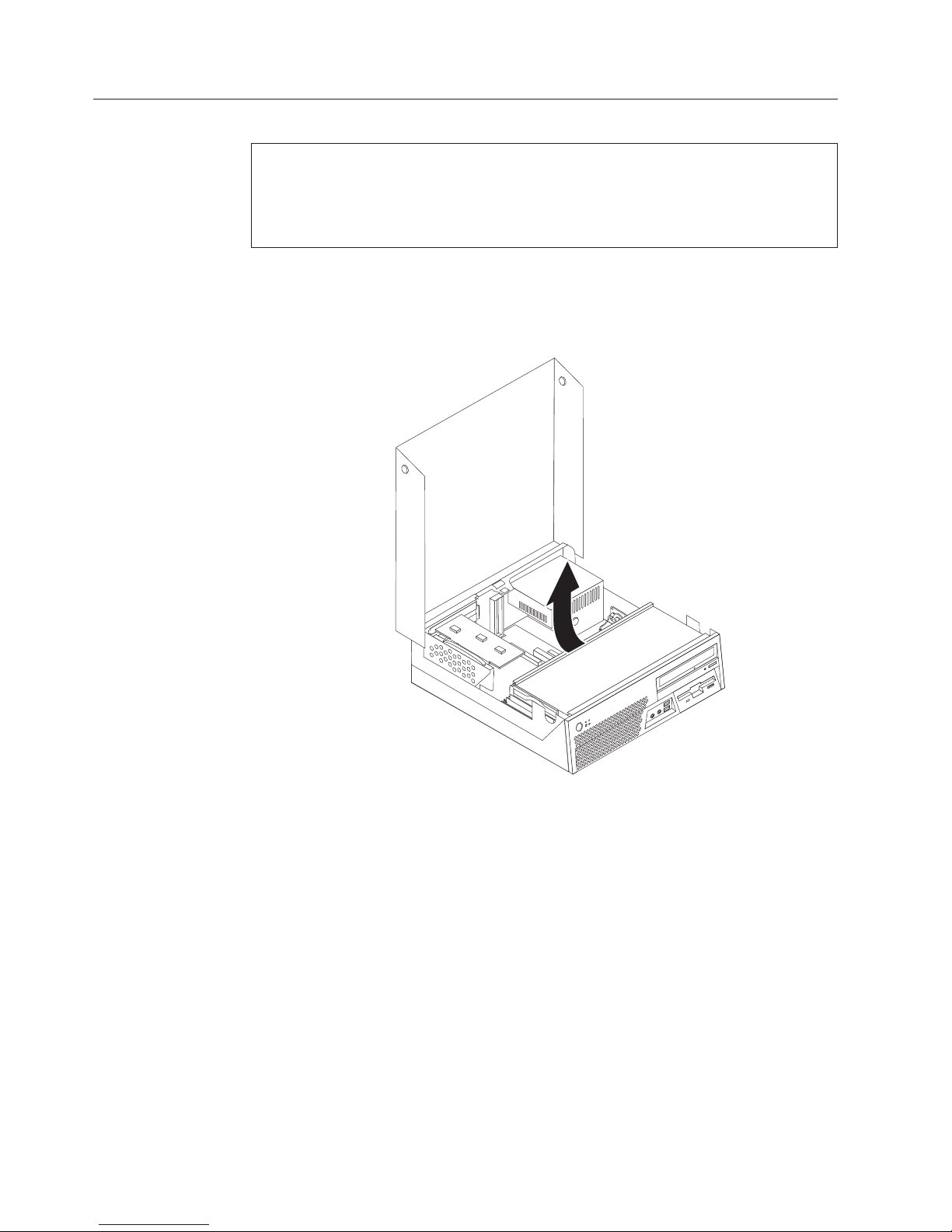

6. Press the buttons on the sides of the computer and pivot the cover upward to
open the computer as shown.
©Lenovo 2005. Portions ©IBM Corp. 2005. 5

Replacing the power supply
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Quick Reference that was included with your computer or in the
Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Quick
Reference or HMM,go to http://www.lenovo.com/think/support.
This section provides instructions on how to replace the power supply.
1. Open the computer cover. See “Opening the cover” on page 5.
2. Pivot the drive bay assembly upward to gain access to the power supply.
3. Remove the four screws at the rear of the chassis securing the power supply.
6Hardware Replacement Guide

4. Disconnect the power supply cables from the system board connectors 1 and
2 and from all drives.
5. Remove the power supply assembly from the computer.
6. Install the new power supply assembly into the chassis so that the screw holes
in the power supply assembly align with those in the chassis.
Note: Use only the screws provided by Lenovo.
7. Install and tighten the four screws at the rear of the chassis to secure the power
supply assembly.
8. Reconnect all the power supply cables to the drives and the system board.
9. Go to “Completing the parts replacement” on page 30.
Chapter 2. Replacing hardware 7

Replacing the system board
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Quick Reference that was included with your computer or in the
Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Quick
Reference or HMM,go to http://www.lenovo.com/think/support.
This section provides instructions on how to replace the system board.
1. Open the computer cover. See “Opening the cover” on page 5.
2. Pivot the drive bay assembly upward to gain access to the system board.
3. Remove the PCI riser. See “Replacing aPCI adapter” on page 25.
4. Carefully take note of the location of all cable connections on the system
board. It will be necessary to reconnect them properly when installing anew
system board.
5. Disconnect all cables connected to the system board. See “Identifying parts on
the system board” on page 4.
8Hardware Replacement Guide

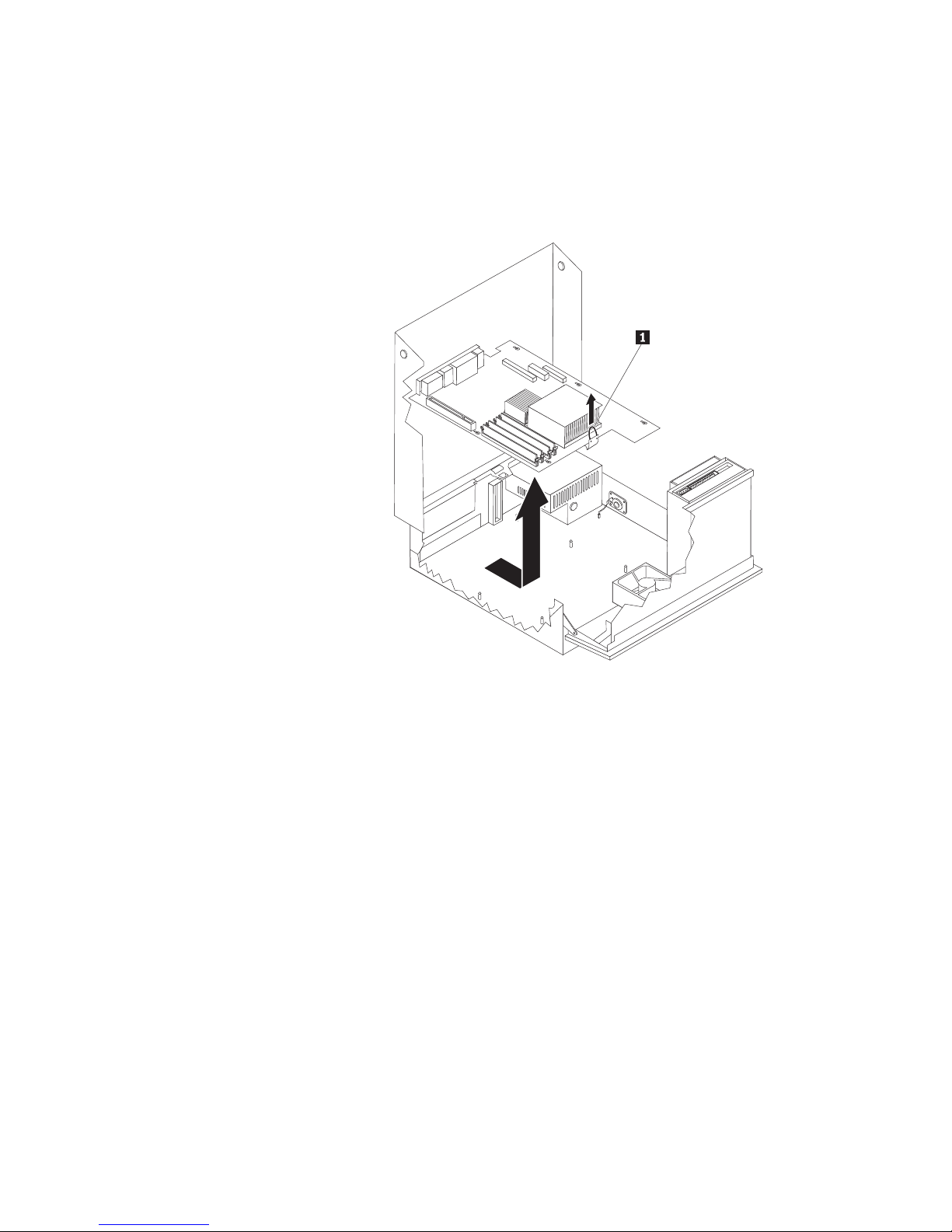

6. Pull upward on the blue handle 1 to release the system board from the front
latch, slide the system board toward the drive bay assembly, and then
carefully lift the system board out of the chassis.
Note: You might have to tilt the front end of the system board between the
diskette drive and the fan assembly to remove it completely from the
chassis.
7. Place the failing system board next to the new system board on aclean, flat
surface.
8. Remove all memory modules from the failing system board and install them
in the same connectors on the new system board. See “Replacing amemory
module” on page 23. Return here after installing the memory modules on the
new system board.
Chapter 2. Replacing hardware 9

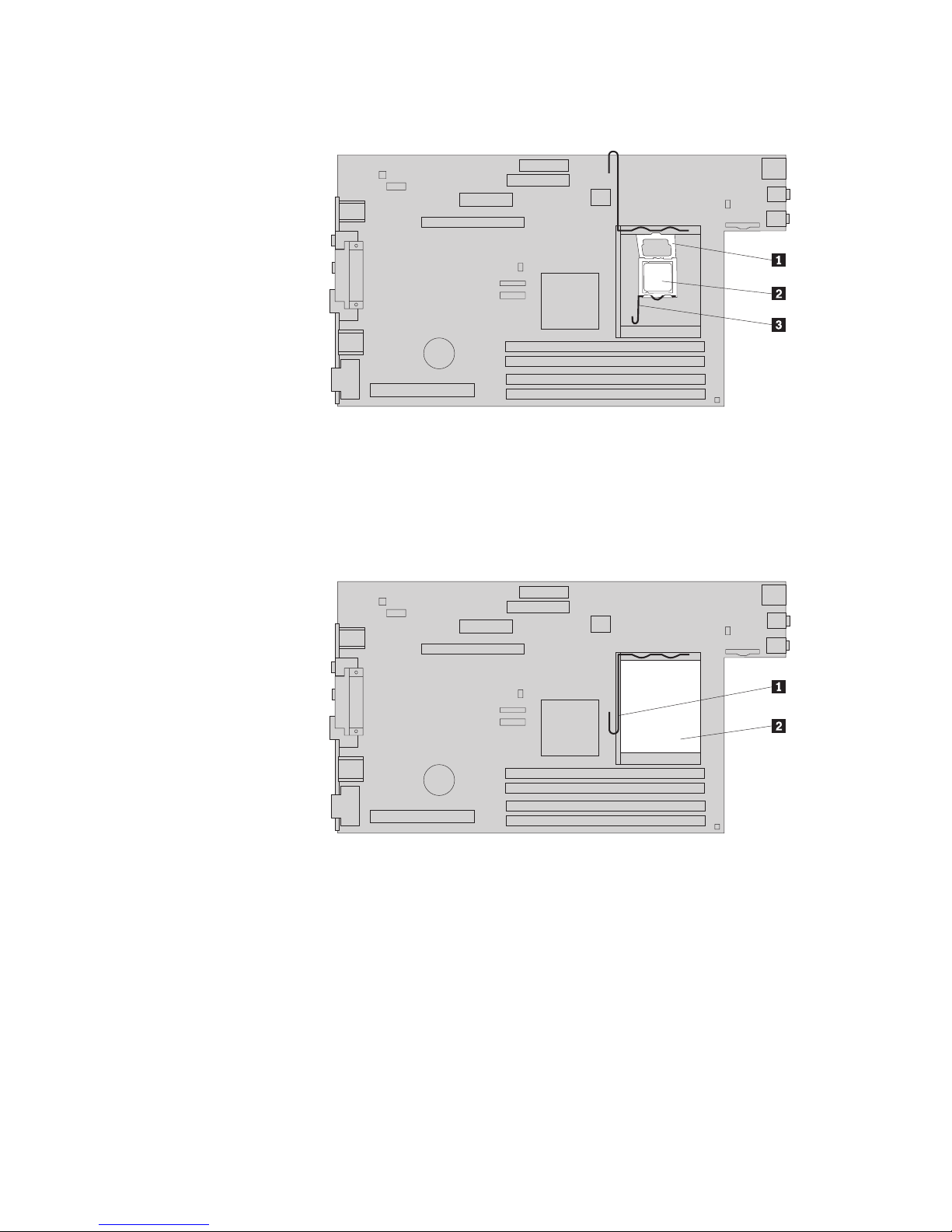

9. Remove the heat sink 2 from the failing system board by pivoting the lever
1 securing the heat sink until it is fully in the up position. Carefully lift the
heat sink off of the failing system board.
Note: Place the heat sink on its side on aclean, flat surface so the thermal
interface on the bottom of the heat sink does not touch the surface and
become contaminated.

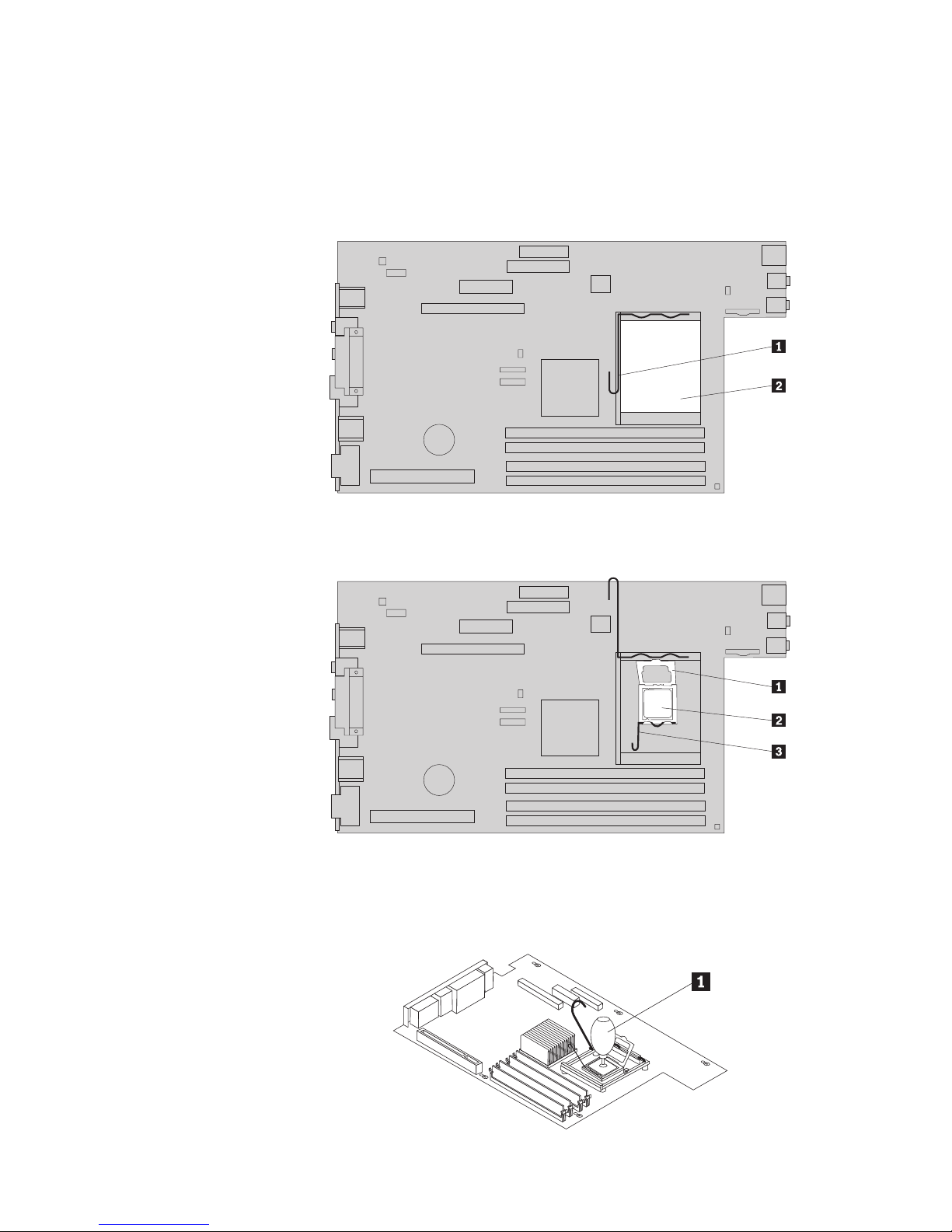

10. To remove the microprocessor from the failing system board, release the lever
3 securing the microprocessor 2 then pivot the microprocessor retainer 1
until it is fully open.
11. Use the vacuum pen 1 to remove the microprocessor from the system board
socket by lifting it out of the socket.
Note: When you are replacing afailing microprocessor, you will receive a
vacuum pen with the new microprocessor.
10 Hardware Replacement Guide

Important
Do not touch the gold contacts on the bottom of the microprocessor. If
you must touch the microprocessor, touch only the sides.
a. Take notice of the orientation of the notches 1 on the microprocessor.
This is important when installing the microprocessor on the new system
board.
b. Do not drop anything on the socket while it is open. Keep all contacts as
clean as possible.
12. On the new system board, release the lever securing the microprocessor
retainer and then pivot the retainer until it is fully open.
13. Position the microprocessor so that the notches on the microprocessor are
aligned with the tabs in the microprocessor socket.
Important
To avoid damaging the microprocessor contacts, do not tilt the
microprocessor when installing it into the socket.
14. Use the vacuum pen 1 to lower the microprocessor straight down into the
system board socket of the new system board.
Chapter 2. Replacing hardware 11

15. Lower the microprocessor retainer 1 and then lower the lever 3 to secure
the retainer. Make sure the lever is securely locked into position.
Note: There will be ablack plastic cover on the microprocessor retainer to
protect the socket on the new system board. When you lock the
microprocessor in position, remove the black plastic cover. Place the
black plastic cover on the microprocessor retainer of the failing system
board.
16. Place the heat sink 2into position and lower the lever 1 to secure the heat
sink.
17. To install the new system board into the chassis, tilt the front end of the
system board between the diskette drive and the fan assembly, and position it
so that the slots in the new system board are aligned with the pins on the
chassis.
12 Hardware Replacement Guide
