Lenovo ThinkCentre M715q Owner's manual

User Guide and Hardware Maintenance Manual
M715q
Machine Type (MT):
10M2, 10M3, 10M4, 10M5
Energy Star MT:
10M2, 10M3, 10M4, 10M5
1

Contents
Overview
Front view 3
Rear view 4
System board 6
Machine type and model label 7
Locking the computer 8
Specifications 9
Replacing hardware
Before replacing hardware 10
Handling static-sensitive devices 11
Understanding replaceable parts 12
Replacing customer-replaceable units (CRUs)
Before replacing CRUs 13
Replacing CRUs

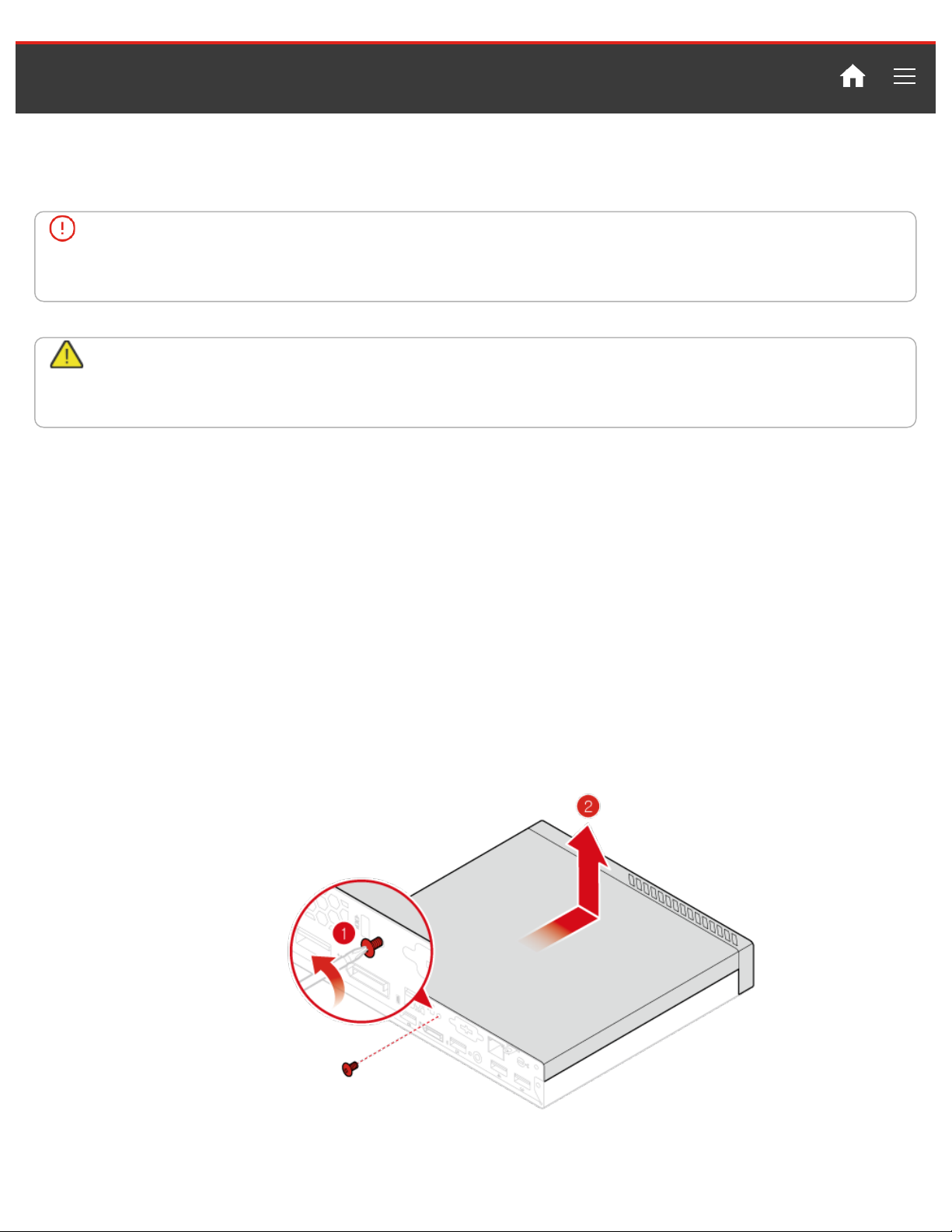

Removing the computer cover 17
Power adapter 18

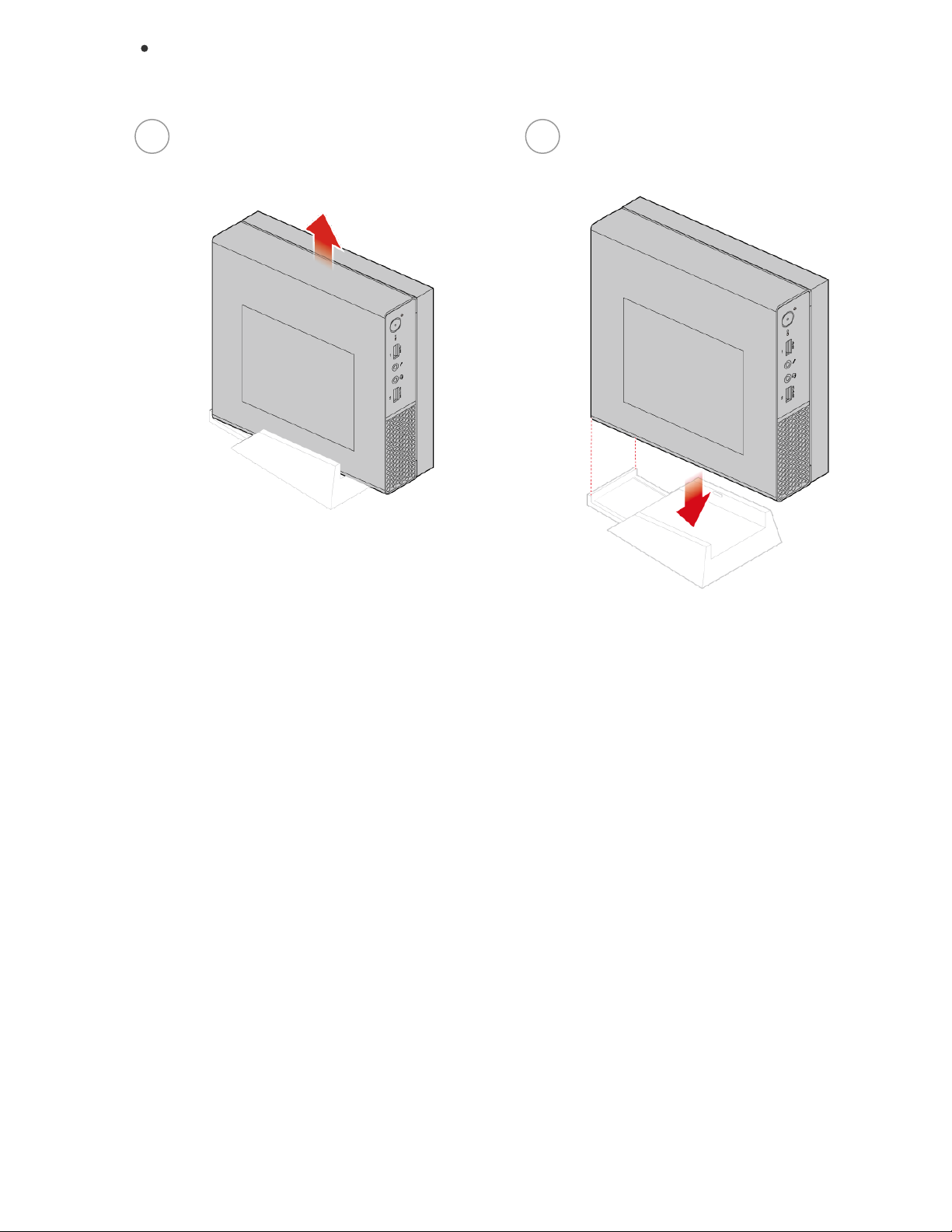

Vertical stand 19
VESA mount bracket 21
External optical drive 22
I/O box 24
Power adapter bracket 25
Internal speaker 27
Mouse 29
Keyboard 31
System fan 32
2.5-inch storage drive 33
M.2 Storage drive 35
Memory module 37
Coin-cell battery 39
Wi-Fi card 41
Completing the parts replacement 45
Replacing field-replaceable units (FRUs)
Before replacing FRUs 47
Replacing FRUs
Internal speaker holder 48
Heat sink 49
Microprocessor 51
Front Wi-Fi antenna 54
Rear Wi-Fi antenna 56
System board 57
Completing the parts replacement 59
Notices & Trademarks 61
2

Overview
Front view
Note
Your computer model might look slightly different from the illustration.
1 Power button
Used to turn on your computer. You also can use the power button to turn off
your computer when you cannot use the Microsoft® Windows® shutdown
procedure normally to turn off your computer.
2 Storage drive status indicator
This indicator is on when the storage drive is in use.
3 USB 3.0 connector
Used to connect a device, such as a keyboard, mouse, scanner, printer, or
PDA, that requires a USB 2.0 or USB 3.0 connection.
4 Microphone connector
4
Used to connect a microphone to your computer. You can use the microphone
to record sounds or use speech-recognition software.
5Headset connector
Used to connect a headset or headphones to your computer.
6Always On USB 3.0 connector
Used to connect a device that requires a USB 2.0 or USB 3.0 connection, such
as a keyboard, a mouse, a scanner, a printer, or a personal digital assistant
(PDA). With the power adapter connected, you can charge the automatically
detected device even when the computer is in hibernation mode or turned off. If
the Always On USB connector function is not enabled, open the Power
Manager program and enable the function. To open the Power Manager
program, see “Accessing a program on the computer” on page 38. To enable
the Always On USB connector, refer to the help system of the Power Manager
program.
© Copyright Lenovo 2016.
3
4

Overview
Rear view
Note
Your computer model might look slightly different from the illustration.
7Wi-Fi antenna slot
Used to install the rear Wi-Fi antenna cable connector that is optional. The rear
Wi-Fi antenna is installed on the rear Wi-Fi antenna cable connector.
8Padlock loop
Used to secure a padlock.
9Ethernet connector
Used to connect an Ethernet cable for a LAN.
10 Optional connector (optional)
Optional connector, depending on your computer model.
11 Security-lock slot
Used to secure a Kensington-style cable lock.
12 Power adapter connector
Used to connect the power adapter to your computer for power supply.
13 DisplayPort® connector
Used to send or receive audio and video signals. An audio or video device,
such as a high-performance monitor, can be attached to this connector.
14 USB 3.0 connector
Used to connect a device, such as a keyboard, mouse, scanner, printer, or
PDA, that requires a USB 2.0 or USB 3.0 connection.
15 DisplayPort® connector
Used to send or receive audio and video signals. An audio or video device,
such as a high-performance monitor, can be attached to this connector.
4

16 USB 2.0 connector
Used to connect a device, such as a keyboard, mouse, scanner, printer, or PDA,
that requires a USB 2.0 connection. This USB 2.0 connector supports the smart
power on feature that enables you to turn on the computer or wake it up
from S4 hibernation mode by pressing Alt+P on the keyboard. You can enable
or disable the smart power on feature from the Setup Utility program.
17 Headphone connector
Used to connect headphones to your computer.
18 USB 2.0 connector
Used to connect a device, such as a keyboard, mouse, scanner, printer, or
PDA, that requires a USB 2.0 connection.
19 USB 2.0 connector
Used to connect a device, such as a keyboard, mouse, scanner, printer, or
PDA, that requires a USB 2.0 connection.
© Copyright Lenovo 2016.
5

Overview
System board
Note
See Front view or Rear view for additional component descriptions.
1M.2 Wi-Fi card slot
2Coin-cell battery
3SATA 3.0 storage drive connector
4System fan connector
5Optional serial connector
6Optional display connector
7M.2 storage drive slot
8Microprocessor socket
9Thermal sensor
Cover presence switch connector (Intrusion switch
10 connector)
11 Internal speaker connector
12 Memory slot (DIMM 1)
13 Memory slot (DIMM 2)
6

Overview
Machine type and model label
The machine type and model label identifies the computer. When you
contact Lenovo for help, the machine type and model information helps
support technicians to identify the computer and provide faster service.
The machine type and model label is attached on the side of the
computer as shown.
© Copyright Lenovo 2016.
7

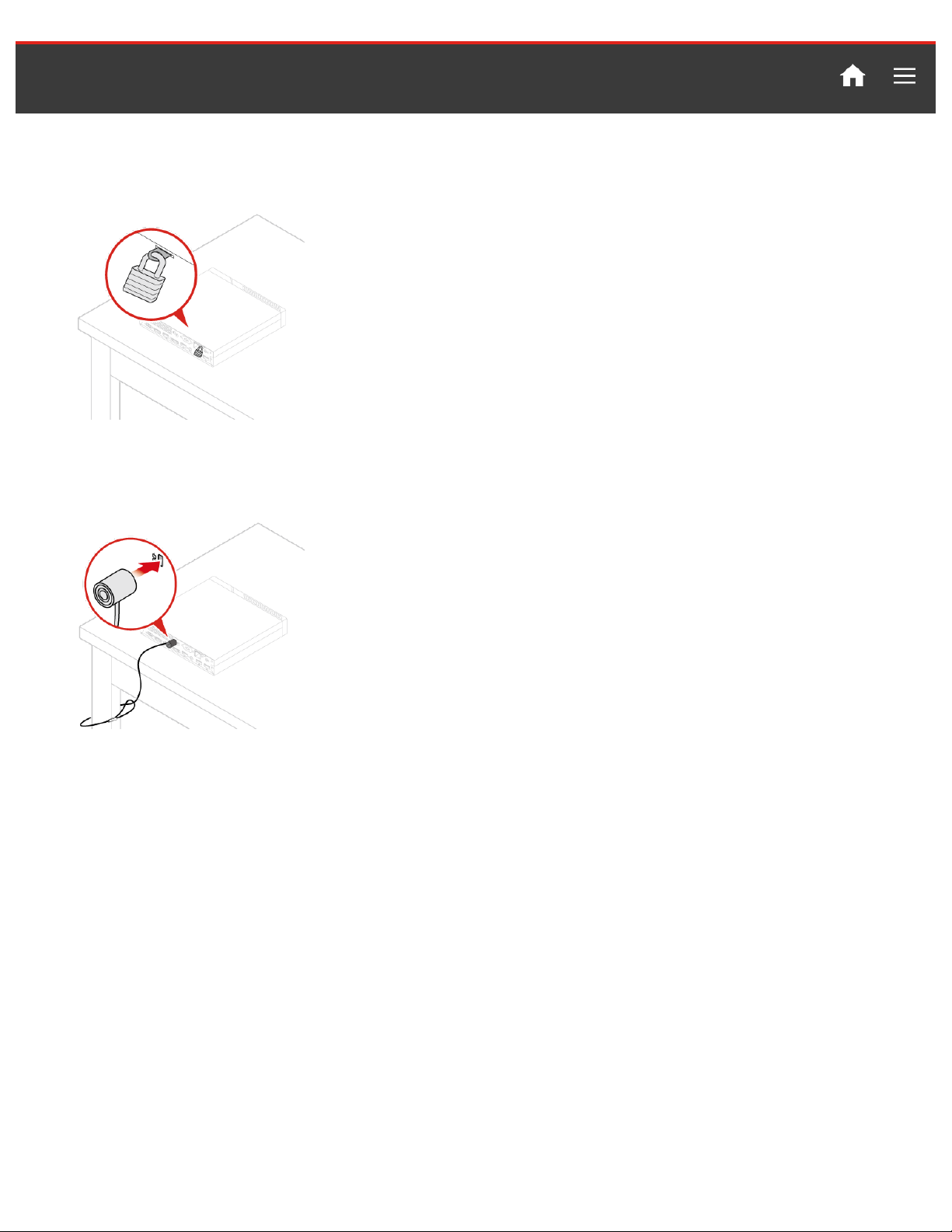

Locking the computer
Locking the computer cover
Locking the computer cover helps prevent unauthorized access to the
inside of your computer. Your computer features a padlock loop so that
the computer cover cannot be removed when a padlock is installed.
Attaching a Kensington-style cable lock
You can use a Kensington-style cable lock to secure your computer to
a desk, table, or other nonpermanent fixture. The cable lock connects
to the security-lock slot at the rear of your computer. Depending on the
type selected, the cable lock can be operated with a key or
combination. The cable lock also locks the buttons used to open the
computer cover. This is the same type of lock used with many
notebook computers. You can order such a cable lock directly from
Lenovo by searching for Kensington at:
http://www.lenovo.com/support.
8

Specifications
Specifications
Power supply 65-watt power adapter
90-watt power adapter
Storage drives Up to two storage drives
Video features The integrated graphics card supports the following:
DisplayPort connectors
VGA connector (optional)
Audio features The integrated audio card supports the following:
Headphone connector
Headset connector
Internal speaker
Microphone connector
Input/Output (I/O) Audio connectors (headphone connector, headset connector, and
features microphone connector)
Display connectors (DisplayPort connectors and VGA connector (optional)
Ethernet connector
Serial connector (optional)
USB connectors
Expansion External optical drive box (optional)
Memory slots
Storage drive bay
Network features Ethernet LAN
Wireless LAN (optional)
Bluetooth (optional)
Physical dimensions Width: 35 mm (1.4 inches)
Height: 179 mm (7.0 inches)
Depth: 183 mm (7.2 inches)
Weight (without the Maximum configuration as shipped: 1.3kg (2.9 lb)
package)
© Copyright Lenovo 2016.
9

Replacing hardware
Before replacing hardware
Attention
Do not open your computer or attempt any repairs before reading the Important Product Information
Guide.
Read these notes before replacing hardware:
Some of the hardware components explained in this manual are optional.
Use computer components provided only by Lenovo.
When installing or replacing an option, use the appropriate instructions explained in this manual along
with the instructions that come with the option.
In most areas of the world, Lenovo requires the return of defective CRUs (Customer Replaceable
Units). Information about this will come with the CRU or will come a few days after the CRU arrives.
10

Replacing hardware
Handling static-sensitive devices
Do not open the static-protective package containing the new component until the defective
component has been removed and you are ready to install the new component. Static electricity,
although harmless to you, can seriously damage computer components.
When you handle parts and other computer components, take these precautions to avoid static
damage:
Limit your movement. Movement can cause static electricity to build up around you.
Always handle parts and other computer components carefully. Handle PCI/PCI-Express cards,
memory modules, system boards, and microprocessors by the edges. Never touch any exposed
circuitry.
Prevent others from touching the parts and other computer components.
Touch the static-protective package containing the part to a metal expansion-slot cover or other
unpainted metal surface on the computer for at least two seconds. This reduces static electricity from
the package and your body before you install or replace a new part.
When possible, remove the new part from the static-protective package, and install it directly in the
computer without setting the part down. When this is not possible, place the static-protective package
that the part came in on a smooth, level surface and place the part on the package.
Do not place the part on the computer cover or other metal surface.
© Copyright Lenovo 2016.
11

Replacing hardware
Understanding replaceable parts
Customer-Replaceable Units (CRUs)
CRUs are computer parts that a user can upgrade or replace. There are two types of CRUs: self-
service and optional-service.
Self-service CRUs You can install self-service CRUs easily. These CRUs might be standalone,
latched, or secured by up to two screws.
Examples of self-service CRUs include the keyboard, mouse, any USB device,
and the power cord. Other self-service CRUs might include memory modules,
adapter cards, hard disk drives, and optical drives.
Note
Users are responsible for replacing all self-service CRUs.
Optional-service CRUs Handling optional-service CRUs requires some technical skills and simple tools
(such as a screwdriver).
These CRUs are isolated parts within the computer. They are usually concealed
by an access panel that is secured by more than two screws. You must remove
the screws and panel to access the specific CRU.
Optional-service CRUs can be removed and installed by users or, during the
warranty period, by a Lenovo service technician.
Field-Replaceable Units (FRUs)
FRUs are computer parts that a trained technician can upgrade or replace.
For detailed FRU information, such as the FRU part numbers and supported computer models, go
to:
http:/www.lenovo.com/serviceparts-lookup

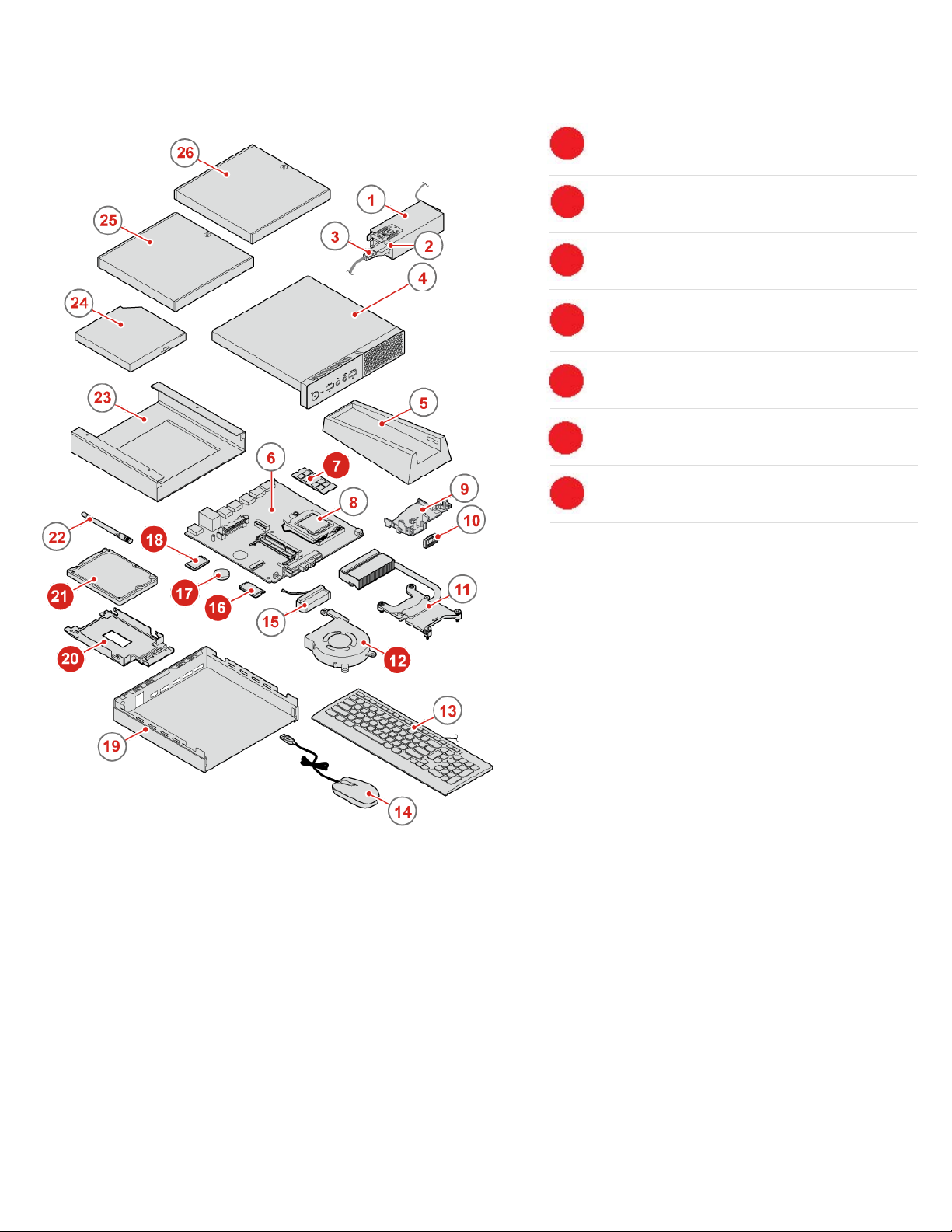

CRUs and FRUs locations
Refer to the following illustrations to check the locations of CRUs and FRUs within the computer.
Note
Some of the following parts are optional on some models.
12

Self-service CRUs
1Power adapter bracket
2
2
2 Power adapter
3
3Power cord
4
4 Computer cover
5
5 Vertical stand
10 Internal speaker
13 Keyboard
14
14 Mouse
23 VESA® mount bracket
24 External optical drive
26 I/O box
25 External optical drive box
23
© Copyright Lenovo 2016.
13
2
3
4
5

Optional-service CRUs
7Memory module
12 System fan
16 Wi-Fi card
17 Coin-cell battery
18 M.2 storage drive
21 Storage drive bracket
22 2.5-inch storage drive
14

FRUs
© Copyright Lenovo 2016.
15
6System board
8Microprocessor
9Internal speaker holder
11 Heat sink
15 Front Wi-Fi antenna
19 Chassis
22 Rear Wi-Fi antenna

Replacing customer-replaceable units (CRUs)
Before replacing CRUs
Customer Replaceable Units (CRUs) are computer parts that a user can upgrade or replace. There
are two types of CRUs: self-service and optional-service.
Attention
Do not open your computer or attempt any repairs before reading the Important Product Information
Guide.
The following is a listing of self-service and optional-service CRU replacement procedures.
Self-service CRU procedures:
Removing the computer cover 17
Replacing the power adapter 18
Replacing the vertical stand 19
Replacing the VESA mount bracket 21
Replacing the external optical drive 22
Replacing the I/O box 24
Replacing the power-adapter bracket 25
Replacing the internal speaker 27
Replacing the mouse 29
Replacing the keyboard 31
Optional-service CRU procedures:
Replacing the system fan 32
Replacing the 2.5-inch storage drive 33
Replacing the M.2 storage drive 35
Replacing a memory module 37
Replacing the coin-cell battery 39
Replacing the Wi-Fi card 41
Note
To replace a component that is not in the list above, contact a Lenovo service technician. The support
phone numbers are available at: http://www.lenovo.com/support/phone
16

Replacing CRUs
Removing the computer cover
Attention
Do not open your computer or attempt any repairs before reading the Important Product Information
Guide.
Caution
Before you open the computer cover, turn off the computer and wait several minutes until the computer
is cool.
1Remove any media from the drives and turn off all connected devices and the computer. Then,
disconnect all power cords from electrical outlets and disconnect all cables that are connected
to the computer.
2Hold the sides of your computer and gently lay it down so that the computer cover is facing up.
3Unlock any locking device that secures the computer cover.
4Remove the computer cover.
© Copyright Lenovo 2016.
17

Replacing CRUs
Replacing the power adapter
Attention
Do not open your computer or attempt any repairs before reading the Important Product Information
Guide.
1Remove any media from the drives and turn off all connected devices and the computer. Then,
disconnect all power cords from electrical outlets and disconnect all cables that are connected
to the computer.
2If the power adapter bracket is available, remove the power adapter bracket. See Replacing
the power adapter bracket.
3Replace the power adapter.
1 2
4If the power adapter bracket is available, install the power adapter bracket. See Replacing the
power adapter bracket.
18

Replacing CRUs
Replacing the vertical stand
Attention
Do not open your computer or attempt any repairs before reading the Important Product Information
Guide.
1Remove any media from the drives and turn off all connected devices and the computer. Then,
disconnect all power cords from electrical outlets and disconnect all cables that are connected
to the computer.
2Replace the vertical stand.
Type1
1 2
© Copyright Lenovo 2016.
19

Type2
1 2
20
