Chapter 1. Getting to know your computer
Top view ---------------------------------------------------------------------------------------------------------------------------
Y400
Note: The illustrations in this manual may differ from the actual product. Please refer to the actual product.
Attention:
•Do NOT open the display panel beyond 130 degrees. When closing the display panel, be careful NOT to
leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display
panel may be damaged.
d
f
e
abb
c


2
Chapter 1. Getting to know your computer
Y500
Integrated camera Use the camera for video communication.
Built-in microphone
(with noise reduction)
Captures sound which can be used for video conferencing, voice narration,
or audio recording.
Computer display Provides brilliant visual output.
Power button Press this button to turn on the computer.
JBL speakers Provide audio output.
a
d
c
f
e
b b
g
a
b
c
d
e

Chapter 1. Getting to know your computer
3
Touchpad The touchpad functions as a conventional mouse.
One Piece multi-touch clickpad: To move the cursor on the screen, slide
your fingertip over the pad in the direction in which you want the cursor
to move.
Left-click area: The function corresponds to that of the left mouse button
on a conventional mouse, which can be implemented by clicking this area.
Right-click area: The function corresponds to that of the right mouse
button on a conventional mouse, which can be implemented by clicking
this area.
Note: You can enable/disable the touchpad using Fn + .
Numeric keypad
(Y500)
For details, see “Using the keyboard” on page 4.
f
g

4
Chapter 1. Getting to know your computer
Using the keyboard
Your computer has a numeric keypad and function keys incorporated in its standard keyboard.
Numeric keypad
Y500
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press
the Num Lock key.

Chapter 1. Getting to know your computer
5
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
Y400
Y500
a b
b
a
b
a

6
Chapter 1. Getting to know your computer
The following describes the features of each function key.
Fn + Esc: Cancel hotkey.
Fn + F1: Enter sleep mode.
Fn + F2: Turn on/off the backlight of the LCD screen.
Fn + F3: Open the interface for selecting display options.
Fn + F5: Toggle airplane mode on/off.
Fn + F6: Enable/Disable the touchpad.
Fn + F9: Open Settings charm.
Fn + F10: Open Search charm.
Fn + F11: View current Apps.
Fn + F12: View all Apps.
Fn + PrtSc: Activate the system request.
Fn + Insert (Y500):
Fn + PgUp (Y400): Enable/Disable the scroll lock.
Fn + Home: Activate the pause function.
Fn + End: Activate the break function.
Fn + PgDn (Y400): Activate the insert function.
Fn + ↑ /↓:Increase/Decrease display brightness.
Fn + → /←:Increase/Decrease sound volume.
Fn + Space
(on select models): Turn on/off the keyboard backlight.

Chapter 1. Getting to know your computer
7

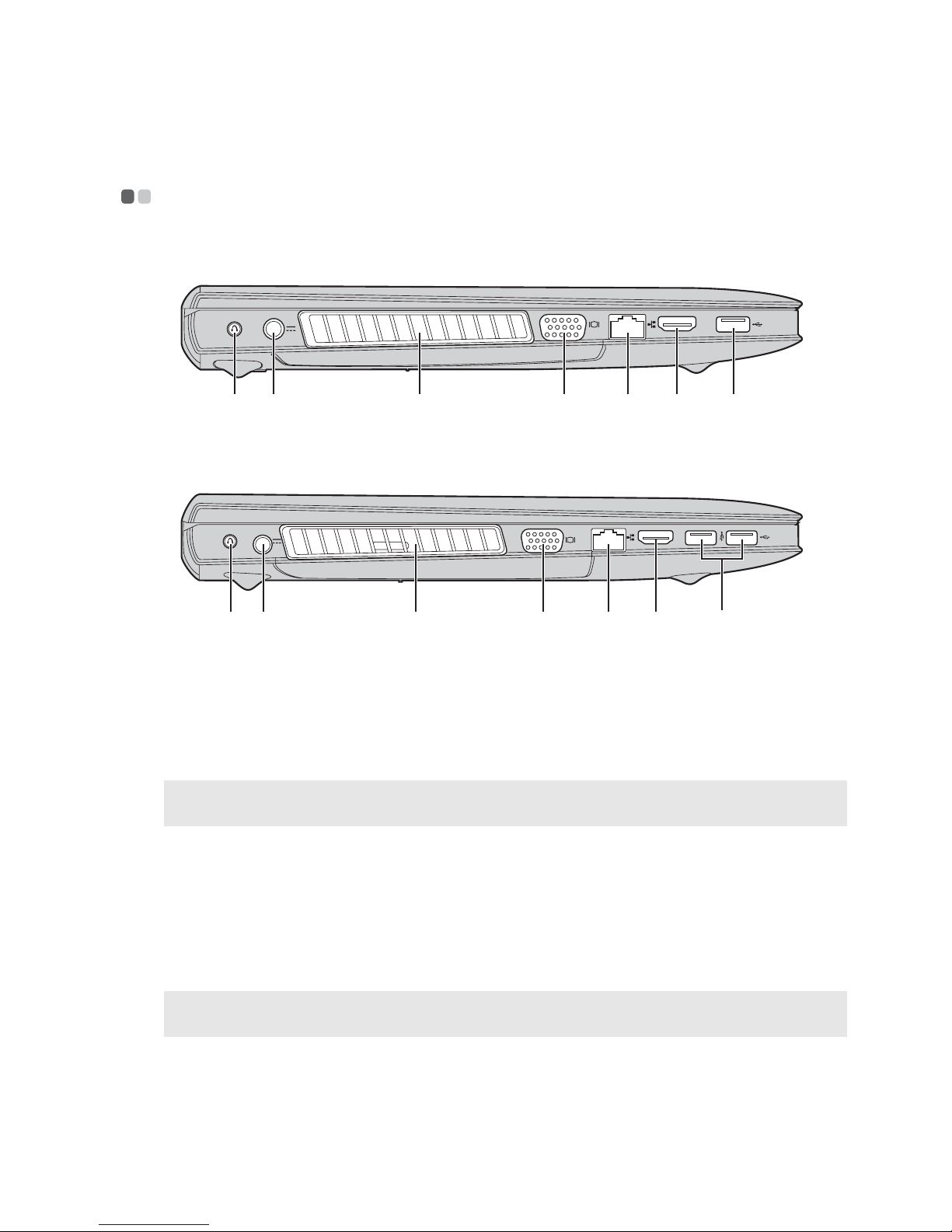

Left-side view --------------------------------------------------------------------------------------------------------------
Y400
Y500
Novo button When the computer is off, press this button to start the Lenovo OneKey
Recovery system or the BIOS setup utility, or to enter the boot menu.
AC power adapter
jack
Connect the AC adapter here.
Ventilation slots Dissipate internal heat.
Note: Make sure that none of the ventilation slots are blocked or else overheating of the computer may
occur.
VGA port Connects to external display devices.
RJ-45 port Connects the computer to an Ethernet network.
HDMI port Connects to devices with HDMI input such as a TV or a display.
USB port Connects to USB devices.
Note:
•The blue port supports USB 3.0.
a b
c d
e f g
a b
c
d e f g
a
b
c
d
e
f
g

8
Chapter 1. Getting to know your computer
Connecting USB devices

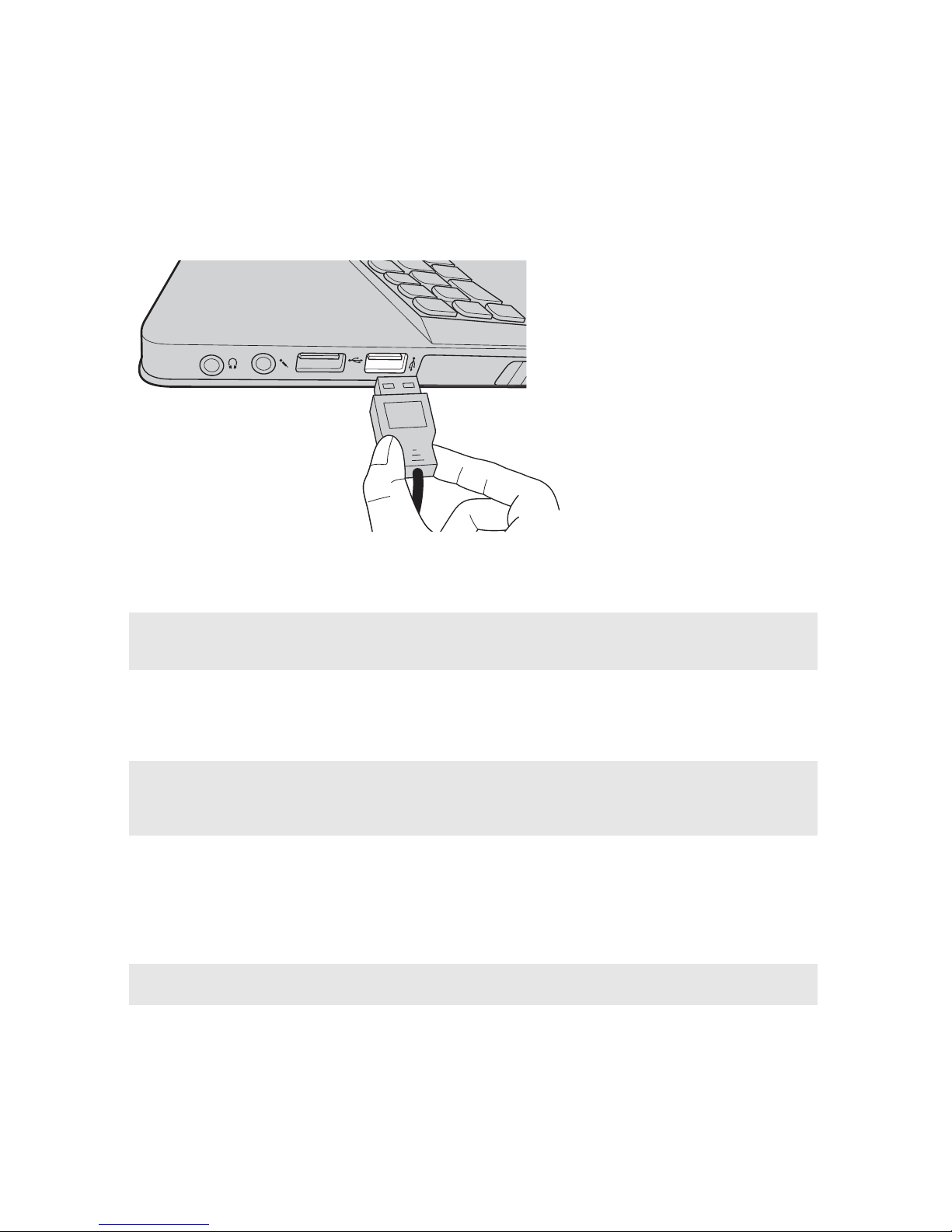

You can connect a USB device to your computer by inserting its USB plug (Type A) into the USB
port on your computer.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver is installed, you can disconnect
and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data by that device. Click the Safely Remove Hardware and Eject Media icon in the notification
area of Windows to remove the device before disconnecting.
Connecting a Bluetooth device
If your computer has an integrated Bluetooth adapter card, it can connect to and transfer data
wirelessly to other Bluetooth enabled devices, such as notebook computers, PDAs and cell
phones. You can transfer data between these devices up to 10 meters range in open space.
Note: Typically, Windows detects a new device after connecting it, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting.
Check the documentation provided by the device’s manufacturer before connecting the device.
Note:
•If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.
•When in sleep mode, you can only use keyboard instead of mouse to wake up the computer.
Note: The actual maximum range may vary due to interference and transmission barriers. For best
transfer speed, place the device as near your computer as possible.

Chapter 1. Getting to know your computer
9
Enabling Bluetooth and WLAN communications on your computer
Press Fn + to make configuration.
Note:
•When you do not need to use the Bluetooth function, turn it off to save battery power.
•You need to pair the Bluetooth enabled device with your computer before you can transfer data between
them. Read the documentation supplied with the Bluetooth enabled device for details on how to pair the
device with your computer.

10
Chapter 1. Getting to know your computer
Right-side view ----------------------------------------------------------------------------------------------------------
Y400
a b c c e
4-1
a b
c
e
4-2
c
a b
c
e
4-3
c
a b c c e
4-4

Chapter 1. Getting to know your computer
11
Y500
Headphone jack Connects to external headphones.
Attention:
•Listening to music at high volume over extended periods of time may damage your hearing.
Microphone jack Connects to external microphones.
a b c e
4-1
a b
c
e
4-2
a b
c
e
4-3
a b c e
4-4
a

b

12
Chapter 1. Getting to know your computer
USB port Connects to USB devices.
Note:
•The yellow port supports USB 2.0.
•For details, see “Connecting USB devices” on page 8.
•When powered off, the port can charge most currently available external USB devices. Support of
future USB devices cannot be guaranteed.
•The USB-always-on function (enabled in BIOS Setup Utility) is available only when the battery or
AC adapter powers the computer. If an external USB device cannot be charged, connect the AC
adapter to activate.

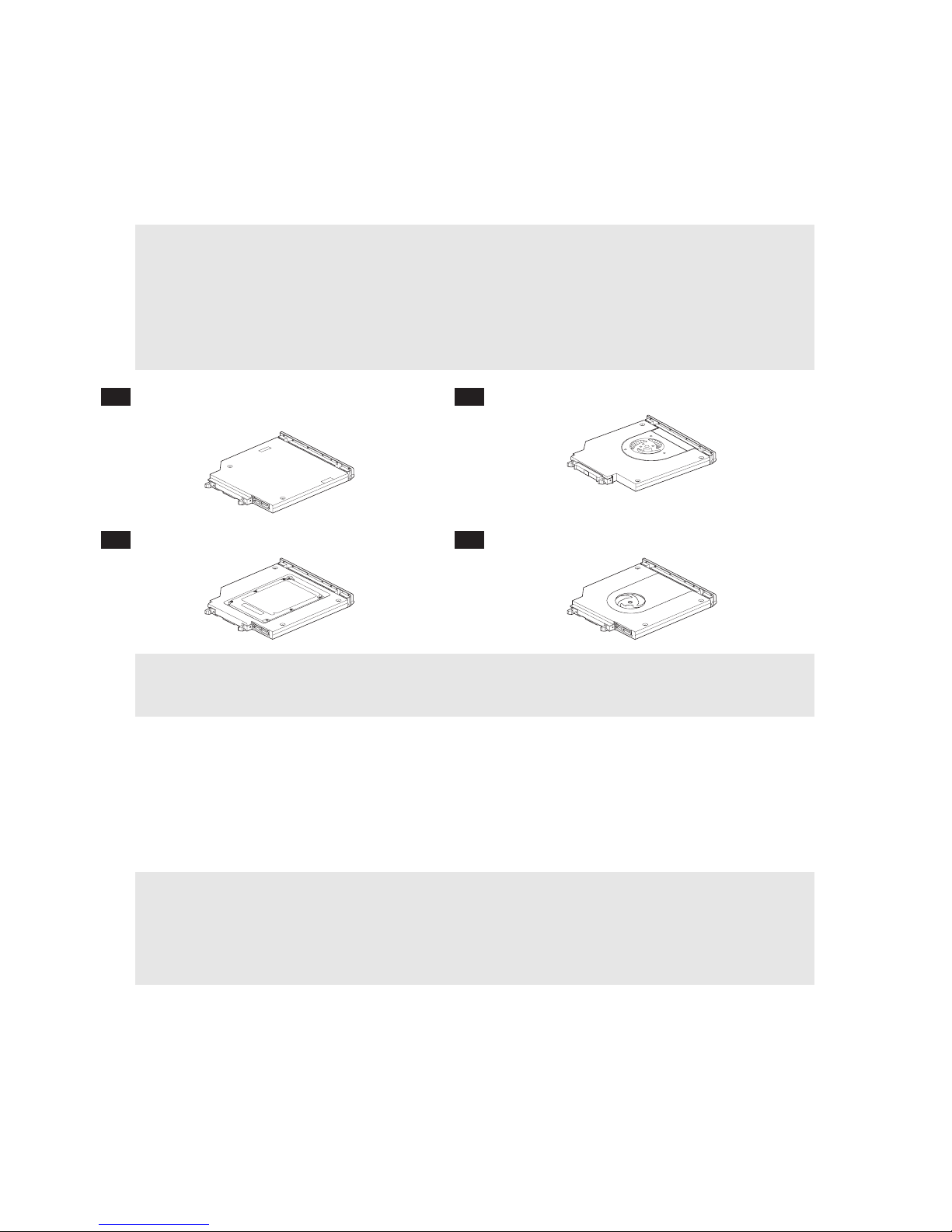

Removable optical drive (Optional)
Reads/Burns optical discs.
Removable graphics (Optional)
Removable HDD (Optional) Removable fan (Optional)
Note:
•Y400 is supplied with ODD, dummy ODD.
•Y500 is supplied with ODD, dummy ODD or removable graphics.
Kensington slot Attach a security lock (not supplied) here to help
protect your computer from theft and unauthorized
use.
You can attach a security lock to your computer to help
prevent it from being removed without your
permission. For details on installing the security lock,
please refer to the instructions shipped with the
security lock that you have purchased.
Note:
•Before purchasing any security product, verify that it is compatible with this type of security
keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and security
features. Lenovo offers no comment judgment or warranty regarding the function, quality or
performance of locking devices and security features.
c
4-1 4-2
4-34-4
e

Chapter 1. Getting to know your computer
13
Front view -----------------------------------------------------------------------------------------------------------------------
Y400
Y500
System status
indicators
Power indicator
Battery status indicator
Touchpad indicator
Caps lock indicator
Num lock indicator
Memory card slot Insert memory cards (not supplied) here.
b
a
b
a
a
b

14
Chapter 1. Getting to know your computer
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital PRO (SD PRO) card
• MultiMediaCard (MMC)
• Memory Stick (MS)
• Memory Stick PRO (MS PRO)
• xD-Picture (xD) card
Inserting a memory card
1 Push the dummy card in until you hear a click. Then gently pull the dummy card out of the
memory card slot.
2 Slide the memory card in until it clicks into place.
Removing a memory card
1 Push the memory card in until you hear a click.
2 Gently pull the memory card out of the memory card slot.
Note:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: The dummy card is used for preventing dust and small particles from entering the inside of your
computer when the memory card slot is not in use. Retain the dummy card for future use.
Note: Before removing the memory card, disable it by Windows safely remove hardware and eject media
utility to avoid data corruption.

Chapter 1. Getting to know your computer
15

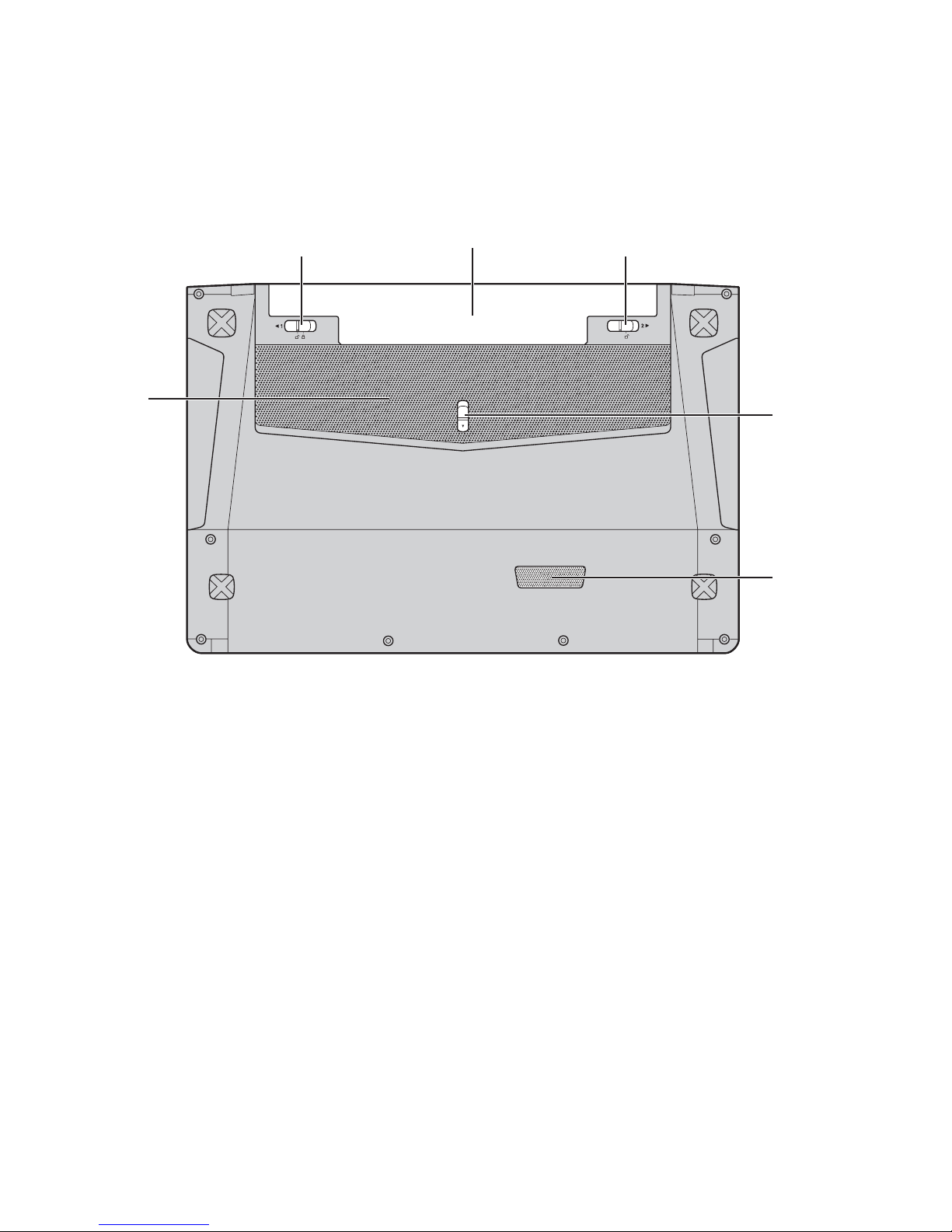

Bottom view ------------------------------------------------------------------------------------------------------------------
Y400
Battery latch - manual The manual battery latch is used to keep the battery pack secured in place.
Battery pack
Battery latch - spring
loaded
The spring-loaded battery latch keeps the battery pack secured in place.
Removable module
lock
Louvers Allow air to enter the computer for cooling.
b
e
a c
d
e
a
b
c
d
e

16
Chapter 1. Getting to know your computer
Y500
Battery latch - manual The manual battery latch is used to keep the battery pack secured in place.
Battery pack
Battery latch - spring
loaded
The spring-loaded battery latch keeps the battery pack secured in place.
Removable module
lock
Louvers Allow air to enter the computer for cooling.
b
e
a c
d
e
a
b
c
d
e
