Chapter 1. Getting to know your computer
Top view ---------------------------------------------------------------------------------------------------
Note: The dashed areas indicate parts that are not visible externally.
Attention:
•When closing the display panel, be careful not to leave pens or any other objects in
between the display panel and the keyboard. Otherwise, the display panel may be
damaged.
a
b
e
d
c
f


2

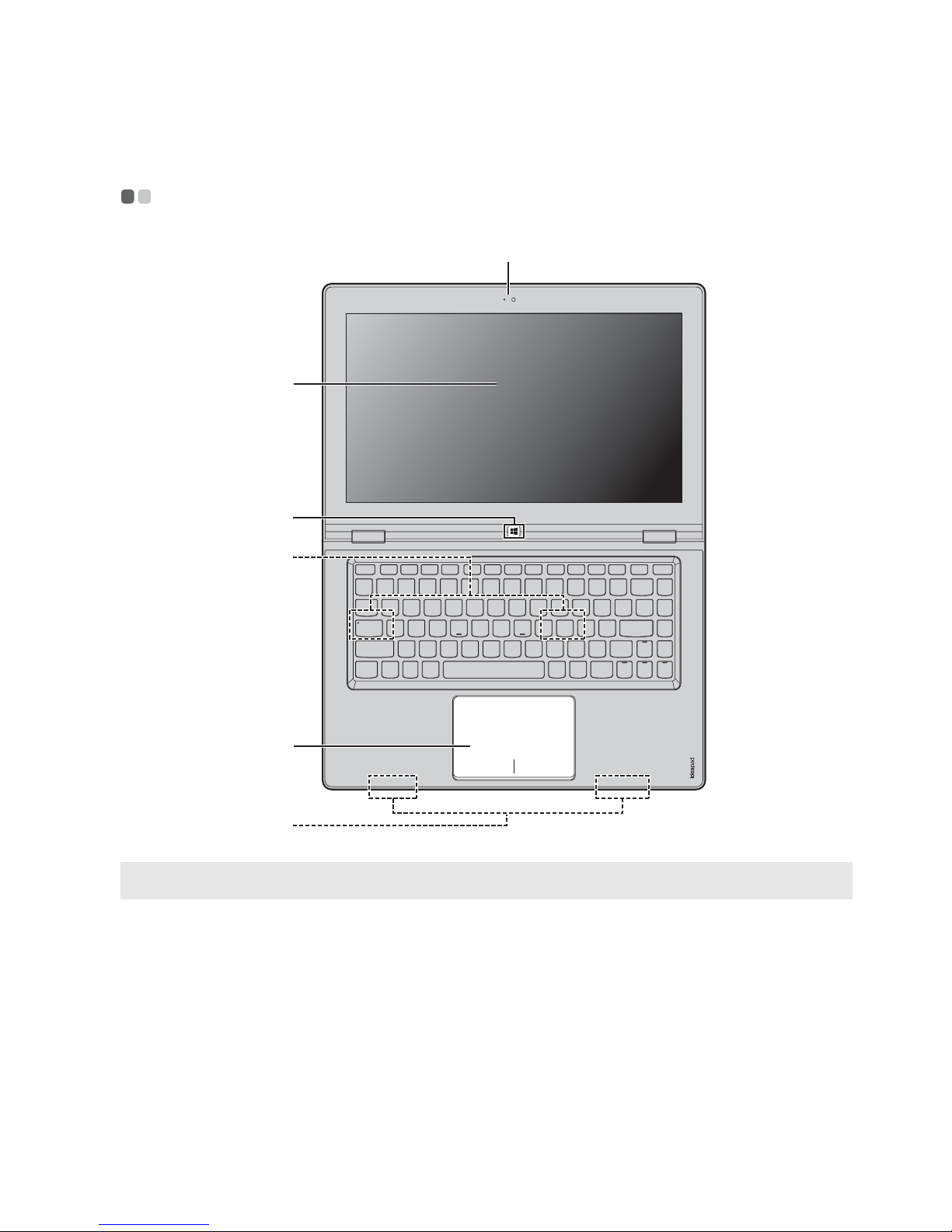

Chapter 1. Getting to know your computer
Integrated
camera
Use the camera for video communication.
Multi-touch
display
The LCD display with LED backlight provides brilliant
visual output. Multi-touch function is available on this
display.
Windows button Press this button to:
• Toggle between the current view and the Start screen.
Or
• Wake up the computer from sleep mode.
Speaker Provides audio output.
Touchpad The touchpad functions as a conventional mouse.
Touchpad To move the cursor on the screen, slide your
fingertip over the pad in the direction in which you want
the cursor to move.
Touchpad buttons The functions of the left/right side
correspond to that of the left/right mouse button on a
conventional mouse.
Note: You can enable/disable the touchpad by pressing .
Wireless LAN
antennas
Connect to the wireless LAN adapter to receive and send
wireless radio.
a
b
c
d
e
f

Chapter 1. Getting to know your computer
3

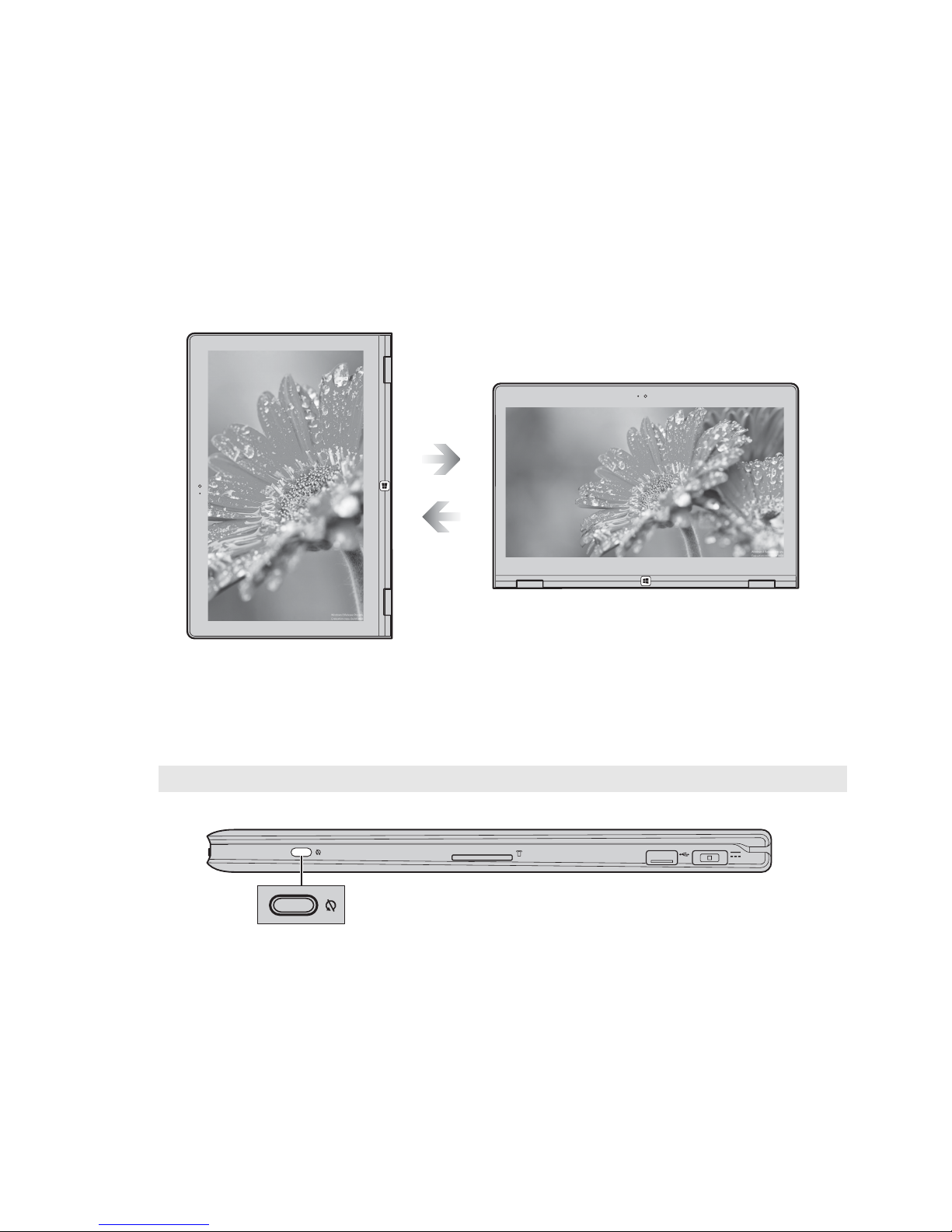

Screen orientation
You can rotate the display panel to your preferred orientation.
• The orientation of the display automatically changes (alternating between
portrait and landscape modes) depending upon how you hold the
computer.
• To prevent automatic orientation, press the screen rotation lock button. It is
located on the right edge of the computer. (See below illustration).
Note: The screen rotation lock button will be disabled in notebook mode.
Portrait
Landscape

4
Chapter 1. Getting to know your computer
Keyboard function keys
You can access certain system settings quickly by pressing the appropriate
function keys.
: Mutes/unmutes the sound. : Enables/disables Airplane
mode.
: Decreases the volume level. : Displays all currently active
apps.
: Increases the volume level. : Turns on/off the backlight of
the LCD screen.
: Closes the currently active
window. :
Opens the interface for the
display device switch to
select this notebook or an
external display.
: Refreshes the desktop or the
currently active window. : Decreases display brightness.
: Enables/disables the
touchpad. : Increases display brightness.

Chapter 1. Getting to know your computer
5
The display brightness changes with the ambient light. If you want to adjust
the brightness manually, turn off the option of Adjust my screen brightness
automatically.
To turn off this option:
1 Open the charms, select Settings →Change PC settings →General.
2 Move the slider from On to Off in the Adjust my screen brightness
automatically in Screen.
Note: For details on how to open the charms, see “The charms” on page16.

6
Chapter 1. Getting to know your computer
Positioning the display panel
The display panel can be opened to any angle up to 360 degrees.
Notebook Mode
Suitable for tasks that require a keyboard and mouse (such as creating
documents, writing e-mails, and so on).

Chapter 1. Getting to know your computer
7
Stand Mode (Theater Mode)
Suitable for tasks that require little or no touch (such as viewing photos or
playing videos).

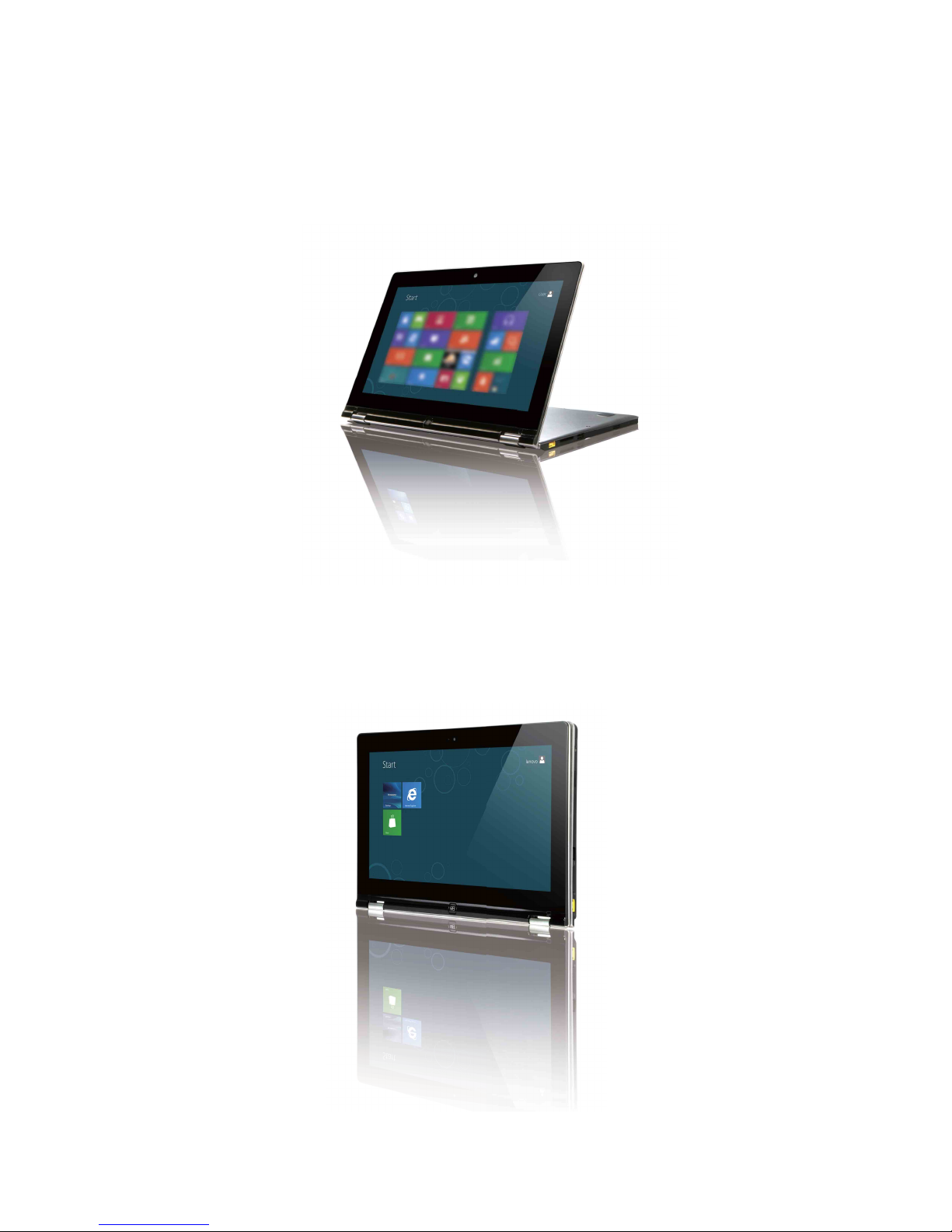

Tablet Mode
Suitable for tasks that require touching the screen often (such as surfing the
Web, playing games, and so on).

8
Chapter 1. Getting to know your computer
Tent Mode (Presentation Mode)
Suitable for tasks that require limited interaction with the touch screen (such
as displaying graphs or a PowerPoint presentation).
Attention:
•Do not open the display with too much force, otherwise the display panel or hinges may be
damaged.
Note:
•The keyboard is automatically locked if the screen is opened beyond 190 degrees.
•In tablet mode, only the following buttons can be used:
•Windows button
•Volume Up bu tton
•Volume Down button
•Screen rotation lock button
•Power button


Chapter 1. Getting to know your computer
9
Left-side view --------------------------------------------------------------------------------------
HDMI port Connects to devices with HDMI input such as a TV or a
display.
USB 3.0 port Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 10.
Combo audio
jack
Connects to headsets.
Built-in
microphone
Captures sound which can be used for video
conferencing, voice narration, or audio recording.
Volume down
button
Decreases volume level.
Volume up button Increases volume level.
Note:
•The combo audio jack does not support conventional microphones.
•The recording function may not be supported if third-party headphones or headsets are
connected, due to different industry standards.
ab
c
d
5 6
a
b
c
d
e
f

10
Chapter 1. Getting to know your computer

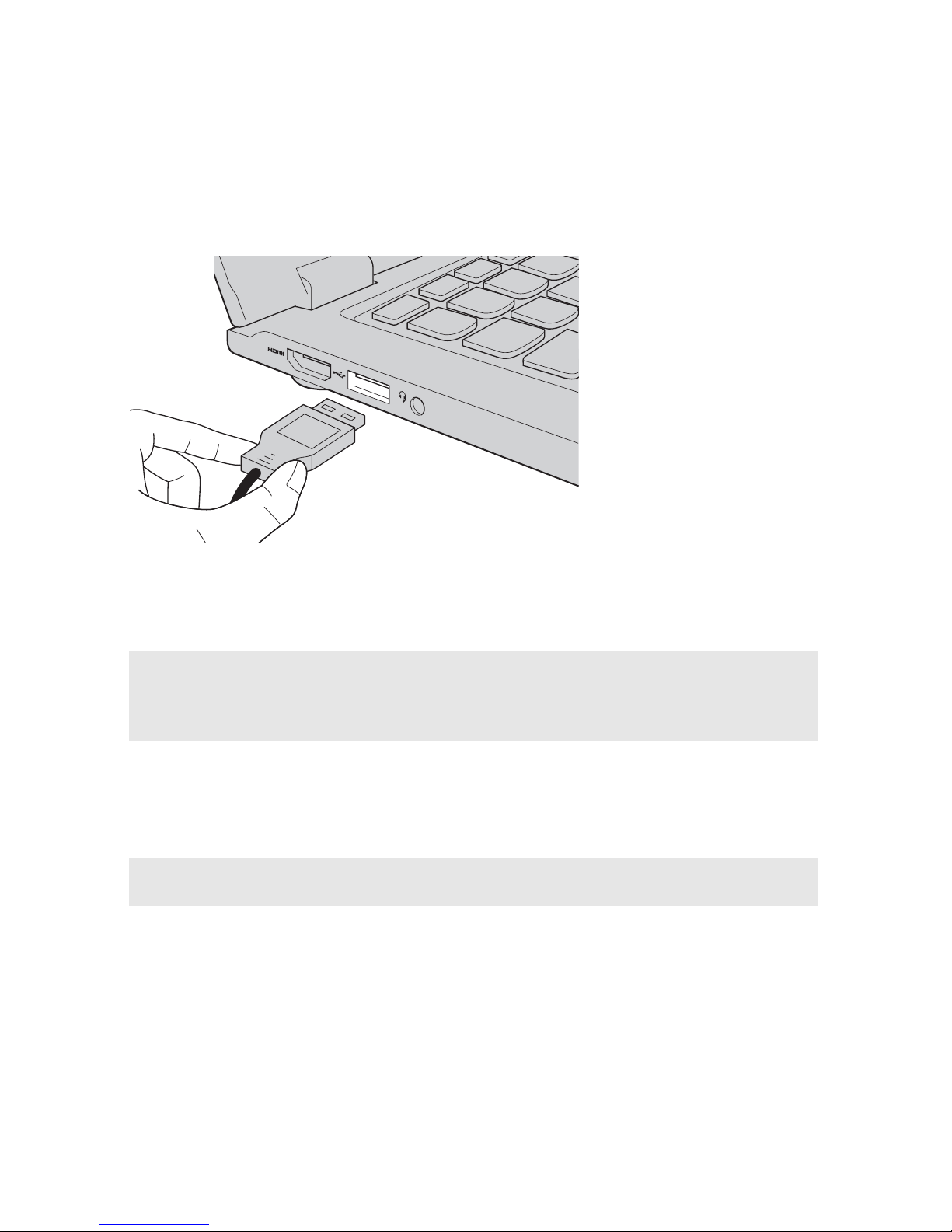

Connecting USB devices
Your computer comes with two USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your
computer, Windows automatically installs a driver for that device. After the
driver is installed, you can disconnect and reconnect the device without
performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has
finished transferring data by that device. Click the Safely Remove Hardware
and Eject Media icon in the notification area of Windows to remove the
device before disconnecting.
Note: Typically, Windows detects a new device after connecting it, and then installs the
driver automatically. However, some devices may require you to install the driver
before connecting. Check the documentation provided by the device’s manufacturer
before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before
connecting it. Otherwise, the device may not be recognized.

Chapter 1. Getting to know your computer
11
Right-side view ----------------------------------------------------------------------------------

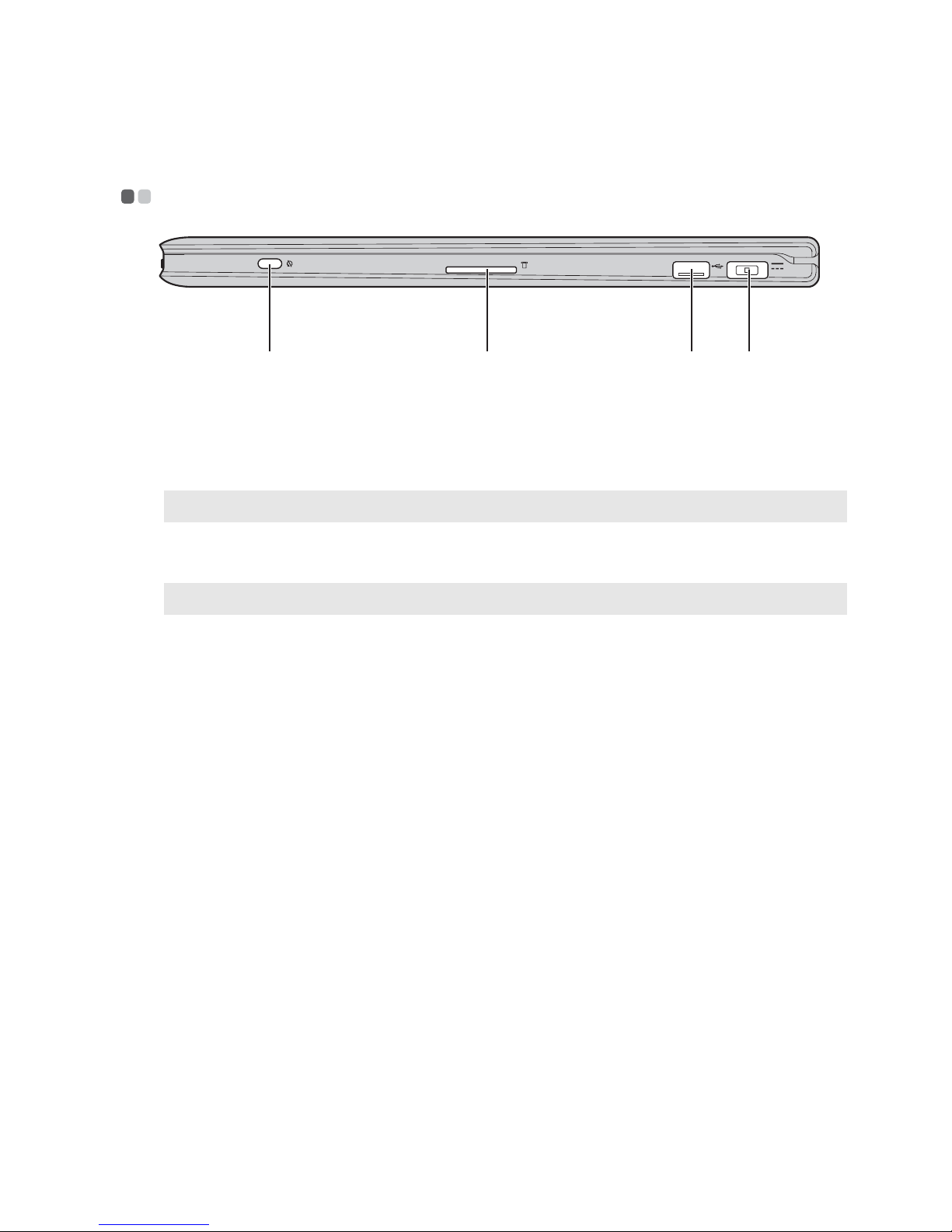

Screen rotation
lock button
Keeps the screen locked in portrait or landscape
orientation.
Memory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 12.
USB port Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 10.
AC power adapter
jack
Connect the AC adapter here.
a b
cd
a
b
c
d

12
Chapter 1. Getting to know your computer
Using memory cards (not supplied)
Your computer supports the following types of memory card:
• Secure Digital (SD) card
• MultiMediaCard (MMC)
Inserting a memory card
1 Push the dummy card in until you hear a click. Then gently pull the
dummy card out of the memory card slot.
2 Slide the memory card in until it clicks into place.
Removing a memory card
1 Push the memory card in until you hear a click.
2 Gently pull the memory card out of the memory card slot.
Note:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: The dummy card is used for preventing dust and small particles from entering the
inside of your computer when the memory card slot is not in use. Retain the dummy
card for future use.
Note: Before removing the memory card, disable it via Windows safely remove hardware
and eject media utility to avoid data corruption.

Chapter 1. Getting to know your computer
13
Front view -----------------------------------------------------------------------------------------------
Novo button When the computer is off, press this button to start the
Lenovo OneKey Recovery system or the BIOS setup utility,
or to enter the boot menu.
Note: For details, see “Chapter 3. Lenovo OneKey Recovery system” on page 25.
Power button Press this button to turn on the computer.
Battery status
indicator
Symbol Indicator status Meaning
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.
On (solid white) The battery has more than 20%
charge.
Solid amber The battery has between 5% and
20% charge.
Fast blinking amber There is a problem with the battery
or the battery connection.
Slow blinking amber The battery is being charged. When
battery charge reaches 20%, the
blinking color changes to white.
Slow blinking white The battery has between 20% and
80% charge and is still charging.
When the battery reaches 80%
charge the light will stop blinking,
but charging will continue until the
battery is fully charged.
ab
c
a
b
c

14
Chapter 1. Getting to know your computer
Bottom view ------------------------------------------------------------------------------------------

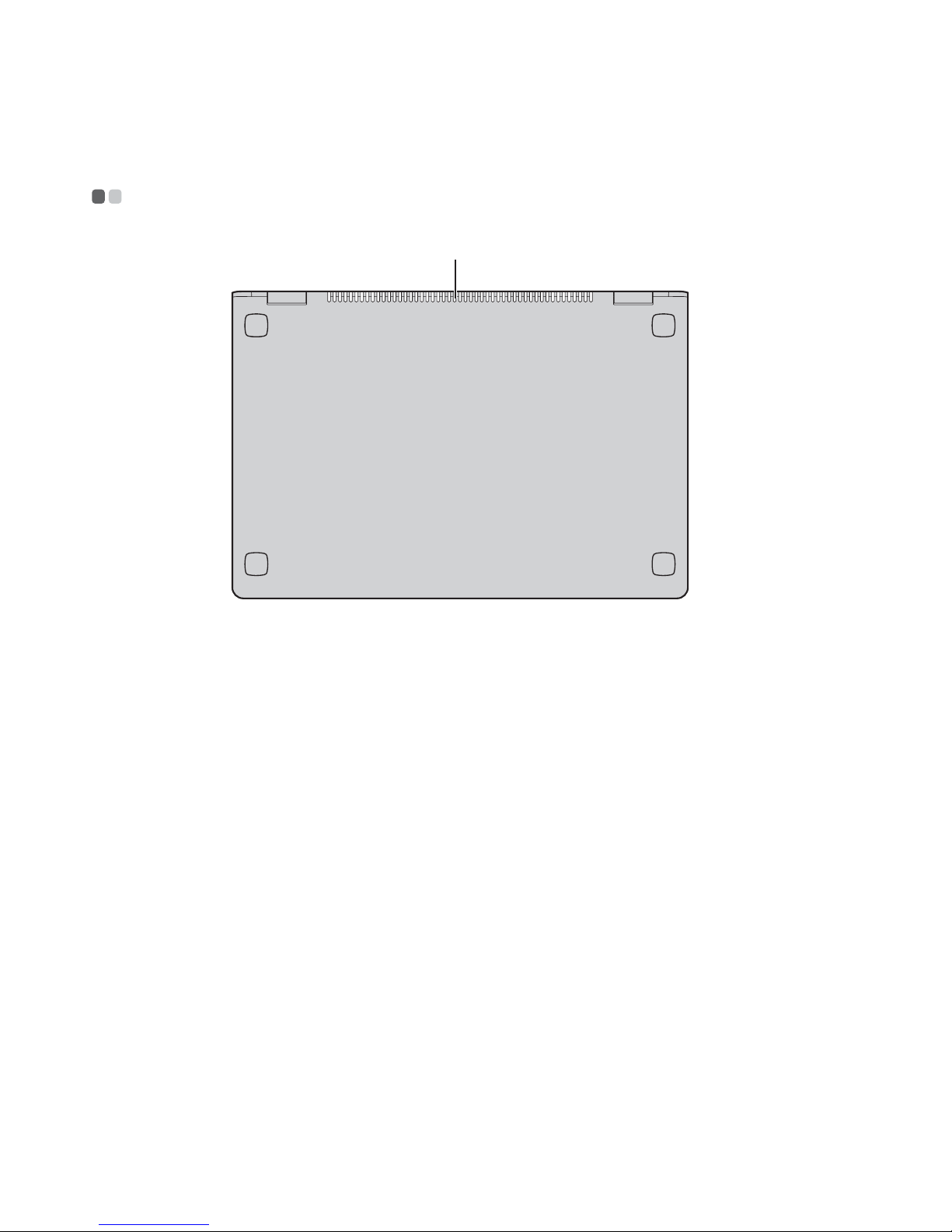

Louvers Allow air to enter the computer for cooling.
a
a

15
Chapter 2. Starting to use Windows 8
Configuring the operating system for the first
time --------------------------------------------------------------------------------------------------------------
You may need to configure the operating system when it is first used. The
configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces --------------------------------------------------
Windows 8 comes with two main user interfaces: the Start screen and the
Windows desktop.
To switch from the Start screen to the Windows desktop, do one of the
following:
• Select the Windows desktop tile on the Start screen.
• Press the Windows button.
• Press the Windows key + D.
To switch from desktop to Start screen, do one of the following:
• Select Start from charms.
• Move the cursor to the lower-left corner and then select the Start screen
thumbnail when it is displayed.
Start screen Desktop

16
Chapter 2. Starting to use Windows 8
The charms --------------------------------------------------------------------------------------------
The five charms provide new and faster ways to perform many basic tasks,
and are always available regardless of whichever app you are currently in.
To display the charms, do one of the following:
• Move the cursor to the upper-right or lower-right corner until the charms
bar is displayed.
• Use one finger to swipe in from the right edge of the screen until the
charms bar is displayed.
• Press Windows key + C.
Search charm
The Search charm is a powerful new way to find what you are looking for,
including apps, settings and files.
