Lenovo V560 User manual

Lenovo V560
User Guide V1.0
Read the safety notices and important tips in the
included manuals before using your computer.
©Lenovo China 2010
New World. New Thinking.TM
www.lenovo.com
P/N: 147003427
Printed in China

If your product is not working correctly,
DO NOT RETURN IT TO THE STORE.
For technical assistance, contact a Lenovo support specialist 24 hours a
day by calling toll free 1-877-4 LENOVO (1-877-453-6686).
Additionally, you can find support information and updates on the Lenovo
Web site located at http://consumersupport.lenovo.com.
* Only for the users from the United States.
First Edition (June 2010)
© Copyright Lenovo 2010.
Before using the product, be sure to read Lenovo Safety and General Information Guide first.
The features described in this guide are common to most models. Some features may not be available on your
computer and/or your computer may include features that are not described in this user guide.
Some instructions in this guide may assume that you are using Windows®7. If you are using other Windows
operating system, some operations may be slightly different. If you are using other operating systems, some
operations may not apply to you.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to
governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and
disclosure. LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered pursuant a
General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.
GS-35F-05925.
Notes
•
•
•
The illustrations in this manual may differ from the actual product. Please refer to the actual product.
•
The Regulatory Notice provides information about the radio frequency and safety standards. Be sure to read it
before using wireless devices on your computer.
To refer to it, go to http://www.lenovo.com, click Support, and then click User’s guides and manuals.
Regulatory Notice
•
•

i
Chapter 1. Getting to know your
computer.......................................................1
Top view.........................................................1
Left-side view ................................................3
Right-side view..............................................4
Front view ......................................................5
Bottom view...................................................6
Chapter 2. Learning the basics...................7
First use...........................................................7
Using AC adapter and battery ....................9
Using the touchpad.....................................11
Using the keyboard.....................................12
Connecting external devices......................14
Special keys and buttons............................16
System status indicators.............................17
Securing your computer.............................18
Chapter 3. Connecting to the Internet......19
Wired connection ........................................19
Wireless connection ....................................20
Chapter 4. OneKey Rescue system..........24
OneKey Rescue system ..............................24
Chapter 5. Troubleshooting...................... 25
Frequently asked questions....................... 25
Troubleshooting.......................................... 27
Appendix A. CRU instructions ................. 31
Replacing the battery.................................. 31
Replacing the hard disk drive................... 32
Replacing memory...................................... 35
Removing the optical drive ....................... 38
Appendix B. Lenovo limited warranty ..... 39
Warranty information ................................ 44
Appendix C. Product specific Notices..... 47
Energy star information............................. 47
Electronic emissions notices...................... 49
Appendix D. Specifications ...................... 52
Trademarks ................................................ 53
Index ........................................................... 54
Contents

1
Chapter 1. Getting to know your computer
Top view --------------------------------------------------------------------------------------------------------------------------
Note: The illustrations in this manual may differ from the actual product. Please refer to the actual product.
Attention:
•Do NOT open the display panel beyond 130 degrees. When closing the display panel, be careful NOT to
leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display
panel may be damaged.
j
i
h
k
b
d
e
f
g
c
a


2
Chapter 1. Getting to know your computer
Integrated camera
(Select models only)
Use the camera for video communication.
Wireless module
antennas (Select
models only)
The built-in antennas ensure optimal reception of wireless radio.
Computer display The LCD display provides brilliant visual output.
OneKey Rescue
system button
Press this button to open OneKey Rescue system (If OneKey Rescue
system has been preinstalled) when the computer is powered off.
Note: For details, see “OneKey Rescue system” on page 24.
Power button Press this button to turn on the computer.
Built-in microphone The built-in microphone (with noise reduction) can be used for video
conferencing, voice narration, or simple audio recordings.
System status
indicators
For details, see “System status indicators” on page 17.
Touchpad The touchpad functions as a conventional mouse.
Note: For details, see “Using the touchpad” on page 11.
Fingerprint reader
(Select models only)
With the fingerprint reader you can register fingerprints and use them as
passwords to secure your computer.
Lenovo Security Suite
button (Select models
only)
Press this button to get access to the Security Suite.
Volume buttons
(Select models only)
Use these buttons to adjust volume.
a
b
c
d
e
f
g
h
i
j
k

Chapter 1. Getting to know your computer
3

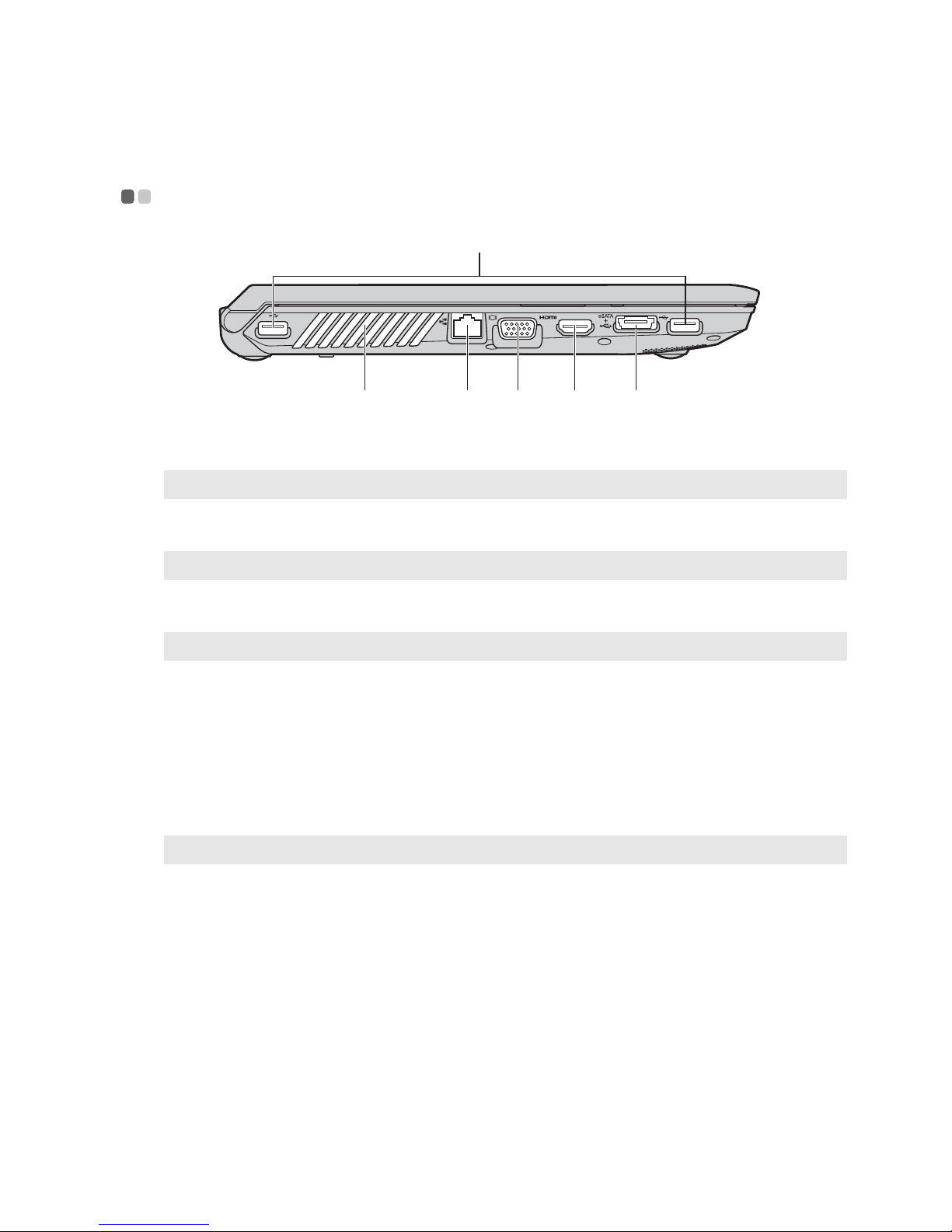

Left-side view -------------------------------------------------------------------------------------------------------------
USB ports Connect to USB devices.
Note: For details, see “Connecting a universal serial bus (USB) device” on page 14.
Fan louvers
Dissipate internal heat.
Note: Make sure that none of the fan louvers are blocked or else overheating of the computer may occur.
RJ-45 port
This port connects the computer to an Ethernet network.
Note: For details, see “Wired connection” on page 19.
VGA port
Connects to external display devices.
HDMI port (Select
models only)
Connects to devices with HDMI input such as a TV or a display.
eSATA/USB combo
port (Select models
only)
Connects to eSATA or USB devices.
Note: For details, see “Connecting a universal serial bus (USB) device” on page 14.
efdc
b
a
a
b
c
d
e
f

4
Chapter 1. Getting to know your computer

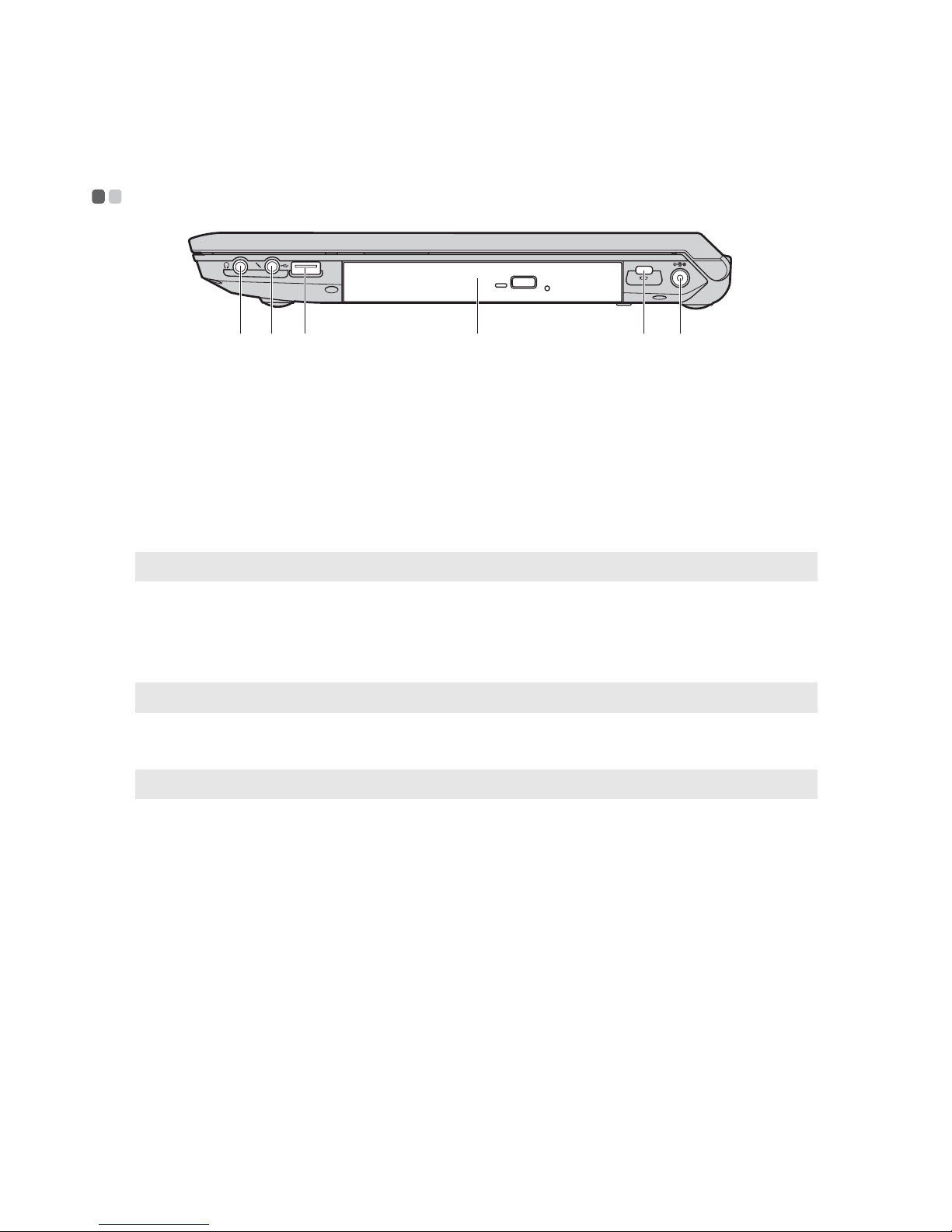

Right-side view --------------------------------------------------------------------------------------------------------
Headphone jack Connects to external headphones.
Attention:
•Listening to music at high volume over extended periods of time may damage your hearing.
Microphone jack Connects to external microphones.
USB port Connects to USB devices.
Note: For details, see “Connecting a universal serial bus (USB) device” on page 14.
Optical drive Reads/Burns optical disks.
Kensington slot
Attach a security lock (not supplied) here.
Note: For details, see “Attaching a security lock (not supplied)” on page 18.
AC power adapter
jack
Connect the AC adapter here.
Note: For details, see “Using AC adapter and battery” on page 9.
efdcba
a

b
c
d
e
f

Chapter 1. Getting to know your computer
5
Front view ----------------------------------------------------------------------------------------------------------------------
System status
indicators
For details, see “System status indicators” on page 17.
Integrated wireless
device switch (Select
models only)
Use this switch to turn on/off the wireless radio of all wireless devices on
your computer.
Memory card slot
Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 14.
a b
c
a
b
c

6
Chapter 1. Getting to know your computer

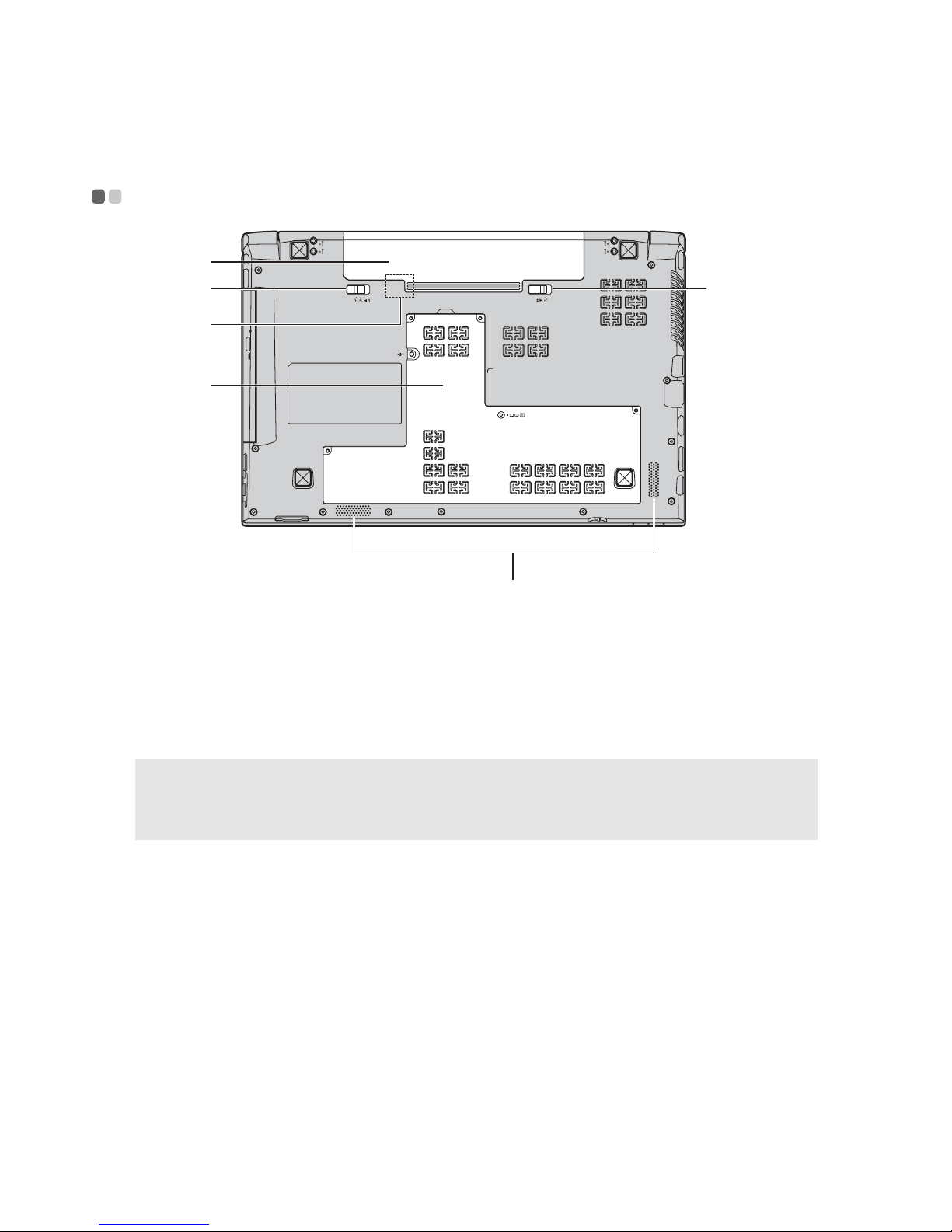

Bottom view ----------------------------------------------------------------------------------------------------------------
Battery pack
For details, see “Using AC adapter and battery” on page 9.
Battery latch - manual The manual battery latch is used to keep the battery pack secured in place.
SIM card slot (Select
models only)
Insert a SIM card (not supplied) for using Mobile Broadband.
Notes:
•In order to be able to insert a SIM card into this slot, you must first disconnect the AC adaptor and
remove the battery pack.
•For details, see “Using Mobile Broadband (Select models only)” on page 21.
Hard disk drive (HDD)/
Memory/Mini PCI
Express Card slot
compartment
Speakers The stereo speakers provide rich and powerful sound.
Battery latch - spring
loaded
The spring-loaded battery latch keeps the battery pack secured in place.
a
bf
d
c
e
a
b
c
d
e
f

7
Chapter 2. Learning the basics
First use --------------------------------------------------------------------------------------------------------------------------
Reading the manuals
Read the supplied manuals before using your computer.
Conncting to the power
The supplied battery pack is not fully charged at purchase.
To charge the battery and begin using your computer, insert the battery pack and connect the
computer to an electrical outlet. The battery is automatically charged while the computer is
running on AC power.
Installing the battery pack
Refer to the supplied Setup Poster to install the battery pack.
Connecting the computer to an electrical outlet
1 Connect the power cord to the AC adapter.
2 Connect the AC adapter to the AC power adapter jack of the computer firmly.
3 Plug the power cord into an electrical outlet.
Turning on the computer
Press the power button to turn on the computer.
Configuring the operating system
You may need to configure the operating system when it is first used. The configuration process
may include the procedures below.
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account

8
Chapter 2. Learning the basics
Putting your computer into sleep state or shutting it down
When you finish working with your computer, you can put it into sleep state or shut it down.
Putting your computer into sleep state
If you will be away from your computer for only a short time, put the computer into sleep state.
When the computer is in sleep state, you can quickly wake it to resume use, and bypass the
startup process.
To put the computer into sleep state, do one of the following.
• Click and select Sleep from the Start menu.
•PressFn + F1.
To wake the computer, do one of the following.
• Press the power button.
• Press any key on the keyboard.
Shutting down your computer
If you are not going to use your computer for a day or two, shut it down.
To shut down your computer, click and select Shut down from the Start menu.
Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep state)
before you move your computer. Moving your computer while the hard disk is spinning can
damage the hard disk, causing loss of data.

Chapter 2. Learning the basics
9
Using AC adapter and battery ----------------------------------------------------------------------
Checking battery status
You can determine the percentage of battery power remaining by checking the battery icon in
the notification area.
Charging the battery
When you find that the battery power is low, you need to charge the battery or replace it with a
fully charged one.
You need to charge the battery in any of the following situations:
• When you purchase a new battery
• If the battery status indicator starts blinking
• If the battery has not been used for a long time
Note: As each computer user has different habits and needs, it is difficult to predict how long a battery
charge will last. There are two main factors:
• The amount of energy stored in the battery when you commence work.
• The way you use your computer: for example, how often you access the hard disk drive and
how bright you make the computer display.
Notes:
•You are advised to insert the battery pack when using your computer to prevent small particles from
entering the inside of your computer.
•To increase the life of the battery pack, the computer does not start recharging the battery
immediately after it drops from fully charged.
•Charge the battery at a temperature between 50 °F and 86 °F (10 °C-30 °C).
•Full charge or discharge is not required.

10
Chapter 2. Learning the basics
Removing the battery pack
If you are not going to use the computer for an extended period of time, or if you need to send
your computer to Lenovo for service, etc. remove the battery pack from the computer. Before
removing the battery pack, make sure the computer has been shut down.
Handling the battery
If the rechargeable battery pack is replaced with an incorrect type, there may be danger of an
explosion. The battery pack contains a small amount of harmful substances. To avoid possible
injury and detriment to the environment, pay attention to the following points:
• Replace only with a battery of the type recommended by Lenovo.
• Keep the battery pack away from fire.
• Do not expose the battery pack to water or rain.
• Do not attempt to disassemble the battery pack.
• Do not short-circuit the battery pack.
• Keep the battery pack away from children.
• Do not put the battery pack in trash that is disposed of in landfills. When disposing of the
battery, comply with local ordinances or regulations and your company’s safety standards.

Chapter 2. Learning the basics
11
Using the touchpad -----------------------------------------------------------------------------------------------
Touchpad To move the cursor on the screen, slide your fingertip over
the pad in the direction in which you want the cursor to
move.
Left click button The function corresponds to that of the left mouse button on
a conventional mouse.
Right click button The function corresponds to that of the right mouse button
on a conventional mouse.
Notes:
•You can enable/disable the touchpad using Fn+F8.
•When the touchpad indicator is lit, the touchpad is disabled.
a
bc
a
b
c

12
Chapter 2. Learning the basics
Using the keyboard ----------------------------------------------------------------------------------------------
Your computer has a numeric keypad and function keys incorporated in its standard keyboard.
Numeric keypad
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press
the Num Lock key.
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
Note: The indicator will light on if the numeric keypad is enabled.
1
a
b
b
a

Chapter 2. Learning the basics
13
The following describes the features of each function key.
Fn + F1: Enter sleep mode.
Fn + F2: Turn on/off the backlight of the LCD screen.
Fn + F3: Open the interface for the display device switch to select this
notebook or an external display.
Fn + F4: Open the interface for display resolution settings.
Fn + F5: Open the interface for integrated wireless devices settings (on/off).
Fn + F8: Enable/Disable the touchpad.
Fn + F9: Start/Pause playback of Windows Media Player.
Fn + F10: Stop playback of Windows Media Player.
Fn + F11: Skip to the previous track.
Fn + F12: Skip to the next track.
Fn + Delete: Enable/Disable the scroll lock.
Fn + PrtSc: Activate the system request.
Fn + Pause: Activate the break function.
Fn + ↑ / ↓:Increase/Decrease display brightness.
Fn + → / ←:Increase/Decrease sound volume.

14
Chapter 2. Learning the basics
Connecting external devices -----------------------------------------------------------------------
Your computer has a wide range of built-in features and connection capabilities.
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• MultiMediaCard (MMC)
• Memory Stick (MS)
• Secure Digital PRO (SD PRO)
Inserting a memory card
1 Push the dummy card until you hear a click. Gently pull the dummy card out of the
memory card slot.
2 Slide the memory card in until it clicks into place.
Removing a memory card
1 Push the memory card until you hear a click.
2 Gently pull the memory card out of the memory card slot.
Connecting a universal serial bus (USB) device
Your computer comes with three USB ports and an eSATA/USB port compatible with USB
devices.
Notes:
•Insert ONLY one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: The dummy card is used for preventing dust and small particles from entering the inside of your
computer when the memory card slot is not in use. Retain the dummy card for future use.
Note: Before removing the memory card, disable it via Windows safely remove hardware and eject media
utility to avoid data corruption.
Note: When using a high power consumption USB device such as USB ODD, use the external device’s
power adapter. Otherwise, the device may not be recognized, and system shut down may result.

Chapter 2. Learning the basics
15
Connecting a Bluetooth device (Select models only)
If your computer has an integrated Bluetooth adapter card, it can connect to and transfer data
wirelessly to other Bluetooth enabled devices, such as notebook computers, PDAs and cell
phones. You can transfer data between these devices without cables and up to 10 meters range in
open space.
Enabling Bluetooth communications
1 Slide the integrated wireless device switch from to .
2 Press Fn + F5 to make configuration.
Note: The actual maximum range may vary due to interference and transmission barriers. To get the best
possible connection speed, place the device as near your computer as possible.
Notes:
•When you do not need to use the Bluetooth function, turn it off to save battery power.
•You need to pair the Bluetooth enabled device with your computer before you can transfer data
between them. Read the documentation supplied with the Bluetooth enabled device for details on how
to pair the device with your computer.

16
Chapter 2. Learning the basics
Special keys and buttons --------------------------------------------------------------------------------
OneKey Rescue system button ( )
• When the computer is powered-off, press this button to enter the OneKey Rescue system if
Lenovo OneKey Rescue system has been preinstalled.
• In Windows operating system, press this button to start Lenovo OneKey Recovery.
Volume buttons ( ~ ) (Select models only)
Mute/Unmute
Vo lu m e d o w n
Volume u p
Lenovo Security Suite button ( ) (Select models only)
Lenovo Security Suite can protect your computer from unauthorized access, which may
otherwise lead to privacy leakage or data theft.
Note: For details, see “OneKey Rescue system” on page 24.
a
b
c
de
a
b d
b
c
d
e
