Lenovo TAB 2 A7 How to use

Lenovo TAB 2 A7
Safety, Warranty & Quick Start
Guide V1.0
English/繁體中文/简体中文
Lenovo TAB 2 A7-10F
Lenovo TAB 2 A7-20F

125.00
English
Electronic emission notices
Learn more
Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in
the United States, other countries, or both.
Other company, product, or service names may be
trademarks or service marks of others.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or
software is delivered pursuant a General Services
Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract
No. GS-35F-05925.
To learn more information about your Lenovo TAB 2 A7
functions, refer to the “User Guide” from the Browser
favorites in your Lenovo TAB 2 A7.
To obtain the “Regulatory Notices”, go to
http://support.lenovo.com/.
Getting support For support on network service and billing, contact your
wireless network operator. For instructions on how to
use your Lenovo TAB 2 A7, go to
http://support.lenovo.com/.
Read this guide carefully before using your Lenovo TAB 2 A7.
Radio and Telecommunications Terminal Equipment
Directive
This product is in compliance with the essential
requirements and other relevant provisions of the Radio
and Telecommunications Terminal Equipment Directive,
1999/5/EC.
European Union conformity

Technical specifications
MT8127
3450 mAh
Model & version
Camera
Battery
Display
Wireless
communication
0.3M (front) + ②2M (rear)
Size: 17.78 cm (7 inches)
Resolution: 1024 × 600
Bluetooth 4.0 WLAN 802.11 b/g/n GPS
①Depending on the measuring method, the dimensions and weight might
vary slightly.
②The Lenovo TAB 2 A7-20F only has the rear camera.
①Weight
Weight: 280 g
CPU
Lenovo TAB 2 A7
Android
System
Model: Lenovo TAB 2 A7-10F Version: WLAN
Model: Lenovo TAB 2 A7-20F Version: WLAN

5
2
6
3
78
4
1Earphone jack Speaker
MicroSD card slot
Micro USB
Microphone
Volume key On/Off button 9*Rear camera
Front camera
First glance
* The Lenovo TAB 2 A7-20F only has the rear camera.
9

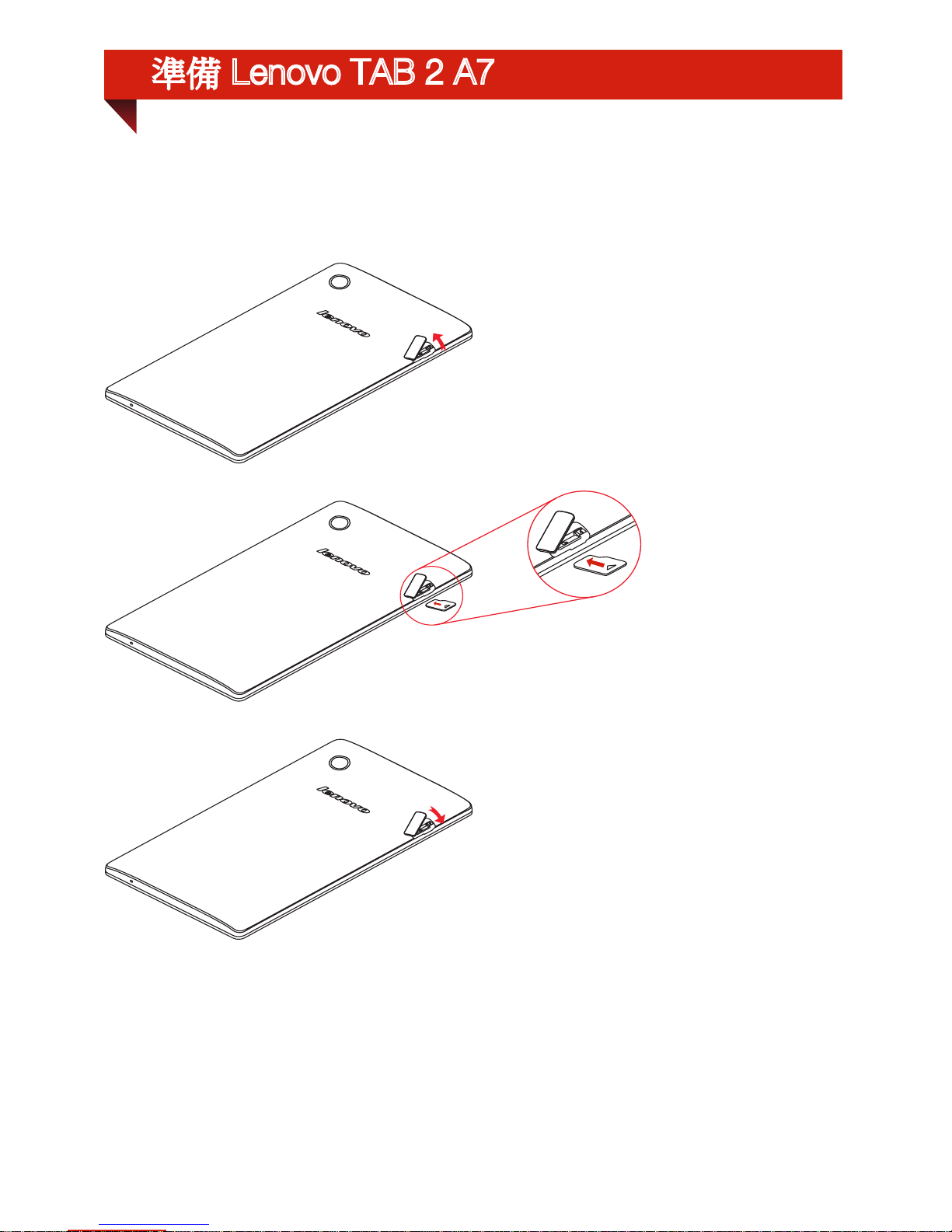

Install the MicroSD card as shown.
Step 1. Open the card-slot door.
Step 2. Insert the card into the respective
slots, push the cards until they are
engaged in place.
Step 3. Close the card-slot door.
Preparing your Lenovo TAB 2 A7

Turning on/off
Before using your Lenovo TAB 2 A7, you might need to charge the battery.
Charge the battery as shown.
Connect your Lenovo TAB 2 A7 to a power outlet using the included cable and
USB power adapter.
Low battery Fully charged Charging
Turn on: Press and hold the On/Off button until the
Lenovo logo appears.
Turn off: Press and hold the On/Off button for a few
seconds, tap Power off and then tap OK.
Starting to use your Lenovo TAB 2 A7
Taking screenshots
Press and hold the On/Off button and the volume down button at the same time.

Read before using your tablet
Read first-Regulatory information
The following sections provide critical safety and regulatory information for Lenovo
tablets and instructions on how to access electronic versions of the publications
developed for your tablet.
Downloading publications
Accessing your User Guide
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of your product. Refer to the
Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo
Limited Warranty notice” later in this document for details on accessing the full
warranty.
Online technical support
Online technical support is available during the lifetime of a product at
http://www.lenovo.com/support.
You can get help and information from the Customer Support Center by telephone.
Before contacting a Lenovo technical support representative, please have the following
information available: model and serial number, the exact wording of any error
message, and a description of the problem.
Your technical support representative might want to walk you through the problem
while you are at your device during the call.
Device models equipped with wireless communications comply with the radio frequency
and safety standards of any country or region in which it has been approved for wireless
use. In addition, if your product contains a telecom modem, it complies with the
requirements for connection to the telephone network in your country.
Be sure to read the Regulatory Notice for your country or region before using the wireless
devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer
to the “Downloading publications” section below.
Electronic versions of your publications are available from the
http://support.lenovo.com. To download the publications for your device, go to:
http://support.lenovo.com and follow the instructions on the screen.
Your User Guide contains detailed information about your device. To access your User
Guide, go to
http://support.lenovo.com and follow the instructions on the screen.
Service and Support information
Telephone technical support

WARNING: Handling the cord on this product or cords associated with accessories
sold with this product will expose you to lead, a chemical known to the State of
California to cause cancer, and birth defects or other reproductive harm. Wash hands
after handling.
Polyvinyl Chloride (PVC) cable and cord notice
Built-in rechargeable battery notice
Prevent hearing damage
Your device has a headphone connector. Always use the headphone connector for
headphones (also called a headset) or earphones.
Worldwide Lenovo Support telephone list
DANGER:
Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo
Support for factory replacement.
CAUTION:
Excessive sound pressure from earphones and headphones can cause hearing loss.
Adjustment of the equalizer to maximum increases the earphone and headphone
output voltage and the sound pressure level. Therefore, to protect your hearing, adjust
the equalizer to an appropriate level.
Excessive use of headphones or earphones for a long period of time at high volume
can be dangerous if the output of the headphone or earphone connectors do not
comply with specifications of EN 50332-2.
The headphone output connector of your device complies with EN 50332-2 Sub
clause 7. This specification limits the device's maximum wide band true RMS output
voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or
earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band
characteristic voltage of 75 mV. Using headphones that do not comply with EN
50332-2 can be dangerous due to excessive sound pressure levels.
If the telephone number for your country or region is not listed, contact your Lenovo
reseller or Lenovo marketing representative.
Important safety and handling information
Plastic bag notice
DANGER:
Plastic bags can be dangerous. Keep plastic bags away from babies and children to
avoid danger of suffocation.
Important: Telephone numbers are subject to change without notice. The most
up-to-date telephone list for the Customer Support Center is always available at
http://www.lenovo.com/support/phone.

Warning statement:
To prevent possible hearing damage, do not listen at high volume levels for a long
period of time.
Lenovo Limited Warranty notice
This product is covered by the terms of the Lenovo Limited Warranty, version
L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at
http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of
languages from this Web site. If you cannot view the LLW from the Web site, contact
your local Lenovo office or reseller to obtain a printed version of the LLW.
Lenovo TAB 2 A7
Model & Version
Sound pressure warning statement
For the device that is tested in accordance with EN 60950-1:
2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio tests for
EN50332.
This device has been tested to comply with the Sound Pressure Level requirement laid
down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing
loss may occur if earphones or headphones are used at high volume for prolonged
periods of time.
Warranty information
If your device came with headphones or earphones in the package, as a set, the
combination of the headphones or earphones and the device already complies with
the specifications of EN 50332-1. If different headphones or earphones are used,
ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using
headphones that do not comply with EN 50332-1 can be dangerous due to excessive
sound pressure levels.
Model Version
WLAN
Lenovo TAB 2 A7-10F
Lenovo TAB 2 A7-20F WLAN

* Excludes some components. 90-day limited warranty for power adapters, keyboards,
plastics and hinges.
Types of Warranty Service
1. Customer Replaceable Unit (“CRU”) Service
2. On-site Service
Warranty period and type of Warranty service
Country or Region Purchase Warranty Period Type of Warranty
Service
France, Germany, Italy, Austria,
United Kingdom, Israel, Australia, New
Zealand
parts and labor-1 year
Battery pack -1 year 1, 3
Serbia, Costa Rica, Venezuela, Peru,
Uruguay, Ecuador, Colombia, Chile, Argentina,
Indonesia, Vietnam, India, Malaysia, Thailand,
Philippines, Singapore, Hong Kong
parts and labor-1 year
Battery pack -1 year 1, 4
Russia, Ukraine, Egypt, Lebanon, Morocco,
South Africa, Tunisia, Mauritius, Mozambique,
Saudi Arabia, United Arab Emirates, Jordan,
Kenya, Nigeria, Uganda, Ghana, Oman,
Tanzania, Namibia
parts and labor-1 year
Battery pack -1 year 4
Poland, Hungary, Romania, Bulgaria, Greece,
Croatia, Slovenia, Slovakia, Cyprus, United
States of America, Canada, Mexico, Japan
parts and labor-1 year
Battery pack -1 year 1, 5
Panama parts and labor-1 year
Battery pack -1 year 2, 4
Taiwan, South Korea parts and labor-1 year
Battery pack -1 year 3, 4
Spain, Switzerland, Portugal, Netherlands,
Belgium, Sweden, Denmark, Norway, Finland,
Estonia, Latvia, Lithuania, Iceland
parts and labor-2 year
Battery pack -1 year
1, 3
Czech Republic
parts and labor-2 year
Battery pack -1 year
1, 5
Turkey parts and labor-2 year
Battery pack -1 year 3, 4
Brazil parts and labor-1 year
Battery pack -1 year 2, 5

Electrical and electronic equipment marked with the symbol of a crossed-out
wheeled bin may not be disposed as unsorted municipal waste. Waste of
electrical and electronic equipment (WEEE) shall be treated separately using
the collection framework available to customers for the return, recycling, and
treatment of WEEE.
Country-specific information is available at：
http://www.lenovo.com/recycling.
3. Courier or Depot Service
4. Customer Carry-In Service
5. Mail-in Service
6. Customer Two-Way Mail-in Service
7. Product Exchange Service
For a full explanation of the types of warranty service, refer to the full warranty. See
“Lenovo Limited Warranty notice” for details on accessing the full warranty.
Environmental, recycling, and disposal information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to responsibly
recycle their equipment when it is no longer needed. Lenovo offers a variety of
programs and services to assist equipment owners in recycling their IT products. For
information on recycling Lenovo products, go to: http://www.lenovo.com/recycling.
Important WEEE information
Recycling information for Japan
Recycling and disposal information for Japan is available at:
http://www.lenovo.com/recycling/japan.
Additional recycling statements
Additional information about recycling device components and batteries is in your User
Guide. See “Accessing your User Guide” for details.
Battery recycling marks
The battery recycling information of Taiwan
Battery recycling information for the United States and Canada

Battery recycling information for the European Union
Energy efficiency mark
EurAsia compliance mark
Restriction of Hazardous Substances Directive (RoHS)
Turkish
The Lenovo product meets the requirements of the Republic of Turkey Directive on the
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment (EEE).
Ukraine
India
RoHS compliant as per E-Waste (Management & Handling) Rules, 2011.
European Union
Lenovo products sold in the European Union, on or after 3 January 2013 meet the
requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous
substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”).
For more information about Lenovo progress on RoHS, go to:
http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf
Notice for users in Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo no cause interferencia perjudicial y (2)
este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.

繁體中文
電子輻射注意事項
了解詳情
法律注意事項 Lenovo 及Lenovo 標誌為美國、其他國家或美國及其他
國家的 Lenovo 商 標。
其他公司、產品或服務名稱可能是其他公司的商標或服務
商 標。
在Dolby Laboratories 的 許 可 下 製 造。Dolby 及雙 D 符
號為 Dolby Laboratories 的 商 標。
有限及限制權利注意事項：若數據或軟件根據一般服務管
理「GSA」合約提供，使用、再製作或披露，均受合約號碼
GS-35F-05925 所 限。
如要了解更多有關 Lenovo TAB 2 A7 功 能，請 參 閱
Lenovo TAB 2 A7 瀏覽器最愛的 “User Guide”。
如要獲得「監管通知」，請前往
http://support.lenovo.com/。
取得支援 如需關於網絡服務和收費的支援，請聯絡您的無線網絡營運
商。如 需 關 於 使 用 Lenovo TAB 2 A7 的 指 示，請 前 往
http://support.lenovo.com/。
在使用 Lenovo TAB 2 A7 前小心閱讀此指引。
無線電及電信終端設備指令
此產品符合必要的要求及無線電及通訊終端設備指令
1999/5/EC 的 其 他 相 關 條 款。
歐盟符合性
125.00

技術規格
MT8127
3450 mAh
型號及版本
相機
電池
顯示器
無線通訊
30 萬象素 (前鏡) + ②200 萬(後鏡)
大小：17.78 厘米（7.00 吋）
解像度：1024 × 600
藍牙 4.0 WLAN 802.11 b/g/n GPS
① 視乎量度方式而定，尺寸及重量可能有輕微差異。
② Lenovo TAB 2 A7-20F 只有後鏡頭
① 重量
重量：280 g
CPU
Lenovo TAB 2 A7
Android
系統
型號：Lenovo TAB 2 A7-10F 版本：WLAN
型號：Lenovo TAB 2 A7-20F 版本：WLAN

5
2
6
3
78
4
1耳機插孔 揚聲器
MicroSD 卡插槽
Micro USB
麥克風
音量鍵 開/關按鈕 9* 後鏡頭
前相機
概覽
* Lenovo TAB 2 A7-20F 只有後鏡頭
9

請根據圖示安裝 Micro SD 卡。
步驟 1. 開啟卡槽門。
步驟 2. 將卡插入至相應插槽，推入卡
直至穩固安裝。
步驟 3. 關閉卡槽門。
準備 Lenovo TAB 2 A7

開啟/關閉
使用 Lenovo TAB 2 A7 前，您可能需要充電。
請根據圖示為電池充電。
使用隨附的纜線及 USB 電源適配器將您的 Lenovo TAB 2 A7 連接至電源。
低電量 已完全充電 充電
開 啟：按住開/關按鈕直至出現 Lenovo 標 誌。
關 閉：按住開/關 按 鈕 數 秒，點 按 [關機] 然後點按
[確定]。
開/關按鈕
開始使用 Lenovo TAB 2 A7
螢幕截圖
同時按住開/關按鈕及降低音量鍵。

使用平板電腦前先閱讀
請先閱讀規管資訊
下列部分提供 Lenovo 平板電腦的重要安全及監管資訊和如何獲得平板電腦相關指引的電
子版本。
下載刊物
獲得用戶指南
以下資訊說明您的產品在保養期內或產品使用期間可得到的技術支援。請參閱 Lenovo 有
限保養期以獲得有關 Lenovo 保養細則的詳細解釋。參閱本文件後部的「 Lenovo 有限保
養通知」以獲得完全保養的詳情。
網上技術支援
您可在產品的使用期間享用網上技術支援，網址 http://www.lenovo.com/support。
您可透過電話獲得客戶支援中心的協助及資訊。在聯絡 Lenovo 技術支援代表前，請預先
準備下列資料：產品型號及序號，產品錯誤訊息的確切字眼，以及對問題的描述。
您的技術支援代表可能需要您在通話期間於裝置旁，才可指導您解決問題。
配備無線通訊的裝置型號符合任何需批准作無線使用的國家或地區之電台頻率及安全標
準。此外，若您的產品包含電訊數據機，其符合連接您國家電話網絡的要求。
請務必先閱讀您所屬國家或地區的規管注意事項，然後才使用裝置內的無線裝置。如要
取得規管注意事項的PDF 版本，請參閱以下的「下載刊物」部分。
電子版公佈說明文件可從 http://support.lenovo.com 獲取。如要下載裝置的刊物，請前
往：http://support.lenovo.com 並根隨螢幕指示。
您的用戶指南包含裝置的詳細資訊。如要獲得用戶指南，請前往 http://support.lenovo.com
並根隨螢幕指示。
服務及支援資訊
電話技術支援

警 告：處理產品纜線或產品隨附配件纜線會令您接觸鉛，加利福尼亞州已知鉛會導致癌症、
嬰兒先天缺陷或其他生殖系統損害。處理纜線後請洗手。
聚氯乙烯 (PVC) 纜線和電線注意事項
內置充電式電池注意事項
避免聽力受損
您的裝置提供耳機連接器。使用耳機插孔連接耳機或耳筒。
Lenovo 環球支援熱線清單
危險：
請勿自行更換內置充電式鋰離子電池。聯絡 Lenovo 支 援 以替 換 電池。
警 告：
耳機和耳筒的聲壓過大可能導致聽力受損。將等化器調至最大將會提高耳機和耳筒
的 輸 出電 壓 和 聲 壓。因 此，為 保 護 您 的 聽力，請 將 等 化 器 調 至 適當 的 水平。
如果耳機或耳筒不符合 EN 50332-2 的規格，長時間以高音量使用耳機或耳筒可能會有危險。
裝置的耳筒輸出連接器符合 EN 50332-2 子條款第 7 條。此規格限制裝置的最大寬帶真正
RMS 輸出電壓至 150 mV。為保護您的聽力，確保您使用的耳機或耳筒亦符合 EN 50332-2
（第 7 條）所 述 的 75 mV 寬帶電壓規格。使用不符合 EN 50332-2 的耳機可能會由於聲壓
過大 造成 危險。
如果熱線清單上沒有您國家或地區的號碼，請聯絡您的 Lenovo 分銷商或 Lenovo 市場策劃
代表。
重要安全及處理資訊
塑膠袋注意事項
危險：
塑膠袋可能構成危險。請勿讓嬰兒和小孩接觸塑膠袋，以免塑膠袋導致窒息。
重要資訊：電話號碼隨時更改，恕不另行通知。最新的客戶支援中心熱線清單可於下列網址
找到：http://www.lenovo.com/support/phone。

警告聲明
為避免聽力受損，請勿長時間以高音量使用耳機或耳筒。
Lenovo 有限保養通知
此產品由 Lenovo 有限保養條款保障，版本 L505-0010-02 08/2011。請 於
http://www.lenovo.com/warranty/llw_02 閱讀 Lenovo 有限保養 (LLW) 詳 情。您 可 在 該 網
址閱讀 Lenovo 有限保養通知的不同語言版本。如未能於該網站檢視 LLW，請 聯 絡 您
Lenovo 的本地辦公室或分銷商，以獲取 LLW 的 列 印 版 本。
Lenovo TAB 2 A7
型號及版本
裝置聲壓警告聲明
適用於按照 EN 60950-1 進行測試的裝置：
2006+A11:2009:+A1:2010+A12:2011，進 行 EN50332 音 訊 測 試 必 須。
此裝置已通過測試，以符合適用的 EN 50332-1 及/或EN 50332-2 標準的音壓水平要求。如
果長時間以高音量使用耳機或耳筒可能會導致聽力永久受損。
保養資訊
若您的裝置套裝連同耳筒或耳機為一組產品，耳筒或耳機及裝置組合均已符合 EN 50332-1
規格。如果您使用其他耳機或耳筒，確保它們符合 EN 50332-1（第 6.5 條 限 制 值 ）的 規 格。
使用不符合 EN 50332-1 的耳機可能會由於聲壓過大造成危險。
型號 版本
WLANLenovo TAB 2 A7-10F
Lenovo TAB 2 A7-20F WLAN
