Lenovo TAB 2 A8-50F How to use

Lenovo TAB 2 A8-50
Safety, Warranty & Quick Start
Guide V1.0
Lenovo TAB 2 A8-50F
Lenovo TAB 2 A8-50L
Lenovo TAB 2 A8-50LC
English/Polski

125.00
English
Electronic emission
notices
Learn more
Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in
the United States, other countries, or both.
Other company, product, or service names may be
trademarks or service marks of others.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or
software is delivered pursuant a General Services
Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract
No. GS-35F-05925.
To learn more information about your Lenovo TAB 2
A8-50 functions, please access “User Guide” from the
Browser favorites in your tablet.
To obtain the “Regulatory Notices”, go to
http://support.lenovo.com/.
Getting support For support on network service and billing, contact your
wireless network operator. For instructions on how to
use your Lenovo TAB 2 A8-50, go to
http://support.lenovo.com/.
Read this guide carefully before using your Lenovo TAB 2 A8-50.
All information labeled with * in this guide refers only to the LTE model
(Lenovo TAB 2 A8-50L/Lenovo TAB 2 A8-50LC).
Radio and Telecommunications Terminal Equipment
Directive
This product is in compliance with the essential
requirements and other relevant provisions of the Radio
and Telecommunications Terminal Equipment Directive,
1999/5/EC.
European Union conformity
0560

Technical specifications
MTK MT8161, Quad Core 1.3 GHz
*MTK MT8735, Quad Core 1.3 GHz
4290 mAh
Model & version
Camera
Battery
Display
Wireless
communication
5 megapixels AF (back) + 2 megapixels FF (front)
Size: 8 inches
Resolution: 1280 × 800
Bluetooth 4.0 WLAN 802.11 b/g/n GPS/GLONASS
① *LTE, WCDMA, GSM
① Your Lenovo TAB 2 A8-50L/Lenovo TAB 2 A8-50LC supports LTE Band 1, 3, 7, 8
and 20. But in some countries,LTE is not supported. To know if your Lenovo TAB 2
A8-50L/Lenovo TAB 2 A8-50LC works with LTE networks in your country, contact
your carrier.
CPU
Lenovo TAB 2 A8-50
Version: WLAN
Android
*Version: LTE (Voice)*Model: Lenovo TAB 2 A8-50LC;
*Version: LTE*Model: Lenovo TAB 2 A8-50L;
Model: Lenovo TAB 2 A8-50F;
System

5
10
Speaker/*Receiver
2
6
3
789
4
1
11
Volume key
On/Off button Speaker Back camera
Micro USB Earphone jack *Micro SIM card slot
MicrophoneMicro SD card slot
The WLAN model (Lenovo TAB 2 A8-50F) does not have a Micro SIM card slot.
Only LTE (Voice) model (Lenovo TAB 2 A8-50LC) has a receiver.
11
78
6
2
5
1
3
4
9
10
First glance
Front camera

You can use cellular services with the LTE model (Lenovo TAB 2 A8-50L/Lenovo TAB 2
A8-50LC) by inserting the Micro SIM card provided by your carrier.

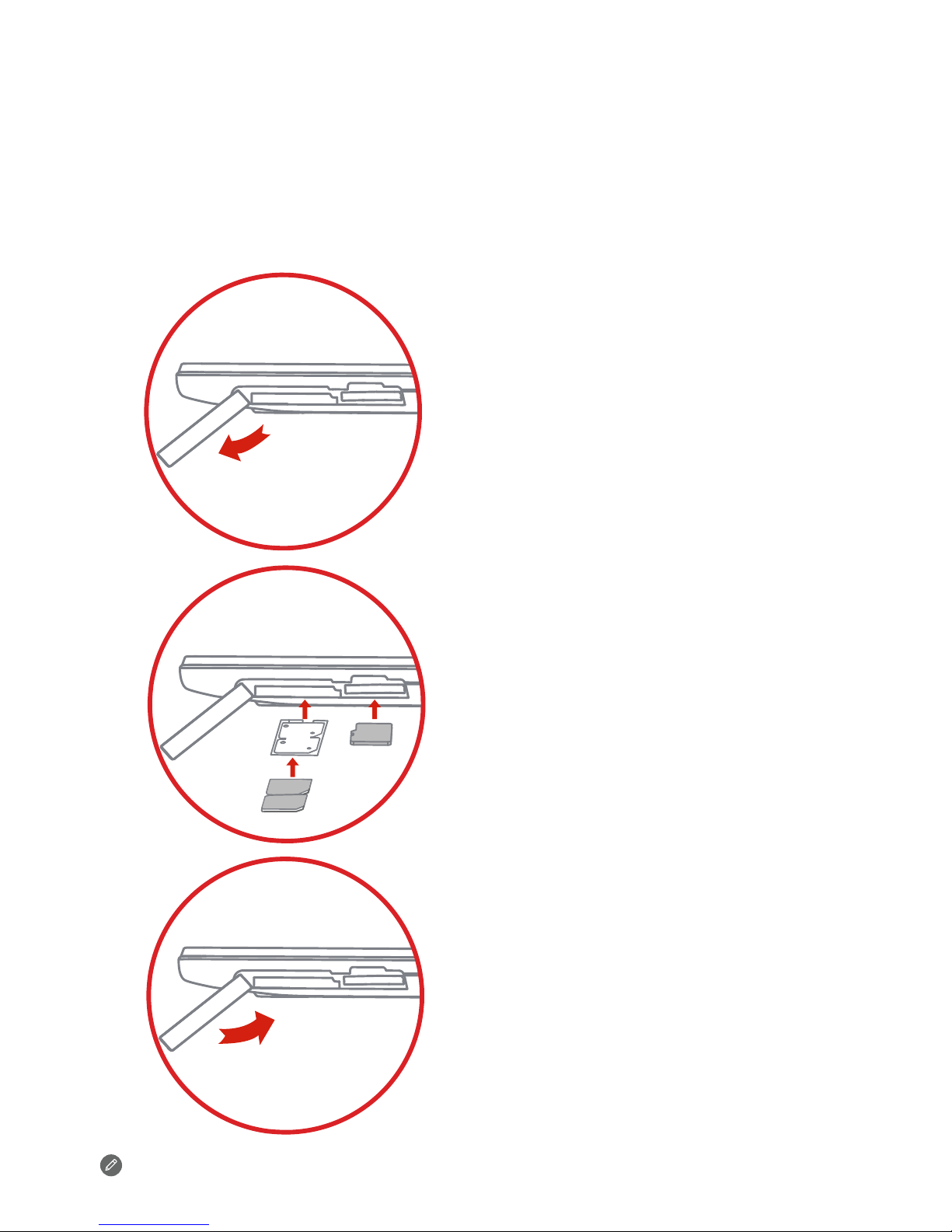

Install the Micro SIM card and the Micro SD card as shown.
Step 1. Open the card slot cover.
Step 2.
Step 3. Carefully replace the slot cover.
Only Micro SIM card works with your Lenovo TAB 2 A8-50L/Lenovo TAB 2 A8-50LC .
Micro
SD
SIM 2
SIM 1
Pull out the Micro-SIM-card tray
and position the Micro SIM card
into the tray in correct orientation,
then carefully insert the tray with
the installed Micro SIM card back
into the Micro SIM card slot.
Insert the Micro SD card into the
Micro SD slot.
Preparing your Lenovo TAB 2 A8-50

Turning on/off
Before using your Lenovo TAB 2 A8-50, you might need to charge the battery.
Charge the battery as shown.
Method 1. Connect your Lenovo TAB 2 A8-50 to a power outlet using the included
cable and USB power adapter.
Method 2. Charge the battery using a computer.
Low battery Fully charged Charging
Turn on: Press and hold the On/Off button until the
Lenovo logo appears.
Turn of f: Press and hold the On/Off button for a few
seconds, then tap Power off.
2
1
Starting to use your Lenovo TAB 2 A8-50
Taking screenshots
Press and hold the On/Off button and the volume down button at the same time.

Read before using your tablet
Read rst-Regulatory information
The following sections provide critical safety and regulatory information for Lenovo
tablets and instructions on how to access electronic versions of the publications
developed for your tablet.
Downloading publications
Accessing your User Guide
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of your product. Refer to the
Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo
Limited Warranty notice” later in this document for details on accessing the full
warranty.
Online technical support
Online technical support is available during the lifetime of a product at
http://www.lenovo.com/support.
You can get help and information from the Customer Support Center by telephone.
Before contacting a Lenovo technical support representative, please have the following
information available: model and serial number, the exact wording of any error
message, and a description of the problem.
Your technical support representative might want to walk you through the problem
while you are at your device during the call.
Device models equipped with wireless communications comply with the radio frequency
and safety standards of any country or region in which it has been approved for wireless
use. In addition, if your product contains a telecom modem, it complies with the
requirements for connection to the telephone network in your country.
Be sure to read the Regulatory Notice for your country or region before using the wireless
devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer
to the “Downloading publications” section below.
Electronic versions of your publications are available from the http://support.lenovo.com.
To download the publications for your device, go to: http://support.lenovo.com and follow
the instructions on the screen.
Your User Guide contains detailed information about your device. To access your User
Guide, go to: http://support.lenovo.com and follow the instructions on the screen.
Service and Support information
Telephone technical support

WARNING: Handling the cord on this product or cords associated with accessories
sold with this product will expose you to lead, a chemical known to the State of
California to cause cancer, and birth defects or other reproductive harm. Wash hands
after handling.
Polyvinyl Chloride (PVC) cable and cord notice
Built-in rechargeable battery notice
Prevent hearing damage
Your device has a headphone connector. Always use the headphone connector for
headphones (also called a headset) or earphones.
Worldwide Lenovo Support telephone list
DANGER:
Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo
Support for factory replacement.
CAUTION:
Excessive sound pressure from earphones and headphones can cause hearing loss.
Adjustment of the equalizer to maximum increases the earphone and headphone
output voltage and the sound pressure level. Therefore, to protect your hearing, adjust
the equalizer to an appropriate level.
Excessive use of headphones or earphones for a long period of time at high volume
can be dangerous if the output of the headphone or earphone connectors do not
comply with specications of EN 50332-2.
The headphone output connector of your device complies with EN 50332-2 Sub
clause 7. This specication limits the device's maximum wide band true RMS output
voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or
earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band
characteristic voltage of 75 mV. Using headphones that do not comply with EN
50332-2 can be dangerous due to excessive sound pressure levels.
If the telephone number for your country or region is not listed, contact your Lenovo
reseller or Lenovo marketing representative.
Important safety and handling information
Plastic bag notice
DANGER:
Plastic bags can be dangerous. Keep plastic bags away from babies and children to
avoid danger of suffocation.
Important: Telephone numbers are subject to change without notice. The most
up-to-date telephone list for the Customer Support Center is always available at
http://www.lenovo.com/support/phone.

Warning statement:
To prevent possible hearing damage, do not listen at high volume levels for a long
period of time.
Lenovo Limited Warranty notice
This product is covered by the terms of the Lenovo Limited Warranty, version
L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at
http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of
languages from this Web site. If you cannot view the LLW from the Web site, contact
your local Lenovo ofce or reseller to obtain a printed version of the LLW.
Lenovo TAB 2 A8-50
Model & Version
Model Version
WLAN
LTE
Lenovo TAB 2 A8-50F
Lenovo TAB 2 A8-50L
Lenovo TAB 2 A8-50LC LTE (Voice)
Sound pressure warning statement
For the device that is tested in accordance with EN 60950-1:
2006+A11:2009+A1:2010+A12:2011, it is mandatory to perform audio tests for
EN50332.
This device has been tested to comply with the Sound Pressure Level requirement laid
down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing
loss may occur if earphones or headphones are used at high volume for prolonged
periods of time.
Warranty information
If your device came with headphones or earphones in the package, as a set, the
combination of the headphones or earphones and the device already complies with
the specications of EN 50332-1. If different headphones or earphones are used,
ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using
headphones that do not comply with EN 50332-1 can be dangerous due to excessive
sound pressure levels.

* Excludes some components. 90-day limited warranty for power adapters, keyboards,
plastics and hinges.
Warranty period and type of Warranty service
Country or Region Purchase Warranty Period
France, Germany, Italy, Austria,
United Kingdom, Israel, Australia,
New Zealand
parts and labor - 1 year
Battery Pack - 1 year 1,3
Serbia, Costa Rica, Venezuela, Peru,
Uruguay, Ecuador, Colombia, Chile, Argentina,
Indonesia, Vietnam, India, Malaysia, Thailand,
Philippines, Singapore, Hong Kong
parts and labor - 1 year
Battery Pack - 1 year 1,4
Russia, Ukraine, Egypt, Lebanon, Morocco,
South Africa, Tunisia, Mauritius, Mozambique,
United Arab Emirates, Jordan, Kenya, Nigeria,
Uganda, Ghana, Oman,Tanzania, Namibia
parts and labor - 1 year
Battery Pack - 1 year 4
Poland, Hungary, Romania, Bulgaria, Greece,
Croatia, Slovenia, Slovakia, Cyprus, United
States of America, Canada, Mexico, Japan
parts and labor - 1 year
Battery Pack - 1 year 1,5
Panama
parts and labor - 1 year
Battery Pack - 1 year 2,4
Taiwan, South Korea parts and labor - 1 year
Battery Pack - 1 year 3,4
Brazil parts and labor - 1 year
Battery Pack - 1 year 2,5
Spain, Switzerland, Portugal, Netherlands,
Belgium, Sweden, Denmark, Norway, Finland,
Estonia, Latvia, Lithuania, Iceland
parts and labor - 2 year
Battery Pack - 1 year 1,3
Czech Republic parts and labor - 2 year
Battery Pack - 1 year 1,5
Turkey parts and labor - 2 year
Battery Pack - 1 year 3,4
parts and labor - 2 year
Battery Pack - 1 year4
Saudi Arabia
Type of Warranty
Service
