Lenovo YOGA Tab 3 8" How to use

YOGA Tab 3 8”
Safety, Warranty & Quick
Start Guide
Lenovo YT3-850F
Lenovo YT3-850L
Lenovo YT3-850M
English/Türkçe

Read this guide carefully before using your YOGA Tab 3 8”.
All information labeled with * in this guide refers only to the LTE model (Lenovo
YT3-850L/Lenovo YT3-850M).
English
Electronic emission
notices
Learn more
Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in
the United States, other countries, or both.
Other company, product, or service names may be
trademarks or service marks of others.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or
software is delivered pursuant a General Services
Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract
No. GS-35F-05925.
The Declaration of Conformity information is located in the
Regulatory Notice. To obtain a PDF version of the
Regulatory Notice, go to : http://support.lenovo.com/
Getting support For support on network service and billing, contact your
wireless network operator. For instructions on how to use
your YOGA Tab 3 8”,go to : http://support.lenovo.com/
Radio and Telecommunications Terminal Equipment
Directive
Lenovo declares that this product is in compliance with:
● The essential requirements and other relevant
provisions of the Radio and Telecommunications
Terminal Equipment Directive, 1999/5/EC
● All other relevant EU directives
European Union conformity
0560
1

Technical specifications
Qualcomm APQ8009
*Qualcomm MSM8909
6200 mAh
Camera
Battery
Display
①Wireless
communication
8 megapixels
Size: 20.32 cm (8 inches)
Resolution: 800 × 1280
Bluetooth 4.0; WLAN 802.11 b/g/n;
GPS/GLONASS; *LTE/WCDMA/GSM
Your YOGA Tab 3 8” supports LTE Band 1, 3, 4, 5, 7, 8, 19, 20, 38 and 40. But in
some countries,LTE is not supported. To know if your YOGA Tab 3 8” works with
LTE networks in your country, contact your carrier.
①
Model & version
CPU
YOGA Tab 3 8”
Version: WLAN
Android
*Version: LTE (Voice)*Model: Lenovo YT3-850M;
*Version: LTE*Model: Lenovo YT3-850L;
Model: Lenovo YT3-850F;
System
2

The WLAN model (Lenovo YT3-850F) does not have a Micro SIM card slot.
You can use pencils or metal-tipped pens with a tip diameter of 0.7 mm or above,
including fountain pens, rollerball pens, and some ballpoint pens, to write and draw
on the screen or perform auxiliary touch operations. Special tip: There is a risk of
scratching the screen slightly if you apply too much pressure when writing or use
a pen tip that is too hard.
!!! Do not insert your finger into the hanging hole. Doing so might hurt your finger.
First glance
5
10
Micro USB connector2
6
3
789
4
1On/Off button
Speakers Microphone Earphone jack
Kickstand Hanging hole Kickstand push button
Rotating camera
8
1
2
3
44
5
67
10
11
12
Volume button
8
11 MicroSD card slot
9
12 *Micro SIM card slot
3

You can use cellular services with the LTE model ( Lenovo YT3-850L/Lenovo YT3-850M )
by inserting the Micro SIM card provided by your carrier.

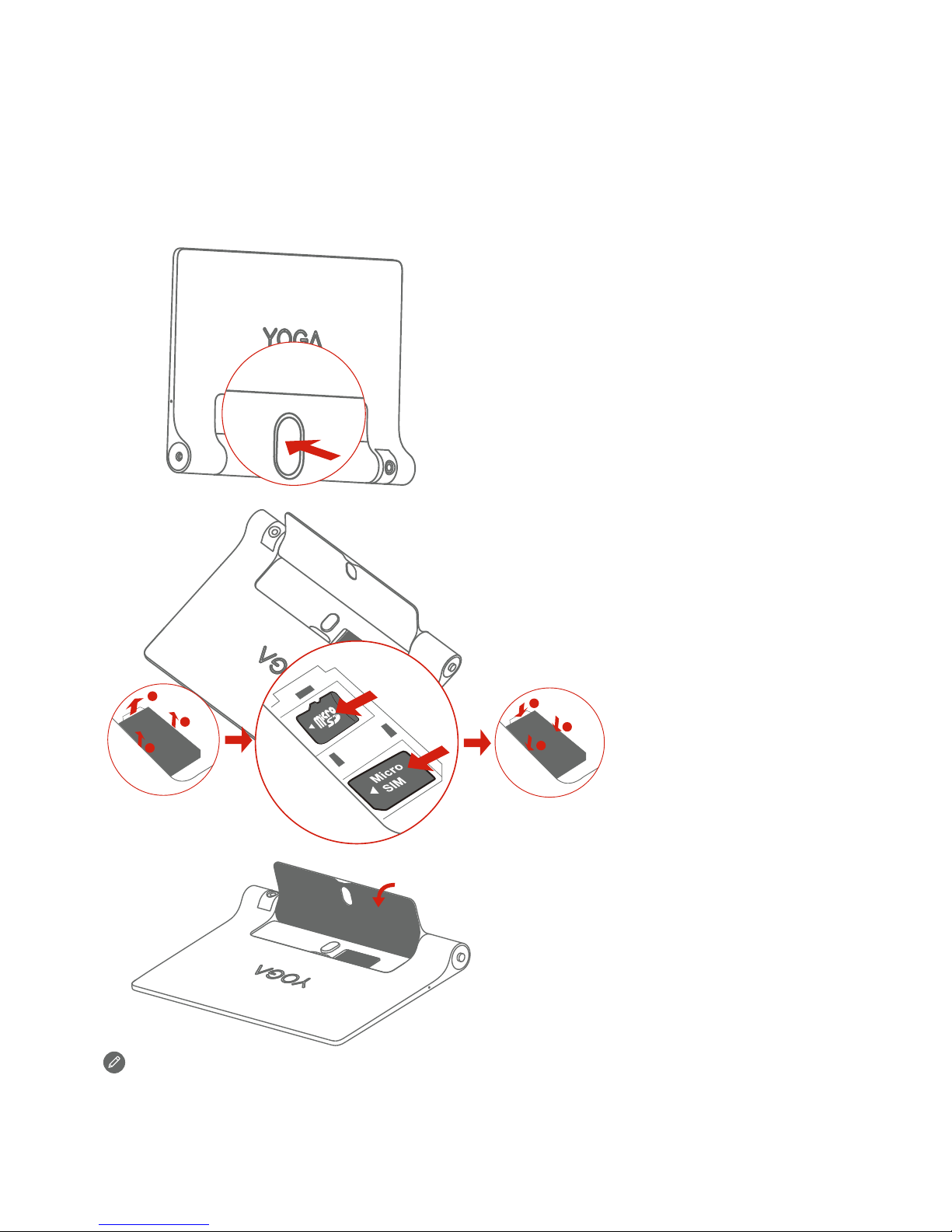

Install the Micro SIM card and the microSD card as shown.
Step 3. Push back the kickstand.
Only Micro SIM card works with your tablet.
!!! DO not insert or remove the Micro SIM card while your tablet is turned on. Doing
so can permanently damage your Micro SIM card or tablet.
1
2
1
2
2
1
Step 1. Press the push button to open
the kickstand.
Step 2. Open the card slot cover.
Insert the Micro SIM card and
microSD card and then install
the card slot cover back.
Preparing your tablet
4

Turning on/off
Connect your tablet to a power outlet using the included cable and USB power adapter.
Low battery Fully charged Charging
Turn on: Press and hold the On/Off button until the
Lenovo logo appears.
Turn off: Press and hold the On/Off button for a few
seconds, then tap Power off.
Restart: Press and hold the On/Off button for a few
seconds, then tap Restart. To force restart your tablet,
press and hold the power button until the tablet vibrates.
Before using your tablet, you might need to charge the battery. Charge the battery as
shown.
Using the rotating camera
Allowable functional range of the rotating camera is
shown on the left.
Don't over-rotate the camera to avoid its damage.
Starting to use your tablet
Taking screenshots
Press and hold the On/Off button and the volume down button at the same time.
5

125.00
Read before using your tablet
The following sections provide critical safety and regulatory information for the Lenovo
tablets and instructions on how to access electronic versions of the publications
developed for your tablet.
Read first-Regulatory information
Device models equipped with wireless communications comply with the radio frequency
and safety standards of any country or region in which it has been approved for wireless
use. In addition, if your product contains a telecom modem, it complies with the
requirements for connection to the telephone network in your country.
Be sure to read the Regulatory Notice for your country or region before using the
wireless devices contained in your device. To obtain a PDF version of the Regulatory
Notice, refer to the “Downloading publications” section below.
Downloading publications
Electronic versions of your publications are available from http://support.lenovo.com. To
download the publications for your device, go to http://support.lenovo.com and follow the
instructions on the screen.
Accessing your User Guide
Your User Guide contains detailed information about your device. To access your User
Guide, use one of the following methods:
●Go to http://support.lenovo.com and follow the instructions on the screen.
Service and Support information
The following information describes the technical support that is available for your
product, during the warranty period or throughout the life of your product. Refer to the
Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo
Limited Warranty notice” later in this document for details on accessing the full
warranty.
Online technical support
Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support
Telephone technical support
You can get help and information from the Customer Support Center by telephone.
Before contacting a Lenovo technical support representative, please have the following
information available: model and serial number, the exact wording of any error
message, and a description of the problem.
Your technical support representative might want to walk you through the problem
while you are at your device during the call.
6

10.00
Worldwide Lenovo Support telephone list
Important: Telephone numbers are subject to change without notice. The most
up-to-date telephone list for the Customer Support Center is always available at:
http://www.lenovo.com/support/phone
If the telephone number for your country or region is not listed, contact your Lenovo
reseller or Lenovo marketing representative.
Important safety and handling information
Plastic bag notice
DANGER:
Plastic bags can be dangerous. Keep plastic bags away from babies and children to
avoid danger of suffocation.
Built-in rechargeable battery notice
DANGER:
Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo
Support for factory replacement.
Polyvinyl Chloride (PVC) cable and cord notice
WARNING: Handling the cord on this product or cords associated with accessories
sold with this product will expose you to lead, a chemical known to the State of
California to cause cancer, and birth defects or other reproductive harm. Wash hands
after handling.
Prevent hearing damage
Your device has a headphone connector. Always use the headphone connector for
headphones (also called a headset) or earphones.
CAUTION:
Excessive sound pressure from earphones and headphones can cause hearing
loss. Adjustment of the equalizer to maximum increases the earphone and
headphone output voltage and the sound pressure level. Therefore, to protect
your hearing, adjust the equalizer to an appropriate level.
Excessive use of headphones or earphones for a long period of time at high volume
can be dangerous if the output of the headphone or earphone connectors do not
comply with specifications of EN 50332-2.
The headphone output connector of your device complies with EN 50332-2 Sub
clause 7. This specification limits the device's maximum wide band true RMS output
voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or
earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band
characteristic voltage of 75 mV. Using headphones that do not comply with
EN 50332-2 can be dangerous due to excessive sound pressure levels.
7

Warning statement:
To prevent possible hearing damage, do not listen at high volume levels for a long
period of time.
Warranty information
Lenovo Limited Warranty notice
This product is covered by the terms of the Lenovo Limited Warranty, version
L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at
http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of
languages from this Web site. If you cannot view the LLW from the Web site, contact
your local Lenovo office or reseller to obtain a printed version of the LLW.
YOGA Tab 3 8”
Model & Version
Model Version
WLAN
LTE
Lenovo YT3-850F
Lenovo YT3-850L
Lenovo YT3-850M LTE (Voice)
If your device came with headphones or earphones in the package, as a set, the
combination of the headphones or earphones and the device already complies with
the specifications of EN 50332-1. If different headphones or earphones are used,
ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using
headphones that do not comply with EN 50332-1 can be dangerous due to excessive
sound pressure levels.
Sound pressure warning statement
For the device that is tested in accordance with EN 60950-1:
2006+A11:2009+A1:2010+A12:2011, it is mandatory to perform audio tests for
EN 50332.
This device has been tested to comply with the Sound Pressure Level requirement laid
down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing
loss may occur if earphones or headphones are used at high volume for prolonged
periods of time.
8

* Excludes some components. 90-day limited warranty for power adapters, keyboards,
plastics and hinges.
Warranty period and type of Warranty service
1,3
1,4
4
1,5
Panama 2,4
Taiwan, South Korea 3,4
Brazil 2,5
1,3
1,5
Turkey 3,4
4Saudi Arabia
Serbia 1,4
Country or Region Purchase Warranty Period Type of Warranty
Service
France, Germany, Italy, Austria,
United Kingdom, Israel, Australia,
New Zealand
Guatemala, Costa Rica, Venezuela, Peru,
Uruguay, Ecuador, Colombia, Chile,
Argentina, Indonesia, Vietnam, India,
Malaysia, Thailand, Philippines, Singapore,
Hong Kong, El Salvador
Russia, Ukraine, Egypt, Lebanon, Morocco,
South Africa, Tunisia, Mauritius, Mozambique,
United Arab Emirates, Jordan, Kenya,
Nigeria,Uganda, Ghana, Oman,Tanzania,
Namibia
Poland, United States of America, Canada,
Mexico, Japan
Spain, Switzerland, Portugal, Netherlands,
Belgium, Sweden, Denmark, Norway,
Finland, Estonia, Latvia, Lithuania, Iceland
Czech Republic, Hungary, Romania, Bulgaria,
Greece, Croatia, Slovenia, Slovakia, Cyprus
Parts and labor - 1 year
Battery Pack - 1 year
Parts and labor - 1 year
Battery Pack - 1 year
Parts and labor - 1 year
Battery Pack - 1 year
Parts and labor - 1 year
Battery Pack - 1 year
Parts and labor - 1 year
Battery Pack - 1 year
Parts and labor - 1 year
Battery Pack - 1 year
Parts and labor - 1 year
Battery Pack - 1 year
Parts and labor - 2 years
Battery Pack - 1 year
Parts and labor - 2 years
Battery Pack - 1 year
Parts and labor - 2 years
Battery Pack - 1 year
Parts and labor - 2 years
Battery Pack - 1 year
Parts and labor - 2 years
Battery Pack - 1 year
9
