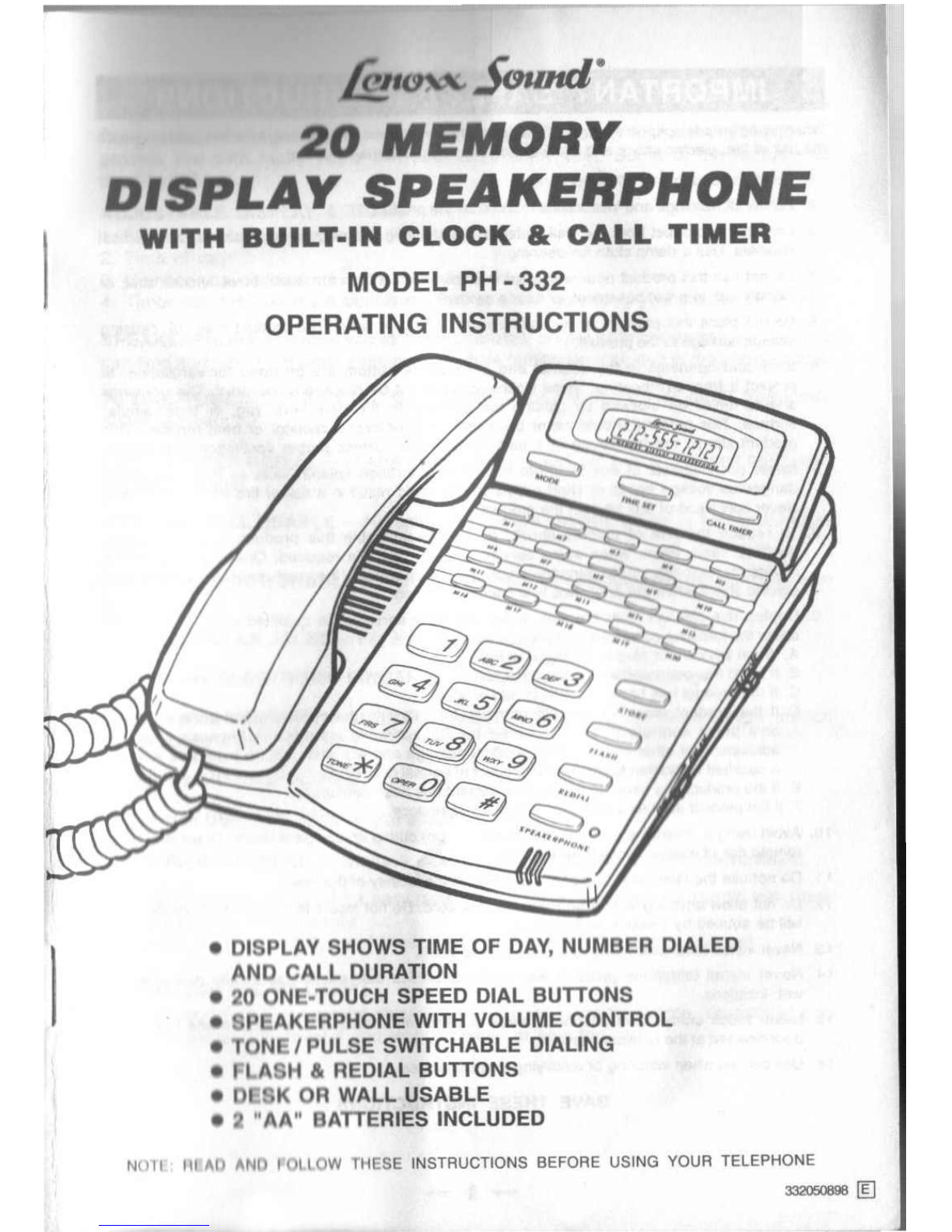

Lenoxx Sound PH-332 User manual

k,~Stmnd·
20 MEMORY
DISPI.AY SPEAKERPHONE
WITH BUILT·IN CLOCK & CALL TIMER
MODEL PH - 332
OPERATING INSTRUCTIONS
• DISPLAY SHOWS TIME OF DAY, NUMBER DIALED
AND CALL DURATION
• 20 ONE·TOUCH SPEED DIAL BUTTONS
• P AKERPHONE WITH VOLUME CONTROL
• lON I PULSE SWITCHABLE DIALING
• flASH & REDIAL BUTTONS
• l>I . K OR WALL USABLE
• , "I\A" BATTERIES INCLUDED
NOli III All ANII I OllOW THESE INSTRUCTIONS BEFORE USING YOUR TELEPHONE
332050898 ffi)

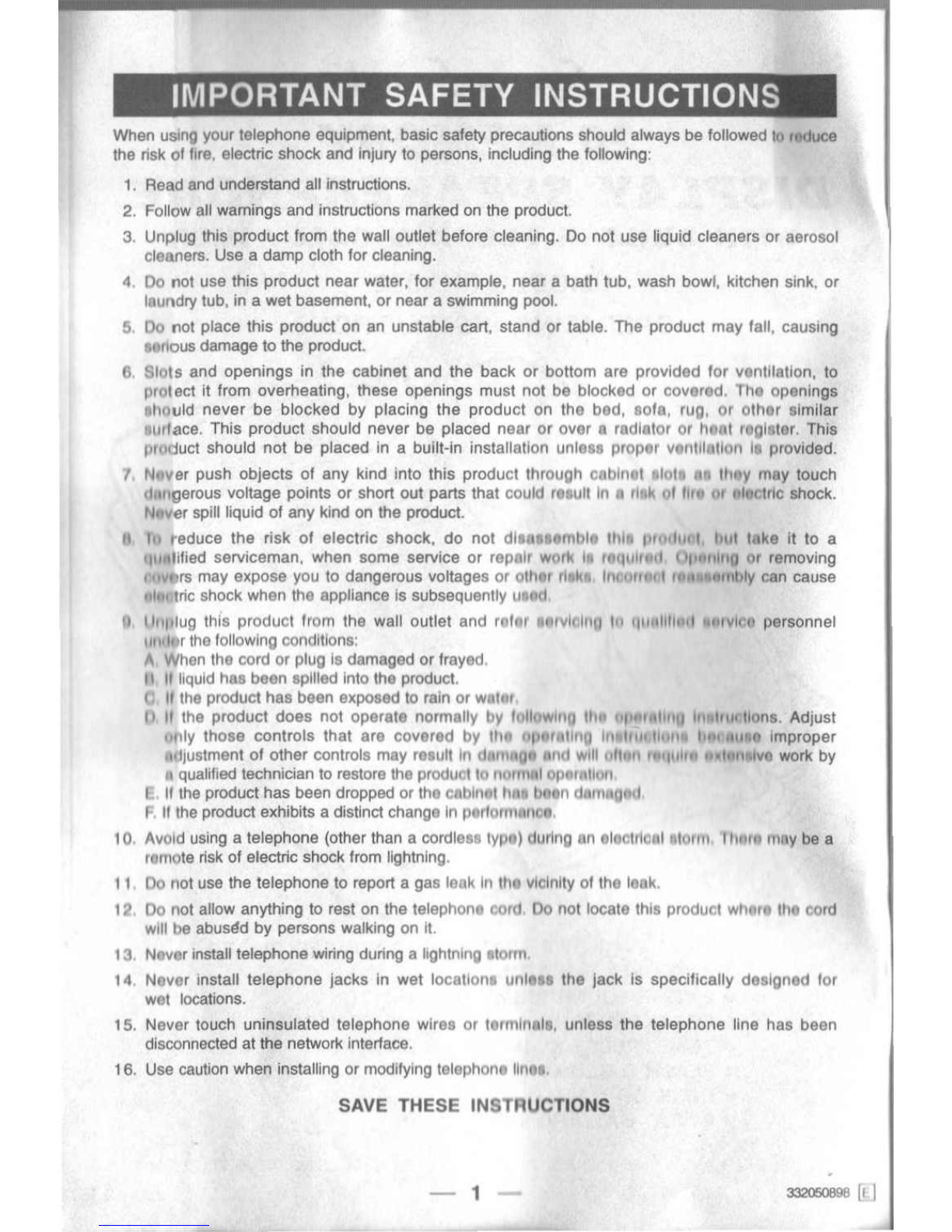

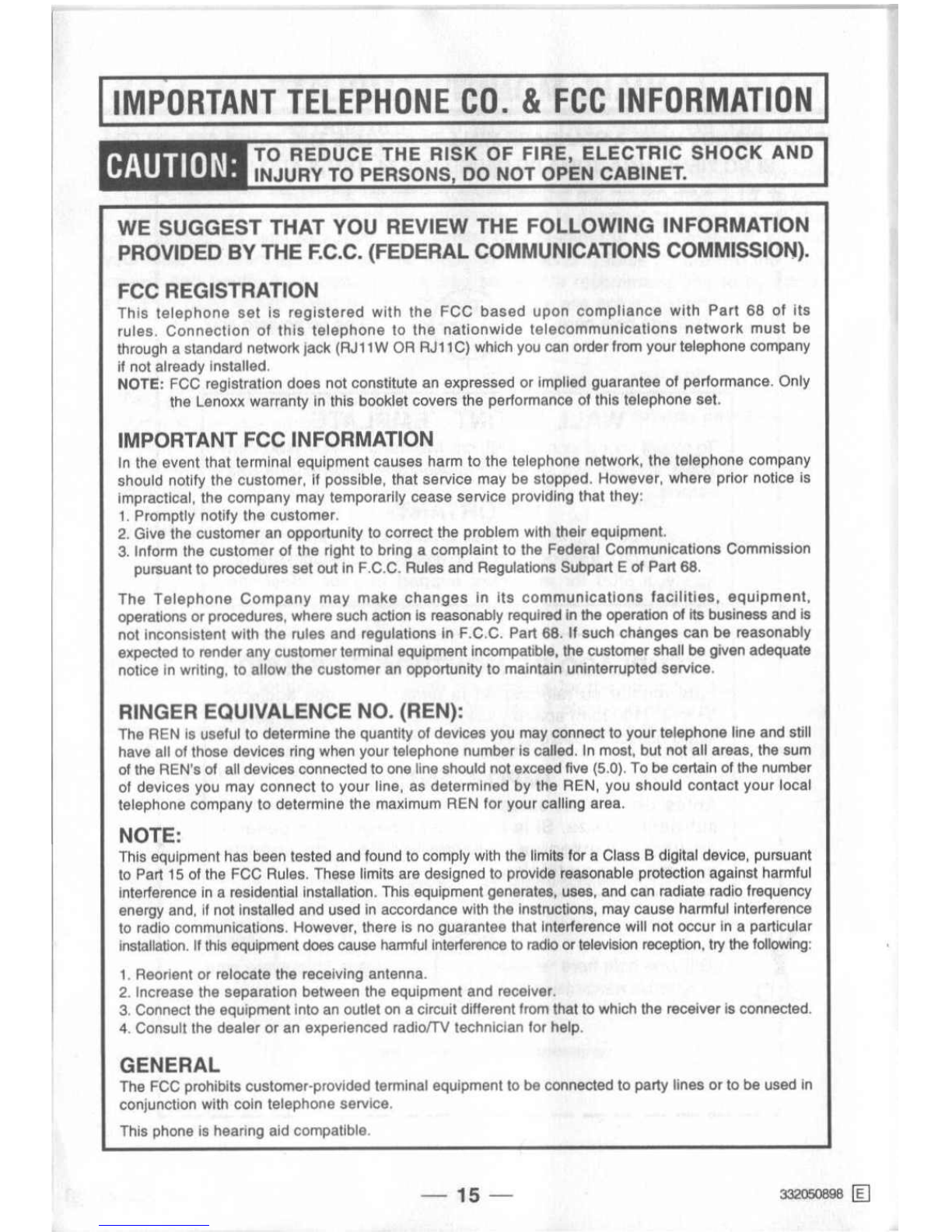

IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed In reduce
the risk of lire, electric shock and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all wamlngs and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for exam pte, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool.
5. Do not place this product on an unstable cart, stand or table. The product may lall, causing
Bellous damage to the product.
6. Slot s and openings in the cabinet and the back or bottom are provided lor ventilation, to
protect It from overheating, these openings must not be blocked or covered. The openings
Bhould never be blocked by placing the product on the bed. 6010. rug. or OIMr similar
IllIface. This product should never be placed near or over a rndlator or !lonl rogl&tor. This
III'lI~uct should not be placed in a built-in installation unless propor vlntllatlnll I. provided.
7. Nnver push objects 01 any kind into this product through coblnQt .1011 Itl IIIIIV rnay touch
,I.'"gerous voltage points or short out parts that could r.. ult In II III.~ III lit., 111 1.lar-trtc shock.
NI'ver spill liquid 01 any kind on the product.
II I" teduce the risk 01 electric shock, do not dlaallatl1hl. tllllI 1'1111111' '. 11111IlIke it to a
",,,.Iilied serviceman, when some service or replllI wlllk I. In'l"ll. d 11!,""llg or removing
, "v rs may expose you to dangerous voltages or othllr rl ,k. 1m(II' (I, I rllh nrnlrly can cause
uhu tric shock when the appliance is subsequently !JIlltl
1IIIIIIug this product from the wall outlet and rohll 1111'11•.111111'1 11111111110" ~"Ilrln' personnel
1111"r the following condilions:
1\ When tho cord or plug Is damaged or frayed.
" II liquid has been spilled Into the product.
, If the product has been exposed to rain or wlltar
II It the product does not operate normally by 'u1i1lW11I1I IItl) (.f) , Illig fr.1I1I1I tions. Adjust
"nly those controls that are covered by tllit "llIlIIIIIIID 1I'~lIlIrI"llIl 101 (I,,,'" Improper
IlllJustment of other controls may result In Olllllr,u .. IIlIet Willl.fh," I. 1.l1Ii1' 11)111".1\111work by
• qualified technician to restore the product I" 11111111111111'0111111111
r If the product has been dropped or the OI1UlliOtIIl1ft IIIIlIn tlllllllln,.rt
F. It Ihe product exhibits a distinct change In P(llIOllllllll(.lI,
10. Avoid using a telephone (other than a cordless IYIlII) ,Juring on 01001110111111,",1 IlulIfllllAY be a
romote risk 01electric shock from lightning.
I " 00 not use the telephone to report a gas lenk III lito vicinity of Ihe look.
t 2. Do not allow anything to rest on the telephonl core, Do not locate this product WilD,. 1110cord
will be abusE!d by persons walking on It.
13. Nevor install telephone wiring during a lightning lIorm.
1II. Never install telephone jacks in wet locatlons unl ••• the Jack is specifically designed for
wet locations.
15. Never touch uninsulated telephone wires or torOllllll18, unless the telephone line has been
disconnected at the network interlace.
16. Use caution when installing or modifying telephono IIno•.
SAVE THESE INSTRUCTIONS
- 1-
332050B98 ~ I

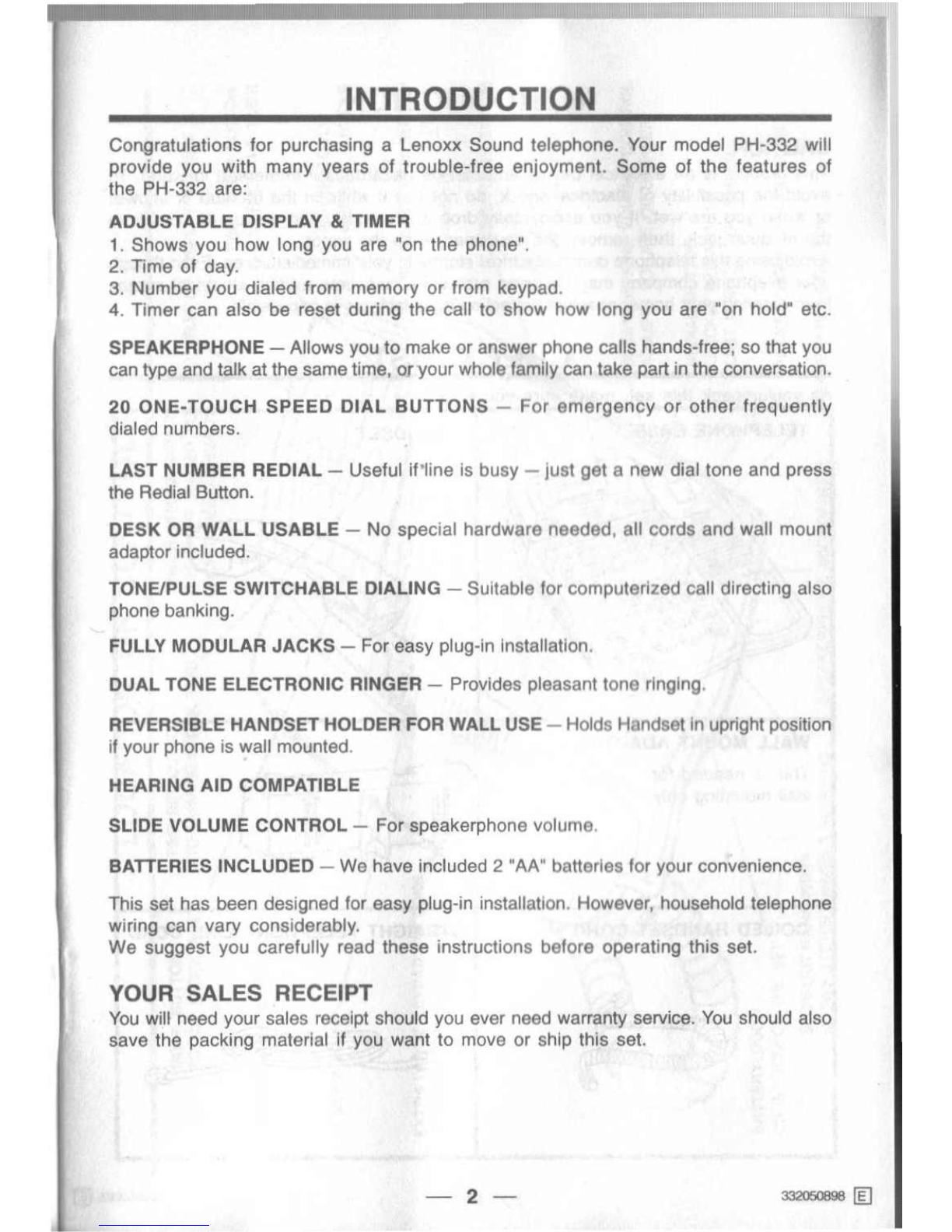

INTRODUCTION
Congratulations for purchasing a Lenoxx Sound telephone. Your model PH-332 will
provide you with many years of trouble-free enjoyment. Some of the features of
the PH-332 are;
ADJUSTABLE DISPLAY &TIMER
1. Shows you how long you are "on the phone".
2. Time of day.
3. Number you dialed from memory or from keypad.
4. Timer can also be reset during the call to show how long you are "on hold" etc.
SPEAKERPHONE - Allows you to make or answer phone calls hands-free; so that you
can type and talk at the same time, oryour whole family can take part in the conversation.
20 ONE-TOUCH SPEED DIAL BUTTONS - For emergency or other frequently
dialed numbers.
LAST NUMBER REDIAL - Useful if'line is busy - just get a new dial tone and press
the Redial Button.
DESK OR WALL USABLE - No special hardware needed, all cords and wall mount
adaptor included.
TONE/PULSE SWITCHABLE DIALING - Suitable for computerized call directing also
phone banking.
FULLY MODULAR JACKS - For easy plug-In Installation.
DUAL TONE ELECTRONIC RINGER - Provides pleasant tone ringing.
REVERSIBLE HANDSET HOLDER FOR WALL USE- Holds Handset In upright position
if your phone is wall mounted.
HEARING AID COMPATIBLE
SLIDE VOLUME CONTROL - For speakerphone volume.
BATTERIES INCLUDED - We have included 2 "AA" batteries for your convenience.
This set has been designed for easy plug-in installation. However, household telephone
wiring can vary considerably.
We suggest you carefully read these instructions before operating this set.
YOUR SALES RECEIPT
Youwill need your sales receipt should you ever need warranty service. You should also
save the packing material If you want to move or ship this set.
- 2-
332050698 [[]

INTRODUCTION
CAUTION:
This product is an electrical device and can be hazardous if immersed in water. To
avoid the possibility of electrical shock, do not use it while in the bathtub or shower
or when you are wet. If you accidentally drop it Into water, first unplug its cord from
the modular jack, then remove the equipment from the water.
Avoid using this telephone during electrical storms In your immediate area. Even though
your telephone company may be using protective measures to limit electrical surges
from entering your home, absolute protection from lightning is impossible.
CHECK LIST
TELEPHONE BASE
As you unpack this set, make sure you have:
HANDSET
WALL MOUNT ADAPTOR
This is needed for
wall mounting only
COILED HANDSET CORD .'IIAIOHf TELEPHONE LINE CORD
3

20 ONE-TOUCH
MEMORY BUTTONS

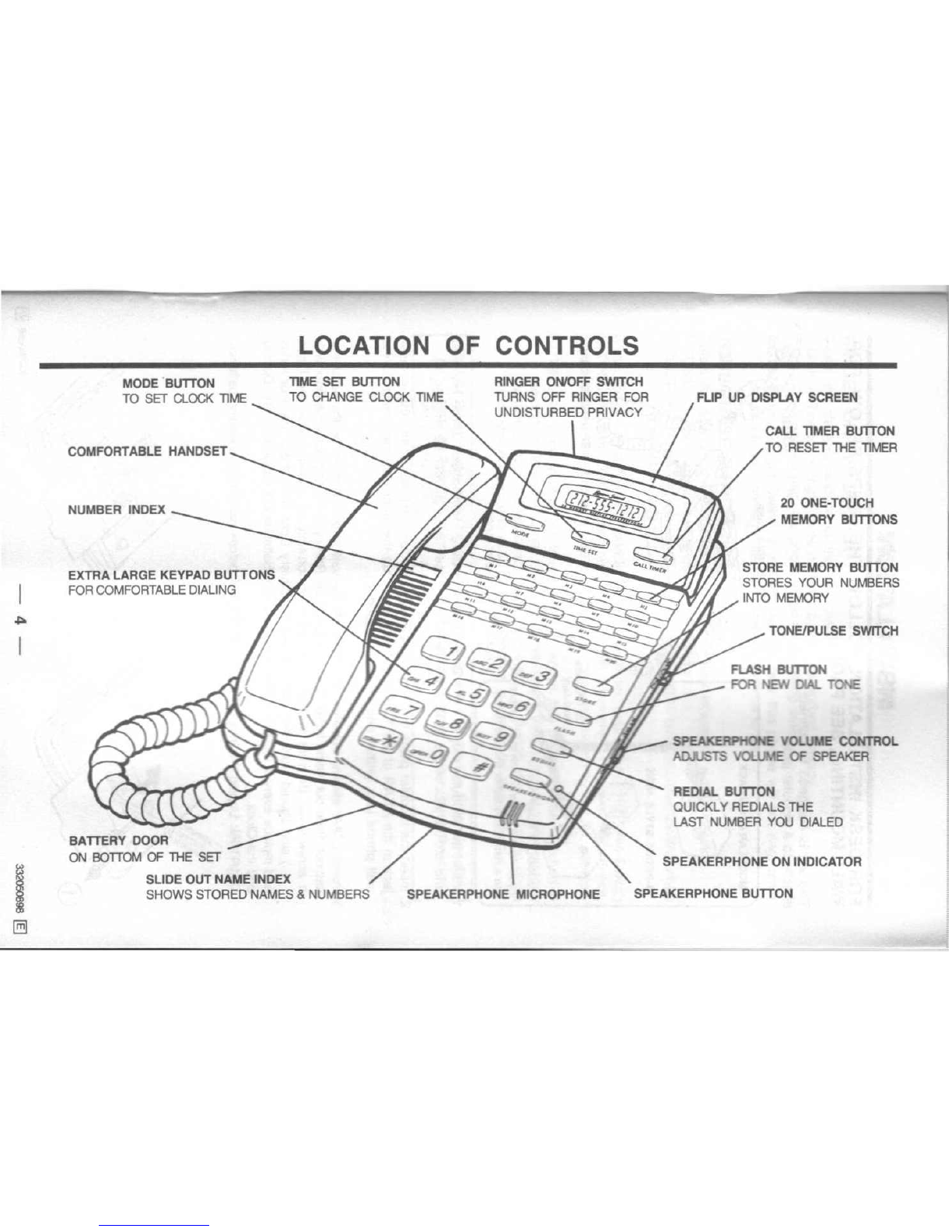

LOCATION OF CONTROLS
MODE 'BUTTON
TO SET CLOCK TIME TIME SET BUTTON
TO CHANGE CLOCK TIME RINGER OWOFF SWITCH TURNS OFF RINGER FOR
UNDISTURBED PRIVACY FLIP UP DISPLAY SCREEN
COMFORTABLE HANDSET
CALl TIMER BUTTON
TO RESET lHE llMER
.c:.
TONE/PULSE SWITCH
REDIAL BUTTON
QUICKLY REDIALS THE
LAST NUMBER YOU DIALED
I
SPEAKERPHONE ON INDICATOR
SLIDE OUT NAME INDEX
SHOWS STORED NAMES & NUMBERS SPEAKERPHONE MICROPHONE SPEAKERPHONE BUTTON
§]

COILED HANDSET CORD
INSTALLATION

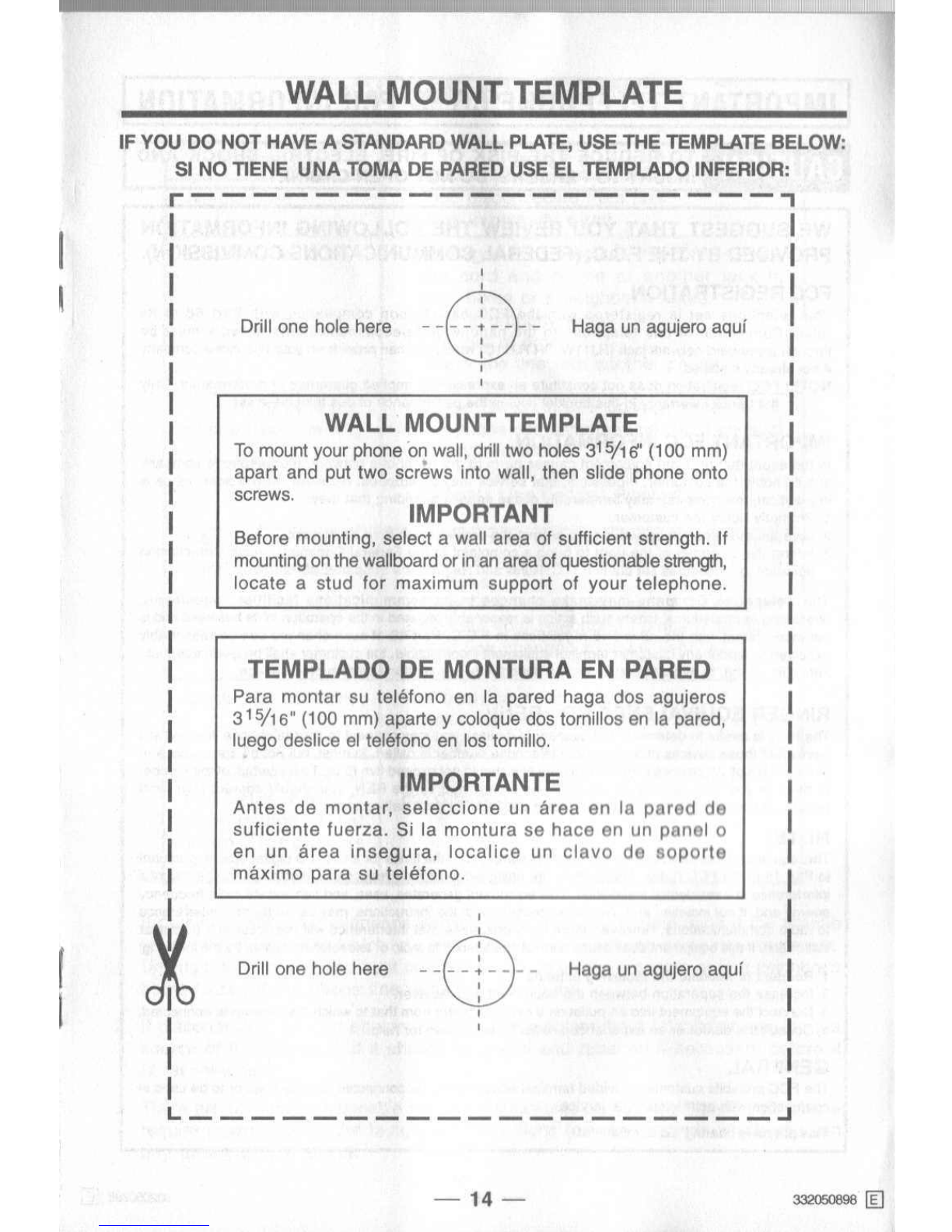

FOR DESK INSTALLATION, FOLLOW THE STEPS BELOW. FOR
WALL MOUNTING, SEE PAGE 11.
This set is designed to connect
directly to a modular jack.
lElEPHONE BAse
MODULAR RJllC JACK
MODULAR ADAPTOR
If you have a 4-prong style jack. simply
use a modular adaptor (not included).
1.Insert the modular plugs of the Coiled Handset Cord into the jack of the Handset
and into the jack on the SIDE of the Telephone Base (either end can be plugged in).
2. Insertthe modular plugs of the Straight Telephone Cord (not coiled) into the modular
jack at the REAR of the Telephone Base and plug the other end into your modular
wall phone jack (either end can be plugged in).
3. Install2 'AN alkaline batteries (included) Into the batterycompartment on the bottom of
cabinet.Slideout Name Indexdownto expose the Battery Door.and open the Door with
a screwdriver. Be sure to Install the batteries correctly as shown inside the Door.
( - ) side should touch the spring. Close the Battery Door.Also check these batteries
and replace every 6 months or if display gets dim. Batteries are required for the Display
and the Clock.
CAUTION: Unplug the telephoneline from the wnll boforo Installingor changingbatteries.
332050898 [[J
-8-

____ IIIII_I!I;Ulllla::mDlc::::::mc::JC====::::::::!:lIIIIIIBIlICIIIIII
INSTALLATION
RINGER ON/OFF SWITCH

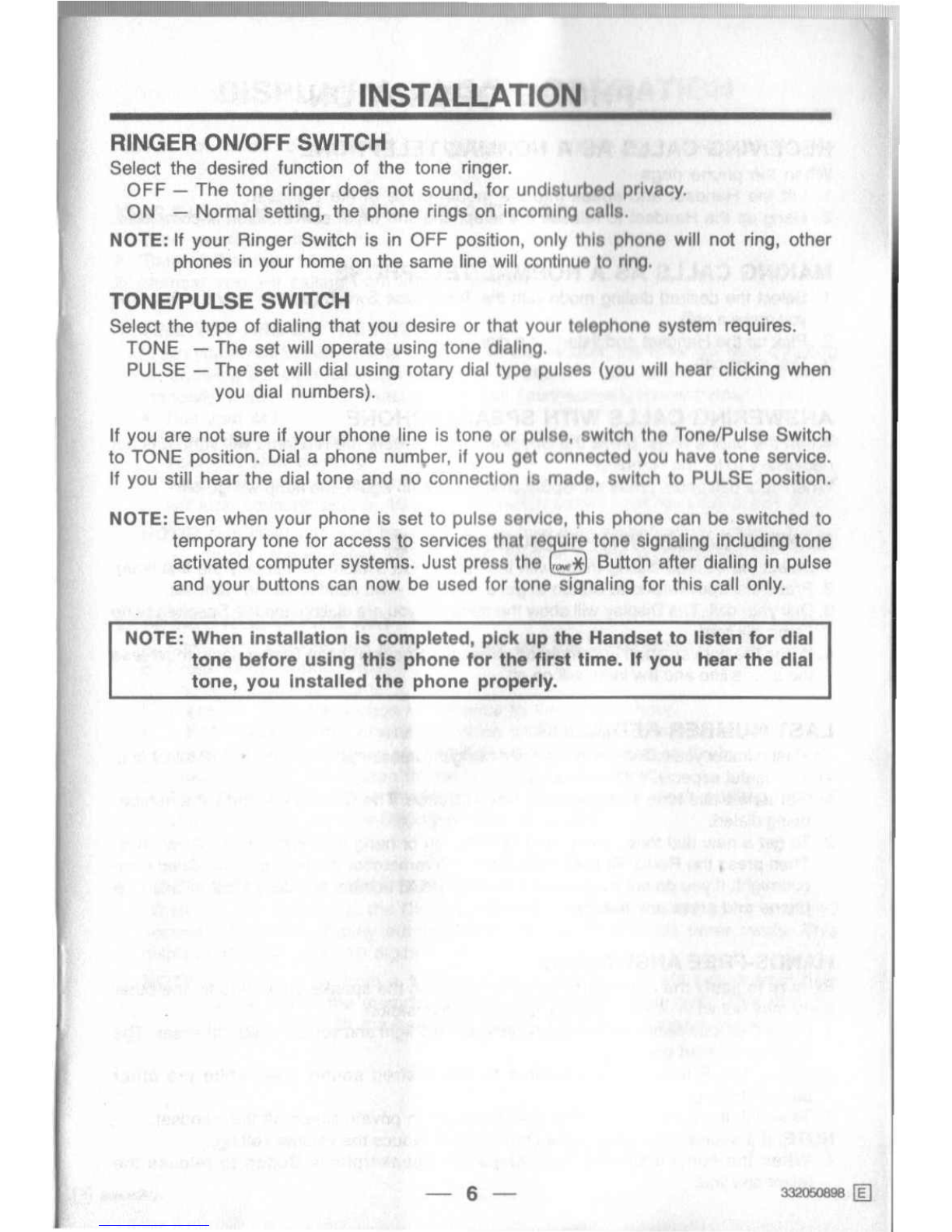

Select the desired function of the tone ringer.
OFF - The tone ringer does not sound, for undisturbed privacy.
ON - Normal setting, the phone rings on incoming calls.
NOTE: If your Ringer Switch is in OFF position, only this phone will not ring, other
phones in your home on the same line will continueto ring.
NOTE: When Installation Is completed, pick up the Handset to listen for dial
tone before using this phone for the first time. If you hear the dial
tone, you Installed the phone properly.
TONEIPULSE SWITCH
Select the type of dialing that you desire or that your telephone system requires.
TONE - The set will operate using tone dialing.
PULSE - The set will dial using rotary dial type pulses (you will hear clicking when
you dial numbers).
If you are not sure if your phone line is tone or pulse, switch the Tone/Pulse Switch
to TONE position. Dial a phone number, if you get connected you have tone service.
If you still hear the dial tone and no connection Is made, switch to PULSE position.
NOTE: Even when your phone is set to pulse service, this phone can be switched to
temporary tone for access to services that reg tone signaling including tone
activated computer systems. Just press the _* Button after dialing in pulse
and your buttons can now be used for tone Signaling for this call only.
-6-

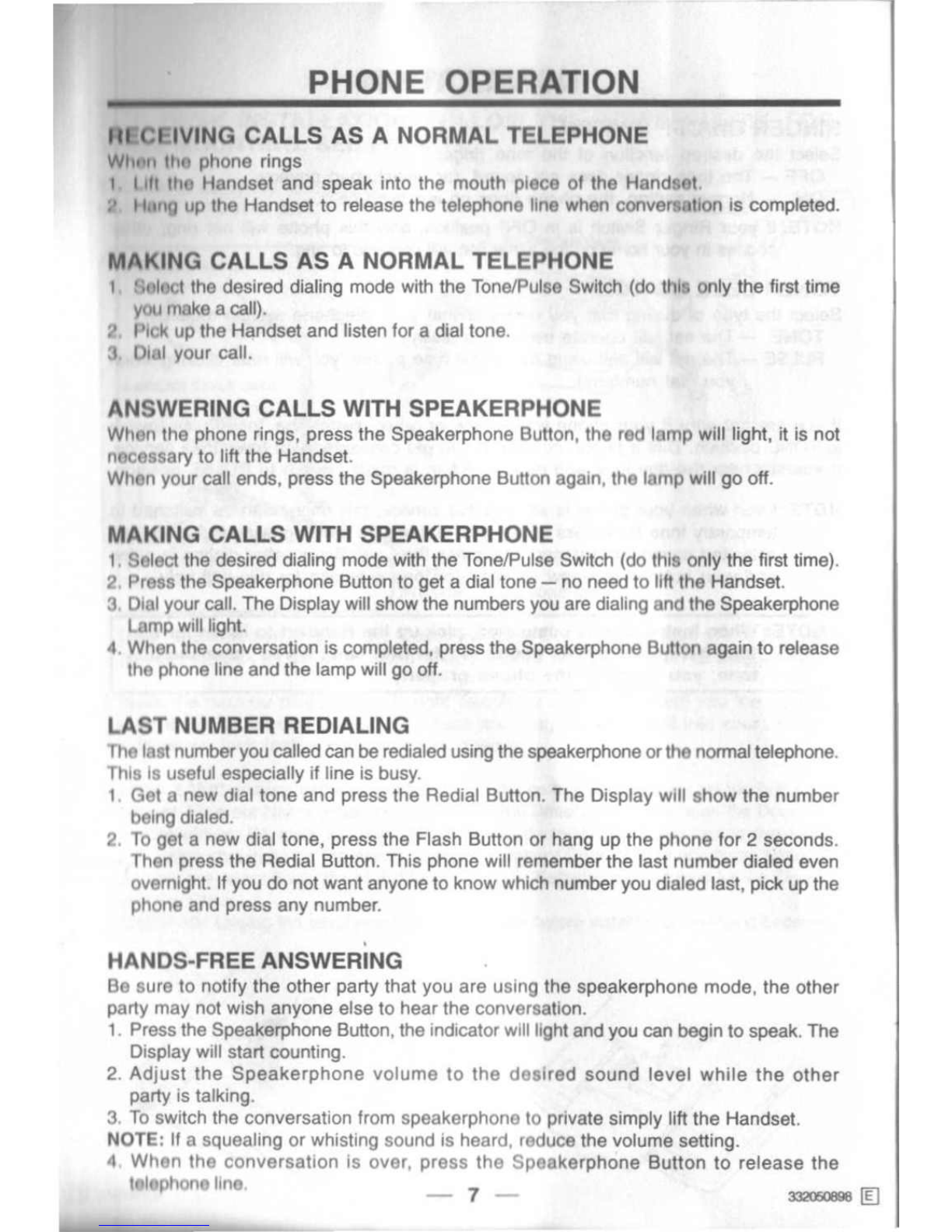

PHONE OPERATION
lit CEIVING CALLS AS A NORMAL TELEPHONE
Wh,m tho phone rings
111ft Iho Handset and speak into the mouth piece of the Handset.
2 HClIlgup the Handset to release the telephone line when conversnnon Is completed.
MAKING CALLS AS A NORMAL TELEPHONE
I Saloel the desired dialing mode with the Tone/Pulse Switch (do this only the first time
vou mnke a call).
2, Plt.;kup the Handset and listen for a dial tone.
(1 Dlul your call.
ANSWERING CALLS WITH SPEAKERPHONE
Whon the phone rings, press the Speakerphone Button, the rod lamp will light, it is not
nocessary to lift the Handset.
When your cali ends, press the Speakerphone Button again, the lamp will go off.
MAKING CALLS WITH SPEAKERPHONE
1,Select the desired dialing mode with the Tone/Pulse Switch (do this only the first time).
2 Press the Speakerphone Button to get a dial tone - no need to 11ftthe Handset.
3 Dial your call. The Display will show the numbers you are dialing and the Speakerphone
Lampwill light.
4 When the conversation is completed, press the Speakerphone Button again to release
the phone line and the lamp will go off.
LAST NUMBER REDIALING
Ihe last numberyou calledcan be redialedusingthe speakerphoneorthe normaltelephone.
This Is useful especially if line is busy.
1. Get a new dial tone and press the Redial Button. The Display will show the number
being dialed.
2. To get a new dial tone, press the Flash Button or hang up the phone for 2 seconds.
Then press the Redial Button. This phone will remember the last number dialed even
ovemlght. Ifyou do not want anyone to know which number you dialed last, pick upthe
phone and press any number.
HANDS-FREE ANSWERING
Be sure to notify the other party that you are using the speakerphone mode, the other
party may not wish anyone else to hear the conversation.
1. Press the Speakerphone Button, the indicator will light and you can begin to speak. The
Display will start counting.
2. Adjust the Speakerphone volume to the desired sound level while the other
party is talking.
3. To switch the conversation from speakerphone to private simply lift the Handset.
NOTE: If a squealing or whisting sound is heard, reduce the volume setting.
II Whon the conversation Is over, press the Speakerphone Button to release the
tnlophonGIIno. _ 7 33Zai0898 ~

DISPLAY &CLOCK OPERATION
NOTE: You need to install 2 "AA" batteries to insure your clock and display
works properly.
THIS DISPLAY WILL SHOW YOU 3 THINGS
1. Time you are on the phone.
2. Time of the day.
3. Number you are calling from keypad or memory.
1. TIME YOU ARE ON THE PHONE
When you press Speakerphone Button or lift the handset, the timer will start counting
up showing seconds and minutes. This is useful if you forget to set the timer
manually. If you want an exact time of call (connection), follow below:
A. Dial your call.
B. When the calling party answers, press the Timer Button, the timer will reset to
zero and start counting.
C. When you replace the handset or press the Speakerphone Button, the timer
will stop counting and, in 10 seconds, switch back to normal time of day clock.
NOTE: This timer can also be used to see how long somobody has kept you on
"hold", simply press Timer Button anytime during ccnvereatlon.
2. TO SET TIME OF THE DAY
A. Make sure the Handset is on the Base and the Speakorphone Is off.
B. Press Mode Button once.
C. The hours start to flash.
D. Press the Time Set Button to advance to the corroot flour,
E. If a "P" appears, this means PM. If no letter appoore, Iho time Is AM.
F. Press the Mode Button a second time, the minutes start to flash.
G. Press the Time Set Button till the correct minutes ahow
H. Press the Mode Button a third time - This will start your olock working (normal
position) and the seconds Dispaly will start advancing,
3. DISPLAYING THE NUMBER DIALED
When you dial a number, the Display shows the number you dialed for about 10
seconds. Then the display automatically switches to the call timer mode. This
display will show up to 10 digits.
NOTE: When you dial from a Memory Button, the display will switch from time
of the day to the memory number (you previously stored). This will only
happen if you lift the handset or press the Speakerphone Button.
-8-

STORING TELEPHONE NUMBERS INTO MEMORY LOCATIONS
NOTE: This phone has 20 one-touch memories. This Is very useful for emergency
numbers or numbers you call very often such as your parents or best friends.
To use the one-touch numbers just get a dial tone and press one of the 20
memory buttons. To store a number Into any of these 20 locations just follow
the Instructions below. Remember to write the names you stored onto the slide
out memory index card under this phone. The display will show you the
numbers you are dialing or storing Into memory.
NOTE: It is important to write the emergency numbers Into the memory index.
Occasionally, if the phone is disconnected from line or moved from room to
room, it is possible for memory of numbers to be lost, the manufacturer does
not assume responsibility for.customer's reliance on this memory feature.
STORING TELEPHONE NUMBERS
NOTE: This telephone will store up to 16 digits In each memory position. Follow this
simple step by step method.
1. Make sure the phone is plugged into the phone Jack and batteries are installed.
2. Press the Speakerphone Button - the indicator will light.
3. Press the Store Button once.
4. Dial the number you want to store (the display will show the numbers).
5. Press a memory button from M1 to M20 (where you would like your number stored).
6. Press the Speakerphone Button again.
7. Repeat steps 2 to 6 to store the remaining numbers into the remaining
Memory Button.
EXAMPLE: Suppose you want to store 1-212-555-1212 Into Memory Button #2.
1. Press the Speakerphone Button.
2. Press the Store Button.
3. Dial 1-212-555-1212.
4. Press M2.
5. Press the Speakerphone Button.
1. You must remain on the line and briefly explain the
reason for the call before hanging up. Otherwlso, they
may think it's a real emergency.
2. Programming/testing of emergency numbers should
be performed in the early morning or lato evening
(off-peak hours).
NOTE: WHEN PROGRAMMING OR
TESTING EMERGENCY NUMBERS:
Although testing the programming of
emergency numbers is not a
recommended procedure, if you do make
a call to an emergency number:
9
332050898 [[J
