Lenoxx AP20 User manual

Model: AP20
Batch: PR4081
PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

The illustrations used in the manual are to illustrate the operation method and structure of
the product. Where there is a small difference between the physical item and the
illustrations, please take the physical as the standard.
ABOUT THE PRODUCT:
Air treatment is heavily influenced by the extreme weather conditions of bushfires and
floods. This puts a strain on asthma and allergies, causing breathing difficulties. This Air
Purifier with CADR 95m³/h will prevent interior risks of poor air quality with its sleek design,
smart features and high-filtration performance.
Featuring a HEPA filter with activated carbon, this air purifier has a CADR, known as Clean
Air Delivery Rate, of 95m³/h and an area coverage of 12m² for high level air purification.
There’s nothing more important than the air we breathe and this air purifier is here to
ensure it’s always a cleaner, healthier experience in the place you spend most of your time;
your home or small office.
With four fan speeds, you can choose from low, medium, high or sleep mode. The intelligent
sleep mode senses the light in the room and self-adjusts the fan speed while dimming the
indicator lights, perfect for a good night’s rest. Enjoy a low noise level, 7 colour-changing
lights, an adjustable standby mode night light and a filter replacement indicator. You can
also choose a set time of two, four or eight hours of purification time before the air purifier
powers off. Alternatively, the brilliant memory will remember the fan speed.
We recommend replacing the filters about every six to eight months, sooner or later
depending on the frequency of use and pollution level in the environment. The filter
replacement indicator will illuminate on the touch screen and an increased operating noise
coupled with decreased airflow will signal it is time to change out the size 16.2cm x 12.6cm
HEPA filter. Changing the filter is as simple as twisting open the bottom of the air purifier
and swapping out the filter. This air purifier comes pre-packaged with one HEPA filter.
Always ensure the packaging is removed first before inserting the filter into the air purifier.
It’s time to finally breathe easy with our impressive Air Purifier with CADR 95m³/h.

IMPORTANT SAFEGUARDS:
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read instructions carefully before use.
2. Remove and safely disregard any packaging material and labels before using this product
for the first time. Ensure children and babies do not play with plastic bags or any packaging
materials.
3. If the filter is covered by a plastic bag when shipped, remove the plastic bag before use.
4. Before use, check that your local voltage corresponds with the specifications shown on
the appliance nameplate located under the appliance.
5. Always operate the appliance on a horizontal surface which is level, stable and non-
combustible. Never place on soft surfaces such as a bed or sofa as this could cause the unit
to tip over and block the air inlet or outlet vents.
6. Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
7. Never connect this appliance to an external timer or separate remote-control system.
8. Never use this appliance with an extension cord or power board. Ensure it is plugged into
a dedicated power point and without any other appliances on the same outlet.
9. Do not turn on the power until the appliance and parts are in place as required.
10. To protect against electric shock, do not immerse the cord, plug, or appliance in water or
any other liquid. Do not expose the appliance to dripping or splashing and ensure that no
objects filled with liquids such as vases are placed on the appliance. Do not rinse it under
the tap. The air purifier is not an aromatiser or vaporiser. Do not put any water or other
liquid into the main housing of the appliance through the vents.
11. Do not touch the appliance, power cord or power plug with wet hands.
12. Unplug from the outlet when not in use and before cleaning or moving the unit, opening
the base, changing the filter.
13. The appliance does not contain any serviceable parts inside. Do not attempt to open
and repair the unit yourself. All components should only be serviced by a qualified
technician.
14. Do not use the appliance if the plug, power cable or unit itself are damaged. If the power
cord is damaged, you must have it replaced at a service centre with qualified persons in
order to avoid a hazard.
15. Do not use the appliance for anything other than the intended use. It is for household
use only. It is not to be used outdoors or for commercial purposes.

16. Close supervision is necessary when any appliance is used near children. Keep the
appliance and power cord out of reach of children when it is in operation.
17. This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments
18. This air purifier should be operated on a separate electrical power point from other
operating appliances. If the power point is overloaded with other appliances, this air purifier
may not work properly.
19. Leave enough open space from other objects while in use. Do not block air intakes or
exhausts.
20. Do not place the appliance against a wall or against other appliances. Leave at least 5
inches of free space on the back and sides and above the appliance. Do not place anything
on top of the appliance.
21. Do not cover the air purifier while in use.
22. Do not let the cord hang over the edge of the table or counter.
23. Do not unplug the air purifier by pulling on the cord.
24. This appliance is not designed to be used by people (including children) with a physical,
sensory or mental impairment, or people without knowledge or experience, unless they are
supervised or given prior instructions concerning the use of the appliance by someone
responsible for their safety. Children must be supervised to ensure that they do not play
with the appliance.
25. Do not leave the appliance operating while unattended.
26. Never drop or insert any objects into the openings of the unit.
27. The appliance should only be used in a room with a temperature between 4 Degrees
Celsius and 43 Degrees Celsius.
SHORT CORD INSTRUCTIONS:
Do not use with an extension cord. A short power supply cord is provided to reduce the risks
resulting from being entangled in or tripping over a long cord.

PREPARATION FOR USE:
Before using the air purifier for the first time:
Carefully unpack the air purifier and remove all the packing materials.
Place the air purifier on a flat and stable surface.
Use a soft cloth to remove any dust on the surface that may happen during packing and
transport.
PRODUCT STRUCTURE:
1. Control panel
2. Light ring
3. Outlet cover
4. Upper body
5. Lower body
6. Filter
7. Base cover
5
6
7

BEFORE FIRST USE:
PLACING THE FILTERS:
The air purifier comes with all filters fitted inside, but the filter packaging needs to be
removed before you can use the air purifier. Remove all the filters, unpack them and place
them back into the appliance as described below, ensuring the filters are inserted in the
correct position.
1. Put the air purifier upside down on a soft cloth to avoid scratching, to open the base
cover, you need to find an arrow point on the base cover corresponding the LOCK
position, turn the base cover counter-clockwise from LOCK to OPEN position, then the lock
is released.
2. Remove the base cover and take out the filter.
3. Remove the packaging material from the filter.
4. Put the filter back into the air purifier.

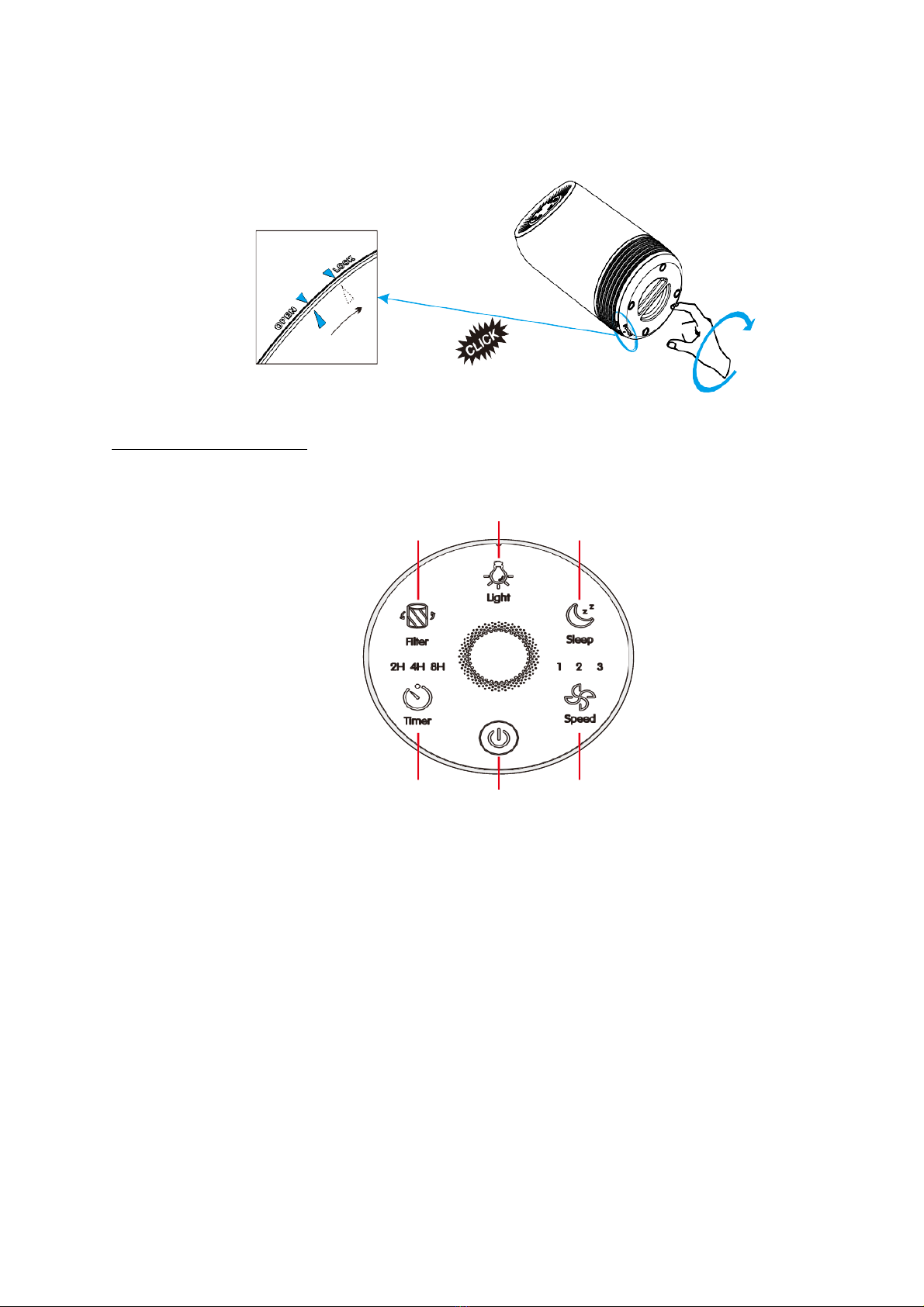

5. Turn the base cover clockwise from OPEN position to LOCK position, you will hear a
"click" sound, the base cover is fastened.
USING THE AIR PURIFIER:
CONTROL PANEL:
1. Plug the air purifier into a power point,
All the lights will come on, the air purifier will make a beep sound and the all the lights
will go off.
2. Press the power button to switch the air purifier on.
The power light and fan speed 2 light will be illuminated.
3. Fan speed adjustment:
The fan speed light indicated at which fan speed the air purifier is operating.
Press the speed button to adjust the fan speed level, there are 3 levels to choose from;
low, medium or high.
4. Sleep mode:
When the air purifier is set onto sleep mode, it operated very quietly.
Press the sleep button to activate the sleep mode.
Filter
Light
Sleep
mode
Timer
On/Off
Speed

Press any button to end the sleep mode except the filter button or the timer button.
5. Light:
Press the light button to see a changing light cycle of 7 colours.
Press the light button a second time to have one colour of light shown from one of the 7
colours in the cycle.
Press the light button a third time to turn the light off.
The light mode cycles are 7 colour changing, one coloured light or off.
Standby status (night light mode):
When the air purifier is in standby mode, press the light button and the amber nightlight
will turn on.
Press the light button again, and the light will become half brightness.
Press the light button a third time and the night light will be off.
The night light cycles are full brightness, half brightness, off.
6. Setting a timer:
The timer function allows a 2 hour, 4 hour or 8 hour operation time to be set.
Press the timer button to choose between 2 hour, 4 hour or 8 hour mode.
The air purifier will automatically power off once the timer is finished.
Press the timer button to set a timer and to cycle through the timer options.
Press time timer button or unplugging the air purifier will cancel the timer.
7. Filter replacement light:
When the filter replacement light is illuminated, the filter needs to be cleaned or
replaced.
Note: the filters lifetime is based on your homes air quality and usage time of the air
purifier.
Using the air purifier in a humid environment will reduce the lifetime of the filter.
8. Memory function:
When the air purifier is plugged in, it will remember its previous fan speed setting.

FILTER REPLACEMENT:
It is recommended to change the air filter every 6–8 months. However, you may need to
change your filter sooner or later depending on how often you use your air purifier.
It is important to watch out for the following signs of expired filter:
● Increased operating noise
● Decreased airflow
● Clogged filter
● Increased presence of odours
NOTE:
● The environment in which the air purifier being used may also extend or shorten the
lifetime of the filter. Using your air purifier in an environment of relatively high pollution
may mean you will need to change the filter more often.
● If the air pollution in your environment is very high, there is a possibility that the filters
may not be completely effective and may need to be replaced before the change filter
light is illuminated.
● Remember to reset the air purifier after changing the filter.
HOW TO REPLACE THE FILTER:
1. Switch off the air purifier and unplug it. (a)
(a)
2. Put the air purifier upside down on a soft cloth to avoid scratching, to open the base
cover, you need to find an arrow point on the base cover corresponding the LOCK position,
turn the base cover counter-clockwise from the LOCK to OPEN position, then the lock is
released. (b)
(b)
3. Remove the old filter. (c)
(c)

4. Remove the packaging material of the new filter. (d)
(d)
5. Put the new filter back into the air purifier. (e)
(e)
6. Turn the base cover clockwise from OPEN position to LOCK position.
You will hear a click sound; the base cover will be fastened. (f)
(f)
7. Plug the air purifier back into a power point and switch it on again. (g)
(g)
8. Re-set the filter’s lifetime:
The filter’s lifetime needs to be re-set if the filter light is illuminated after replacing the
filter.
a. Plug in the air purifier and turn it on.
b. Press and hold the filter button for 3 seconds.
c. Release the filter light button and the light will turn off indicting that the re-set is
complete.
