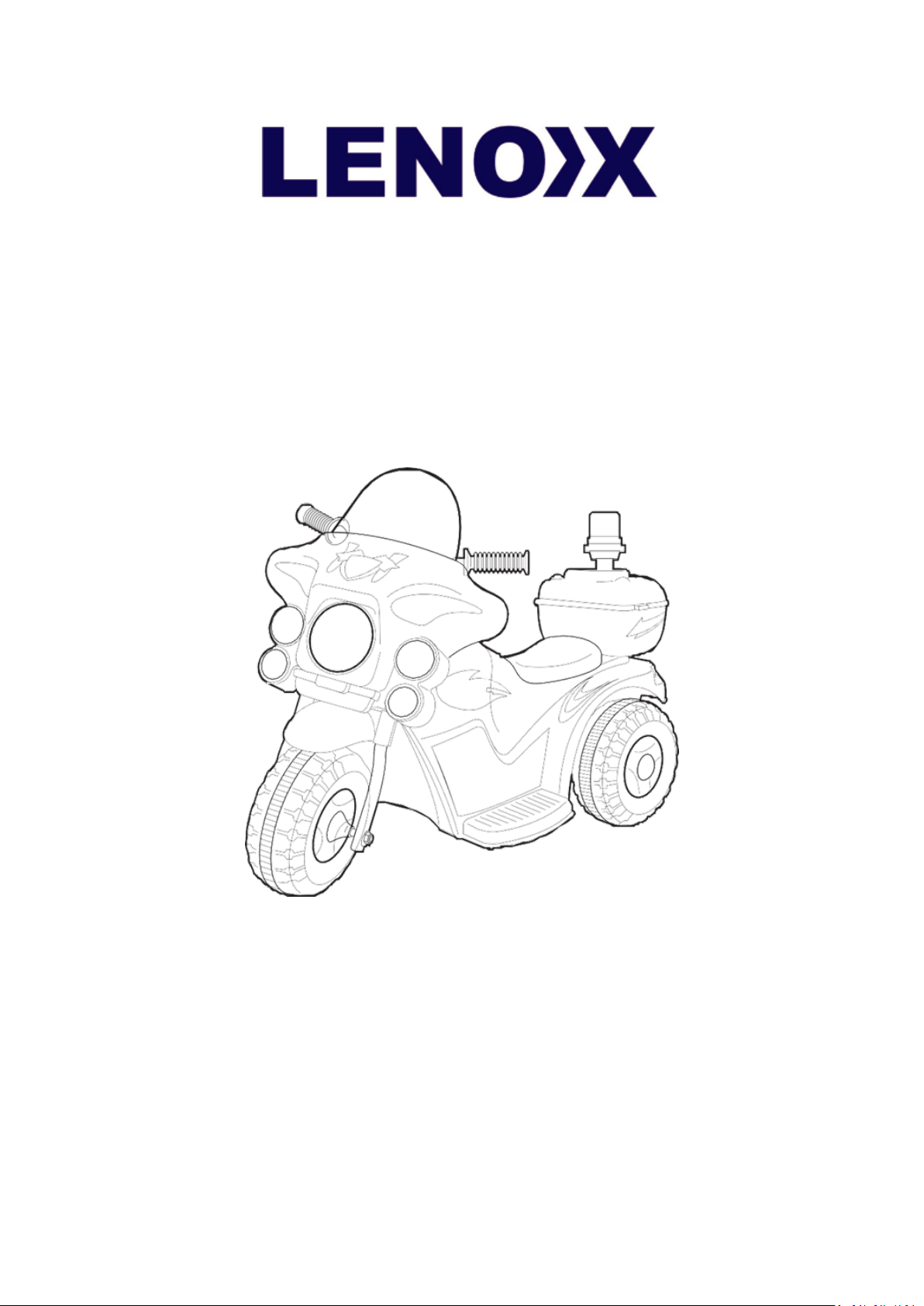

Lenoxx PR4411 Quick start guide

CHILDRENS ELECTRONIC BATTERY-OPERATED MOTOR TRICYCLE
OPERATIONAL INSTRUCTIONS
Model no: 90313
Batch no: PR4411
Read this manual in detail before use and retain this instruction manual for
future reference.

The illustrations used in the manual are to illustrate the operation method and
structure of the product. Where there is a small difference between the
physical item and the illustrations, please take the physical as the standard.
SPECIFICATIONS OF THE MOTOR TRICYCLE:
Age range: 3 – 7, dependent on weight and height of the child
Max speed: 3km/h
Measurements: 80cm x 36cm x 52cm
Battery: Sealed and dry, 6V 4.5AH
Charging time: 8 - 12 hours
Run time after a full charge: up to 1 hour
Loading capacity: 20kg
Fuse: 5 amp
WARNING:
Keep small parts and packaging out of reach of children.
Adult supervision is required. Do not drive anywhere dangerous including
slopes with more than 10 degrees, streets, next to bodies of water and away
from other obstacles. The driver must sit on the seat to drive. Read the
instruction manual and acknowledge it before use.
1. Adult supervision required
2. Read the instruction manual and instruct the child user
3. The weight limit is 20kg
4. Only one rider to use at the one time
5. Please wear a bike helmet when riding
6. Sit straight on the seat when riding
7. Ride only on flat surfaces
8. Ride away from other vehicles and bodies of water
9. Recharge the batteries out of reach of children
10. Do not charge the battery for more than 12 hours
11. Wear shoes when riding
12. Only use a power adaptor and battery by the manufacturers advice

1. SAFETY:
PREVENT INJURIES AND DEATHS: NEVER LEAVE CHILD UNATTENDED.
DIRECT ADULT SUPERVISION IS REQUIRED.
Please instruct the child on the correct way to drive the motor tricycle.
Make sure your child knows how to steer, how to start and stop the
vehicle and knows the rules for safe driving.
Please keep in mind the condition of the area they are riding in and the
child’s driving ability.
Designed for use by children between the ages of 3 – 7 years, weighing
less the 20kg. This is advisable to avoid damage to the motor, gears and
to prohibit overloading.
Do not let children ride in the street, anywhere dangerous including
slopes with more than 10 degrees, streets, next to bodies of water and
away from other obstacles. Use during day light hours or in an
illuminated area is advised to avoid accidents in the dark.
When the motor tricycle is running, do not place anything on the moving
parts such as the motor, gear box, wheels or steering wheel.
Do not drive on long or wet grass, mud, soft ground, gravel or sand.
Do not drive neat anything flammable or explosive. Keep any hazardous
chemicals out of the drivers reach.
The vehicle can be driven at a maximum of 3km/h.
Always keep child in view when child is using the ride-on.
This toy should be used with caution since skill is required to avoid falls
or collisions causing injury to the user or third parties.
Protective equipment should be worn.
Never use in roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
Always wear shoes.
Always sit on the seat.
Not to be used in traffic.
This ride-on has no brake.

2. CONNECTING THE BATTERY:

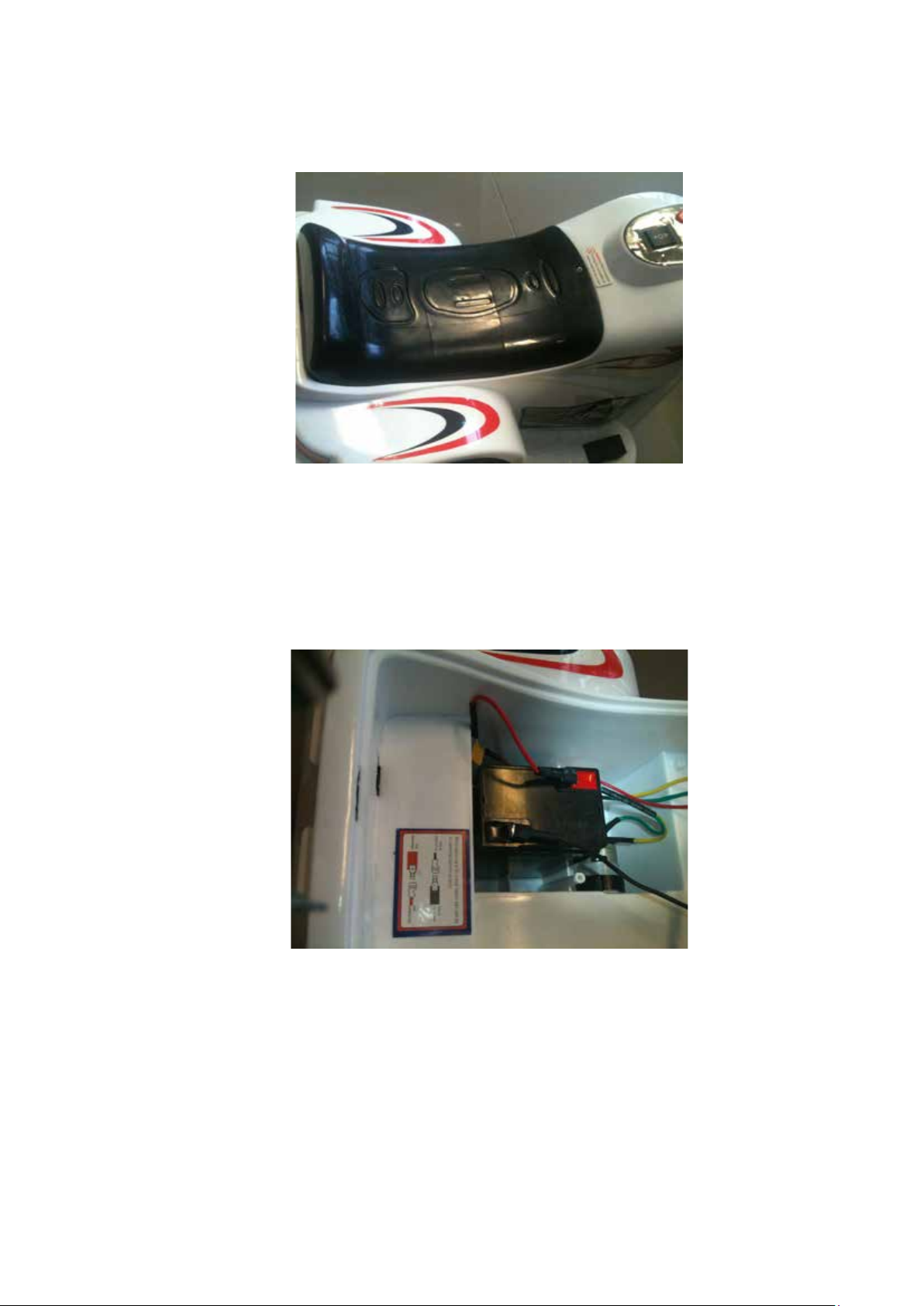

The battery is located under the seat.
To access, remove the screw using a screwdriver (not included) holding
the heat down and then take the seat off the body.
If the battery is not connected and you charge the motor tricycle, the
battery will not be charging.
Plug the red connector onto the red terminal of the battery.
Plug the black connector onto the black terminal of the battery.
If the battery is not connected and you charge the motor tricycle, the
battery will not be charging.

The forward/reverse switch must not be on either mode when charging.
Charging time is 8 – 12 hours. The first hour of charging can get back
60% of the battery’s energy back. You may leave it to charge overnight,
but NEVER continuously over 20 Hours. Otherwise, you will shorten the
batteries life.
It is normal for the battery to be warm when charging.
The motor tricycle must be charged prior to its first use.
Working AC voltage is 220V (or 110V) (+/-10%).

3. CHARGING THE BATTERY:
Insert the plug of the charger into the charging socket which is on the
main body of the bike below the siren and music buttons.
Connect the charger to the motor tricycle first, and then connect the
plug to power. Please note, the motor tricycle cannot be driven when
charging.
Do not insert any metal pieces into the charging hole as to avoid short
circuiting and any damage to the electro circuit.
This vehicle has a function of charging protection and while it is being
charged, other functions cannot be used.
The charger needs to be removed from the charging socket before it is
used.
Once the charger is removed, put the motor tricycle into either
forwards or reverse mode, then press on the foot pedal.
This vehicle also has a function of overload protection. If the vehicle is
overloaded or operated incorrectly, the overload preventer will cut off
automatically. It will connect automatically in 20 minutes.

4. OPERATION:
1. Step on the pedal to start, lift foot off the pedal to stop.
2. Press go ahead to go forward, press back to reverse.
When the forward/backward switch is not on either mode, the bike will
not drive.
3. When in go forward, the head light will be on.
4. When in backward, the taillight will be on.
5. Press the alarm button to hear the siren, press the music button
to hear the music.

5. ASSEMBLY:
Warning: Children could be injured by sharp edges, sharp angles, small
components or electrical components. Take care when assembling or
disassembling the motor tricycle. Keep the components and battery out
of reach of children.
Screw and washer pack:
Total fittings:
2 x nuts to attach the front wheel
4 x washers to attach the front wheel
3 x screws needed to attach light cluster to the front handlebars
3 x screws needed to attach plastic windshield to the front handlebars
2 x screws needed to attach the siren light to the tool box
2 x screws needed to attach the tool box to the bike
1 x washer spare
2 x screws spare
2 x plastic socket/spanner for tightening the nuts
Screwdriver (not included) required for assembly.

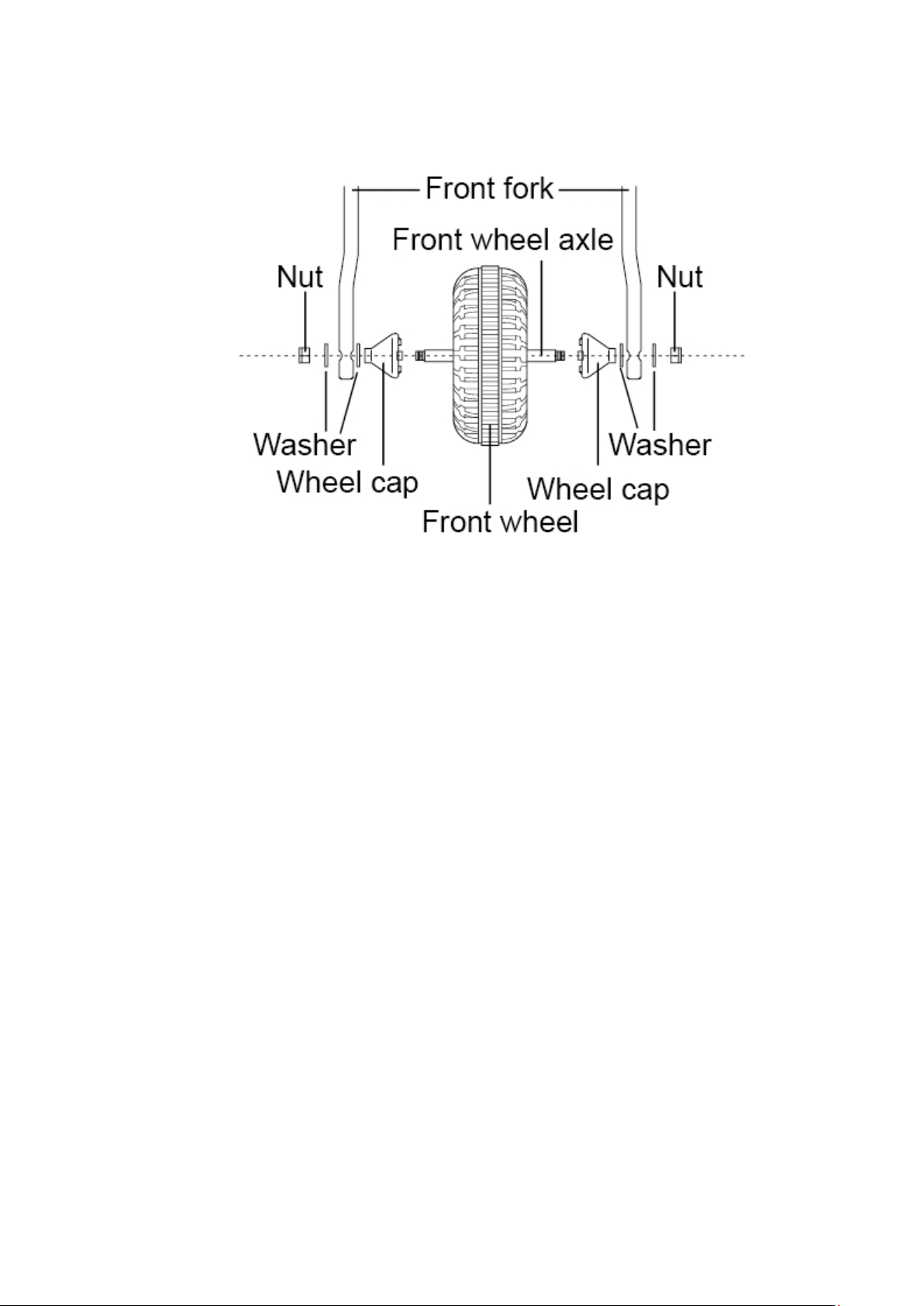

Assembling the front wheel:
1. The method from one side to the other when completed will be:
Nut, washer, pass through the hole of the fork, washer, wheel cap,
wheel, wheel cap, washer, pass through the hole of the fork, washer,
nut.
2. Put on the wheel caps onto the front wheel on both sides.
3. Insert the front axel onto the holes of the fork.
4. Put a washer on each side of the wheel.
5. Fasten the nut on each side with a spanner.

Add the front wheel cover by clipping it onto the fork above the front wheel.
Fix the windshield onto the head cover with three self-tapping screws.
Fix the head cover onto the bracket on the handlebar using 3 self-tapping
screws.
Ensure the headlight lead is passed through the back of the handlebars for
connection later on.

Attach the plastic gauge piece to the front bars as below.
Add the toolbox to the main body of the bike.
Insert the wires of the siren light through the holes of the toolbox.
Fix the alarm light using 2 self tapping screws.
Connect the two parts of the two the toolbox (as shown in the above
diagram).

Connect the wires of the siren light to the to those of the main body of
the bike.
Fix the toolbox to the body of the bike using 2 “3x12” washers and 2
self-tapping screws.

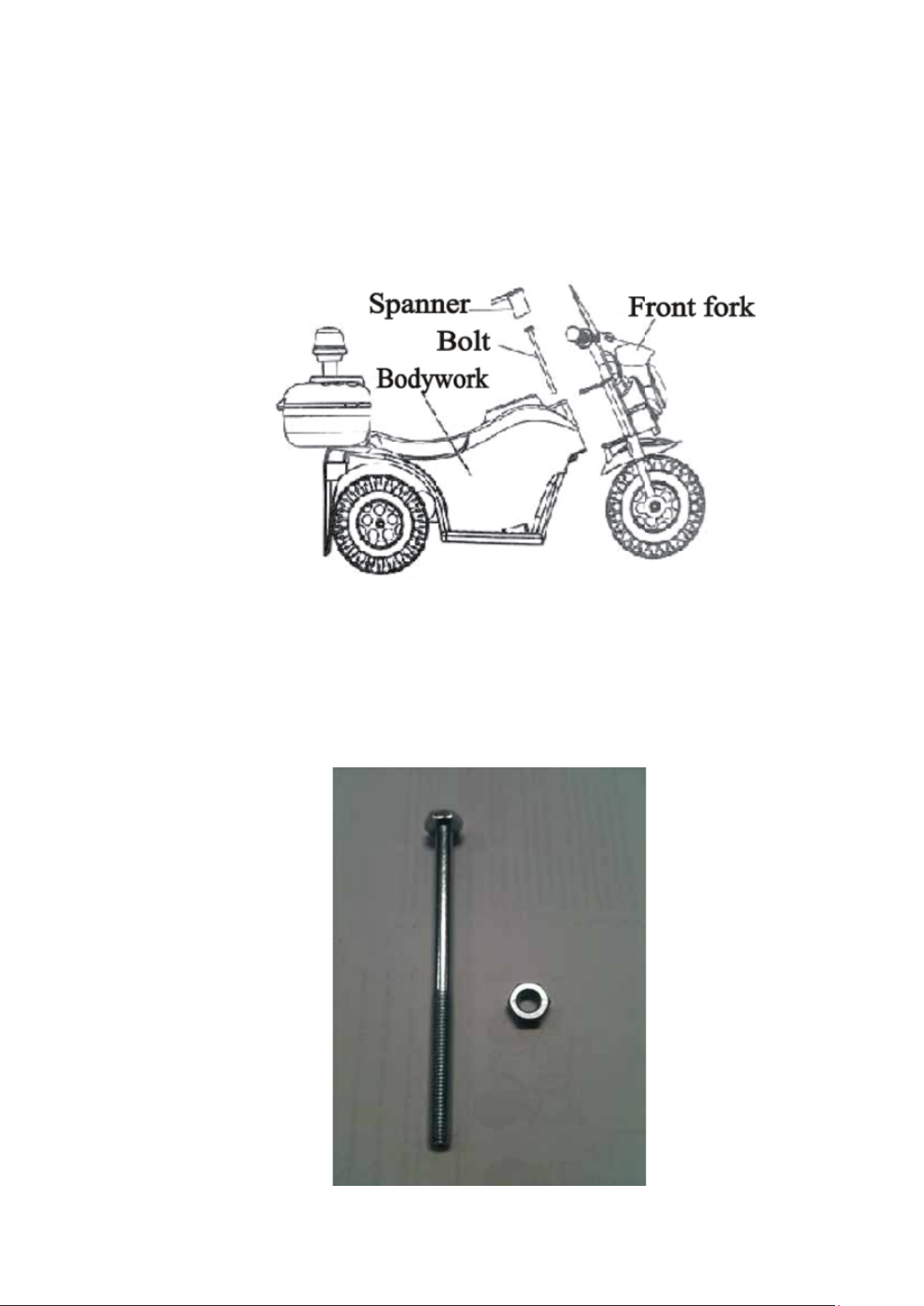

Join the main body of the motor tricycle to the front end with the front
wheel using the bolt and washer and nut included.
Use the included plastic spanner to screw the bolt clockwise.

Use the nut to screw onto the bolt to hold the pieces tightly together.
Use the included plastic spanner to screw the bolt clockwise.
Headlight connection:
Once the main body and the front end of the motor tricycle are joined, you can
then connect the wires from the main body to the wires on the front end. This
is optional if you would like the motor tricycle to have a headlight come on
when the pedal is pressed down and the motor tricycle is driving.

6. MAINTENCE AND TROUBLE SHOOTING:
Factors which may influence the motor tricycles performance and life
span:
-How flat the driving surface is
-The weight of the driver
-Whether the battery has been fully charged
-Whether the motor tricycle is regularly used
-Whether water or any other liquid has eroded the electrical
components
Cleaning:
Clean the motor tricycle with a soft dry cloth. Do not use any wax or
spray liquids for cleaning. It could erode the power switch.
Storage:
Do not store the motor tricycle in an area of high temperature, humidity
or near flames. When raining or snowing, keep the motor tricycle under
cover and out of the weather.
Do not change the batteries setting, as it can cause fire and damage the
electrical circuit system. Do not change the motor tricycles electrical
circuit system. Any repairs done to this unit must be carried out by
authorised and qualified service personnel.
Do not allow children to charge the motor tricycle, play with the battery
or motor.
If the motor tricycle will not be used for a long period of time (3 months
or longer), it is advised that you fully charge the battery and disconnect
it from the connections.
A long period of non-use will damage the battery. It is advised that the
battery should be charged once a month, even if the motor tricycle is
not being used.
A new battery must be fully charged before its first use.

Please take care with the battery as it contains acid electrolyte. Handling
of the battery by adults only.
If the battery has leaked, do not touch the acid. Place the battery into a
polybag and dispose of it.
If the electrolyte splashes on your skin or into your eyes, immediately
wash with water for at least 15 minutes and consult your doctor.
Do not contact the batteries two terminals with any other metal objects.
It will cause short circuiting, damage or fire.
Adjust the f/r switch to on and press the siren button to check for
power. If you hear no music, check that the battery has been joined up
correctly. Correct if required.
Never push or pull the motor tricycle backward when it is running.
Do not plug the charger into any non-working or faulty wall socket. This
could cause short circuiting or fire.
In the circumstance of unstable voltage, we suggest that you equip a
regulator.
