Leomotion CellMeter 8 User manual

4.2018
CellMeter8UserGuideand Manual
Battery Voltage CapacityChecker/BalanceDischarger/ServoTester
1. Instruction
Cellmeter8 isa cleverdevicethatcan showyou the condition ofyourbatterypacks,
Itcan be used with the mostcommon batterytypesused forthe rc modeling namely
LiLon(Lithiumlon)
LiPo(LithiumPolymer)
LiFe(LithiumFerrite)
LiHV(High Voltage LithiumBattery)
NiCd(NickelCadmium)
NiMH(NickelMetalHydrate)
LithiumBatteryTypes( Lipo.Li-Ion,LiFe, LiHV)withoutthe need forthe additionalpowersupply,
CellMeter8cansupport 2S-8S,Test1S Lithiumbattery,you need toaccess morethan 3Sof
NickelBatteries, or5VUBECtoNiCd/MHport forthe Cellmeter8 to provide working power
NickelBatterytype (NiCdorNiMH)withouttheneedforadditionalpowersupplyofcellmeter8
can support 4-8S ,suchastheneedtotestless than 4SofNickelBatteries,you need toaccess2-8S
LithiumBatteryto the Lithiumport forCellMeter8 to provide working power
2. ConnectingABatteryPack
Cellmeter8 there are two batteryconnection ports:
The connecting port ofthe LithiumBatteryis9pin,2.54mm,Can be directlyinserted intothe
2.54mm ofthe lithiumbatterypack balance line plug, Connectthe batterypack to the plug,, the
negativeelectrode ofthe balanced line plugisalignedwiththe cellmeter8Lithiumport
(negative Location close to the NicD/NiMHport)
NickelBatteryconnection port specification for3pin,2.54mmspacing. Can be directlyinserted
intothe spacing ofthe mainline of2.54 mmnickelbatteries,The mainline ofthe nickelbattery
pack isconnecting the plug ,Theposition electrodeshouldbealignedwiththe3pin
interface

4.2018
LithiumBattery AndNickelBattery Connection Diagram
(Can simultaneously connect Lithium battery and Nickel battery)

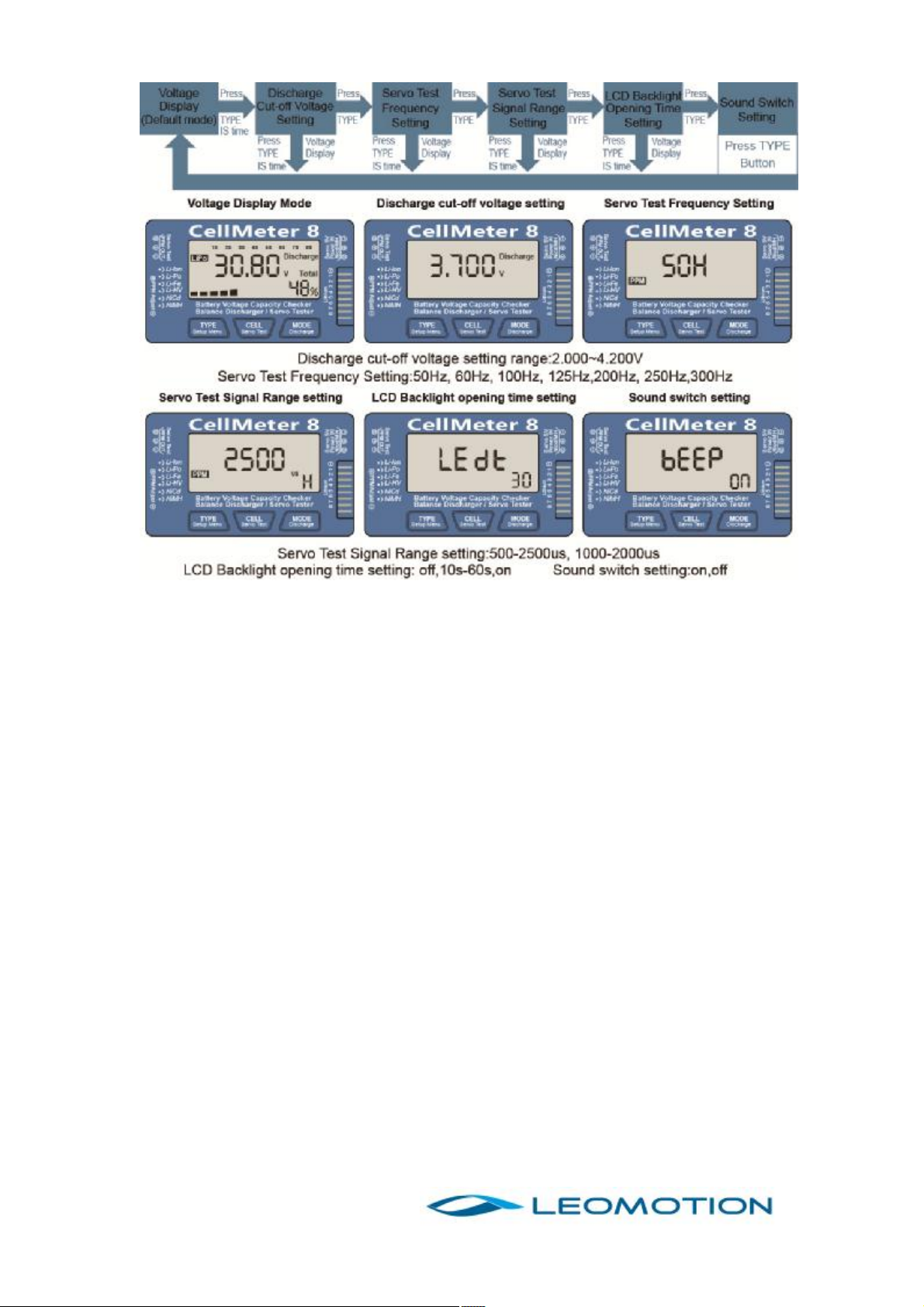

3. PARAMETERSSETTING
Cellmeter8connecttheLithiumbatteryorNickelbatteryintheworkingstate,
Press(press tobutton 1Sabove) Menu Setup button, Enter parameter settingmode,
shortpress Menu setup button is to enter thenextparametersettings, Longpress is out
oftheparameter settingmode,Returntobatterydetection mode,Parameter setting
mode,Shortpress CELLkeytoreducetheparameters, Shortpress MODEkeyto
increasetheparameter,Dischargeend voltageparametersettingstate,Longpress
CELLbutton to quicklyreduce,LongPress MODE button fortherapid increase

4.2018
4. LITHIUMBATTERY DETECTIONMODE
1.Weneedtodetectthelithiumbatterybalancelineplugcorrectlyinsertedintothe
CellMeter8ofthe9pin Lithiumport,CM8 startingworkafter abtainingpower froma
lithiumbattery,LCDscreenwill displaythenumber oflithiumbatteries, Batterytotal
voltage,BatteryType,and BatteryremainingCapacityasapercentageofthe
remainingcapacityofthestrippattern, Becauseeachtypeofoflithiumbatteryhas
differentratedvoltageand itsrelativepower consumption, Therefore,thecorrect
choice ofthetypeoflithiumbattery,TheCM8 screendisplaysthepercentageof
remaining batterypowerand strippatternthatrepresentstherestofthebatterytobe
accurate,
2.Shortpress TYPEkeyinthedetection modeoflithiumbattery,Underthecondition
ofintelligentjudgment,Canbeswitchedbetweenthree typesof
batteries(LiPO,Li-Ion,Li-Fe,Li-HV)
3.CM8 hasasmartbatterytype:thebatteryvoltageinanyofthelithiumbatterypack
wasdetectedhigherthan3.6V,will notswitchtoLiFeType.TheBatteryvoltagein
anyofthelithiumbatterypackwasdetectedhigher than4.1V,will notswitchtoLiIon
Type.
4.Shortpress CELLkeyinthedetection modeofLithiumBattery,LCDscreen
displaywill switchfromthetotalvoltageofthebatterytothevoltagedisplaymode,
Press aCELLbutton toswitchtothenextbatteryvoltage
display,1s-2s,…8S..1s..2s….Loop cell voltagedisplay,Thedisplaymodeoftheshort
press MODEkeywill beswitchtothetotalvoltageofthebattery,and totalnode

4.2018
number ofthebatteryin eachcell voltagedisplaymode,
5.ShortPress MODEkeyinthedetection modeoflithiumbattery,LCDscreen
displaysthehighestvoltagevalueatthetop ofthescreenand whichonecell is
highestshownatthetopofthescreen, Second press MODEbutton, Itwill displays
thethelowestvoltagevalueand whichonecellislowestshownatthetop ofthe
screen, Thirdpress MODEbutton, thedevice will showthedifference between
highestvoltagevalueandlowestvoltagevalue,and also showthewhichtwocell for
highestvoltagevalueandlowestvoltagevalueattop ofthescreen.
5. NICKELBATTERY DETECTIONMODE
Will needtodetectthenickelbatteryNICDandNIMH,positiveand negativepole
plugcorrectlyinsertedintocellmeter8, NiCD,NIMH3pinport,Whenthere isno
lithiumbatteryconnectedtotheLithiumportofcellmeter8, it canstartworkafter
obtainingpower fromnickelbattery,LCDscreenwill displaythecell ofnickelbattery,
totalvoltage,batterytypeand batteryremainingcapacityasapercentageofthe
remainingcapacityofthestrip pattern
(ifthere isalithiumbatteryconnectedtocellmeter8toprovidepowersupply,needa
shortPress Typebutton to switch to theNickelBatterydetection Mode)
Detection ofthemainlineandpositiveandnegativepoleofthebatteryforthe
detection ofNickelbattery,NoLithiumbatterydetection usingabalanced
lineplugdetection so detailed, Cannotdisplaythevoltagevalueofthe
batterycell,Nickelbatterydetection modewill onlyshowbatterycell,total
voltage,batterytypedand remainingcapacityasapercentageofthe
remainingcapacityofthestrippattern, Becausethetwotypesofnickel
batterieshavedifferentratedvoltage,and theirrelativepower relationship
NICD,NIMH,thereforethecorrectchoice ofnickelbatterytypeisrequired,
TheCellMeter8screendisplaysthepercentageofremainingbatterypower
and thestrippatternthatrepresentstherestofthebatterytobeaccurate,
correctselection ofthenumber ofnodesintheNickelBattery,LCDScreen
tocorrectlydisplaytheremainingbatterypoweraswell astheremaining
capacityofthestrip pattern
NickelBatteryDetection mode,Shortpress TYPEbutton tocyclebetweenthebattery
typeNICDand NIMH,ShortPress CELLkeycanbeinthe
cellmeter 8intelligentjudgmentrangemanualprecision nickel
batteries, InordertoachievetheLCDscreentodisplaythe
remaining batterypower aswell astheremainingcapacityofthe
bar pattern
6. LITHIUMBATTERY BALANCEDISCHARGE/FASTDISHCARGE
(Fastdischargemoduleneed to beselected independently50W, or150W)
Balance Discharge
Willneedtobalance thedischargeofthelithiumbatterybalance lineplug
correctlyinsertedintothecell meter8ofthe9pinport,CellMeter8canstartto

4.2018
workafter abtainingapower fromalithiumbatterypacks, TheLCDscreenwill
displaythetotalvoltage,and other parametersofthelithiumbattery,Press MODE
dischargebutton, CellMeter8toenterthebalanceddischargemode,Thedischarge
ofthelithiumbatteryinconnection withthedischargecut-offvoltage(default
value;3.700V) Thevoltagebalanceofall thelithiumbatterytobeconnected to the
user tosetthedischargecut-offvoltageparameter,suchas, thevoltageofapower
savingcore ofalithiumbatteryisless thanthedischargecut-offvoltage,Press
MODEDischargebutton, productswill notbeswitchedtoabalanceddischarge
modeand there aBB sound, Errorsettingoftheuser’s dischargeend voltage,
After thecompletion ofthebalanceofthecellmeter8will completetheprompt
tonehasbeenBBsoundpromptstheuser,pleasepull outthelithiumbattery
which has beencompleted bythecellmeter8 port,ifthelithiumbatterycompletely
discharge,and longtimekeepconnectingwiththecellmeter8port,thedevice will
getthepowerfromLithiumbattery1Sand 2Sagain,it will lead1Sand 2S
voltagewill bedownconstantly,finallytheeachcell oflithiumbatterywill be
notbalance,
FastDischarge(50Wor150W)
TheSignallineofthefastdischargemoduleisconnectedtothetestPPMOUT
servo porton theleftcorner ofthecellmeter8, correctinsertion ofthepositiveand
negativepolesand thedirection ofthesignaltotheport,Andtheplugthe
lithiumbatteryintothe9pinLithiumportofcellmeter8, TheTDeanofthemain
power supplyfromthelithiumbatteryisconnectedwiththeTDeanportoffast
dischargemode,LongPress Dischargebutton, CellMeter8enter intothefast
dischargemode,and all spec datasetting,and operation will besamewithbalance
dischargemode,
SERVO/ESCTESTMODE
Servo 5Vpower inNICD,NIMHportconnectionpower supply5-6V,youcanuse
NICD,NIMH-4Sbatterypackor5VUBECmoduleasapower supply,After
connection power,cellmeter8startedtowork, Theuseofpower supplyisthe
Nickelbatteryport,Therefore,thescreenisanickelbatterydetection mode,at
thistime,thedevice showsthevoltageofNickelbatterywhether wasmatched
withvoltageofservo working,ifthatisno matched, it needs toreplacethepower
supplytothecellmeter8, orit islikelytoburnthesteeringgear.Powersupply
voltagetoconfirmcorrect,connectthe3holeplugofthesteeringgeartotheTest
PPMOUTservo porton theleftcornerofthecellmeter8, correctinsertionofthe
positiveand negativepoles and thedirection ofthesignalto theport.
LongPress CELL(ServoTest)button toenterthesteeringgear testmode,The
manualstestsignalisthedefault fortheservo testmode,theisbytheuser to
manuallyadjusttheleftofthecellmeter8adjustPPMknobtochangetheduty
cycleofthePPMsignaltoachievethemanualtestofservo function, the
adjustmentrangeis500-2500uSor1000-2000uS,whichisdeterminedbythe
parameters oftheservo testingrange,

4.2018
CELL(Servo Test)orMODEdischargebutton isshortinthemanualmode,Enter
intotheautomaticsignaltestmode,inthismodethePPMsignalisaccountedfor
bytheautomaticsmall to large,Changesinthelargetosmall cycles bytheuser to
manuallyadjusttheleftofthecellmeter8,AdjustPPMknob tochangethePPM
signaltochangethespeedoftheairratioFunction ofautomatictest,andtestfor
aging
ShortPress CELL(ServoTest)orModeDischargebutton intheautomaticsignal
testmode,Testmodetoenter themidpointsignal,ThedutycycleofthePPM
signalis 1500Us
ESCTESTMODE
Connectthe3holeplugoftheservo totheTestPPMOUTESC porton theleft
corner oftheCellMeter8,Correctinsertion ofthepositiveand negativepolesand
direction ofthesignaltotheport(cellmeter8powersupplyworks bytheelectronic
speedregulatorfortheinternalBECsupply5Vpower supply,Noconnection to
other power supply)LongPress CELL(Servo Test)button to enter thePPM signal
outputmode,PPMsignaloutputdutycycleadjustmentmethod and servo test
modePPM signaladjustmentmethod

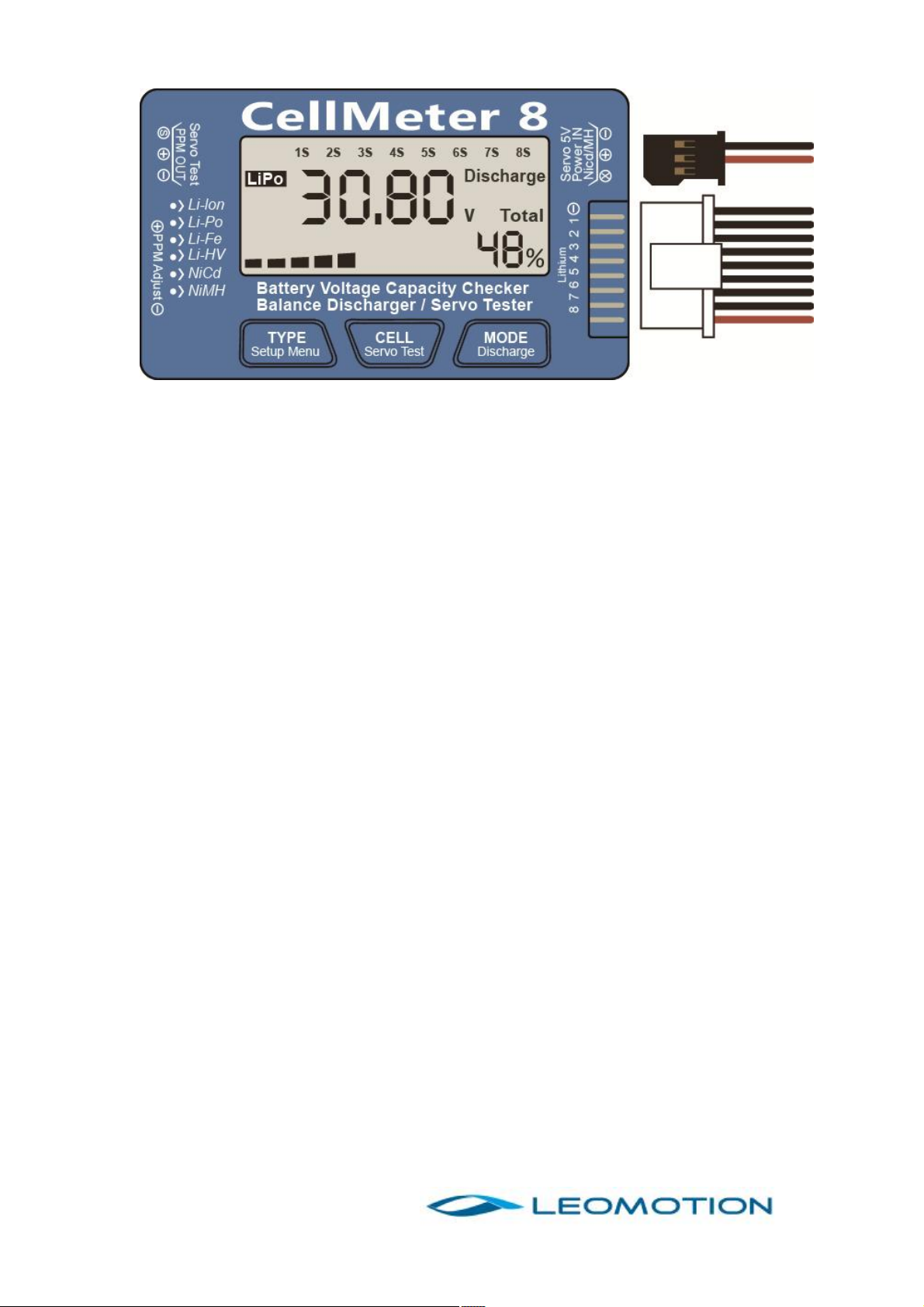

FUCTIONALINTERFACEDISPLAYGRAPH
