Leonton MEG2-0201-M Series User manual

Leonton
MEG2-0201-M Series
(MEG2-0201-M / MEG2-0201-M-T)
User Manual
Version 1.0

© Copyright 2018 Leonton Technologies Co., Ltd.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Disclaimer
Leonton Technologies Co., Ltd. provides this manual without warranty of any kind, expressed or
implied, including but not limited to the implied warranties of merchantability and fitness for a
particular purpose. Leonton Technologies Co., Ltd. may make improvements and/or changes to the
product and/or specifications of the product described in this manual, without prior notice.
Leonton Technologies Co., Ltd. will not be liable for any technical inaccuracies or typographical
errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to
change without prior notice.

FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio communications if the
equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
This document is the current official release manual. Please check our website (www.leonton.com)
for any updated manual or contact us by e-mail (s[email protected]).

Contents
Overview..................................................................................................................... 1
Key Features ............................................................................................................ 1
Package Contents..................................................................................................... 2
Safety Precaution..................................................................................................... 2
Hardware Description ................................................................................................. 3
Physical Dimensions................................................................................................. 3
Front Panel............................................................................................................... 4
Top View .................................................................................................................. 4
LED Indicators .......................................................................................................... 5
DIP-Switch Setting.................................................................................................... 6
Ethernet Ports.......................................................................................................... 7

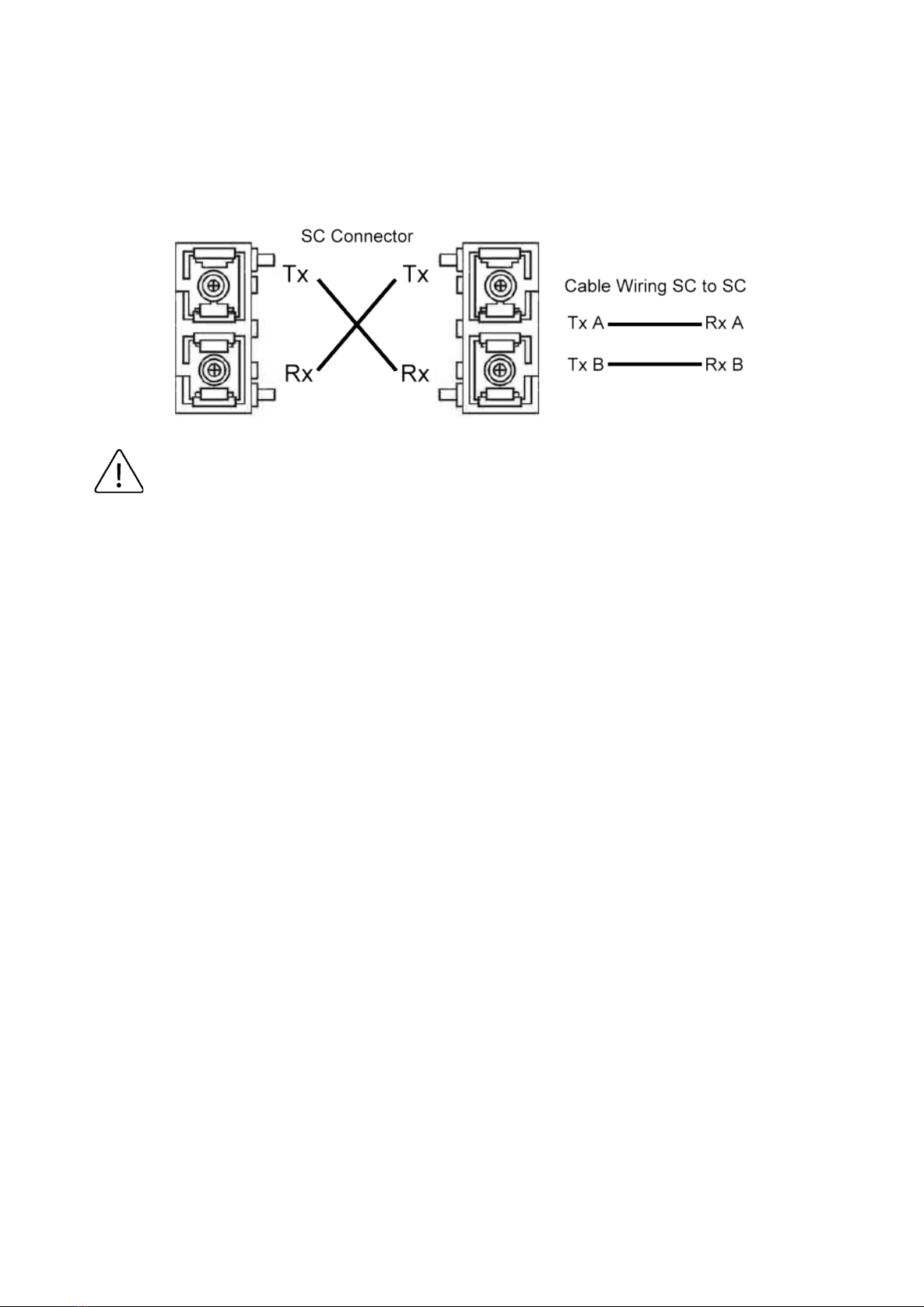

Fiber Port ................................................................................................................. 8
Cabling ..................................................................................................................... 8

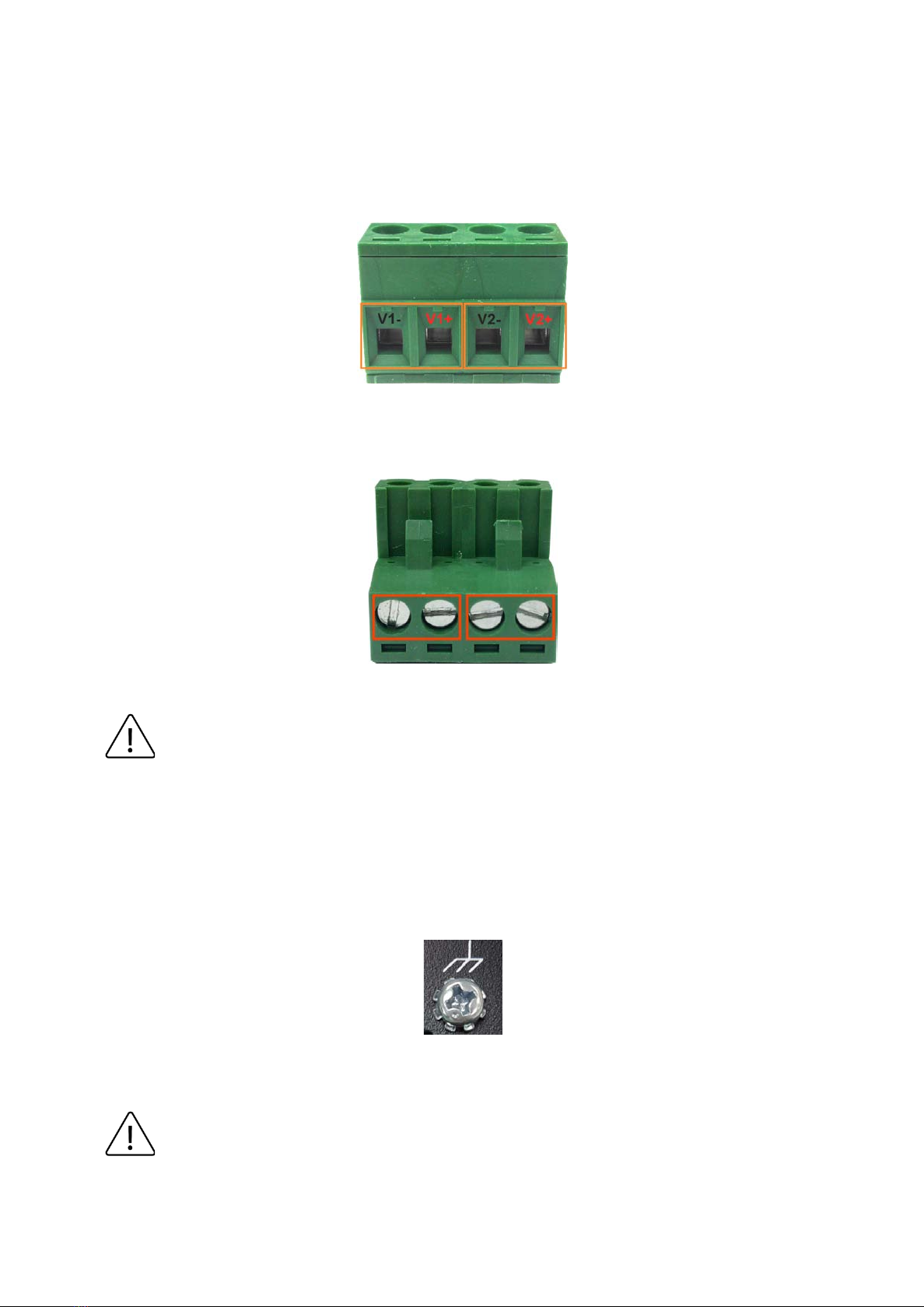

Wiring the Power Inputs .......................................................................................... 9
Grounding Note ....................................................................................................... 9
Mounting Installation ............................................................................................... 10

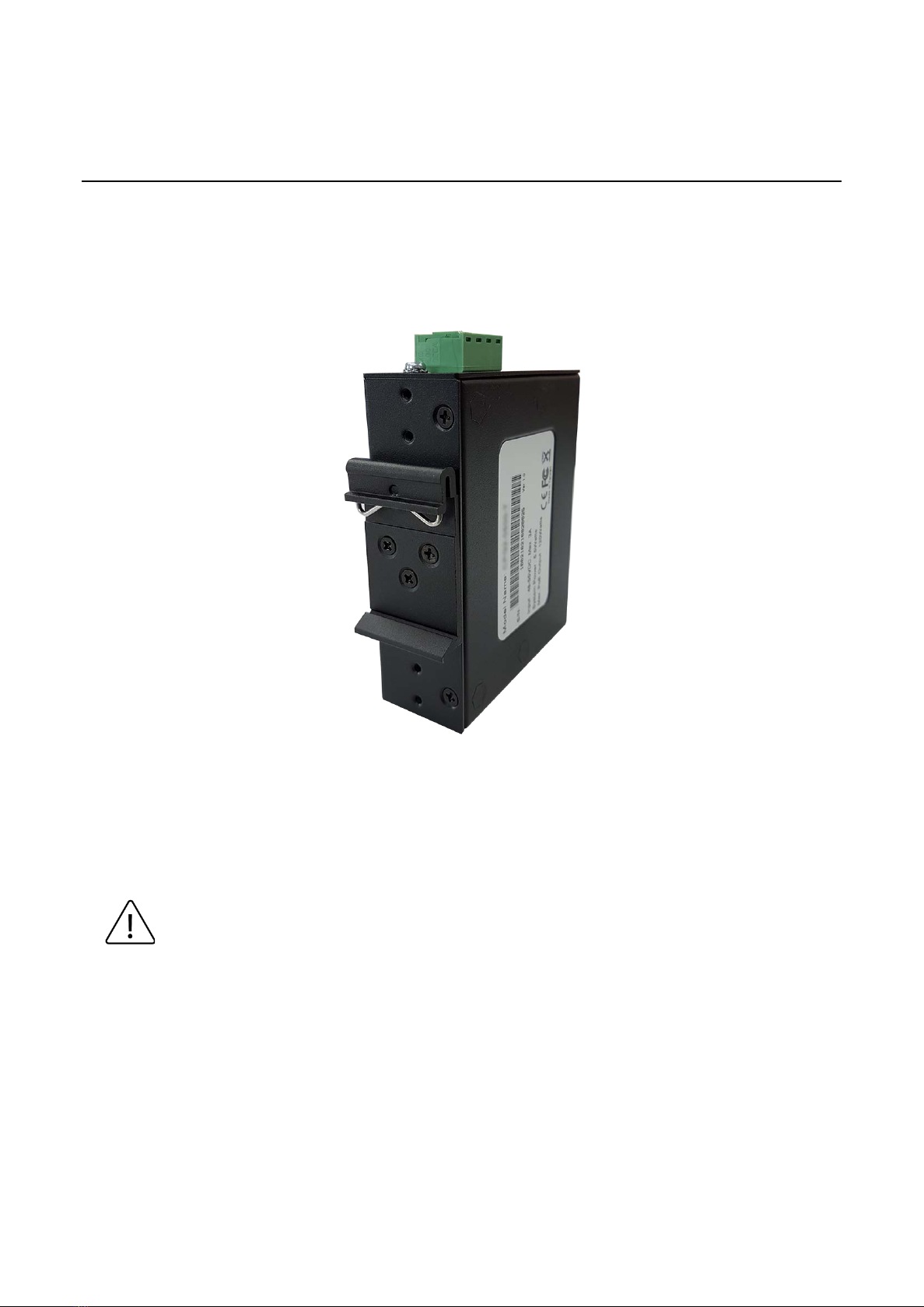

DIN-Rail Mounting.................................................................................................. 10
Wall Mounting ....................................................................................................... 12
Hardware Installation ............................................................................................... 14
Installation Steps.................................................................................................... 14
Maintenance and Service.......................................................................................... 15
Trouble Shooting ...................................................................................................... 16

1
Overview
This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit Media
Converter series provided 1*10/100/1000Tx Gigabit Ethernet ports convert to 1*1000X fixed fiber
port, suitable for Ethernet and fiber conversion applications.
In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This
also allows it to function in harsh environments, as well as support power redundancy with a dual
power input design with reverse polarity protection. With one model having an operating
temperature of -10°C ~ 70°C, and another with a wide operating temperature of -40°C ~ 80°C, this
series is designed to meet any needs for industrial automation application and harsh
environments.
Key Features
Interface & Performance
•Copper port support auto MDI/MDI-X function
•Embedded 1*10/100/1000Tx Gigabit Ethernet and 1*1000x fixed fiber port
•Store-and-forward switching architecture
•8K MAC Address Table
•Supports 10Kbytes Jumbo Frame
•1Mbits memory buffer
Power Input
•Redundant power DC 12-48V with connective 1*4-pin removable terminal block
•Max. current 0.18A
•The power input specification is complied with the requirements of SELV (Safety Extra Low
Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-2-201.
Certification
•CE/FCC
•UL 61010-1
•UL 61010-2-201
Operating Temperature
•Standard operating temperature model: -10°C ~ 70°C
•Extended operating temperature model (-T): -40°C ~ 80°C
Case/Installation
•IP30 protection
•Installation in a Pollution Degree 2 industrial environment
•DIN-Rail and Wall mount design

2
Package Contents
•1 x MEG2-0201-M(-T)
•2 x Wall mounting brackets and screws
•1 x Quick installation Guide
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power
supply input. Supply by UL Listed industrial use power. The industrial Media Converter’s hardware
specs, ports, cabling information, and wiring installation will be described within this user manual.
Warning Labels
The caution label means that you should check the certain information on user manual when
working with the device. (Shown in Figure 1)
Figure 1: Caution Label

3
Hardware Description
Physical Dimensions
Figure 2.1, below, shows the physical dimensions of MEG2-0201-M series.
(W x H x D) is 26mm x 95mm x 75mm
Figure 2.1: MEG2-0201-M Series Physical Dimensions

4

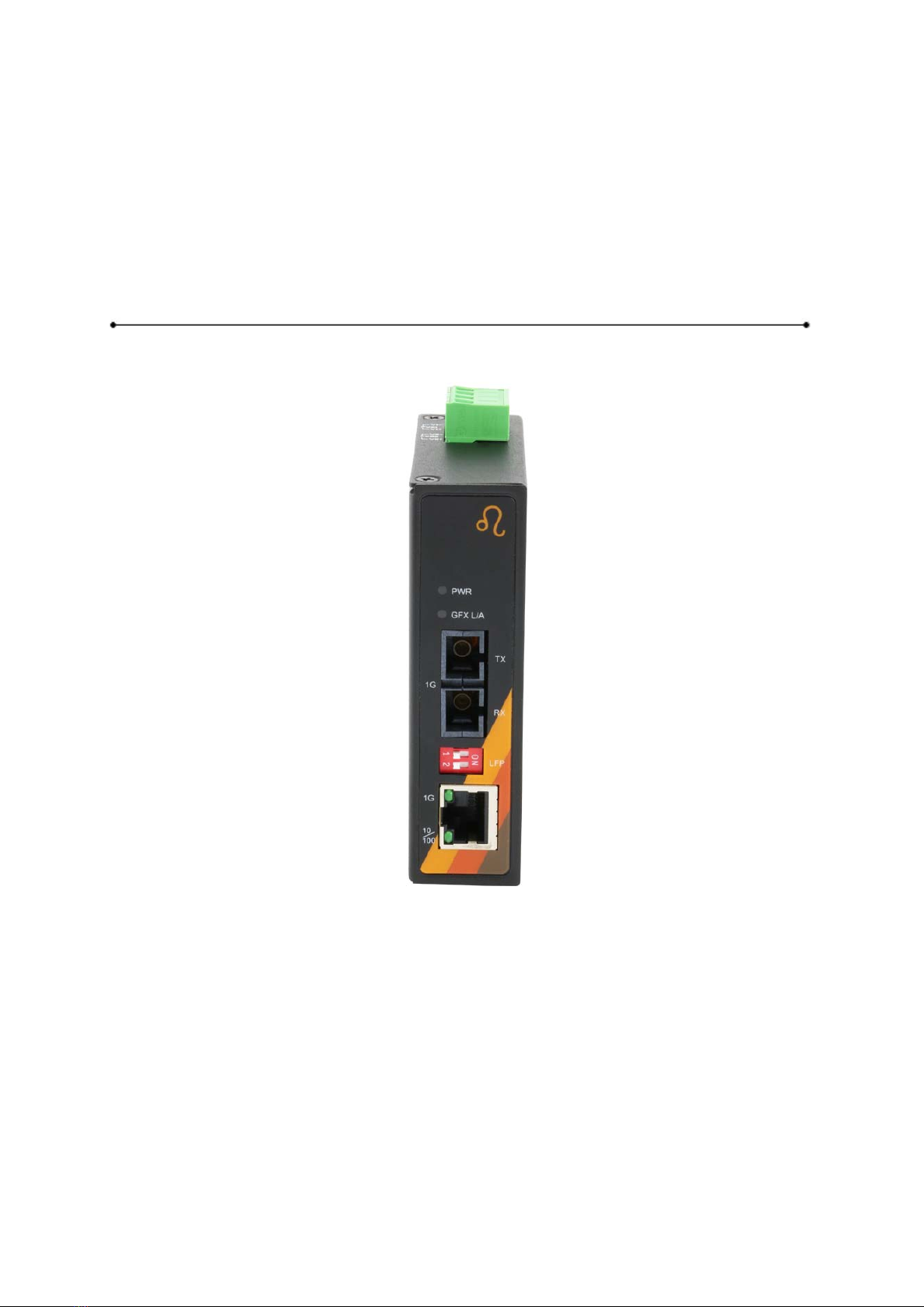

Front Panel
The front panel of the MEG2-0201-M series industrial gigabit Media Converter is shown below in
Figure 2.2.
Figure 2.2: The Front Panel of MEG2-0201-M Series
Top View
Figure 2.3, below, shows the top panel of the MEG2-0201-M series Media Converter that is
equipped with one 4-pin removal terminal block connector for dual DC power inputs (12-48VDC).
Figure 2.3: Top Panel View of MEG2-0201-M Series

5

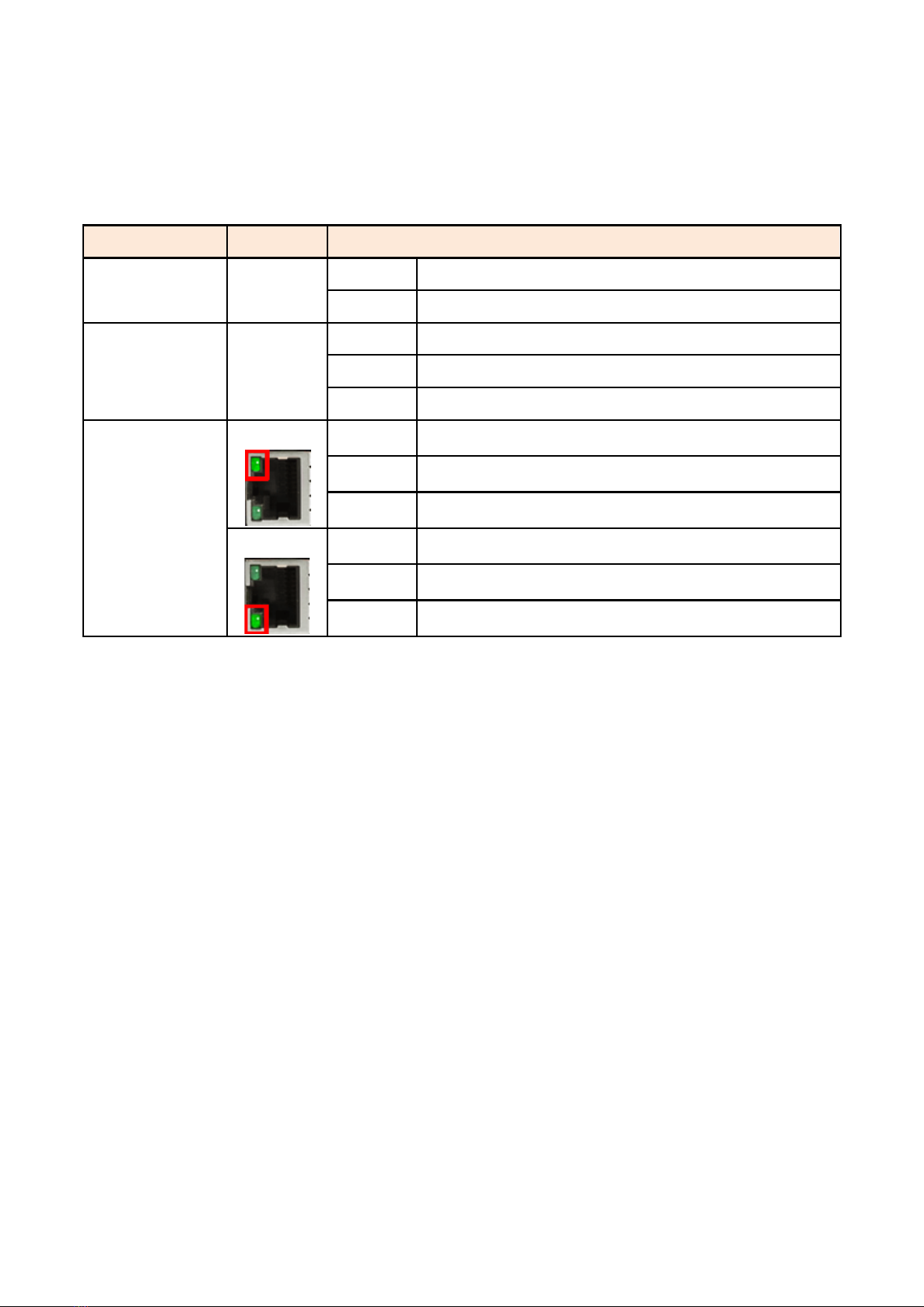

LED Indicators
There are LED light indicators located on the front panel of the industrial Media Converter that
display the power status and network status. Each LED indicator has a different color and has its
own specific meaning, see below in Table 2.4.
LED
Color
Description
PWR Green
On Power input 1 or 2 is active
Off Power input 1 or 2 is inactive
GFX L/A Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
LAN Port
(LINK/ACT/SPEED)
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Table 2.4: LED Indictors for MEG2-0201-M Series
NOTE:"PWR" is the abbreviation for "Power", "GFX" is for "Gigabit Fixed Fiber port", and "L/A" is
for "Link/Activity".

6

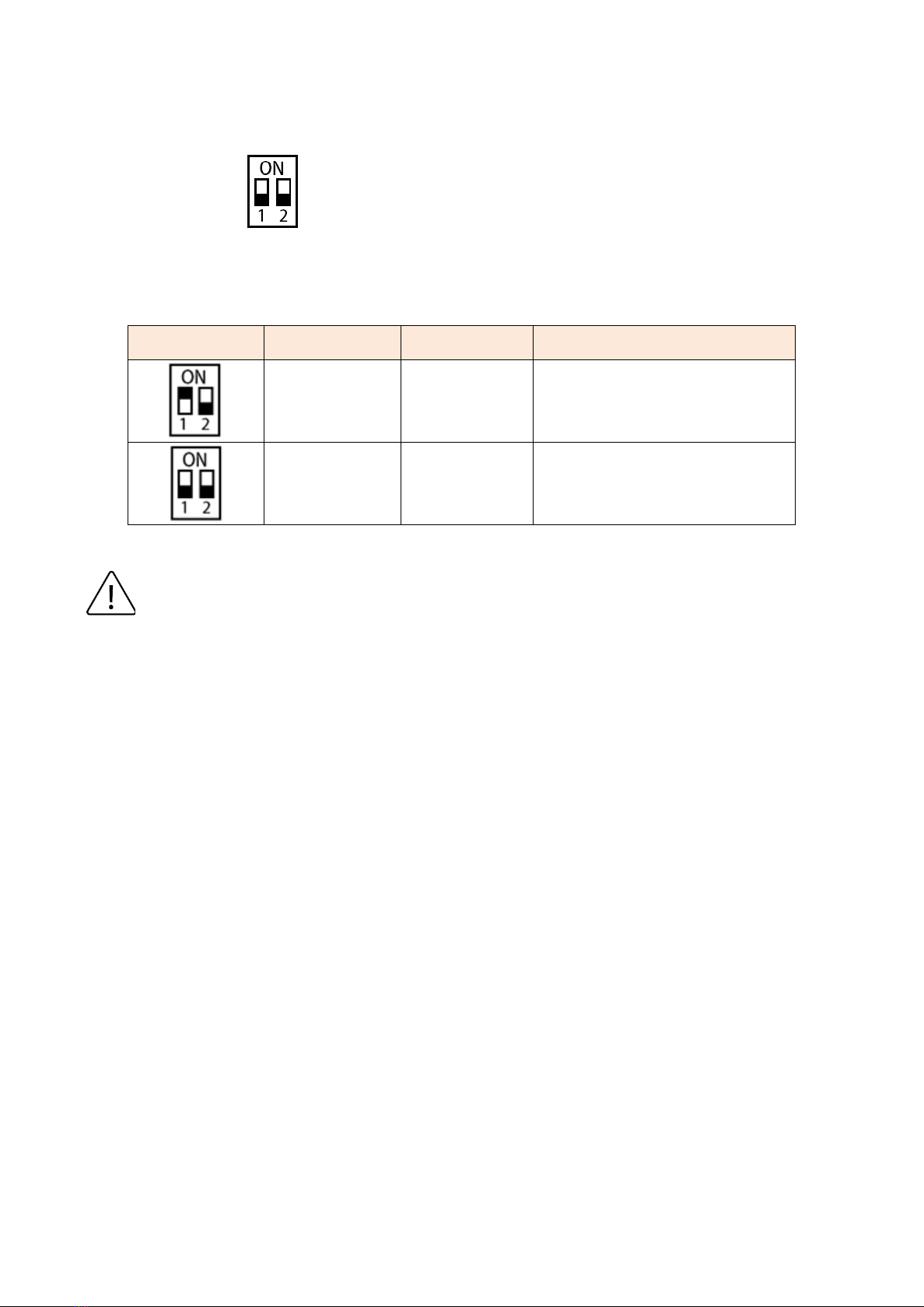

DIP-Switch Setting
Default setting:
There are 2 pins on DIP-switch on the front panel for setting LFP (Link Fault Pass) function, see the
Table 2.5 below for more details.
Illustration DIP-Switch 1 DIP-Switch 2 Function Description
ON OFF LFP function Enable
OFF OFF LFP function Disable
Table 2.5: DIP-switch setting for MEG2-0201-M Series
Caution: If changing the current DIP-switch setting, the device should be power off and
then power on again to make the setting effective.
