Leonton MPG2-0201-SFP Instructions for use

⚫MPG2-0201-SFP
⚫MPG2-0201-SFP-T
⚫

© Copyright 2022 Leonton Technologies Co., Ltd. All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation, or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Disclaimer
Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied,
including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
Leonton Technologies, Co. Ltd. may make improvements and/or changes to the product and/or
specifications of the product described in this manual, without prior notice. Leonton Technologies, Co. Ltd.
will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are
periodically made to the information contained herein and will be incorporated into later versions of the
manual. The information contained is subject to change without prior notice.

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy. It may cause harmful interference to radio communications if the equipment is not installed and
used in accordance with the instructions. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
⚫Reorient or relocate the receiving antenna.
⚫Increase the separation between the equipment and receiver.
⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
⚫Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the equipment.
Déclaration FCC
Cet équipement a été testé et reconnu conforme aux limites de la classe A pour les équipements
numériques, conformément à la section 15 des Réglementations FCC. Ces limites sont conçues pour fournir
une protection raisonnable contre toutes interférences nuisibles dans un milieu résidentiel. Cet
équipement génère, utilise, et peut émettre de l’énergie de fréquence radio et, s’il n’est pas installé et
utilisé conformément au manuel d’instruction, peut perturber la réception radio. Cependant, il n’est pas
garanti que l’équipement ne produira aucune interférence dans une installation particulière. Si cet
équipement cause des interférences nuisibles à la réception radio ou télévisée, qui peuvent être
déterminées en l’éteignant et le rallumant, l’utilisateur est encouragé à essayer de remédier au problème
en prenant les mesures suivantes:
⚫Réorienter ou déplacer l’antenne réceptrice.
⚫Augmenter la distance entre l’équipement et le récepteur.
⚫Connecter l’équipement à une prise secteur sur un circuit différent de celui utilisé par le récepteur.
⚫Consulter le négociant ou un technicien radio/TV expérimenté.
Attention: Tout changement ou modification non expressément approuvé par le concessionnaire de cet
appareil pourrait annuler l'autorité de l'utilisateur à utiliser l'équipement.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
CE Mark Avertissement
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en
présence d'interférences radio.
This document is the current official release manual. Please check our website (www.leonton.com) for any
updated manual or contact us by e-mail ([email protected]om)
FCC Notice

CONTENT
OVERVIEW ..................................................................................................................................1
Key Features............................................................................................................................................................... 1
Package Contents..................................................................................................................................................... 2
Safety Precaution...................................................................................................................................................... 2
HARDWARE DESCRIPTION.....................................................................................................3
Physical Dimensions ................................................................................................................................................ 3
Front Panel.................................................................................................................................................................. 4
Top View...................................................................................................................................................................... 4
LED Indicators............................................................................................................................................................ 5
Ethernet Ports............................................................................................................................................................ 6
Cabling......................................................................................................................................................................... 7

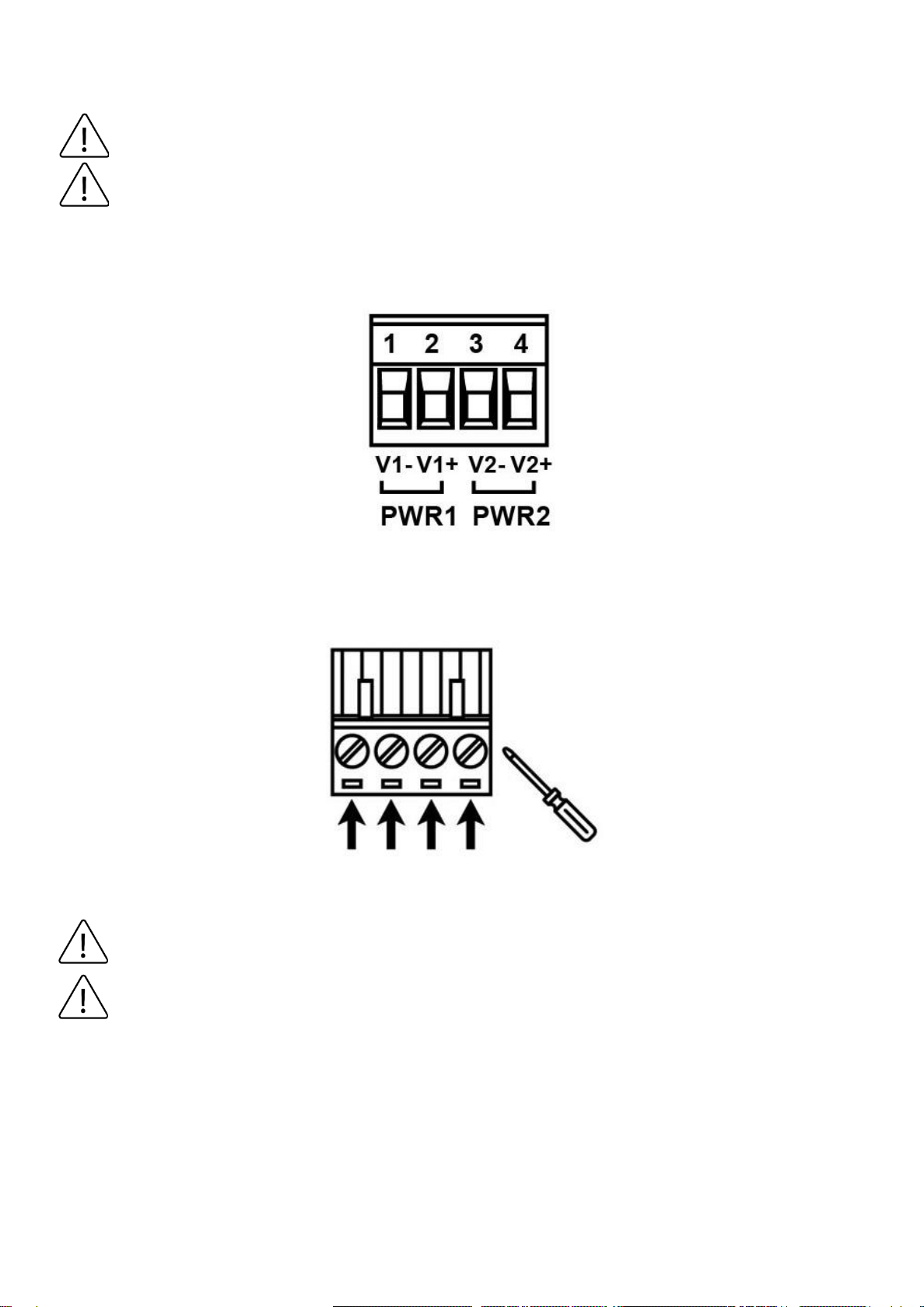

Wiring the Power Inputs......................................................................................................................................... 9
DIP-Switch Setting ................................................................................................................................................. 10
Grounding Note...................................................................................................................................................... 10
MOUNTING INSTALLATION.................................................................................................11
DIN-Rail Mounting................................................................................................................................................. 11
Wall Mounting......................................................................................................................................................... 13
HARDWARE INSTALLATION.................................................................................................14
Installation Steps .................................................................................................................................................... 14
TROUBLE SHOOTING .............................................................................................................16

1
This series is rated IP30 and installation by DIN Rail. Each unit of this industrial PoE+ gigabit Media Converter
series provided 1*10/100/1000Tx with IEEE 802.3at compliant ports (30W) convert to 1 dual-rate (100/1000)
SFP slot, suitable for Ethernet and SFP conversion applications.
In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows
it to function in harsh environments, as well as support power redundancy with a dual power input design
with reverse polarity protection.
With one model having an operating temperature of -10°C ~ 70°C, and another with a wide operating
temperature of -40°C ~ 80°C, this series is designed to meet any needs for industrial automation application
and harsh environments.
Key Features
Interface & Performance
⚫All Copper ports support auto MDI/MDI-X function
⚫Embedded 1*10/100/1000Tx (PSE 30W) Gigabit Ethernet and 1*100/1000 SFP Slots
⚫Store-and-forward switching architecture
⚫8K MAC Address Table
⚫Supports 10Kbytes Jumbo Frame
⚫1Mbits memory buffer
Power Input
⚫Dual 48-55VDC redundant power inputs, with SELV output certified by UL61010-2-201
⚫1 removable 4-contact terminal block
⚫Max. current 0.78A
⚫Max. PoE output: 30W
Certification
⚫CE/FCC
⚫UL 61010-1
⚫UL 61010-2-201
Operating Temperature
⚫Standard operating temperature model: -10°C ~ 70°C
⚫Extended operating temperature model (–T): -40°C ~ 80°C
Case/Installation
⚫IP30 protection (not certified by UL)
⚫DIN-Rail and wall mount design
⚫Installation in a pollution degree 2 industrial environment
⚫Standalone installation
OVERVIEW

2
Package Contents
⚫1 - MPG2-0201-SFP(-T) - Unit weight: 0.25kg (0.55 lb), Shipping weight: 0.45kg (0.99 lb)
⚫2 - Wall mounting brackets and screws
⚫1 - Quick installation guide
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power supply
input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware specs, ports,
cabling information, and wiring installation will be described within this user manual.
Attention
Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Fourniture par courant industriel homologué UL. Les spécifications matérielles, les ports,
les informations de câblage et l'installation du câblage du convertisseur de média industriel seront décrits
dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check the certain information on user manual when working with
the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel
d'utilisation lorsque vous travaillez avec l'appareil. (Montré dans la Figure 1.2)

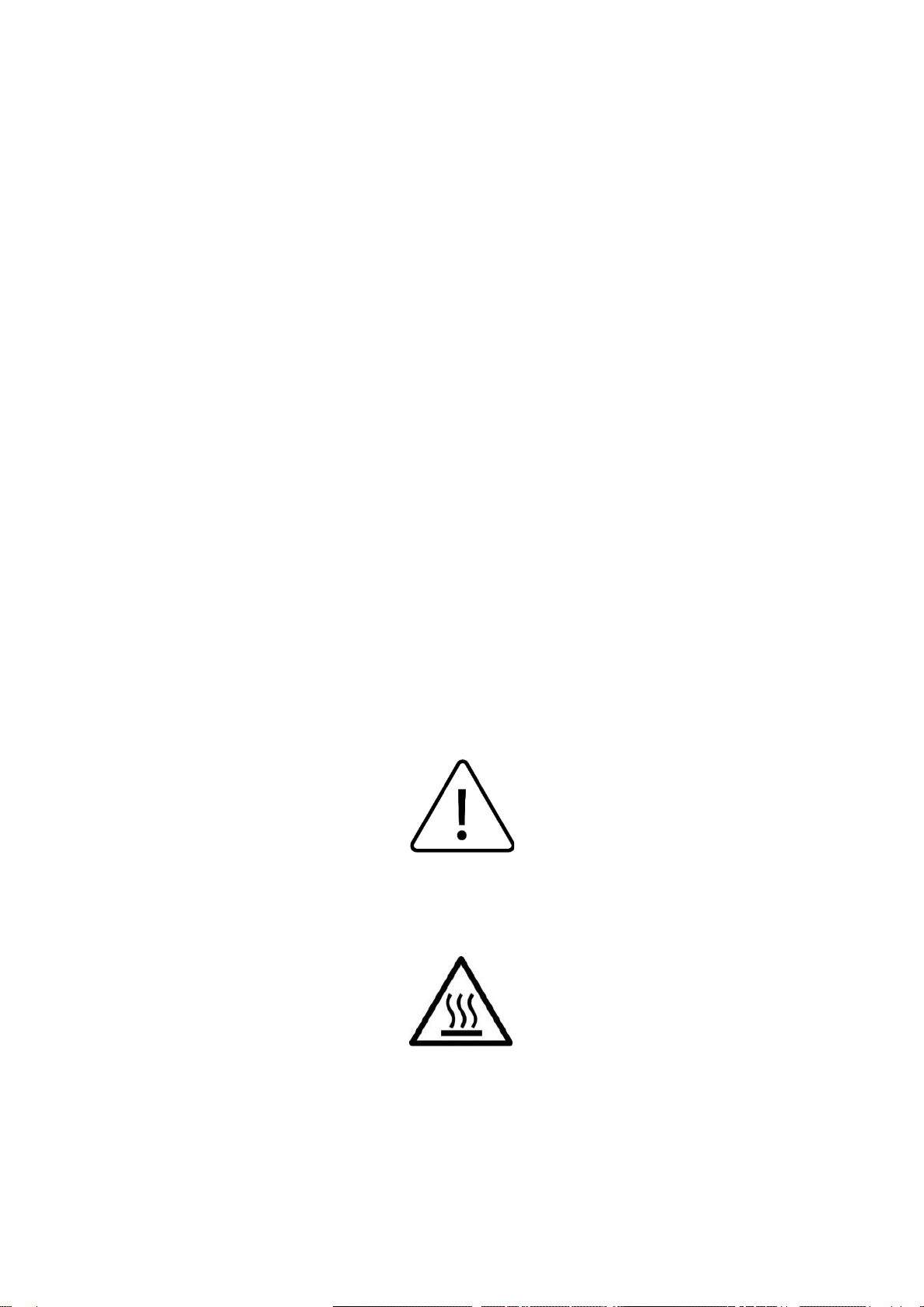

Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude

3
HARDWARE DESCRIPTION
Physical Dimensions

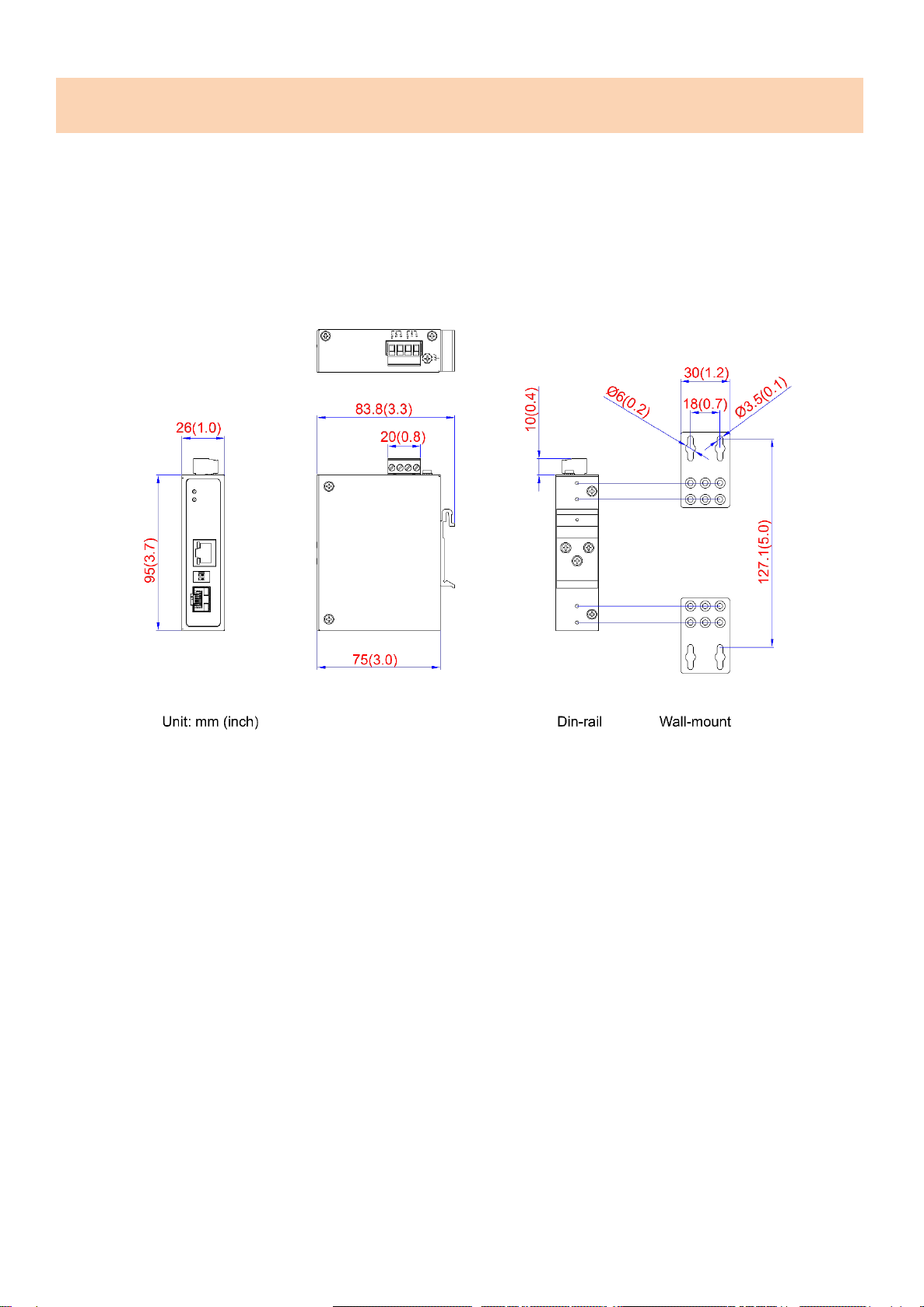

Figure 2.1, below, shows the physical dimensions of MPG2-0201-SFP series.
(W x H x D) is 26mm x 95mm x 75mm
Figure 2.1: Physical Dimensions

4
Front Panel
The front panel of the MPG2-0201-SFP series industrial PoE+ Gigabit Media Converter is shown below in
Figure 2.2.
Figure 2.2: The Front Panel
Top View

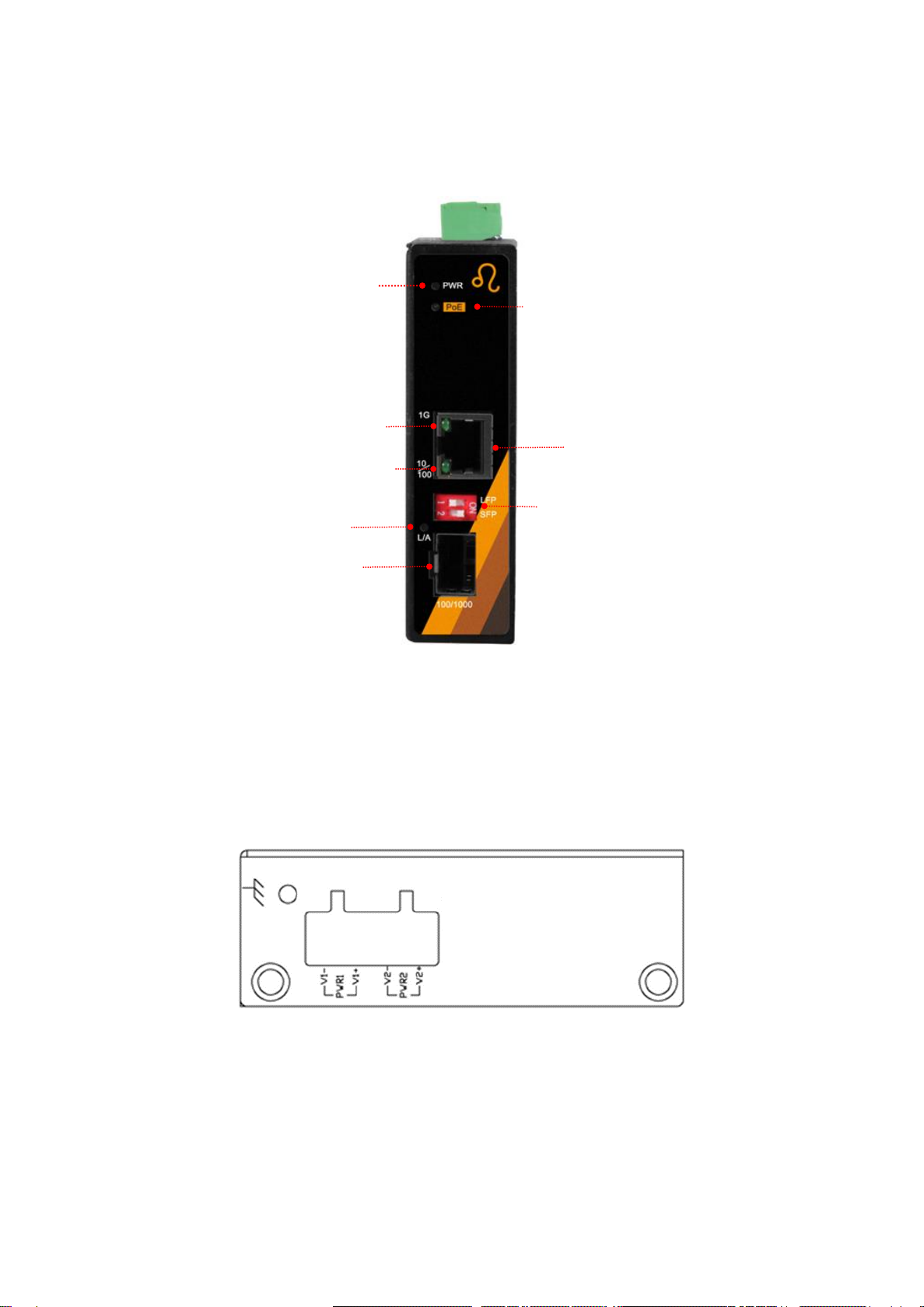

Figure 2.3, below, shows the top panel of the MPG2-0201-SFP series Media Converter that is equipped with
one 4-pin removal terminal block connector for dual DC power inputs (48-55VDC).
Figure 2.3: Top Panel View
10/100Mbps Link/Act LED
PoE Output LED
Power LED
1000Mbps Link/Act LED
100/1000Mbps SFP Port
SFP Speed & LFP Disable/Enable Dip-Switch
10/100/1000 Base-T(X) Copper Port
100/1000Mbps SFP Link/Act LED

5
LED Indicators
There are LED light indicators located on the front panel of the industrial Media Converter that display the
power status and network status. Each LED indicator has a different color and has its own specific meaning,
see below in Table 2.1.
Table 2.1: LED Indicators
LED
Color
Description
PWR
Green
On
Power input 1 or 2 is active
Off
Power input 1 or 2 is inactive
SFP Port
Link/Act
Green
On
Connected to network, 100/1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port
Link/Act/Speed
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
PoE
Green
On
The port is supplying power to the powered-device
Off
No powered-device attached or power supplying fails

6
Ethernet Ports
RJ-45 Ports (Auto MDI/MDIX)
The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices
connections. Auto MDI/MDIX means that the unit can connect to another one or
workstation without changing the straight-through or crossover cabling. See the
figures as below for straight-through and crossover cabling schematics.
10/100BASE-T(X) RJ-45 Pin Assignments (Table 2.2)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.2
1000BASE-T RJ-45 Pin Assignments (Table 2.3)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
