Leonton CEG5-0602-SFP-Lite Series Instructions for use

⚫CEG5-0602-SFP-Lite
⚫CEG5-0602-SFP-Lite-T

© Copyright 2023 Leonton Technologies Co., Ltd. All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Disclaimer
Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied,
including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
Leonton Technologies, Co. Ltd. may make improvements and/or changes to the product and/or
specifications of the product described in this manual, without prior notice. Leonton Technologies, Co. Ltd.
will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are
periodically made to the information contained herein and will be incorporated into later versions of the
manual. The information contained is subject to change without prior notice.

FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy. It may cause harmful interference to radio communications if the equipment is not installed and
used in accordance with the instructions. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
⚫Reorient or relocate the receiving antenna.
⚫Increase the separation between the equipment and receiver.
⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
⚫Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the equipment.
Déclaration FCC
Cet équipement a été testé et reconnu conforme aux limites de la classe A pour les équipements
numériques, conformément à la section 15 des Réglementations FCC. Ces limites sont conçues pour fournir
une protection raisonnable contre toutes interférences nuisibles dans un milieu résidentiel. Cet
équipement génère, utilise, et peut émettre de l’énergie de fréquence radio et, s’il n’est pas installé et
utilisé conformément au manuel d’instruction, peut perturber la réception radio. Cependant, il n’est pas
garanti que l’équipement ne produira aucune interférence dans une installation particulière. Si cet
équipement cause des interférences nuisibles à la réception radio ou télévisée, qui peuvent être
déterminées en l’éteignant et le rallumant, l’utilisateur est encouragé à essayer de remédier au problème
en prenant les mesures suivantes:
⚫Réorienter ou déplacer l’antenne réceptrice.
⚫Augmenter la distance entre l’équipement et le récepteur.
⚫Connecter l’équipement à une prise secteur sur un circuit différent de celui utilisé par le récepteur.
⚫Consulter le négociant ou un technicien radio/TV expérimenté.
Attention: Tout changement ou modification non expressément approuvé par le concessionnaire de cet
appareil pourrait annuler l'autorité de l'utilisateur à utiliser l'équipement.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
CE Mark Avertissement
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en
présence d'interférences radio.
This document is the current official release manual. Please check our website (www.leonton.com) for
any updated manual or contact us by e-mail ([e-mail]).

CONTENT
OVERVIEW ................................................................................................................................... 1
Key Features................................................................................................................................................................. 1
Package Contents....................................................................................................................................................... 2
Safety Precaution........................................................................................................................................................ 2
HARDWARE DESCRIPTION...................................................................................................... 3
Physical Dimensions .................................................................................................................................................. 3
Front Panel.................................................................................................................................................................... 4
Top View........................................................................................................................................................................ 4
LED Indicators.............................................................................................................................................................. 5

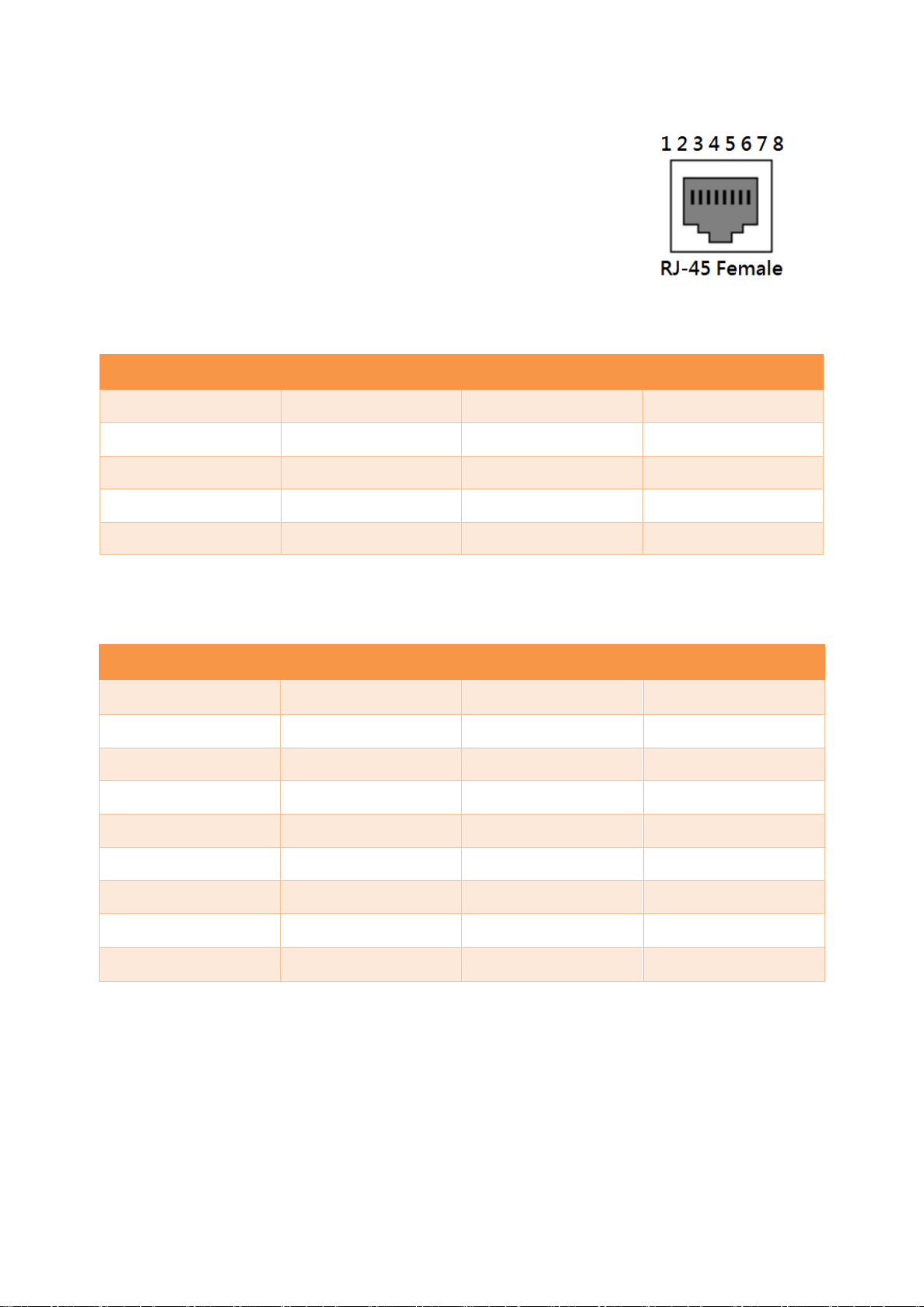

Ethernet Ports.............................................................................................................................................................. 7
Cabling........................................................................................................................................................................... 8
Wiring the Power Inputs.........................................................................................................................................10

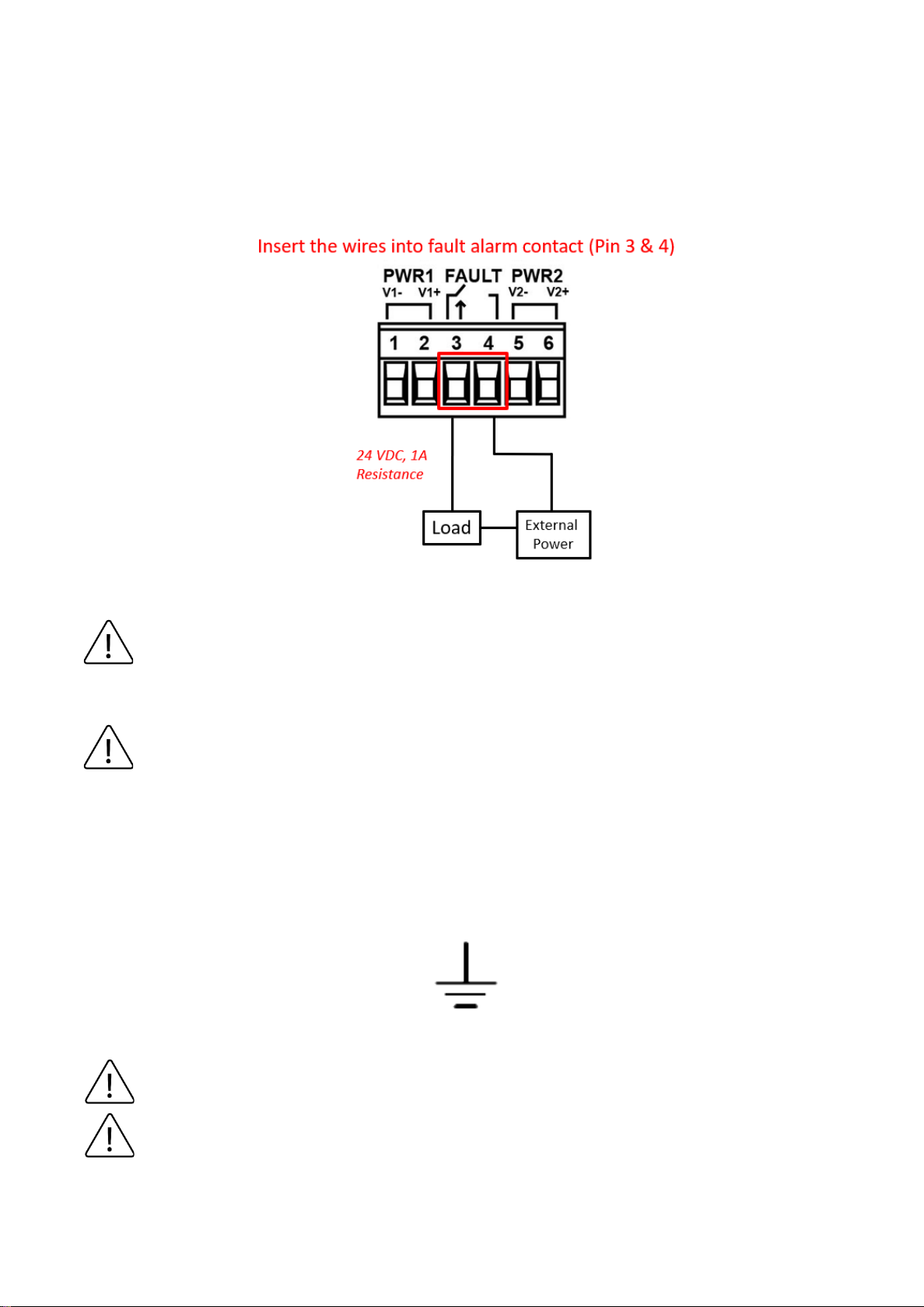

Wiring the Fault Alarm Contact ............................................................................................................................11
Grounding Note........................................................................................................................................................11
MOUNTING INSTALLATION..................................................................................................12

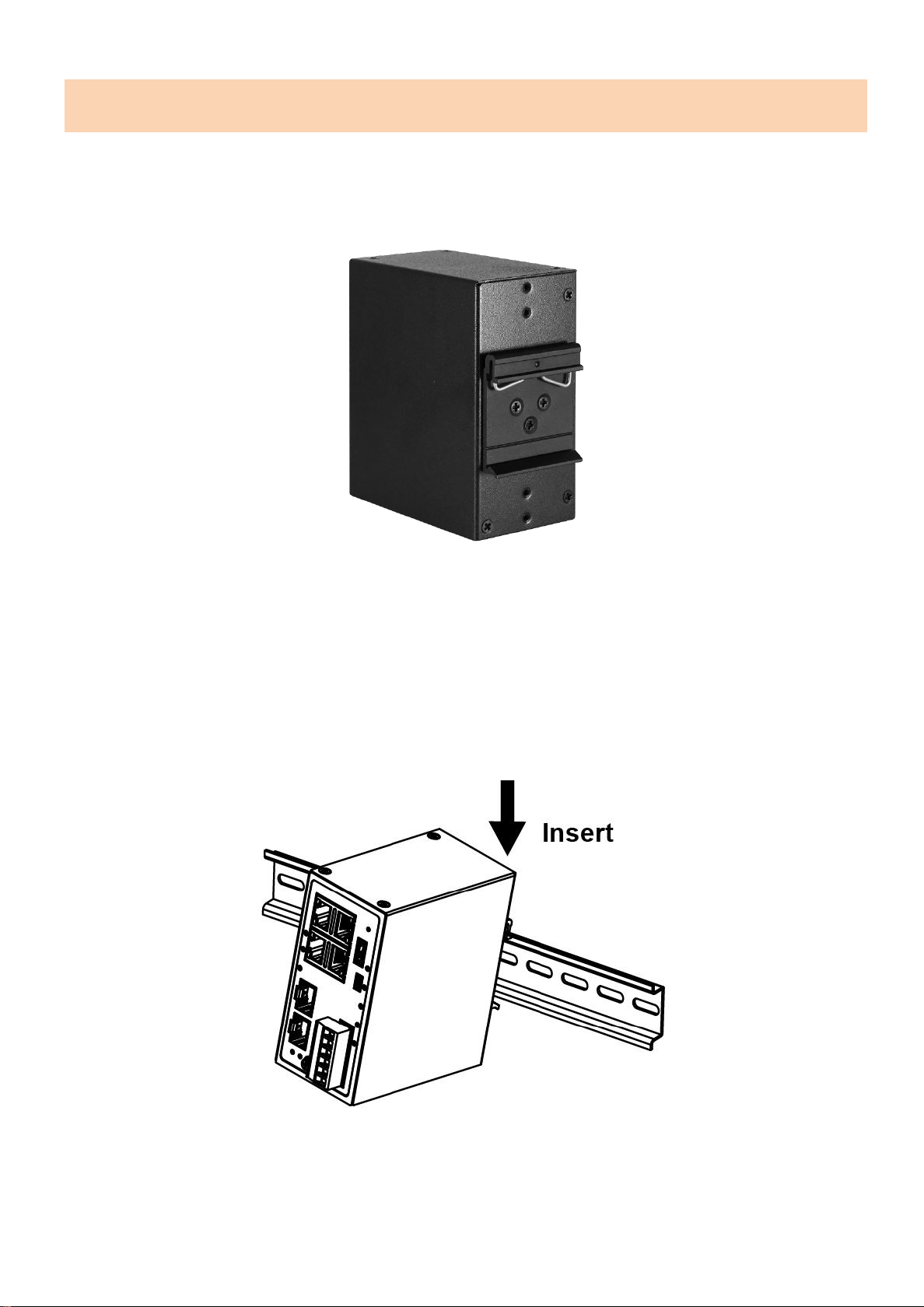

DIN-Rail Mounting...................................................................................................................................................12

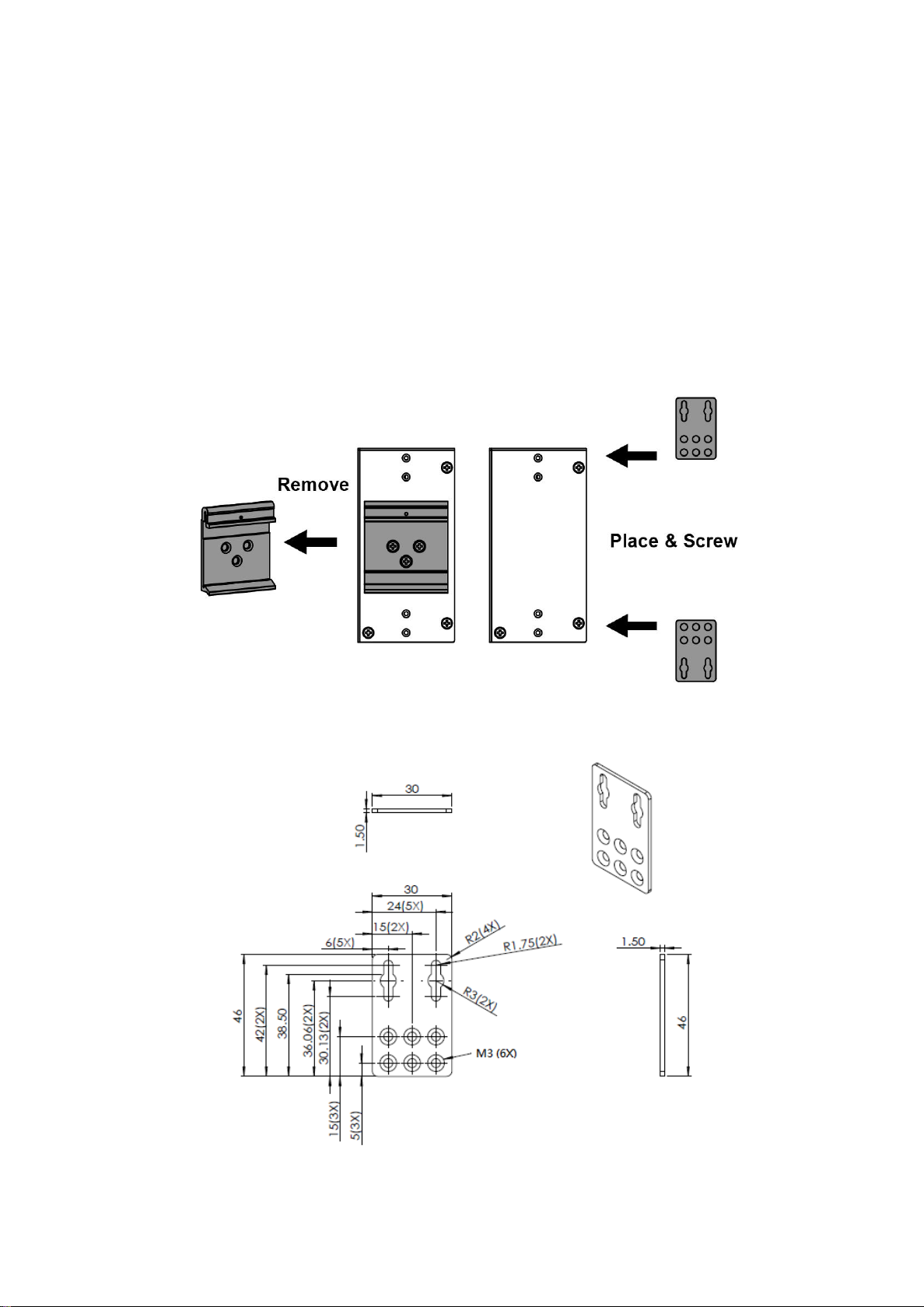

Wall Mounting...........................................................................................................................................................14
HARDWARE INSTALLATION..................................................................................................15
Installation Steps ......................................................................................................................................................15
TROUBLE SHOOTING ..............................................................................................................17

1
OVERVIEW
This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit managed PoE
compact size design for short installation space provided 4*10/100/1000Base-Tx convert to 2 dual-rate
(100/1000) SFP slot, suitable for Ethernet and SFP conversion applications.
In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows
it to function in harsh environments, as well as support power redundancy with a dual power input
design with reverse polarity protection.
With one model having an operating temperature of -10°C ~ 65°C , and another with a wide operating
temperature of -40°C ~ 75°C, this series is designed to meet any needs for industrial automation
application and harsh environments.
Key Features
Interface & Performance
⚫Copper port support auto MDI/MDI-X function
⚫Embedded 4*10/100/1000Base-T(X) and 2*100/1000 SFP Slot
⚫Store-and-forward switching architecture
⚫8K MAC Address Table
⚫Supports 9.6Kbytes Jumbo Frame
⚫4Mbits memory buffer
Power Input
⚫Dual 12-48VDC redundant power inputs, with SELV output certified by UL61010-2-201
⚫1 removable 6-contact terminal block
⚫Max. current 0.9A
Certification
⚫CE/FCC
⚫UL 61010-1
⚫UL 61010-2-201
Operating Temperature
⚫Standard operating temperature model: -10°C ~ 65°C
⚫Extended operating temperature model (-T): -40°C ~ 75°C
Case/Installation
⚫IP30 protection (not certified by UL)
⚫DIN-Rail and wall mount design
⚫Installation in a pollution degree 2 industrial environment
⚫Standalone installation

2
Package Contents
⚫1 - CEG5-0602-SFP-Lite(-T) - Unit weight: 0.66kg ( 1.46lb), Shipping weight: 0.958kg ( 2.11lb)
⚫2 - Wall mounting brackets and screws
⚫1 - Quick installation guide
⚫1 - Mini-USB B type male to DB9 RS-232 female cable
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power supply
input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware specs, ports,
cabling information, and wiring installation will be described within this user manual.
Attention
Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Fourniture par courant industriel homologué UL. Les spécifications matérielles, les ports,
les informations de câblage et l'installation du câblage du convertisseur de média industriel seront décrits
dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check the certain information on user manual when working with
the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel
d'utilisation lorsque vous travaillez avec l'appareil. (Montré dans la Figure 1.2)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude

3
HARDWARE DESCRIPTION
Physical Dimensions

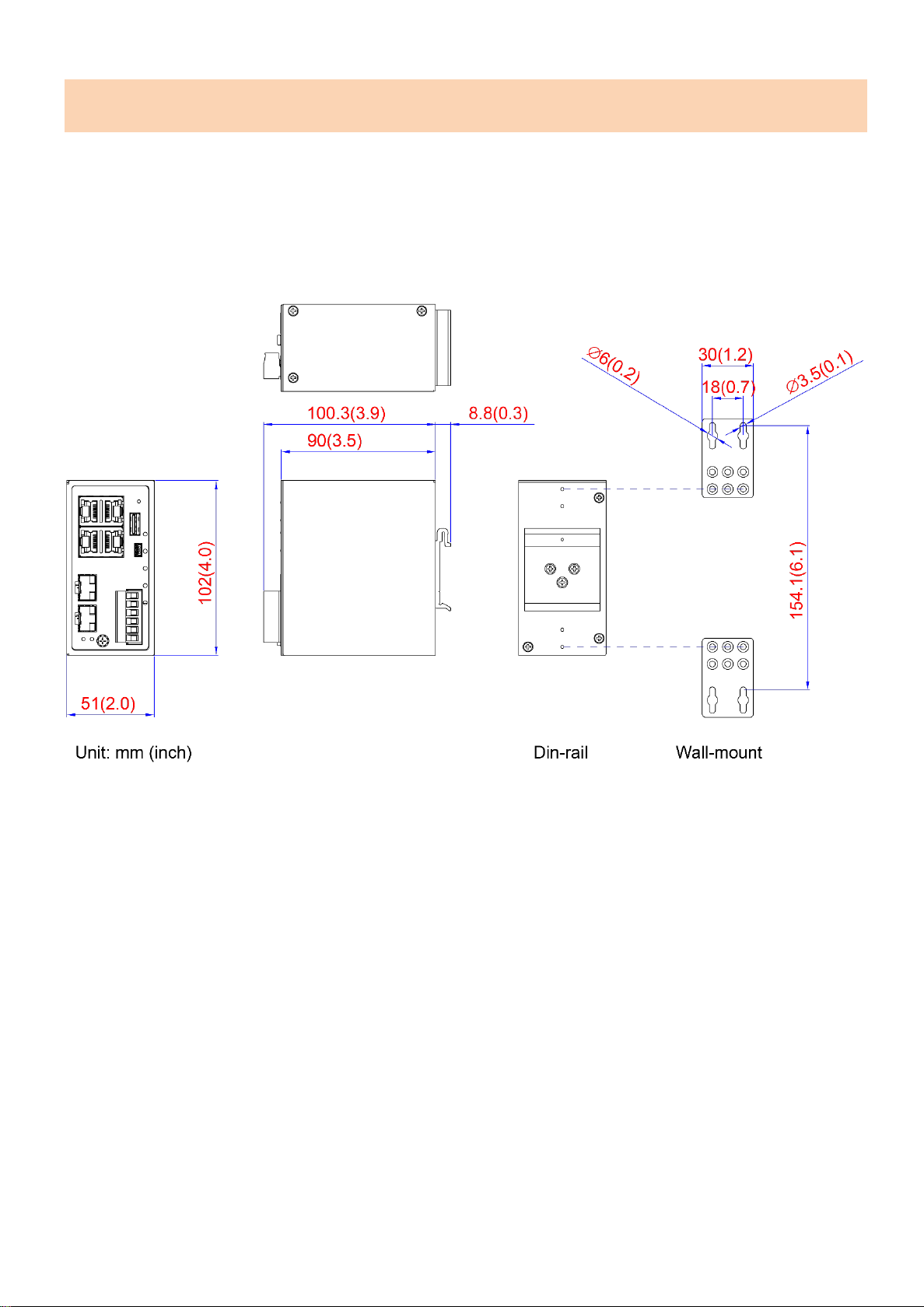

Figure 2.1, below, shows the physical dimensions of CEG5-0602-SFP-Lite series.
(W x H x D) is 51mm x 102mm x 90mm
Figure 2.1: Physical Dimensions

4
Front Panel
The front panel of the CEG5-0602-SFP-Lite series industrial gigabit Managed Ethernet Switch is shown
below in Figure 2.2.
Figure 2.2: The Front Panel
Top View
Figure 2.3, below, shows the top panel of the CEG5-0602-SFP-Lite series switches that is equipped with
one 4-pin removal terminal block connector for dual DC power inputs (12-48VDC).
Figure 2.3: Top Panel View

5
LED Indicators
There are LED light indicators located on the front panel of the industrial switch that display the power
status and network status. Each LED indicator has a different color and has its own specific meaning, see
below in Table 2.1.
Table 2.1: LED Indicators
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
STATUS
Red
On
System booting
Green
On
The system ready and work fine, and there are no
events occur
Blinking
When the user presses the reset button
Red
On
The system is working normally, but the software
set event occurs (ex. Power inactive / Ethernet port
link-down………..).
Blinking
When the user presses the reset button
MASTER
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
RING
Green
On
ERPS Ring Network is active and works well
Blinking
ERPS Ring works abnormally or misconfigure
Off
ERPS Ring Network is not active
SFP
Green
On
Connected to network, 1000Mbps
Blinking
Networking is active, 1000Mbps

6
Link/Act/Speed
(Port1-2)
Off
Not connected to network
Amber
On
Connected to network, 100Mbps
Blinking
Networking is active, 100Mbps
Off
Not connected to network

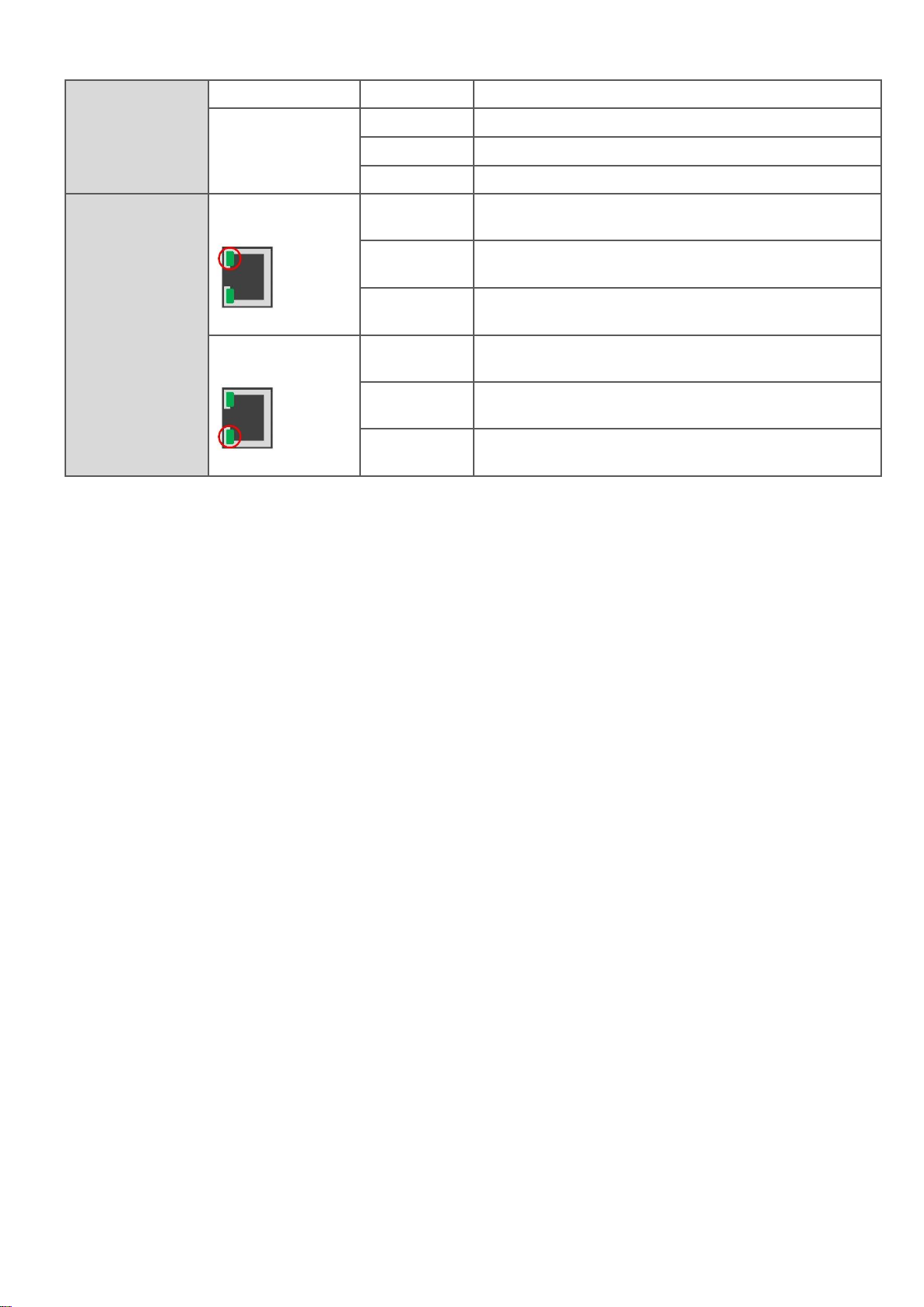

Copper Port
Link/ACT/Speed
(Port3- 6)
Green
On
Connected to network, 1000Mbps
Blinking
Networking is active
Off
Not connected to network
Green
On
Connected to network, 10/100Mbps
Blinking
Networking is active
Off
Not connected to network
