Leonton GINJ-0201-EBT Instructions for use

⚫GINJ-0201-EBT
⚫GINJ-0201-EBT-T

© Copyright 2021 Leonton Technologies Co., Ltd. All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Disclaimer
Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied,
including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
Leonton Technologies, Co. Ltd. may make improvements and/or changes to the product and/or
specifications of the product described in this manual, without prior notice. Leonton Technologies, Co. Ltd.
will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are
periodically made to the information contained herein and will be incorporated into later versions of the
manual. The information contained is subject to change without prior notice.

FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy. It may cause harmful interference to radio communications if the equipment is not installed and
used in accordance with the instructions. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
⚫Reorient or relocate the receiving antenna.
⚫Increase the separation between the equipment and receiver.
⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
⚫Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the equipment.
Déclaration FCC
Cet équipement a été testé et reconnu conforme aux limites de la classe A pour les équipements
numériques, conformément à la section 15 des Réglementations FCC. Ces limites sont conçues pour fournir
une protection raisonnable contre toutes interférences nuisibles dans un milieu résidentiel. Cet
équipement génère, utilise, et peut émettre de l’énergie de fréquence radio et, s’il n’est pas installé et
utilisé conformément au manuel d’instruction, peut perturber la réception radio. Cependant, il n’est pas
garanti que l’équipement ne produira aucune interférence dans une installation particulière. Si cet
équipement cause des interférences nuisibles à la réception radio ou télévisée, qui peuvent être
déterminées en l’éteignant et le rallumant, l’utilisateur est encouragé à essayer de remédier au problème
en prenant les mesures suivantes:
⚫Réorienter ou déplacer l’antenne réceptrice.
⚫Augmenter la distance entre l’équipement et le récepteur.
⚫Connecter l’équipement à une prise secteur sur un circuit différent de celui utilisé par le récepteur.
⚫Consulter le négociant ou un technicien radio/TV expérimenté.
Attention: Tout changement ou modification non expressément approuvé par le concessionnaire de cet
appareil pourrait annuler l'autorité de l'utilisateur à utiliser l'équipement.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
CE Mark Avertissement
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en
présence d'interférences radio.
This document is the current official release manual. Please check our website (www.leonton.com) for any
updated manual or contact us by e-mail ([email protected]om).

CONTENT
OVERVIEW ................................................................................................................................... 5
Key Features.................................................................................................................................................................5
Package Contents.......................................................................................................................................................6
Safety Precaution........................................................................................................................................................6
HARDWARE DESCRIPTION...................................................................................................... 7
Physical Dimensions ..................................................................................................................................................7
Front Panel....................................................................................................................................................................8
Top View........................................................................................................................................................................8
LED Indicators..............................................................................................................................................................9
DIP-Switch Setting ...................................................................................................................................................10
Relay Contact Alarm Warning...............................................................................................................................10
Ethernet Ports............................................................................................................................................................11
Cabling.........................................................................................................................................................................12

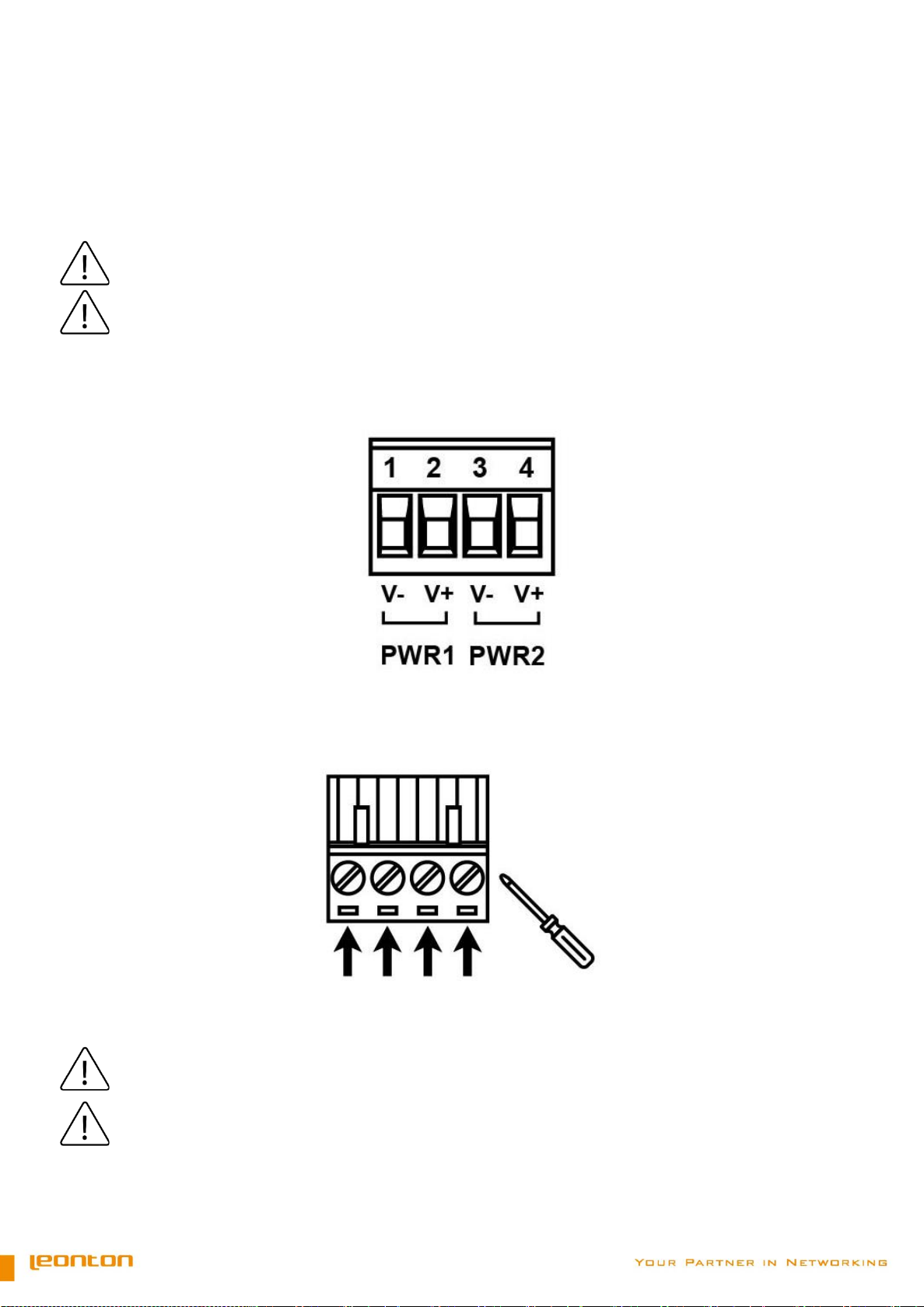

Wiring the Power Inputs.........................................................................................................................................12
Wiring the Fault Alarm Contact ............................................................................................................................13
Grounding Note........................................................................................................................................................13
MOUNTING INSTALLATION..................................................................................................14
DIN-Rail Mounting...................................................................................................................................................14
Wall Mounting...........................................................................................................................................................16
HARDWARE INSTALLATION..................................................................................................17
Installation Steps ......................................................................................................................................................17
TROUBLE SHOOTING ..............................................................................................................19

OVERVIEW
PoE and Non-PoE are both highly utilized in industrial networking applications nowadays; however, it
sometimes goes to an awkward situation that end-device, e.g. remote camera, supports PoE function but
the Ethernet switch does not. Is there any other solution but replacing the switch with a PoE one?
GINJ-0201-EBT Series solve the problem simply by deploying data and power from non-PoE switch and
power input to the PD device. PoE injector is a brilliant low-cost solution for the case that only one side of
the device is supporting PoE function. Therefore GINJ-0201-EBT Series will be your best choice to deal with
the lack of PoE function cases.
Additionally, GINJ-0201-EBT Series supports power input from 48VDC to 55VDC, ensuring full 90W PoE
output, in compliance with IEEE 802.3bt standard for better usage in various industrial markets, like
automation, surveillance, and vehicle industry. Besides that, with the fan-less design, this model series also
works perfectly in polarized temperatures from -40~75℃and undoubtedly becomes your best option in a
harsh environment.
GINJ-0201-EBT Series with a fan-less design, besides extending surely apply to various industrial
applications, works perfectly in polarized temperature from -40~75℃, and undoubtedly becomes your
best option in the industrial market.
Key Features
Interface & Performance
⚫Embedded 1*10/100/1000Tx for LAN-In and 1*10/100/1000Tx for BT PoE P.S.E. Out
⚫Compliant with IEEE802.3af/at/bt PoE technologies
⚫Support auto detection and classification for PoE application
⚫Support short-circuit and current-overloading protection for PoE application
Power Input
⚫GINJ-0201-EBT: Dual 48-55VDC redundant power inputs
⚫1*4-pin removable terminal block
⚫Max. current 2.2A (Included PoE power budget)
⚫Max. PoE output: 100W
⚫For IEEE802.3bt applications, the power input not less than 53VDC is recommended
Certification
⚫CE/FCC
⚫UL 61010-1
⚫UL 61010-2-201
Operating Temperature
⚫Standard operating temperature model: -10°C ~ 65°C
⚫Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
⚫IP30 protection (not certified by UL)
⚫DIN-Rail and wall mount design
⚫Installation in a pollution degree 2 industrial environment

⚫Installation in the environment with adequate airflow
⚫Standalone Installation
Package Contents
⚫1 - GINJ-0201-EBT(-T) - Unit weight: 0.362 kg (0.8 lbs.), Shipping weight: 0.508 kg (1.12 lbs.)
⚫2 - Wall mounting brackets and screws
⚫1 - Quick installation guide
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
Supply by UL Listed industrial use power. The industrial Ethernet injector’s hardware specs, ports, cabling
information, and wiring installation will be described within this user manual.
Attention
Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Fourniture par courant industriel homologué UL. Les spécifications matérielles, les ports, les
informations de câblage et l'installation du câblage du convertisseur de média industriel seront décrits dans
ce manuel d'utilisation.
Warning Labels
The caution label means that you should check the certain information on user manual when working with
the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel d'utilisation
lorsque vous travaillez avec l'appareil. (Montré dans la Figure 1.2)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude

HARDWARE DESCRIPTION
Physical Dimensions
Figure 2.1, below, shows the physical dimensions of GINJ-0201-EBT Series.
(W x H x D) is 30mm x 95mm x 75mm
Figure 2.1: Physical Dimensions

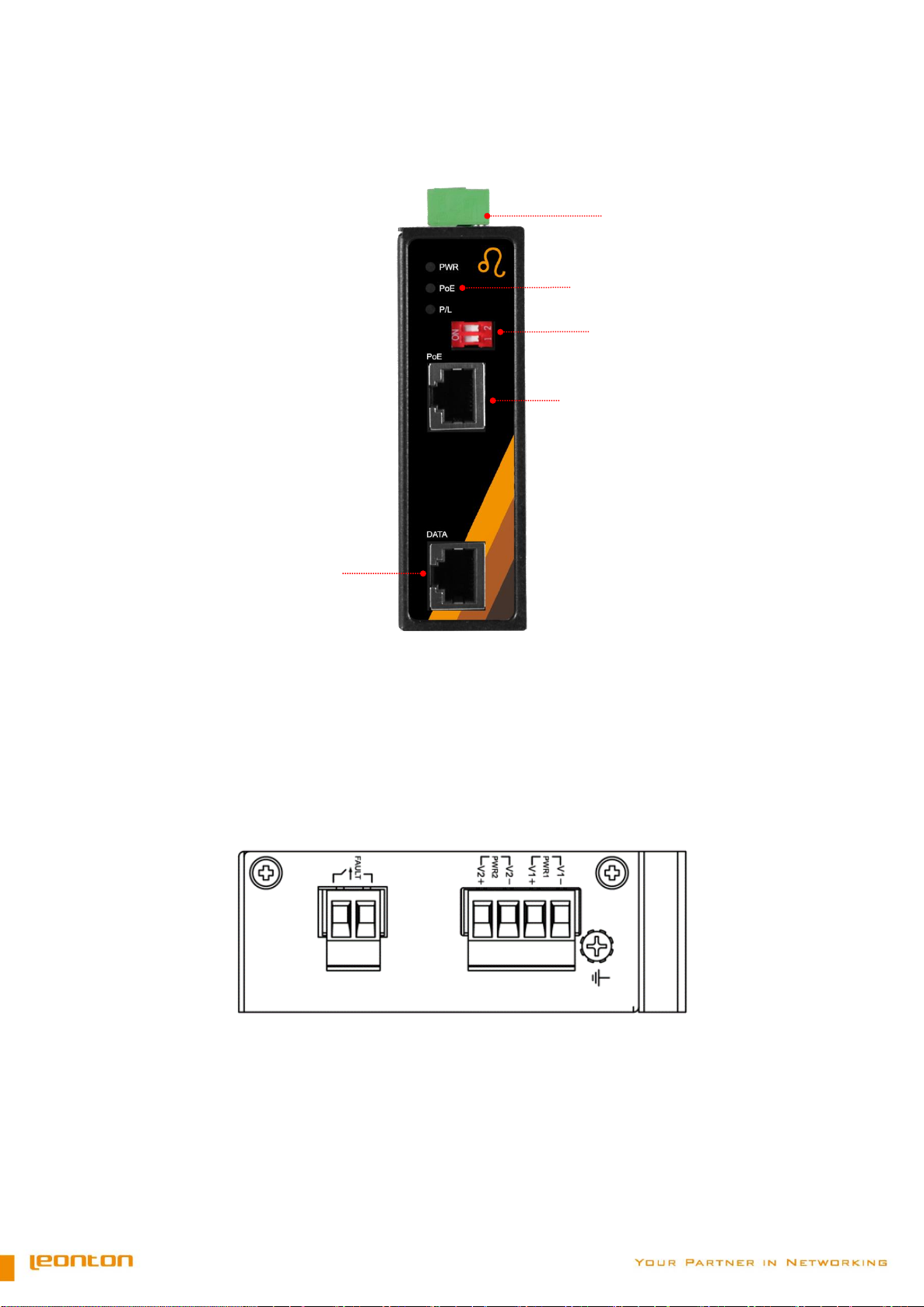

Front Panel
The front panel of the GINJ-0201-EBT Series Industrial Gigabit BT-PoE Injector is shown below in Figure 2.2.
Figure 2.2: The Front Panel
Top View
Figure 2.3, below shows the top panel of the GINJ-0201-EBT Series Industrial Gigabit BT-PoE Injector that is
equipped with one 2-pin terminal block for relay contact alarm and 4-pin terminal block connectors for dual
DC power inputs (48-55VDC).
Figure 2.3: Top Panel View
2+4pin removal terminal block
DIP Switch
10/100/1000Base-T(X)
BT-PoE Out
10/100/1000Base-T(X)
for LAN-In
LED indicator

LED Indicators
There are LED light indicators located on the front panel of the industrial injector that display the power
status and network status. Each LED indicator has a different color and has its own specific meaning, see
below in Table 2.1.
LED
Color
Description
PWR
Green
On
Power input 1 and 2 are active
Red
On
Power input 1 or 2 is inactive, trigger relay
-
Off
Power input 1 and 2 is inactive
PoE
Amber
On
The PoE output port is supplying power to the powered-device
over 2 pairs
Green
On
The PoE output port is supplying power to the powered-device
over 4 pairs
Amber
Flashing
The PoE output port is supplying power to the powered-device
over 2 pairs after the Dual PD Check event happens.
(This event indictor only occurs when Dual PD Check function is disabled)
Green
Flashing
The PoE output port once supplied power to the powered-device
over 2 pairs and now recovers to supply power over 4pairs.
-
Off
No powered-device attached or power supplying fails
P/L
-
Off
Actual Consumption ≦ 30W
Blue
On
31W ≦ Actual Consumption ≦ 60W
Red
On
61W ≦ Actual Consumption ≦ 90W
Red
Flashing
91W ≦ Actual Consumption ≦ 100W
(This event indictor only occurs when Enhanced mode is enabled)
Table 2.1: LED Indicators

DIP-Switch Setting
There are 2-set DIP-switch in front panel, that can be used for setting the PoE Mode and Dual PD Check
functions. The default setting for all DIP switches is “OFF”. See the Table 2.2 and description below for
more details.
Table 2.2: DIP-switch setting for GINJ-0201-EBT Series
DIP Switch 1
OFF: Enable “Standard PoE Mode” function.
The PoE Output will be activated following IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt PoE Standard
ON: Enable “Enhanced PoE Mode”
The PoE Output will be activated based on the used pairs. If the PSE output is over 2pairs, the max.
PoE budget is 50W; If the PSE output is over 4pairs, the max. PoE budget is 100W.
DIP Switch 2
OFF: Disabled “Dual PD Check” function
When Dual PD Check is disabled, the port will detect, classify and service power on request for either
channel regardless of the detection result on the other channel.
ON: Enabled “Dual PD Check” function
When Dual PD check is set, if an invalid detection signature is discovered on either channel, the port
will not perform classification or grant power on requests.
[Note]
1. When Dual PD Check is disabled in Standard PoE Mode and one of the channels fails, the PoE budget
will be based on the classification of the valid channel.
2. When Dual PD Check is disabled in Enhanced PoE Mode and one of the channels fails, the PoE budget
will becomes max.50W over 2 pairs.
Relay Contact Alarm Warning
The relay contact alarm supports power redundancy failed, PoE total output watts >100% warning and PoE
over current or cable short warning. There are 5 key trigger events, please follow the below rules:
The relay contact alarm will be triggered when anyone of the listed events occurs.
Key trigger event 1: Power-1 or Power-2 is inactive
Key trigger event 2: PoE total loading >100% PoE output budget
Key trigger event 3: PoE over current per port
Key trigger event 4: Cable short per port
Key trigger event 5: One of the channels in Dual PD fail
ON
OFF (Default)
DIP-Switch 1
Enhanced PoE Mode
Standard PoE Mode
DIP-Switch 2
Dual PD Check Enabled
Dual PD Check Disabled

[Notice] When the relay is triggered because of Event 2~5, the relay contact alarm, will update the status
every 30 seconds. If there is no event happening for 30 seconds, the relay contact alarm will be turn off. If
the user disables the failed PoE port by removing the cable or Dip Switch manually, the relay will be
recovered immediately.
Ethernet Ports
RJ-45 Ports (Auto MDI/MDIX)
The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices
connections. Auto MDI/MDIX means that the unit can connect to another one or
workstation without changing the straight-through or crossover cabling. See the
figures as below for straight-through and crossover cabling schematics.
10/100BASE-T(X) RJ-45 Pin Assignments (Table 2.3)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.3
1000BASE-T RJ-45 Pin Assignments (Table 2.4)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.4
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The total length
from the device A through the injector to the device B must not exceed 100 meters.
Wiring the Power Inputs
Caution: Please follow the below steps to insert the power wire.
Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation.
Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on
the terminal block connector as shown below in Figure 2.4.
Figure 2.4: Power Terminal Block
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.5.
Figure 2.5: Power Terminal Block
Caution: Only use copper conductors, 125°C, tighten to 7 in-lbs (0.79 Nm). The wire
gauge for the terminal block should range between 18~20 AWG.
Attention: Utilisez uniquement des conducteurs en cuivre, 125 ° C, serrer à 7 in-lbs
(0,79 Nm). Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.

Wiring the Fault Alarm Contact
The fault alarm contact is on the 2-pin terminal block connector as the picture shown below. By inserting
the wires, it will detect the fault status including power failure or port link failure (managed industrial
switch only) and form a normally open circuit. An application example for the fault alarm contact is shown
below in Figure 2.6.
Figure 2.6: fault alarm contact
Grounding Note
Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run
the ground connection from the ground screw to the grounding surface prior to connecting devices. The
grounding screw symbol is shown blow in Figure 2.7.
Figure 2.7: Grounding screw symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité
électromagnétique.

MOUNTING INSTALLATION
DIN-Rail Mounting
The DIN-Rail is pre-installed on the injector from the factory. If the DIN-Rail is not on the unit, please see
Figure 3.1 to learn how to install the DIN-Rail on it.
Figure 3.1: The Rear Side of the Injector and Wall Mounting Bracket

Follow the steps below to learn how to hang the industrial Ethernet injector.
Step 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet injector.
Step 2. To remove the DIN-Rail bracket, do the opposite from Step 1.
Step 3. After the DIN-Rail bracket is installed on the rear side of the injector, insert the top of the DIN-Rail
on to the track as shown below in Figure 3.2.
Figure 3.2: Insert the Injector on the DIN-Rail
Step 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
Figure 3.3: Stable the Injector on DIN-Rail
Step 5. Check if the bracket is mounted tightly on the rail.
Step 6. To remove the industrial Ethernet injector from the rail, do the opposite from the above steps.

Wall Mounting
Follow the steps below to mount the industrial Ethernet injector using the wall mounting bracket as shown
below in Figure 3.4.
Step 1. Remove the DIN-Rail bracket from the industrial Ethernet injector by loosening the screws.
Step 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet injector.
Step 3. Use the screws to screw the wall mounting bracket on the industrial Ethernet injector.
Step 4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
injector on the wall.
Step 5. To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.4: Remove DIN-Rail Bracket from the Injector and Install the Wall Mount Bracket
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5: Wall Mounting Bracket Dimensions

17
HARDWARE INSTALLATION
Installation Steps
This section will explain how to install GINJ-0201-EBT Series.
Installation Steps
Step 1. Unpack the industrial injector from the original packing box.
Step 2. Check if the DIN-Rail bracket is screwed on the industrial injector.
•If the DIN-Rail is not screwed on the industrial injector, please refer to the DIN-Rail Mounting section
for DIN-Rail installation.
•If you want to wall mount the industrial injector, please refer to the Wall Mounting section for wall
mounting installation.
Step 3. To hang the industrial injector on a DIN-Rail or wall, please refer to the Mounting Installation
section.
Step 4. Power on the industrial injector and then the power LED light will turn on.
•If you need help on how to wire power, please refer to the Wiring the Power Inputs section.
•Please refer to the LED Indicators section for LED light indication.
Step 5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
Step 6. Insert one side of the RJ-45 cable into injector’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch, PC or server.
•Please refer to the LED Indicators section for LED light indication.
Step 7. When all connections are set and the LED lights all show normal, the installation is complete.

18
Caution: If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la
protection fournie par l'équipement peut être altérée.
Caution: The installation that the safety to any system incorporating the equipment is
the responsibility of the assembler of the system.
Attention: L'installation que la sécurité de tout système intégrant l'équipement est de la
responsabilité de l'assembleur du système.
Caution: This is an OPEN TYPE module and should be installed in a final safety enclosure
characteristic.
Attention: Il s'agit d'un module de TYPE OUVERT et doit être installé dans une
caractéristique finale d'enceinte de sécurité.
Caution: This device is intended for use indoor and at altitudes up to 2000 meters.
Attention: Cet appareil est destiné à être utilisé en intérieur et à des altitudes allant
jusqu'à 2000 mètres.
Caution: Ambient Relative Humidity should be within the range of 5 and 95% (non-
condensing).
Attention: L'humidité relative ambiante doit être comprise entre 5 et 95% (sans
condensation).
Note: Clean the device with soft cloth with dry or water.

19
TROUBLE SHOOTING
●Verify you have the right power cord or adapter. Never use a power supply or adapter with a non-
compliant DC output voltage or it will burn the equipment.
●Diagnosing LED Indicators: To assist in identifying problems, the unit can be easily monitored with the
LED indicators which help to identity if any problems exist.
◆Please refer to the LED Indicators section for LED light indication.
●If the power indicator LED does not turn on when the power cord is plugged in, the user may have a
problem with the power cord. Check for loose power connections, power losses or surges at the
power outlet.
◆Please contact Leonton for technical support service, if the problem still cannot be resolved.
●If the industrial injector LED indicators are normal and the connected cables are correct but the
packets still cannot transmit, please check the system’s Ethernet devices’ configuration or status.
For any repair or maintenance needs, please contact us.
LEONTON TECHNOLOGIES, CO., LTD
9F-1, No.43, Fuxing Rd., Xindian Dist.,
New Taipei City, 231,
Taiwan
TEL: [phone]
FAX: [phone]
