OVERVIEW
This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit POE+ managed
Ethernet switch series has 8*10/100/1000Tx with 8*IEEE 802.3af/at compliant PoE (30W/port), and
12*100/1000 Base-(F)X SFP Slots, suitable for applications that require high bandwidth and long-distance
communication.
In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows
it to function in harsh environments, as well as support power redundancy with a dual power input design
with reverse polarity protection. The built-in relay warning function alerts users about occurring power
failures.
With one model having an operating temperature of -10°C to 65°C, and another with a wide operating
temperature of -40°C to 75°C, this series is designed to meet any needs for industrial automation, outdoor
application and harsh environments.
Key Features
Interface & Performance
⚫All Copper ports support auto MDI/MDI-X function
⚫Embedded 8*10/100/1000Base-T(X) with 8*PoE-PSE (30W/Port) + 12*10/100/1000Base-(F)X SFP
Slots
⚫Store-and-forward switching architecture
⚫8K MAC Address Table
⚫Supports 9.6Kbytes Jumbo Frame
⚫4Mbits memory buffer
Power Input
⚫Dual 48-55VDC redundant power inputs
⚫2* removable 4-contact terminal blocks
⚫Max. current 5.5A
⚫Max. PoE output 240W
Certification
⚫CE/FCC
⚫UL 61010-1
⚫UL 61010-2-201
⚫NEMA TS2
Operating Temperature
⚫Standard operating temperature model: -10°C ~ 65°C
⚫Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
⚫IP30 protection (not certified by UL)
⚫DIN-Rail and wall mount design
⚫Installation in a pollution degree 2 industrial environment
⚫Installation in the environment with adequate airflow
⚫Standalone Installation

2
Package Contents
⚫1 - PG5-2012-SFP(-T) - Unit weight: 1.562 kg (3.44 lbs.), Shipping weight: 1.902 kg (4.19 lbs.)
⚫2 - Wall mounting brackets and screws
⚫1 - Quick installation guide
⚫1 - RJ45 to DB9 Serial Console cable
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware specs, ports, cabling
information, and wiring installation will be described within this user manual.
Attention
Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Fourniture par courant industriel homologué UL. Les spécifications matérielles, les ports, les
informations de câblage et l'installation du câblage du convertisseur de média industriel seront décrits dans
ce manuel d'utilisation.
Warning Labels
The caution label means that you should check the certain information on user manual when working with
the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel d'utilisation
lorsque vous travaillez avec l'appareil. (Montré dans la Figure 1.2)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude

3
HARDWARE DESCRIPTION

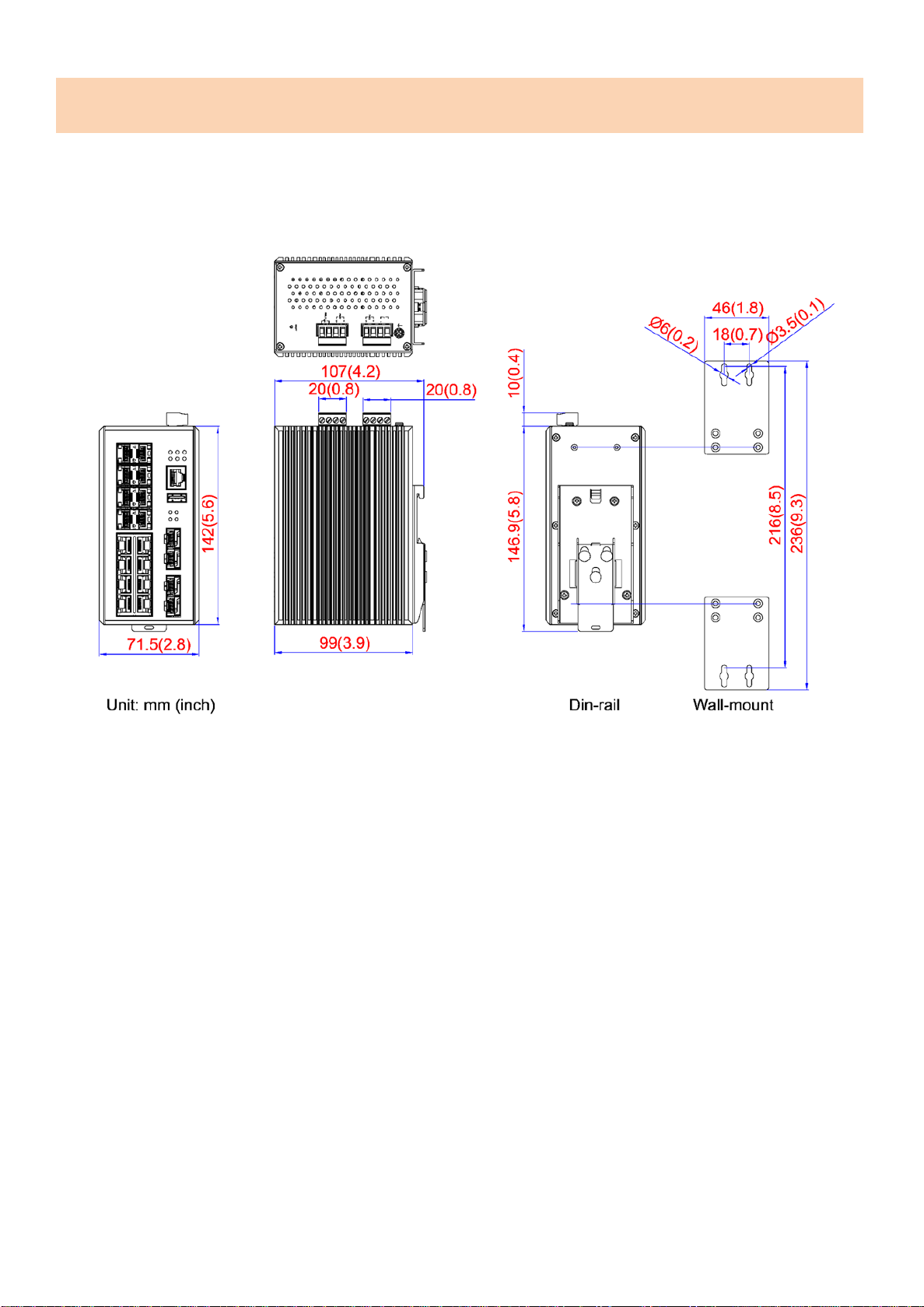

Physical Dimensions
Figure 2.1, below, shows the physical dimensions of PG5-2012-SFP series.
(W x H x D) is 71.5mm x 142mm x 99mm
Figure 2.1: Physical Dimensions

4

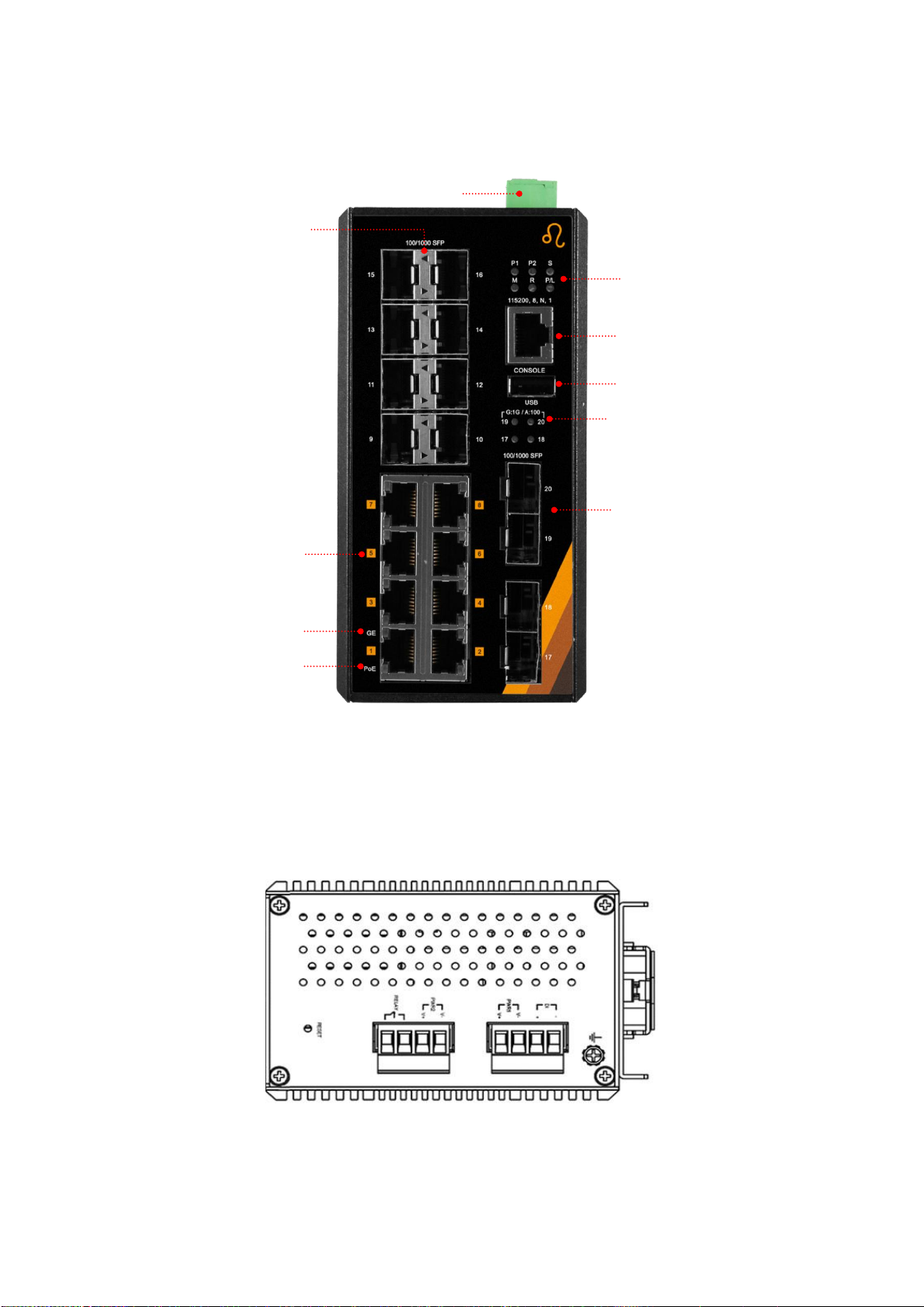

Front Panel
The front panel of the PG5-2012-SFP series industrial Gigabit POE+ managed Ethernet switch is shown below
in Figure 2.2.
Figure 2.2: The Front Panel
Top View
Figure 2.3, below, shows the top panel of the PG5-2012-SFP series switch that is equipped with two 4-pin
removal terminal block connectors for dual DC power inputs (48-55VDC).
Figure 2.3: Top Panel View
4+4 removal terminal block
LED indicators: Power1, Power2,
Status, Master, Ring, PoE Load
Console Port
USB Port
100/1000Mbps SFP
Link/Active LED Indicators
(Port 17-20)
100/1000Mbps SFP Port
(Port 9-20)
10/100/1000Tx RJ45 PoE+
Copper Port (Port 1-8)
10/100/1000Mbps Copper Link/Active
LED Indicators (Port 1-8)
PoE Status LED Indicator
100/1000Mbps SFP Link/Active
LED Indicators (Port 9-16)

5

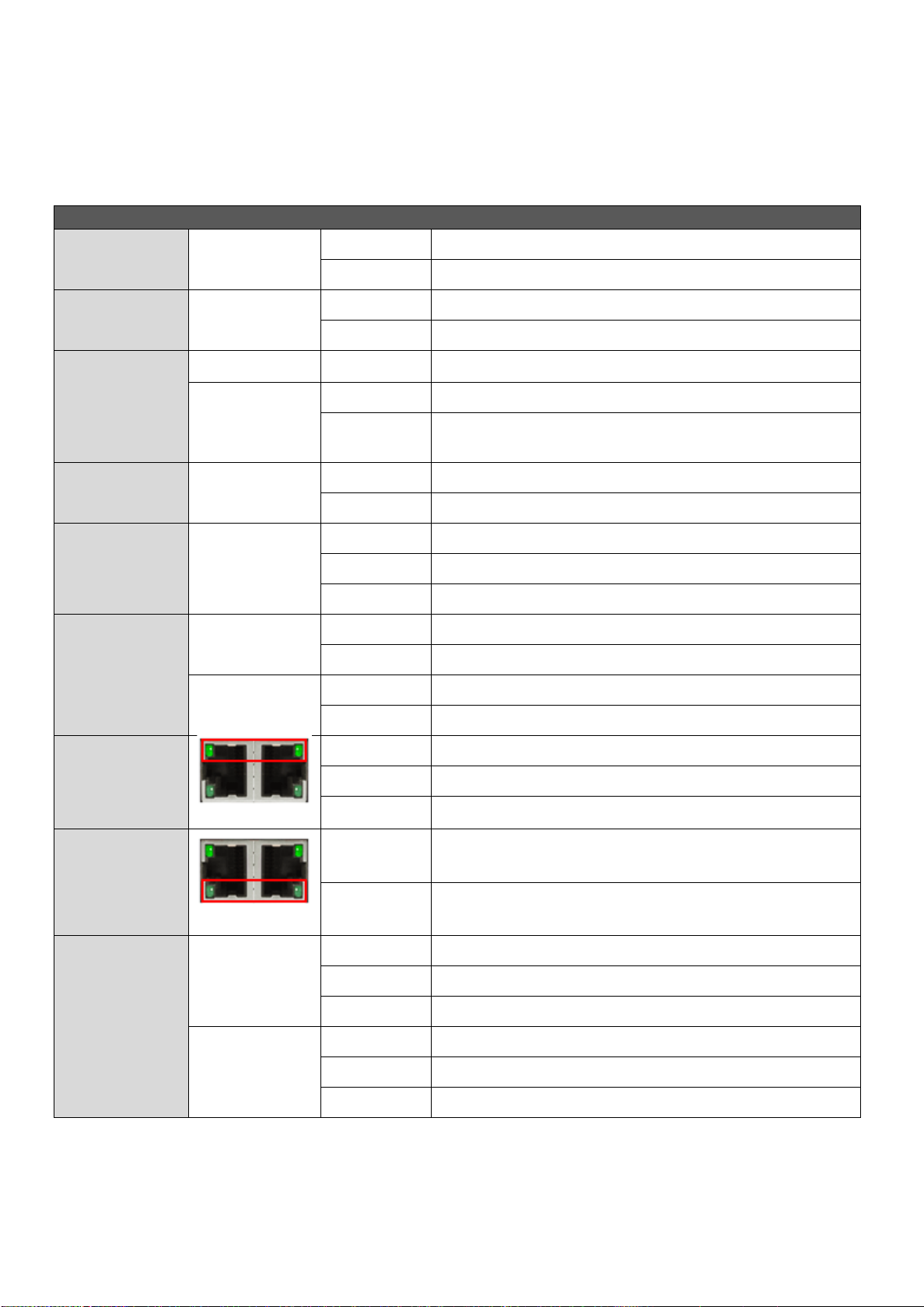

LED Indicators
There are LED light indicators located on the front panel of the industrial switch that display the power status
and network status. Each LED indicator has a different color and has its own specific meaning, see below in
Table 2.1.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
Status
Green
On
No configured event happens
Red
Flashing
Firmware upgrading
On
1. System booting
2. Configured event happens
Master
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
Ring
Green
On
ERPS Ring Network is active and works well
Flashing
ERPS Ring works abnormally or misconfigure
Off
ERPS Ring Network is not active
P/L
(PoE LOAD)
Max. 240W
Green
Off
PoE Load ≤ 50%
On
PoE Load 51-70%
Red
On
PoE Load 71-90%
Flashing
PoE Load 91-100%
GE
(LAN Port)
Green
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Off
Not connected to network
PoE
(LAN Port)
Green
On
Supplying power to the powered-device
Off
Not connected to a Powered Device
L/A
(SFP Port)
Green
On
Connected to network, 1Gbps
Flashing
Networking is active
Off
Not connected to network
Amber
On
Connected to network, 100Mbps
Flashing
Networking is active
Off
Not connected to network
Table 2.1: LED Indicators

6

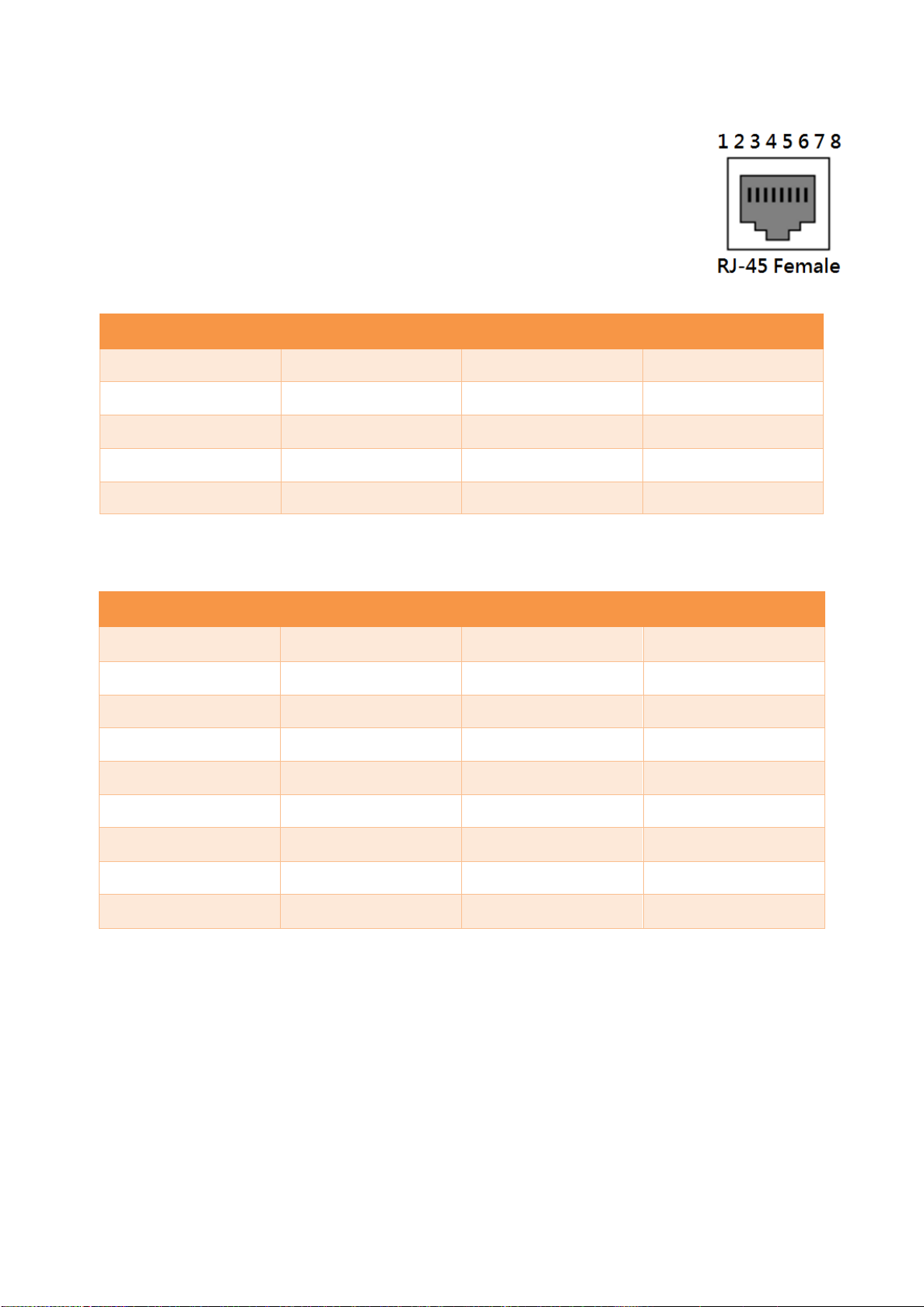

Ethernet Ports
RJ-45 Ports (Auto MDI/MDIX)
The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices
connections. Auto MDI/MDIX means that the switch can connect to another switch
or workstation without changing the straight-through or crossover cabling. See the
figures as below for straight-through and crossover cabling schematics.
10/100BASE-T(X) RJ-45 Pin Assignments (Table 2.2)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.2
1000BASE-T RJ-45 Pin Assignments (Table 2.3)
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.3
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

7
Reset Button
There is a “reset” button located on the top panel of the industrial Ethernet switch that helps users to reboot
or restore default by pressing the button for different seconds. Please refer to Table 2.4 for the timing and
function.
Seconds
Function
Fault LED
0s < t (press time) < 4s
Reboot the switch
LED is flashing with green color
4s < t (press time) < 8s
Restore factory default
LED is flashing with green and red color
Table 2.4 - Reset Button Functions

8
Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between
the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for
both telecommunication and data communication applications.
Caution:
Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC 60825-1, 21
CFR 1040 Section 1040.10 and 1040.11, classified as Class 1 laser product.
Attention:
Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à la norme IEC
60825-1, 21 CFR 1040 Section 1040.10 et 1040.11, classé comme produit laser de classe 1.
To connect the transceiver and LC cable, please follow below steps:

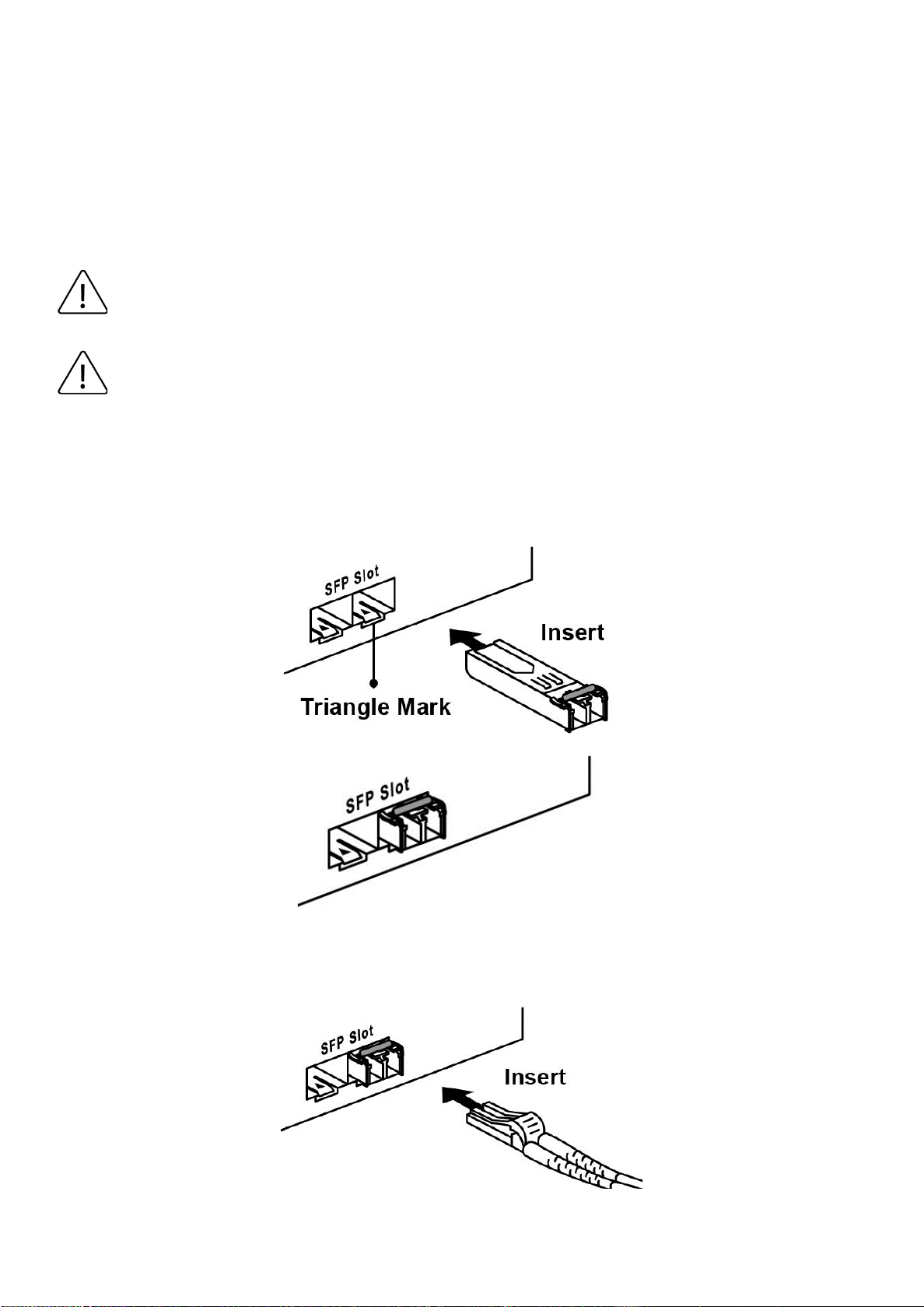

Step 1 Insert the SFP transceiver module into the SFP slot as shown below in Figure 2.4. Notice that the
triangle mark is at the bottom of the SFP slot. Figure 2.5 shows SFP transceiver module was
inserted.
Figure 2.4: Transceiver to the SFP Module
Figure 2.5: Transceiver Inserted
Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.6.
Figure 2.6: LC Connector to the Transceiver

9
To remove the LC connector from the transceiver, please follow the steps shown below:

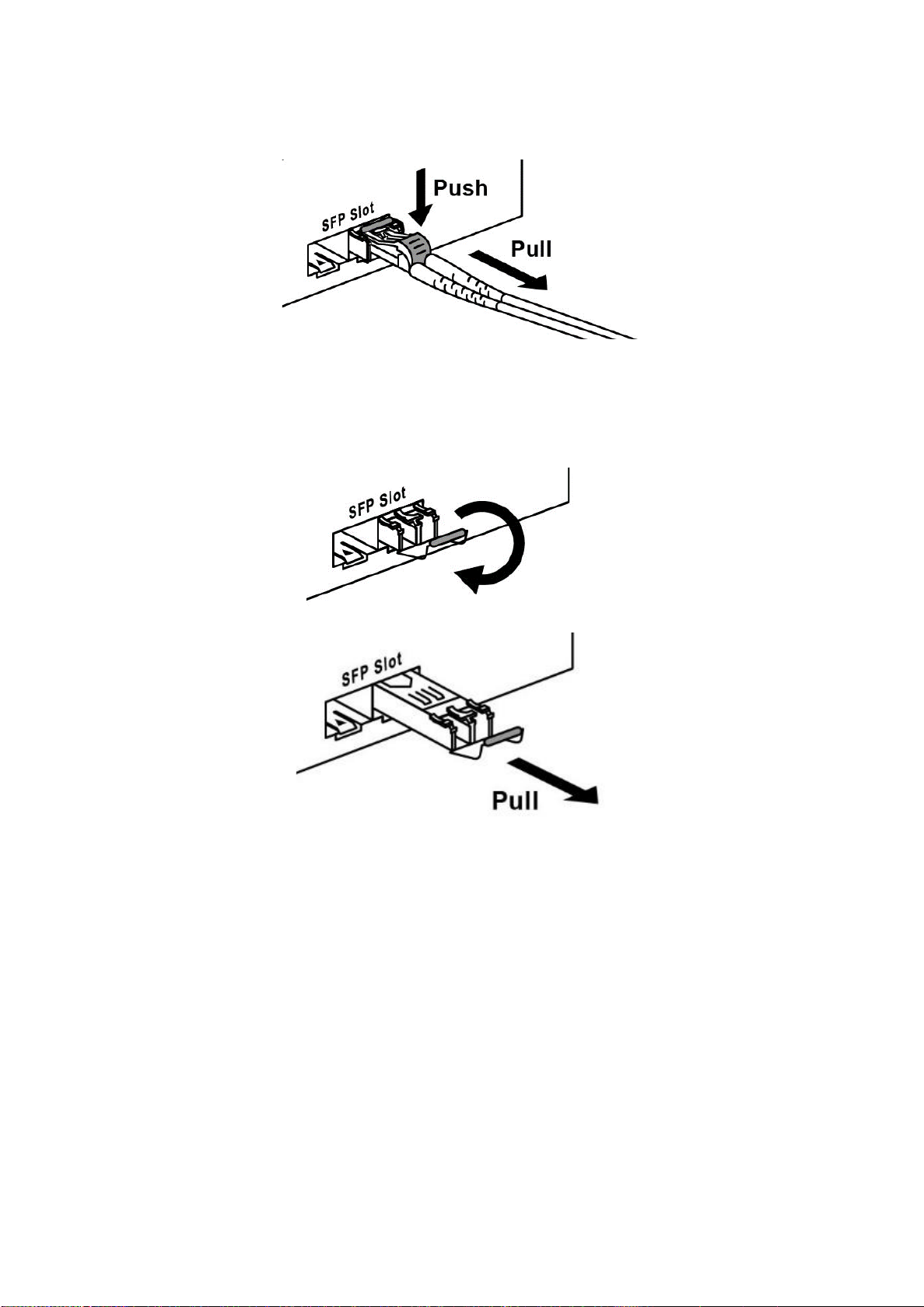

Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown
below in Figure 2.7
Figure 2.7: Remove LC Connector
Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown below in
Figure 2.8
Figure 2.8: Pull Out from the SFP Module

10
Wiring the Power Inputs
Caution: Please follow the below steps to insert the power wire.
Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation.

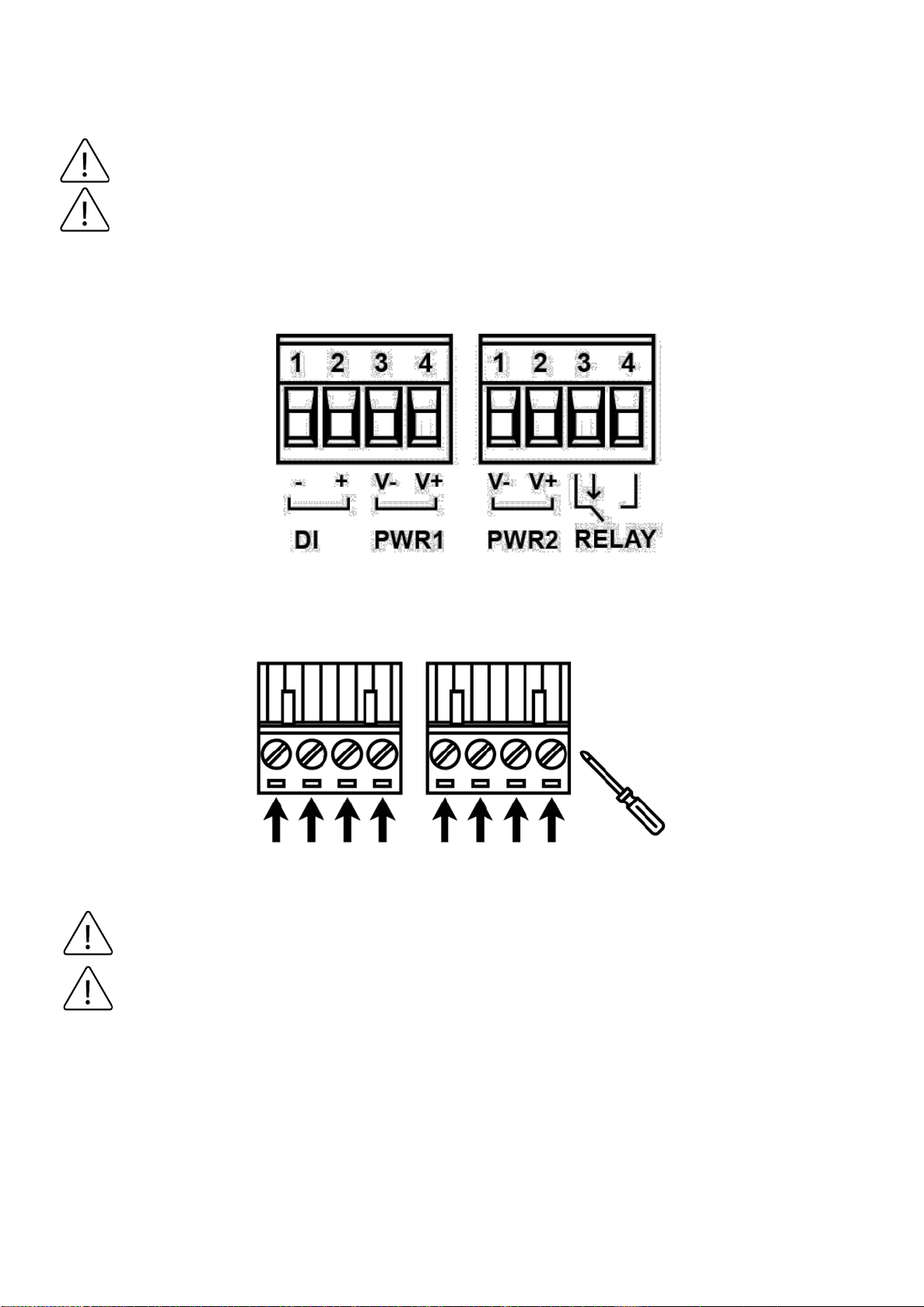

Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on
the terminal block connector as shown below in Figure 2.9.
Figure 2.9: Power Terminal Block
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.10.
Figure 2.10: Power Terminal Block
Caution: Only use copper conductors, 125°C, tighten to 7 in-lbs (0.79 Nm). The wire gauge for
the terminal block should range between 18~20 AWG.
Attention: Utilisez uniquement des conducteurs en cuivre, 125 ° C, serrer à 7 in-lbs (0,79 Nm).
Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.

11
Relay Contact and Digital Input
Relay Contact
The relay contact is in one of the terminal block connectors as the picture shows below in Figure 2.11. By
inserting the wires, it will detect the fault status including power failure or DI Event, and port link failure
(managed industrial switch only) and form a normally open circuit.
Digital Input (DI)
The digital input is used for monitoring external events via an external voltage source. When the voltage
level on digital input pins changes from high voltage to low voltage, the DI function will be triggered. Table
5 is shown a detail specification of the digital input.
Specification
Description
Level 0 (Low)
-30~8VDC
Will trigger DI function (active trigger states)
Level 1 (High)
10~30VDC
Normal Status (inactive trigger states)
Nominal input voltage
24VDC
Max. input voltage
30VDC
Nominal input current
5mA (typical)
Max. input current
8mA
Table 5: Specification of DI
An application example for the relay alarm contact and DI is shown below in Figure 2.11.
Figure 2.11: Wiring the DI and Relay Alarm Contact
Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power
fault alarm.
Attention: Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, jumelez les broches 1 à 5 et les broches
2 à 6 pour éliminer l'alarme de panne de courant.

12
Grounding Note
Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run
the ground connection from the ground screw to the grounding surface prior to connecting devices. The
grounding screw symbol is shown blow in Figure 2.12.
Figure 2.12: Grounding screw symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité
électromagnétique.

13
MOUNTING INSTALLATION
DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet Switch from the factory. If the DIN-Rail is not on the
industrial Ethernet Switch, please see Figure 3.1 to learn how to install the DIN-Rail on the Switch.
Figure 3.1: The Rear Side of the Switch and Wall Mounting Bracket
Follow the steps below to learn how to hang the industrial Ethernet switch.
Step 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Step 2. To remove the DIN-Rail bracket, do the opposite from Step 1.
Step 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-Rail
on to the track as shown below in Figure 3.2.
Figure 3.2: Insert the Switch on the DIN-Rail

14

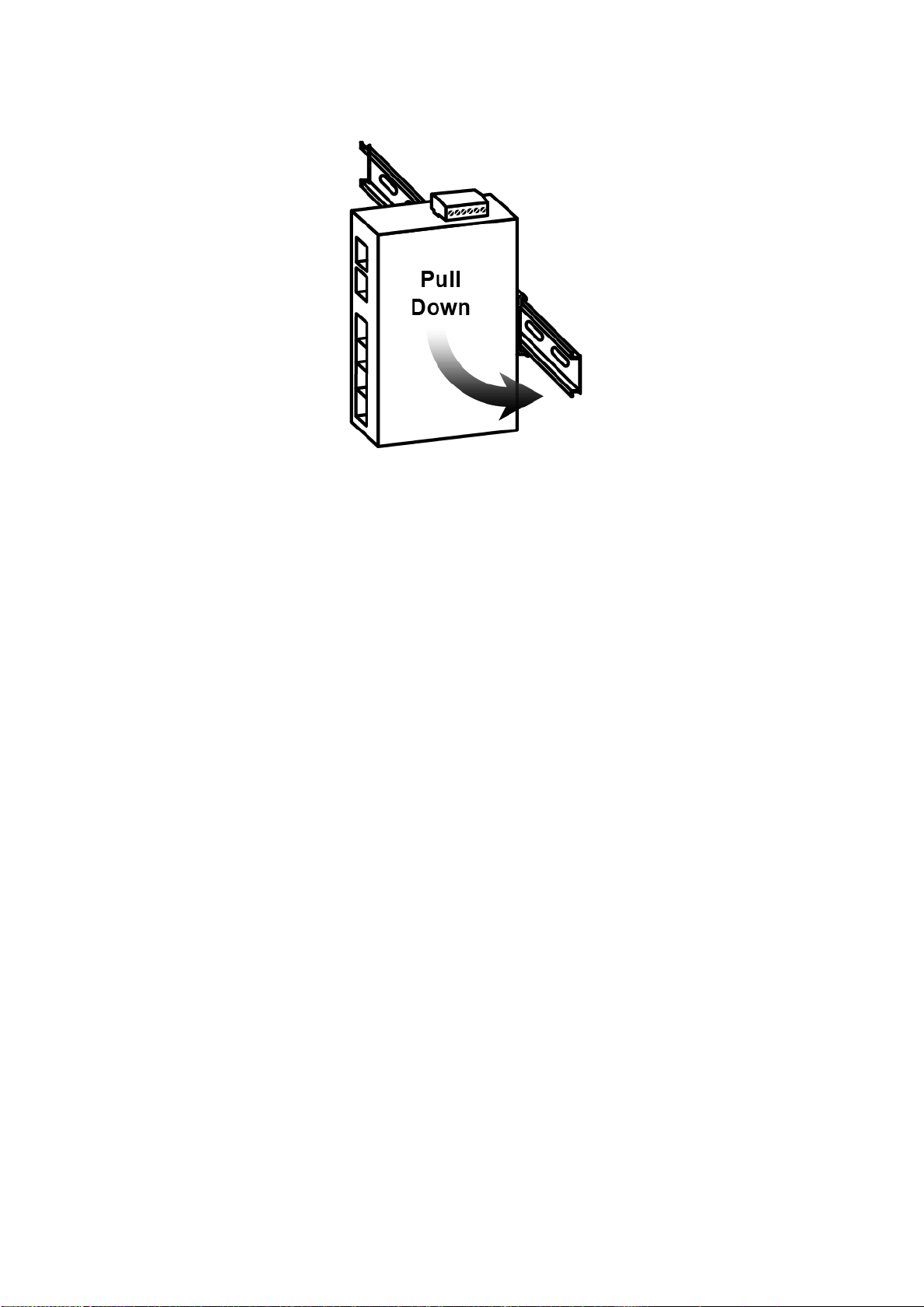

Step 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
Figure 3.3: Stable the Switch on DIN-Rail
Step 5. Check if the bracket is mounted tightly on the rail.
Step 6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.

15
Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown
below in Figure 3.4.
Step 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
Step 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
Step 3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Step 4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
Step 5. To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.4: Remove DIN-Rail Bracket from the Switch and Install the Wall Mount Bracket
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5: Wall Mounting Bracket Dimensions

16
HARDWARE INSTALLATION
Installation Steps
This section will explain how to install PG5-2012-SFP series.
Installation Steps
Step 1. Unpack the industrial Switch from the original packing box.
Step 2. Check if the DIN-Rail bracket is screwed on the industrial Switch.
•If the DIN-Rail is not screwed on the industrial Switch, please refer to the DIN-Rail Mounting section
for DIN-Rail installation.
•If you want to wall mount the industrial Switch, please refer to the Wall Mounting section for wall
mounting installation.
Step 3. To hang the industrial Switch on a DIN-Rail or wall, please refer to the Mounting Installation section.
Step 4. Power on the industrial Switch and then the power LED light will turn on.
•If you need help on how to wire power, please refer to the Wiring the Power Inputs section.
•Please refer to the LED Indicators section for LED light indication.
Step 5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
Step 6. Insert one side of the RJ-45 cable into Switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED on the
industrial Switch will turn on when the cable is connected to the networking device.
•Please refer to the LED Indicators section for LED light indication.
Step 7. Insert one side of the SFP cable into Switch’s SFP port and on the other side into the networking
device’s SFP port, e.g. switch or server. The SFP port’s LED on the industrial Switch will turn on when
the cable is connected to the networking device.
•Please refer to the LED Indicators section for LED light indication.
Step 8. When all connections are set and the LED lights all show normal, the installation is complete.
