Leonton EG5-0802-SFP Series User manual

LEONTON
EG5-0802-SFP Series
(EG5-0802-SFP / EG5-0802-SFP -T)
User Manual

© Copyright 2018 LEONTON Technologies, Co. Ltd.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Disclaimer
LEONTON Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or
implied, including but not limited to the implied warranties of merchantability and fitness for a
particular purpose. LEONTON Technologies, Co. Ltd. may make improvements and/or changes to
the product and/or specifications of the product described in this manual, without prior notice.
LEONTON Technologies, Co. Ltd. will not be liable for any technical inaccuracies or typographical
errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to
change without prior notice.

FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio communications if the
equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
This document is the current official release manual. Please check our website (www.leonton.com)
for any updated manual or contact us by e-mail ([e-mail]).

Contents
Overview...................................................................................................................... 1
Software Features ................................................................................................. 1
Hardware Features................................................................................................1
Package Contents .................................................................................................. 2
Safety Precaution ..................................................................................................2
Hardware Description ..................................................................................................4
Physical Dimensions .............................................................................................. 4
Front Panel............................................................................................................ 5
Top View................................................................................................................ 5
LED Indicators........................................................................................................5
Ethernet Ports ....................................................................................................... 7
Cabling .................................................................................................................. 8
Wiring the Power Inputs...................................................................................... 10
Grounding Note................................................................................................... 11
Wiring the Fault Alarm Contact ...........................................................................12
Mounting Installation................................................................................................. 13
DIN-Rail Mounting............................................................................................... 13
Wall Mounting..................................................................................................... 15
Hardware Installation................................................................................................. 17
Installation Steps ................................................................................................. 17
Maintenance and Service........................................................................................... 18
Trouble Shooting........................................................................................................ 19

1
Overview
This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit managed
Ethernet switch series has 6* 10/100/1000TX Gigabit Ethernet ports and 2 dual-rate (100/1000)
SFP slots, suitable for applications that require high bandwidth and long distance communication.
In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This
also allows it to function in harsh environments, as well as support power redundancy with a dual
power input design with reverse polarity protection. The built-in relay warning function alerts
users about occurring power failures.
With one model having an operating temperature of -10 to 65°C, and another with a wide
operating temperature of -40 to 75°C, this series is designed to meet any needs for industrial
automation, outdoor application and harsh environments.
Software Features
Software Features
Layer 3 Switching Static Routes
Management
CLI, Http, Https, SNMP, SSH, Telnet
Security
Access Management, ACL, ARP Inspection, DHCP Snooping, IP Source
Guard, Multiuser Account, Port Security Limit Control, RADIUS,
TACACS+, 802.1Q VLAN, IP Subnet-based VLAN, MAC-based VLAN,
Private VLAN, Protocol-based VLAN, GVRP
Green Ethernet
IEEE 802.3az EEE (Energy Efficient Ethernet)
Network Reliability STP, RSTP, MSTP, ERPS (G.8032)
Multicast
IGMP snooping, MLD snooping, MVR
Traffic Control LACP, QoS (CoS/ToS)
Monitor
LLDP, LLDP-MED, Port Mirroring, RMON, MIB, sFlow, Syslog Server
DHCP DHCP Server/Client/Relay/Snooping
Other
ICMP Ping, ICMPv6 Ping, Loop Protection, Storm Protection, NTP Client
PoE Management
(For PoE Models) PoE Alive Check, PoE Power Budget Managed, PoE Scheduled
Hardware Features
Interface & Performance
•All Copper ports support auto MDI/MDI-X function
•Embedded 6*10/100/1000Tx Gigabit Ethernet and 2*100/1000 SFP Slots
•Store-and-forward switching architecture

2
•8K MAC Address Table
•Supports 9.6Kbytes Jumbo Frame
•4Mbits memory buffer
Power Input
•Redundant power DC 12~48V with connective 1*6-pin removable terminal block
•Max. current 3.5A
•Relay Contact: 24 VDC, 1A resistive
•The power input specification is complied with the requirements of SELV (Safety Extra Low
Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-2-201.
Certification
•CE/FCC
•UL 61010-1
•UL 61010-2-201
Operating Temperature
•Standard operating temperature model: -10°C ~ 65°C
•Extended operating temperature model (–T): -40°C ~ 75°C
Case/Installation
•IP-30 protection
•Installation in a Pollution Degree 2 industrial environment
•DIN-Rail and wall mount design
Package Contents
•1 - EG5-0802-SFP(-T): 8-port industrial gigabit managed Ethernet switch, with
6*10/100/1000Tx Gigabit Ethernet, and 2*100/1000 SFP slots
•2 - Wall mounting brackets and screws
•1 - RJ45 to DB9 Serial Console cable
Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the power
supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and
wiring installation will be described within this user manual.
Warning Labels
The caution label means that you should check the certain information on user manual when
working with the device. (Shown in Figure 1.1)

3
Figure 1.1: Caution Label
This warning label is on the device, and means that the surface of the device is hot. (Shown
in Figure 1.2)
Figure 1.2: Hot Surface Warning Label

4
Hardware Description
Physical Dimensions
Figure 2.1, below, shows the physical dimensions of EG5-0802-SFP series: 8-port industrial
gigabit managed Ethernet switch with 6*10/100/1000Tx, and 2*100/1000SFP slots.
(W x D x H) is 54mm x 99mm x 142mm
Figure 2.1: EG5-0802-SFP Series Physical Dimensions

5
Front Panel
The front panel of the EG5-0802-SFP series industrial Gigabit managed Ethernet switch is
shown below in Figure 2.2.
Figure 2.2: The Front Panel of EG5-0802-SFP Series
Top View
Figure 2.3, below, shows the top panel of the EG5-0802-SFP series switch that is equipped with
one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Figure 2.3: Top Panel View of EG5-0802-SFP Series
LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has

6
its own specific meaning, see below in Table 2.4
LED Color Description
P1 Green
On Power input 1 is active
Off Power input 1 is inactive
P2 Green
On Power input 2 is active
Off Power input 2 is inactive
FAULT
Green On No event happened
Red On 1. Power input 1 or 2 is inactive
2. Port link-down/Broken
MASTER Green
On ERPS Owner Mode (Ring Master) is ready
Off ERPS Owner Mode is not active
RING Green
On ERPS Ring Network is active and works well
Flashing ERPS Ring works abnormally or misconfigure
Off ERPS Ring Network is not active
L/A
(SFP Port 7-8)
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Amber
On Connected to network, 100Mbps
Flashing Networking is active
Off Not connected to network
1G
(LAN Port 1-6)
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
10/100
(LAN Port 1-6)
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Table 2.4: LED Indictors for EG5-0802-SFP Series
Caution:"P" is the abbreviation for "Power", "L" is for "Link", and "A" is for "Activity".

7
Ethernet Ports
RJ-45 Ports(Auto MDI/MDIX)
The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T devices connections. Auto MDI/MDIX means that the
switch can connect to another switch or workstation without
changing the straight-through or crossover cabling. See the figures
as below for straight-through and crossover cabling schematics.
10/100BASE-T(X) RJ-45 Pin Assignments (Table 2.5)
Crossover Cable Straight Through Cable
Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal
1 / RX+ 3 / TX+ 1 / RX+ 1 / TX+
2 / RX- 6 / TX- 2 / RX- 2 / TX-
3 / TX+ 1 / RX+ 3 / TX+ 3 / RX+
6 / TX- 2 / RX- 6 / TX- 6 / RX-
Table 2.5
1000BASE-T RJ-45 Pin Assignments (Table 2.6)
Crossover Cable Straight Through Cable
Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal
1 / TP0+ 3 / TP1+ 1 / TP0+ 1 / TP1+
2 / TP0- 6 / TP1- 2 / TP0- 2 / TP1-
3 / TP1+ 1 / TP0+ 3 / TP1+ 3 / TP0+
4 / TP2+ 7 / TP3+ 4 / TP2+ 4 / TP3+
5 / TP2- 8 / TP3- 5 / TP2- 5 / TP3-
6 / TP1- 2 / TP0- 6 / TP1- 6 / TP0-
7 / TP3+ 4 / TP2+ 7 / TP3+ 7 / TP2+
8 / TP3- 5 / TP2- 8 / TP3- 8 / TP2-
Table 2.6
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

8
Cabling
Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100
meters (328 ft.) long.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
Caution:Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC
60825-1 and classified as Class 1 laser product.
To connect the transceiver and LC cable, please follow below steps:
Step 1 Insert the SFP transceiver module into the SFP slot as shown below in Figure 2.7. Notice
that the triangle mark is at the bottom of the SFP slot. Figure 2.8 shows SFP transceiver
module was inserted.
Figure 2.7: Transceiver to the SFP Module
Figure 2.8: Transceiver Inserted

9
Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure
2.99
Figure 2.9: LC Connector to the Transceiver

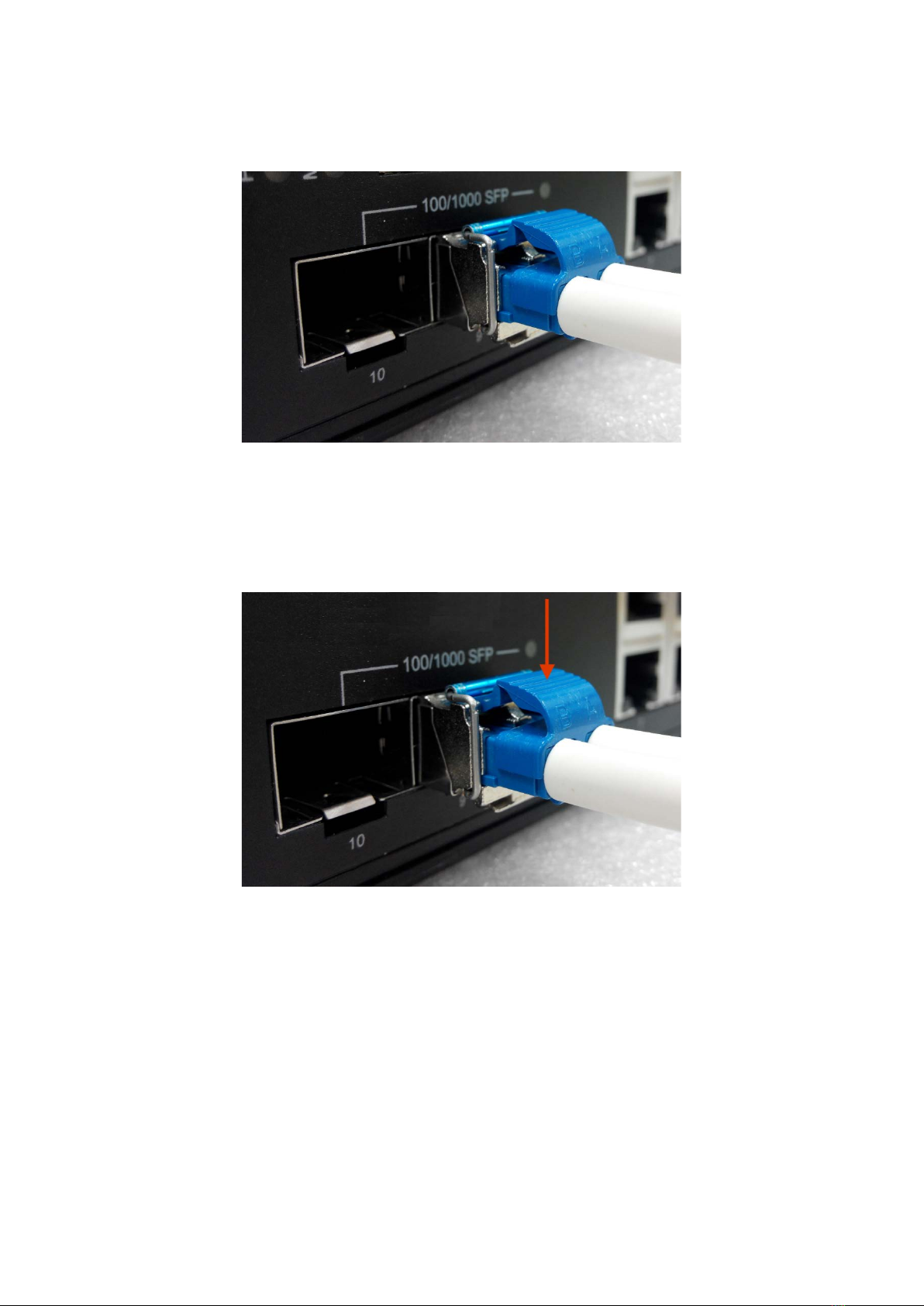

To remove the LC connector from the transceiver, please follow the steps shown below:
Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release
as shown below in Figure 2.
Figure 2.10: Remove LC Connector

10

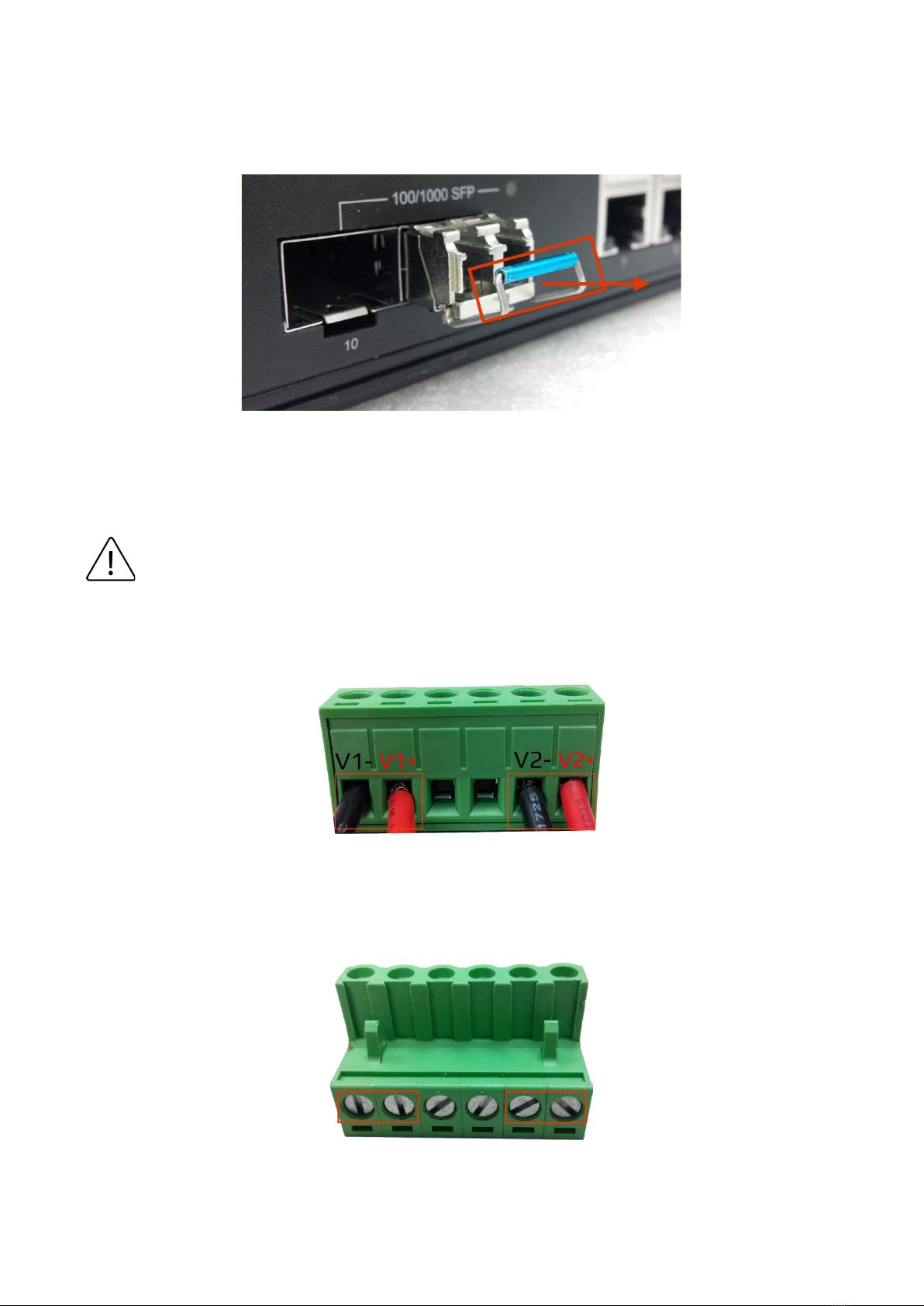

Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown
below in Figure 2.11
Figure 2.11: Pull Out from the SFP Module
Wiring the Power Inputs
Caution: Please follow the below steps to insert the power wire.
Step 1 Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.12.
Figure 2.12: Power Terminal Block
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in
Figure 2.4.
Figure 2.4: Power Terminal Block

11
Caution: Only use copper conductors, 100°C, tighten to 5 in-lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Grounding Note
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the ground screw to the grounding surface prior to
connecting devices. The grounding screw symbol is shown blow in Figure 2.14.
Figure 2.14: Grounding screw
Caution:Using a shielded cable achieves better electromagnetic compatibility.

12
Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows
below in Figure 2.5. By inserting the wires, it will detect the fault status including power failure
or port link failure (managed industrial switch only) and form a normally open circuit. An
application example for the fault alarm contact is shown below in Figure 2.5.
Figure 2.5: Wiring the Fault Alarm Contact
Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate
power fault alarm.

13
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail
on the switch.
Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket
Follow the steps below to learn how to hang the industrial Ethernet switch.
Step 1 Use the screws to install the DIN-Rail bracket on the rear side of the industrial
Ethernet switch.
Caution:The torque for tightening the screws on the device is 3.5 in-lbs.
Step 2 To remove the DIN-Rail bracket, do the opposite from Step 1.
Step 3 After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of
the DIN-Rail on to the track as shown below in Figure 3.2.

14
Figure 3.2: Insert the Switch on the DIN-Rail
Step 4 Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
Figure 3.3: Stable the Switch on DIN-Rail
Step 5 Check if the bracket is mounted tightly on the rail.
Step 6 To remove the industrial Ethernet switch from the rail, do the opposite from the
above steps.

15
Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting
bracket as shown below in Figure 3.4.
Caution:“Wall” means industrial control panel wall.
Step 1 Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the
screws.
Step 2 Place the wall mounting brackets on the top and bottom of the industrial Ethernet
switch.
Step 3 Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Caution:The torque for tightening the screws on the device is 3.5 in-lbs.
Step 4 Use the hook holes at the corners of the wall mounting bracket to hang the industrial
Ethernet switch on the wall.
Step 5 To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.4: Remove DIN-Rail Bracket from the Switch

16
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5: Wall Mounting Bracket Dimensions
