Leslie's AccuBlue Home User manual

Device Guide
The total solution for a clean, safe, and beautiful pool.

1
Welcome to AccuBlueHome
What’s inside
Quick start
Setting up the Leslie’s app
Connecting AccuBlue Home™
Registering the device
Preparing the water test disk
Running a test
Caring for your water
Device maintenance
Contents
2
3
4
6
8
10
14
16
18

23
What’s inside Quick start
Download the app
To get started, first download the Leslie’s app
from the app store.
App and device setup
Learn how to set up the app and connect
AccuBlue Home™ to your mobile device via Bluetooth.
Fill a test disk with sample water
Learn how to get a clean water sample and test
it in your AccuBlue Home™ device.
• AccuBlue Home™ device
• Power adapter
• Syringe
• 5 AccuBlue Home™ test disks

45
After downloading the app, sign in
or create a new account on the
Leslie’s home screen and follow
the prompts.
Go to the “My Pool” tab and choose
“Add a Pool or Spa.”
Setting up the Leslie’s app
Fill out the information about your
pool and CLICK “Save.”
Need Help?
Visit the Leslie’s blog to
learn about measuring your
pool volume.
3.1. 2.
5

67
Connecting AccuBlue Home
Verify that your mobile device has
Bluetooth set to “On.”
Your mobile device should now be
able to locate your AccuBlue Home™
device when you run a test through
the Leslie’s app.
Image Placeholder
3.1. 2.
Plug AccuBlue Home™ into an
electrical outlet using the power
adapter provided.
Need Help?
Learn how to set up
the app and connect the
AccuBlue Home™ to your
mobile device via Bluetooth.
7

89
Registering the device
After setting up your Leslie’s app,
SELECT “Add New Device” under My
Devices.
Next, CHOOSE “AccuBlue Home™” and
SELECT “Scan For Devices.”
1. 2.
Once you select your new AccuBlue
Home™ device, ASSIGN it a name of
your choosing and CLICK “Save.”
Your new AccuBlue Home™ device
with the name you chose will appear
under My Devices.
3. 4.

10 11

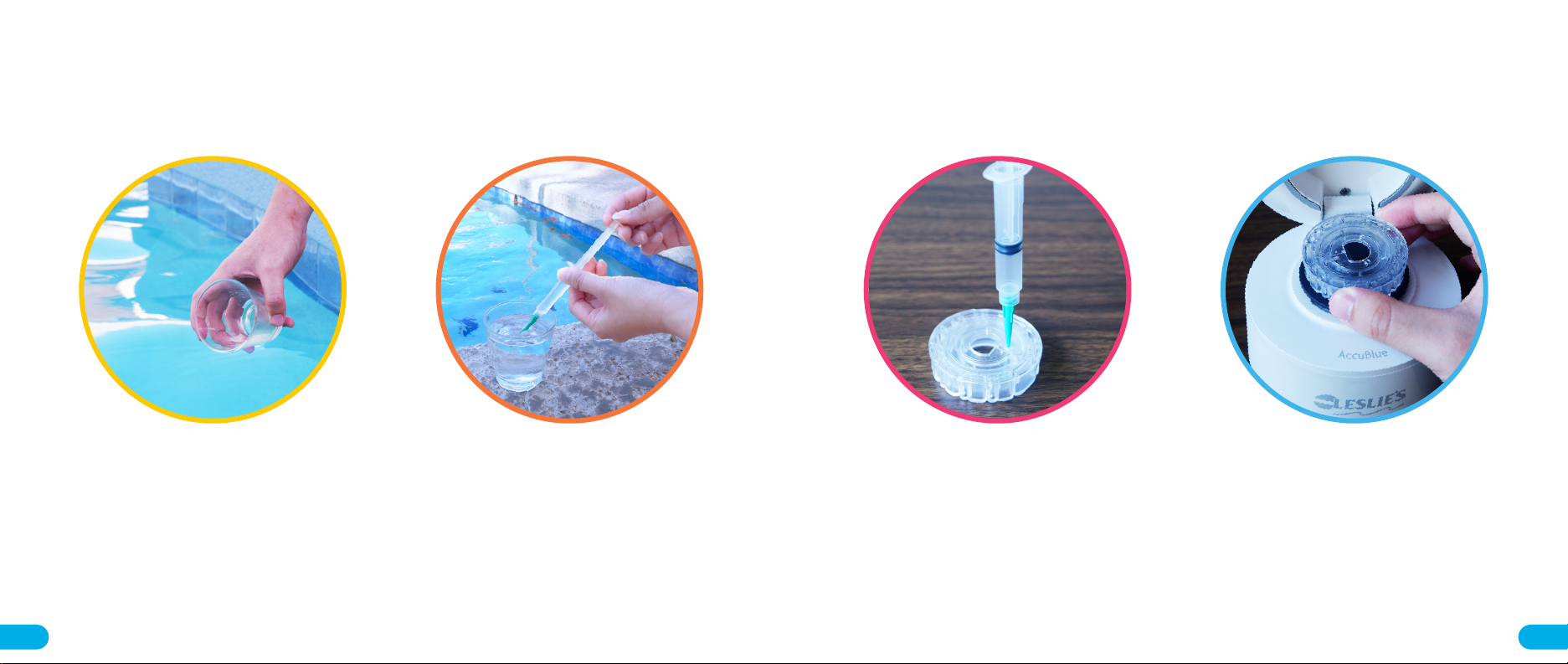

Preparing the water test disk
Using a clean plastic cup, collect a
water sample from 12"-18" below the
surface of your pool.
Draw the water into the syringe
provided. Rinse the syringe before
each test.
On a flat even surface, hold the
syringe vertically and insert the tip
into the fill hole of a new disk and fill.
Align the D-shape in the disk to the
D-shape hub in the test chamber and
gently push it down.
Tip: When inserted correctly the plunger will stand up
straight. Press the plunger with slow pressure to fill.
Tip: Always dry off the outside of the disk completely
before putting it in the test chamber.
Image Placeholder
3.1. 2. 4.

12 13
Filling the test disk
Press the plunger with slow, even pressure to fill the disk.
Carefully add sample water until the fourth chamber fills to
the top past the embossed fill line. It’s okay to fill past this line.
Overfilling
If the disk is overfilled, water will flow out of the overflow
hole in the center. The disk is not leaking. Dry with a
lint-free cloth before testing.
Underfilling
Do not underfill the disk. If the reagent chambers aren’t
filled entirely, the results will be inaccurate.
Air bubbles
Push the syringe slowly to avoid bubbles. If an air bubble
forms, pull the plunger back to draw the bubble out of the
disk to avoid inaccurate results. Continue the filling process.
Disk handling
Disks must be kept clean and dry all the time. Only handle
disks by the edges, and avoid touching the top or bottom.
Wet disks should be dried thoroughly with a lint-free wipe.
10-minute time limit
Disks should be filled and used within 10 minutes of opening
the package. Reseal disk package immediately and always
store disks with the package closed.
Here are some tips to keep in mind

14 15
Press the top button on your
AccuBlue Home™ device. Then follow
the steps on the Leslie’s app.
After about 60 sec., your water test
results and treatment plan will be
ready to view in the Leslie’s app.
3. 4.
Running a test
After opening the Leslie’s app and
signing in, select “My Pool.” Then,
choose “Test Water” when prompted.
Next, SELECT “AccuBlue Home™” for your
testing method.
1. 2.

16 17
Free Available Chlorine (FAC)
Parameters
1 - 4 ppm
Range
Total Chlorine (TAC or TC) Within 0.2 ppm of FAC
Bromine 2 - 4 ppm (Bromine pools/spas)
pH 7.2 - 7.8
Total Alkalinity 80 - 120 ppm
Calcium Hardness 200 - 400 ppm
Cyanuric Acid (CYA) 30 - 100 ppm (Chlorine and Salt)
Metals (Copper/Iron) 0 - 0.2 ppm
Phosphates 0 - 100 ppb
Salt Follow the manufacturer’s recommendations
for your system
AccuBlue Home™ can evaluate up to 10 vital water chemistry parameters in a single
test. It’s suitable for testing pools and spas that use chlorine, salt, or bromine as
their primary sanitizer. The primary sanitizer you use determines which parameters
AccuBlue Home™ tests.
Regularly testing your water is key to maintaining a clean, safe, and beautiful pool.
Leslie’s recommends that pool owners test at least weekly, and more frequently
based on the number of swimmers or weather events. After running a test in the
app, clear step-by-step instructions will guide you to perfect water balance so
your pool can be clean, safe, and beautiful all year long.
Learn more about water care
Visit the Leslie’s blog to learn more about how pool chemistry can
affect the health of your pool.
Caring for your water

18 19
For best results, store the device in an area that is dry and free from strong
chemical vapors. Always store disks in a dry space at room temperature and keep
them in the bag provided. Disks must not be stored in the light.
Test disks cannot be reused, but they can be recycled. Recyclers should check with
the local authorities. Some states may require that no chemical residue remains on
the plastic or may not be able to accept plastic waste with stainless steel
mixing beads.
The optical system of the AccuBlue Home™ device must be kept clean and dry for
optimal performance. Never fill the test disk inside the test chamber and dry it
with a lint-free wipe before placing it inside. Do not allow water to enter the test
chamber or other parts of the device. Clean the exterior with a damp,
lint-free cloth.
To clean the test chamber and optic lenses, use a can of compressed air. Blow the
air into the test chamber, lid, and the bottom of the chamber, making sure to get
around the LEDs and photodiodes. Use a cotton swab dampened with window
cleaner to gently swab the LEDs and photodiode lenses. Do not use alcohol;
it will leave a thin residue over the optics when dry.
Device maintenance

20 21
USA (FCC) note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a residential environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
AccuBlue Home™ regulatory certifications
The AccuBlue Home™ device has been independently tested for compliance with
FCC and ISED electromagnetic compatibility (EMC) and safety regulations. To view
certificates, go to the Leslie’s website at LesliesPool.com/AccuBlueHome
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The AccuBlue Home™ is not to be used by children or persons with lack of
experience and knowledge, other than persons who are being supervised or have
been given proper instructions on the product’s usage. Children are not allowed to
play with the AccuBlue Home™ device. The AccuBlue Home™ device is only to be
used with the power supply unit provided.

22 23
For any questions or concerns, please contact us:
1-800-537-5437
ac[email protected]om
2005 E. Indian School Rd.
Phoenix, AZ 85016
Compliance testing
»MK14a Bluetooth Module
»USA (FCC): Contains FCC ID number: 2AO94-MK14
EMC testing
»USA (FCC): CFR 47 Part 15, subpart B (unintentional radiators)
Safety testing
»USA: UL 60335-1 - Household and similar electrical appliances - Safety - Part 1:
General requirements

24
We know pools.
Now you will too.
Manufactured for Leslie’s Poolmart Phoenix, Arizona Made in the USA
