Leuze MA 208i User manual

MA 208 i
Fieldbus gateway – Ethernet TCP/IP
Original operating instructions
EN 2022/04/22 - 50113024
We reserve the right to make technical changes

Leuze electronic GmbH + Co. KG MA 208 i 2
© 2022
Leuze electronic GmbH + Co. KG
In der Braike 1
D-73277 Owen / Germany
Phone: [phone]
Fax: [phone]
http://www.leuze.com
[email protected]

Leuze electronic GmbH + Co. KG MA 208 i 3
1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Description of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Definition of terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Foreseeable misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Competent persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Exemption of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Fast commissioning / operating principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Device arrangement and selection of the mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.1 Connecting the Leuze device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2 Connecting the power supply and the bus cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 Starting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5 MA 208
i on Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5.1 Manual configuration of the IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5.2 Ethernet host communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5.3 TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5.4 UDP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 wDevice description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1 General information to the connection units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Characteristics of the connection units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.3 Device construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.4 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.5 Fieldbus systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.5.1 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.1 General specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2 Dimensioned drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.3 Type overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6 Installation and mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.1 Storage, transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3 Device arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3.1 Selecting a mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.4 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.1 Safety notices for the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.2 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.2.1 PWR IN – voltage supply / switching input/output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.2.2 PWR OUT switching input/output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.3 BUS IN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.4 BUS OUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Leuze electronic GmbH + Co. KG MA 208 i 4
7.5 Device interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.5.1 RS 232 device interface (accessible after opening the device, internal) . . . . . . . . . . . . . . . . . . . 26
7.5.2 Service interface (internal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.6 Ethernet wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.7 Cable lengths and shielding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8 Status displays and operational controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.1 LED status indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.1.1 LED indicators on the circuit board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.1.2 LED indicators on the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
8.2 Internal interfaces and operational controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.2.1 Overview of operational controls of the . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.2.2 Connections of the X30 … connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.2.3 RS 232 service interface – X33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.2.4 S10 service switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.2.5 Rotary switch S4 for device selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.1 Connecting the service interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.2 Reading out information in Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10 Telegram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.1 Structure of the fieldbus telegram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.2 Description of the input bytes (status bytes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.2.1 Structure and meaning of the input bytes (status bytes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.2.2 Detailed description of the bits (input byte 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10.2.3 Detailed description of the bits (input byte 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10.3 Description of the output bytes (control bytes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10.3.1 Structure and meaning of the output bytes (control bytes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10.3.2 Detailed description of the bits (output byte 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
11 Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
11.1 Functionality of the data exchange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
11.1.1 Writing slave data in Collective mode (PLC -> gateway). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
11.1.2 Command Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
12 Commissioning and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
12.1 Measures to be performed prior to the initial commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
12.2 Starting the device and setting the communication parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
12.2.1 Manual configuration of the IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
12.2.2 Ethernet host communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
12.2.3 TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
12.2.4 UDP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
12.3 Setting the read parameters on the Leuze device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
12.3.1 Specific feature for the use of hand-held scanners
(bar code and 2D devices, combi devices with RFID)45
12.3.2 Specific features in the operation of an RFM/RFI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
13 Diagnostics and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
13.1 General causes of errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
13.2 Interface errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
13.3 Service and support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
14 Type overview and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
14.1 Part number code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Leuze electronic GmbH + Co. KG MA 208 i 5
14.2 Type overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
14.3 Accessories – Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
14.4 Accessories – Preassembled cables for voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
14.4.1 Contact assignment of PWR connection cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
14.4.2 Technical data of the cables for voltage supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
14.4.3 Order codes of the cables for voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
14.5 Accessory – Preassembled cables for bus connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
14.5.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
14.5.2 Contact assignment of M12 Ethernet connection cable KB ET… . . . . . . . . . . . . . . . . . . . . . . . . 50
14.5.3 Technical data of M12 Ethernet connection cable KB ET… . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
14.5.4 Order codes of M12 Ethernet connection cable KB ET… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
14.6 Accessory – Preassembled cables for connecting Leuze Ident devices . . . . . . . . . . . . . . . . . . . . . 51
14.6.1 Order codes for the device connection cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
14.6.2 Contact assignment for the device connection cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
15 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
15.1 General maintenance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
15.2 Repairs, servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
15.3 Disassembling, packing, disposing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
16 Specifications for Leuze end devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
16.1 Standard setting, KONTURflex (S4 switch position 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
16.2 Bar code reader BCL 8 (S4 switch position 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
16.3 Bar code reader BCL 22 (S4 switch position 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
16.4 Bar code reader BCL 300i, BCL 500i, BCL 600i (S4 switch position 4) . . . . . . . . . . . . . . . . . . . . . 56
16.5 Bar code reader BCL 90, BCL 900i (S4 switch position 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
16.6 LSIS 122, LSIS 222 (S4 switch position 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
16.7 LSIS 4x2i, DCR 202i (S4 switch position 7). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
16.8 Hand-held scanner (S4 switch position 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
16.9 RFI, RFM, RFU RFID readers (S4 switch position 9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
16.10 BPS 8 bar code positioning system (S4 switch position A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
16.11 BPS 300i bar code positioning system, ODSL xx optical distance sensors with RS 232
interface (S4 switch position B) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
16.12 Modular connection unit MA 3x (S4 switch position C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
16.13 Resetting the parameters (S4 switch position F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
17 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
17.1 ASCII Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Leuze electronic GmbH + Co. KG MA 208 i 6
1 General information
1.1 Explanation of symbols
The symbols used in this technical description are explained below.
1.2 Declaration of Conformity
The MA 208 i modular connection units have been designed and manufactured in accordance with appli-
cable European directives and standards.
The manufacturer of the product, Leuze electronic GmbH + Co. KG in D-73277 Owen, possesses a certi-
fied quality assurance system in accordance with ISO 9001.
The MA 208
i modular connection unit is "UL LISTED" in accordance with American and Canadian safety
standards and fulfills the requirements of Underwriter Laboratories Inc. (UL).
1.3 Description of functions
The MA 208 i modular connection unit is used to connect Leuze devices directly to the fieldbus.
Bar code readers: BCL 8, 22, 300i, 500i, 600i, 90, 900i
2D-code reader: LSIS 122, LSIS 222, LSIS 4x2i, DCR 200i
Hand-held scanner ITxxxx, HFU/HFM
RFID read/write devices: RFM 12, 32, 62 & RFI 32, RFU 100, RFU 200
Bar code positioning systems: BPS 8, BPS 300
Optical distance sensors: ODSL 9, ODSL 30, ODSL 96B
Measuring light curtain: KONTURflex to Quattro-RSX/M12
multiNet master connection
box: MA 3x
Additional RS 232 devices: Scales, third-party devices
This is accomplished by transmitting the data from the DEV via an RS 232 (V.24) interface to the MA 208
i
where a module converts it into the Ethernet TCP/IP protocol. The data format on the RS 232 interface
corresponds to the Leuze standard data format (9600bd, 8N1 and STX, data, CR, LF).
The corresponding Leuze devices are selected using a rotary code switch on the circuit board of the
connection unit. Many additional RS 232 devices can be connected through a universal position.
ATTENTION!
This symbol precedes text messages which must strictly be observed. Failure to observe the
provided instructions could lead to personal injury or damage to equipment.
NOTE
This symbol indicates text passages containing important information.
NOTE
The Declaration of Conformity for these devices can be requested from the manufacturer.

Leuze electronic GmbH + Co. KG MA 208 i 7
1.4 Definition of terms
For better understanding of the explanations provided in this document, a definition of terms follows below:
•Bit designation:
The 1st bit or byte begins with count number "0" and means bit/byte 20.
•Data length:
Size of a valid, continuous data packet in bytes.
•Consistent:
Data which belongs together with regard to content and which must not be separated is referred to
as consistent data. When identifying objects, it must be ensured that the data is transmitted com-
pletely and in the correct order, otherwise the result is falsified.
• Leuze device (DEV):
Leuze devices, e.g., bar code readers, RFID readers, VisionReader…
•Online command:
These commands refer to the respective, connected ident device and may be different depending
on the device. These commands are not interpreted by the MA 208
i , but are instead transmitted
transparently (see description of Ident device).
•CR:
Cross reference
• Perspective of I/O data in the description:
Output data is data which is sent by the control to the MA. Input data is data which is sent by the
MA to the control.
• Toggle bits:
Status toggle bit
Each change of state indicates that an action was performed, e.g., bit ND (new data): each change
of state indicates that new received data was transmitted to the PLC.
Control toggle bit
An action is performed on each change of state, e.g., bit SDO: on each change of state, the regis-
tered data is sent by the PLC to the MA 208
i .

Leuze electronic GmbH + Co. KG MA 208 i 8
2 Safety
This device was developed, manufactured and tested in line with the applicable safety standards. It corre-
sponds to the state of the art.
2.1 Intended use
The MA 208 i modular connection unit is used for connecting Leuze devices such as bar code or 2D-code
readers, hand-held scanners, RFID read/write devices, etc. directly to the fieldbus.
2.2 Foreseeable misuse
Any use other than that defined under "Intended use" or which goes beyond that use is considered
improper use.
In particular, use of the device is not permitted in the following cases:
• in rooms with explosive atmospheres
• as stand-alone safety component in accordance with the machinery directive 1)
• for medical purposes
2.3 Competent persons
Connection, mounting, commissioning and adjustment of the device must only be carried out by competent
persons.
Prerequisites for competent persons:
• They have a suitable technical education.
• They are familiar with the rules and regulations for occupational safety and safety at work.
• They are familiar with the technical description of the device.
• They have been instructed by the responsible person on the mounting and operation of the device.
CAUTION!
Observe intended use!
Only operate the device in accordance with its intended use. The protection of personnel and
the device cannot be guaranteed if the device is operated in a manner not complying with its
intended use.
Leuze electronic GmbH + Co. KG is not liable for damages caused by improper use.
Read the technical description before commissioning the device. Knowledge of this technical
description is an element of proper use.
NOTE
Comply with conditions and regulations!
Observe the locally applicable legal regulations and the rules of the employer's liability insur-
ance association.
ATTENTION!
For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC
(National Electric Code).
1) Use as safety-related component within the safety function is possible, if the component combination is designed corre-
spondingly by the machine manufacturer.
NOTE
Do not modify or otherwise interfere with the device!
Do not carry out modifications or otherwise interfere with the device.
The device must not be tampered with and must not be changed in any way.
The device must not be opened. There are no user-serviceable parts inside.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.

Leuze electronic GmbH + Co. KG MA 208 i 9
Certified electricians
Electrical work must be carried out by a certified electrician.
Due to their technical training, knowledge and experience as well as their familiarity with relevant stan-
dards and regulations, certified electricians are able to perform work on electrical systems and indepen-
dently detect possible dangers.
In Germany, certified electricians must fulfill the requirements of accident-prevention regulations BGV A3
(e.g. electrician foreman). In other countries, there are respective regulations that must be observed.
2.4 Exemption of liability
Leuze electronic GmbH + Co. KG is not liable in the following cases:
• The device is not being used properly.
• Reasonably foreseeable misuse is not taken into account.
• Mounting and electrical connection are not properly performed.
• Changes (e.g., constructional) are made to the device.

Leuze electronic GmbH + Co. KG MA 208 i 10
3 Fast commissioning / operating principle
3.1 Mounting
The gateway mounting plate MA 208 i can be mounted in two different ways:
• Using four threaded holes (M6) or
• Using two M8x6 screws on the two lateral grooves.
3.2 Device arrangement and selection of the mounting location
Ideally, the MA 208 i should be mounted so that it is easily accessible near the Ident device in order to
ensure good operability, e.g., for configuring the connected device.
Detailed information can be found in Chapter 6.3.1.
3.3 Electrical connection
The devices from the MA 2xx i family feature four M12 connectors/sockets which are coded differently
depending on the interface.
The voltage supply (PWR IN) as well as the switching inputs/outputs (PWR OUT or PWR IN) are
connected there. The number and function of the switching inputs/outputs depends on the connected end
device.
An internal RS 232 interface is used for connecting the respective Leuze device. Another internal RS 232
interface functions as a service interface for configuring the connected device via a serial null modem
cable.
Figure 3.1: MA 208
i connections
Detailed information can be found in Chapter 7.
3.3.1 Connecting the Leuze device
To connect the Leuze device to the internal RS 232 device interface, open the housing of the MA 208
i
and lead the corresponding device cable (see Chapter 14.6) through the middle threaded opening.
Connect the cable to the internal device interface (X30, X31 or X32, see Chapter 7.5.1).
Use rotary switch S4 (see Chapter 8.2.5) to select the connected device.
Now screw the PG cable gland into the threaded opening to provide strain relief and ensure degree of
protection IP 65.
Finally, close the housing of the MA 208
i .
Connecting the functional earth FE
Ensure that the functional earth (FE) is connected correctly.
Unimpaired operation is only guaranteed when the functional earth is connected properly. All electrical
disturbances (EMC couplings) are discharged via the functional earth connection.
NOTE
Below you will find a short description for the initial commissioning of the Ethernet gateway
MA 208
i . Detailed explanations for the listed points can be found throughout the handbook.
PWR OUT
VOUT 1
2
3
4
SWIO_2
SWIO_1
GND
FE
5
PWR IN
SWIO_1
SWIO_2
3
2
1
4
5
GND VIN
FE
HOST / BUS IN
TD+ 1
2
3
4
RD+
RD-
TD-
LEUZE Device BUS OUT
TD+ 1
2
3
4
RD+
RD-
TD-
M12 connector
(A-coded)
M12 socket
(A-coded)
M12 socket
(D-coded)
M12 socket
(D-coded)
ATTENTION!
Only then may the supply voltage be applied.
Upon startup of the MA 208
i , the device selection switch is queried and the gateway automati-
cally sets itself to the Leuze device.

Leuze electronic GmbH + Co. KG MA 208 i 11
3.3.2 Connecting the power supply and the bus cable
Ideally, use the preassembled cables listed in Chapter 14.4.3 to connect the gateway to the power sup-
ply via the PWR IN connection.
The preassembled cables listed in Chapter 14.5.4 are preferred for connecting the gateway to the field-
bus via the HOST / BUS IN connection.
If applicable, use the BUS OUT connection if you would like to construct a network with linear topology.
3.4 Starting the device
Connect the +18 … 30VDC supply voltage (typ. +24VDC), the MA 208 i starts up.
The PWR LED displays that it is ready for operation.
3.5 MA 208 i on Ethernet
Setting the communication parameters
With the communication parameters, you determine how data is exchanged between MA 208
i and host
system, monitor PCs etc.
The communication parameters are independent of the topology in which the MA 208
i is operated (see
"Ethernet" on page 16).
On delivery from firmware 1.1.0.0, automatic address assignment is deactivated via DHCP and a perma-
nent IP address is set:
Device address: 192.168.61.100.
Net mask: 255.255.255.0
The setting can be adapted via Leuze configuration software BCL-Config, BPS-Config or RF-Config. In
these tools, the MA 208
i has been created as a device to enable setting of parameters in the usual way
via the service interface.
3.5.1 Manual configuration of the IP address
If the IP address of the devices should be permanently set on your system, proceed as follows:
Have the network administrator specify the data for IP address, net mask and gateway address of the
MA 208
i .
Select the connected device via the device selection switch.
Connect the +18 … 30VDC supply voltage (typ. +24VDC), the MA 208
i starts up.
Now switch the service switch to "MA".
Connect the serial RS 232 Sub-D interface of the MA 208
i to the serial interface of your PC.
Make the necessary settings in the configuration window.
NOTE
The service switch must be in switch position "MA" here so that the MA 208
i can be addressed
via the service interface.

Leuze electronic GmbH + Co. KG MA 208 i 12

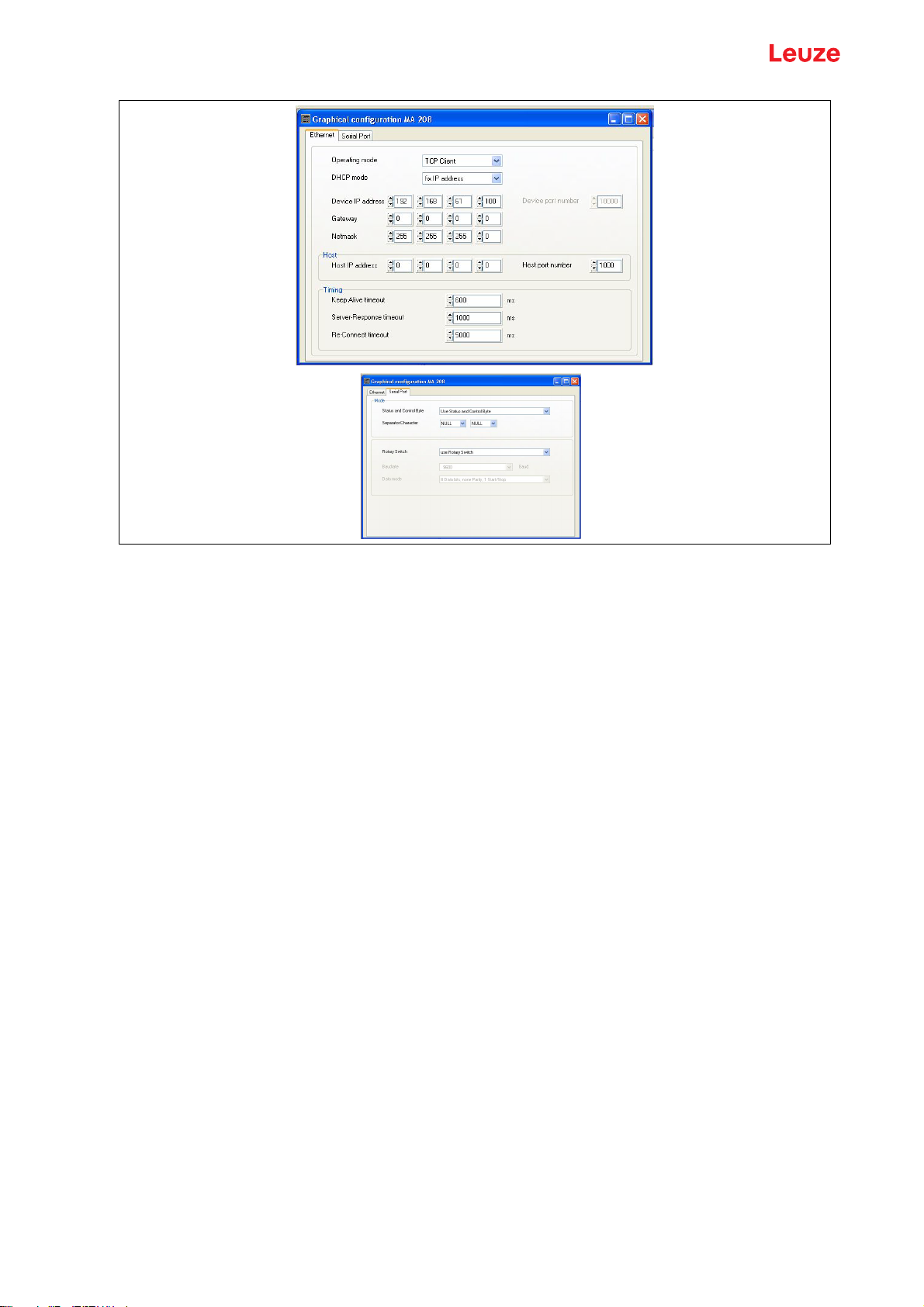

Figure 3.2: Setting the parameters manually
3.5.2 Ethernet host communication
The Ethernet host communication enables the configuration of connections to an external host system.
Both UDP as well as TCP/IP (in either client or server mode) can be used. The connection-free UDP
protocol is used primarily to transfer process data to the host (monitor operation). The connection-oriented
TCP/IP protocol can also be used to transfer commands from the host to the device. With this connection,
the data is backed up by the TCP/IP protocol itself.
If you would like to use the TCP/IP protocol, you must also define whether the MA 208
i is to operate as a
TCP client or as a TCP server.
Contact your network administrator to determine which communication protocol is used.
3.5.3 TCP/IP
Set the TCP/IP mode of the MA 208
i .
In TCP client mode, the MA 208
i actively establishes the connection to the primary host system (PC / PLC
as server). The MA 208
i requires from the user the IP address of the server (host system) and the port
number on which the server (host system) accepts a connection. In this case, the MA 208
i determines
when and with whom a connection is established!
With a MA 208
i as TCP client, set the following values:
• IP address of the TCP server (normally the PLC/host computer)
• Port number of the TCP server
• Optional: Timeout for the wait time for an answer from the server
• Optional: Repetition time for renewed communication attempt following a timeout
In TCP server mode, the primary host system (PC / PLC) actively establishes the connection and the
connected MA 208
i waits for the connection to be set up. The TCP/IP stack requires information from the
user regarding the local port of the MA 208
i (port number) on which the connection requests of a client
application (host system) are to be accepted. If there is a connection request and a connection is estab-
lished by the primary host system (PC / PLC as client), the MA 208
i (server mode) accepts the connection.
Data can then be sent and received.
With a MA 208
i as TCP server, also set the following values:
• Port number for the communication of the MA 208
i with the TCP client
The corresponding adjustment options can be found in the configuration tool.

Leuze electronic GmbH + Co. KG MA 208 i 13
3.5.4 UDP
The MA 208
i requires from the user the IP address and the port number of the communication partner.
Correspondingly, the host system (PC / PLC) now also requires the set IP address of the MA 208
i and the
selected port number. By assigning these parameters, a socket is formed via which the data can be sent
and received.
Set the following values:
• IP address of the communication partner
• Port number of the communication partner
The corresponding adjustment options can be found in the configuration tool.

Leuze electronic GmbH + Co. KG MA 208 i 14
4wDevice description
4.1 General information to the connection units
The modular connection unit of the MA 2xx i family is a versatile gateway for integrating Leuze RS 232
devices (e.g., BCL 22 bar code readers, RFID devices, RFM 32, …) into the respective fieldbus. The
MA 2xx
i gateways are intended for use in industrial environments with a high degree of protection. Various
device versions are available for the conventional fieldbuses. With a stored parameter structure for the
connectable RS 232 devices, commissioning could hardly be simpler.
4.2 Characteristics of the connection units
A special characteristic of the MA 208 i device family are three function modes:
1. Transparent Mode
In this function mode, the MA 208
i functions as a pure gateway with automatic communication from
and to the PLC. Absolutely no special programming by the user is necessary for this purpose. The
data is not buffered or stored temporarily, however. Instead, it is "passed on".
The programmer must make certain to retrieve the data from the input memory of the PLC at the
right time, as it is otherwise overwritten by new data.
2. Collective Mode
In this operating mode, data and telegram parts are temporarily stored in the memory (buffer) of the
MA and sent to the RS 232 interface or to the PLC in a telegram by means of bit activation. In this
mode, however, all communication control must be programmed on the PLC.
This function mode is helpful, for example, for very long telegrams or when one or more codes with
long code lengths are read.
3. Command Mode
With this special operating mode, it is possible to use the first bytes of the data range
To transmit predefined commands to the connected device by means of bit activation. For this pur-
pose, device-dependent commands (so-called online commands) are predefined via the device
selection switch, see chapter 16 "Specifications for Leuze end devices".
4.3 Device construction
The MA 208 i modular connection unit is used for connecting Leuze devices, such as the BCL 8, BCL 22,
etc., directly to the fieldbus. This is accomplished by transmitting the data from the Leuze device via an
RS 232 (V.24) interface to the MA 208
i where a module converts it into the fieldbus format. The data
format of the RS 232 interface corresponds to the standard Leuze data format.
NOTE
The Collective mode is not available for the MA 208
i . Due to a variable telegram length, data
can always be transmitted in its entirety independent of its length. It is not necessary to
transfer data in blocks.

Leuze electronic GmbH + Co. KG MA 208 i 15
Figure 4.1: Connection of a Leuze device (BCL, RFI, RFM, …) to the fieldbus
The cable of the respective Leuze device is guided through cable bushings with PG cable glands into the
MA 208
i and connected there with the PCB connectors.
The MA 208
i is intended as a gateway for any RS 232 devices, e.g., BCL 300i, hand-held scanners, scales
or for coupling a multiNet network.
The RS 232 cables are internally connectable using JST pin strips. The cable can be connected to the
device using a stable PG cable gland which provide strain relief and protection against contamination.
With the help of adapter cables with Sub-D 9 or open cable end, other RS 232 devices can also be
connected.
4.4 Operating modes
For fast commissioning, the MA 208 i offers an additional operating mode, the "Service mode", in addition
to the "Standard mode". To do this, you need a PC/laptop with a suitable terminal program, as BCL-Config
from Leuze or similar.
Service switch
Select between "operation" and "service" modes with the service switch. You have the following options:
Pos. RUN:
Operation
The Leuze device is connected to the fieldbus and communicates with the PLC.
Pos. DEV:
Service Leuze Device
The connection between the Leuze device and the fieldbus is interrupted. With this switch position,
you can communicate directly with the Leuze device at the fieldbus gateway via RS 232. You can
send online commands via the service interface, configure the Leuze device using the corresponding
BCL- BPS-, …-Config configuration software and have the read data of the Leuze device output.
Pos. MA:
Service fieldbus gateway
With this switch setting, your PC/terminal is connected with the fieldbus gateway. In doing so, the
current setting values of the MA (e.g. address, RS 232 parameters) can be called up via a ’v’ com-
mand.
Figure 4.2: Service-switch switch positions
Fieldbus Fieldbus
MA 208 i
Leuze
device
Either
network or other devices
with RS 232
RS 232
(V.24)

Leuze electronic GmbH + Co. KG MA 208 i 16
Service interface
The service interface can be accessed once the MA 208
i housing cover has been removed and features
a 9-pin Sub-D connector (male). A crossed RS 232 connection cable is required to make the RxD, TxD
and GND connections.

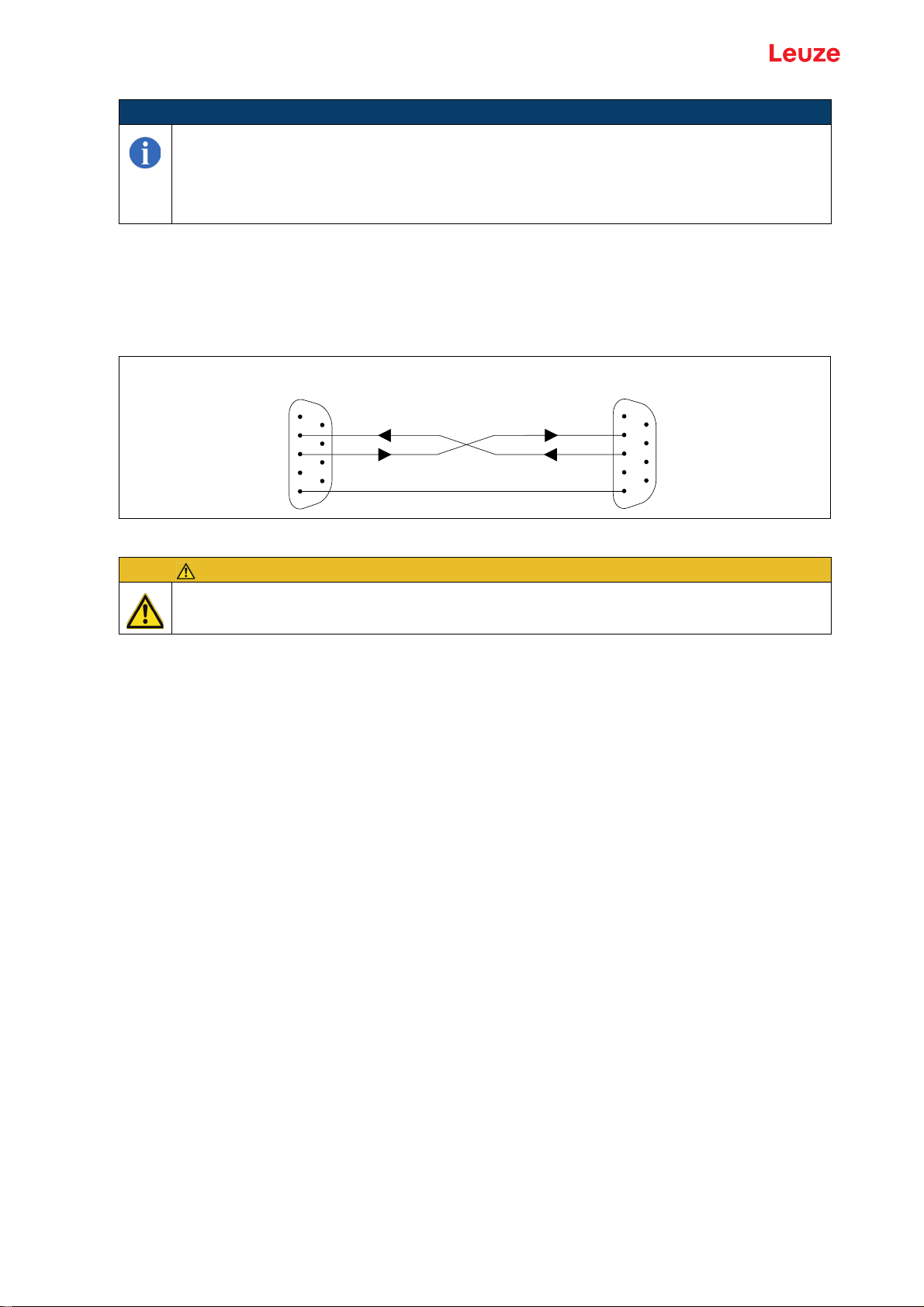

Figure 4.3: Connecting the service interface to a PC/terminal
4.5 Fieldbus systems
Various product variants of the MA 2xx i series are available for connecting to different fieldbus systems
such as PROFIBUS DP, PROFINET-IO, DeviceNet and Ethernet or EtherCAT.
4.5.1 Ethernet
The MA 208
i is designed as an Ethernet device (acc. to IEEE 802.3) with a standard baud rate of 10/
100 Mbit. A fixed MAC ID is assigned to each MA 208
i by the manufacturer; this ID cannot be changed.
The MA 208
i automatically supports the transmission rates of 10 Mbit/s (10Base T) and 100 Mbit/s
(10Base TX), as well as auto-negotiation and auto-crossover.
The MA 208
i features multiple M12 connectors / sockets for the electrical connection of the supply voltage,
the interface and the switching inputs and outputs. Additional information on the electrical connection can
be found in chapter 7.
The MA 208
i supports the following protocols and services:
• TCP / IP (client/server)
•UDP
•DHCP
•ARP
•PING
For communication with the superior host system, the corresponding TCP/IP protocol (client/server mode)
or UDP must be selected.
Further information on commissioning can be found in chapter 12.
Ethernet – star topology
The MA 208
i can be operated as a single device (standalone) in an Ethernet star topology with individual
IP address.
The address is either set permanently via the RS 232 interface or assigned dynamically via a DHCP
server.
NOTE
If the service switch is on one of the service settings, the PWR LED flashes on the front side of
the device, see chapter 8.1.2 "LED indicators on the housing".
Furthermore, on the control, the SMA service bit of the status bytes signals that the MA is in
service mode.
ATTENTION!
For the service PC to function, the RS 232 parameters must be the same as those of the MA.
The Leuze standard setting of the interface is 9600bd, 8N1 and STX, data, CR, LF.
5 GND
3 TxD
2 RxD
GND 5
TxD 3
RxD 2
1
1
PC/terminal
COM interface
MA 208 i
Service interface

Leuze electronic GmbH + Co. KG MA 208 i 17
Figure 4.4: Ethernet in a star topology
Ethernet – linear topology
The innovative further development of the MA 208
i with integrated switch functionality offers the option of
connecting multiple gateways of type MA 208
i to one another without direct connection to a switch. In addi-
tion to the classic "star topology", a "linear topology" is thus also possible.
Figure 4.5: Ethernet in a linear topology
Each participant in this network requires its own unique IP address, which must be assigned to it via the
RS 232 interface. Alternatively, the DHCP procedure can be used.
The maximum length of a segment (connection from the hub to the last participant) is limited to 100m.
MA 208 i
"192.168.60.xxx" PC / PLC host interface
Other network participants
PC / PLC host interface
MA 208
i
"192.168.60.xxx"
To other network participants
MA 208 i
"192.168.60.yyy"
MA 208
i
"192.168.60.zzz"

Leuze electronic GmbH + Co. KG MA 208 i 18
5 Technical data
5.1 General specifications
Electrical data
Interface type 1 Ethernet TCP/IP, integrated switch,
BUS: 2x M12 socket (D-coded)
PWR/IO: 1x M12 connector (A-coded),
1x M12 socket (A-coded)
Protocols Ethernet TCP/IP communication (client/server)
UDP
DHCP
ARP
PING
Baud rate 10/100MBd
Interface type 2 RS 232
Baud rate 300bit/s … 115200bit/s, default: 9600
Service interface RS 232, 9-pin Sub-D connector, Leuze standard
Data format Data bit: 8, parity: None, stop bit: 1
Switching input/output 1 switching input/1 switching output
Device-dependent voltage
Operating voltage 18 … 30VDC (PELV , Class 2) 1)
1) For UL applications: only for use in "Class 2" circuits according to NEC.
Power consumption Max. 5VA (without DEV, current consumption max. 300mA)
Max. stress on the connector (PWR IN/
OUT)
3A
Indicators
LINK 0/ ACT 0 LED green Connection possible
yellow Data transmission
LINK 1/ ACT 1 LED green Connection possible
yellow Data transmission
COM LED green Bus state ok
red Bus error
PWR LED green Power
red Collection error
Mechanical data
Degree of protection IP 65 (with screwed-on M12 and connected Leuze device)
Weight 700g
Dimensions (H x W x D) 130 x 90 x 41mm / with plate: 180 x 108 x 41mm
Housing Diecast aluminum
Connection 2 x M12: BUS IN / BUS OUT Ethernet TCP/IP
1 connector: RS 232
1 x M12: Power IN/GND and switching input/output
1 x M12: Power OUT/GND and switching input/output
Environmental data
Operating temperature range -30°C … +55°C
The installation and commissioning of the components must take
place above 0°C.
Storage temperature range -20 °C … -60 °C
Air humidity Max. 90% rel. humidity, non-condensing
Vibration IEC 60068-2-6, test Fc
Shock IEC 60068-2-27, test Ea
Electromagnetic compatibility EN 61000-6-3:2007 (interference emissions for residential, com-
mercial and light-industrial environments)
EN 61000-6-2:2005 (interference rejection for industrial sectors)
Certifications UL 60950-1, CSA C22.2 No. 60950-1 1)

Leuze electronic GmbH + Co. KG MA 208 i 19
5.2 Dimensioned drawings
Figure 5.1: MA 208 i dimensioned drawing
5.3 Type overview
The following versions of the MA 2xx i gateway family are available for facilitating the integration of Leuze
RS 232 devices in the various fieldbus types.
COM
PWR
LINK0
LINK1
Fieldbus Device type Part no.
PROFIBUS DP V0 MA 204
i 50112893
Ethernet TCP/IP MA 208
i 50112892
PROFINET-IO RT MA 248
i 50112891
DeviceNet MA 255
i 50114156
CANopen MA 235
i 50114154
EtherCAT MA 238
i 50114155
EtherNet/IP MA 258
i 50114157
Table 5.1: Overview of MA 2xx
i types

Leuze electronic GmbH + Co. KG MA 208 i 20
6 Installation and mounting
6.1 Storage, transportation
Unpacking
Check the packaging content for any damage. If damage is found, notify the post office or shipping
agent as well as the supplier.
Check the delivery contents using your order and the delivery papers:
• Delivered quantity
• Device type and model as indicated on the name plate
• Brief manual
The name plate provides information as to what MA 2xx
i type your device is. For specific information,
please refer to the package insert or Chapter 14.2.

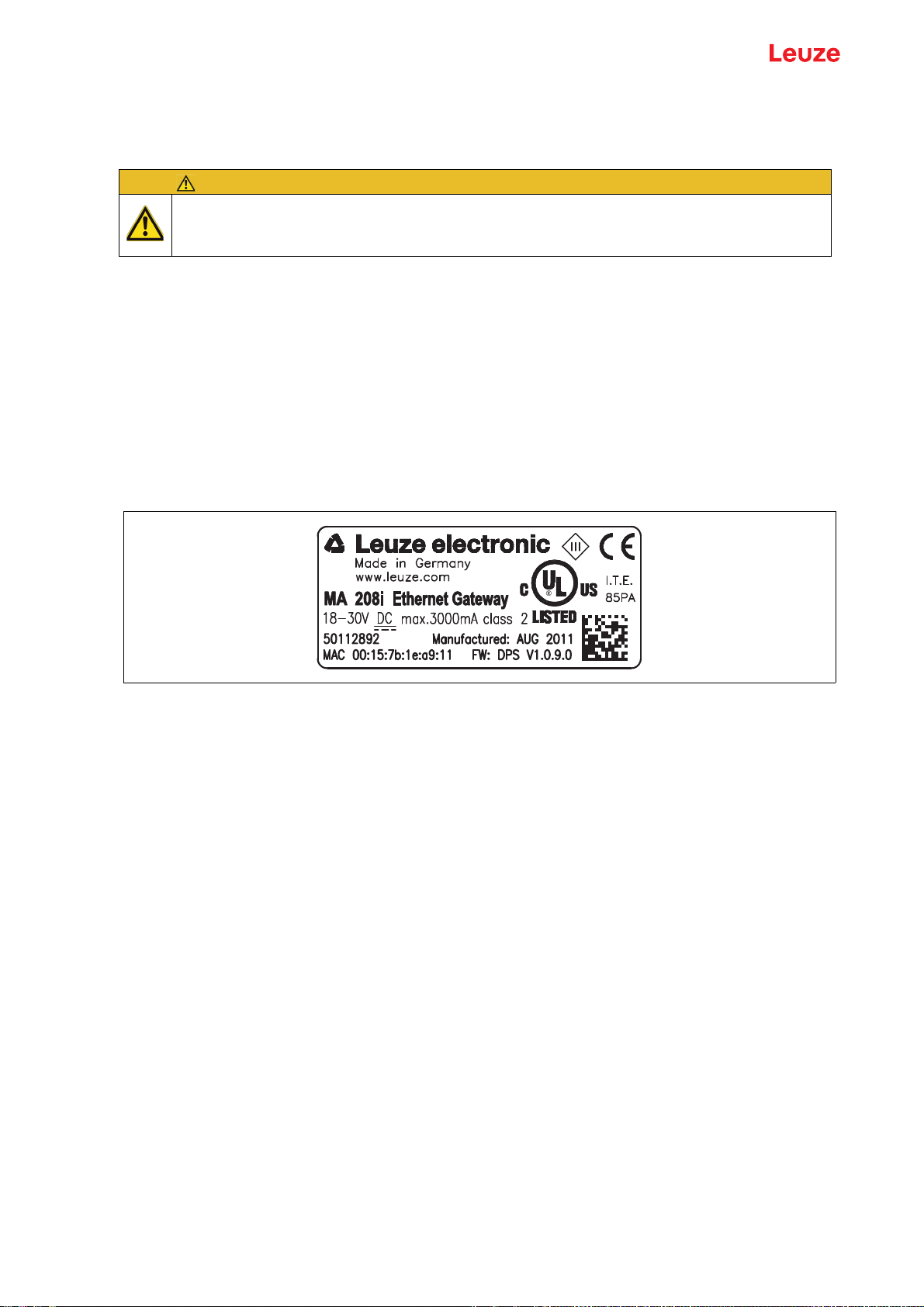

Name plate of the connection unit
Figure 6.1: Device name plate MA 208
i
Save the original packaging for later storage or shipping.
If you have any questions concerning your shipment, please contact your supplier or your local Leuze
sales office.
Observe the applicable local regulations when disposing of the packaging materials.
6.2 Mounting
The gateway mounting plate MA 208 i can be mounted in two different ways:
• Using four threaded holes (M6) or
• Using two M8 screws on the two lateral grooves.
ATTENTION!
Package the device for transport and storage in such a way that is protected against shock and
humidity. Optimum protection is achieved when using the original packaging. Ensure compliance
with the approved environmental conditions listed in the specifications.
