LevelOne NVR-0104 User manual

NVR-0104
4-CH Network Video Recorder
Quick Installation Guide v1.0
English
Português
Deutsch
Svenska
Français
Slovenščina
Español
繁體中文
Nederlands
한국어
Dansk
Русский
Italiano
Polski
Ελληνικά
H/W: 2.0

2
NVR-0104 Quick Installation Guide
Table of Contents
English....................................................................................... 3
Deutsch.................................................................................... 11
Français ................................................................................... 19
Español.................................................................................... 27
Nederlands................................................................................ 35
Dansk ...................................................................................... 43
Italiano..................................................................................... 51
Ελληνικά .................................................................................. 59
Português................................................................................. 67
Svenska ................................................................................... 75
Slovenščina .............................................................................. 83
繁體中文.................................................................................... 91
한국어 ...................................................................................... 99
Русский ................................................................................. 107
Polski .................................................................................... 115
Package Contents
NVR-0104 Network Video Recorder
IR Remote controller
RJ-45 Ethernet LAN cable
Power cord
Quick Installation Guide
CD Manual/Utility
Default Settings
IP Address
DHCP address
Username
root
Password
root
If the NVR detects no DHCP server on the LAN environment,
then the NVR’s IP will be static IP [192.168.101.50]
This guide covers only the most common situations. All detailed
information is described in the user manual.

NVR-0104 Quick Installation Guide
3
English

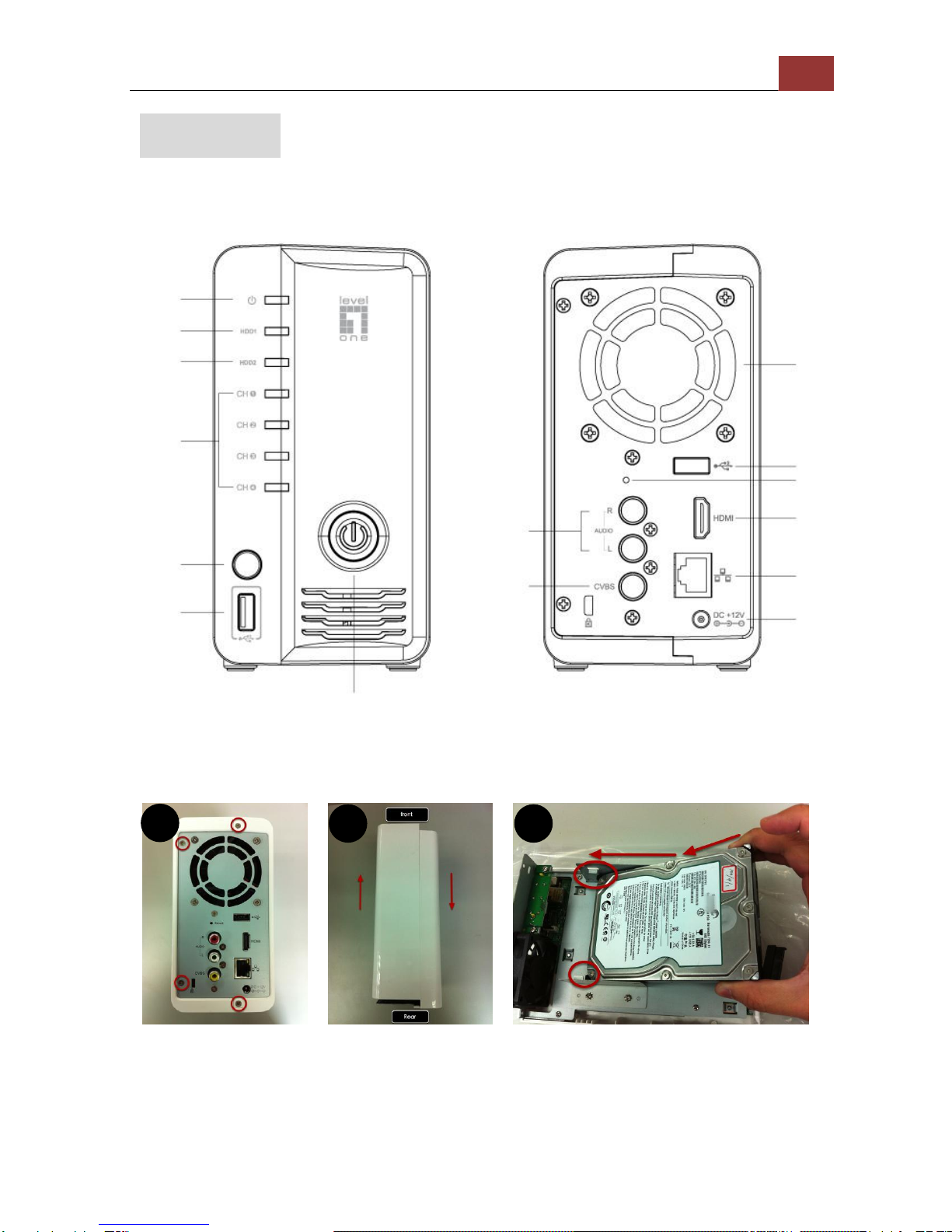

System Overview
HDD Installation
1. Remove the screws on the rear of the NVR.
2. Slide open the case.
3. Install the HDD by sliding it into the tray as shown in the photo.
1
2
3
Power LED
HDD1 LED
HDD2 LED
Channel LED
Remote Control
IR Receiver
USB Connector
Ethernet
Composite
Audio
Composite
Video
System Fan
USB Connector
Reset Button
HDMI Connector
Power Button
Power Connector

4
NVR-0104 Quick Installation Guide

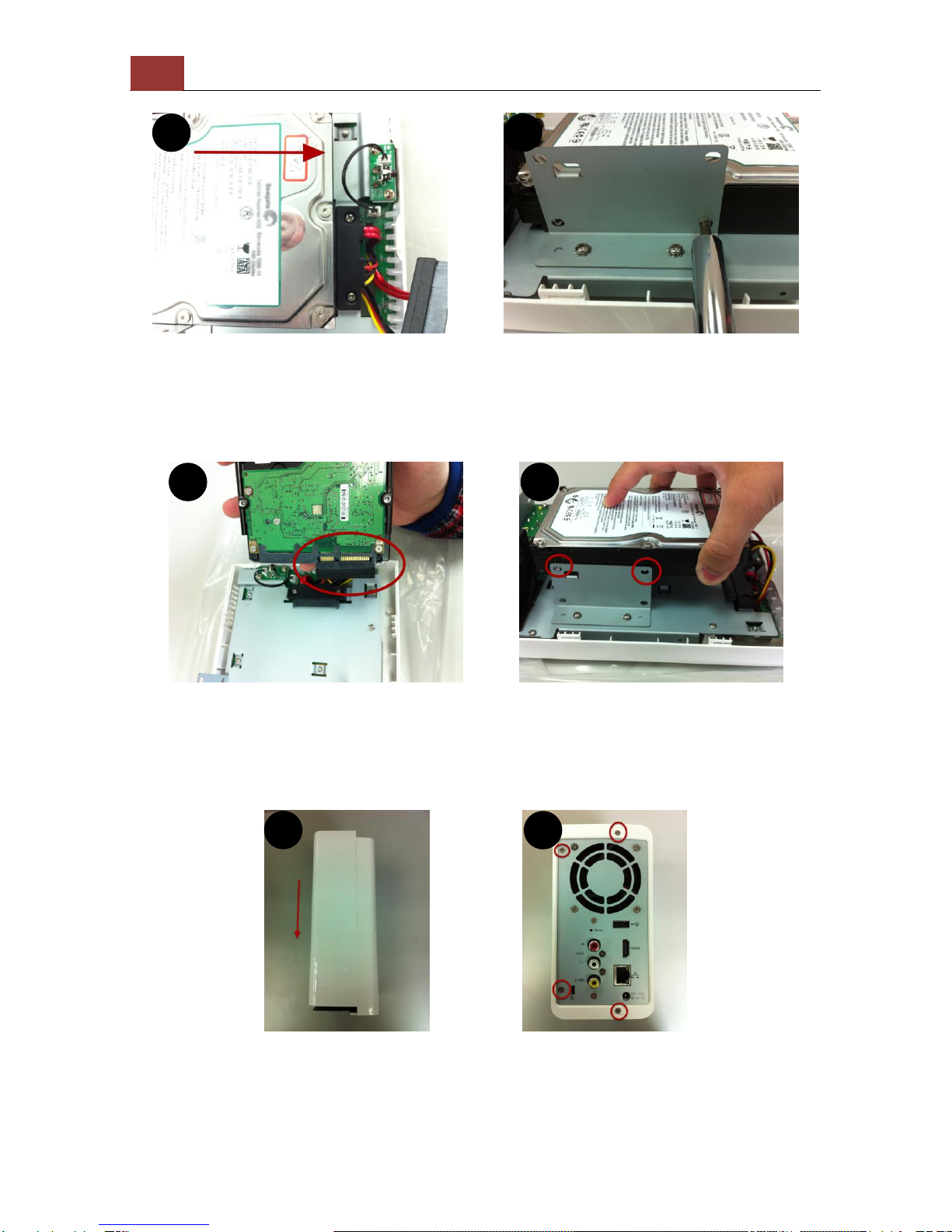

4. Attach the HDD to the SATA connector by sliding it towards the connector.
5. Secure the HDD with the screws provided. There are four for each HDD; two
for each side of the tray.
6. Install the top HDD by attaching it to the corresponding SATA cable. Make
sure the HDD is firmly attached.
7. Place the HDD onto the tray and secure the HDD with screws provided.
There are four for each HDD; two for each side of the tray.
8. Slide the side housing back to the unit.
9. Secure the housing with the screws.
4
5
6
7
8
9

NVR-0104 Quick Installation Guide
5
Connect to the NVR
There are various ways you can connect to the NVR and below are the
suggested methods for different network setup:
Use LevelOne Device Search Utility
If the NVR is placed in a corporate network or a local area network where a
DHCP server is already presented, run the “LevelOne Device Search” utility
from a computer that is on the same network and locate the NVR with its IP
address that is assigned by the top-level DHCP server.

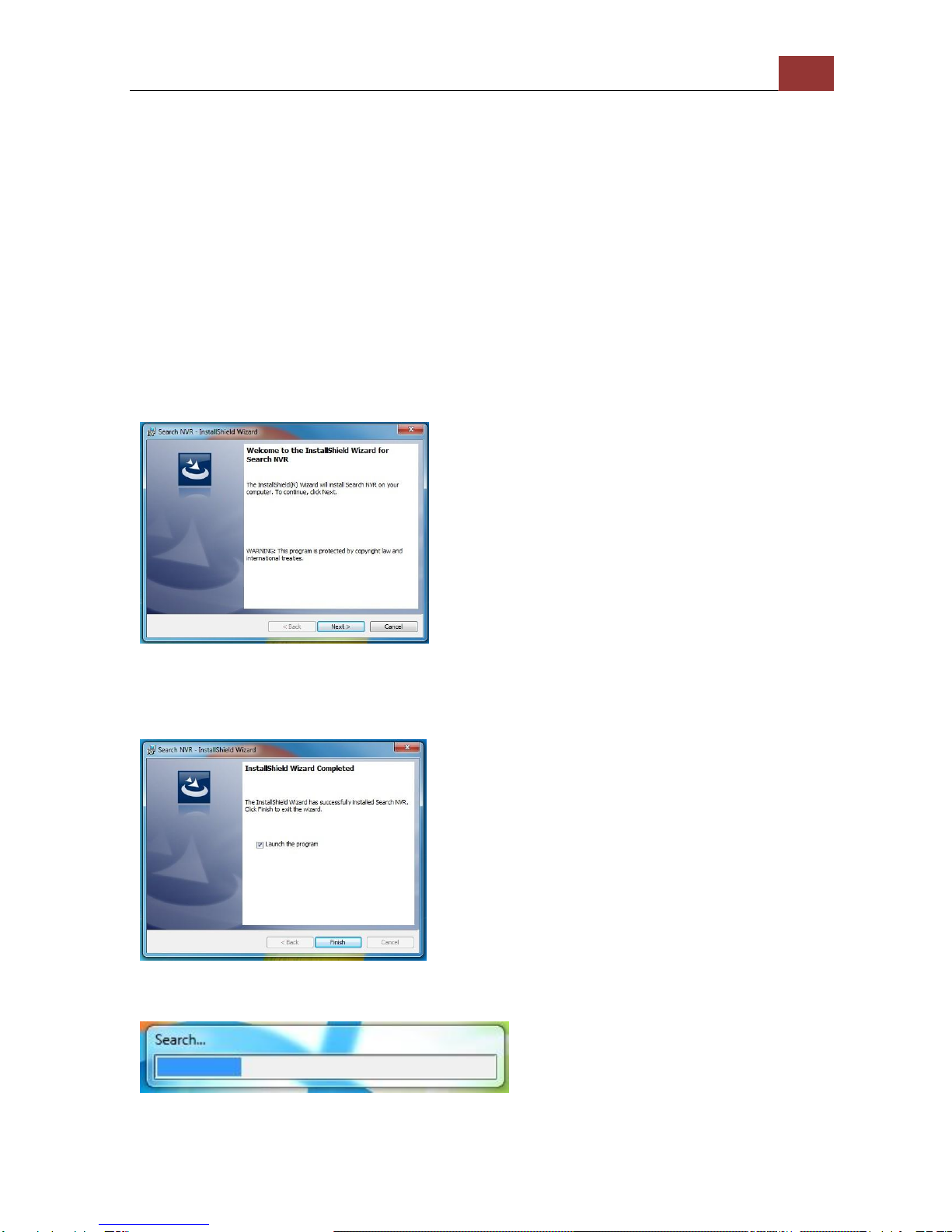

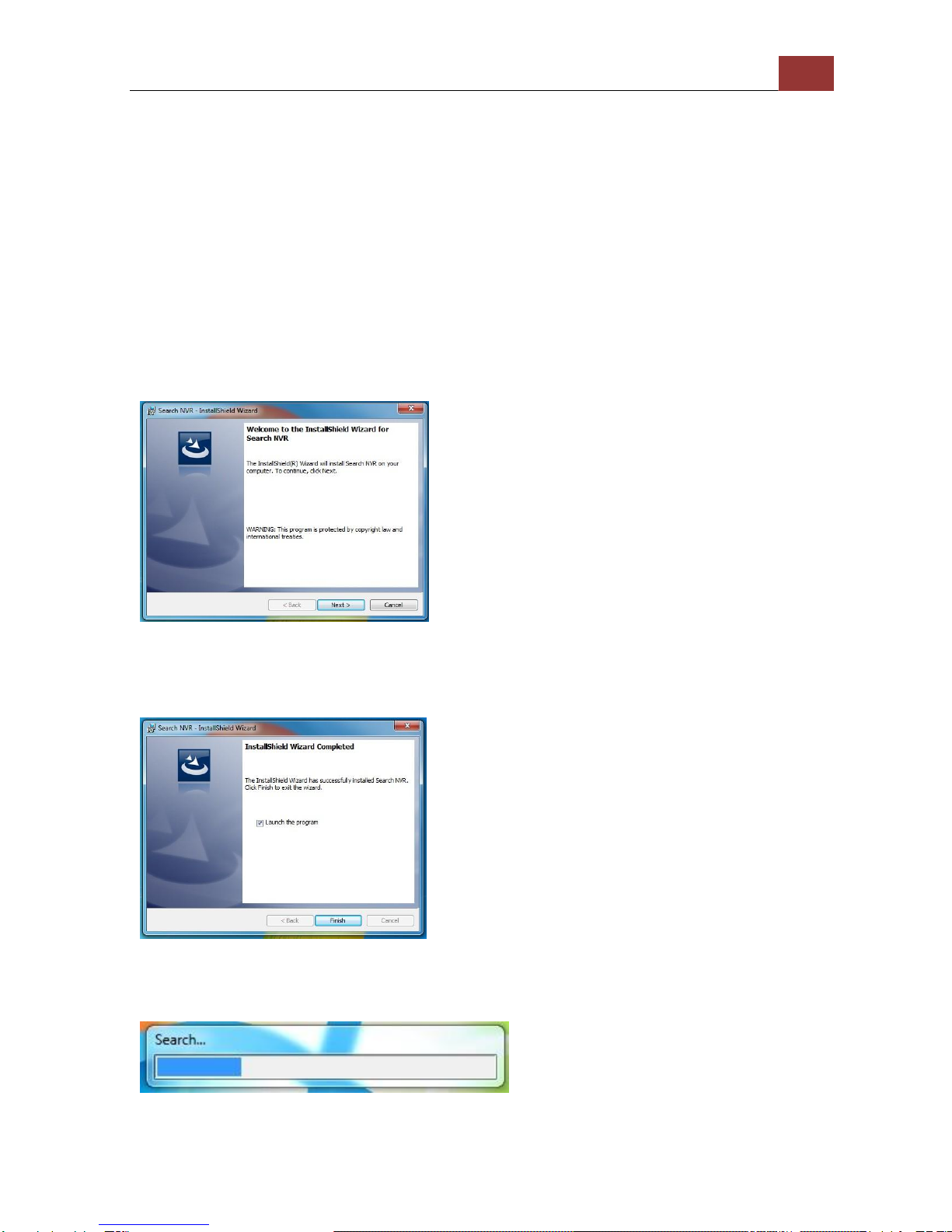

To begin, launch the “Device Search” utility from the CD and proceed with the
installation:
Once the installation is complete, check the “Launch the program” option and
click “Finish”.
The search should start automatically and its status should be displayed.

6
NVR-0104 Quick Installation Guide
The NVR should be located and its IP address should be displayed.
Double-click on an NVR and the search program should automatically access the
NVR’s web administration page from your default browser.
You should be prompted for the NVR’s username and password. Enter its default
username “root” and password “root” and then click ”OK” to enter the system.
Double-click

NVR-0104 Quick Installation Guide
7

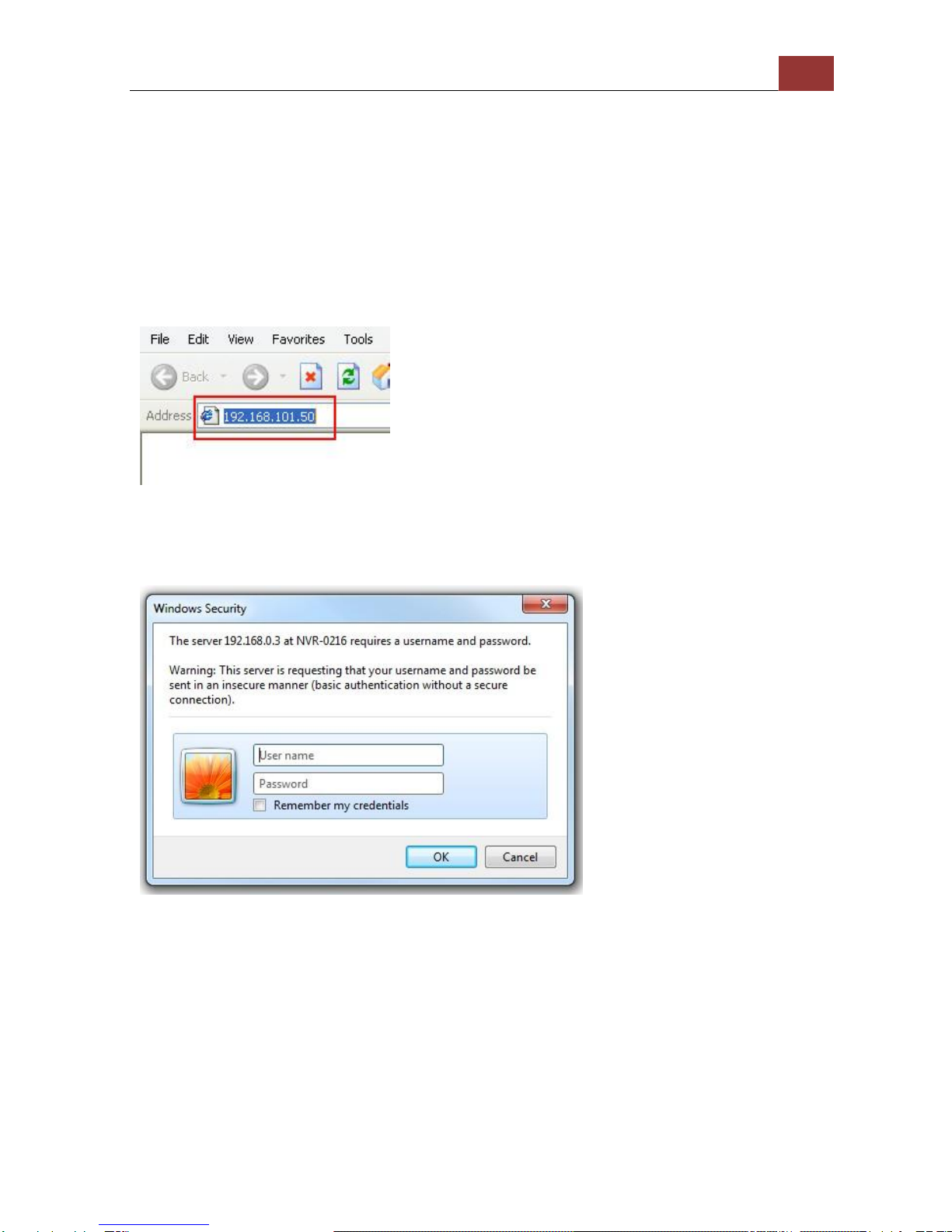

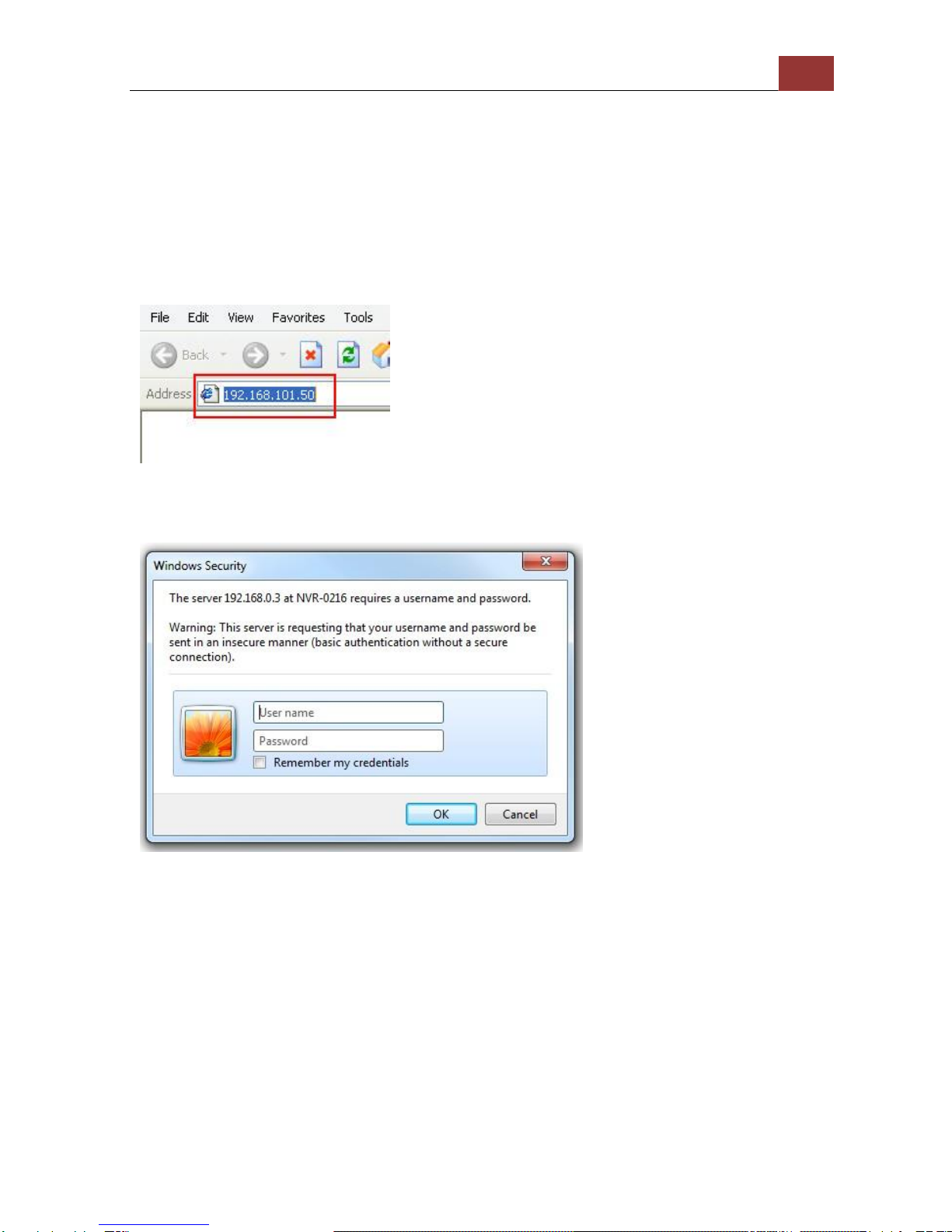

Access the NVR with its default IP address
The NVR comes with a pre-configured static IP “192.168.101.50”. However, it is
only used when there is no DHCP server presented in the network. The NVR will
turn on its DHCP server function and act as the DHCP server in the network.
To connect to the NVR, connect the PC directly to the NVR using a crossover
CAT5 Ethernet cable. Simply access the NVR from your web browser with its IP
address.
Again, you should be prompted for the username and password. Enter its default
username “root” and password “root” and then click ”OK” to enter the system.

8
NVR-0104 Quick Installation Guide

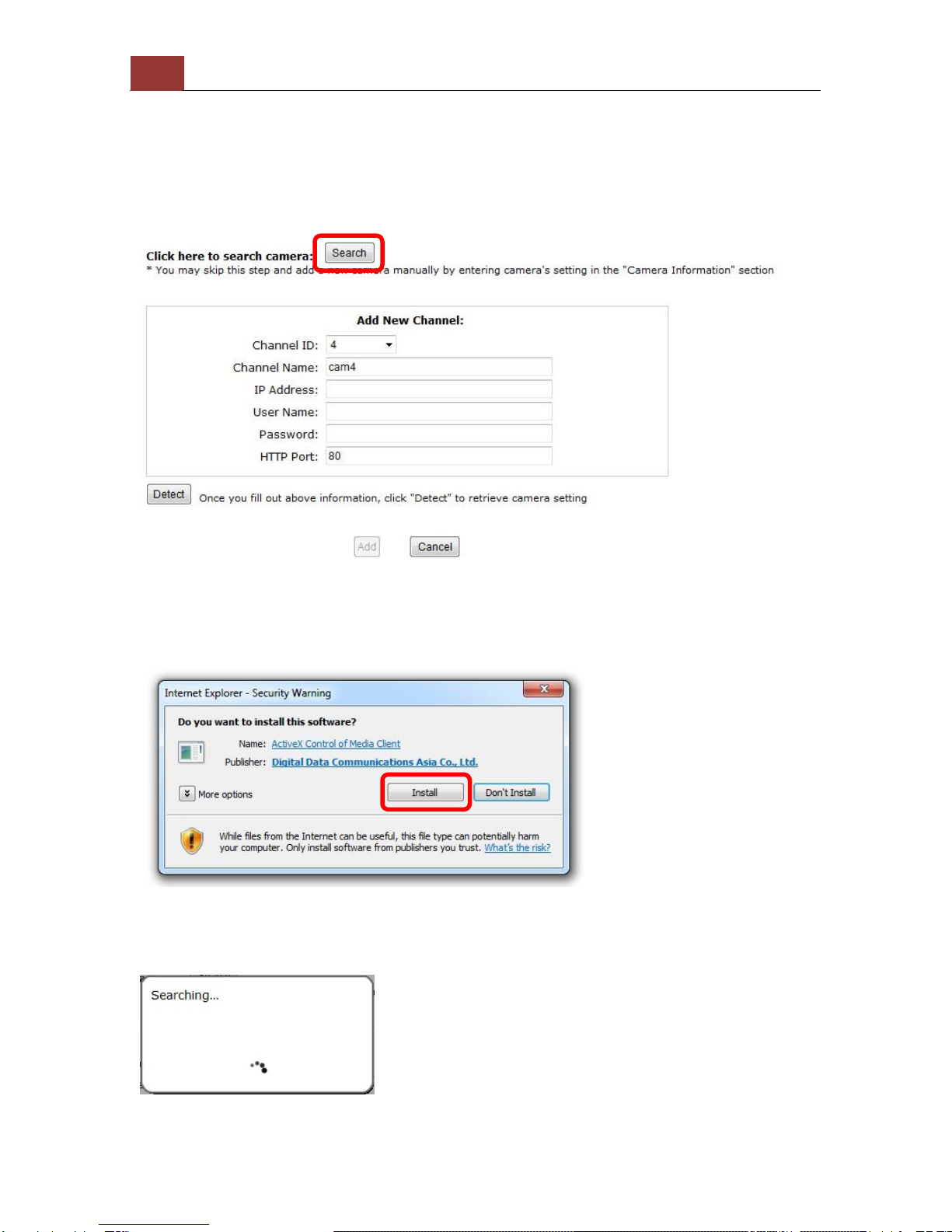

Add a Camera
Automatic Search
1. Click the “Search” button to perform the camera search.
2. You should be prompted to install Active Control component in order for the
search to function properly. Go ahead and click “Install”.
3. After that, the search should begin and its status should be displayed:

NVR-0104 Quick Installation Guide
9
4. Found cameras should be listed and simply select a camera from the list and
press “Configure”.
5. The camera's information should be displayed in the “Camera Information”
section. Enter its username and password and select the channel ID and name
the camera.
6. Click on “Detect” to establish connection between the recorder and the camera.
If connection establishes successfully, camera’s detailed information should be
polled and displayed as below.
1
2

10
NVR-0104 Quick Installation Guide

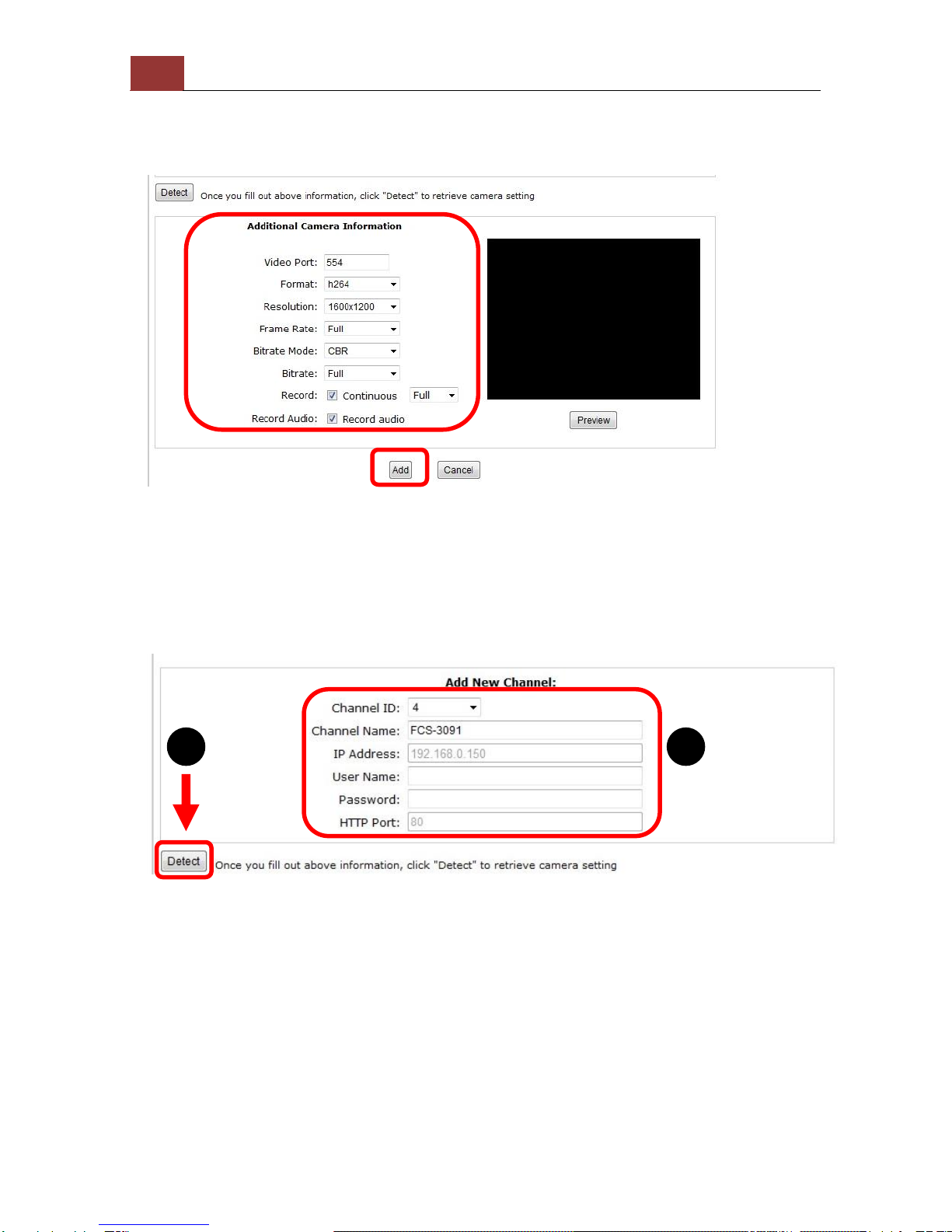

7. Adjust its video format, frame rate, resolution or bitrate...etc if you wish and
then click “Add” to finish adding the camera.
Add a camera manually
Simply follow the instruction described above but instead of using the “Search”
function, enter the camera’s IP address and credential in the “Camera
Information” manually, then follow steps 6 ~ 7 described above.
2
1
Enter manually
