LevelOne IGP-0104 User manual

1
IGP-0104
ndustrial Gigabit POE Injector, 802.3at PoE+, 60W, 24 to 56 VDC
User Manual

2
FCC MARKING
This Equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received; including interference that
may cause undesired operation.
CE MARKING
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class A for ITE, the essential protection requirement of
Council Directive 2004/108/EC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible
that information in this document is not up-to-date. Please check with your local
distributors for the latest information. No part of this document can be copied or
reproduced in any form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2013, All Rights Reserved

3
NOTE:
Always make sure the total length of the TX cable DOES NOT exceed 100meter. Total length is
defined as length A + length B
Remote Switch
A
B
Length A + Length B < 100 meter
Maximum total cable length is 100meter.
During 100Mbps transmission, the maximum total cable length is 100 meter.
During 1000Mbps speed transmission, recommend maximum cable length less than 90 meter is
more desired.
POE signal attenuates every meter, the built-in transformer allows the attenuation to reach 100
meter long to follow IEEE802.3af / at standard. the higher quality of PD you connected to, the
more reliable the network will be. When connect to a poor quality PD, it can not generate strong
signal to send to remote switch.Always make sure you have a high quality PD to perform a
desired network.
PD

4
Power connection
This unit is equipped with Voltage booster feature which allow low input voltage 24VDC to be
boost up to 55VDC for 30w POE power. The provided 4 pin terminal block can be connected with
24VDC to 56VDC power source. Always Make sure your input voltage is within this supported
voltage range.
To make power connection –Follow the printed polarity for V+, V-, Ground. Connect positive wire
to V+ , connect negative wire to V-, also connect neutral wire to ground. This unit can be
connected to two power input.
+V1- is for power input one connection,
+V2-(SW) is for power input two connection

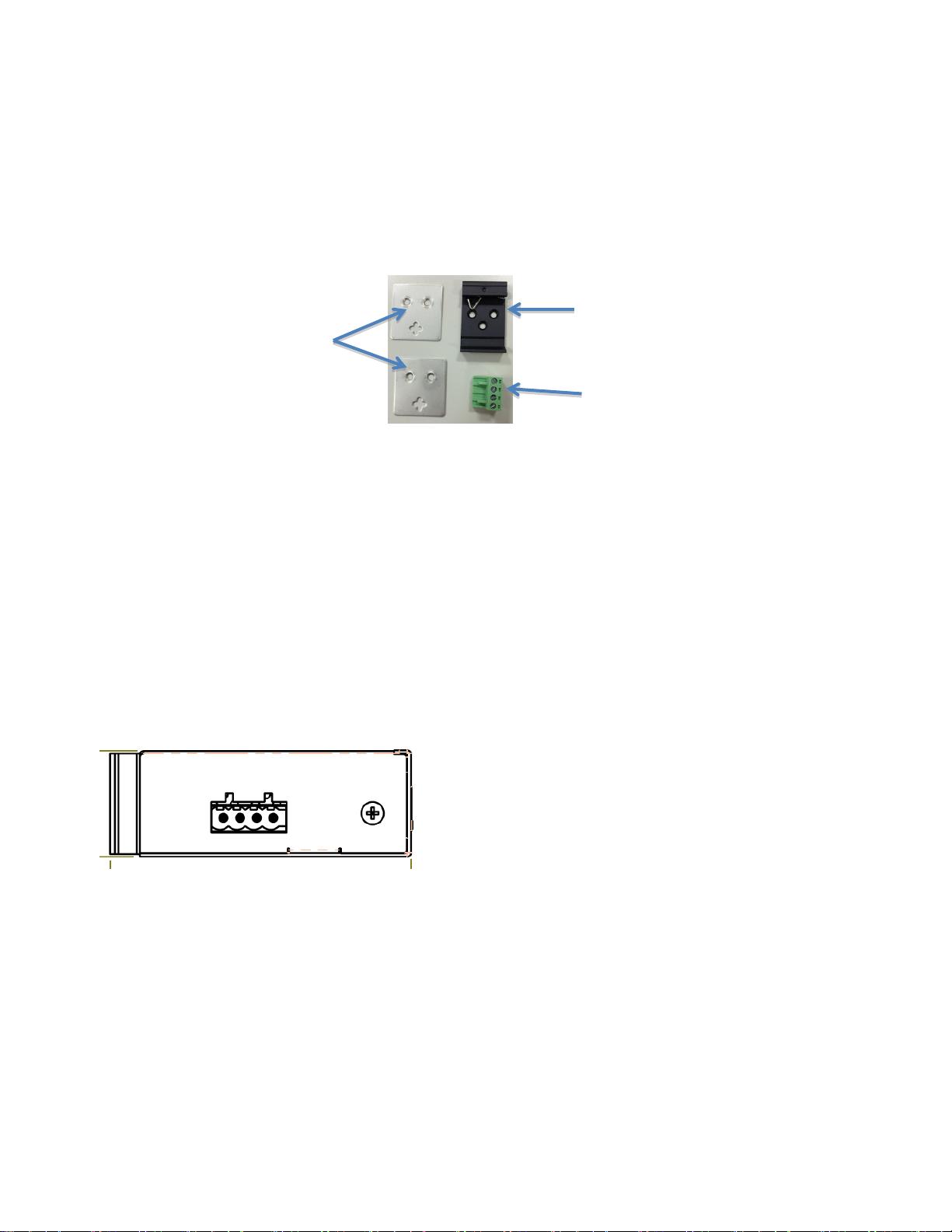

Din Rail Bracket x 1
Wall mount bracket x 2
4 pin Terminal Block x1
Installation package
This unit can be installed by din-rail mounted or wall-mounted. Din-rail brackets and wall-
mounted bracket are included.
Connecting procedure
STEP 1 –
Take out 4 pin terminal block located in the included mounting kit package.
STEP 2 –
Connect power wire to +V1- or Connect +V2- (SW) as shown above
STEP 3 –
Plug into terminal block socket shown above. Polarity needs to match the V+ and V-
WARNING -- Always SHUTS OFF power source to connect power wire.
WARNING –any exceeded input voltage will not make this unit function and may damage this unit.
(SW)
+ V1 - + V2 -
Din Rail Bracket x 1
4 pin Terminal Block x1

5
Mode A Green LED ON --
For End-Span POE power 1,2,3,6
LED indicator
PW—Power 1, Power 2
4 Pair amber LED ON –
Both 4 pair are delivering POE
power. for 60Watts application

6
2P
2 pair 30W is selected
4P
4 pair 60W is selected (DEFAUT)
A
Mode A End-Span is selected (DEFAULT)
B
Mode B Mid-Span is selected
HI
High power 36W is selected (DEFAULT)
at
IEEE802.3at 30W is selected
Res
Reserved (DEFAULT)
Res
Reserved

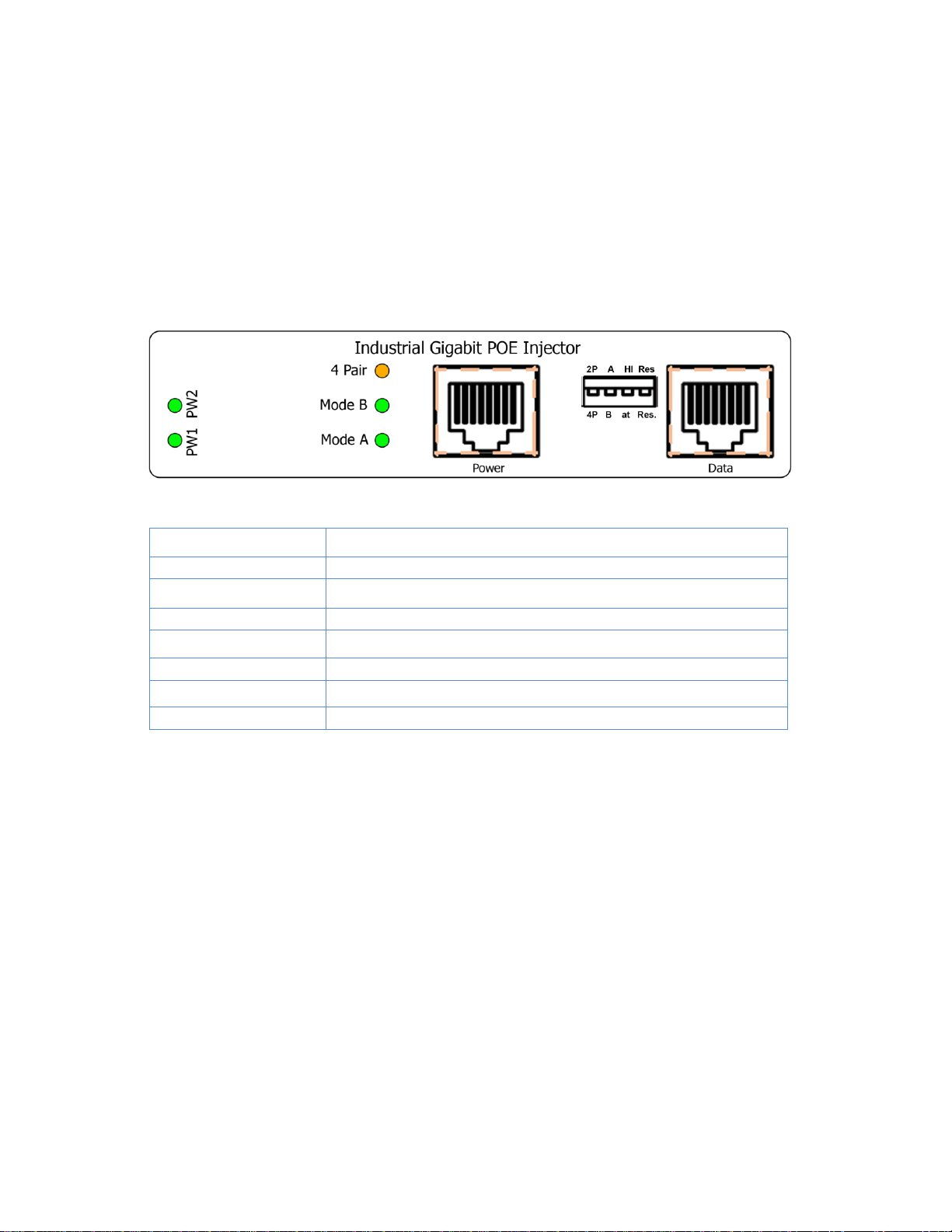

This unit is equipped with 4 pin dip switches which allows users to set the desired POE power
setting to meet your desired POE network. Refer to the setting shown below:
Dip Switch setting

7
IEEE Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3af for POE
IEEE802.3at for POE+
Network Connector :
1xRJ-45 10/100/1000BaseT(X) Data
1xRJ-45 10/100/1000BaseT(X) PSE with POE
Output power
Network Cable
UTP/STP above Cat.5e Cable
EIA/TIA-568 10-ohm (100m)
Protocol
CSMA/CD
LED
PW1(power 1) Green: ON- power good, OFF-
power failed
PW2(power 2) Green: ON- power good, OFF-
power failed
Mode A : ON- End Span PD detected
Mode B: ON –Mid Span PD detected
4 Pair: ON –60W PSE in active mode.
OFF –30W PSE in active mode.
POE Pin Assignment
Default: Mode A (End Span) V+, V+, V-, V- for
pin 1, 2, 3, 6
DIP switch setting can be changed to Mode B, V+,
V+, V-, V- for pin 4, 5, 7, 8
DIPSwitch
To select 2 pair (30/36Watts) or 4 pair (60/72Watts)
To select ModeA, or Mode B
To select standard IEEE802.3at 30watts or high
power POE 36Watts
Reverse polarity protection
Present
Overload current protection
Present
Power Supply
2 Redundant power source
24V-56V VDC Power Input,
Power Consumption
1 W@24/48 VDC full load, Without POE
POE power
Maximum POE power 72watts at 24/48VDC input
Specification:

8
Removable Terminal Block
Provide 4 pin terminal block
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG):12-24/14-22
Stranded wire(AWG): 12-24/14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm
Operating Temperature
-40℃~75℃fully tested.
Operating Humidity
5% to 95% (Non-condensing)
Storage Temperature
-40℃~85℃
MTBF (mean time between failure)
510,304 hrs ( MIL-HDBK-217F) at 25°C
Housing
Rugged Metal ,IP30 Protection
Case Dimension (L X W X D)mm
103.5mmx32mmx81.5mm (LxWxD)
Installation mounting
DIN Rail mounting and Wall Mounting
Certifications:
EN55022/24
ITE equipment
Safety
IEC EN60950-1
EMC/EMS
CE, FCC, VCCI
EMI
FCC Part 15 Subpart B Class A,
CE EN 55022 Class A
EN 50155 / EN 60068-2-6
Vibration
EN 50155 / EN 60068-2-27
Shock
EN 50155 / EN 60068-2-32
Free Fall

9
Housing Dimension
