LevelOne IEC-1220 User manual

IEC-1220
10/100 Industrial Media Converter w/ 15.4W PoE PSE
SC SM 20KM -10 to 60C
Quick Installation Guide
v1.00‐1209
IEC-1220 Page 1
Overview
LevelOne IEC-1220 is an industrial Fast Ethernet media converter
with IP30 ingress protection case. This converter is designed to be
mounted on an industrial standard DIN-rail, plus the clearly visible
status LEDs provide simple monitoring of port link activity.
Power over Ethernet
This converter is Power Sourcing Equipment (PSE), and it is fully
complied with IEEE 802.3af PoE standard at maximum 15.4W power
budget per port. It helps to save infrastructure wiring costs
dramatically by eliminating electric wiring and less UPS needed.
Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)
temperature that offers optimal suitability for industrial
applications at low cost while maintaining all components built to
withstand harsh environment applications without compromise
reliability and stability.
Plug & Play
This Industrial Media Converter is designed for the demanding
industrial environments at businesses in need of instant
connectivity with no setup or configure required, truly plug and
play.
IEC-1220 Page 2
Features
Provides 1-port 10/100Base-TX plus 1-port 100Base-FX
100Base-FX Single-mode fibre for the link up to 20 kilometres
IEEE802.3af PoE PSE with 15.4W power budget
10/100Mbps Full/Half duplex, Auto-negotiation, Auto-MDI/MDIX
Complies with IEC61000-6-2 EMC Generic standard immunity for
industrial environment
228K bits buffer memory
-10C to 60C (-14F to 140F) operating temperature
Supports DIN-rail mounting installation
Package Contents
IEC-1220
Quick Installation Guide
IEC-1220 Page 3

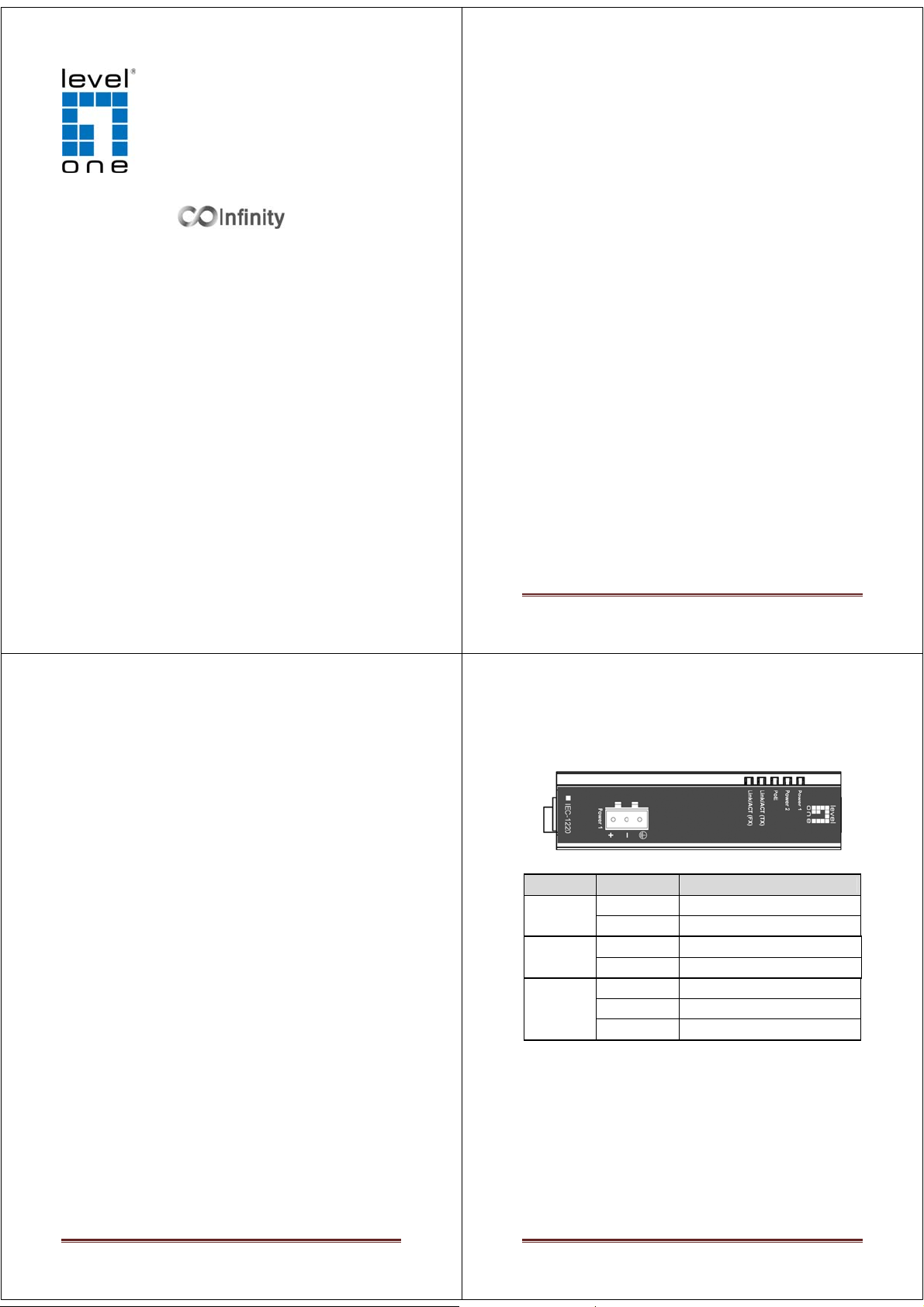

LED Status
LED Status Description
Power 1, 2
Steady Power On
Off Power Off
PoE
Steady Power Device (PD) is connected
Off Power Device (PD) is disconnected
Link/ACT
Steady Network connection is established
Flashing Transmitting or Receiving data
Off No connection occurred

IEC-1220 Page 4
Power Input
Terminal Block
Power 1
(48VDC)
+ 48VDC
– Power Ground
Power 1
(-48VDC)
+ RTN
– 48VDC
Earth Ground
DC Jack
Power 2 48VDC
Note
Both Terminal and DC Jack power inputs can be used to power up
this Industrial PoE Media Converter. Redundant power supplies
function is supported.
IEC-1220 Page 5
DIP Switch
DIP On Off
1 Enable Force mode for TX port Enable Auto mode for TX port
2 Force to 10Mbps on TX port Auto 10/100Mbps on TX port
3 Half Duplex on TX port Full Duplex on TX port
4 LFPT is enabled LFPT is disabled
Note:
LFPT: Link Forward Pass Through
Disconnect the power before change the DIP switch settings
IEC-1220 Page 6
DIN Rail Mount
Assembly: Place the switch on the DIN rail from above using the
slot. Push the front of the switch toward the mounting surface
until it audibly snaps into place
Start-up: Connect the supply voltage to start up the switch via
the terminal block (or DC JACK)
Dismantling: Pull out the lower edge and then remove the switch
from the DIN rail.
IEC-1220 Page 7
10/100Base-TX Connector
Pin Standard Port Uplink Port
1 Output Transmit Data + Input Receive Data +
2 Output Transmit Data - Input Receive Data -
3 Input Receive Data + Output Transmit Data +
4 NC NC
5 NC NC
6 Input Receive Data - Output Transmit Data -
7 NC NC
8 NC NC
100Base-FX Connection
T
he Tx (transmit) port of device I is
connected to the Rx (receive) port
of device II, and the Rx (receive)
port of device I to the Tx (transmit)
port of device II.
