LevelOne
WBR-6601
150Mbps NWireless ADSL2 + Modem Router
Quick Installation Guide
English
Português
Deutsch
Svenska
Français

Español
繁體中文
Nederlands
简体中文
Dansk
한국어
Italiano



2
Table of Contents
English........................................................................................... 3
Deutsch......................................................................................... 9
Français ...................................................................................... 16
Español ....................................................................................... 22
Nederlands.................................................................................. 28
Dansk.......................................................................................... 34
Italiano......................................................................................... 40
...................................................................................... 46
Português.................................................................................... 54
Svenska ...................................................................................... 60
................................................................................. 66
繁體中文 ...................................................................................... 72
简体中文 ...................................................................................... 78
한국어.......................................................................................... 84
....................................................................................... 90
Default Settings
IP Address
192.168.0.1
User/Password
admin / password
Wireless Mode
Enable
Wireless SSID
LevelOne
Security
None
This guide covers only the most common situations. All detailed
information is described in the user manual.

3
Package Contents
WBR-6601
Power Adapter (12VDC, 1A)
RJ-11 ADSL / Telephone Cable
RJ-45 LAN Ethernet Cable
Antenna
CD-ROM with Manual
Quick Installation Guide
If any of the above items are missing, please contact your retailer
or distributor.

password details ready.
English

4
Installation

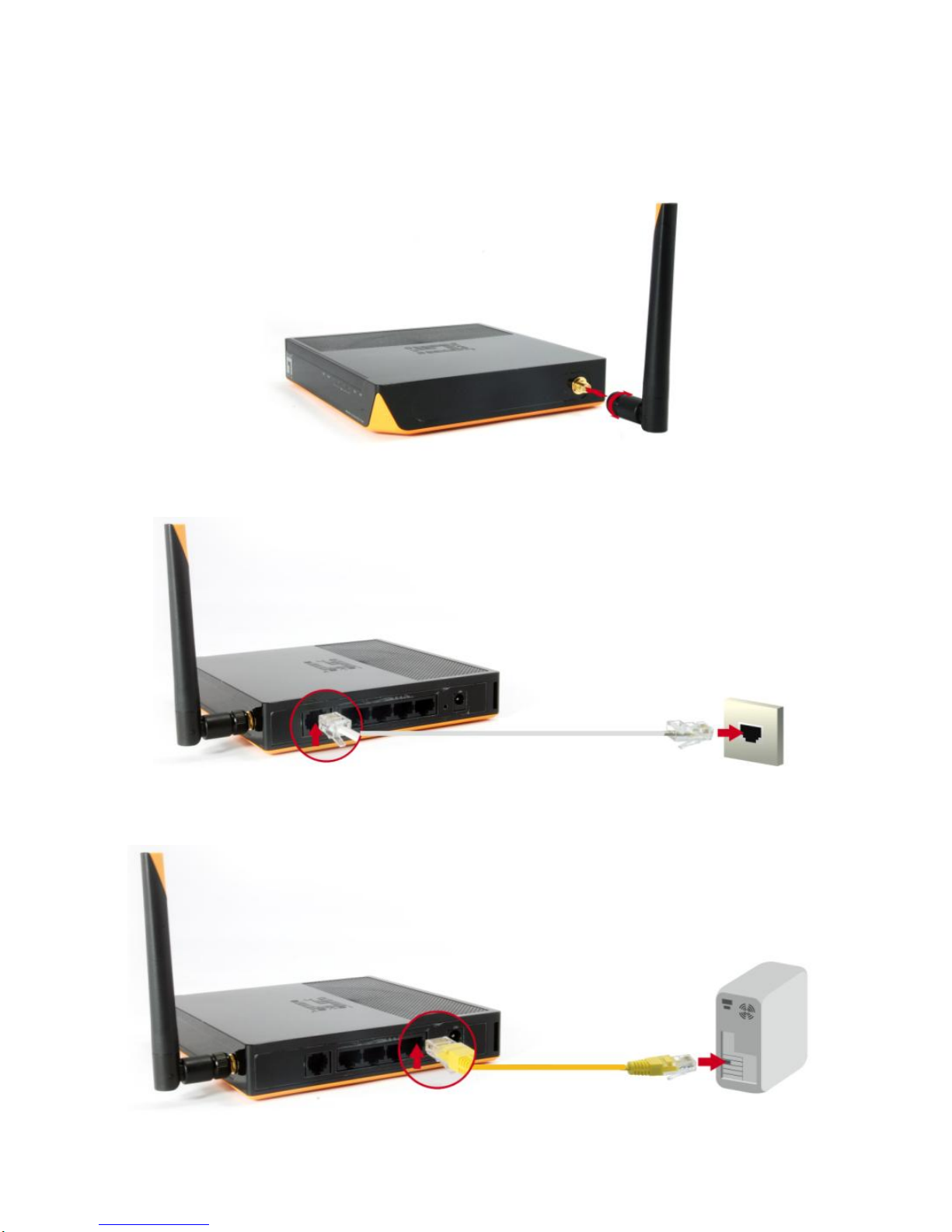

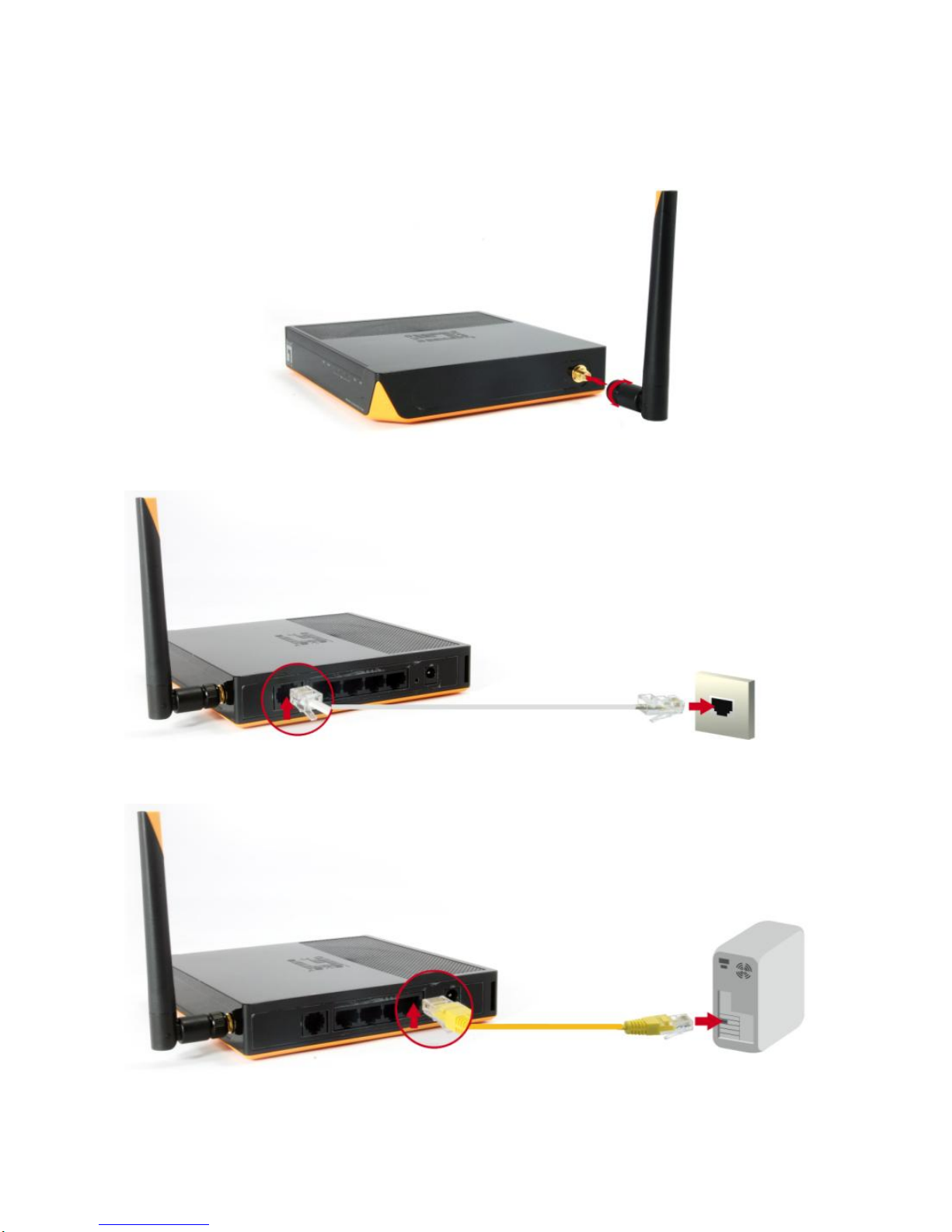

1. Attach the included antennas.
2. Connect the ADSL activated Telephone line
3. Connect the Computer LAN cable.

5

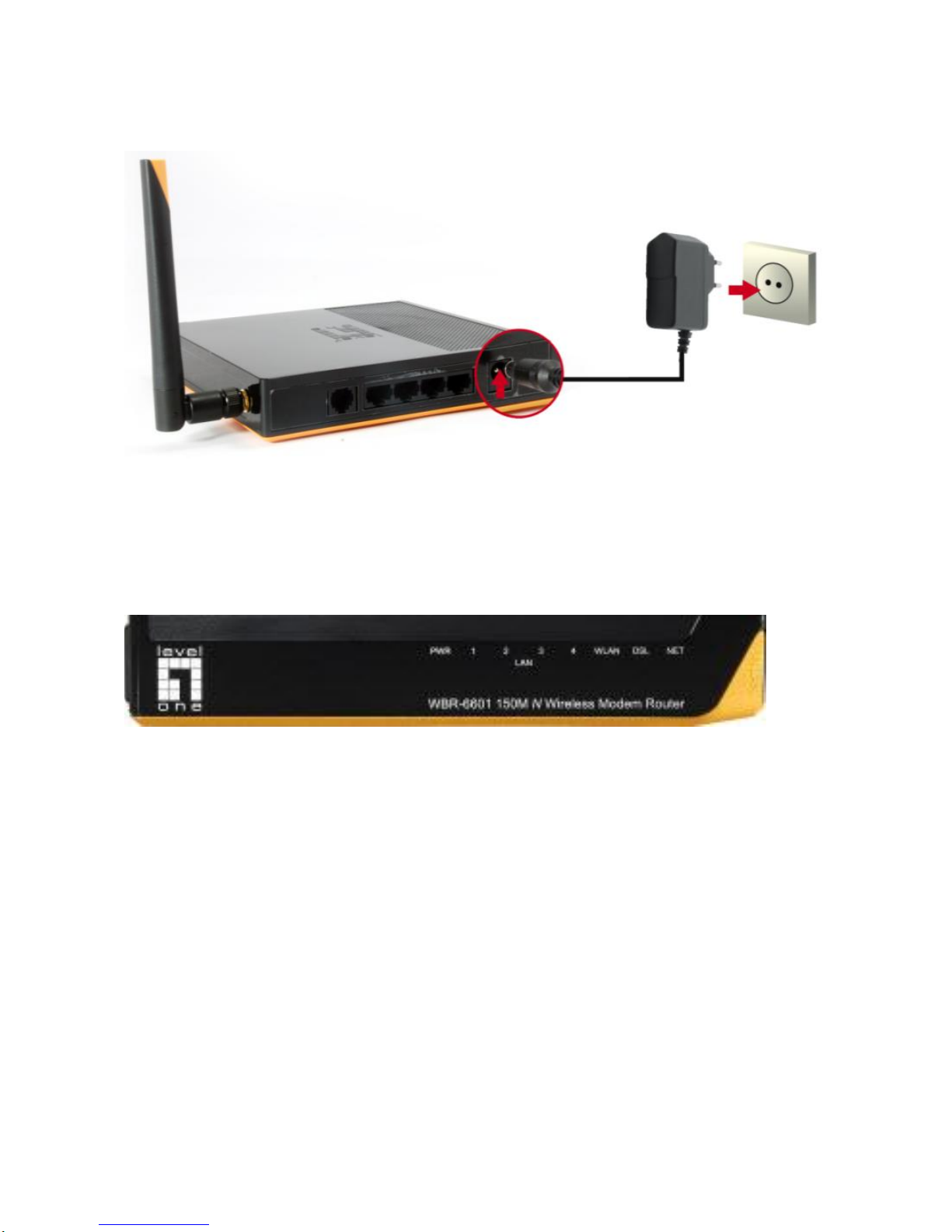

4. Plug in the Power Adapter
5. Wait until the PWR and DSL lights remain lit green (not
blinking) and the relevant LAN is lit.
6. Installation is now complete. You can now begin to set up the
device.

6
Setup

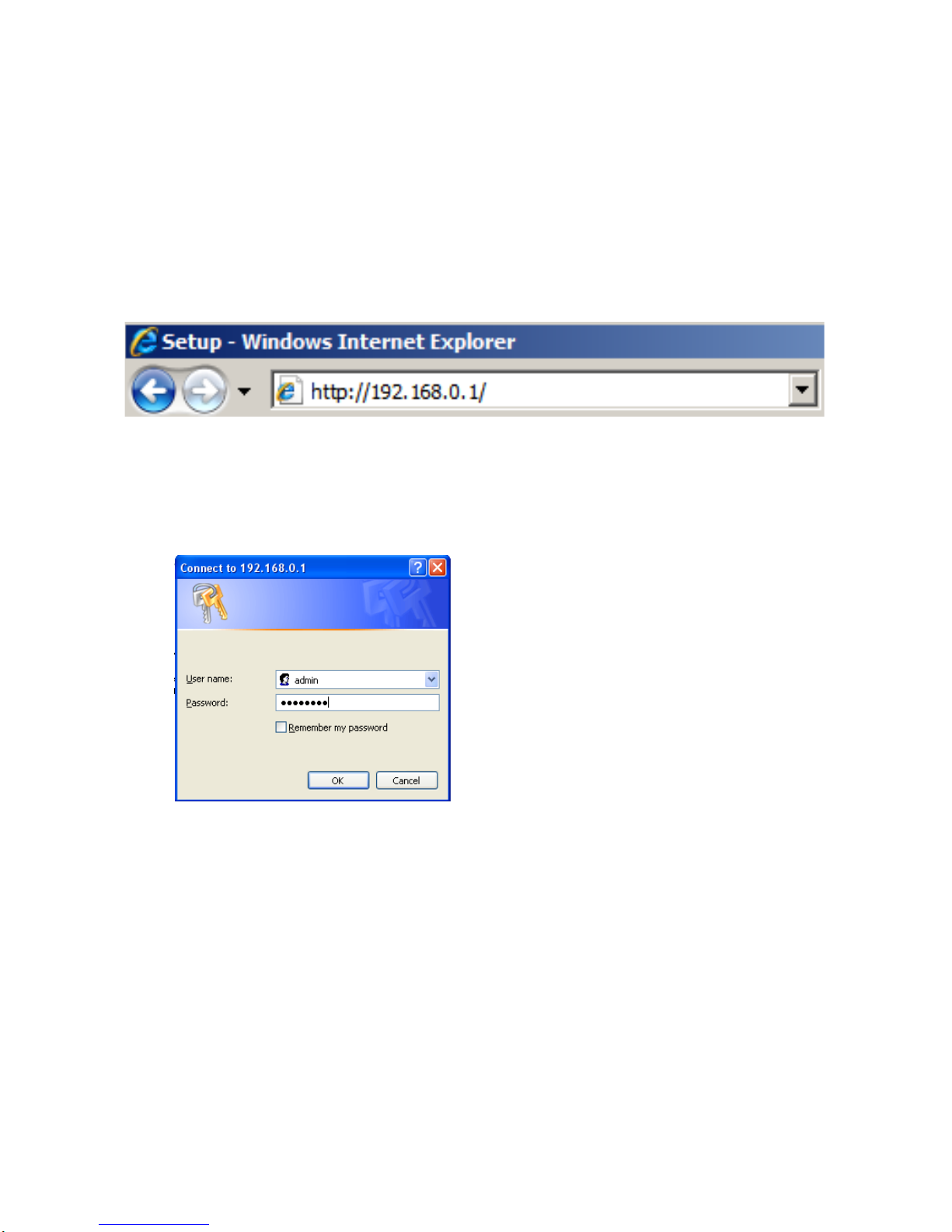

1. Start your WEB browser. In the Address box, enter the
following:
http://192.168.0.1
2. When prompted, use the following username and password.
User Name: admin
Password: password

7

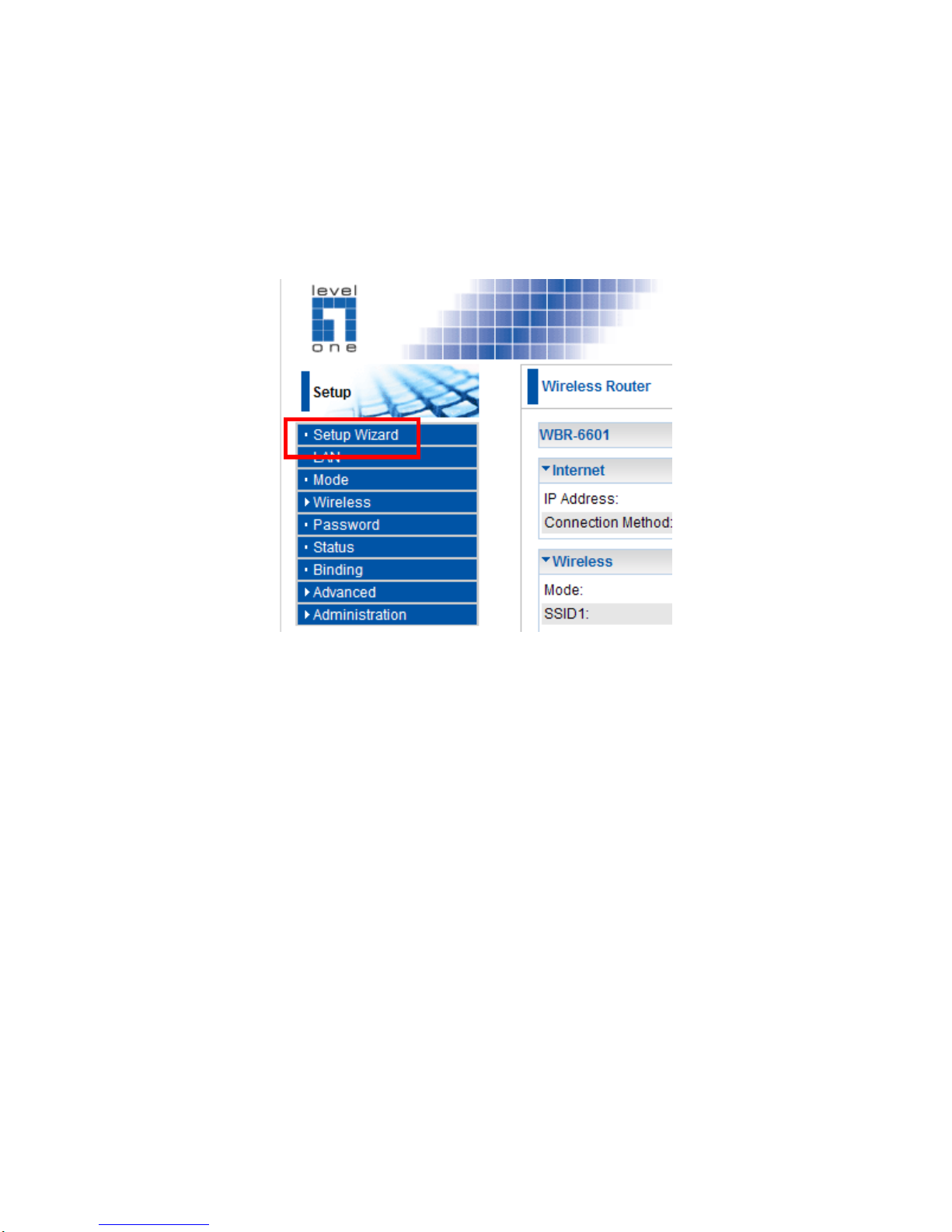

3. The first time you connect to the WBR-6601, you should run
the Setup Wizard to configure the ADSL and Internet
Connection. Click Setup Wizard on the menu.

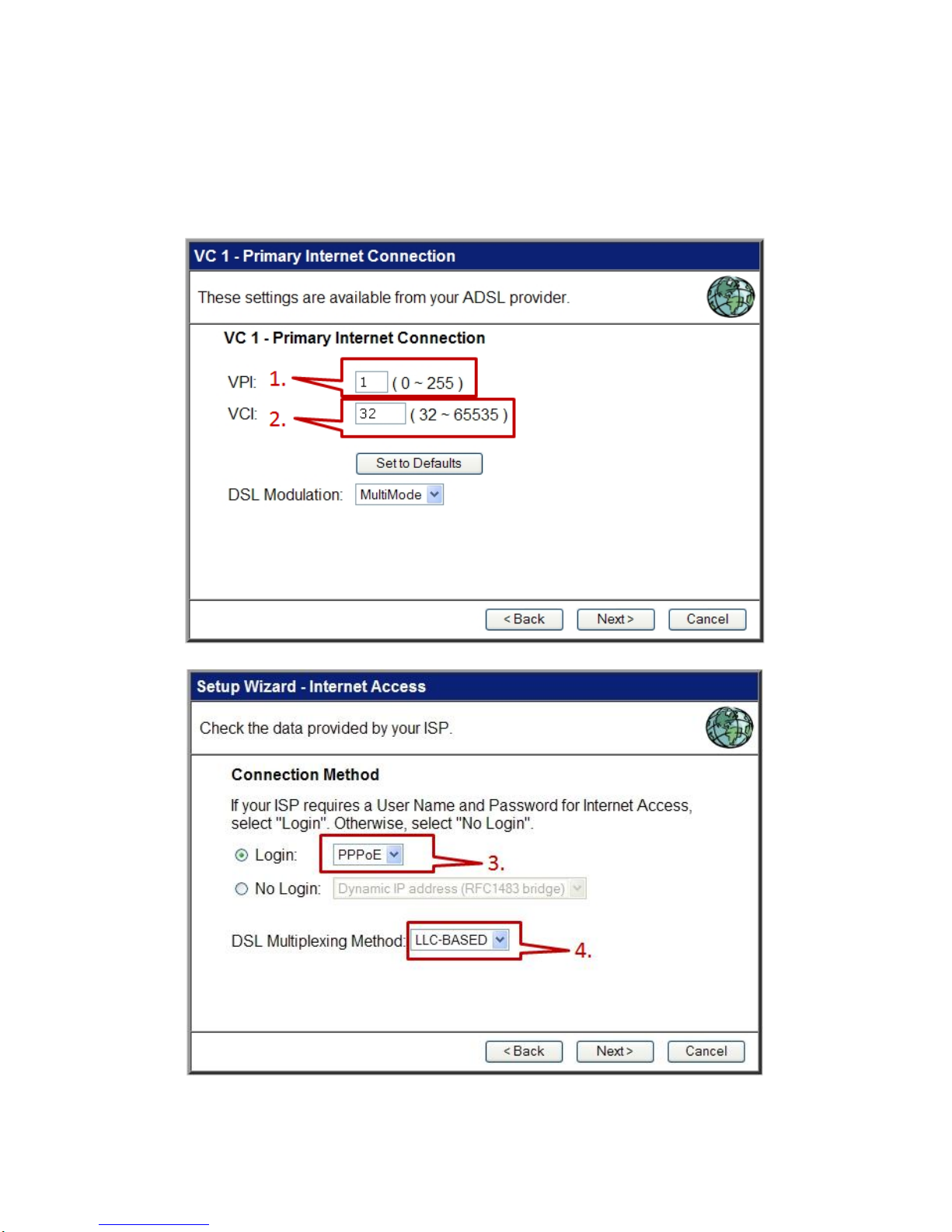

4. Step through the Wizard until finished. Refer to the data from
your ISP, and the table below, to ensure your choices are
correct.
Connection Type
Data required.
Dynamic IP Address
Usually, none.
Static (Fixed) IP
Address
IP Address allocated to you, and
related information, such as Network
Mask, Gateway IP address, and DNS
address.
PPPoE, PPPoA
a) User name and password are
always required.
b) If using a Static (Fixed) IP address,
you need the IP address and related

8
information (Network Mask, Gateway
IP address, and DNS address)
IPoA (IP over ATM)
IP Address allocated to you, and
related information, such as Network
Mask, Gateway IP address, and DNS
address.
5. On the final screen of the Wizard, run the test and check that
an Internet connection can be established. If the connection
fails, check both your data and the ADSL connection.
6. The NET light should now be lit.
Now you can access the Internet.

9
Deutsch
Lieferumfang
WBR-6601
Netzteil (12VDC, 1A)
RJ-11-ADSL- / Telefonkabel
RJ-45-LAN-Ethernet-Kabel
Antennen
CD-ROM mit Handbuch
Kurze Installationsanleitung
Sollte einer der obigen Gegenstände fehlen, informieren Sie Ihren
Einzel- oder Großhändler.
Bevor Sie beginnen, haben Sie bitte den Benutzernamen und die
Kennwortdetails von Ihrem Internetanbieter (ISP) zur Hand.

10
Installation
1. Befestigen Sie die beigefügten Antennen.
2. Schließen Sie die ADSL-aktivierte Telefonleitung an.
3. Schließen Sie das Computer-LAN-Kabel an.
