LEVITON Dock
Operation Manual

Copyright and Trademark Information
This document and all its contents herein are subject to and protected by international copyright and other intellectual property
rights and are the property of Leviton Manufacturing Co., Inc, its subsidiaries, affiliates and/or licensors. © 2013 Leviton
Manufacturing Co., Inc. All rights reserved.
Use herein of third party trademarks, service marks, trade names, brand names and/or product names are for informational
purposes only, are/may be the trademarks of their respective owners; such use is not meant to imply affiliation, sponsorship,
or endorsement.
No part of this document may be reproduced, transmitted or transcribed without the express written permission of Leviton
Manufacturing Co., Inc.

i
Regulatory Compliance Statements
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assistance.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
EN55022 Class-B
EN55024
Safety instructions regarding the radio waves
Do not use this product near medical devices, such as a heart pacemaker. The radio waves
generated by this product may interfere with the operation of these devices.
Do not use this product near microwave ovens. The radio wave used by microwave ovens may
cause interference with this product.

ii
Safety Precautions
Users are strongly advised to adhere to the directions and recommendations offered in this manual. Failure to do
so may result in problems during operation.
Use the following safety guidelines to help protect yourself and the
•Do not attempt to service the LEVITON Dock yourself.
•Always follow installation instructions closely.
•Make sure the correct voltage is being supplied before turning the power on.
•Use only the AC adapter and power cord that are approved for use with this unit.
•Do not install in a very humid environment.
•Do not install in an area exposed to sunlight or heat.
•Do not use in areas containing flammable materials like propane gas and gasoline or in areas that generate
dust. Doing so may cause an explosion or fire.
•Do not dismantle, repair, or modify the product. Doing so may cause damage or an electric shock. Refer all
servicing to qualified personnel.
•Do not use water, thinner, or organic solvent for cleaning the product exterior. Doing so may
cause damage or an electric shock. Use a dry cloth instead and turn off the power before
cleaning.
Disclaimer
•While every effort has been made to ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions.
•LEVITON reserves the right to change the specifications of the hardware and software described herein at any
time without prior notice.
•No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form, by any means, without prior written permission of LEVITON.
•LEVITON makes no warranties for damages resulting from corrupted or lost data due to mistaken operation or
malfunction of the LEVITON Dock, the software, personal computers, peripheral devices, or
unapproved/unsupported devices.

iii
Table of Contents
Regulatory Compliance Statements .............................. i!
Safety Precautions .....................................................ii!
Disclaimer ............................................................................................................................. ii!
Introducing the LEVITON Dock............................1!
Features .......................................................................................................... 1!
Package Contents ............................................................................................. 2!
Supporte d Operating S ystems ................................................................................................. 2!
Supporte d iPo d Models .......................................................................................................... 2!
LEVITON Dock Overview .................................................................................... 3!
Connections to the LEVITON Dock ..................................................................... 5!
Connecting the Network ......................................................................................................... 5!
To router, h ub, or network switch ............................................................................................ 5!
Connecting the Power ............................................................................................................ 5!
Connecting the Audio Output .................................................................................................. 6!
Getting Started ......................................................7!
Configuring the LEVITON Dock .......................................................................... 7!
LEVITON Dock Setup Utility ................................................................................................... 8!
LEVITON Dock Operation ................................................................................ 14!
Operation M odes ................................................................................................................. 15!
Playing Music ................................................................................................. 15!
Inserting and Removing an iPod ....................................................................... 16!
Accessing the Web Server ............................................................................... 16!
Status ................................................................................................................................. 17!
Configuration ...................................................................................................................... 18!
Syste m Information .............................................................................................................. 18!
Reset to Factory Default .................................................................................. 19!
Interfacing with the LEVITON Dock ..................20!
Enabling the LEVITON Dock ............................................................................ 20!
Creating a N ew Project with the LEVITO N Dock ..................................................................... 20!
Adding Touchscreens to the P roject ...................................................................................... 22!
Adding the LEVITON Dock to an Existing Design ............................................... 24!
Im porting the LEVITON Dock Page s ...................................................................................... 24!
Discovering Touchscreens............................................................................... 25!
Adding an LEVITON Controller to the Design .................................................... 26!
Adding the LEVITON Dock to the Design .......................................................... 26!
Disco ver the LEVITON Dock ................................................................................................. 27!
Assig ning the Audio Output .................................................................................................. 28!
Assigning a Tou chscreen Page fo r Media ................................................................................ 29!
Updating the Touchscreens ............................................................................. 30!

iv
Accessing Your Music ..................................................................................... 32!
Browse the Media Library ..................................................................................................... 33!
Selec ting a new M usic Source ................................................................................................ 34!
Selec ting a New Audio Zone .................................................................................................. 35!
Specifications......................................................36!

1
Chapter 1
Introducing the LEVITON Dock
The LEVITON Dock is a product that allows you to access music and other content on an iPod, iPod
Touch, or iPhone using IP enabled devices, such as LEVITON OmniTouch 5.7e and 10pe
Touchscreens, and Hi-Fi2 audio distribution systems. The LEVITON Dock connects over a wired or
wireless LAN network. When used with a supported audio distribution system, an iPod that is connected
to a LEVITON Dockbecomes an audio source that can be played in any audio zone in the house.
Using a LEVITON OmniTouch 5.7e, 10p, or 10pe Touchscreen, you can browse and make music
selections by Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks. Album
art and other music metadata are displayed with each selection.
Features
Works with OmniTouch 5.7e and 10pe Touchscreens when combined with a LEVITON controller and
supported audio distribution system (e.g. LEVITON Hi-Fi or Hi-Fi2, NuVo, Russound, Xantech,
Speakercraft, or Proficient).
Works standalone with Hi-Fi2 audio distribution systems. VSC keypads will display iPod metadata (artist,
album, and track) and allows for control commands (play, pause, next track, and previous track) at the VSC
keypad.
LEVITON Dock sends iPod metadata and album artwork to IP enabled devices, such as LEVITON
OmniTouch 5.7e and 10pe.
IP enabled devices can send control commands (play, pause, stop, next track, previous track, rewind, fast
forward, next chapter, previous chapter, etc.) to an iPod that is docked in the LEVITON Dock.
LEVITON Dock allows IP enabled devices to navigate and browse the music library on the iPod by Playlists,
Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks.
Connects to an existing wired 10/100 LAN network or wireless 802.11 b/g (on supported LEVITON Dock
models) network.
Up to 8 LEVITON Docks can be connected and controlled on a network.

2
Charges the battery in the docked iPod.
Package Contents
After opening the box, ensure the following items are present:
oLEVITON Dock
oPower Supply
oAudio Cable
oLEVITON Dock CD (Setup Utility and Manual)
oGetting Started Guide
Supported Operating Systems
oWindows 7, Windows Vista, Windows XP, Windows 2000
oMac OS X 10.2.7 to 10.4.x (PPC version)
oMac OS X 10.4.3 or later (Intel version)
Supported iPod Models
oiPod classic
oiPod Nano (3G, 4G, 5G, 6G)
oiPod touch (1st, 2G, 3G, 4G)
oiPhone (1st, 3G, 3GS, 4G)

3
LEVITON Dock Overview
This section describes the main components of the LEVITON Dock.
Front View
1
Infrared (IR)
Receiver
Control playback of a connected iPod
from a distance using the Apple
Remote when the LEVITON Dock is in
Local Mode.
2
Operation
Mode LED
The Operation Mode LED is illuminated
when the LEVITON Dock is in Network
Mode (running and can be controlled
via IP enabled devices).
The Operation Mode LED is off when
the LEVITON Dock is in Standby
Mode. In Standby Mode the USB
controller, Ethernet PHY, and the
wireless radio (if applicable) is
disabled.
3
iPod
Connector
Connects the iPod to the LEVITON
Dock.
4
Operation
Mode Button
When is Standby Mode, press this
button to start the unit in Network
Mode.
When in Network Mode, press and
hold for 2 seconds to put the unit into
Standby Mode.
The Operation Mode Button is also
used to reset the LEVITON Dock to
factory default settings.

4
Rear View
5
Power Jack
Connect the supplied AC power supply
to this jack to provide power to the
LEVITON Dock.
6
Network
Port
Use a standard network cable to
connect the Network Port to the local
network.
7
Green LED
Shows the network communication
status.
8
Orange LED
Shows the network communication
status.
9
S-Video
Output
This output is currently not active.
10
Audio
Output
Connect supplied 3.5mm male stereo
patch cable between the Audio Output
on the LEVITON Dock and an audio
input on Hi-Fi2 or other audio
distribution system.
3.5mm male to 2 RCA male stereo
patch cable can be used to connect
LEVITON Dock to audio equipment
which requires RCA audio inputs.
Bottom View
11
Ethernet
Address
The Ethernet (MAC) Address of the
LEVITON Dock is found on the label
on the bottom of the unit.
The last 6 digits of the Ethernet
Address is the LEVITON Dock serial
number.
For example: If the Ethernet Address
is 00:07:A6:00:11:22 (noted as
0007A6001122) then the product's
serial number is “001122”.

5
Connections to the LEVITON Dock
To operate the LEVITON Dock, the following must be connected: Network (LAN), Power, and Audio
Output.
Connecting the Network
Connect a network cable to the Network Port on the LEVITON Dock and connect the other end of the
network cable to a router, hub, or network switch on the local network.
To router, hub, or network switch
Connecting the Power
Connect the supplied AC power supply to the Power Jack on the LEVITON Dock. Plug the power
cord into an outlet.
Make sure that the Operation Mode LED is
illuminated.

6
RIM
Remote Input Module
Hi-Fi RIM
AUDIO IN
IR OUT

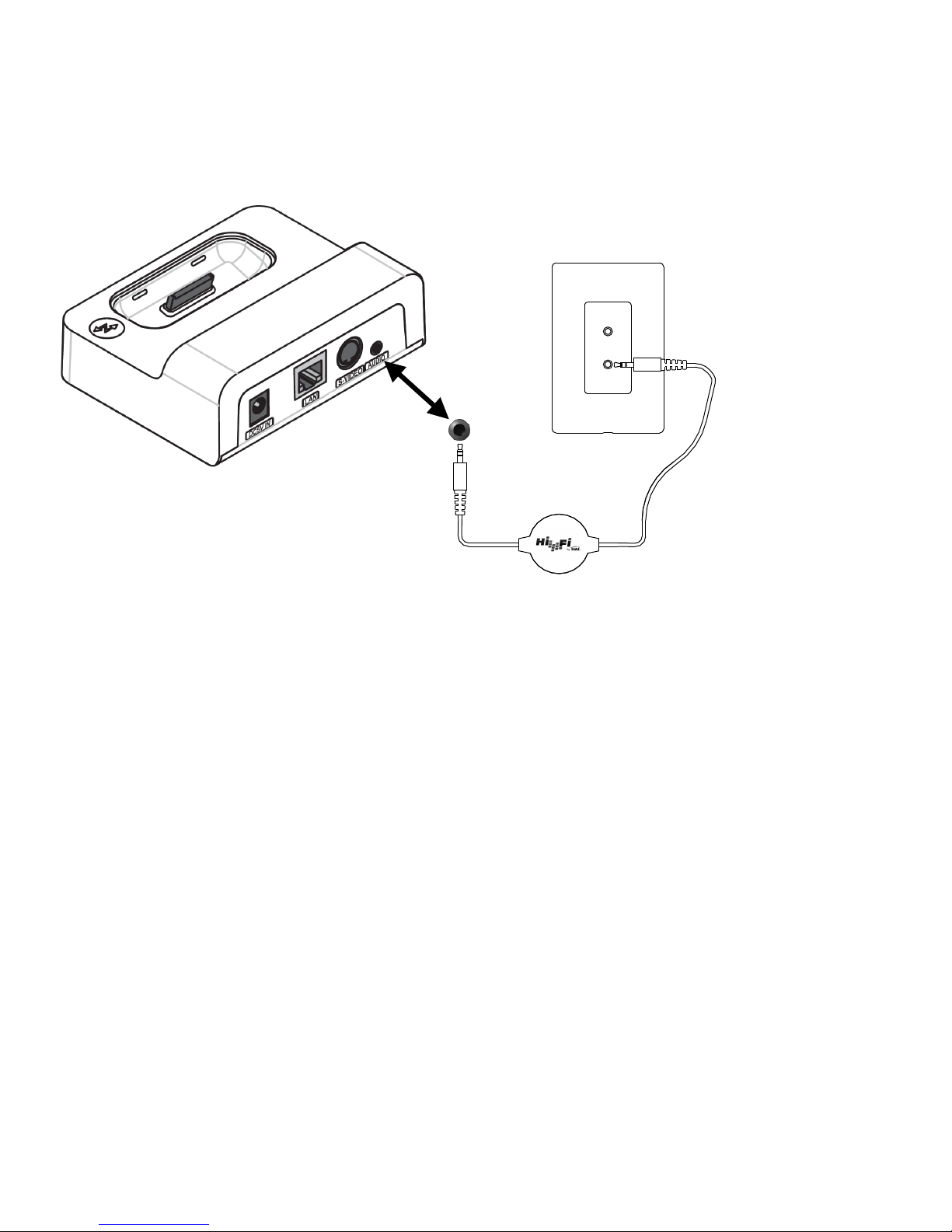

Connecting the Audio Output
Connect the LEVITON Dock to an audio system using the Audio Output jack on the LEVITON Dock
using a 3.5mm male stereo patch cable (supplied).
AUDIO

7
Chapter 2
Getting Started
The LEVITON Dock is configured over the network using the supplied LEVITON Dock Setup Utility. The
LEVITON Dock Setup utility runs on a PC on the same local network asthe LEVITON Dock.
Configuring the LEVITON Dock
To configure the LEVITON Dock using the LEVITON Dock Setup Utility:
1. Ensure that the LEVITON Dock is connected to the local network.
2. Ensure that the AC power supply is connected to the LEVITON Dock.
3.
Ensure that the LEVITON Dock is in Network Mode (the Operation Mode LED is illuminated).
4. Insert the LEVITON Dock Setup Utility CD (LEVITON Part Number 96A02-1) into your PC
and run the utility Setup.exe.

8
LEVITON Dock Setup Utility
Follow the instructions on the screen to configure the LEVITON Dock using the LEVITON Dock Setup
Utility.
1.When the LEVITON Dock Setup Utility is started, you are first prompted to select
your language:
Select your language and then click Next.
2.Verify that the LEVITON Dock is connected to the network with a network cable and
is turned on:
Verify that the LEVITON Dock is connected
to the network and is turned on and then click
Next.

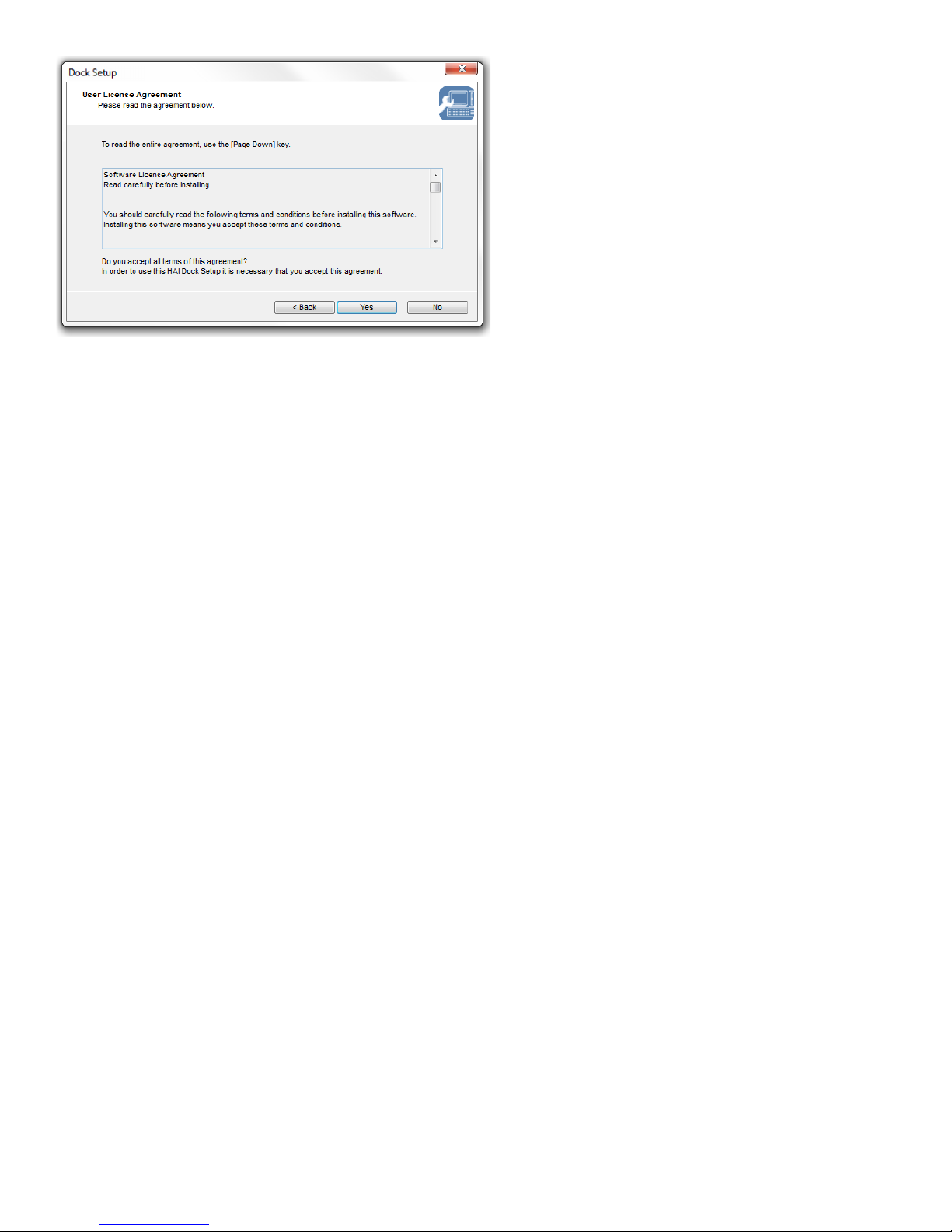

3.Read the Software License Agreement:

9
Read the Software License Agreement and
then click Yes to accept the terms and
proceed.

10
4. The LEVITON Dock Setup Utility will discover all of the LEVITON Docks connected
on the local network:
Select the LEVITON Dock to be configured
and then click Next.
5. Configure the TCP/IP network settings for the LEVITON Dock:
By default, the LEVITON Dock will Get an
IP Address Automatically. The DHCP
client in the LEVITON Dock will accept an IP
Address and other network parameters from
a DHCP server on the network.
To have the LEVITON Dock use the DHCP
settings, with the Get an IP Address
Automatically radio button selected, click
Next.
If DHCP is disabled on the router and there is no other DHCP server on the network, you can
manually assign a static IP address. The IP address of the LEVITON Dock must be compatible with
your existing network. To manually assign a static IP address to the LEVITON Dock:
a) Select the Assign IP Address radio
button.
b) Enter the desired IP address for the
LEVITON Dock in the IP Address edit
box.
c) Enter the subnet mask of the network in
the Subnet Mask edit box.
d) Enter the default gateway of the network
in the Default Gateway edit box.
e) When complete, click Next.

11
6. Configure the IP Remote Settings for the LEVITON Dock:
Network Name: Give a unique name to the
LEVITON Dock. For example: Kitchen Dock
(15 characters maximum).
IP Remote TCP Port: This is the port that
a TCP device (e.g. OmniTouch 5.7e and
10pe touchscreen) uses to connect to the
LEVITON Dock.
IP Remote UDP Port: This is the port that
Hi-Fi2 uses to connect to the LEVITON Dock
Source ID: This setting identifies which
source input the LEVITON Dock is connected
to on the audio system.
When complete, click Next.
If this is a wireless version of the LEVITON Dock, the following setup screens will be
displayed.
Otherwise, confirm configuration parameters and complete Setup (see Step 9).
7. The LEVITON Dock will search for wireless networks:

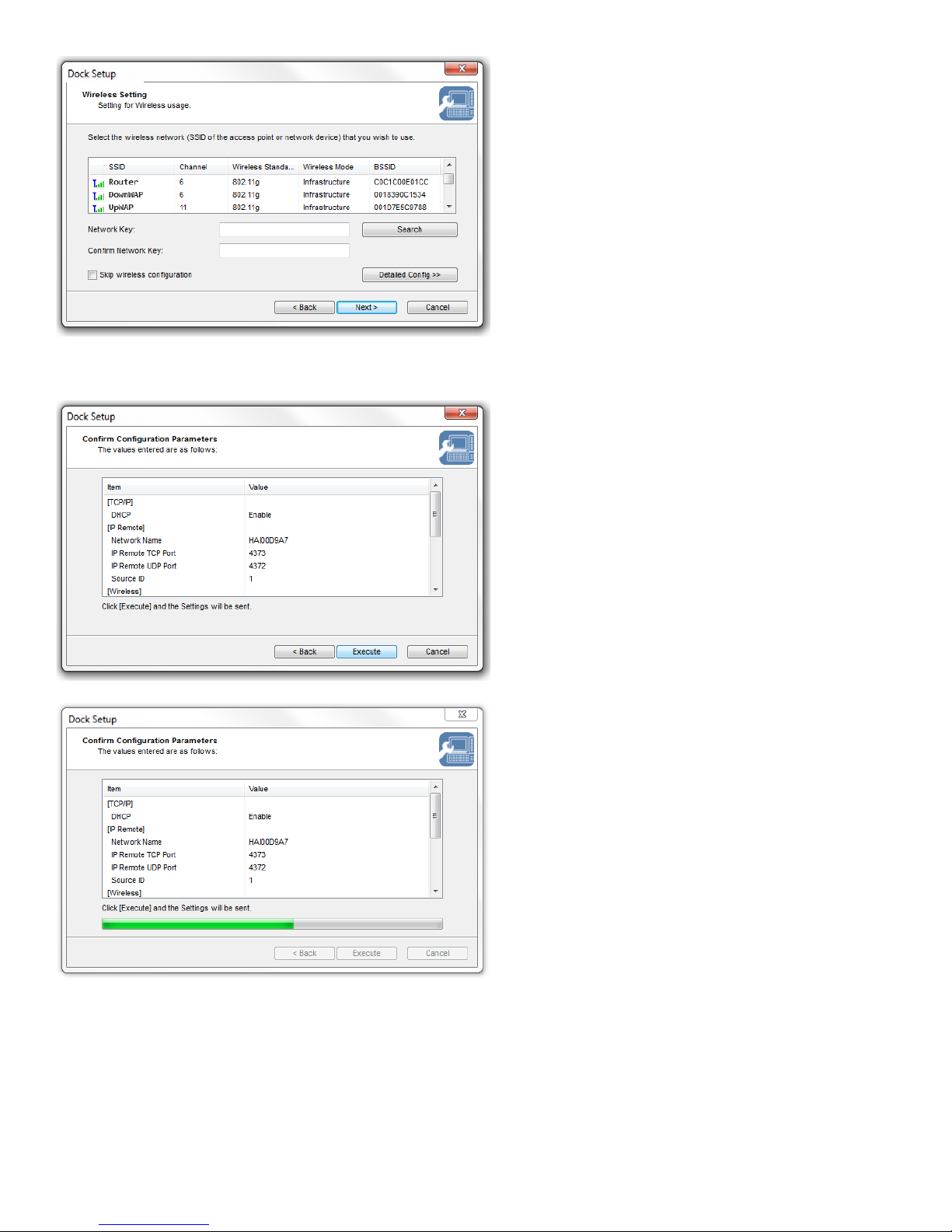

8. Once wireless networks have been discovered, they are displayed in a list:

12
Select the wireless network that you want to
connect to, enter the Network Key, reenter
the Network Key under Confirm Network
Key, and then click Next.
If the wireless network that you wish to use is
not shown in the list, click Detailed Config
and manually configure each setting.
If you are going to use the LEVITON Dock
with a network cable instead of wirelessly,
check Skip wireless configuration and
then click Next complete Setup.
9. Confirm configuration parameters and save the settings in the LEVITON Dock:
View and confirm the configuration
parameters and then click Execute.
If any changes need to be made, click Back
and make the necessary modifications.
The new configuration is being stored in the
LEVITON Dock. Please wait.

13

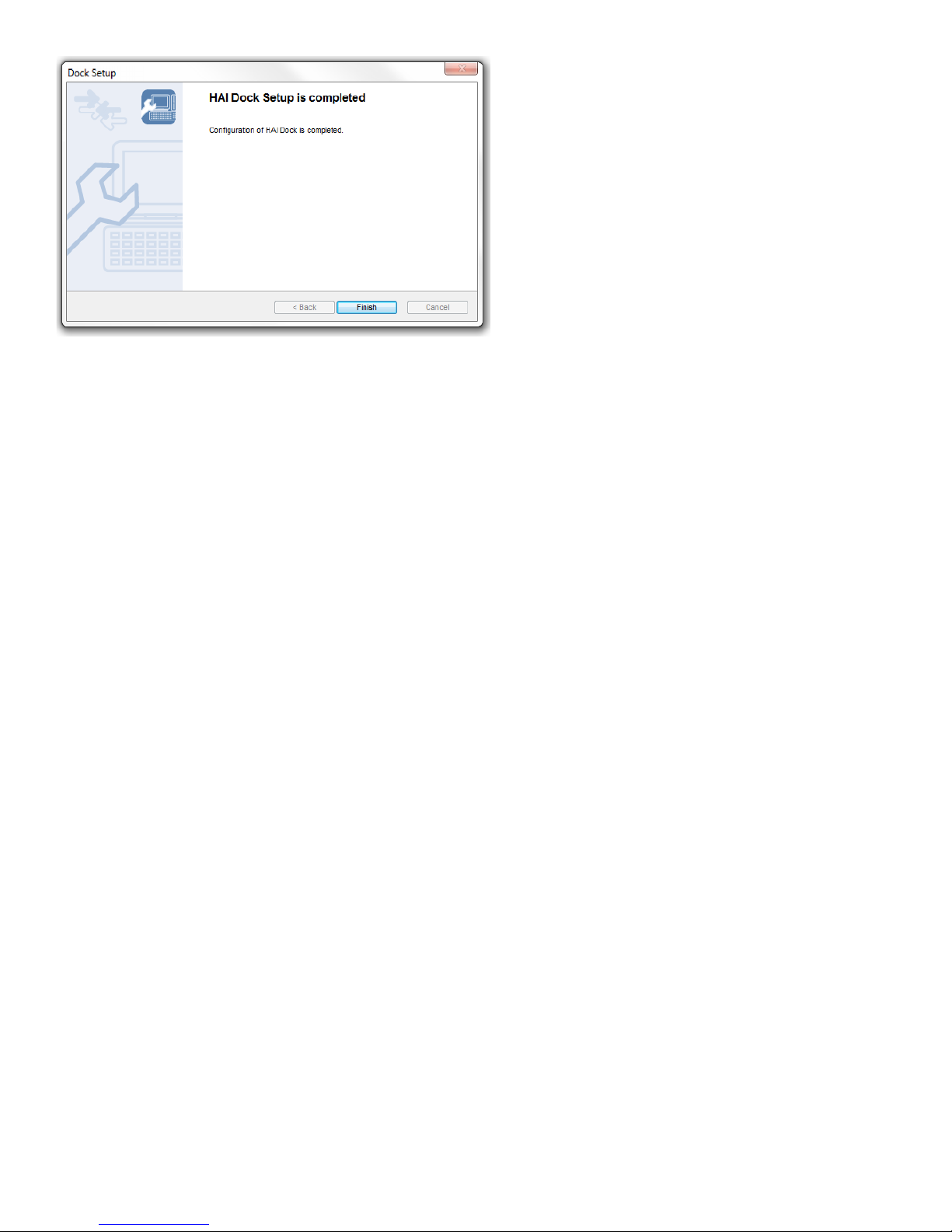

LEVITON Dock Setup is completed. Click
Finish.
10. Reboot the LEVITON Dock:
The LEVITON Dock must be rebooted for the new settings to take effect. If wireless has been
configured, first unplug the network cable before rebooting the LEVITON Dock.
To reboot the LEVITON Dock, disconnect the power cable momentarily, and then reconnect the
power cable.

14
LEVITON Dock Operation
The LEVITON Dock has 3 LED indicators which can be used to determine its operation mode and network
status. The Operation Mode LED indicator is located on the front of the unit and indicates the operation mode
status:
Status
LED
Description
Network Mode
On
LEVITON Dock is running. Connected iPod can play music and can
be controlled via IP enabled devices on the network (IP Remote). In
this mode:
1) The LEVITON Dock charges the battery in the docked iPod.
2) The iPod cannot be controlled locally while docked.
3) Some iPod models may display “Accessory Connected” while
docked.
Standby Mode
Off
Connected iPod can play music and can be controlled locally.
1) The LEVITON Dock does not charge the battery in the docked
iPod.
2) In this mode the USB controller, Ethernet PHY, and the wireless
radio (if applicable) is disabled.
3) This mode complies with the European Power Regulations.
The Network LED indicators (green and orange) on the back of the unit indicate the network connection status:
Status
LED
Description
Wired LAN
Green: Blink
Orange: Off
Waiting for network connection.
Green: ON
Orange: Blinks during data
transmission
Communicating with a wired LAN. Orange LED
blinks during data transmission.
Wireless LAN
Green and Orange blink at the same
time
Waiting for network connection.
Green: ON
Orange: Blink
Connecting with router or wireless access point
(WAP) and communicating in infrastructure mode.
Green and Orange blinks alternatively
Communicating in Ad hoc mode.
