Levoit Core 200S User manual

Smart True HEPA Air Purifier
Model: Core 200S Series
USER MANUAL
EN  DE  FR  ES  IT
Questions or Concerns?
[email protected]

2
Package Contents
Specifications
Safety Information
Getting to Know Your Smart
Air Purifier
Controls
Getting Started
VeSync App Setup
Using Your Smart Air Purifier
VeSync App Functions
About the Filter
Care & Maintenance
Troubleshooting
VeSync App Troubleshooting
About Energy-Related
Products
Warranty Information
Customer Support
4
4
5
6
7
8
9
9
11
12
14
16
18
19
19
20
40
40
41
43
44
45
46
46
48
49
51
54
56
57
58
58
59
59
60
62
63
64
65
66
68
69
71
74
21
21
22
24
25
26
27
27
29
30
32
35
37
38
39
39
EN  ENGLISH
Inhaltsverzeichnis
Table des matières
Índice
Table of Contents
ES  ESPAÑOL
DE  DEUTSCH
FR  FRANÇAIS
Lieferumfang
Technische Daten
Sicherheitshinweise
Ihr Smart Luftreiniger
Bedienungstasten
Erste Schritte
Einrichten der VeSync-App
Der Gebrauch Ihres Smart
Luftreinigers
VeSync App Funktionen
Informationen zum Filter
Pflege und Wartung
Problemlösung
Behebung von Problemen mit
der VeSync-App
Informationen zu
energieverbrauchsrelevanten
Produkten
Informationen zur Garantie
Kundendienst
Contenido de la caja
Especificaciones
Información de seguridad
Componentes del purificador de aire
inteligente
Controles
Primeros pasos
Configuración de la
aplicación VeSync
Usar el purificador de aire inteligente
Funciones de la
aplicación VeSync
El filtro
Cuidado y mantenimiento
Solución de problemas
Solución de problemas de la
aplicación VeSync
Acerca de productos relacionados
con la energía
Información sobre la garantía
Atención al Cliente
Contenu de l’emballage
Caractéristiques techniques
Consignes de sécurité
Découverte de votre purificateur
d’air intelligent
Commandes
Prise en main
Configuration de l’application
VeSync
Utilisation de votre purificateur d’air
intelligent
Fonctions de l’application VeSync
À propos du filtre
Entretien et maintenance
Dépannage

3
Table des matières (suite)
FR  FRANÇAIS
Dépannage de l’application
VeSync
Concernant les produits liés
à l’énergie
Informations relatives à la
garantie
Service client
74
77
78
78
Indice
IT  ITALIANO
Contenuto della confezione
Specifiche
Informazioni di sicurezza
Componenti del purificatore
d’aria intelligente
Comandi
Avvio
Configurazione dell’app VeSync
Uso del purificatore d’aria
intelligente
Funzioni dell’app VeSync
Il filtro
Cura e manutenzione
Risoluzione dei problemi
Risoluzione dei problemi
dell’app VeSync
Prodotti che utilizzano energia
Informazioni sulla garanzia
Assistenza Clienti
79
79
80
81
82
84
84
84
86
87
89
91
93
94
95
95

Power Supply AC 220–240V, 50Hz
Rated Power 26W
Ideal Room Size 35 m² / 376 ft²
Note:
•Eective for larger
rooms, but purification
will take longer.
•Ideal Room Size
is based on 2 air
changes per hour
(ACH).
CADR 170 m³/h
Operating
Conditions
Temperature:
-10°–40°C / 14°–104°F
Humidity: < 85% RH
Noise Level 24–45dB
Air Purifier
Dimensions
20.5 x 20.5 x 32 cm /
8.1 x 8.1 x 12.6 in
Air Purifier
Weight
3 kg / 6.6 lb
Wi-Fi®
Frequency
Range
2412–2472MHz
E.I.R.P.: 18.52dBm
Bluetooth®
Frequency
Range
2402–2480MHz
E.I.R.P.: 9.84dBm
Package Contents
1 x Smart Air Purifier
1 x 3-Stage Filter (Pre-Installed)
1 x User Manual
1 x Quick Start Guide
Specifications
Note: To access additional smart functions,
download the free VeSync app (see page 9).
ENGLISH
User Manual
Smart True HEPA Air Purifier
Model: Core 200S Series
EN
4

SAFETY INFORMATION
• Only use your air purifier as described in this
manual.
• Do not use without removing the plastic wrap
from the filter. The air purifier will not filter air,
and may overheat, causing a fire hazard.
• Do not use the air purifier outdoors.
• Keep the air purifier away from water, and wet
or damp areas. Never place in water or liquid.
• Do not use in excessively humid areas.
• Keep the air purifier away from heat sources.
• Do not use where combustible gases, vapours,
metallic dust, aerosol (spray) products, or
fumes from industrial oil are present.
• Keep 1.5 m / 5 ft away from where oxygen is
being administered.
• Supervise children when they are near the air
purifier.
• Do not place anything into any opening on the
air purifier.
• Do not sit or place heavy objects on the air
purifier.
• Keep the inside of the air purifier dry. To
prevent moisture buildup, avoid placing in
rooms with major temperature changes or
underneath air conditioners.
• Always unplug the air purifier before servicing
(such as changing the filter).
• Do not use the air purifier if it is damaged or
not working correctly, or if the cord or plug
is damaged. Do not try to repair it yourself.
Contact Customer Support (see page 20).
To reduce the risk of fire, electric shock, or other injury, follow all instructions and
safety guidelines.
General Safety
• Keep the air purifier near the outlet it is
plugged into.
• Never place the cord near any heat source.
• Do not cover the cord with a rug, carpet, or
other covering. Do not place the cord under
furniture or appliances.
• Keep the cord out of areas where people
walk often. Place the cord where it will not be
tripped over.
Your Levoit air purifier complies with all
standards regarding electromagnetic fields
(EMF). If handled properly and according to the
instructions in this user manual, the appliance
is safe to use based on scientific evidence
available today.
Power & Cord
Electromagnetic Fields (EMF)
READ AND SAVE THESE
INSTRUCTIONS
• WARNING: To reduce the risk of fire or
electric shock, do not use this air purifier
with any solid-state speed controls (such as a
dimmer switch).
• Not for commercial use. Household use only.
EN
5

GETTING TO KNOW YOUR SMART
AIR PURIFIER
A. Fan Speed Indicators
B. Fan Speed Button
C. On/O Button
D. Sleep Mode Button
E. Timer Button
F. Timer Indicators
G. Wi-Fi Indicator
Back, upside downFront
H. Night Light Button
I. Display Lock Button
J. Check Filter Indicator
K. Display O Button
L. Air Outlet
M. Housing
N. Air Inlet
M
L
N
B
C
D
E
H
I
J
K
P
Q
A
F
G
O
O. Power Cord
P. Filter Cover
Q. True HEPA Filter
EN
6

CONTROLS
On/O Button
• Turns the air purifier on/o.
• Press and hold to configure
the air purifier. See the
VeSync in-app instructions
for more information.
Night Light Button
• Turns the night light on/o
(see page 10).
Wi-Fi Indicator
• Turns on, o, or blinks
to indicate configuration
status. See the VeSync
in-app instructions for more
information.
Display O Button
• Turns the display o (not
including the night light).
• Tap any button (except )
to turn the display back on.
Fan Speed Button
• Cycles through fan speeds:
I (low), II (medium), and
III (high).
• Tapping the Fan Speed
Button while the air purifier
is in Sleep Mode will exit
Sleep Mode.
Display Lock Button
• Prevents current settings
from being changed (see
page 10).
• Blinks when any other
button is tapped to indicate
that Display Lock is on.
Sleep Mode Button
• Turns Sleep Mode on (see
page 10).
• Press and hold for 3
seconds to reset the Check
Filter Indicator.
Check Filter Indicator
• Lights up when the filter
should be checked (see
Check Filter Indicator,
page 14).
• Reset the Check Filter
Indicator light by pressing
and holding the Sleep
Mode button for 3 seconds.
Timer Button
• Cycles through timer
options (see page 10).
EN
7

GETTING STARTED
1. Flip the air purifier over. Twist the filter
cover anticlockwise and remove it.
[Figure 1.1]
2. Remove the filter from its plastic
packaging and place the filter back into
the air purifier. [Figure 1.2]
3. Replace the filter cover and twist
clockwise to lock. [Figure 1.3]
Figure 1.1
Figure 1.2
Figure 1.4
Figure 1.3
4. Place the air purifier on a flat, stable
surface with the display facing up. Allow
at least 38 cm / 15 inches of clearance
on all sides of the air purifier. Keep away
from anything that would block airflow,
such as curtains. [Figure 1.4]
cover should
snap shut
38 cm /
15 in
38 cm /
15 in
EN
8

You can use the VeSync app to connect
your smart air purifier to Amazon Alexa or
Google Assistant™. Please follow the in-app
instructions to set up your voice assistant.
Note: You must create your own VeSync
account to access voice assistants.
VESYNC APP SETUP
CONNECT WITH
AMAZON ALEXA OR
GOOGLE ASSISTANT™
1. To download the VeSync app, scan
the QR code or search “VeSync” in the
Apple App Store® or Google Play Store.
2. Open the VeSync app. Log In or
Sign Up.
3. Follow the in-app instructions to set up
your smart air purifier.
USING YOUR SMART
AIR PURIFIER
1. Plug in and tap to turn on the air
purifier. The fan will start on level I.
[Figure 2.1]
2. Optionally, tap to change fan speed
between I, II, and III.
Note:
• The indicators are not buttons and cannot
be used to change the fan speed.
• The fan speed indicators will light up when
active.
• Fan speed III is the loudest, but cleans air
the quickest.
• For best results, or to address a specific
air quality issue such as smoke, run the air
purifier at high speed (level III) for 15–20
minutes before using a lower speed.
• To eectively clean air, keep windows and
doors closed while the air purifier is on.
3. Tap to turn o the air purifier.
Note: Using the VeSync app allows you to control
your air purifier remotely and access additional
functions and features.
Figure 2.1
General Operation
EN
9

Press any button (except ) to wake up the display.
Timer
You can manually set a timer for 2, 4, or 8
hours using the display buttons. You can
also set a timer for 1 to 24 hours through the
VeSync app.
1. Tap repeatedly to select a time. The
timer will start automatically.
Note:
• Tapping will exit Sleep Mode.
• You can still adjust the night light while the
air purifier is in Sleep Mode.
Note:
• The indicators are not buttons and cannot
be used to select a time.
• The timer indicators will light up blue when
active.
• indicator lights up when a timer is set
up through the app.
Note:
• You can change the fan speed at any time
while the timer is on.
• The timer will restart if the time is changed.
2. Once the timer has finished, the air
purifier will turn o.
3. To cancel a timer, tap until all timer
indicators are o.
USING YOUR SMART AIR PURIFIER CONT.
Sleep Mode
After you tap Sleep Mode, the display will be completely turned off within 6 seconds. And the air purifier operates quietly by using a fan speed lower than fan speed I.Night Light
You can choose between 2 night light
brightness levels, even when the air purifier
is turned o (as long as it is still plugged in).
1. Tap once to turn on the light.
2. Tap a second time to dim the brightness
to half.
3. Tap a third time to turn o the light.
Note: Turning o the display will not turn o
the night light.
Note: The memory function does not work
with timers or night light settings.
Display Lock
Locking the display prevents settings from
being accidentally changed. Buttons will not
respond to being tapped.
1. Press and hold for 3 seconds to
lock/unlock the display.
2. While the display is locked, will light
up. If other buttons are tapped, will
blink 3 times.
Memory Function
Even while turned o, as long as the air
purifier is plugged in, it will remember
its previous fan speed, Sleep Mode, and
Display Lock settings.
When unplugged, the air purifier will
remember the fan speed and Sleep Mode,
but not Display Lock or Display O.
EN
10

VESYNC APP
FUNCTIONS
The VeSync app allows you to access
additional smart air purifier functions,
including those listed below. As the app
develops, more features may become
available.
Remote Control
• Change any air purifier settings through
the app, even while the Display Lock is on.
Schedules
• Create and customise schedules for your
air purifier to match your routines.
Filter Replacement Info
• Keep tabs on remaining filter life by
checking the filter life percentage in
the app.
• Shop for replacement filters.
Timer Function
• Set a timer setting between 1 and 24
hours.
EN
11

ABOUT THE FILTER
The air purifier uses a 3-stage filtration system to purify air.
A. Nylon Pre-Filter
• Captures large particles such as
dust, lint, fibres, hair, and pet fur.
• Maximises the True HEPA Filter’s life
by protecting it.
B. H13 True HEPA Filter
• Captures at least 99.97% of airborne
particles 0.3 microns (µm) in size.
• Traps small particles such as mould
spores, fine dust, smoke particles,
bacteria and viruses*, and allergens
such as pollen, dust mites, and
pet dander.
C. High-Eciency Activated
Carbon Filter
• Physically adsorbs smoke, odours,
and fumes.
• Filters compounds such as
formaldehyde, benzene, ammonia,
hydrogen sulphide and volatile
organic compounds (VOCs).
A
B
C
*The H13 True HEPA Filter can remove most viruses and bacteria from the air, but cannot fully remove them from your
environment. Air purifiers cannot prevent an infected person from spreading an infection, and cannot remove bacteria and
viruses from surfaces. Please use this air purifier together with other precautions.
EN
12

Do not add essential oils to the air purifier
or filter. The filter will become damaged
by the oil and will eventually release an
unpleasant smell. Do not use diusers near
the air purifier.
Essential Oils
ABOUT THE FILTER CONT.
Moisture may damage the filters. This air
purifier should be used in an area with a
humidity level below 85% RH. If you use the
air purifier in excessively humid areas, the
surface of the filter will become mouldy.
Humidity
Note: Water or moisture will allow mould to
grow. To solve a mould problem, get rid of
the source of the moisture and clean up the
mould. Air purifiers cannot solve an existing
mould problem, only capture airborne mould
spores and reduce odours.
The air change rate is how many times
all of the air in a room can be purified (or
“changed”) by the air purifier in 1 hour. Air
changes per hour are calculated on the
recommended room size, assuming
2.4 m / 8 ft ceilings. For smaller rooms,
the air change per hour will increase. This
air purifier has an air change per hour of
2, which means it can change air 2 times
per hour at the max speed in a single,
closed room up to 35 m² / 376 ft². The air
purifier is eective for larger rooms, but air
purification will take longer, with fewer air
changes per hour.
This air purifier has a Clean Air Delivery
Rate of 110 cubic feet per minute (CFM), or
170 m³/h.
Clean Air Delivery Rate (CADR) measures
the eciency of an air purifier by indicating
the volume of clean air that it produces per
minute. This is based on removal of dust,
pollen, and smoke, which are the 3 most
common indoor air pollutants. The higher
the CADR, the more particles the air purifier
will remove and the larger the area it can
clean. The rating is measured at the air
purifier’s highest speed.
Air Change per Hour
Clean Air Delivery Rate
Note: To eectively clean air, keep windows
and doors closed while the air purifier is on.
EN
13

Note: You can also reset the Check Filter
Indicator in the VeSync app.
Note: When your air purifier is set up with
the VeSync app, you can also check the app
to see your remaining filter life. You will also
receive a notification from VeSync when it’s
time to check your filter.
Resetting the Check Filter
Indicator
Reset the Check Filter Indicator when:
A. lights up red.
1. Replace the filter (see page 15).
2. Turn on the air purifier.
3. Press and hold for 3 seconds.
will blink 3 times and turn o
once successfully reset.
B. The filter was changed before lit up.
3. Press and hold for 3 seconds.
will blink 3 times and turn o
once successfully reset.
will light up as a reminder to check the
filter. Depending on how often you use the
air purifier, the indicator should turn on within
6–8 months. You may not need to replace
your filter yet, but you should check it when
turns on.
Check Filter Indicator
The outer pre-filter should be cleaned
every 2–4 weeks to increase eciency
and extend the life of your filter. Clean the
pre-filter using a soft brush or vacuum hose
to remove hair, dust, and large particles.
Do not clean the filter with water or other
liquids. [Figure 3.1]
Cleaning the Filter
CARE & MAINTENANCE
Cleaning the Smart Air Purifier
• Unplug before cleaning.
• Wipe the outside of the air purifier with
a soft, dry cloth. If necessary, wipe
the housing with a damp cloth, then
immediately dry.
• Vacuum the inside of the air purifier.
• Do not clean with abrasive chemicals or
flammable cleaning agents.
Filter When to Clean How to Clean When to Replace
Nylon Pre-Filter Every 2–4 weeks Use a soft brush or
vacuum hose [Figure 3.1]
6–8 months
True HEPA & High-Eciency
Activated Carbon Filters Do not clean
Figure 3.1
EN
14

1. Unplug the air purifier. Flip the air purifier
over and remove the filter cover (see
Getting Started, page 8).
2. Remove the old filter.
3. Clean out any remaining dust or hair
inside the air purifier using a vacuum
hose. Do not use water or liquids to
clean the air purifier. [Figure 3.2]
4. Unwrap the new filter and place it into
the housing (see Getting Started,
page 8).
5. Replace the cover. Plug in the air purifier.
6. Reset the Check Filter Indicator (see
page 14).
Replacing the Filter
If not using the air purifier for an extended
period of time, wrap both the air purifier and
the filter in plastic packaging and store in a
dry place to avoid moisture damage.
Storage
Check the VeSync app to see your
remaining filter life.
The filter should be replaced every
6–8 months. You may need to replace
your filter sooner or later depending
on how often you use your air purifier.
Using your air purifier in an environment
with relatively high pollution may mean
you will need to replace the filter more
often, even if is o.
You may need to replace your filter if
you notice:
• Increased noise when the air
purifier is on
• Decreased airflow
• Unusual odours
• A visibly clogged filter
When Should I Replace the
Filter?
Note:
• To maintain the performance of your air
purifier, only use ocial Levoit filters. To
buy replacement filters, go to Amazon
and search B08H25J3J1.
CARE & MAINTENANCE CONT.
Figure 3.2
• Remember to reset after changing
the filter (see page 14).
EN
15

Problem Possible Solution
Air purifier will not turn
on or respond to button
controls.
Plug in the air purifier.
Check to see if the power cord is damaged. If so, stop using the
air purifier and contact Customer Support (see page 20).
Plug the air purifier into a dierent outlet.
The air purifier may be malfunctioning. Contact Customer
Support (see page 20).
Airflow is significantly
reduced.
Make sure the filter is removed from its packaging and properly
in place (see page 8).
Tap to increase the fan speed.
Make sure there are at least 38 cm / 15 inches of clearance on all
sides of the air purifier.
The pre-filter may be clogged by large particles, such as hair or
lint, blocking air flow. Clean the pre-filter (see page 14).
Replace the filter (see page 15).
Air purifier makes an
unusual noise while the
fan is on.
Make sure the filter is properly in place with plastic packaging
removed (see page 8).
Make sure the air purifier is operating on a hard, flat, level
surface.
Replace the filter (see page 15).
The air purifier may be damaged, or a foreign object may be
inside. Stop using the air purifier and contact Customer Support
(see page 20). Do not try to repair the air purifier.
Strange smell coming
from the purifier.
Clean the filter or replace if necessary.
Make sure not to use your air purifier in an area with high
humidity or while diusing essential oils.
TROUBLESHOOTING
EN
16

If your problem is not listed, please contact Customer Support (see page 20).
TROUBLESHOOTING CONT.
Problem Possible Solution
Poor air purification
quality.
Tap to increase the fan speed.
Make sure no objects are blocking the sides or top of the air
purifier (the inlet or outlet).
Make sure the filter is removed from its packaging and properly
in place (see page 8).
Close doors and windows while using the air purifier.
If the room is larger than 35 m² / 376 ft², air purification will take
longer. The air purifier may not be as eective in significantly
larger rooms.
Replace the filter (see page 15).
is still on after
replacing the filter. Reset the Check Filter Indicator (see page 14).
has not turned on
within 8 months.
is a reminder for you to check the filter and will light up based
on how long the air purifier has been used (see page 14). If
you don’t use your air purifier often, will take longer to turn
on.
turned on before 6
months.
is a reminder for you to check the filter and will light up based
on how long the air purifier has been used (see page 14). If
you run your air purifier frequently, will turn on sooner.
EN
17

VESYNC APP TROUBLESHOOTING
My smart air purifier isn’t connecting to the VeSync app.
• Make sure your phone has Bluetooth® turned on and is not currently connected to another
Bluetooth device.
• During the setup process, you must be on a secure 2.4GHz Wi-Fi network. Confirm that the
network is working correctly.
• Make sure the Wi-Fi password you entered is correct.
◦There should be no spaces at the beginning or end of the password.
◦Test the password by connecting a dierent electronic device to the router.
◦If you’re manually typing in the SSID and password, double check that both are entered
correctly.
• Try moving your air purifier closer to the router. Your phone should be as close as possible to
your air purifier.
• Your router may need to be at a higher location, away from obstructions.
• Make sure your air purifier and router are away from appliances (such as microwave ovens,
refrigerators, electronic devices, etc.) to avoid signal interference.
• If you’re using a VPN, make sure it’s turned o while setting up your air purifier.
• Disable portal authentication for your Wi-Fi network. If portal authentication is enabled, the air
purifier will not be able to access your Wi-Fi network, and setup will fail.
My air purifier is oine.
• Make sure the air purifier is plugged in and has power, then refresh the VeSync menu by
swiping down on the screen.
• Make sure your router is connected to the internet and your phone’s network connection is
working.
• Delete the oine air purifier from the VeSync app. Swipe left (iOS®) or press and hold
(Android™), then tap Delete.
• Reconfigure the air purifier with the VeSync app.
Note: Portal authentication means that you need to sign in to your Wi-Fi network through a
web page before you can use the Internet.
Note: Power outages, internet outages, or changing Wi-Fi routers may cause the air purifier
to go oine.
If your problem is not listed, please contact Customer Support (see page 20).
EN
18

ABOUT ENERGYRELATED PRODUCTS
The product, in accordance with the Eco-design Requirements for Energy Related Products
Directive 2009/125/EC, is in compliance with the following norm(s) or document(s): Regulation
(EC) NO. 1275/2008, as amended by Regulation (EU) No. 801/2013.
Required Power State Information Networked Standby
Power consumption in specified power mode, at
230V/50Hz input
≤ 2.0W
Time after which equipment is automatically
switched into mode
Immediately
Network port deactivation/activation procedures Disconnecting the Wi-Fi connection
will deactivate the Wi-Fi network.
Connecting the device to Wi-Fi will
activate the Wi-Fi network.
Networked Standby Mode: When the Wi-Fi network is activated, press and hold the on/o
button, and the device will immediately enter the networking standby state.
Terms & Policy
Arovast Corporation warrants all products to be
of the highest quality in material, craftsmanship,
and service for 2 years, eective from the date
of purchase to the end of the warranty period.
Warranty lengths may vary between product
categories.
If you have any questions or concerns about
your new product, please contact our helpful
Customer Support Team.

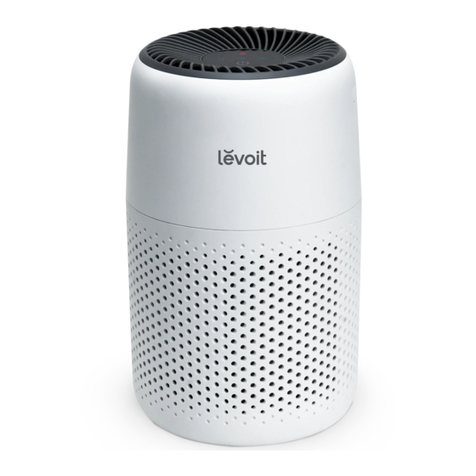

Product Name Smart True HEPA Air Purifier
Model Core 200S
For your own reference, we strongly recommend
that you record your order ID and date of purchase.
Date of Purchase
Order ID
WARRANTY INFORMATION
EN
19

CUSTOMER SUPPORT
Arovast Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
USA
Email: [email protected]
*Please have your order invoice and order ID
ready before contacting Customer Support.
Trademark Information
Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its aliates.
Google, Android, and Google Play are trademarks of Google LLC.
Apple App Store is a trademark of Apple Inc.
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Arovast Corporation is under license. Other trademarks and trade names are those of
their respective owners.
iOS is a registered trademark of Cisco Systems, Inc. and/or its aliates in the United States and certain
other countries.
EN
20
