Levoit LV-PUR131S User manual

1
Questions or Concerns?
[email protected]
Smart True HEPA Air Purifier
Model: LV-PUR131S
READ AND SAVE THESE INSTRUCTIONS

THANK YOU FOR PURCHASING
THE LVPUR131S SMART TRUE
HEPA AIR PURIFIER BY LEVOIT.
If you have any questions or concerns, please reach out to us at
[email protected]. We hope you enjoy your new air purifier!
SHARE THE LEVOIT LOVE
Find @LevoitLifestyle on social media for wellness + style
inspiration. We make every space mindful and chic.
@LevoitLifestyle
#LevoitLove • #LevoitLifestyle

3
TABLE OF CONTENTS
SPECIFICATIONS
Package Contents
Specifications
Safety Information
Getting to Know Your Air Purifier
LED Display
Controls
Getting Started
Using Your Purifier
·General Operation
·About the Filters
·VeSync App Setup
·Configuration
·Using the App
·Air Quality Indicator
·Timers
·Schedules
·Filter Settings
·Device Settings
·Share Devices
·Firmware Updates
·Deleting Your Air Purifier
·Resetting Your Air Purifier
Keeping Things Clean
·Cleaning the Air Purifier
·Check Filter Indicator
·Cleaning the Air Filters
·When Should I Replace the Air Filters?
·Replacing the Air Filters
·Resetting the Check Filter Indicator
·Cleaning the Dust Sensor Lens
·Storage
Troubleshooting
VeSync App Troubleshooting
Warranty Information
Customer Support
3
3
4
5
6
7
8
9
9
10
10
11
17
18
18
19
20
21
21
23
23
24
25
25
25
25
26
27
28
29
29
30
32
34
34
Power Supply AC 120V, 60Hz
Rated Power 40W
Eective Range ≤ 30 m² / 322 ft²
Operating
Conditions
-10°C–40°C / 14°F–104°F
Noise Level ≤ 52dB
Clean Air Delivery
Rate (CADR)
230 m³/h / 135 CFM
Standby Power < 0.8W
Dimensions 36.8 x 18.3 x 93.5 cm /
14.5 x 7.2 x 18.5 in
Weight 6.10 kg / 13.45 lb
PACKAGE CONTENTS
1 x Air Purifier
1 x Activated Carbon Filter (Pre-Installed)
1 x Preliminary/True HEPA Combination Filter (Pre-Installed)
1 x User Manual

4
SAFETY INFORMATION
• Only use your air purifier as described in this manual.
• Do not use your air purifier outdoors.
• Keep your air purifier away from water, and wet or damp areas.
Never place in water or other liquids.
• Keep the inside of the air purifier dry. To prevent moisture
buildup, avoid placing in rooms with major temperature changes
or underneath air conditioners.
• Keep your air purifier away from heat sources.
• Do not use where combustible gases, vapors, metallic dust,
aerosol (spray) products, or fumes from industrial oil are present.
• Keep 5 feet away from where oxygen is being administered.
• Supervise children when they are near the air purifier.
• Do not place anything into any opening on the air purifier,
unless directed by the manual.
• Do not sit or place heavy objects on the air purifier.
• Always unplug your air purifier before servicing (such as
changing air filters).
• Do not use your air purifier if it is damaged or not working
correctly, or if the cord or plug is damaged. Do not try to repair
it yourself. Contact Customer Support (see page 34).
• WARNING: Do not use this air purifier with solid-state speed
controls (such as a dimmer switch).
• Not for commercial use. Household use only.
• Keep the air purifier near the outlet it is plugged into.
• Never place the cord near any heat source.
• Do not cover the cord with a rug, carpet, or other covering. Do
not place the cord under furniture or appliances.
• Keep the cord out of areas where people often walk. Place the
cord where it will not be tripped over.
To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.
General Safety Plug and Cord
READ AND
SAVE THESE
INSTRUCTIONS

5
GETTING TO KNOW YOUR AIR PURIFIER
A. LED Display
B. Touch-Control Panel
C. Dust Sensor Lens
D. Dust Sensor Cover
E. Filter Indicator Reset Button
F. Button Vent
G. Housing
H. Safety Switch
I. Activated Carbon Filter
J. True HEPA Filter
K. Fine Preliminary Filter
L. Back Cover
AB
C D
G
I
H
J K
L
FE
Back Front

6
LED DISPLAY
A
D
E
G
H
F
C
A. On/O Indicator
B. WiFi Indicator
C. Check Filter Indicator
D. Timer Display
E. Air Quality Indicator
F. Auto Mode Indicator
G. Sleep Mode Indicator
H. Fan Speed Indicators
B

7
CONTROLS
On/O Button
• Turns the air purifier on or o.
• Press and hold for 5 seconds to put the air
purifier into Configuration Mode.
• Press and hold for 15 seconds to reset to
original settings.
WiFi Indicator
Sleep Mode Button
• Turns Sleep Mode on or o
(see page 9).
Air Quality Indicator
• Displays air quality using the dust sensor inside the air
purifier.
• It may take up to 1 minute to detect air quality.
Display O Button
• Turns the display o.
• Press any button (except ) to turn the
display back on.
Auto Button
• Turns Auto Mode on or o
(see page 9).
Air Quality Indicator Chart
Colour Air Quality
Red Bad
Yellow Moderate
Green Good
Blue Very Good
WiFi Indicator Status
is o Air purifier is not configured with the
VeSync app. To configure, see page 11.
blinks 1 time
per second
Air purifier is in Configuration Mode (see
page 11).
blinks 4 times
per second
Air purifier has been hard reset
(see page 24).
blinks 2 times
per 5 seconds Air purifier cannot connect with router.
blinks 1 time
per 5 seconds
Air purifier has connected with router
successfully, but the router can not
connect to the VeSync server.
is on and not
blinking
Configuration with the VeSync app is
complete.
Fan Speed Button
• Cycles through fan speeds: low,
medium, and high.
• The fan speed cannot be changed
during Auto or Sleep Modes.
Timer Button
• Sets or cancels a timer
(see page 9).

8
GETTING STARTED
1st
2nd
3rd
Carbon
Filter
HEPA
Filter
1. Open the back cover of the air purifier and remove both
filters from their plastic packaging. [Figure 1.1]
Figure 1.1
Figure 1.3
Figure 1.4
Figure 1.5
Figure 1.6
foam piece
Figure 1.2
Note: Do not remove the foam piece attached to the dust sensor
cover unless instructed by Customer Support. [Figure 1.6]
2. First, place the Activated Carbon Filter back into the
air purifier. Then, place the Preliminary/True HEPA
Combination Filter. Make sure the pull tabs on both
filters are facing out. [Figure 1.2]
3. Replace the back cover by lining up the cover’s feet
with the matching slots on the bottom of the housing.
Make sure that the triangular piece at the bottom of the
cover is touching the safety switch. [Figure 1.3]
4. Push the cover closed. [Figure 1.4]
5. Place the air purifier on a hard, flat surface. [Figure 1.5]
Leave 38 cm (15 in) of clearance on all sides of the purifier.

9
Auto Mode uses the sensor inside the air purifier to adjust
the fan speed automatically based on air quality. For
example, if the air quality is bad, the fan will automatically be
set to high speed. See chart below.
General Operation
Auto Mode
USING YOUR PURIFIER
1. Press to turn the air purifier on/o. The air purifier
fan will start automatically at low speed.
2. Optionally, press to increase fan speed. You can
also select Auto or Sleep Mode, or set a timer.
• Press to turn Auto Mode on/o.
• Pressing or will also exit Auto Mode.
Note:
• For best results, run the air purifier at maximum
speed for 15–20 minutes before using a lower
speed or Auto Mode.
• To eectively clean air, keep windows closed while
the air purifier is operating.
Auto Mode Chart
Colour Air Quality Fan Speed
Red Bad High
Yellow Moderate Medium
Green Good Low
Blue Very Good Sleep Mode
Sleep Mode uses the lowest possible fan speed to maintain
a quiet environment.
When the air purifier is plugged in, it will remember its
programmed settings when turned o, and will resume
these settings when turned back on.
You can set a timer between 1 and 12 hours.
As a safety feature, the air purifier will automatically turn o
if the back cover is removed.
Sleep Mode
Memory Function
Timer
Automatic Shuto
• Press to turn Sleep Mode on/o.
• Pressing or will also exit Sleep Mode.
1. Press repeatedly to choose a time in increments of
1 hour. When you stop pressing , the display will flash
3 times and the timer will start.
2. The air purifier will automatically power o once the
timer is finished.
3. To cancel a timer, press repeatedly until the display
reads “-:--” and flashes 3 times.

10
VeSync App SetupAbout the Filters
Figure 2.1
Note: You must create your own VeSync account to use third-
party services and products, such as the Amazon® Echo™ and
Google Home™. These will not work with the guest account.
With a VeSync account, you can also allow your family and
friends to use your air purifier.
Note: Due to continuing updates and improvements, the VeSync
app may appear slightly dierent.
Note: For Android™ users, choose “Allow” (when prompted) to
use VeSync.
Available on the
App Store
GET IT ON
Google Play
1. To download the VeSync app, scan the QR code or
search “VeSync” in the Apple App Store® or Google
Play™ Store. [Figure 2.1]
A. Fine Preliminary Filter
• Captures large particles such as dust, lint, fibers,
hair, and pet fur.
• Maximizes the life of the True HEPA Filter by
protecting it.
B. True HEPA Filter
• Removes at least 99.97% of airborne particles 0.3
micrometers (µm) in diameter.
• Filters small particles such as smoke, dust, mold
spores, and allergens such as pollen, dander, and
mites.
C. High-Eciency Activated Carbon Filter
• Physically absorbs unwanted odors and fumes.
• Filters compounds such as formaldehyde,
benzene, ammonia, hydrogen sulfide, and volatile
organic compounds (VOCs).
2. Open the VeSync app. If you already have an account,
tap Log In. To create a new account, tap Sign Up.
This air purifier uses a 3-stage filtration system to purify air.
Back
Front
A B C

11
Configuration
Note: Make sure your phone is connected to a secure 2.4GHz WiFi
network. The air purifier can only be set up on a secure 2.4GHz
network.

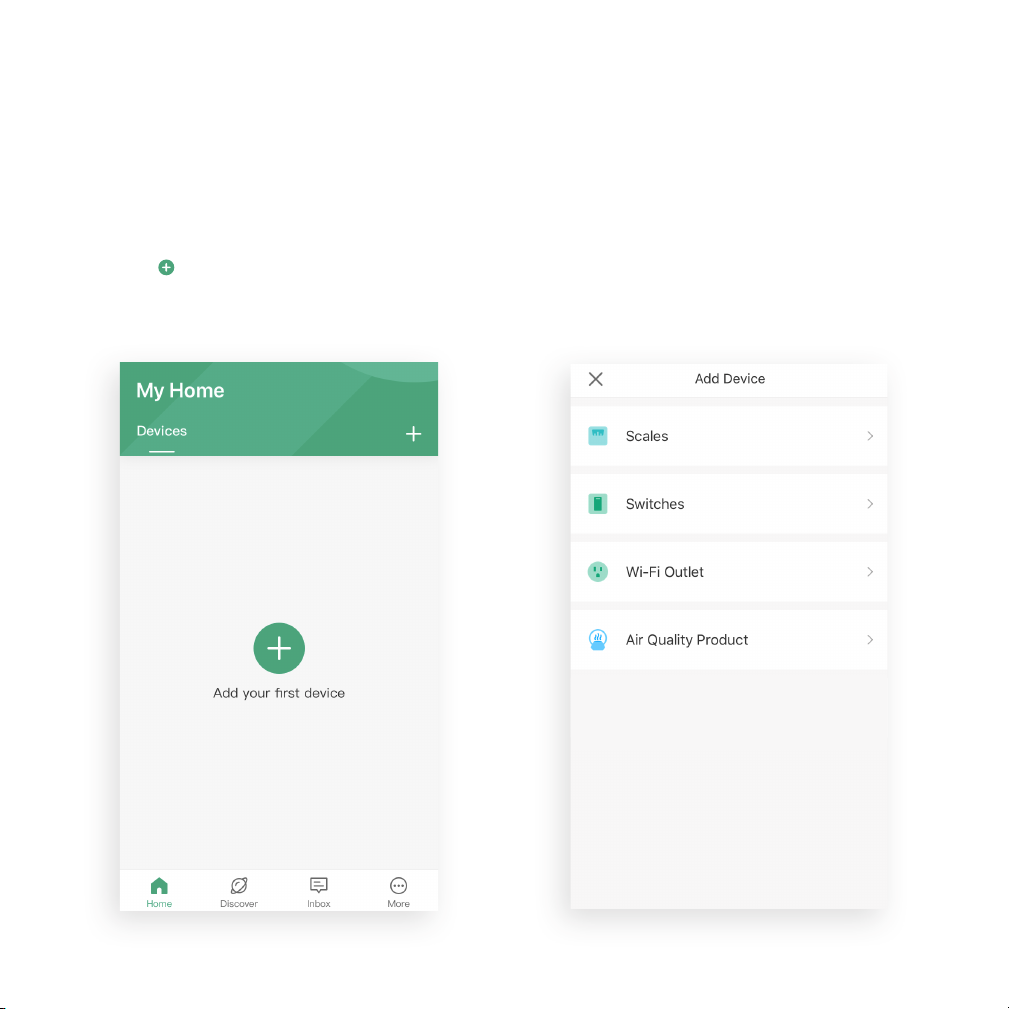

1. Tap the button to add your air purifier.
Set up your air purifier with the VeSync app.
2. Tap Air Quality Product.

12
4. Tap Start Setup.3. Select the Levoit 131 Air Purifier (LV-PUR131S).

13
5. Turn on the air purifier by pressing once.
The LED indicator light should blink blue (1 blink per second),
indicating that your air purifier is in Configuration Mode.
A. If the LED indicator light is blinking, tap Next.
B. If the LED indicator light is not blinking, tap
My LED light is not blinking. Press and hold the
power button for 5 seconds, until the LED indicator
light blinks blue (1 blink per second). Then tap It
Started Blinking.
Note: Configuration Mode will turn o after 10 minutes.
A
B

14

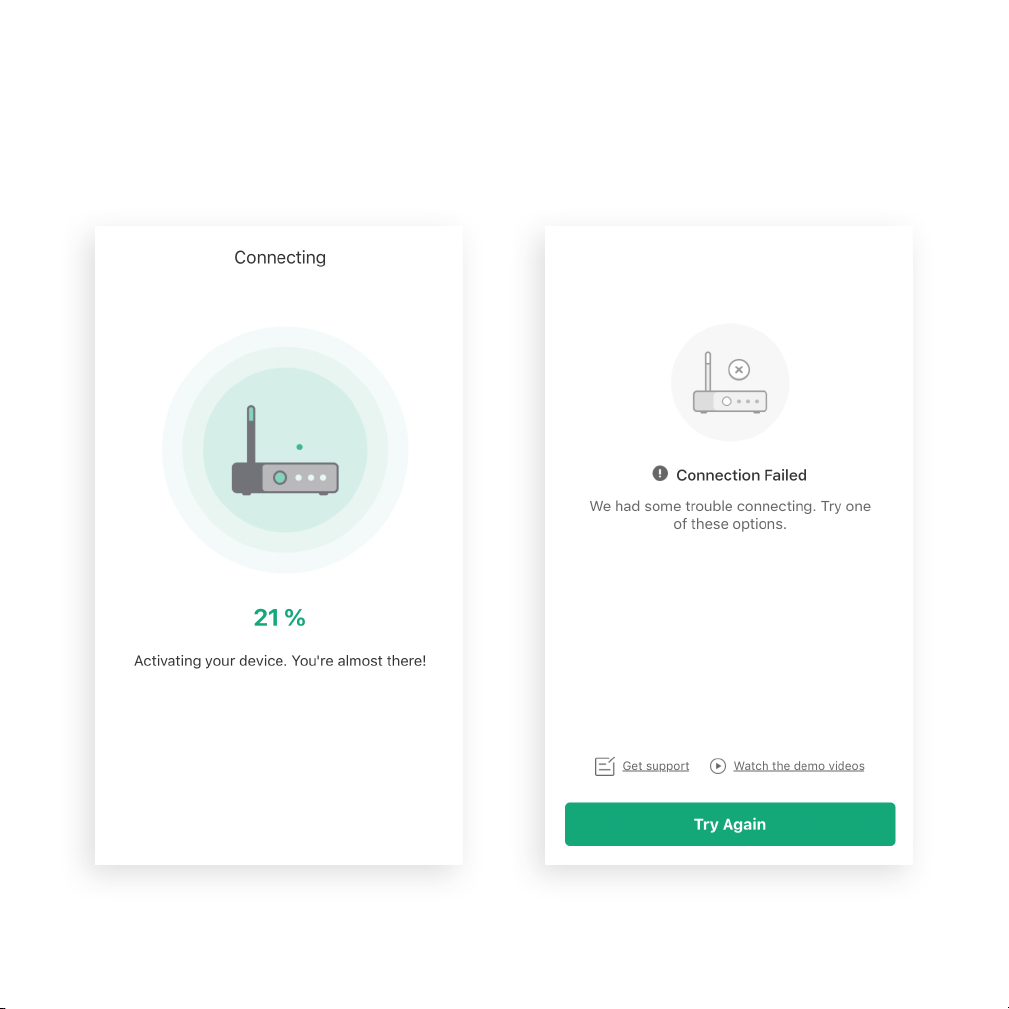

6. Follow the in-app instructions to connect to WiFi. Note:
• When prompted, you will need to connect to the air
purifier’s “VeSync” access point (device hotspot).
This will appear in your WiFi network list.
• Your phone may not be able to access the internet
while connecting. This is normal and temporary.

15
7. Wait for the app to connect. This may take up to 90
seconds.
8. If you can’t connect, tap Get Support,Watch the demo
videos, or Try Again.

16

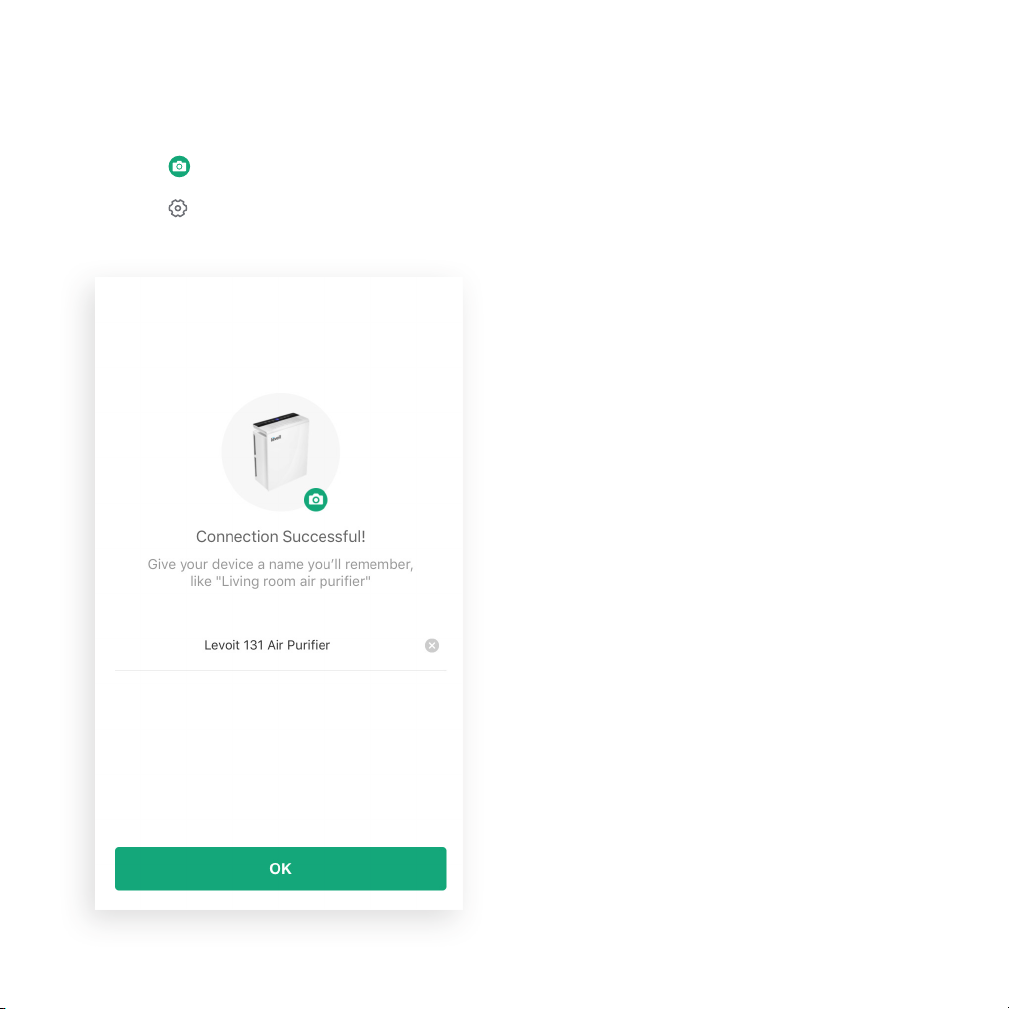

9. You’ve completed setup! Give your air purifier a unique
name, or simply use the default name.
NOTE:
• Tap to change the air purifier icon.
• You can change the name and icon at any time.
Tap , then tap Device Settings.

17
Using the App
• From the “My Home” screen, tap on the air purifier
name to view device options and details.
• You can also tap to turn the air purifier on and o.
A. Tap to turn the air purifier on or o.
B. Tap to turn the air purifier’s display on or o.
C. Tap to turn Sleep Mode on or o (see page 9).
D. Tap Create schedule to create or cancel a schedule (see page 19).
E. Tap to turn Auto Mode on or o (see page 9).
F. Tap Low, Med, or High to select the fan speed.
G. Tap Add timer to set or cancel a timer (see page 18).
H. Tap Filter Life to see filter options and details (see page 20).
I. Tap to see Device Settings (see page 21).
A C
D
G
H
I
E F
B

18
Air Quality Indicator Timers
The colour of the main screen will change according to
the air quality, and when in Sleep Mode.
1. Tap Add timer.
2. Select a number of hours for the timer to run.
Tap to save.
3. To cancel a timer, scroll to the top and select O.

19
3. Optionally, choose if you want the schedule to repeat,
the mode (see chart), and whether to have the display
on or o.
4. Tap to save and close.
Mode Chart
Auto Mode (see page 9)
Low Fan Speed
Medium Fan Speed
High Fan Speed
Sleep Mode (see page 9)

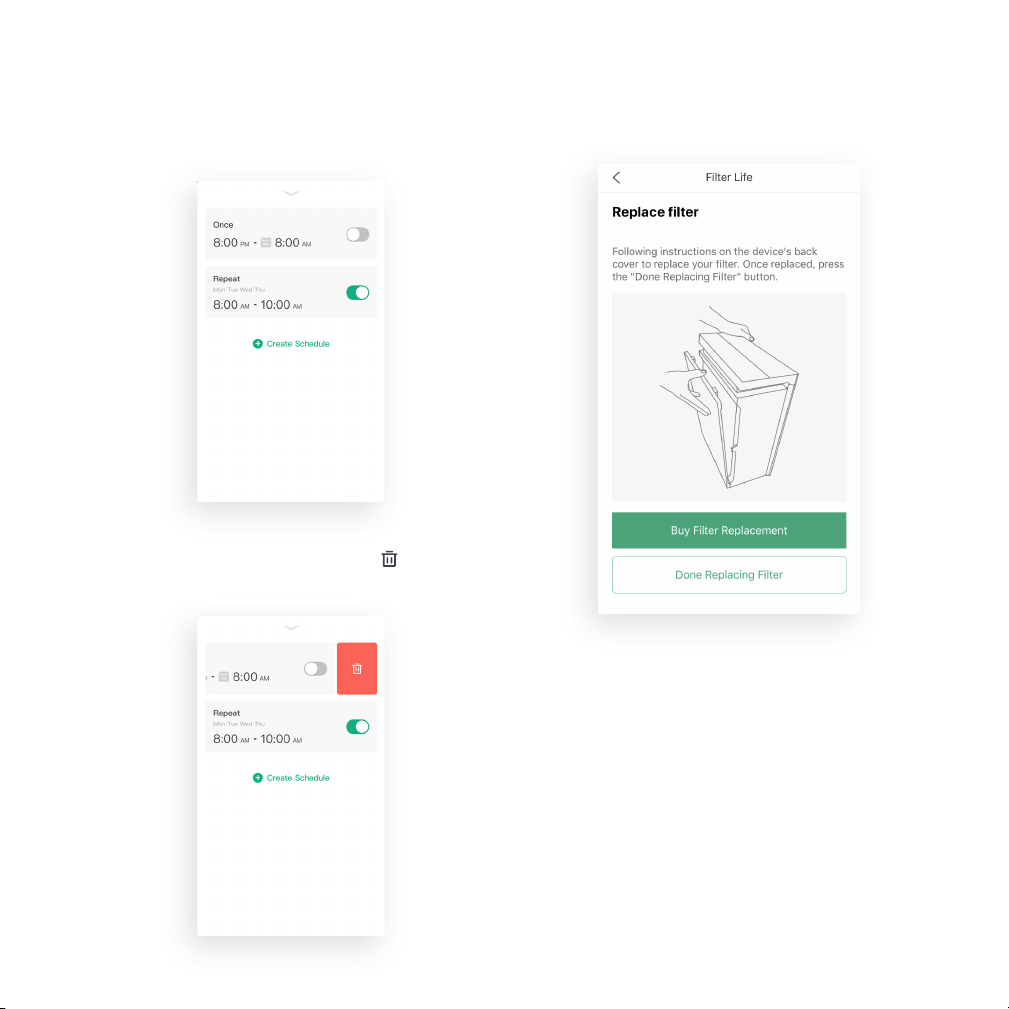

Schedules
1. Tap Create schedule. Then, tap Start to set a start time,
and End to set an end time.
2. Tap when you are done.

20
Filter Settings
5. Tap on any schedule to edit it.
6. To delete a schedule, swipe left and tap , or tap on
a schedule and then tap Delete at the bottom of the
screen.
• If you need a new filter, tap Buy Filter Replacement to
see buying options.
• Tap Done Replacing Filter after you’ve replaced your
filter (see page 27).
