Remote Control Buttons
BACK
Battery
Compartment
Reset
Button
Button Key Symbol Function LED Light Color
All all Select all groups
of blinds at once
Groupings 1 ,2, 3,
4, 5, 6
Controls Groups
of Blinds
Blue LED
Indicator Light
Favorite ♥Moves blind to preset
favorite position
Open Tilts slats to open
at 50% position
Down Arrow Tilts slats to open
at 50% position
Stop Press and hold for
programming mode
Left Arrow Tilts slats down to
closed position
Right Arrow Tilts slats up to
closed position
Programming
Light
White LED
Indicator Light
All Favorite
Indicator
Light
Groupings
Groupings
Function
Arrows
FRONT
Programming
Light
Stop
Remote Control Guide Remote Control Guide
Table of Contents
© 2019 LEVOLOR®, Inc.
Thank you for purchasing a LEVOLOR® motorized wood
blind. This guide will help you set up and operate your new
remote control and help you understand all functions
and capabilities, allowing you to make the most of your new
window coverings.
Table of Contents
Remote Control Buttons ...................................................3
Explanation of Functions .............................................4–6
Groups ...........................................................................4
Favorites ........................................................................5
More than One Remote ................................................5
Travel Limit/Stops ........................................................5
Manual Control Button .................................................6
Remote Reset Button ...................................................6
LEVOLOR App Overview ....................................................7
Getting Started ..................................................................8
Battery Placement .......................................................8
Tools Needed ................................................................8
Mounting Instructions ..................................................8
Activating and Operating ........................................... 9–10
Join a Blind to a GROUP ...............................................9
Set a FAVORITE Position ....................................... 9–10
Operating Blinds .........................................................10
Additional Programming ........................................... 11–12
Remove a Blind from a GROUP ..................................11
Create a Duplicate Remote ........................................12
Reset Window Covering / Remote ................................13
Reset Blind Programming .......................................... 13
Reset Travel Limits ......................................................13
Reset Remote .............................................................13
Battery Replacement ...................................................... 14
Trouble Shooting ..............................................................15
Radio Frequency Compliance ..................................16–17
Warranty ............................................................................ 17
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 2-3 3/6/19 10:51 AM

4 5

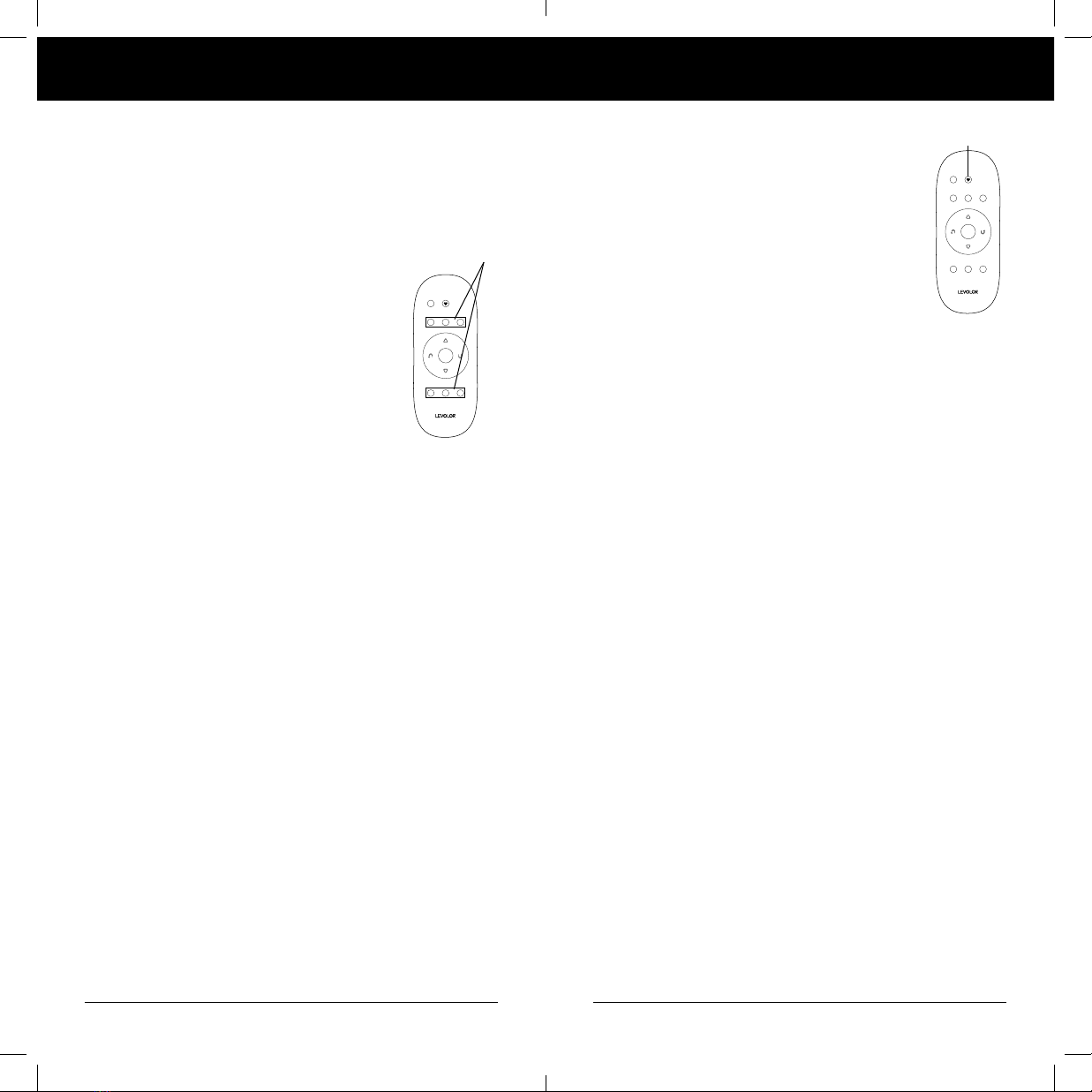

Explanation of Functions Explanation of Functions
ALL
1 2 3
4 5 6
ALL
1 2 3
4 5 6
GROUP Buttons
FAVORITES Button
Remote Control Guide Remote Control Guide
FAVORITES
Setting FAVORITES stores a preferred position
for each individual blind, and recalls stored
position when the FAVORITES button is selected.
(FAVORITES button is designated by the heart
♥ symbol.) Each blind can have ONLY ONE
FAVORITE position. Upon arrival, each of your
blinds will be set to the default FAVORITE position,
which is slats tilted up at a 45 degree angle. You can
re-program each blind to your FAVORITE position.
NOTE: the FAVORITE position for a given blind is stored in the
blind itself. The favorite position is always the same regardless
of which GROUP or GROUPS the blind is assigned to or which
remote you use. If you set a FAVORITE with one remote on one
blind, and then overwrite it with another FAVORITE position
with a different remote, you will only have the FAVORITE as set
by the last remote. From now on, any remotes programmed
to that blind will trigger the same FAVORITE position.
See page 9 “SET A FAVORITE POSITION” or download the
LEVOLOR App, which will easily walk you through the process.
MORE THAN ONE REMOTE
Each motorized blind can be ordered with or without a remote.
If you choose to have multiple remotes, set up the first remote
by using the LEVOLOR App or begin with the instructions on
page 9 “JOIN A BLIND TO A GROUP.” When setting up a second
remote, begin with the instructions on page 12 “CREATING A
DUPLICATE OR SECOND REMOTE.”
TRAVEL LIMIT/STOPS
The points at which a slat stops along its travels. The slats
should travel from fully closed tilted down, to fully closed
tilted up. If the slats do not travel as expected, these limits
can be adjusted by resetting the blind travel limits.
See page 13 for instructions on “RESETTING TRAVEL LIMITS”.
Once your remote is programmed, you will be able to
operate and control the position and adjustment of
your new blinds with a touch of a button.
By setting up GROUPS and FAVORITES you will be able to
perform all functions.
GROUPS
Joining a blind to a GROUP is what connects
a blind to an individual remote and allows the
remote to communicate with the blind, so
the blind will follow the remote's commands.
A blind will not operate with the remote,
unless it is assigned to a GROUP.
Each LEVOLOR® remote offers 6 GROUP
assignments, designated by buttons
numbered 1, 2, 3, 4, 5 and 6 on the remote.
A GROUP can consist of a single blind, or be comprised of
multiple blinds, assigned to that particular GROUP button.
Blinds assigned to the same GROUP, will operate at the same
time, when functions are selected on the remote. There is no
limit to the number of blinds you can assign to a given GROUP.
If you want a blind to operate independently of other blinds, it
must be added to a GROUP of its own.
A blind can be added to more than one GROUP on the same
remote (or separate remotes).
Once the blinds have been joined to a GROUP, the remote will
operate your blind.
See page 9 “JOIN A BLIND TO A GROUP” or download the
LEVOLOR App, which will easily walk you through the process.
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 4-5 3/6/19 10:51 AM

6 7
Explanation of Functions LEVOLOR App Overview
LEVOLOR® APP OVERVIEW
Unlock your blinds' full potential; download the LEVOLOR
App for advanced controls and easy 3 Step Set-Up Guide.
Easily organize and control all of your motorized LEVOLOR
products by pairing your remote(s) to the LEVOLOR App.
The app’s advanced controls allow you to adjust your window
coverings, create favorite preset positions, and program your
blinds to run automatically on a timed schedule.
Download the app to your mobile device from the Google Play
or Apple App Store. The LEVOLOR App is compatible with
Android (version 5.1 or newer) and Apple iOS (version 11.0
or newer).
The app is powered by Bluetooth connectivity, which allows
your iOS and Android devices to control your window cover-
ings wirelessly over short distances. Both your mobile device
and remote must be within range of your window covering(s)
in order to control them using the app and to create or edit a
preset schedule or Favorite.
NOTE: Your mobile device ONLY needs to be within range
of the remote and the window covering in order to create
or edit a schedule. The window covering will then auto-
matically run according to the programmed schedule
regardless of the location of your mobile device as long
as the remote is within range.
Remote Control Guide Remote Control Guide

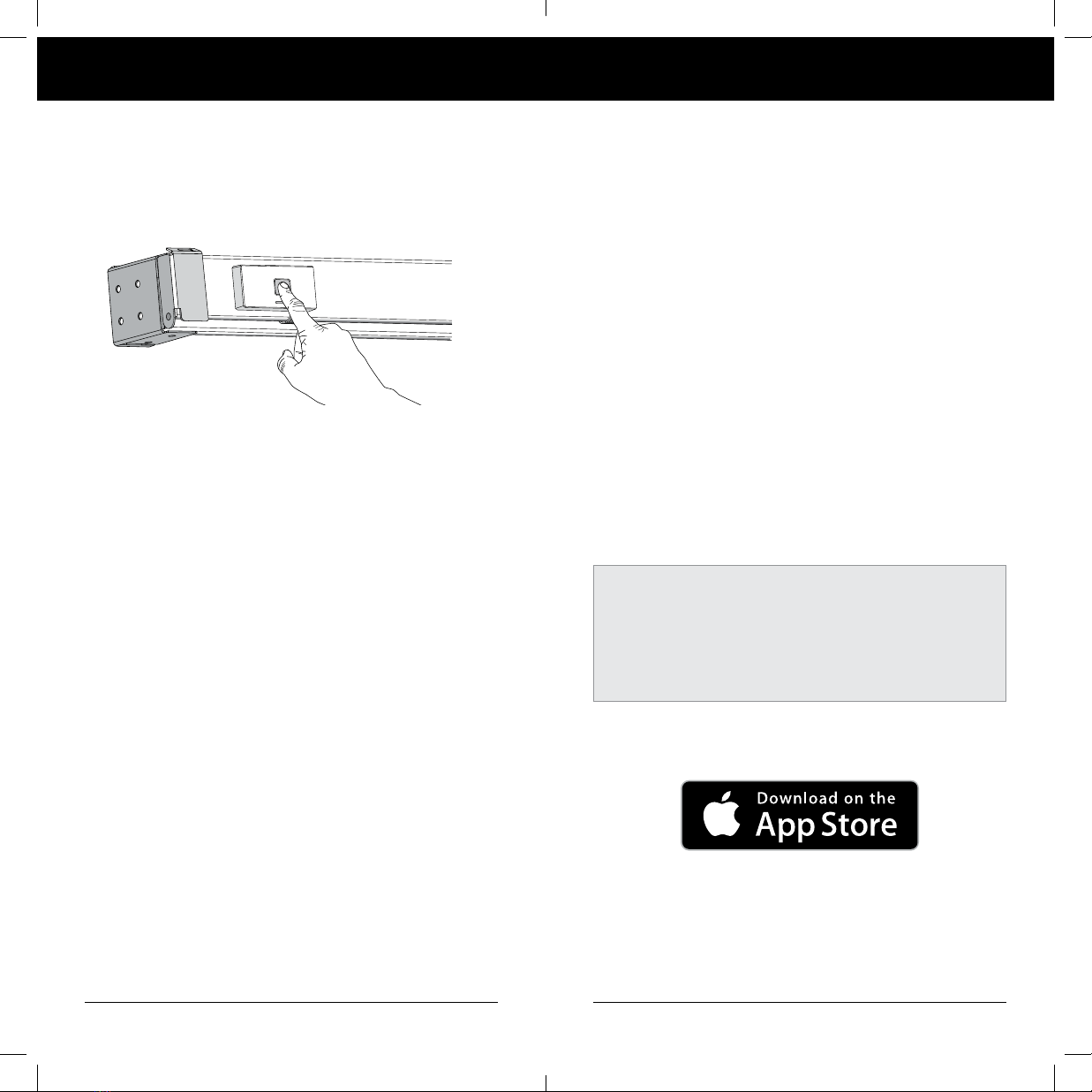

MANUAL CONTROL BUTTON
A manual control button is located on the motor side of the
headrail. This button can control the blind without the remote.
This button is also used to program the LEVOLOR App and
your remote.
REMOTE RESET BUTTON
A small recessed button located under the battery
compartment cover on the back of the remote. This
is used when creating a duplicate remote and/or
resetting the remote.
or GET IT ON Google Play.
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 6-7 3/6/19 10:51 AM

8 9
Getting Started
Remote Control Guide Remote Control Guide
Activating and Operating

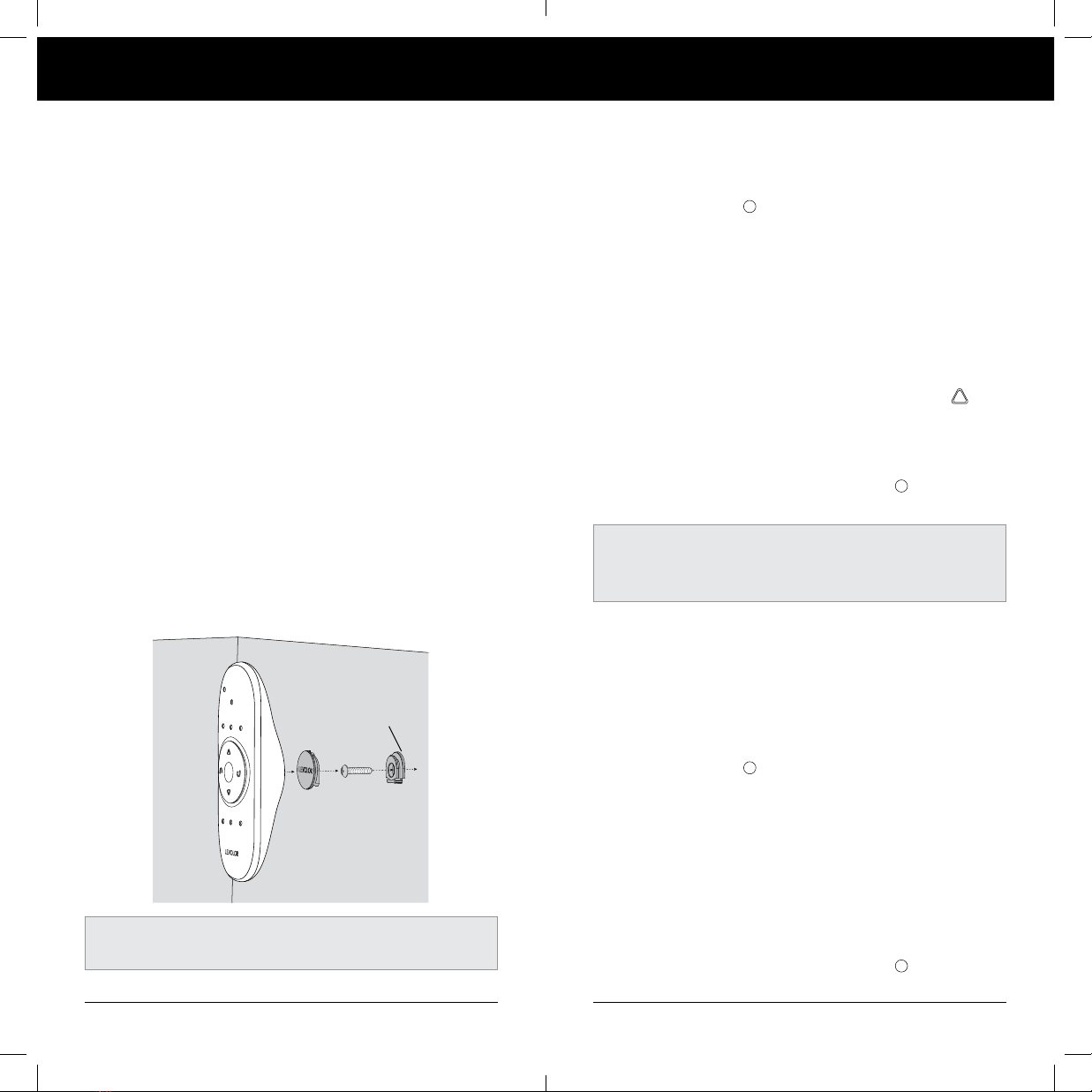

BATTERY PLACEMENT
1. Remove the back cover, to expose the battery
compartment.
2. Use two new AAA Alkaline batteries (provided).
Slide a battery into each compartment being
sure to align correct positive and negative ends
and press into place.
3. Replace the back cover.
TOOLS NEEDED TO MOUNT REMOTE HOLDER
— Power drill — 3⁄32” drill bit
— Phillips screwdriver — Pencil
— Drywall anchors, if mounted into drywall (not provided).
MOUNTING INSTRUCTIONS
1. Choose a location to mount the remote holder.
2. Orient the remote holder on the wall. Mark
screw holes.
3. If you are mounting the remote holder onto wood,
use a 3⁄32” drill bit to drill the screw holes.
4. Attach the remote holder to the wall using the
screws provided.
5. Gently push the remote into the remote holder
until it is snug.
NOTE: If you are mounting the Remote Holder onto
drywall, use drywall anchors.
JOIN A BLIND TO A GROUP
NOTE: The LEVOLOR® remote will not operate a blind until
the blind has been added to a GROUP.
1. Press and hold STOP until the WHITE programming
light starts flashing, then release. This puts the remote
in program mode.
2. Press the desired GROUP number (1, 2, 3, 4, 5 or 6) on
the remote. The BLUE GROUP indicator light above
the GROUP button will flash to show it is selected.
3. With one hand press and continue to hold the
manual control button located on the headrail.
4. While continuing to hold down the manual control
button, use your other hand to press and hold
OPEN on the remote until the blind moves slightly to
indicate it has been joined to the GROUP.
5. Release both buttons.
6. To exit program mode press and hold STOP until
the lights stop flashing.
SET A FAVORITE POSITION
Each blind has one FAVORITE position. Default setting is slats
tilted up at a 45 degree angle. Setting a new FAVORITE position
overwrites any previous setting.
1. Using the manual control button headrail physically
tilt slats open or closed to the preferred FAVORITES
position.
2. Press and hold STOP until the WHITE programming
light starts flashing, then release. This puts the remote
in program mode.
3. With one hand press and continue to hold the
manual control button.
4. While continuing to hold down the manual control
button, use your other hand to press and hold ♥
FAVORITE on the remote until the slats move slightly
to indicate it has set this position as your FAVORITE.
5. Release both buttons.
6. To exit program mode press and hold STOP until
the lights stop flashing.
NOTE: It is recommended that only similar window
coverings be included in a GROUP because of differences
in product features and operation.
Curved edge
should be on top
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 8-9 3/6/19 10:51 AM

10 11
Activating and Operating Additional Programming
Remote Control Guide Remote Control Guide
OPERATING BLINDS
Once the blinds have been joined to a GROUP or multiple
GROUPS, the remote is ready to operate the blind(s). Multiple
window coverings can be operated at the same time.
1. To wake up the remote press STOP. The BLUE
indicator light from the last GROUP(S) selected
will be highlighted and active.
2. Press ALL or GROUP 1, 2, 3, 4 ,5 or 6 button(s) to
select specific window covering(s) to operate. The
selected GROUP(S) BLUE indicator light above the
number will light to show they are selected.
3. Multiple GROUP buttons may be selected at the
same time.
4. To deselect a GROUP, press the GROUP button again.
The BLUE indicator light above the GROUP button
will go out.
5. Press UP ARROW to tilt the slats fully open on
the selected blind(s).
6. Pressing the DOWN ARROW also tilts the slats to
the fully open position on the selected blind(s).
7. Press the RIGHT ARROW to tilt the slats in an
upward direction.
8. Press the LEFT ARROW to tilt the slats in a
downward direction.
9. Press STOP to stop slat movement anywhere along
its travel path.
10. While the slats are in motion, press the opposite
of its motion ( UP ARROW or DOWN ARROW)
to reverse direction.
11. Press ♥ FAVORITE and the slats will move to your
preset FAVORITE position.
REMOVE A BLIND FROM A GROUP
1. Press and hold STOP until the WHITE programming
light starts flashing, then release. This puts the remote
in program mode.
2. Press the desired GROUP number (1, 2, 3, 4, 5, or 6)
on the remote. The BLUE GROUP indicator light above
the GROUP number will flash to show it is selected.
3. With one hand press and continue to hold the
manual control button.
4. While continuing to hold down the manual control but-
ton, press and hold DOWN ARROW on the remote
until the blind moves slightly to indicate it has been
removed from the GROUP.
5. Release both buttons.
6. To exit program mode press and hold STOP until
the lights stop flashing.
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 10-11 3/6/19 10:51 AM

12 13
Additional Programming Reset Window Covering / Remote
Remote Control Guide Remote Control Guide
CREATING A DUPLICATE REMOTE
A duplicate remote will operate the same set of blind(s) and
GROUPS as the original remote.
1. Remove the back cover from the new remote.
2. Using a paper clip, press and hold the recessed reset
button until the BLUE GROUP indicator lights double
flash followed by a triple flash, making a total of five
flashes. Note there will be a delay between the double
flash and the triple flash. Replace the back cover.
3. Press and hold STOP on the original remote until
the WHITE programming light starts flashing, then
release. This puts the remote in program mode.
4. With one hand press and hold the ALL button on the
new remote.
5. While continuing to hold down the ALL button press
and release STOP on the original remote.
6. All of the BLUE GROUP indicator lights on the duplicate
remote will flash twice to indicate all of the information
from the original remote has been copied.
7. To exit program mode press and hold STOP until the
lights stop flashing.
NOTE: Without any additional programming, this remote
will now operate the same set of window coverings and
GROUPS as the original remote OR use the instructions
on page 9 to “JOIN A BLIND GROUP” to program the
second remote differently from the original to control a
different set of blinds and/or different GROUPS.
RESET BLIND PROGRAMMING
This reset erases all programming stored in the window
covering, including GROUP assignments, preventing any
remote from operating the blind. Reset blind program is used
during installation to correct GROUP assignments.
Note: This reset does not affect travel limits.
1. Press and hold the manual control button. Continue to
hold the manual control button until the blind moves
slightly up and down TWO times. This indicates the
programming has been reset.
2. Release the manual control button.
3. Refer to “JOIN A WINDOW COVERING TO A GROUP” on
page 9, to program the window covering to a group.
RESET TRAVEL LIMITS
1. Press and hold the manual control button, until the
slats move slightly up and down. This indicates that
the limits have been reset.
2. Release the manual control button.
3. The slats will now move on their own to set both the
top and bottom motor limits. Once this process is
done, the blind will move briefly in both directions.
RESET REMOTE
Removes any connections previously programmed between
the remote and any blinds.
• Using a paper clip, BRIEFLY press the remote
reset button.
Previously paired blind(s) will no longer operate with this remote.
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 12-13 3/6/19 10:51 AM

14 15
Battery Replacement Trouble Shooting
Remote Control Guide Remote Control Guide
BATTERY REPLACEMENT
Replacing the batteries in the remote will not cause the loss
of any programming, including GROUPS and FAVORITE. The
remote uses two Alkaline AAA batteries.
To replace the batteries in the remote:
1. Slide open back of battery compartment.
2. Gently lift and remove the old batteries. To remove
batteries use a small screwdriver or fingernail to lift
battery and remove from slot.
3. Insert new batteries, be sure to align correct positive
and negative ends and press into place.
4. Align and replace the back cover onto the backside
of the remote.
TROUBLE SHOOTING
NOTE: When the slats start moving slowly, the batteries
in the battery pack may need to be replaced. More than
likely the batteries in the remote are just fine.
STANDARD BATTERY PACK
The standard power source provided with the LEVOLOR®
motorized operating system. The battery pack is a tube of
batteries that is connected to and is installed behind the
headrail to supply power to the blind, allowing
it to link and function with the remote.
SATELLITE BATTERY PACK
An optional power source that allows the battery pack to be
mounted to the valance, next to molding or under the sill. It is
the best choice when the window covering is mounted in a high
window, restricting access to the battery pack.
Problem Blind does not operate with the remote
control.
Solution Make sure the Indicator light on the remote
control comes on when you try to operate the
blind. If the Indicator light does not come on,
replace the batteries in your remote control.
Note: The blind can still operate using the
manual control button on the headrail. If
the blind doesn’t operate with the manual
control button, make sure it has power. If
the blind does not have power replace the
batteries on the standard battery pack or
the satellite battery pack.
Problem The slats do not open or close fully or as an
intermediate stop that is no longer wanted.
Solution Make sure the operation of the blind is not
obstructed. Reset the blind as described
in “RESET BLIND PROGRAMMING” on
page 13.
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 14-15 3/6/19 10:51 AM

16 17
Compliance / Warranty Compliance / Warranty
Remote Control Guide Remote Control Guide
U.S. RADIO FREQUENCY FCC
COMPLIANCE STATEMENT
U.S. Radio Frequency FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accord-
ance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
INDUSTRY CANADA
Under Industry Canada regulations, this radio transmitter
may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the
equivalent isotopically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
This device complies with Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
Class B Digital Device Notice
This Class B digital apparatus complies with Canadian
ICES-003, RSS-Gen and RSS-210.
WARRANTY
For warranty information visit Levolor.com or contact customer
service at 1-800-538-6567
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 16-17 3/6/19 10:51 AM

54 55
Notes: / Notas: / Remarques : Notes: / Notas: / Remarques:
Manuel de la télécommandeManuel de la télécommande
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 54-55 3/6/19 10:51 AM

©2019 LEVOLOR®, Inc.
3 Glenlake Parkway NE
Atlanta, GA 30328 100167418-0007-025
18-0007-025_Woods_Remote_Control_Guide_v9wu.indd 56 3/6/19 10:51 AM
