X860de, X862de, X864de
Maintenance Guide
August 2011 www.lexmark.com

Contents
Maintaining the printer................................................................................3
Cleaning the exterior of the printer..........................................................................................................3
Cleaning the scanner glass........................................................................................................................4
Adjusting scanner registration..................................................................................................................4
Storing supplies.........................................................................................................................................5
Conserving supplies...................................................................................................................................5
Checking the status of supplies.................................................................................................................5
Checking the status of supplies from the printer control panel ......................................................................... 5
Checking the status of supplies from a network computer................................................................................ 5
Ordering supplies......................................................................................................................................6
Ordering toner cartridges ................................................................................................................................... 6
Ordering a photoconductor kit ........................................................................................................................... 6
Ordering a maintenance kit ................................................................................................................................ 6
Ordering staple cartridges .................................................................................................................................. 7
Ordering a cleaning kit........................................................................................................................................ 7
Replacing supplies.....................................................................................................................................7
Replacing the toner cartridge ............................................................................................................................. 7
Replacing the photoconductor ........................................................................................................................... 9
Moving the printer..................................................................................................................................14
Before moving the printer ................................................................................................................................ 14
Moving the printer to another location............................................................................................................ 18
Shipping the printer.......................................................................................................................................... 18
Contents
2

Maintaining the printer
Periodically, certain tasks are required to maintain optimum print quality.
Cleaning the exterior of the printer
1Make sure that the printer is turned off and unplugged from the wall outlet.
CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer,
unplug the power cord from the wall outlet and disconnect all cables to the printer before proceeding.
2Remove paper from the standard exit bin.
3Dampen a clean, lint‑free cloth with water.
Warning—Potential Damage: Do not use household cleaners or detergents, as they may damage the finish of
the printer.
4Wipe only the outside of the printer, making sure to include the standard exit bin.
Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer.
5Make sure the standard exit bin is dry before beginning a new print job.
Note: A cleaning kit consisting of wipes for the touch screen and scanner glass is available:
Part name Part number
Cleaning kit (wet and dry wipes) 40X0392
Maintaining the printer
3

Cleaning the scanner glass
Clean the scanner glass if you encounter print quality problems, such as streaks on copied or scanned images.
1Slightly dampen a soft, lint-free cloth or paper towel with water.
2Open the scanner cover.

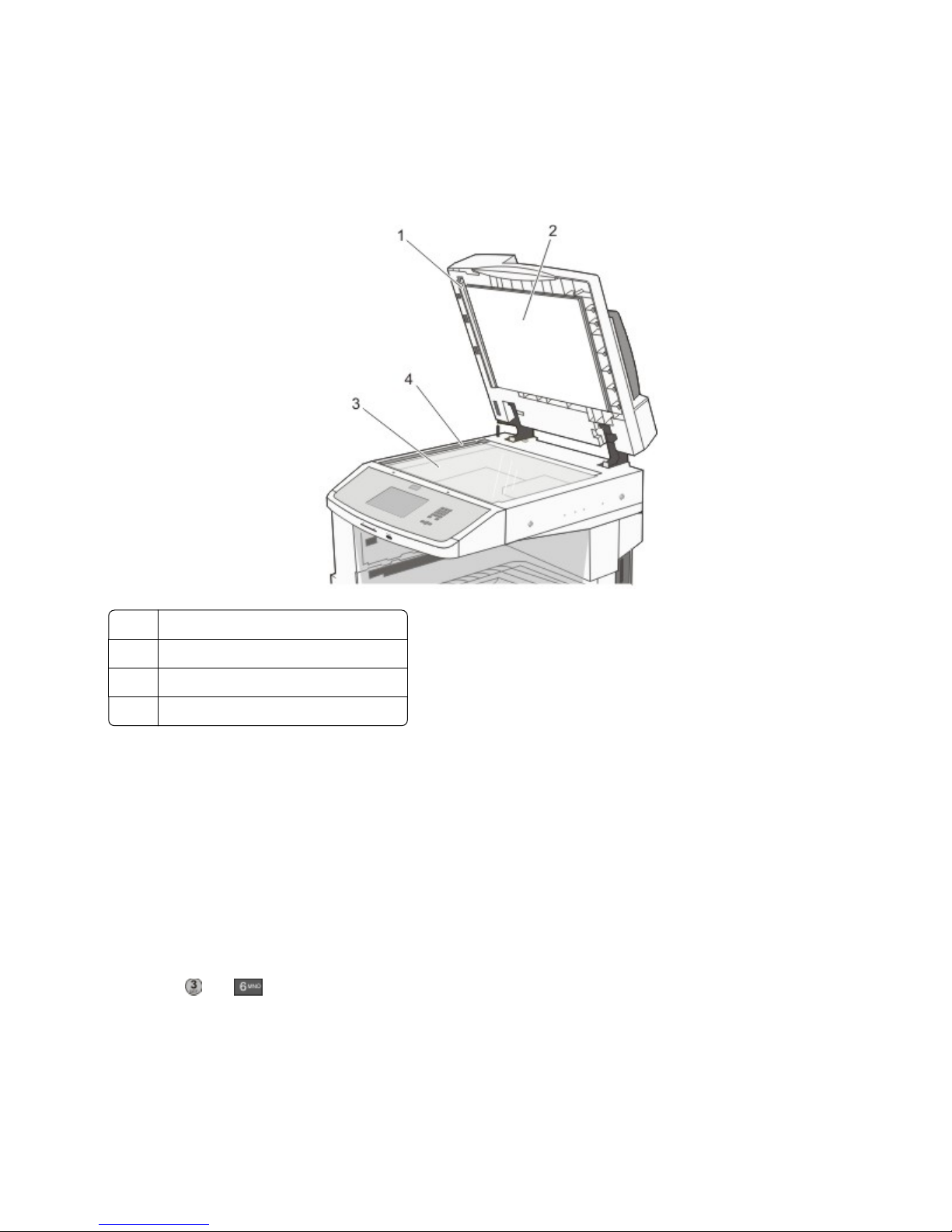

1White underside of the ADF cover
2White underside of the scanner cover
3Scanner glass
4ADF glass
3Wipe the areas shown and let them dry.
4Close the scanner cover.
Adjusting scanner registration
Scanner Registration is a process to align the scan area with the paper location. To manually adjust the scanner
registration:
1Turn the printer off.
2Clean the scanner glass and backing material.
3Hold down and until the progress bar appears.
4Release the buttons.
The printer performs a power‑on sequence, and then the Diagnostic menu appears.
5Touch the up or down arrow until Scanner Test appears.
6Touch Scanner Test.
Maintaining the printer
4

7Touch the up or down arrow until Scanner Manual Registration appears.
8Touch Scanner Manual Registration.
9Touch the left and right arrows to change the settings.
10 Touch Submit.
Storing supplies
Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you
are ready to use them.
Do not expose supplies to:
•Direct sunlight
•Temperatures above 35°C (95°F)
•High humidity above 80%
•Salty air
•Corrosive gases
•Heavy dust
Conserving supplies
There are some settings you can change from the printer control panel that will help you conserve toner and paper.
If you need to print several copies, you can conserve supplies by printing the first copy and checking it for accuracy
before printing the remaining copies.
Checking the status of supplies
A message appears on the display when a replacement supply item is needed or when maintenance is required.
Checking the status of supplies from the printer control panel
1Make sure the printer is on and Ready appears.
2On the home screen, touch Status/Supplies.
Note: If Status/Supplies is not on the home screen, then print a menu settings page to review the status of the
supplies.
Checking the status of supplies from a network computer
Note: The computer must be connected to the same network as the printer.
Maintaining the printer
5

1Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, print a network setup page and locate the IP address in
the TCP/IP section.
2Click Device Status. The Device Status page appears, displaying a summary of supply levels.
Ordering supplies
To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies
dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the
place where you purchased the printer.
Note: All life estimates for printer supplies assume printing on letter‑ or A4‑size plain paper.
Ordering toner cartridges
Recommended toner cartridge and part number
Part name Part number For printer(s)
High Yield Toner Cartridge X860H21G X860, X862, X864
Ordering a photoconductor kit
When Replace Photoconductor message appears, order a new photoconductor kit.
Part name Part number For printer(s)
Photoconductor Kit X860H22G X860, X862, X864
Ordering a maintenance kit
When 80 Routine maintenance needed appears, order a maintenance kit. The maintenance kit contains all
the items necessary to replace the pick rollers, the charge roll, the transfer roller, and the fuser.
Note: Using certain types of paper may require more frequent replacement of the maintenance kit. The pick rollers,
charge roll, transfer roller, and fuser can also be individually ordered and replaced as necessary.
Part name Part number For printer(s)
Maintenance kit (low
voltage)
40X2375 X860, X862, X864
Maintenance kit (high
voltage)
40X2376 X860, X862, X864
Maintenance kit (100 volt) 40X2377 X860, X862, X864
Maintenance kit (for the
ADF)
40X2734. X860, X862, X864
Maintaining the printer
6

Ordering staple cartridges
When Staples Low or Staples Empty appears, order the specified staple cartridge.
For more information, see the illustrations inside the stapler door.
Part name Part number
Staple Cartridges–3 pack 25A0013
Ordering a cleaning kit
Use the wet and dry wipes from the cleaning kit to clean the scanner glass and touch screen.
Part name Part number
Cleaning kit (wet and dry wipes) 40X0392
Replacing supplies
Replacing the toner cartridge
When 88 Cartridge low, 88.yy Replace cartridge, or 88 Replace cartridge to continue
appears, or when print becomes faded:
1Turn the printer off.
2Open the front door.
Maintaining the printer
7

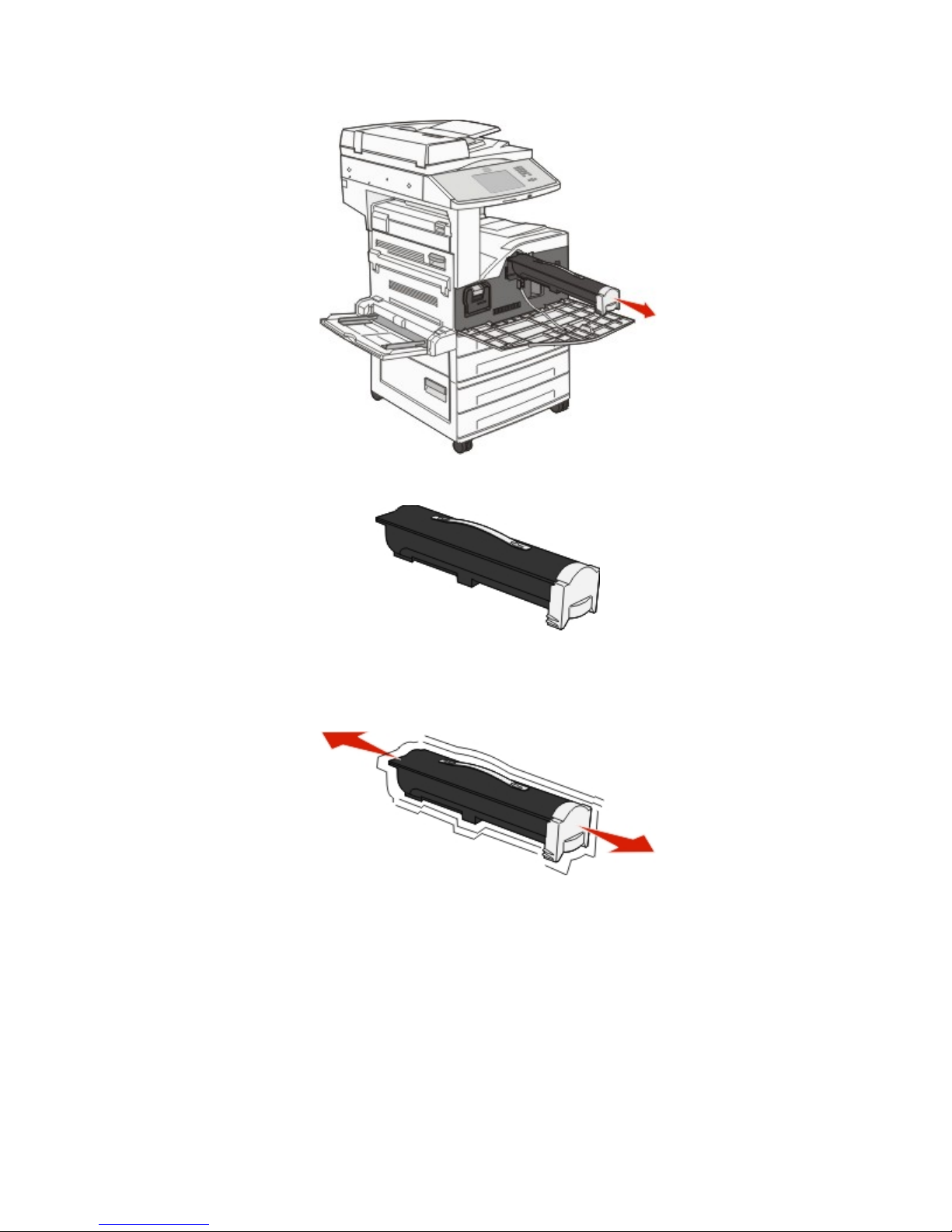

3Grasp the handle and pull out the cartridge.
4Unpack a new cartridge.
Warning—Potential Damage: When replacing a toner cartridge, do not leave the new cartridge exposed to
direct light for an extended period of time. Extended light exposure can cause print quality problems.
5Firmly shake the cartridge side-to-side several times to redistribute the toner.
Maintaining the printer
8

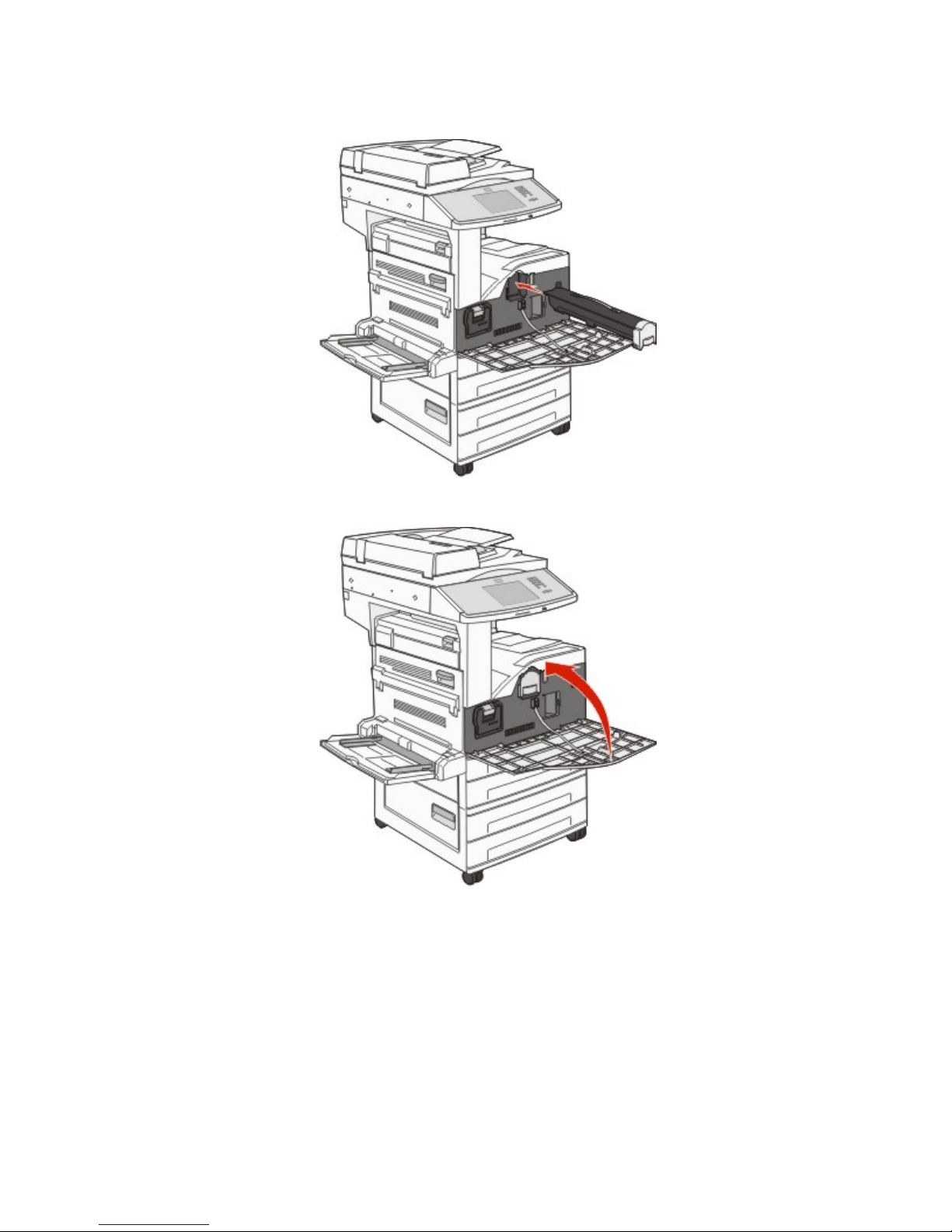

6Insert the new cartridge into the printer. Push the toner cartridge in as far as it will go. The cartridge clicks into
place when correctly installed.
7Close the front door.
Replacing the photoconductor
You can determine approximately how full the photoconductor is by printing the printer settings configuration sheet.
This helps you decide when you might need to order replacement supplies.
To ensure print quality and to avoid damage to the printer, the printer stops operating after the photoconductor has
reached a maximum of 60,000 pages. The printer automatically notifies you before the photoconductor reaches this
point.
Maintaining the printer
9

When 84 Replace photoconductor or 84 Photoconductor low appears, order a new photoconductor
immediately. While the printer may continue to function properly after the photoconductor has reached its official
end‑of‑life, print quality significantly decreases.
To replace the photoconductor:
1Turn the printer off.
2Open the front door.
Note: The photoconductor cannot be pulled out if Side Door A is closed.
Maintaining the printer
10

3Lower Side Door A.
4Pull the photoconductor out of the printer.
Place the photoconductor on a flat, clean surface.
5Unpack the new photoconductor.
Maintaining the printer
11

6Align and insert the end of the photoconductor.
7Remove the tape from the top of the photoconductor.
Maintaining the printer
12

8Push the photoconductor as far as it will go.
The photoconductor clicks into place when correctly installed.
9Close Side Door A.
Maintaining the printer
13

10 Close the front door.
Note: After you insert the photoconductor and close all the doors, the printer performs a motor cycle and clears the
Replace Photoconductor warnings.
The printer returns to the Ready state.
Moving the printer
Before moving the printer
CAUTION—POTENTIAL INJURY: The printer weight is greater than 55kg (121 lbs), and requires at least four
persons or a properly rated mechanical handling system to move it safely.
Maintaining the printer
14

Follow these guidelines to avoid personal injury or printer damage:
•Use at least four people or a properly rated mechanical handling system to lift the printer.
•Turn the printer off using the power switch, and then unplug the power cord from the wall outlet.
•Disconnect all cords and cables from the printer before moving it.
•Remove all printer options before moving the printer.
Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the printer
warranty.
Removing the optional trays

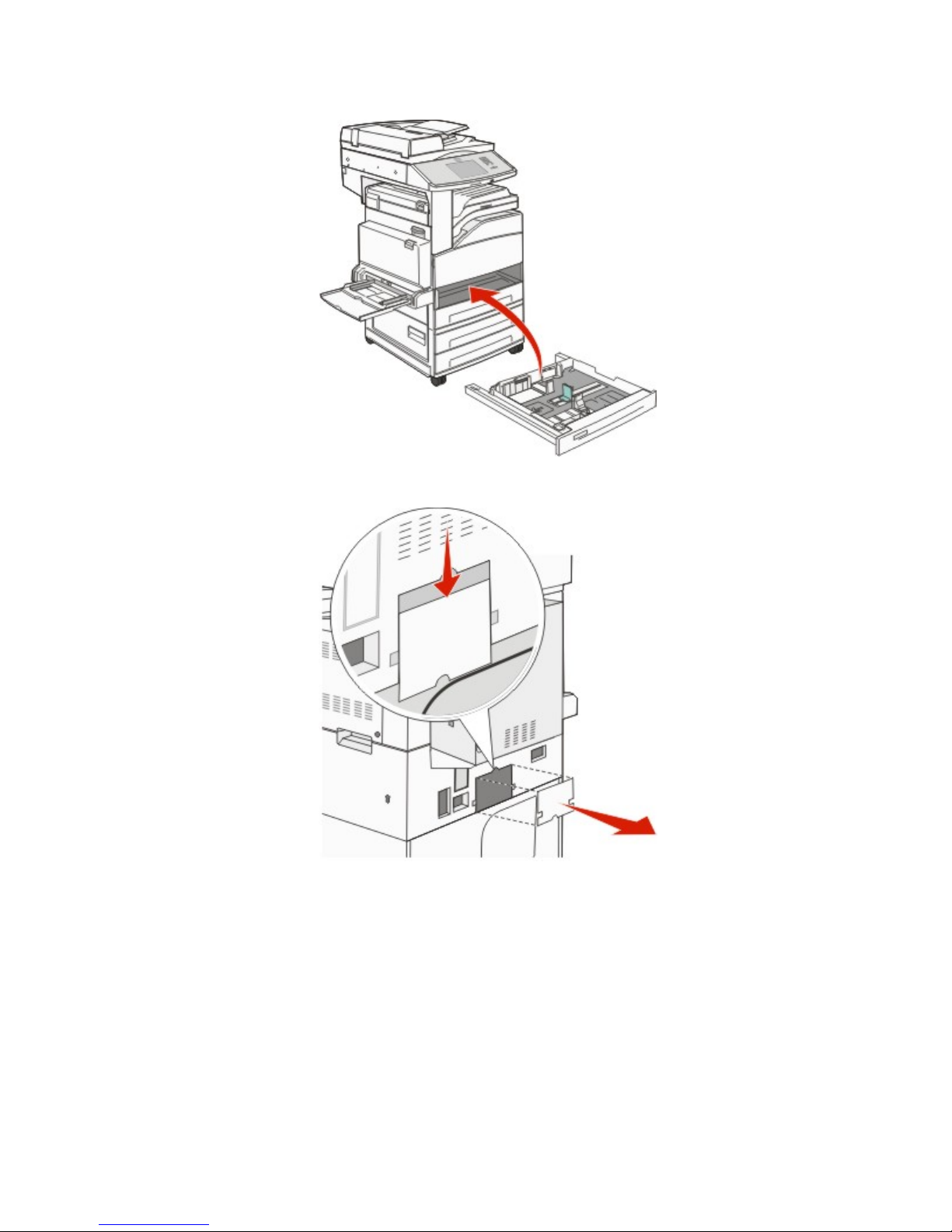

1Remove the printer tray.
2Remove the two thumbscrews and save them.
Maintaining the printer
15

3Place the tray into the printer.
4Remove the cable cover.
Maintaining the printer
16

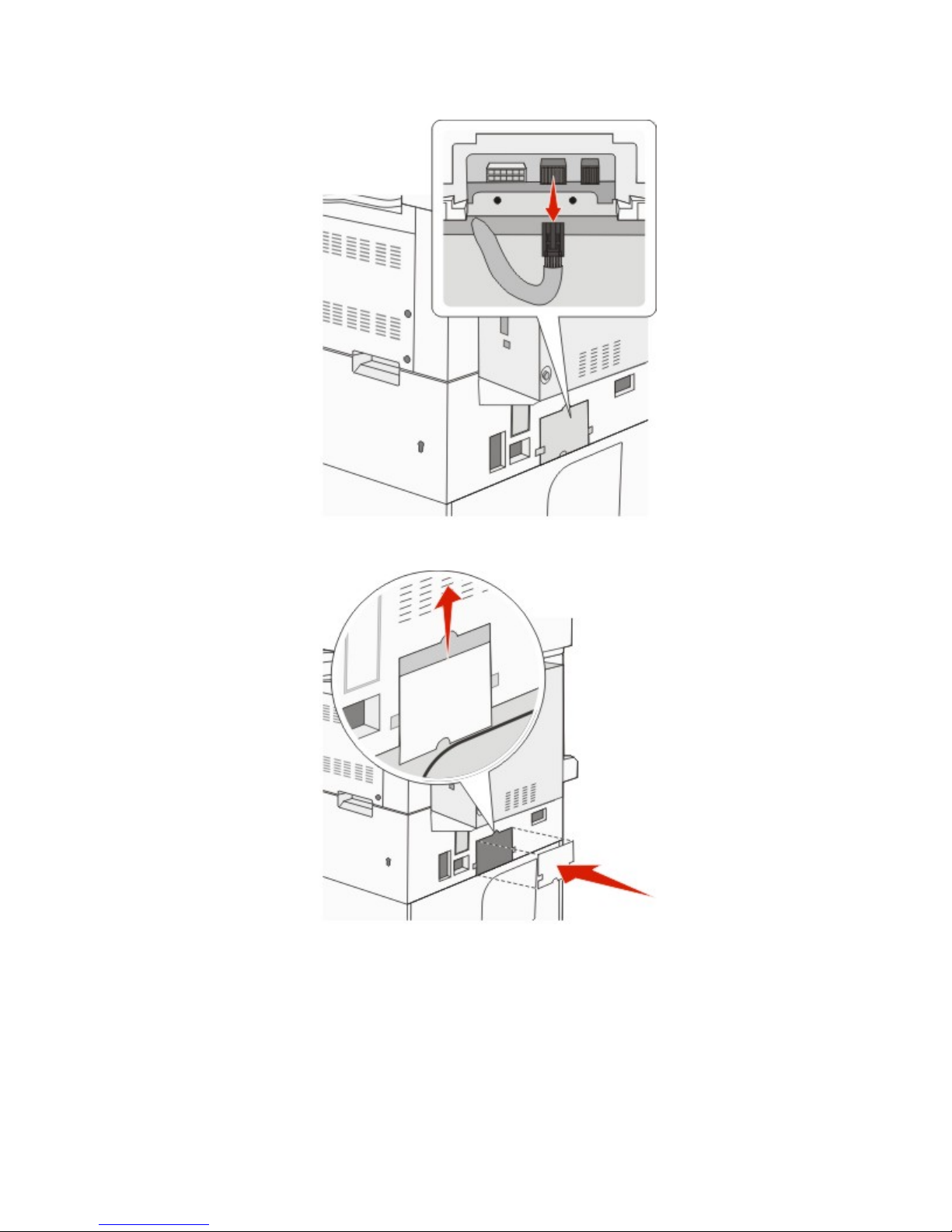

5Disconnect the optional drawer connector.
6Attach the cable cover.
7Lift the printer off the trays.
Maintaining the printer
17

Moving the printer to another location
The printer and options can be safely moved to another location by following these precautions:
•Any cart used to move the printer must have a surface able to support the full footprint of the printer. Any cart
used to move the options must have a surface able to support the dimensions of the options.
•Keep the printer in an upright position.
•Avoid severe jarring movements.
Shipping the printer
When shipping the printer, use the original packaging or call the place of purchase for a relocation kit.
