LG Innotek LTD-BH1000 User manual

Copyright ⓒ. 2014. All Rights Reserved.
User Guide for the LTD-BH1000
1. Overview
2. Major features
3. Interface
4. Electrical specifications
5. RF specifications
6. Mechanical specifications
7. General specifications
8. Connectors
9. RFx information
10. FCC approval
Table of Contents
Product: WCDMA Wireless Modem
Model name: LTD-BH1000

Copyright ⓒ. 2014. All Rights Reserved.
The LTD-BH1000 is a personal mobile communication device that incorporates
the latest compact radio technology, including smaller and lighter components
and support for WCDMA(850/1900MHz) bands. This device acts as the
vehicle’s telematics system and connects to WCDMA (HSPA+) wireless
networks and wireless modules to allow voice and data communication.
Furthermore, this device can operate on land and water as well as other similar
areas.
In HSPA+ mode, the device provides uplink speeds of up to 5.76 Mbps and
downlink speeds of up to 14.4 Mbps for seamless transfer of data such as
movies and video calls. The device also supports the transfer of large amounts
of data.
The device communicates with the host system via a standard RS-232 or USB
port, and AT commands and control commands can be used to send data. Voice
calls are also possible.
1. Overview

Copyright ⓒ. 2014. All Rights Reserved.
Mechanical
Dimensions
93.7(L) x 42(W) x 7.6(T) mm
Weight
TBD g (max)
Interface
USB, general purpose I/O pins
Antenna
FAKRA connector
Temperature*
Operation: -20 ℃- +70 ℃
Storage: -40 ℃- +85 ℃
Technology
Main chipset
MDM 6200
Memory
1024Mb(NAND) / 512Mb(SDRAM)
Standard
3GPP WCDMA (HSPA+)
- DL Speed : 14.4 Mbps
- UL Speed : 5.76 Mbps
Band
WCDMA B2, B5
Power
WCDMA : Typ. 24dBm (Power Class 3)
ETC
DC power
4 V
Functions
Voice, data, SMS
2. Major features

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
Customer P/N is connected with outer device using 40 pin connector
3.1 Pin output

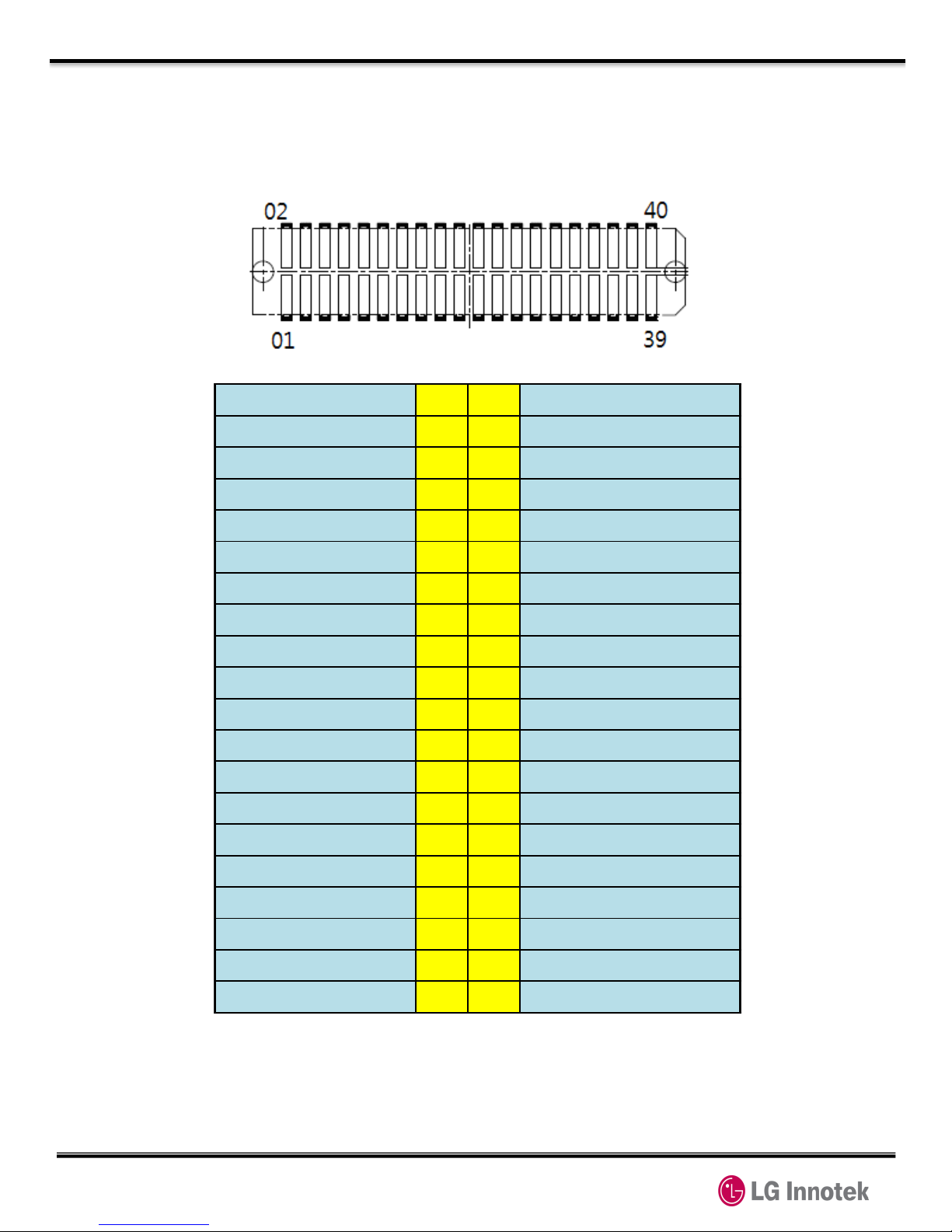

Figure 1. Connector pin arrangement
NC 1 2 NC
GND 3 4 GND
NC 5 6 NC
NC 7 8 NC
NC 910 NC
BOOT_OK 11 12 MSG
NC 13 14 NC
NC 15 16 PCM_3.3V_TXD
GND 17 18 PCM_3.3V_RXD
PCM_3.3V_CLK 19 20 PCM_3.3V_SYNC
GND 21 22 GND
NC 23 24 NC
NC 25 26 NC
96H_END 27 28 RESET_IN
USB_VBUS 29 30 ACC_ON_SLEEP
V_BATT 31 32 V_BATT
GND 33 34 GND
GND 35 36 USB_D-
UART_RXD 37 38 USB_D+
UART_TXD 39 40 GND

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.2 Pin description
Table 1. Pin descriptions
Signal Name Type Pin Description
USB
USB_D
+
USB_D
-
USB_VBUS
IO
IO
I
38
36
29
USB
differential data line (+)
USB
differential data line (-)
USB
power Supply
Audio
PCM
PCM_3.3V_SYNC
PCM_3.3V_CLK
PCM_3.3V_TXD
PCM_3.3V_RXD
I
I
O
I
20
19
16
18
PCM
interface sync
PCM
interface clock
PCM interface digital audio data out
PCM
interface digital audio data in
User
Interface
BOOT_
OK
RESET_IN
MSG
96H_END
ACC
_ON_SLEEP
O
I
O
O
I
11
28
12
27
30
Indicates that the Modem boot is complete.
Control line to unconditionally restart the module.
Indicates
that the Modem receive
Urgent message.
Indicates
that the 96hr sleep mode is end.
Control line to power on or 96hr
sleep mode.
Power
VBATT
GND
I
-
31,32
3,4,17,21,22,33
,35,40
Power supply
input (+)
Power supply
input (-)
UART
UART_RXD
UART_TXD
I
O 37
39
UART RX
DATA
UART TX DATA
NC
RESERVED
-
1,2,5,6,7,8,9,10
,13,14,15,23,24
,25,26
Reserved pins. Please leave
these unconnected

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.3 USB
This device supports universal serial bus (USB) connections for high-speed
data communication. The relevant hardware satisfies the USB 2.0
specifications and supports maximum communications speeds of 480 Mbps
Table 2. USB Pin descriptions
Pin NO. Signal Name Pin I/O
(Modem host) Function Description
38 USB_D+ IO USB Differential data line (+)
36 USB_D- IO USB Differential data line (-)
29 USB_VBUS I USB Power Supply

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.4 Audio
This module includes a PCM interface. The pull-up and pull-down resistors
attached to these pin must provide more than 50 Kohm of resistance.
Table 3. PCM Pin descriptions
3.5 User interface
Pin No.
Signal Name Direction
Function
11 BOOT_OK O Indicates that the Modem boot is complete.
28 RESET_IN I Control line to unconditionally restart the
module.
12 MSG O Indicates that the Modem receive Urgent
message.
27 96H_END O Indicates that the 96hr sleep mode is end.
30 ACC_ON_SLEEP
I Control line to power on or 96hr sleep mode.
Table 4. User interface Pin descriptions
Pin NO.
Signal Name Pin I/O
(Modem host) Function Description
20 PCM_3.3V_SYNC
I PCM Interface sync
19 PCM_3.3V_CLK
I PCM Interface clock
16 PCM_3.3V_TXD
O PCM Interface digital audio data out
18 PCM_3.3V_RXD I PCM Interface digital audio data in

Copyright ⓒ. 2014. All Rights Reserved.
4. Electrical specifications
4.1 Power supply specifications
The host system provides the power supply (V_BATT)DC 4 V, 1.5 A to the
device. The internal power supply module manages the power supplied to the
integral circuits and maintains constant voltages. This module also controls
each power block to minimize power consumption.
In particular, the PAM (power amplifier module) consumes a lot of power, so it
receives a direct power supply of 4 V from the V_BATT. Therefore the
V_BATT signal inputs only the supply power of the PAM, even when the
absolute rating is higher. In addition, the entire power input module blocks and
protects against high surges and ESD in the NAD module.
Pin No. Signal Name Direction MIN TYP MAX
31,32 V_BATT I TBD V 4 V TBD V
Table 5. Power supply specifications

Copyright ⓒ. 2014. All Rights Reserved.
4. Electrical specifications
4.2 Logic level specifications
4.2.1 Digital logic level specifications
Table 6. Digital logic level specifications
Signal Name Type Low High Unit
Min Max Min Max
BOOT_OK O -0.3 0.63 1.17 2.1
V
RESET_IN I 0 0.45 1.35 1.8
MSG O -0.3 0.63 1.17 2.1
96H_END O -0.3 0.63 1.17 2.1
ACC_ON_SLEEP
I 0 0.45 1.35 1.8

Copyright ⓒ. 2014. All Rights Reserved.
5. RF specifications
5.1 WCDMA
5.1.1 Receiver
.- Bandwidth : 5MHz
.- Frequency : 869MHz –894MHz (B5), 1930MHz –1990MHz (B2)
.- RF to Baseband Direct conversion (Zero IF)
.- Modulation method : QPSK, 16QAM
.- Sensitivity : ≤-104dBm (BER = Under 0.1%)
5.1.2 Transmitter
.- Frequency: 824MHz –849MHz (B5), 1850MHz –1910MHz (B2)
.- Maximum RF Output : Power class3 , 20.3dBm ~ 25.7dBm
.- Modulation method : QPSK
.- Baseband to RF Direct conversion (Zero IF)
