User Guide for LTD-VL1000 (Eagle)
1. Overview
2. Major feature
3. Interface
4. Electrical specification
5. RF specification
6. Mechanical specification
7. General specification
8. Connector
9. RFx information
10. FCC Approval
Table of Contents
Product : LTE/CDMA(EVDO) Wireless Modem
Model name : LTD-VL1000

Copyright ⓒ. 2014. All Rights Reserved.
The LTD-VL1000 is achieved as personal mobile communication devices of
the compact radio equipment, the latest design of the parts becoming smaller,
lighter weight having the LTE(700/1700MHz), CDMA(850/1900MHz) bands. It is
the vehicle’s telematics system that connect with LTE and CDMA(EVDO)
wireless network and the wireless module with voice and data communication. It
can be operated at land, rivers, and other similar areas.
On LTE operating mode, It can be communicated with uplink 50Mbps, downlink
up to 100Mbps data transfer speed such as a movie or a video call. It may be
able to receive large amounts of data.
Standard RS-232 port and USB port communicating with the host system via
AT-command or control commands can be used to send data. Voice calls are
possible.
1. Overview

Copyright ⓒ. 2014. All Rights Reserved.
Mechanical
Dimension 93.15(L) x 45.0(W) x 7.6(T) mm
Weight 45g(max)
Interface USB, UART, General Purpose I/O pins
Antenna FAKRA Connector
Temperature * Operation : -20℃~ +70 ℃
Storage : -40 ℃~ +85 ℃
Technology
Main Chipset MDM 9615
Memory 1024Mb(NAND) / 1024Mb(SDRAM)
Standard
3GPP Rel.8 LTE
- DL Speed : 100 Mbps(20M bandwidth)
- UL Speed : 50 Mbps(20M bandwidth)
3GPP2 CDMA 1X, EVDO Rev.A
- DL Speed : 3.1 Mbps
- UL Speed : 1.8 Mbps
Band LTE B4, B13
CDMA 850(Cellular), 1900 (PCS)
GPS Not Supported
Power LTE : Typ. 23dBm(Power Class 3)
CDMA : Typ. 24dBm (Power Class 3)
ETC DC Power 3.8V
Functions Voice, Data, SMS
2. Major feature

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
Customer P/N is connected with outer device using 40 pin connector
3.1 Pin output
Figure 1. Connector pin arrangement
48H_END
UART_TX_TCU
UART_RX_TCU

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.2 Pin description
Pin NO. Signal Name In/Out Function
NC
1, 2, 3, 4, 5, 6, 9,
10, 13, 14, 15, 17
, 23, 24, 25, 26, 3
8
NC
V_BATT 31, 32 POWER POWER
GND 21, 22, 33, 34, 40 GND GND
Audio
PCM
16 PCM_3.3V_TXD O PCM DATA OUT
18 PCM_3.3V_RXD I PCM DATA IN
19 PCM_3.3V_CLK I PCM CLK
20 PCM_3.3V_SYNC I PCM SYNC
UART2
(DM Port)
37 UART_RXD I UART RX DATA
39 UART_TXD O UART TX DATA
7 UART_RFR O UART ready-for-receive
8 UART_CTS I UART clear-to-send
USB
(USB2.0)
29 USB_VBUS I Power supply for the
USB transceiver
35 USB_D+ I/O USB differential data (+)
36 USB_D- I/O USB differential data (-)
User Interface
11 BOOT_OK O ModemBooting Completion
/ Modem Wake Up
12 MSG O Received emergency
message from Center
27 96H_END O Signified in 96 hours
standby mode ending
28 RESET_IN I Modem Hardware reset
input
30 ACC_ON_SLEEP I Modem Power ON
/ Modem POWER Sleep
Table 1. Pin descriptions

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.3 UART(RS-232 Interface)
This module is provided with interface supporting Standard RS-232 protocol.
DCE(modem) communicate with DTE(host) through data or control AT-
Command.
Pin No. Signal Name Direction Function
37 UART_RXD I UART RX DATA
39 UART_TXD O UART TX DATA
7 UART_RFR O UART ready-for-receive
8 UART_CTS I UART clear-to-send
3.4 USB
It is supported with universal serial bus for high data communication.And It
is satisfied with USB2.0 specification and supported with max.480Mbps
Pin No. Signal Name Direction Function
37 UART_RXD I UART RX DATA
39 UART_TXD O UART TX DATA
7 UART_RFR O UART ready-for-receive
8 UART_CTS I UART clear-to-send
Table 2. UART Pin descriptions
Table 3. USB Pin descriptions

Copyright ⓒ. 2014. All Rights Reserved.
3. Interface
3.5 Audio
This module is provided with PCM interface. The resistor of pulled-up or
pulled-down in this pin must be over 50Kohm.
Pin No. Signal Name Direction Function
37 UART_RXD I UART RX DATA
39 UART_TXD O UART TX DATA
7 UART_RFR O UART ready-for-receive
8 UART_CTS I UART clear-to-send
Table 4. PCM Pin descriptions
3.6 User interface
Pin No. Signal Name Direction Function
11 BOOT_OK O Modem booting end
/ Modem Wake Up
12 MSG O Received emergency message
from center
27 96H_END O Signified in 96 hours standby
mode ending
28 RESET_IN- I Modem Hardware reset input
30 ACC_ON_SLEEP I Modem Power ON
/ Modem Power Sleep
Table 5. User interface Pin descriptions

Copyright ⓒ. 2014. All Rights Reserved.
4. Electrical specification
4.1 Power supply specification
Modem power(V_BATT) should be provided DC3.8V ±0.1V, 2.0A. Modem
power is provided according to inner function and per block using DC
regulated circuit. It is controlled with each power depending on the
mechanism to reduce power consumption to a minimum. PA is used directly
V_BATT because of a lot of power input power source. Thus, It can be
resulted in breakage of PA in excess of the rated input power. In addition,
surge and ESD should be designed to block the influx in order to prevent
damage to the modem.
Pin No. Signal Name Direction MIN TYP MAX
32, 33 V_BATT I 3.7V 3.8V 3.9V
Table 6. Power supply specification

Copyright ⓒ. 2014. All Rights Reserved.
4. Electrical specification

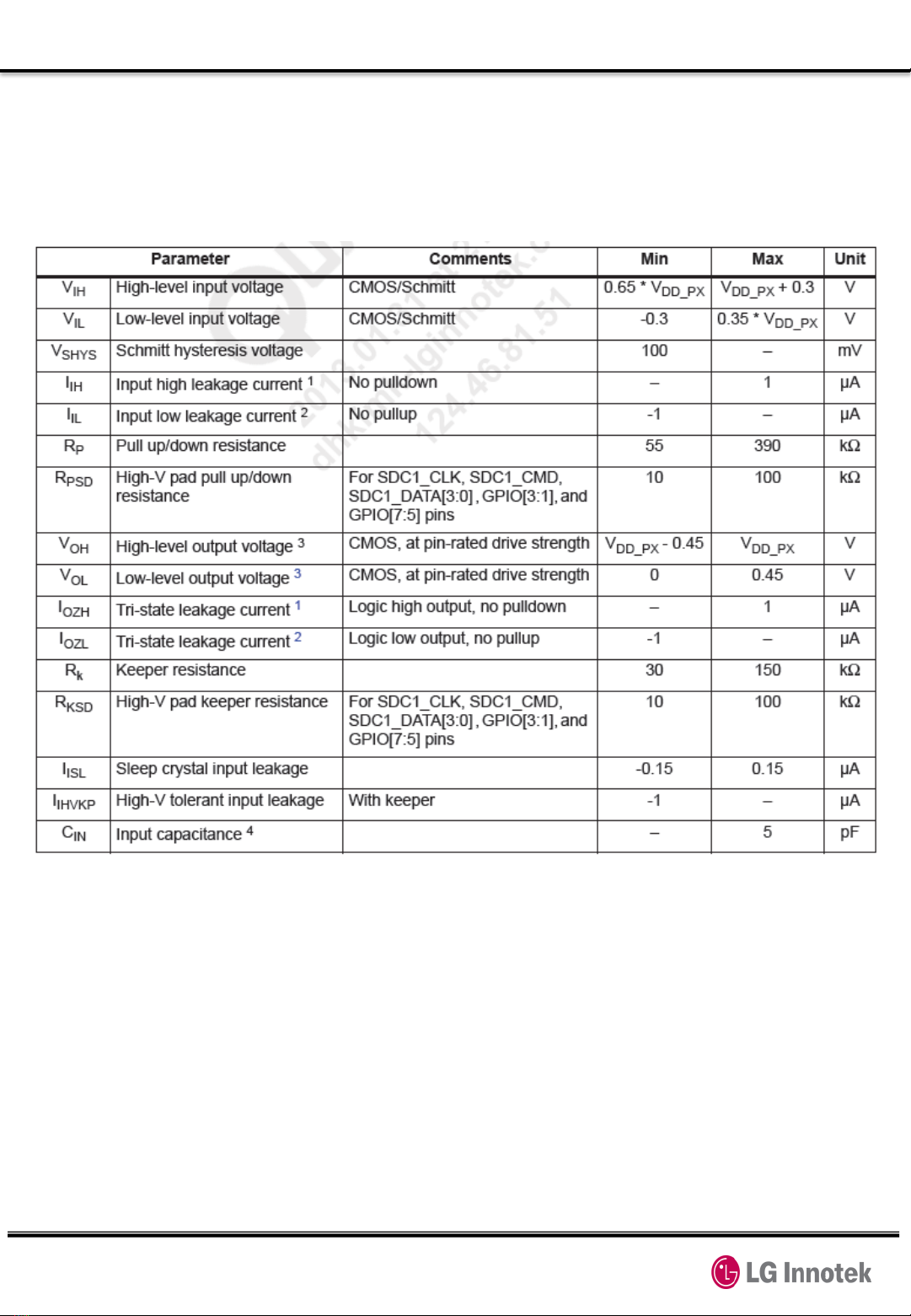

4.2 Logic level specification
4.2.1 Digital logic level specification
Basic interface level : CMOS 1.8V
Table 7. Digital logic level specification

Copyright ⓒ. 2014. All Rights Reserved.
5. RF specification
5.1 CDMA
5.1.1 Receiver
.- Bandwidth : 1.25MHz
.- Frequency : 869MHz –894MHz (BC0), 1930MHz –1990MHz (BC1)
.- RF to Baseband Direct conversion (Zero IF)
.- Modulation method : QPSK, 8PSK and 16QAM
.- Sensitivity : ≤-104dBm (BER = Under 0.5%)
5.1.2 Transmitter
.- Frequency: 824MHz –849MHz (BC0), 1850MHz –1910MHz (BC1)
.- Maximum RF Output : Power class3 (BC0), 23.01dBm ~ 26dBm
Power class2 (BC1), 23.01dBm ~ 26dBm
.- Modulation method : BPSK, QPSK AND 8PSK
.- Baseband to RF Direct conversion (Zero IF)
5.2 LTE
5.2.1 Receiver
.- Bandwidth : B4(20MHz), B13(10MHz)
.- Frequency : 2110MHz –2155MHz (B4), 746MHz –756MHz (B13)
.- RF to Baseband Direct conversion (Zero IF)
.- Modulation method : QPSK, 16QAM and 64QAM
.- 수신감도 : Main - B4 (≤-93.3dBm @QPSK), B13(≤-93.3dBm @QPSK)
Diversity - B4 (≤-93.3dBm @QPSK), B13(≤-93.3dBm @QPSK)
5.2.2 Transmitter
.- Frequency : B4 (1710MHz –1755MHz), B13(777MHz –787MHz)
.- Maximum RF Output : Power class 3, 20.3dBm ~ 25.7dBm
.- Modulation method : QPSK and 16QAM
.- Baseband to RF Direct conversion (Zero IF)
