LG LS-J0762YL/NM/NN/NQ User manual

MODEL : LS-J0762YL/NM/NN/NQ(AC)
LS-N096J_Series(AC)
LS-L1262YL/NM/NN/NQ(AC)
LS-Q096AUL/BUL/CUL(DC)
LS-R126AUL/BUL/CUL(DC)
Room Air Conditioner
SERVICE MANUAL
CAUTION
-BEFORE SERVICING THE UNIT, READ THE SAFETY
PRECAUTIONS IN THIS MANUAL.
-ONLY FOR AUTHORIZED SERVICE PERSONNEL.
WEBSITE http://biz.LGservice.com
E-MAIL http://www.LGEservice.com/techsup.html

Contents
Functions.................................................................................................................................3
Product Specification (Cooling & Heating)...........................................................................6
Dimensions..............................................................................................................................7
Refrigeration Cycle Diagram..................................................................................................9
Wiring Diagram......................................................................................................................10
Operation Details ..................................................................................................................11
Installation .............................................................................................................................25
Operation ...............................................................................................................................38
Disassembly of the parts (Indoor Unit)...............................................................................39
2-way, 3-way Valve.................................................................................................................42
Cycle Troubleshooting Guide...............................................................................................49
Self-diagnosis function.........................................................................................................50
Electronic Parts Troubleshooting Guide.............................................................................52
Electronic Control Device.....................................................................................................62
Schematic Diagram...............................................................................................................66
Exploded View and Replacement Parts List.......................................................................74
-2-

Functions
• Room temperature sensor. (Thermistor)
• Pipe temperature sensor. (Thermistor)
• Maintain the room temperature in accordance with the Setting Temp.
• Indoor fan is delayed for 5 sec at the starting.
• Restarting is for approx. 2 minutes.
• Super High, High, Med, Low
--- Lights up in operation
--- Lights up in Sleep Mode
--- Lights up in Timer Mode
--- Lights up in Preheat Mode (for Heating Model)
--- Lights up in Plasma Air Clean Mode
• Intermittent Operation of fan at low speed or off.
• The fan is switched to low(Cooling), low(Heating) speed.
• The unit will be stopped after 1, 2, 3, 4, 5, 6, 7 hours.
• The fan is switched to intermittent or irregular operation
• The fan speed is automatically switched from high to low speed.
• The louver can be set at the desired position or swing
up and down automatically.
Indoor Unit
Operation ON/OFF by Remote controller
Sensing the Room Temperature
Room temperature control
Starting the Current Control
Time Delay Safety Control
Indoor Fan Speed Control
Operation indication Lamps (LED)
Soft Dry Operation Mode
• Both the indoor and outdoor fan stops
during defrosting.
• The indoor fan stops until the
evaporator pipe temperature will be
reached at 34°C.
Sleep Mode Auto Control

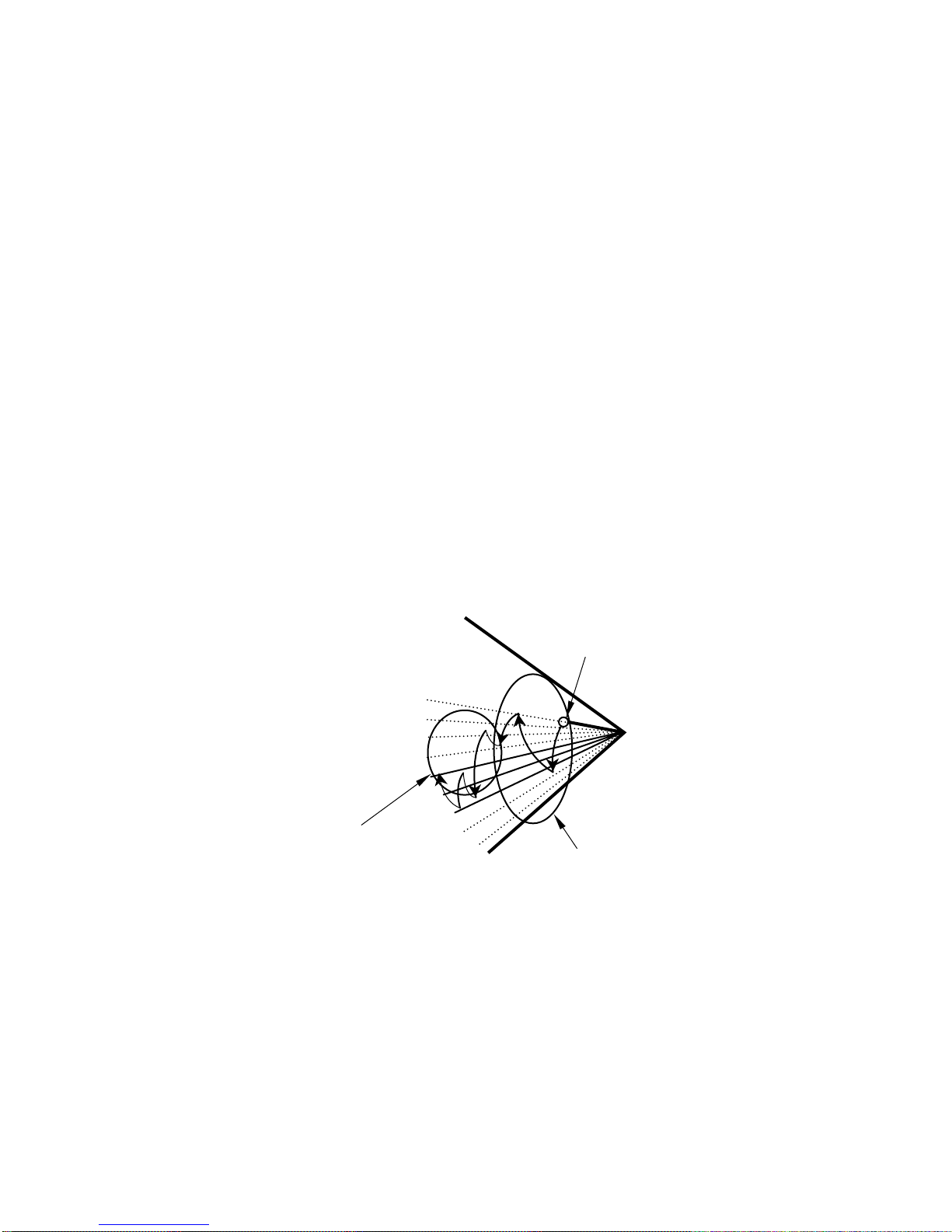

Natural Air Control by CHAOS Logic
Airflow Direction Control
PLASMA
-3-
Defrost(Deice) control (Heating)

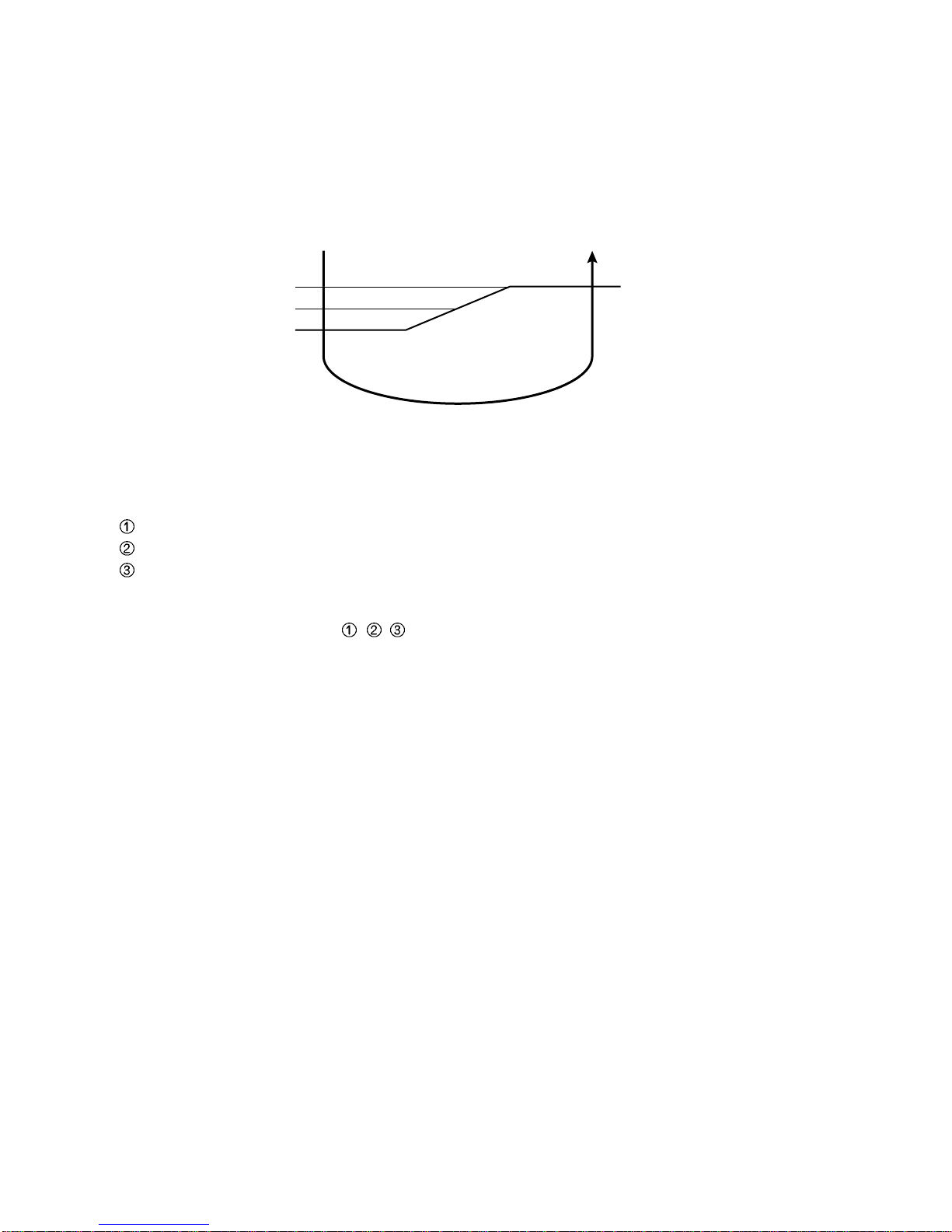

Hot-start Control (Heating)
• The function will be operated while in any
operation mode with selecting the function.
• The function is to be stopped while it is
operating with selecting the function.
PLASMA

-4-
• If power is on, it will operate to chage capacitor on controller and power relay will operate after about
2~5sec.
• If outdoor temp. is below 0°C, preheater is operating for 1~5min.
• At the initial, It will be operated compressor after 1min. for preheating.
• The active power filter is designed to correct power factor(cos θ) and to regulate DC link voltage.
• It will be operated PFC circuit when the compressor freq. is over 30Hz and wattage is over 450 watt.
• The final operating freq. of comp. is set the lowest freq. that limited outdoor temp., discharge pipe temp.,
heat-sink temp., target freq., owing to CT.
• When the temp. of power module increases to 85°C, controller decreases Freq. of Comp.
• It will be changed the drive freq. of comp. according to temp. of indoor and outdoor.
• It will be changed the drive voltage of comp. according to operating frequency.
• It is only operated in the heating operation mode except defrosting operation.
• High speed
- Although fan motor speed is middle, it will change high speed in case of below AC193V, over 45°C of
outdoor temp., and over fc, fh of comp. Freq.
• Middle speed
- Nomal mode
• Low speed
- Although fan motor speed is middle, it will change Low speed in case of over AC 270V, over 21°C
(Heating Mode) of outdoor temp. below 24°C (Cooling Mode) of outdoor temp.
Outdoor Unit
Power relay control
Stand by control at low temp.
Active power filter control(PSC)
Comp. Freq. control
Overheatng. Protection(Power module)
Freq. speed control(up/down speed)
V/F control
Total current control (over current protection)
DC peak current control
4 way valve control
Outdoor fan motor control
Discharge pipe temp. control

-5-
Healthy Dehumidification Operation Mode. ( )

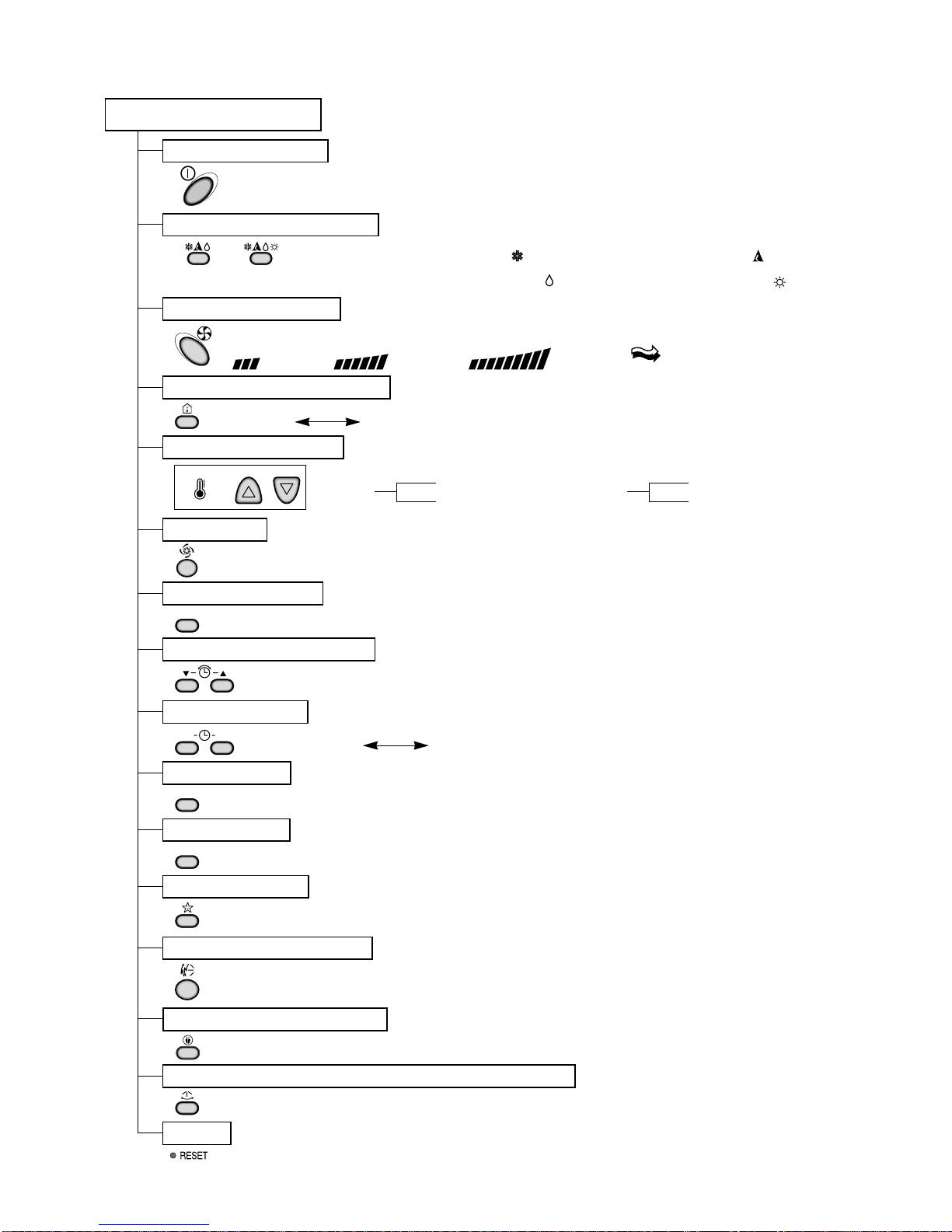

Remote Control
Operation ON/OFF
Reset
Operation Mode Selection
Temperature Setting
Timer Selection
Timer Setting
JET COOL
Timer Cancel
Sleep Operation
Airflow Direction Control
(Cooling
model only) (Heating
model only)
TEMPERATURE LOW HIGH
Cooling Operation Mode.( ) Heating Operation Mode.( ) Auto Operation Mode.( )
Horizontal Airflow Direction Control Button(Optional)
Room, Temperature Display
Setting the Time or Timer
PLASMA(Optional)
ON OFF
SET
PLASMA
CANCEL
Fan Speed Selection
(Low) (Med) (High) (CHAOS)
Power Save Cooling Button
: (High:39°C Low:11°C)
: OFF, ON, OFF ON
: Cancel Sleep Mode, Timer ON or Timer OFF
: 1, 2, 3, 4, 5, 6, 7, Off Timer
: Used to set Preheat mode.
Cooling Down to 18°C
Up to 30°CHeating Down to 16°C Up to 30°C

7K
Series(AC) 9K Series(AC) 12K Series(AC) 9K Series(DC) 12K Series(DC)
at 230V
7,000(4,700-8,300) 9,000(4,900-9,650) 12,000(6,500-13,200) 9,000(3,700-9,700) 12,000(3,750-13,700)
9,000(5,000-10,000) 10,350(3,650-11,400) 14,400(6,500-15,900) 11,250(1,750-12,500) 14,400(2,450-15,900)
1
1Ø, 220-240V, 50Hz
5.6 6.5 9 7.2 9
25 31 31 31 31
33 36 36 36 39
48 49 49 49 49
770 1,005 1,330 879 1,050
920 1,090 1,580 1,125 1,440
3.5 4.5 5.9 4 4.5
4.1 4.8 7 5 6.5
7.5 7.5 8.7 8.4 14.4
35.8 29 29 29 29
802*262*165 802*262*165 888*287*170 824*260*165 900*285*156
575*525*260 770*540*245 770*540*245 770*540*245 770*540*245
7 7 9.5 7 9.5
27 36 38 34 38
580(R22) 675(R22) 950(R22) 620(R410A) 950(R410A)
Up & Down Up & Down Up & Down Up & Down Up & Down, Right & Left
L.C.D Wireless
1/4(6.35)
3/8(9.52) 3/8(9.52) 1/2(12.7) 3/8(9.52) 3/8(9.52)
O
O
1 1 1.5 1 1.5
1 1 1.5 1 1.5
Cooling Capacity Btu/h
Heating Capacity
Moisture Removal l/h
Power Source Ø, V, Hz
Air Circulation Indoor m3/min
Outdoor
Noise Level Indoor dB (A)±3
Outdoor
Input Cooling W
Heating
Running Cooling A
Current Heating
Motor Output Indoor W
Outdoor
Dimensions Indoor mm
(W x H x D) Outdoor
Net. Weight Indoor kg
Outdoor
Refrigerant (R22) g
Airflow Direction Control (Up & Down)
Remocon Type
Service Valve Liquid inch(mm)
Gas
Sleeping Operation
Drain Hose
Connecting Cable mm2
Power Cord mm2
-6-
Product Specifications (Cooling & Heating)
Model Name
Item Unit

-7-
Dimensions
(1) Indoor Unit
Tubing hole cover
D
H
W
Installation plate
Tubing hole cover
Installation plate
Right rear piping
Left rear piping
ø70mm ø70mm
50mm
20mm
20mm
80mm
ø70mm
A
A
AACenter
Right rear pipingLeft rear piping
Center
ø70mm
MODEL
DIM Unit
W mm 820 888 824 900
H mm 262 287 260 285
D mm 165 170 165 156
7k, 9k Btu Series(AC) 12k Btu Series(AC) 9k Btu Series(DC) 12k Btu Series(DC)
(7k, 9k, 12k)
( 7k, 9k ) ( 12k )
( 7k, 9k ) ( 12k )

-8-

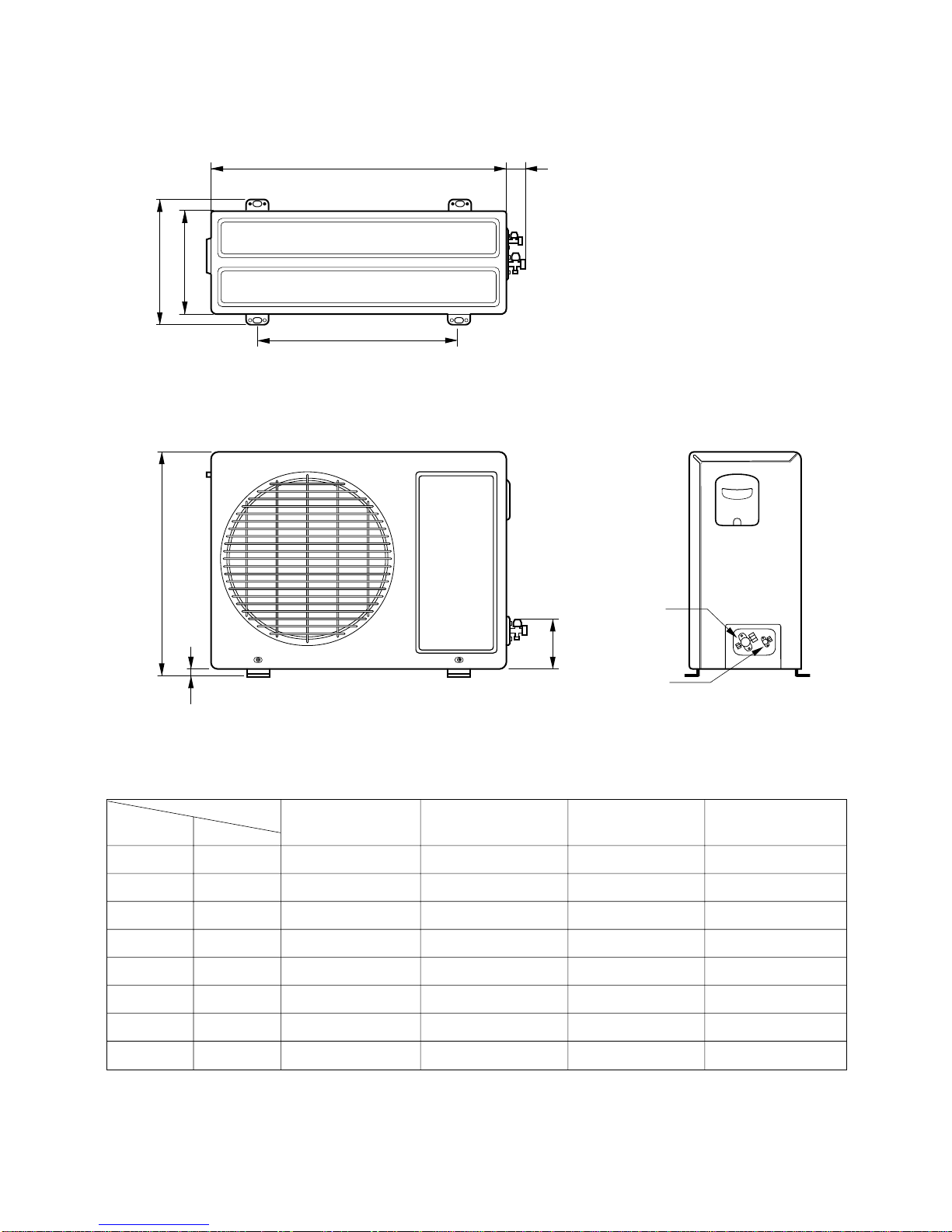

(2) Outdoor Unit
WL2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
MODEL
7K Btu Series(AC) 9K,12K Btu Series(AC) 9K Btu Series(DC) 12K Btu Series(DC)
DIM unit
W mm 564 770 770 770
H mm 525 540 540 540
D mm 265 245 245 245
L1 mm 294 287 287 287
L2 mm 66 64 64 64
L3 mm 374 518 518 518
L4 mm 17 10 10 10
L5 mm 270 100 100 100

Pipe size(Diameter:Ø)MAX. Max
MODEL Piping length Elevation
Gas(inch) Liquid(inch) (m) (m)
7K, 9K Btu Series(AC) 3/8" 1/4" 15 7
12K Btu Series(AC) 1/2" 1/4" 15 7
9K Btu Series(AC) 3/8" 1/4" 15 7
12K Btu Series(AC) 3/8" 1/4" 15 7
Refrigeration Cycle Diagram
-9-
INDOOR UNIT OUTDOOR UNIT
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
ACCUMU
LATOR
GAS SIDE
3-WAY VALVE
LIQUID SIDE
2-WAY VALVE
CAPILLARY TUBE
COOLING
HEATING
REVERSING
VALVE
(Heating Model Only)

Wiring Diagram
-10-
(1) Indoor Unit
Model: LS-_YL/UL Series, 9K AC Series Model: LS-_NM/NN Series
(2) Outdoor Unit
CN-COIL2
CN-COIL1
REACTOR
CN-COMP CN-FAN
WCN-NOISE1
TERMINAL
BLOCK
CN-4WAY
RY-
4WAY
BR
BL
GN/YL
RD
RD BL BR
BR
BL
FUSE
AC 250V/15A
GN/YL
RD
4WAY
VALVE
1(L)
2(N)
3
TO
INDOOR
UNIT
MAIN PWB ASM
OUTDOOR WIRING DIAGRAM
3854A20051V
YL
YL
COMP-
RESSOR
YL
W(C)V(R)U(S)
BL RD
YL BL RD
SSR
COMPRESSOR
THERMISTOR
HEAT SINK
THERMISTOR INTAKE/PIPE THERMISTOR
CN-TH2 CN-TH1
WH
BK
BK BK
GR
YL BL RD
FAN
MOTOR
3854A20167U
WCN-NOISE3 (BK)
WCN-NOISE2 (BK)
WCN-NOISE1 (BK)
15A/AC 250V
CN-FAN
SSR-FAN
CN-COIL1 CN-COIL2
++
CN-TH1 CN-COMP
MOTOR
IPM
MAIN PWB ASSY
OUTDOOR WIRING DIAGRAM
TERMINAL
BLOCK
CN-TH2
CN-
4WAY
FUSE 15A/250V
RY-4WAY
1.5µF
/370VAC
FUSE
RD
YL
BK
BK BK BK WHGR
BR
BL
RD
GR/YL
BK
BL
BL
YL
RD
4WAY
VALVE
REACTOR
COMPRESSOR
THERMISTOR
HEAT SINK
THERMISTOR INTAKE/PIPE
THERMISTOR
TO INDOOR UNIT
COMP
W(C) V(R) U(S)
BL
RDBLYL RDYL
1(L)
3
2(N)
POWER
BR
BR BL RD GN/YL
BL
1(L) 2(N)
3
MOTOR
CN-MOTOR
CN-TAB1
CN-AC/DC CN-AC/DC
STEP
MOTOR
STEP
MOTOR
H.V.
ASM
RD
AIR
CLEAN
(
PLASMA
)
SAFETY S/W1
SAFETY S/W2
BK
BK
BK
BK
BK
CN-U/D
CN-L/R
CN-DISP1
DISPLAY PWB ASM
INDOOR WIRING DIAGRAM 3854A20142G
SW(FORCE)
T/BLOCK
TO OUTDOOR UNIT
SSR
AC PWB ASM DC PWB ASM
OR
BK
BR
4
RY-POWER
FUSE AC
250V T2A
3
YL
SH-CAPA
GN/YL
CN-DISP2
BR
BL
CN-TH
THERMISTOR
POWER
BR
BR BL RD GN/YL
BL
1(L) 2(N)
3
MOTOR
CN-MOTOR
CN-TAB1
CN-AC/DC CN-AC/DC
STEP
MOTOR
STEP
MOTOR
H.V.
ASM
RD
AIR
CLEAN
(
PLASMA
)
SAFETY S/W1
SAFETY S/W2
BK
BK
BK
BK
BK
CN-U/D
CN-L/R
CN-DISP1
DISPLAY PWB ASM
INDOOR WIRING DIAGRAM 3854A20142V
SW(FORCE)
T/BLOCK
TO OUTDOOR UNIT
SSR
AC PWB ASM DC PWB ASM
OR
BK
BR
4
RY-POWER
FUSE AC
250V T2A
3
YL
SH-CAPA
GN/YL
BR
BL
CN-TH
THERMISTOR
9K(AC)

Operation Details

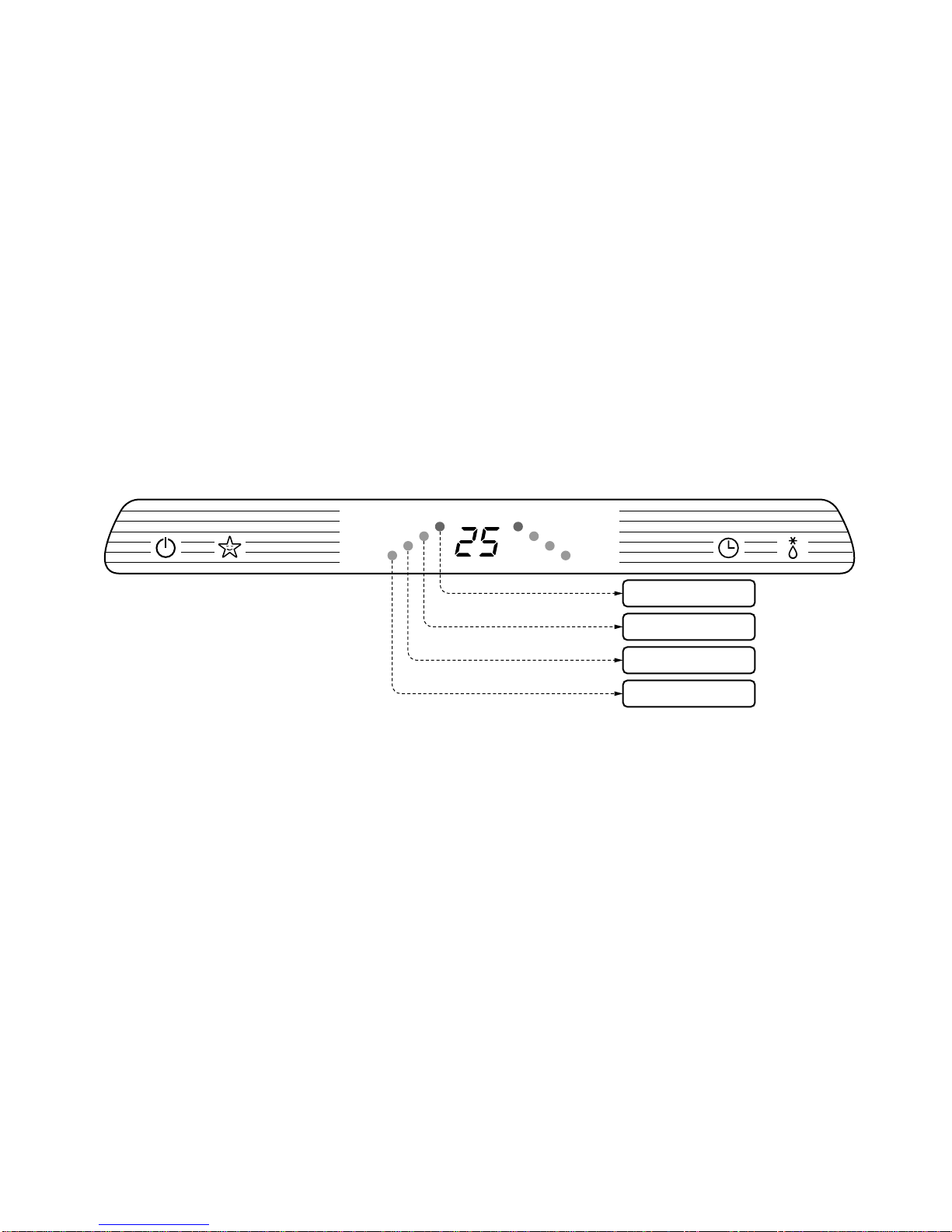

1. LED display of indoor unit
■LS-_YL/UL Series, N096J_Series
■LS-_NM/NN Series
-11-
Operation
indicator
Shape of
display Setting temp.
Standard Too hot Hot Cold Too cold Jet
(Cool, Heat) Test operation
Comfortable
A.I operation mode
Cooling
heating
dehumidifi-
cation
Energy save
in cooling
mode
Operation Indicator
Sleep Timer Indicator
Timer Indicator
Preheat Indicator
Setting Temp.
•On while in appliance operation, off while in appliance pause.
•Blinking(3sec off/0.5sec on) according to Error Code as long as the system mal-
functions.
•On while in sleep timer mode, off when sleep timer cancel or appliance operation
pause.
•On while in timer mode(on/off), off when timer mode is completed or canceled.
•Off except when hot start during heating mode operation or while in defrost control.
•Cooling/heating/dehumidification mode : setting temperature from remote control
•Fuzzy operation mode : fuzzy key data(5sec on) ➔AI
Operation Indicator
Power Saving Indicator
Timer Indicator
Preheat Indicator
•On while in appliance operation, off while in appliance pause.
•Flashing while in disconnection or short in Thermistor. (3 sec off/0.5 sec on)
•On while in power saving cold mode, off when power saving cold cancel.
•On while in timer mode(on/off) and sleep timer mode (on), off when timer mode is
completed or canceled.
•Off except when hot start during heating mode operation or while in defrost control.

■How to operate the power display (LS-_YL/UL Series, LS-N096J_Series)
•It must be displayed the power level that will be operating frequency of compressor.
•It indicates power levels that compressor operating frequency is controlled to depend on indoor and outdoor
conditions.
•It is displayed as below.
❐Heat mode operation
- Power level 1: below Step 2 of COMP. operating frequency
- Power level 2: below Step 4 of COMP. operating frequency
- Power level 3: Equal Step 5 of COMP. operating frequency
- Power level 4: below Step 7 of COMP. operating frequency
❐Operation mode except heat mode operation
- Power level 1: below Step 2 of COMP. operating frequency
- Power level 2: below Step 4 of COMP. operating frequency
- Power level 3: Equal Step 5 of COMP. operating frequency
- Power level 4: below Step 7 of COMP. operating frequency
-12-
Power Level 1
Power Level 2
Power Level 3
Power Level 4

-13-
2. Protection of the evaporator pipe from frosting
•If the indoor pipe temperaure is below 0°C in 7 min. after the compressor operates without pause while in
cooling cycle operation mode,
➔ compressor, outdoor fan are turned off.
•When indoor pipe temp. is 7°C or higher after 2 min pause of compressor
➔ compressor, outdoor fan is turned on according to the condition of the room temperature.
3. Protection of the indoor fan from droplet formation (Enclosure
sweat and condensed disposal test)
• Control condition : The system operates standard operation without this condition as follows.
Setting temperature <25°C
Indoor fan speed ≤low speed
Outdoor temperature < 30°C
• Control method
In operation for 5~20 minutes in , , conditions, return to the previous COMP STEP after operation for
5~40 minutes at the COMP STEP 3.
Comp. free
Comp. Step 4
Comp. Step 2
Comp. off
0˚C
3˚C
6˚C7˚C
Indoor pipe
temp.

-14-
4. Cooling mode operation
•Operating frequency of compressor depend on the difference of the temperature.
(= intake air Temp.- Compressor off Temp.
•Compressor off temp.= setting temp. - 0.5°C
on temp. = setting temp. +0.5°C
•If compressor operates at some operating frequency, the operating frequency of compressor cannot be
changed within 30 seconds.
•Condition of compressor turned off
- When intake air temperature stay at the temperature between setting temp.
- 0.5°C and setting temp.
- 1.0°C for 3 minutes continuously.
- When intake air temperature reaches below the temperature of setting temp.
-
1.0°C.
•Compressor 2 minutes delay
- The compressor can restart minimum 2 minutes later after compressor off.
Temp. differences Comp. Operating frequency
over 3.0°C Step 7
over 2.5°C Step 6
2.0~2.49°C Step 5
1.5~1.99°C Step 4
1.0~1.49°C Step 3
0.5~0.99°C Step 2
0.0~0.49°C Step 1
[The operating freq. step of comp.]
[The targeting operating freq. of comp. each model]
Model
7K Series(AC) 35 41 45 56 64 68 78
9K Series(AC) 35 48 62 72 83 90 99
12K Series(AC) 30 40 45 55 61 67 72
9K Series(DC) 15 22 32 40 51 54 58
12K Series(DC) 15 28 40 53 66 71 76
Comp. Operating frequency
Step 1 Step 2 Step 3 Step 4 Step 5(Fc) Step 6 Step 7

-15-
5. Healthy Dehumidification mode operation
•When the dehumidification operation is set by the remote controller the intake air temperature is detected and
the setting temp. is automatically set according to the intake air temperature.
•When intake air temp reaches above the temp of setting +1.0°C, condition of compressor same as cooling
mode operation.
•When intake air temperature reaches bolow the temp of setting –1.0°C, compressor operate step1~step3 and
indoor fan speed repeatly operate low or stop.
Intake air Temp.
32°C ≤intake air temp.
26°C ≤intake air temp. < 32°C
24°C ≤intake air temp.< 26°C
18°C < intake air temp. < 24°C
intake air temp. ≤18°C
Setting Temp.
25°C
25°C
intake air temp. -1°C
intake air temp. -0.5°C
18°C

-16-
6. Heating mode operation
•Operating frequency of compressor depend on the difference of the temperature
(= compressor off temp. - intake air temp.)
•Compressor off temp. = setting temp.+3.0°C
on temp. = setting temp.
•If compressor operates at some operation frequency, the operating frequency of compressor cannot be
changed within 30 seconds.
•Condition of compressor turned off
- When intake air temperature reaches +3°C above the setting temperature.
•Condition of indoor fan turned off
- While in compressor on:indoor pipe temp. < 30°C
•While in defrost control, between the indoor and outdoor fans are turned off.
•Compressor 2minutes delay
- After compressor off, the compressor can restart minimum 2 minutes later.
Temp. differences
over 3.0°C
2.5~3.0°C
2.0~2.49°C
1.5~1.99°C
1.0~1.49°C
0.5~0.99°C
0.0~0.49°C
Comp. Operating frequency
Step 7
Step 6
Step 5
Step 4
Step 3
Step 2
Step 1
[ The operating freq. step of comp]
[The targeting operating freq. of comp. each model]
Model
7K Series(AC) 35 48 56 68 80 85 90
9K Series(AC) 35 48 55 72 88 94 99
12K Series(AC) 35 43 55 65 74 80 86
9K Series(DC) 15 25 40 52 63 66 70
12K Series(DC) 15 28 40 53 66 71 76
Comp. Operating frequency
Step 1 Step 2 Step 3 Step 4 Step 5(Fh) Step 6 Step 7

-17-
7. Fuzzy mode operation
•When any of operation mode is not selected like the moment of the power on or when the unit turned off, the
operation mode is selected.
•When determining the operation mode, the compressor, outdoor fan are off and only the indoor fan is operat-
ed for 15~20 seconds, then an operation mode is selected according to.
Basis of determining operating mode
Outdoor temp.
over 24°C
21~24°C
18~21°C
below 18°C
Operating Mode
Cooling
Healthy Dehumidification
intake air temp. ≥25°C …Dehumidification
intake air temp. < 25°C …Heating
Heating
7.1 Fuzzy operation for cooling
•According to the setting temperature selected by Fuzzy rule, the operating frequency of compressor is deter-
mined like cooling mode operation.
•At the beginning of Fuzzy mode operation, the setting temperature is automatically selected according to the
intake air temperature at that time.
•When the Fuzzy key(=setting temp. key) is input after the initial setting temperature is selected, the Fuzzy
key value and intake air temperature at that time are compared to select the setting temperature automatically
according to the fuzzy rule.
•While in Fuzzy operation, the air flow speed of the indoor fan is automatically operated by Fuzzy logic.
at beginning
during opertion
Intake air temp.
over 26°C
18~26°C
below 18°C
18~30°C
below 18°C
over 30°C
Setting temp.
25°C
intake air temp. -0.5°C
18°C
Fuzzy rule
18°C Fuzzy rule
30°C Fuzzy rule
Fan speed
Fuzzy airflow

-18-
7.2 Fuzzy operation for Heating
•According to the setting temperature selected by Fuzzy rule, the operating frequency of compressor is deter-
mined like heating mode operation.
•At the beginning of Fuzzy mode operation, the setting temperature is automatically selected according to the
intake air temperature at that time.
•When the Fuzzy key(=setting temp. key) is input after the initial setting temperature is selected, the Fuzzy key
value and intake air temperature at that time are compared to select the setting temperature automatically
according to the Fuzzy rule.
•While in Fuzzy operation, the airflow speed of the indoor fan is automatically operated by Fuzzy logic.
at beginning
during opertion
Intake Air temp.
over 20°C
below -20°C
16~30°C
below 16°C
over 30°C
Setting temp.
intake air temp. +0.5°C
20°C
Fuzzy rule
16°C Fuzzy rule
30°C Fuzzy rule
Fan speed
Fuzzy airflow
7.3 Fuzzy operation for dehumidification
•At the beginning of Fuzzy mode operation, the setting temperature is automatically selected according to the
intake air temperature at that time.
•According to the setting temperature selected by Fuzzy rule, the operating frequency of compressor is deter-
mined like dehumidefication mode operation.
at beginning
during operation
Intake Air temp.
over 26°C
18~26°C
below 18°C
18~30°C
below 18°C
over 30°C
Setting temp.
25°C
intake air temp. -0.5°C
18°C
Fuzzy rule
18°C Fuzzy rule
30°C Fuzzy rule
Fan speed
Fuzzy airflow

-19-
8. Jet cool mode operation
•While in heating mode or Fuzzy operation, the Jet Cool key cannot be input. When it is input while in the
other mode operation(cooling, dehumidification, ventilation), the Jet Cool mode is operated.
•In the Jet Cool mode, the indoor fan is operated super-high speed for 30 min. at cooling mode operation.
•In the Jet Cool mode, the room temperature is controlled to the setting temperature, 18°C.
•When the sleep timer mode input while the Jet Cool mode operation, the Jet Cool mode has the priority.
•When the Jet Cool key is input, the upper/lower vane is reset to those of the initial cooling mode and then
operated in order that the air outflow could reach further.
9. Jet heat mode operation
•While in cooling mode or Fuzzy operation, the Jet Heat key cannot be input. When it is input while in the
Heating mode operation (dehumidification), the Jet Heat mode is operated.
•In the Jet Heat mode, the indoor fan is operated super-high speed for 60 min. at Heating mode operation.
•In the Jet Heat mode, the room temperature is controlled to the setting temperature, 30°C.
•When the sleep timer mode input while the Jet Heat mode operation, the Jet Heat mode has the priority.
•When the Jet Heat key is input, the upper/lower vane is reset to those of the initial Jet heating mode and
then operated in order that the air outflow could reach under flow.
10. Swing mode
10.1 Chaos swing mode
•By the Chaos swing key input, the upper/lower vane automatically operates with the Chaos swing or it is fixed
to the desired direction.
CLOSED
Chaos Swing On
Chaos Swing The first path
Mode 9
Mode 8
Mode 7
Mode 6
Mode 5
Mode 4
Mode 3
Mode 2
Mode 1
OPEN

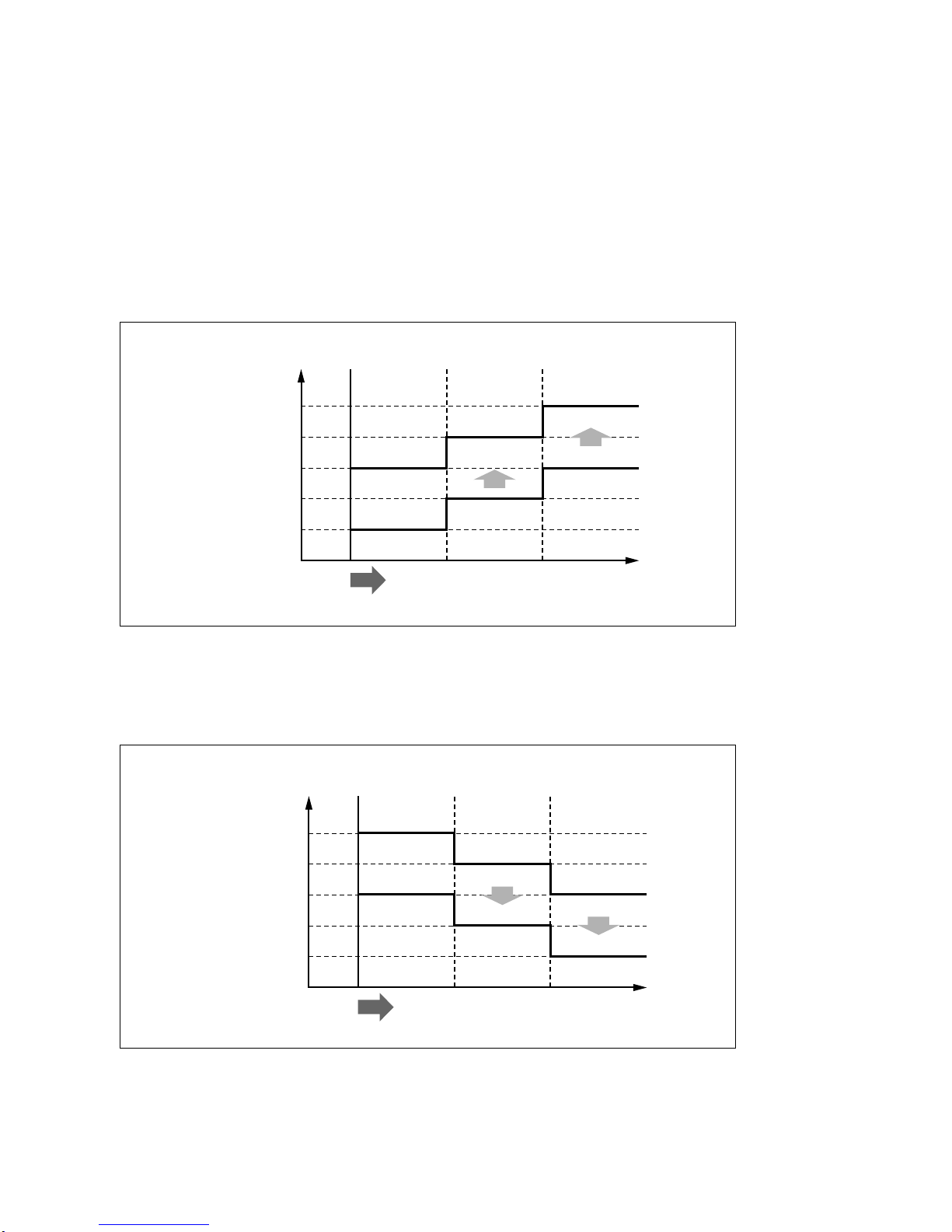

11.1 Sleep timer operation for cooling cycle
•While in cooling mode operation, 30 min. later since the start of the sleep timer, the setting temperature
increase by 1°C. After another 30min. elapse, it increases by 1°C again.
11.2 Sleep timer operation for heating cycle
•While in heating mode operation, 60 min. later since the start of the sleep timer, the setting temperature
decrease by 1°C. After another 60min. elapse, it decreases by 1°C again.
-20-
Setting temp. (˚C)
1.0˚C up
1.0˚C up
Cooling ON temp.
(Setting temp. +0.5˚C)
Cooling OFF temp.
(Setting temp. -0.5˚C)
0.5 1 Sleep time (hr)
Setting temp. (˚C)
Heating ON temp.
(Setting temp)
Heating OFF temp.
(Setting temp. +3.0˚C)
1 2 Sleep time (hr)
0.5˚C down
1.0˚C down
11. Sleep timer operation
•When the sleep time is reached after [1,2,3,4,5,6,7hr] is input by the remote control during the operation, the
operation of the appliance stops.
•When the appliance is on pause, the sleep timer mode cannot be input.
