LG GM360i User manual

Service Manual Model : GM360i
Internal Use Only
Service Manual
GM360i
Date: June, 2010 / Issue 1.0

- 3 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Table Of Contents
1. INTRODUCTION..................................................................5
1.1 Purpose............................................................................................... 5
1.2 Regulatory Information ............................................................... 5
1.3Abbreviations................................................................................... 7
2. PERFORMANCE...................................................................9
2.1 H/W Features.................................................................................... 9
2.2 Technical Specification...............................................................10
3. TECHNICAL BRIEF.............................................................16

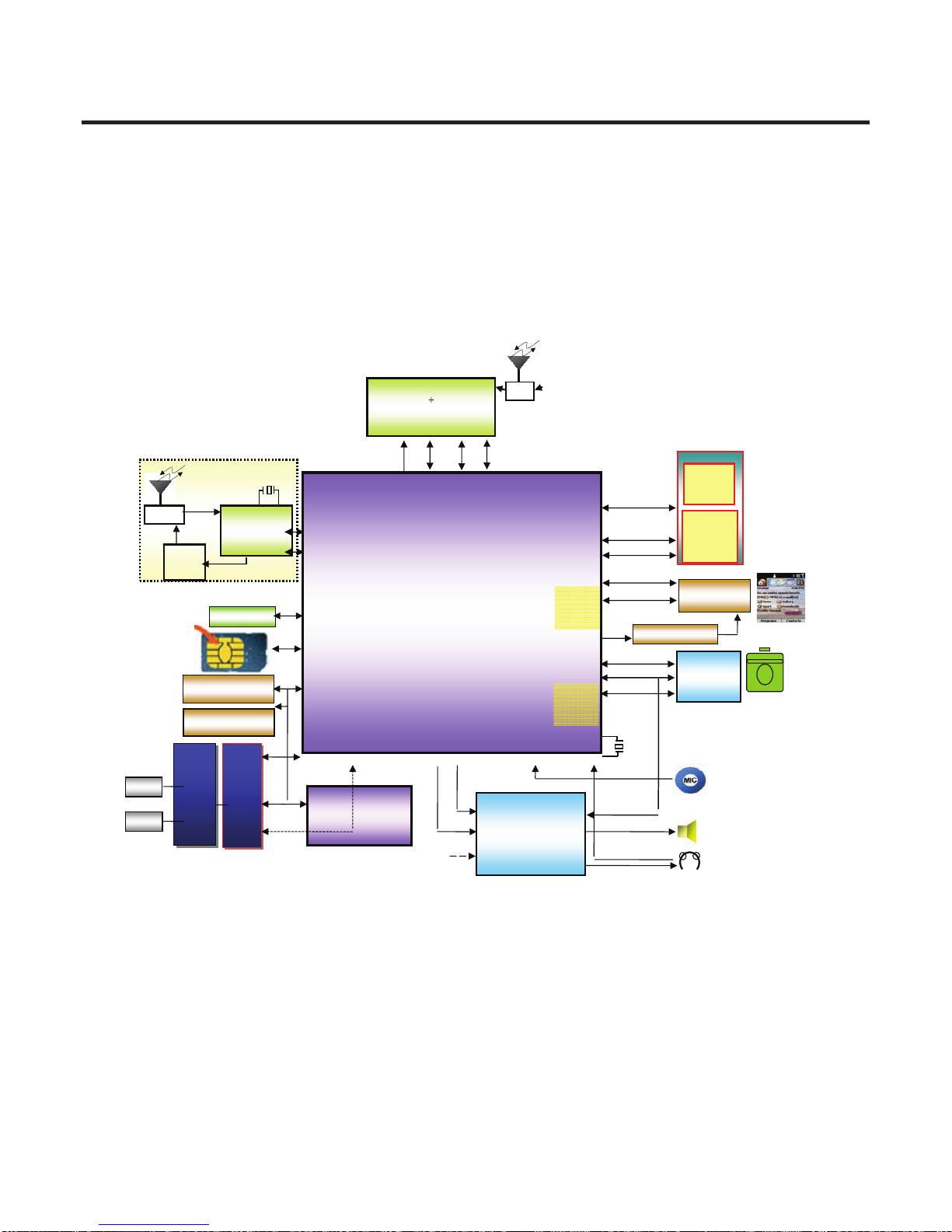

3.1 GM360i Functional Block diagram. .......................................16
3.2 Baseband Processor (BBP) Introduction..............................17
3.3 Power management IC ..............................................................30
3.4 Power ON/OFF...............................................................................35
3.5 SIM & uSD interface.....................................................................37
3.6 Memory ............................................................................................39
3.7 LCD Display.....................................................................................40
3.8 Keypad Switching & Scanning................................................41
3.9 Keypad back-light illumination ..............................................42
3.10 LCD back-light illumination...................................................44
3.11 Audio...............................................................................................45
3.12 Audio amplifier & Microphone.............................................46
3.13Charging circuit ..........................................................................48
3.14 FM radio & BLUETOOTH & WLAN.........................................49
3.15 5pin u-USB Interface connector...........................................52
3.16 General Description..................................................................55
3.17 Receiver part................................................................................57
3.18 Transmitter part..........................................................................58
3.19 RF synthesizer..............................................................................59
3.20 Front End Module control ......................................................59
3.21 Power Amplifier Module.........................................................60
3.22 PAM Schematic ...........................................................................61
4. TROUBLE SHOOTING .......................................................62
4.1 Trouble shooting test setup.....................................................62
4.2 Power on Trouble..........................................................................63
4.3Charging trouble ..........................................................................66
4.4 LCD display trouble .....................................................................68
4.5 Camera Trouble.............................................................................70
4.6 Receiver & Speaker trouble ......................................................72
4.7 Microphone trouble....................................................................75
4.8 Vibrator trouble.............................................................................77
4.9 Keypad back light trouble.........................................................79
4.10 SIM & uSD trouble......................................................................81
4.11 Touch trouble...............................................................................84
4.12 Trouble shooting of Receiver part.......................................86
4.13Trouble shooting of Transmitter part.................................92
5. DOWNLOAD & S/W UPGRADE...................................... 101
6. BLOCK DIAGRAM........................................................... 114
7. CIRCUIT DIAGRAM ........................................................ 115
8. BGA Pin Map.................................................................. 123
9. PCB LAYOUT................................................................... 131
10. RF CALIBRATION ......................................................... 135
10.1 Test Equipment Setup........................................................... 135
10.2 Calibration Step....................................................................... 135
11. STAND ALONE TEST .................................................... 140
11.1 est Program Setting ............................................................... 140
11.2 x Test............................................................................................. 143
11.3Rx Test .......................................................................................... 145
12. EXPLODED VIEW & REPLACEMENT
PART LIST .................................................................... 147
12.1 EXPLODED VIEW...................................................................... 147
12.2 Replacement Parts.................................................................. 149
12.3Accessory ................................................................................... 168

- 4 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes

- 5 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
1. INTRODUCTION
1. INTRODUCTION
LG Electronics 6/147 LGE Property
1. Introduction
1.1 Purpose
This manual provides the information necessary to repair, calibration, description and download the features of
the GM360.
1.2. Regulatory Information
1.2.1 Security
Toll fraud, the unauthorized use of telecommunications system by an unauthorized part (for example, persons
other than your company’s employees, agents, subcontractors, or person working on your company’s behalf) can
result in substantial additional charges you’re your telecommuni
cations services. System users are responsible for
the security of own system. There are may be risks of toll fraud associated with your telecommunications system.
System users are responsible for programming and configuring the equipment to prevent unauthorized use. LGE
does not warrant that this product is immune from the above case but will prevent unauthorized use of
common-carrier telecommunication service of facilities accessed through or connected to it. LGE will not be
responsible for any charges that result from such unauthorized use.
1.2.2 Incidence of Harm
If a telephone company determines that the equipment provided to customer is faulty and possibly causing
harm or interruption in service to the telephone network, it should disconnect telephone service until repair can
be done. A telephone company may temporarily disconnect service as long as repair is not done.
1.2.3 Changes in Service
A local telephone company may make changes in its communications facilities or procedure. If these changes
could reasonably be expected to affect the use of the GM360 or compatibility with the network, the telephone
company is required to give advanced written notice to the user, allowing the user to take appropriate steps to
maintain telephone service.
1.2.4 Maintenance Limitations
Maintenance limitations on the GM360 must be performed only at the LGE or its authorized agents. The user may
not make any changes and/or repairs expect as specifically noted in this manual. Therefore, note that
unauthorized alternations or repair may affect the regulatory status of the system and may void any remaining
warranty.
GM360i
GM360i
GM360i

- 6 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
1. INTRODUCTION
LG Electronics 7/147 LGE Property
1.2.5 Notice of Radiated Emissions
The GM360 complies with rules regarding radiation and radio frequency emission as defined by local regulatory
agencies. In accordance with these agencies, you may be required to provide information such as the following
to the end user.
1.2.6 Pictures
The pictures in this manual are for illustrative purposes only; your actual hardware may look slightly different.
1.2.7 Interference and Attenuation
An GM360 may interfere with sensitive laboratory equipment, medical equipment, etc. Interference from
unsuppressed engines or electric motors may cause problems.
1.2.8 Electrostatic Sensitive Devices
ATTENTION
Boards, which contains Electrostatic Sensitive Device(ESD), are indicated by the sign. Following information is
ESD handling: Service personnel should ground themselves by using a wrist strap when
exchange system boards.
When repairs are made to a system board, they should spread the floor with anti-static mat which is also
grounded. Use a suitable, grounded soldering iron. Keep sensitive parts in these protective packages until these
are used. When returning system boards or parts such as EEPROM to the factory, use the protective package as
described.
GM360i
GM360i

- 7 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
1. INTRODUCTION
LG Electronics 8/147 LGE Property
1.3 ABBREVIATION
For the purposes of this manual, following abbreviations apply:
୛APC Automatic Power Control
୛BB Baseband
୛BER Bit Error Ratio
୛CC-CV Constant Current – Constant Voltage
୛CLA Cigar Lighter Adapter
୛DAC Digital to Analog Converter
୛DCS Digital Communication System
୛dBm dB relative to 1 milli-watt
୛DSP Digital Signal Processing
୛EEPROM Electrical Erasable Programmable Read-Only Memory
୛EGPRS Enhanced General Packet Radio Service
୛EL Electroluminescence
୛ESD Electrostatic Discharge
୛FPCB Flexible Printed Circuit Board
୛GMSK Gaussian Minimum Shift Keying
୛GPIB General Purpose Interface Bus
୛GPRS General Packet Radio Service
୛GSM Global System for Mobile Communications
୛IPUI International Portable User Identity
୛IF Intermediate Frequency
୛LCD Liquid Crystal Display
୛LDO Low Drop Output
୛LED Light Emitting Diode
୛LGE LG Electronics

- 8 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
1. INTRODUCTION
LG Electronics 9/147 LGE Property
୛OPLL Offset Phase Locked Loop
୛PAM Power Amplifier Module
୛PCB Printed Circuit Board
୛PGA Programmable Gain Amplifier
୛PLL Phase Locked Loop
୛PSTN Public Switched Telephone Network
୛RF Radio Frequency
୛RLR Receiving Loudness Rating
୛RMS Root Mean Square
୛RTC Real Time Clock
୛SAW Surface Acoustic Wave
୛SIM Subscriber Identity Module
୛SLR Sending Loudness Rating
୛SRAM Static Random Access Memory
୛STMR Side Tone Masking Rating
୛TA Travel Adapter
୛TDD Time Division Duplex
୛TDMA Time Division Multiple Access
୛UART Universal Asynchronous Receiver/Transmitter
୛VCO Voltage Controlled Oscillator
୛DCXO Digitally Controled Crystal Oscillator
୛WAP Wireless Application Protocol
୛8PSK 8 Phase Shift Keying

- 9 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
2. PERFORMANCE
LG Electronics 10/147 LGE Property
2. General Performance
2.1 H/W Feature
Item Feature Comment
Standard Battery Li-ion, 900mAh
AVG TCVR Current 250mA typ @PL5
Standby Current 2.3 mA typ @PP9
Talk time 3 hours (GSM TX Level 7)
Standby time Over 250 hours (Paging Period:9, RSSI: -85dBm)
Charging time Under 3 hours
RX Sensitivity EGSM/GSM850:-105dBm˨,DCS/PCS:-105dBm˨
TX output power EGSM/GSM850 : 33dBm (@PL 5)
DCS/PCS: 30dBm (@PL 0)
GPRS compatibility Class 10
SIM card type 3V Small
Display Main 240 u400 pixels, 3”WQVGA, 262K color
Status Indicator Send Key, Shortcut Key, Volume Up/Down Key,
PWR Key, Camera Key, Lock Key
ANT Built in antenna
EAR Phone Jack 3.5Pi Headset jack
PC Synchronization Yes
Speech coding HR/EFR/FR/AMR
Data and Fax Yes
Vibrator Yes
Buzzer No
Voice Recoding Yes
C-Mic Yes
Receiver Yes
Travel Adapter Yes
Options Bluetooth hands-free kit, Data Kit

- 10 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
LG Electronics 11/147 LGE Property
2.2 Technical specification
Item Description Specification
1 Frequency Band
GSM850
TX: 824 + 0.2 x n MHz
RX: 869 + 0.2 x n MHz ( n = 1 ~ 124 )
EGSM
TX: 890 + 0.2 x (n-1024) MHz
RX: 935 + 0.2 x (n-1024) MHz ( n = 975 ~ 1023 )
DCS1800
TX: 1710 + ( n-511 ) u0.2 MHz (n = 512 a885)
RX: TX + 95 MHz
PCS1900
TX: 1850.2 + ( n-512 ) u0.2 MHz (n = 512 a810)
RX: TX + 80MHz
2 Phase Error RMS < 5 degrees
Peak < 20 degrees
3 Frequency Error < 0.1ppm
GSM850/EGSM
Level Power Toler. Level Power Toler.
5 33 dBm ±2dB 13 17 dBm ±3dB
6 31 dBm ±3dB 14 15 dBm ±3dB
7 29 dBm ±3dB 15 13 dBm ±3dB
8 27 dBm ±3dB 16 11 dBm ±5dB
9 25 dBm ±3dB 17 9 dBm ±5dB
10 23 dBm ±3dB 18 7 dBm ±5dB
11 21 dBm ±3dB 19 5 dBm ±5dB
12 19 dBm ±3dB
DCS1800/PCS1900
Level Power Toler. Level Power Toler.
0 30 dBm ±2dB 8 14 dBm ±3dB
1 28 dBm ±3dB 9 12 dBm ±4dB
2 26 dBm ±3dB 10 10 dBm ±4dB
3 24 dBm ±3dB 11 8 dBm ±4dB
4 22 dBm ±3dB 12 6 dBm ±4dB
5 20 dBm ±3dB 13 4 dBm ±4dB
6 18 dBm ±3dB 14 2 dBm ±5dB
4 Power Level
7 16 dBm ±3dB 15 0 dBm ±5dB

- 11 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
LG Electronics 12/147 LGE Property
GSM850/EGSM
Offset from Carrier (kHz). Max. dBc
100 +0.5
200 -30
250 -33
400 -60
600 ~ 1,200 -60
1,200 ~ 1,800 -60
1,800 ~ 3,000 -63
3,000 ~ 6,000 -65
6,000 -71
DCS1800/PCS1900
Offset from Carrier (kHz). Max. dBc
100 +0.5
200 -30
250 -33
400 -60
600 ~ 1,200 -60
1,200 ~ 1,800 -60
1,800 ~ 3,000 -65
3,000 ~ 6,000 -65
5 Output RF Spectrum
(due to modulation)
6,000 -73
GSM850/EGSM
Offset from Carrier (kHz) Max. (dBm)
400 -19
600 -21
1,200 -21
1,800 -24
DCS1800/PCS1900
Offset from Carrier (kHz) Max. (dBm)
400 -22
600 -24
1,200 -24
6 Output RF Spectrum
(due to switching transient)
1,800 -27

- 12 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
LG Electronics 13/147 LGE Property
7 Spurious Emissions Conduction, Emission Status
Conduction, Emission Status
8 Bit Error Ratio
GSM850 / EGSM
BER (Class II) < 2.439% @-102dBm
DCS1800/PCS1900
BER (Class II) < 2.439% @-100dBm
9 Rx Level Report accuracy r3 dB
10 SLR 8 r3 dB
Frequency (Hz) Max.(dB) Min.(dB)
100 -12 /
200 0 /
300 0 -12
1,000 0 -6
2,000 4 -6
3,000 4 -6
3,400 4 -9
11 Sending Response
4,000 0 /
12 RLR 2 r3 dB
Frequency (Hz) Max.(dB) Min.(dB)
100 -12 /
200 0 /
300 2 -7
500 * -5
1,000 0 -5
3,000 2 -5
3,400 2 -10
4,000 2
13 Receiving Response
* Mean that Adopt a straight line in between 300
Hz and 1,000 Hz to be Max. level in the range.
14 STMR 13 r5 dB
15 Stability Margin > 6 dB
dB to ARL (dB) Level Ratio (dB)
-35 17.5
-30 22.5
-20 30.7
-10 33.3
0 33.7
7 31.7
16 Distortion
10 25.5
17 Side tone Distortion Three stage distortion < 10%

- 13 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
LG Electronics 14/147 LGE Property
18 <Change> System frequency (26 MHz)
tolerance d2.5 ppm
19 <Change>32.768KHz tolerance d30ppm
20 Power consumption Standby
- Normalஆd3 mA(@PP9)
21 Talk Time EGSM/Lvl 7 (Battery Capacity 800mA):180 min
EGSM/Lvl12(Battery Capacity 800 mA):320min
22 Standby Time
Under conditions, at least 300 hours:
1. Brand new and full 900mAh battery
2. Full charge, no receive/send and keep GSM in
idle mode.
3. Broadcast set off.
4. Signal strength display set at 3 level above.
5. Backlight of phone set off.
23 Ringer Volume
At least 65 dB under below conditions:
1. Ringer set as ringer.
2. Test distance set as 50 cm
24 Charge Current Fast Charge : < 650 mA
Slow Charge: < 120 mA
Antenna Bar Number Power
7 >-92 dBm a
5 -97dBm a–93dBm
4 -100dBm a–98dBm
2 -103dBm a–101dBm
1 -105dBm a–104dBm
0 < –106 dBm
25 Antenna Display
Off No Service
Battery Bar Number Voltage (±0.05V)
3 3.72V~4.2V
2 3.65V~3.71V
1 3.59V~3.64V
26 Battery Indicator
0 3.35V~3.58V
3.59VĻ±0.05V (Call)
27 Low Voltage Warning 3.59VĻ±0.05V (Standby)
28 Forced shut down Voltage 3.35 r0.05 V
29 Battery Type
Li-ion Battery
Standard Voltage = 3.7 V
Battery full charge voltage = 4.2 V
Capacity: 900mAh
30 Travel Charger
Switching-mode charger
Input: 150 a240 V, 50/60Hz
Out put: 5.1, 0.7A

- 14 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
LG Electronics 15/147 LGE Property
* EDGE RF Specification (Option: is not serviced for ”EDGE mode”)
Item Description Specification
1 RMS EVM ≤9%
2 Peak EVM ≤30%
3 95th Percentile EVM ≤15%
4 Origin Offset Suppression ≥30dB
GSM900/EGSM
Level Power Toler. Level Power Toler.
5 27dBm ±3dB 13 17dBm ±3dB
6 27dBm ±3dB 14 15dBm ±3dB
7 27dBm ±3dB 15 13dBm ±3dB
8 27dBm ±3dB 16 11dBm ±5dB
9 25dBm ±3dB 17 9dBm ±5dB
10 23dBm ±3dB 18 7dBm ±5dB
11 21dBm ±3dB 19 5dBm ±5dB
12 19dBm ±3dB
DCS1800, PCS1900
Level Power Toler. Level Power Toler.
0 26/25dBm ±3dB 8 14dBm ±3dB
1 26/25dBm ±3dB 9 12dBm ±4dB
2 26/25dBm ±3dB 10 10dBm ±4dB
3 24dBm ±3dB 11 8dBm ±4dB
4 22dBm ±3dB 12 6dBm ±4dB
5 20dBm ±3dB 13 4dBm ±4dB
6 18dBm ±3dB 14 2dBm ±5dB
5 Power Level
7 16dBm ±3dB 15 0dBm ±5dB
GSM900/EGSM
Offset from carrier(kHz) Max. dBc
100 +0.5
200 -30
250 -33
400 -54
600~<1,200 -60
1,200~<1,800 -60
1,800~<3,000 -63
3,000~<6,000 -65
6 Output RF Spectrum
(due to modulation)
6,000 -71

- 15 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
LG Electronics 16/147 LGE Property
DCS1800, PCS1900
Offset from carrier(kHz) Max. dBc
100 +0.5
200 -30
250 -33
400 -54
600~<1,200 -60
1,200~<1,800 -60
1,800~<3,000 -63
3,000~<6,000 -65
6,000 -71
GSM900/EGSM
Offset from carrier(kHz) Max. dBm
400 -23
600 -26
1,200 -27
1,800 -30
DCS1800, PCS1900
Offset from carrier(kHz) Max. dBm
400 -23
600 -26
1,200 -27
7 Output RF Spectrum
(due to switching transient)
1,800 -30
6

- 16 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
3. TECHNICAL BRIEF
3. TECHNICAL BRIEF
LG Electronics 17/147 LGE Property
3-1 Baseband circuit
3.1 GM360 Functional Block diagram.
The functional component arrangement is mentioned below diagram.
Figure 1 GM360 Functional block diagram
G
U100
PMB8877
G
WM9093
U802
RCV/SPK
MAIN MIC HSMIC
RF
SIM
NAND_ DATA
DATA[00:15] SDRAM
1248
Mbit
NAND
Flash
2048M
U 101
BT
அ
FM Radio
UART1 I2S 32K PCM
RF
G
EDGE
PAM
FEM Transceiver
U501
EDGE 26M
GSM850/900/1800/1
VIBRATOR
DATA LCD
Fi
FM Audio
G
Ear-Mic
ADD
I2C1
Touch
Screen
Camera Flash
SDIO
ADD
RCV
EAR/SPK
LCD_ID
IF_MODE
DIF_CD
DIF_CS
DIF_RESET
DIF_VSYNC
DIF [0:7]
CONTROL
CAMERA
I2C2 CIF [0:7]
DATA
CIF_PCLK
CIF_HSYNC
CIF_VSYNC
CIF_MCLK
CIF_PD
CIF_RESET
G
PMIC
PMB6821
FM Audio
SDRAM DATA
USBUART
KEY_PAD_I/F
Micro
USB
Conne
ctor
MUIC 32K
DATA[00:15]
LCD_BACKLIGHT_EN LCD
US
U
A
GM360i
LG Electronics 17/147 LGE Property
3-1 Baseband circuit
3.1 GM360 Functional Block diagram.
The functional component arrangement is mentioned below diagram.
Figure 1 GM360 Functional block diagram
G
U100
PMB8877
G
WM9093
U802
RCV/SPK
MAIN MIC HSMIC
RF
SIM
NAND_ DATA
DATA[00:15] SDRAM
1248
Mbit
NAND
Flash
2048M
U 101
BT
அ
FM Radio
UART1 I2S 32K PCM
RF
G
EDGE
PAM
FEM Transceiver
U501
EDGE 26M
GSM850/900/1800/1
VIBRATOR
DATA LCD
Fi
FM Audio
G
Ear-Mic
ADD
I2C1
Touch
Screen
Camera Flash
SDIO
ADD
RCV
EAR/SPK
LCD_ID
IF_MODE
DIF_CD
DIF_CS
DIF_RESET
DIF_VSYNC
DIF [0:7]
CONTROL
CAMERA
I2C2 CIF [0:7]
DATA
CIF_PCLK
CIF_HSYNC
CIF_VSYNC
CIF_MCLK
CIF_PD
CIF_RESET
G
PMIC
PMB6821
FM Audio
SDRAM DATA
USBUART
KEY_PAD_I/F
Micro
USB
Conne
ctor
MUIC 32K
DATA[00:15]
LCD_BACKLIGHT_EN LCD
US
U
A
GM360i

- 17 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. TECHNICAL BRIEF
LG Electronics 18/147 LGE Property
3.2 Baseband Processor (BBP) Introduction
Figure 2 Top level block diagram of the S-GOLD3TM (PMB8877)

- 18 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
3. TECHNICAL BRIEF
LG Electronics 19/147 LGE Property
3.2.1 General Description
S-GOLD3TM is a GSM/EDGE single chip mixed signal Baseband IC containing all analog and digital functionality of
a cellular radio. Additionally S-GOLD3TM Provides multimedia extensions such as camera, software MIDI, MP3
sound. It is designed as a single chip solution, integrating the digital and mixed signal portions of the base band
in 0.09um, 1.2V technology.
The chip will fully support the FR, EFR, HR and AMR-NB vocoding.
S-GOLD3TM support multi-slot operation modes HSCSD (up to class 10), GPRS for high speed data application (up
to class 12) and EGPRS (up to class 12) without additional external hardware.
3.2.2 Block Description
zProcessing core
ARM926EJ-S 32 bit processor core for controller functions. The ARM926EJ-S includes an MMU, and the Jazelle
Java extension for Java acceleration.
- TEAKLite DSP core
zARM-Memory
- 32k Byte Boot ROM on the AHB
- 96k Byte SRAM on the AHB, flexibly usable as program or data RAM
- 16k Byte Cache for Program (internal)
- 8k Byte tightly coupled memory for Program(internal)
- 8k Byte Cache for Data(internal)
- 8k Byte tightly coupled memory for Data(internal)
zDSP-Memory
- 104K x 16bit Program ROM
- 8k x 16bit Program RAM
- 60k x 16bit Data ROM
- 37k x 16bit Data RAM
- Incremental Redundancy(IR) Memory of 35904 words of 16bit
zShared Memory Block
1.5K x 32bit Shared RAM(dual ported) between controller system and TEAKLite.
zController Bus system
The processor cores and their peripherals are connected by powerful buses.
Multi-layer AHB for connecting the ARM and the other master capable building blocks with the internal and
external memories and with the peripheral buses.

- 19 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. TECHNICAL BRIEF
LG Electronics 20/147 LGE Property
z
Clock system
The clock system allows widely independent selection of frequencies for the essential parts of the S-GOLD3.
Thus power consumption and performance can be optimized for each application.
zFunctional Hardware block
- CPU and DSP Timers
- MOVE coprocessor performing motion estimation for video encoding algorithms
(H.263, MPEG-4)
- Programmable PLL with additional phase shifters for system clock generation
- GSM Timer Module that off-loads the CPU from radio channel timing
- GMSK / 8-PSK Modulator according to GSM-standard 05.04 (5/2000)
- GMSK Modulator: gauss-filter with B*T=0.3
- EDGE Modulator: 8PSK-modulation with linearized GMSK-Pulse-Filter
- Hardware accelerators for equalizer and channel decoding.
- Incremental Redundancy memory for EDGE class 12 support
- A5/1, A5/2, A5/3 Cipher unit
- GEA1, GEA2, GEA3 Cipher Unit to support GPRS data transmission
- Advanced static and dynamic power management features including TDMA-Frame
synchronous low power mode and enhanced CPU modes(idle and sleep modes)
- Pulse Number Modulation output for Automatic Frequency Correction(AFC)
- Serial RF Control interface: support of direct conversion RF
- A Universal Serial Interface(USIF) enabling asynchronous (UART) of synchronous (SPI)
serial data transmission
- 3 USIF with autobaud detection, hardware flow control and integrated
- A dedicated Fas IfDA Controller supporting IrDA’s SIR,MIR and FIR standards
(up to 4Mbps)
- I2C-bus interface (e.g. connection to S/M power)
- A fast display interface supporting serial and parallel interconnection
- An ITU-R BT.656 compatible Camera interface.
- Programmable clock output for a camera
- An multimedia/Secure Digital Card Interface (MMCI/SD:SDIO capable)

- 20 -
LGE Internal Use Only Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
3. TECHNICAL BRIEF
LG Electronics 21/147 LGE Property
3.2.3 External Devices connected to memory interface
Table 1. Memory interface
Device Name Maker Remark
FLASH K522H1HACB-B060 SAMSUNG Synchronous / A synchronous
DDR K522H1HACB-B060 SAMSUNG Synchronous 166MHz
LCD LS030B3UX05 SHARP 8bit access 2 times transmission
Melody IC Not Used S/W Infineon Software CODEC
3.2.4 RF Interface (T_OUT)
S-Gold3 uses this interface to control RF IC and Peripherals. 13 signals are provided switch on/off RF ICs
Periodically each TDMA frame.
Table 2. RF Interface Spec.
T_OUT
Resource Interconnection Description
T_OUT0 TXON_PA PAM Power on
T_OUT1 Other function -
T_OUT2 PA_BAND TX RF band select
T_OUT3 Other function -
T_OUT4 Other function -
T_OUT5 Other function -
T_OUT6 PA MODE PAM Mode select
3.2.5 USIF Interface
GM360 have three USIF Drivers as follow :
- USIF1 : Hardware Flow Control / SW upgrade / Calibration
- USIF2 : Not used Rx, Tx and CTS, RTS use BT Interface
- USIF3 : Other function
GM360i

- 21 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. TECHNICAL BRIEF
LG Electronics 22/147 LGE Property
Table 3. USIF Interface Spec.
3.2.6 ADC channel
BBP ADC block is composed of 10 external ADC channel. This block operates charging process and other related
process by reading battery voltage and other analog values.
Table 4. S-Gold3 ADC channel usage
ADC channel
Resource Interconnection Description
M0 BAT_ID Battery temperature measure
M1 RF_TEMP RF block temperature measure
M2 N.C
M3 N.C
M4 N.C
M5 N.C
M6 N.C
M7 PCB Version check optional
M8 VSUPPLY Battery supply voltage measure
M9 N.C
M10 N.C
Resource Name Remark
USIF1
USIF1_TXD TXD Transmit Data
USIF1_RXD RXD Receive Data
USIF1_CTS USB_SE0_VM
USIF1_RTS USB_DAT_VP
USIF2
USIF2_TXD NC NC
USIF2_RXD Other function -
USIF2_CTS BT_UART_CTS BT UART_CTS
USIF2_RTS BT_UART_RTS. BT_UART_RTS
USIF3
USIF3_TXD Other function -
USIF3_RXD Other function -
