LG LG-RD2710 User manual

LG-RD2710
User Guide
P/N : MMBB0209301 (1.1) G
mmiiHHkkkkssDDrrkkeekkxxZZnnff''kkZZddkk
eekkWWMMyy%%LG-RD2710
RD2710_Slim_Cover 1.1 7/11/06 9:47 AM Page 1
All manuals and user guides at all-guides.com
all-guides.com

PHONE COMPONENTS 2
ONSCREEN ICONS 4
USING THE BATTERY AND
CHARGER 5
Installing and Removing the Battery 5
Charging the Battery 6
Battery Charge Level 6
BASIC FUNCTIONS 7
Turning the Phone On and Off 7
Changing the display language 7
Airplane Mode 8
Making a Call 8
Receiving Calls 9
MENU TREE 10
ENTERING AND EDITING
INFORMATION 11
Entering Information Using T9
Text Input 11
To Edit in Hindi Mode 13
MESSAGES 14
Write Text 14
Write E-mail 16
1234 Services 17
INTRODUCTION 19
MENU FEATURES 20
SAFETY INFORMATION 30
Charger and Adapter Safety 30
Battery Information and Care 30
General Notice 30
LIMITED WARRANTY
STATEMENT 32
SERVICE CENTER LIST 34
1
CONTENTS
RD2710_Slim_Eng 7/11/06 10:02 AM Page 1
All manuals and user guides at all-guides.com

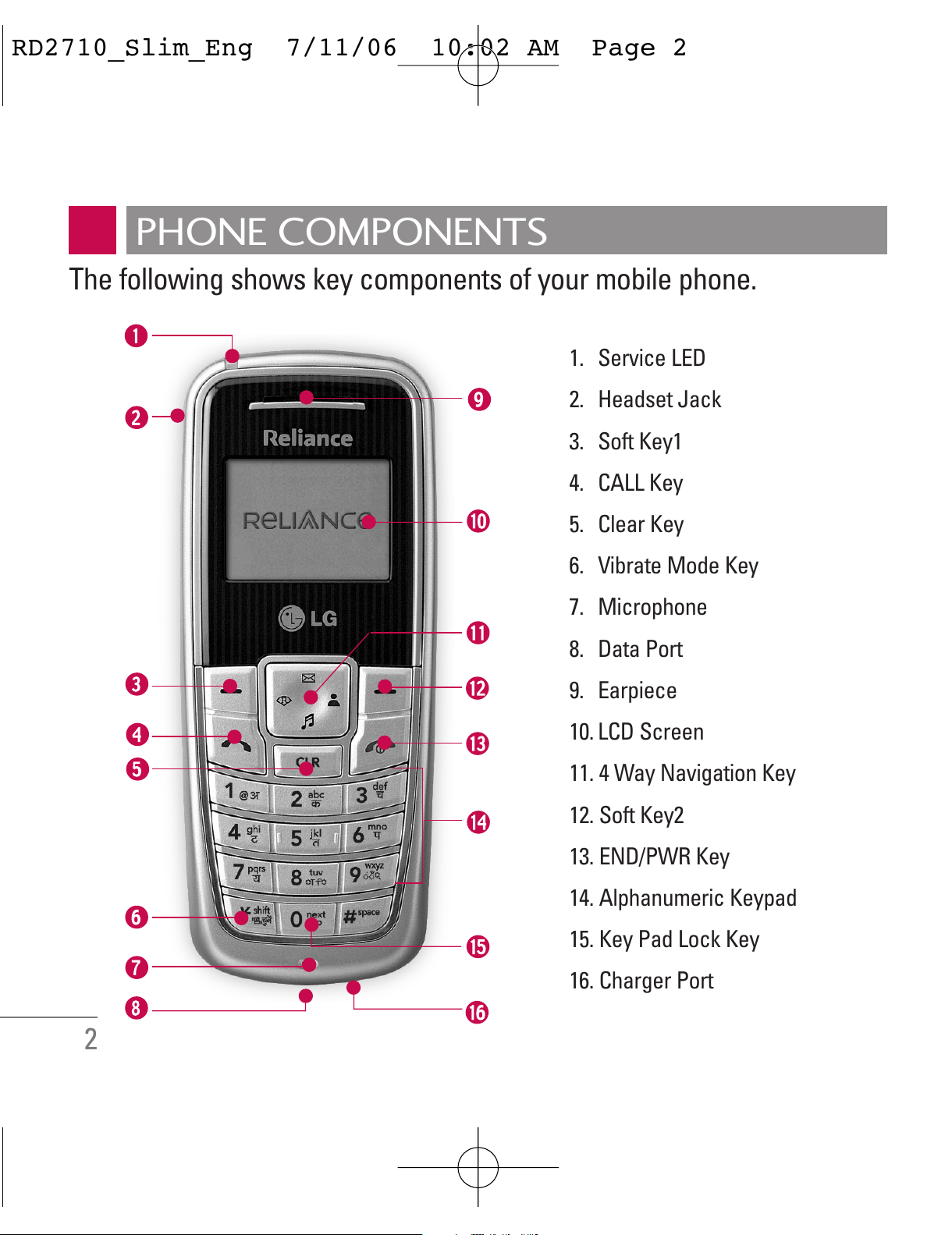

The following shows key components of your mobile phone.
PHONE COMPONENTS
2
1. Service LED
2. Headset Jack
3. Soft Key1
4. CALL Key
5. Clear Key
6. Vibrate Mode Key
7. Microphone
8. Data Port
9. Earpiece
10. LCD Screen
11. 4 Way Navigation Key
12. Soft Key2
13. END/PWR Key
14. Alphanumeric Keypad
15. Key Pad Lock Key
16. Charger Port
RD2710_Slim_Eng 7/11/06 10:02 AM Page 2
All manuals and user guides at all-guides.com

LCD ScreenDisplays messages &
indicator icons.
Soft Keys The names of the functions of
these keys appear at the bottom of the
screen
GSoft Key 1
Used to display the function setting
menu. Accepts the highlighted choice
when navigating through a menu.
GSoft Key 2
Press this key once in a menu, to go
back one level.
CALL Key Allows user to place or answer
calls, See and redial from call history.
END/PWR Key Used to turn power
On/Off and to end a call. Using this key, you
can return to the main menu display
screen. When you press once, when a call
is received, the phone stops ringing or
vibrating depending on the mode it is in.
Press twice to reject the call.
Alphanumeric Keypad These keys
enable you to enter numbers and
characters and choose menu items.
Navigation Key This Navigation key
allows quick access Messages and
Voice Mail notification messages.
Ring Tone, R World, Profiles.
Vibrate Mode Key In standby mode, set
the vibrate mode by pressing and holding
the key about 2 seconds.
Clear Key Press to delete a single space
or character. Press and hold to delete
entire words. You can access "My Menu"
by Clear Key.
3
RD2710_Slim_Eng 7/11/06 10:02 AM Page 3
All manuals and user guides at all-guides.com

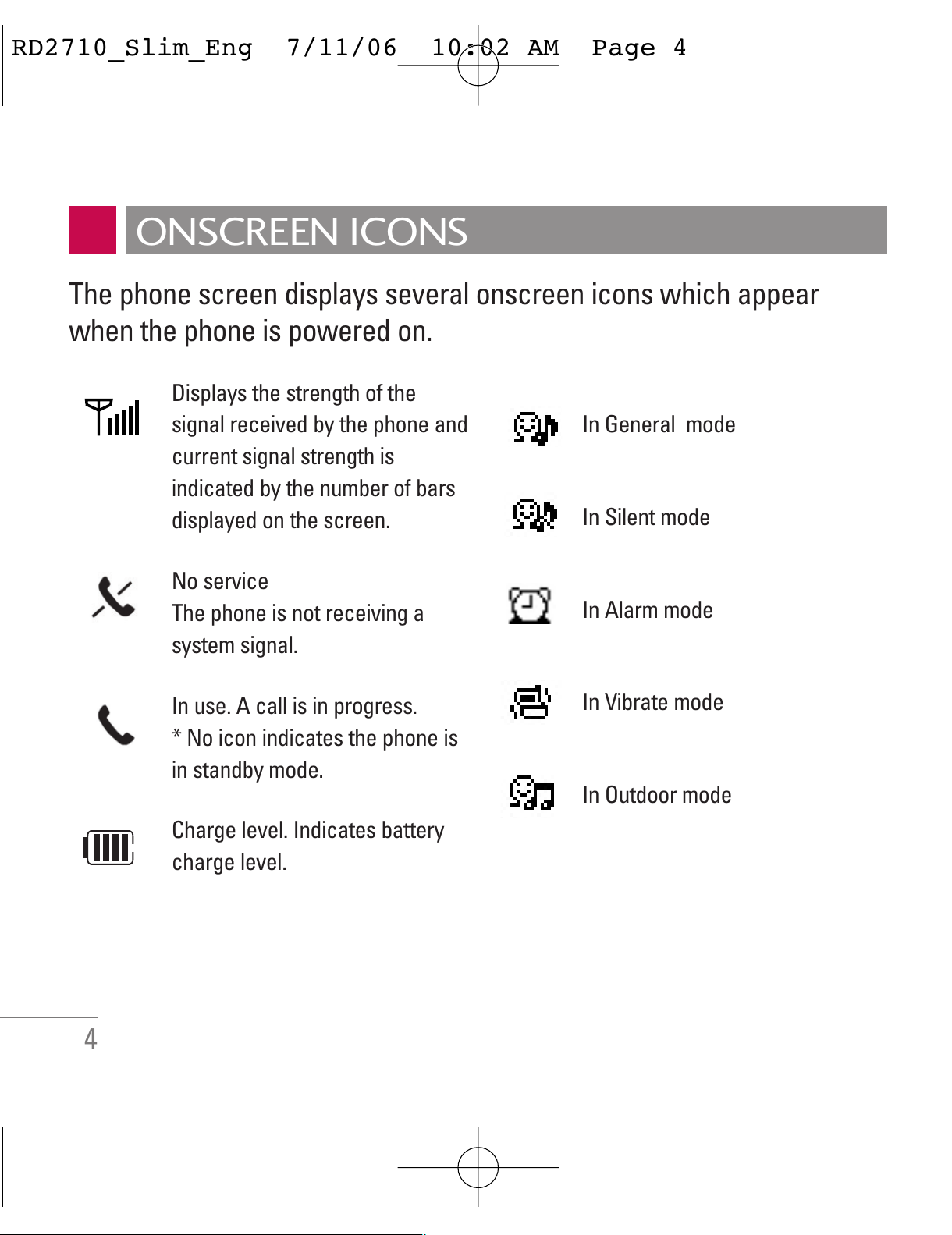

The phone screen displays several onscreen icons which appear
when the phone is powered on.
ONSCREEN ICONS
4
Displays the strength of the
signal received by the phone and
current signal strength is
indicated by the number of bars
displayed on the screen.
No service
The phone is not receiving a
system signal.
In use. A call is in progress.
* No icon indicates the phone is
in standby mode.
Charge level. Indicates battery
charge level.
In General mode
In Silent mode
In Alarm mode
In Vibrate mode
In Outdoor mode
RD2710_Slim_Eng 7/11/06 10:02 AM Page 4
All manuals and user guides at all-guides.com

Charge the battery fully before the initial use of the phone.
The phone comes with a rechargeable battery. Keep the battery
charged while not in use in order to maximize talk and standby time
when using the phone.
Installing and Removing the Battery
GTo install, insert the battery
into the opening on the back
of the phone, and insert the
bottom of battery into groove
at the bottom of the handset.
Gently press down the cover
until the latch snaps into
place.
GTo remove, push the back
cover down. Push the tab
with one hand and lift the top
of the battery to separate.
5
USING THE BATTERY AND CHARGER
groove slot
RD2710_Slim_Eng 7/11/06 10:02 AM Page 5
All manuals and user guides at all-guides.com
all-guides.com

6
Charging the Battery
To use the AC adapter charger provided with your phone:
1. Plug the AC adapter into the electrical outlet.
2. Insert the round end of the adapter into the AC adapter jack on the
bottom of the phone. (Make sure the battery is installed.)
GAs the phone charges, the battery icon continually displays a
progression from empty ( ) to full ( ).
It takes about three hours to fully recharge a completely rundown
battery. When fully charged, battery icon indicates charging by
twinkling.
Battery Charge Level
The battery charge level is shown at the top right of the LCD screen.
When the battery charge level becomes low, the low battery sensor
will alert you in three ways: sounding an audible tone, blinking the
battery icon outline, and displaying Recharge the battery If the battery
charge level becomes exceedingly low, the phone will automatically
switch off and any function in progress will not be saved
RD2710_Slim_Eng 7/11/06 10:02 AM Page 6
All manuals and user guides at all-guides.com

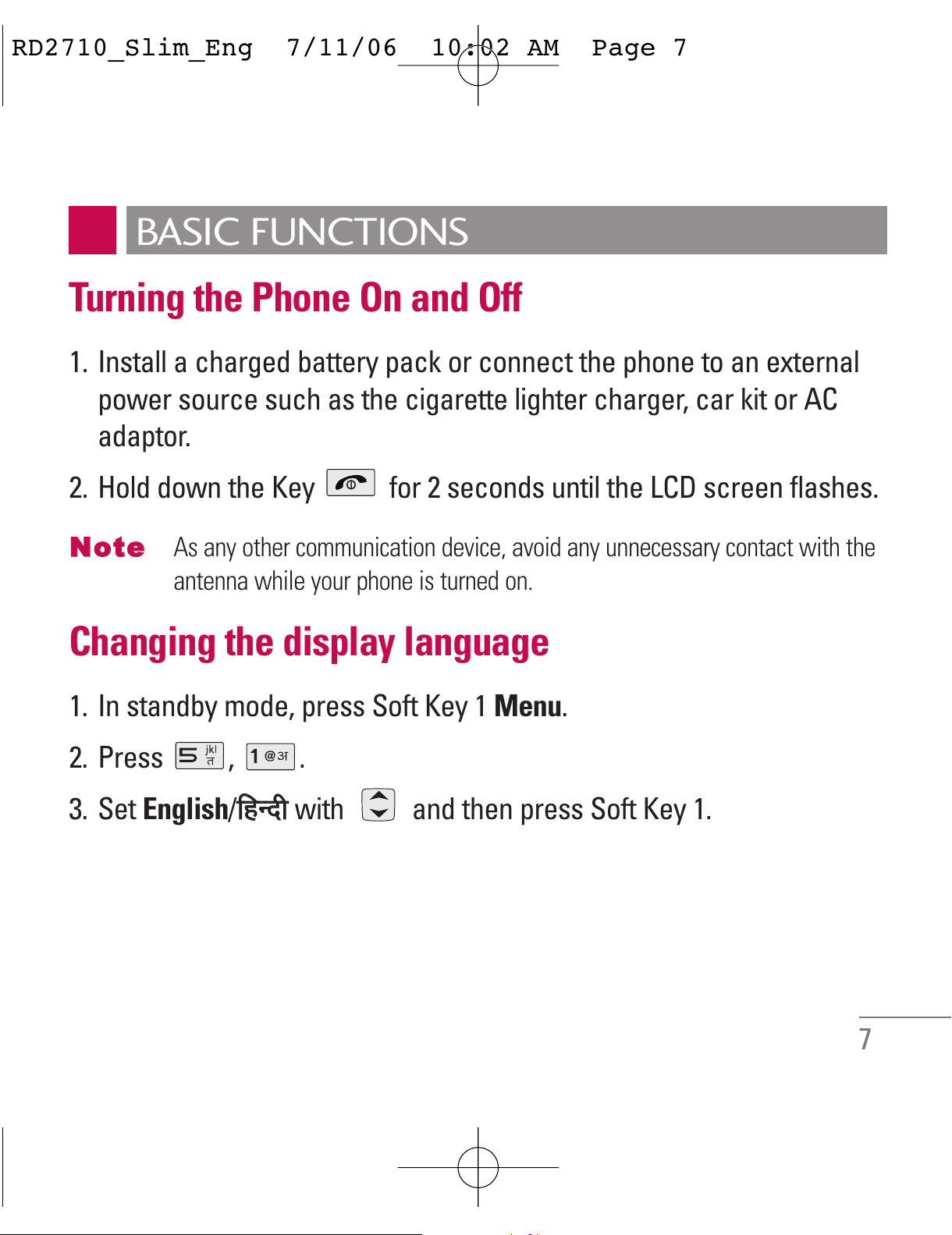

Turning the Phone On and Off
1. Install a charged battery pack or connect the phone to an external
power source such as the cigarette lighter charger, car kit or AC
adaptor.
2. Hold down the Key for 2 seconds until the LCD screen flashes.
NNootteeAs any other communication device, avoid any unnecessary contact with the
antenna while your phone is turned on.
Changing the display language
1. In standby mode, press Soft Key 1 Menu.
2. Press , .
3. Set English/ffggUUnnhhwith and then press Soft Key 1.
7
BASIC FUNCTIONS
RD2710_Slim_Eng 7/11/06 10:02 AM Page 7
All manuals and user guides at all-guides.com

Airplane Mode
When your phone is in Airplane Mode, it cannot send or receive any
calls or access online information. You may use the phone’s other
features, such as Game, Scheduler, Memo, etc. When Airplane Mode
is enabled, a message “Airplane Mode On” is displayed on the screen.
1. In standby mode, press Soft Key 1 Menu, , , .
2. Select On or Off and press Soft Key 1.
Making a Call
Every time you make a call, follow these steps:
1. Make sure that the phone is turned on. If not, hold down for 2
seconds.
2. Type the phone number and then press .
GIf the phone is locked, type the lock code.
3. To end the call press .
8
RD2710_Slim_Eng 7/11/06 10:02 AM Page 8
All manuals and user guides at all-guides.com

Receiving Calls
1. When the phone rings or vibrate (if the Vibrate Mode is enabled),
press any key (except ) or depending on the Call setting.
GWhen you press once, when a call is received, the phone
stops ringing or vibrating depending on the mode it is in. Press
twice to disconnect.
2. To end an answered call, press .
9
RD2710_Slim_Eng 7/11/06 10:02 AM Page 9
All manuals and user guides at all-guides.com

1. Names
1. Add Name
2. Find
3. Groups
4. Speed Dials
5. Memory Status
6. Help
2. Messages
1. Write
2. Inbox
3. 1234 Services
4. Outbox
5. Voice Mail
6. Archive
7. Drafts
8. Templates
9. Msg Groups
0. Erase Msgs
*. Message Settings
#. Help
3. Call History
1. Missed
2. Received
3. Dialled
4. In Call Memo
5. Call Duration
6. Erase History
7. Help
4. Profiles
1. Vibrate Only
2. Silent
3. General
4. Outdoor
5. Headset
6. Carkit
7. Help
5. Display
1. Language
2. Service Area
3. Clock
4. Wallpaper
5. Screensaver
6. Menu Style
7. Rhythmic Lighting
8. Backlight
9. Contrast
0. Help
6. Settings
1. My Menu
2. Call
3. Phone
4. Security
7. Organiser
1. Scheduler
2. Memo
3. Alarm
4. Reserved Call
5. Stopwatch
6. Calculator
7. Currency Converter
8. World Clock
9. Help
8. R World
1. R-Menu
2. Dial 1234
3. Games
4. Reset R-Menu
MENU TREE
10
RD2710_Slim_Eng 7/11/06 10:02 AM Page 10
All manuals and user guides at all-guides.com
all-guides.com

Entering Information Using T9 Text Input
In the text input field. you can scroll through the modes using
Soft Key 2 in the following order : T9En, Abc, 123, Symbol, :-), Hindi.
- Shift Key : Used to change the letter case.
Typing In T9 Mode
For example, to write “Call the office”, follow these steps:
1. Press: Soft Key 2 to change letter case to T9En mode.
2. Press: .
3. Press: to complete the word and add a space.
4. Press: .
5. Display: Call the office.
11
ENTERING AND EDITING INFORMATION
RD2710_Slim_Eng 7/11/06 10:02 AM Page 11
All manuals and user guides at all-guides.com

Typing In ABC (Multi-tap) Mode
For example, to type “LG”, follow these steps:
1. Press: Soft Key 2 to change letter case to Abc mode.
2. Press: to change to ABC Caps Lock mode.
3. Press: .
4. Display: LG.
123 (Numbers) Mode
Type numbers using one keystroke per number.
To change to 123 mode in a text entry field, press Soft Key 2 until 123
mode is displayed.
Symbol/Smileys Mode
To change to Symbol/Smileys mode in a text entry field, press right Soft
Key until Symbol/Smileys mode is displayed.
Press to cycle through the desired items. To select item, Press
the assigned number key.
12
RD2710_Slim_Eng 7/11/06 10:02 AM Page 12
All manuals and user guides at all-guides.com

To Edit in Hindi Mode
Press Soft Key 2 , until the soft menu changes to Hindi mode.
For E.g., To type " "
1. Press 2 times.
2. Press 8 times.
3. Press 5 times.
4. Press 3 times.
5. Press 3 times.
6. Press 3 times.
13
RD2710_Slim_Eng 7/11/06 10:02 AM Page 13
All manuals and user guides at all-guides.com

Write Text
LMS(Long Message Service) allows you to send a message up to 462
characters at a time. Before sending LMS message, total number of
SMS packets formed are intimated to the user and confirmation is
taken to send.
Maximum 3 packets for English and 4 for Hindi messages can be sent.
Each LMS packet is received as individual message. Every LMS
message shows the packet sequence number in the message for ex:
In case of 3 packets, <1/3>, <2/3>, <3/3>.
1. Press Soft Key 1 Menu, or .
2. Select Write.
3. Select Write Text.
4. After entering a message to be sent by selecting Send, press Soft
Key 1 Options.
GSend Use to send the message.
GSave Save to Draft message.
GTemplates Select a sample message.
MESSAGES
14
RD2710_Slim_Eng 7/11/06 10:02 AM Page 14
All manuals and user guides at all-guides.com

5. After entering the phone number where the message is to be sent,
press Soft Key 1 Options.
GSend Use to send the message.
GNextRecipient Enter the next recipients address you can add
up to 10 recipients.
GPriority Allows you to give the priority to message.
Normal or Urgent.
GDelivery Ack This function allows you to know whether the
message is successfully transmitted to other
party or not when the transmitted message is
received in other party’s phone. If you want to
activate this function, set to On.
GSave Sent Msg You can save this message in Outbox.
6. If you select Send, it notifies you whether the message was sent
successfully.
GSend Use to send the message.
GLast Select a recent sent number.
GSMS Groups Select SMS Group.
GNames Select a phonebook entry.
15
RD2710_Slim_Eng 7/11/06 10:02 AM Page 15
All manuals and user guides at all-guides.com
all-guides.com

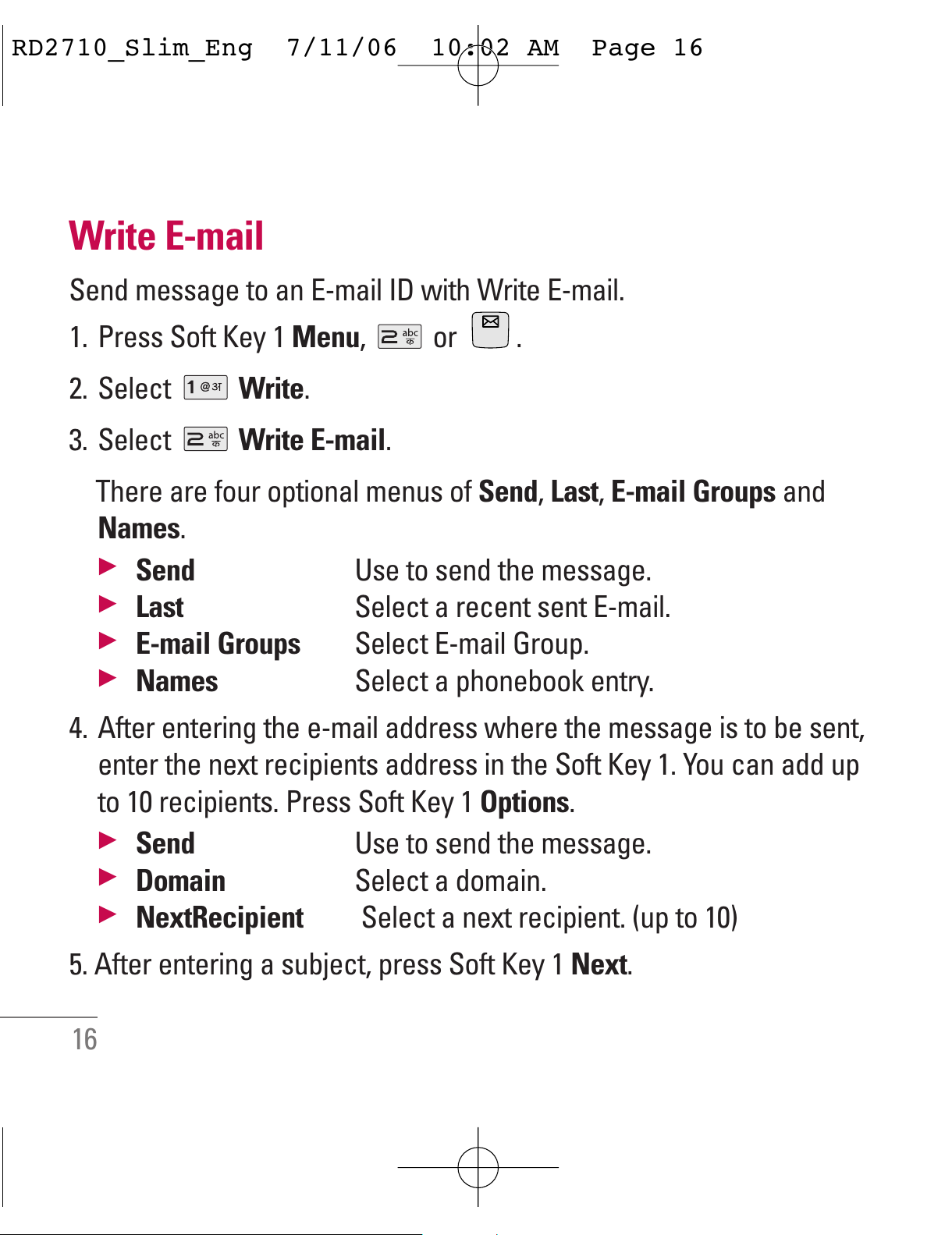

Write E-mail
Send message to an E-mail ID with Write E-mail.
1. Press Soft Key 1 Menu, or .
2. Select Write.
3. Select Write E-mail.
There are four optional menus of Send, Last, E-mail Groups and
Names.
GSend Use to send the message.
GLast Select a recent sent E-mail.
GE-mail Groups Select E-mail Group.
GNames Select a phonebook entry.
4. After entering the e-mail address where the message is to be sent,
enter the next recipients address in the Soft Key 1. You can add up
to 10 recipients. Press Soft Key 1 Options.
GSend Use to send the message.
GDomain Select a domain.
GNextRecipient Select a next recipient. (up to 10)
5. After entering a subject, press Soft Key 1 Next.
16
RD2710_Slim_Eng 7/11/06 10:02 AM Page 16
All manuals and user guides at all-guides.com

6. After entering a message to be sent by selecting Send, press Soft
Key 1 Options.
GSend Use to send the message.
GSave Save to Drafts message.
GTemplates Select a Templates message.
GPriority Allows you to give the priority to message.
Normal or Urgent.
GDelivery Ack This function allows you to know whether the
message is successfully transmitted to other
party or not when the transmitted message is
received in other party’s phone. If you want to
activate this function, set to On.
GSave Sent Msg You can save this message in Outbox.
1234 Services
Exciting SMS-based Infotainment services such as News, Joke,
Horoscope etc are available to Reliance subscribers. Using the SMS
1234 services, the user will be able to access interesting information
on common subjects through SMS. User needs to select the Menu
corresponding to the Service Keyword.
17
RD2710_Slim_Eng 7/11/06 10:02 AM Page 17
All manuals and user guides at all-guides.com

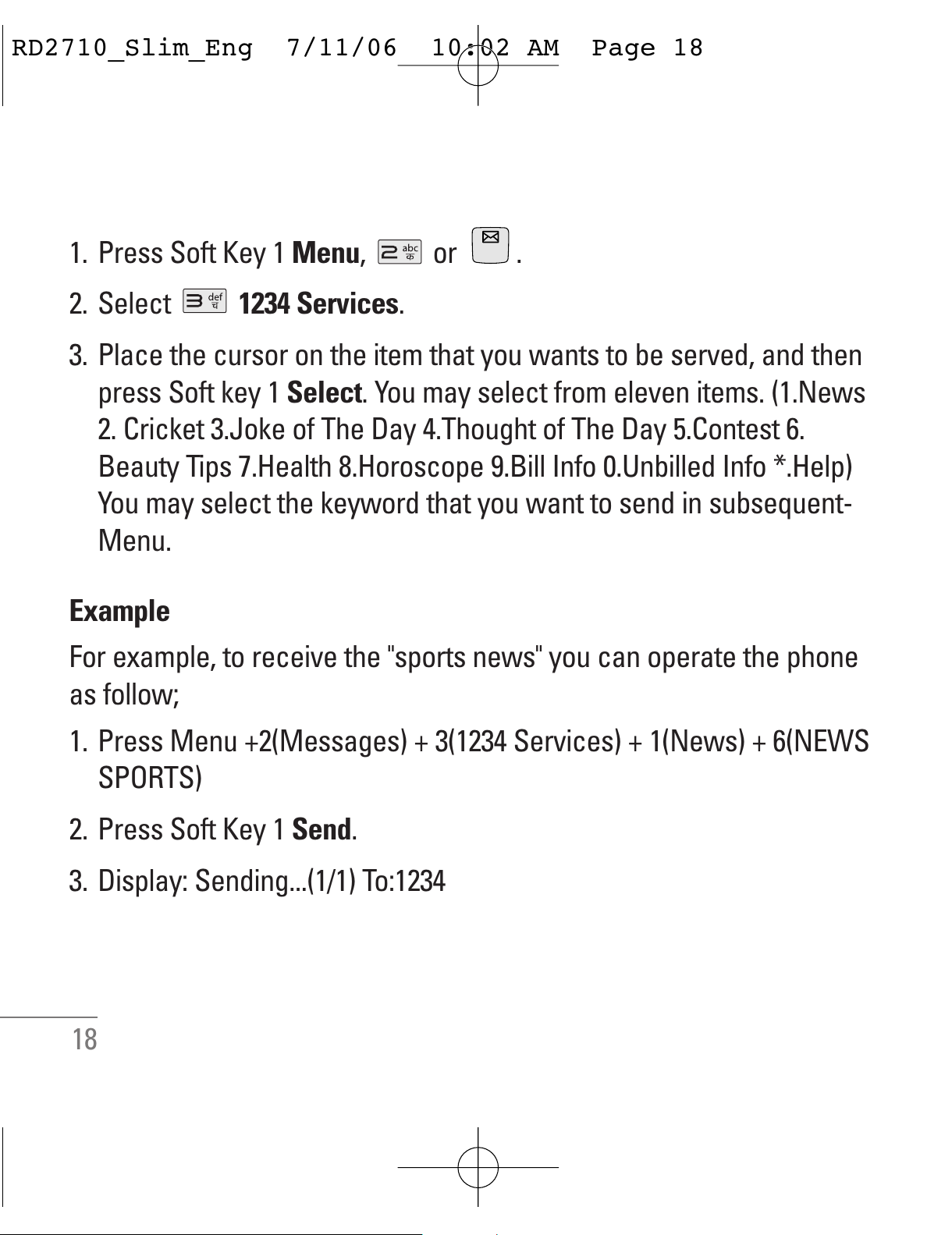

1. Press Soft Key 1 Menu, or .
2. Select 1234 Services.
3. Place the cursor on the item that you wants to be served, and then
press Soft key 1 Select. You may select from eleven items. (1.News
2. Cricket 3.Joke of The Day 4.Thought of The Day 5.Contest 6.
Beauty Tips 7.Health 8.Horoscope 9.Bill Info 0.Unbilled Info *.Help)
You may select the keyword that you want to send in subsequent-
Menu.
Example
For example, to receive the "sports news" you can operate the phone
as follow;
1. Press Menu +2(Messages) + 3(1234 Services) + 1(News) + 6(NEWS
SPORTS)
2. Press Soft Key 1 Send.
3. Display: Sending...(1/1) To:1234
18
RD2710_Slim_Eng 7/11/06 10:02 AM Page 18
All manuals and user guides at all-guides.com

Congratulations on your purchase of the LG-RD2710 cellular phone that has been designed
to operate with the latest digital mobile communication technology, Code Division Multiple
Access (CDMA). The CDMA system has greatly enhanced voice clarity and can provide
various types of advanced features.
This is an advanced and compact phone which has diverse features as follows:
GLarge, easy-to-read, 2 lines display + 1 Icon Line + 1 Menu Line.
GPaging, Messaging, Voice Mail, and Caller ID.
G18-key keypad (10 number keys / 2 function keys / 2 Soft keys / 1 Clear key /
4 way navigation 1 key / 1 Call key / 1 End key).
GLong battery stand-by and talk time.
GChoice of 19 Ring sounds + 3 downloadable Ring tones by SMS + 50KB R World
downloadable Ring tones.
GChoice of 3 Wallpapers + 3 downloadable by SMS.
GMenu-driven interface with prompt for easy operation and configuration.
GVoice Privacy inherent with CDMA encoding.
GAny Key Answer, Auto Redial, Speed Dial up to 99 memory locations.
GOptional accessories with greater convenience and enhanced functionality.
GIn Call Memo, 1234 Services, R World, Games
GAirplane Mode, Rhythmic Lighting.
GSMS, LMS, SMS to E-mail, Group SMS.
19
INTRODUCTION
RD2710_Slim_Eng 7/11/06 10:02 AM Page 19
All manuals and user guides at all-guides.com
