LSI-120 USER GUIDE
Please read this manual carefully before operating your
set. Retain it for future reference.

Important Information 5
1.1 Safety Instruction 5
1.2 Optimal Phone Performance 5
1.3 Care and Service 6
1.4 Safety Information 7
Introduction 8
2.1 Front View of the Phone 10
2.2 LCD Display 11
2.3 Installation 12
2.4 Battery Replacement Step 14
2.5 Installation Steps 15
Basic Operations 16
3.1 Making a Call 16
3.2 Data Call (Packet) 16
3.3 3 Way Call Conferencing 16
3.4 Call Waiting 16
3.5 Receiving a Call 16
3.6 Lock Mode 17
3.7 Entering and Editing Information 17
Menu Tree 22
4.1 Names 23
4.2 Messages 24
4.3 Call History 29
4.4 Sound 30
4.5 Display 32
4.6 Settings 34
4.7 Organiser 38
4.8 R World 40
Speaker Phone 41
Troubleshooting 42
General Information 44
7.1 Main Unit 44
7.2 AC/DC Adapter 44
7.3 Battery 45
TIA Safety Information 46
Limited Warranty Statement 59
Authorized LGE Service Center List 62
CONTENTS
3
CONTENTS

Appendix. RF Exposure Statement
Appendix 2. Consumer Information on SAR

Important Information
Important Information
4
1.1 Safety Instruction
WARNING / CAUTION
To reduce the risk of fire or electric shock, do not
expose this phone to rain or moisture. Do not use this
phone in swimming pools or other water bodies.
1.2 Optimal Phone Performance
▶
Do not hold the antenna when operating the
phone, or operate the phone when someone is
within four inches (ten centimeters) of the antenna.
Both cases affect the call quality and may cause the
phone to operate at a higher power level than
required.
▶
For the best call quality, keep the antenna free from
obstructions and position the antenna upright.
▶
Do not use the phone if the antenna is damaged.
Replace the damaged antenna immediately by a
qualified technician. Use only a manufacturer -
approved antenna.
Non-approved antennas, modifications or attach-
ments may impair call quality and damage the
phone.
▶
RF energy may affect improperly installed or
inadequately shielded personal medical devices
such as pace-makers or hospital monitors.
Consult the manufacturer of any personal medical
devices to determine whether they are adequately
shielded from external RF energy.
Turn your phone OFF in health care centers if any
regulations posted in the area instruct you to do
so. Hospitals or health care centers may be using
equipment that may be sensitive to external RF
energy.
▶
If this phone causes harmful interference to radio or
television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna
- Place the radio or television farther away from the
phone.
- Connect the equipment to an outlet on a circuit
different from that to which the phone is
4

presently connected.
- Consult the Authorized LGE Dealer for assistance
of an experienced radio/TV technician.
▶
Use battery, antenna and AC/DC power adapter
provided by LGE. Using parts made by any other
manufactures may invalidate the warranty.
▶
Only authorized personnel should service the
phone and its accessories. Faulty installation or
service can be dangerous and may invalidate the
warranty.
▶
Do not use the phone in any designated
“cellular
phone use” area.
▶
Avoid using the phone in high temperature or
humidity.
▶
Avoid spilling any liquid on the phone. If the phone
gets wet, turn the power off immediately.
If the phone doesn’ t work, please contact the
service provider immediately.
▶
Avoid shock or impact.
▶
We recommend you to charge the backup battery
before initial use. The backup battery may be
discharged during delivery.
1.3 Care and Service
Before cleaning, always unplug the phone from the
wall outlet Do not use liquid or aerosol cleaners; use a
damp cloth for cleaning.
If the phone doesn’ t work, do not attempt to
disassemble it, contact the authorized LGE Service
center for assistance.
If any of the following conditions exist, unplug the
phone from the wall plug, remove the battery and call
the qualified engineer.
- The power supply cord is damaged or frayed.
- Liquid has spilled into the phone.
- The phone has been exposed to rain or water.
- The phone has been dropped or damaged.
- The phone does not function normally even after
following the operating instructions.
Important Information
Important Information
5

1.4 Safety Information
WWAARRNNIINNGG
▶
For safety, use only an adapter
approved by LG.
LG does not bear responsibility
for any faults that may arise due
to non-conformation to this
guide.
Example: LSI-120R (LG Power
Adapter Source: DC 5V / 1A)
▶
Do not, in any way, cause a
short-circuit. It may start a fire or
the phone may explode causing
injury.
▶
Do not create a sudden impact
on the battery by throwing it. Do
not dispose off batteries by
putting them in a fire. They may
explode or catch fire due to the
electrolyte within.
CCAAUUTTIIOONN
▶
Do not use the phone with a car
battery. It may cause electric
shock, fire, breakdown or
transformation.
▶
Avoid using the phone in high
temperature or humidity. Avoid
spilling any liquid on this phone.
If the phone gets wet, turn off
AC power supply.
▶
Keep the phone dry.
Submersion, humidity, and
liquids contain minerals that
may corrode internal electronic
circuits.
▶
Do not store or use the phone
in dusty or dirty areas as this
can damage the moving parts.
▶
Do not store the phone in hot
areas. High temperatures can
shorten the life of electronic
devices, damage batteries, and
Important Information
Important Information
6

Important Information
Important Information
7
warp or melt certain plastics.
▶
Do not store the phone in cold
areas. When the phone warms up
to its normal operating
temperature, moisture can form
inside the phone, which can
damage the internal electronic
circuit boards.
▶
Do not attempt to open it.
Nonexpert handling of the phone
could damage it. It may cause fire,
electric shock and breakdown.
Consult your authorized LG
dealer for assistance.
▶
Do not drop, knock or shake the
phone. Rough handling may
break the internal circuit boards.
▶
Do not use harsh chemicals,
cleaning solvents or strong
detergents to clean the phone.
Wipe it with a soft cloth that has
been slightly dampened in a mild
soap and water solution.
▶
Do not paint the phone. Paint
can clog the phone’s moving
parts and prevent proper
functioning.
▶
During lightning, do not touch
the power plug or the phone
line.
It may result in an electric shock
or death.
▶
Do not install the phone under
direct sunlight or on an uneven
surface.
▶
Before using the plug, check the
available power voltage.
Inaccurate power voltage may
cause fire and damage.
Example: LSI-120R Input
Voltage:
100
~
240V.

Important Information
8
▶
Do not plug many power cords
into one outlet. It may cause fire
or electric shock.
▶
Do not remodel the power cord
or disassemble it. If the power
cord or plug is impaired, do not
use it. It may cause fire or electric
shock.
▶
Do not install the phone in an ill-
ventilated place. It may cause fire
or a breakdown.
▶
Do not touch the plug with wet
hands. When disconnecting the
power cord of any accessory,
grasp and pull out the plug itself
and not the cord. It may cause
fire or elec tric shock.
▶
Do not put heavy objects on the
power cord. Do not bend the
power cord too much. It may
cause fire or electric shock.
▶
Use only an LG-approved
battery and adapter. If not, it
may cause an explosion or result
in a short-circuit. LG does not
bear any responsibility for the
damage.
▶
When you disconnect the power
cord of any accessory, grasp
and pull the plug itself and not
the cord. It may cause the
adapter to breakdown.
Important Information

Introduction
Introduction
9
2.1 Front View of the Phone
①OK Key Accepts the highlighted choice when navigating through a menu.
Speaker ON~OFF During a call, activate speaker mode ON~OFF.
R World Access Key Connect to R World by holding about 2 seconds in standby
mode.
②Soft Key 1 Used to display the function setting menu
③Soft Key 2 Used to select back in menu status.
④CALL / FLASH Key Allows user to place or answer calls.
Hook-on/off in standby
⑤END / PWR Key Used to turn on/off power, end a call and return to the main menu
screen.
⑥Clear Key Used to erase a single space or character by press once and
delete a whole words by pressing and holding.
Go back to the previous menu in any menu state.
Access to all calls menu in standby mode.
⑦Up Key Access to message menu In standby mode,
⑧Down Key Access to ring tone select menu In standby mode,
⑨Left Key Access to alarm menu In standby mode,
⑩Right Key Access to game menu In standby mode,
⑪*Key Set the light mode on/off toggle by pressing and holding about 2
seconds in standby mode
⑫# Key Set the speaker mode on/off toggle by pressing and holding
about 2 seconds in standby mode.
⑬0 Key Set the keyguard mode on/off toggle by pressing and holding
about 2 seconds in standby mode
CLR
CLR

Introduction
Introduction
10
2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicators appear based on the phone's operating mode.
Lock mode
IIccoonnOOppeerraattiinnggCCoonnddiittiioonn
RSSI indicator: Indicates the signal strength in the service area.
No service: The phone is not receiving any system signal.
Bell (Light : )
In use: Displayed when a call is in progress or the phone is in off-hook state
Alarm: Displayed when alarm time is set
Text message: Displayed when a text message is received
Voice message: Displayed when voice message is received
Text and Voice message: Displayed when text and voice messages are received.
Battery charge level: Indicates charged battery level
No AC power & Battery ON. But in low battery state
Key Guard

Introduction
Introduction
11
2.3 Installation
You should follow each step carefully as shown below in order to guarantee
the proper operation of CDMA Fixed Wireless Phone.
CLR
CLR
OKOK
Main Phone Cradle
AC/DC Power Adapter User Guide

Introduction
Introduction
12

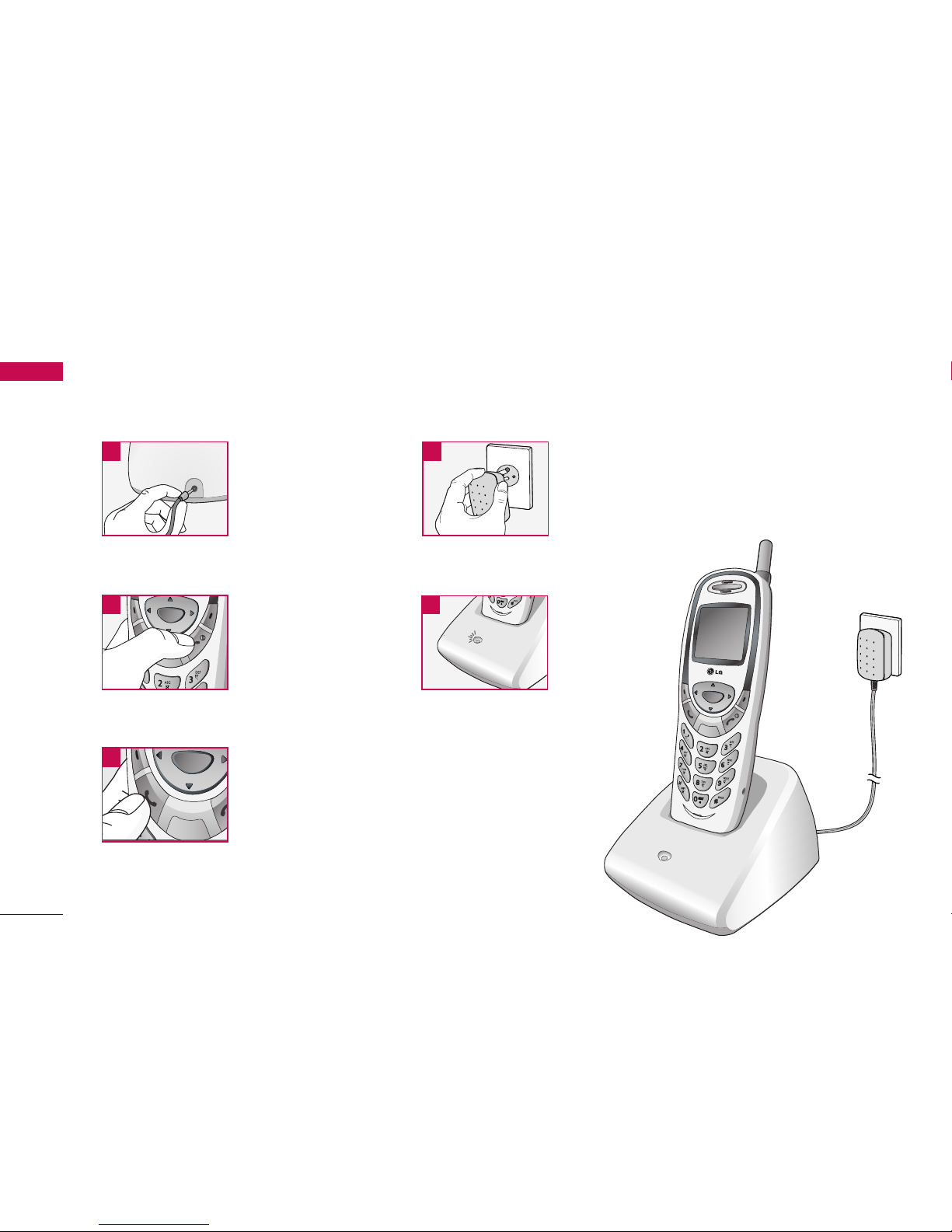

You should follow each step carefully as shown below
in order to guarantee the proper operation of CDMA
Fixed Wireless Phone.

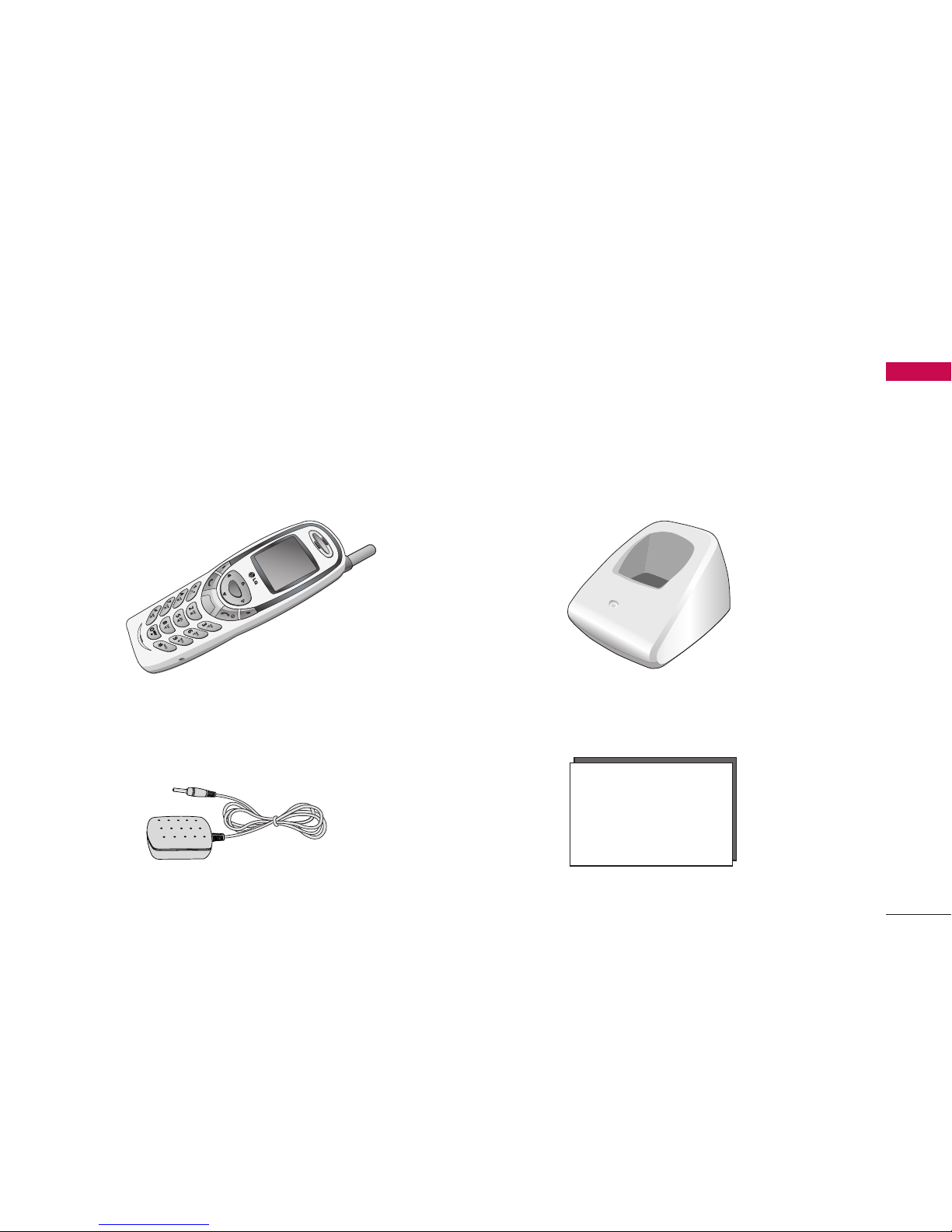

STEP I. Check Components
▶
The following components are supplied for Fixed
Wireless Phone.
1. LSI-120R Main Phone with Handset -1EA-
(Including inner backup battery)
2. Cradle -1EA-
3. AC/DC Power Adapter -1EA-
4. User Guide -1EA-
▶
Please make sure that these components are
present before you begin to install the phone. If
any of the components are missing or damaged,
contact your service provider immediately.
STEP II. Place the Terminal
▶
Place the phone on the stable flat surface area
(desk, table, etc.). Serious damage may result if the
phone is dropped. Do not place the phone within
1 meter of heaters or radiators.
This phone is designed for desktop usage. Avoid
the direct exposure to sunlight and dampness.
▶
Read the Safety Information located in the first
part of this document before you place the phone.
STEP III. Connect Components
(Please refer to “Installation Steps” in 2.5)
▶
Please make sure that the antenna is connected
tightly to the antenna port located on the top side
of the phone.
▶
Connect the AC/DC Adapter cable to the DC
input port located at the right side of the phone.
-If it is correct, a beep tone will be heard.
-If it is not correct (Booting fails the phone will
start to boot), you will have to reconnect the
adapter
▶
Please observe the following to get better voice
quality
1. Keep away from electrical appliances such as

TV, computer, radio etc.
2. Keep the phone in the cradle without any
obstructions to get mayimum strength.
STEP IV. Check the LCD Display
▶
After you follow the installation instruction step I to
step III, please check the LCD for normal operation.
▶
If you do not see the status of service, please
repeat the 4th instruction of step III.
Then confirm the status of phone to get the
proper signal strength from the service
operator system.
2.4 Battery Replacement Step
Introduction
Introduction
13
Battery
Battery Cover

Introduction
Introduction
14
CLR
CLR
OK
OK
CLR
OK
CLR
CLR

OK
OK

2.5 Installation Steps
Please follow the procedure below to install the phone properly.
Connect the AC/DC
adapter cable to the
DC input port of the
charger.
Press and hold the
END button for a
few seconds to turn
on the phone.
After charging the
battery, make a call.
Connect AC/DC
adapter to an
electric outlet.
Put the handset
on the cradle.
12
3
5
4
CLR CLR
OK OK

Basic Operations
Basic Operations
15
3.1 Making a Call
You can make a call as follows.
1. Press the call key or press “#” for a long time
(Speaker phone).
2. Listen for dial tone.
3. Enter the phone number. (You need to press
the area code when you make a long distance
call.)
4. Press the call key.
5. If the call is connected and you may start
conversation.
6. To disconnect the call, press the end key.
3.2 Data Call(Packet)
1. Data is connected by Computer, PPP Calling.
2. Packet call is connected.
3.3 3 way call conferencing
You can start 3 way call conferencing.
1. Dial second party phone number while you are
in conversation with the first party.
2. To make conference call, press ‘3’ +
button.
This service should be provided by your service
provider.
3.4 Call Waiting
While a call is in progress, you may hear two beeps
indicating another incoming call. When call wait is
enabled, you may put the active call on hold
while you answer the other incoming call.
1. Press CLR key or end key, Call Waiting window
then disappears.
2. Press call key, you may start conversation with
called number.
3. Re-press call key, you may start conversation
with previous number.
3.5 Receiving a Call
When the bell rings or backlight blinks in Light Mode,
you can receive a call as follows

1. Press the Call key.
2. Start a conversation.
3. To disconnect the call, press the End key.
3.6 Signal Strength
The quality of call depends on the signal strength in
your area. I.e. stornger signal guarantee better call
quality. The receive signal strength icon indicates the
current strength of the signal as a number of bars in
the upper-left part of LCD.
3.7 Entering and Editing Infor-
mation
You can edit the phonebook, Short Messges, E-Mail,
Scheduler and Banner using various text input mode.
Your phone supports T9 Text Input in Hindi and
English Language. T9 Text Input is an easy way to
write. In this input method, you only need to press a
key once for each letter.
Key Functions
Soft key 2 : Press to scroll and select a mode through
menus.
- You can scroll through the modes using Soft key 2 in
the following order : T9En, Abc, 123, Symbols,
Smileys, T9Hindi, Hindi
- Shift key : Used to change the letter case. In
T9 Mode, it switches 3-types of letter case such as
T9En, T9EN, T9en and in Abc Mode, it switches 3-
types of letter case such as Abc, ABC, abc.
-Next key : In T9 mode, press to display other
matching words.
-key : In T9 mode, press to insert sentence
mark ( . , - ? ! ‘ @ : )
-SPACE key : Press to complete a word or
insert a space.
-Clear key : Press to delete a single space or
character. Press and hold to delete entire words.
Input Mode
Text Input provides seven modes for entering text,
numbers, special characters, and punctuation
- TT99EEnnMMooddee: Type text using keystroke per
letter in English with the help of T9 English
dictionary function. This is default mode.
Basic Operations
Basic Operations
16

- Abc Mode : Use Abc mode to input text in English.
* If you want an instant input of numbers in Abc
mode without converting to 123 mode, press the
button until number is displayed in Abc mode. Use
Abc mode to add words to the T9 database too.
- 112233MMooddee: Type numbers using one keystroke
per number. To change to 123 mode in a text
entry field, press Soft key 2 until 123 mode is
displayed
- SSyymmbboollssMMooddee: Insert special characters,
punctuation. You may use any of the special
characters. When the special characters are
displayed, you can select the number
corresponding to the character that you want to
input. To search more symbols, press Soft key
1(Next) or up/down key button.
- SSmmiilleeyyssMMooddee: Insert smileys in your text.
When the smileys are displayed, you can select
the number corresponding to the smileys that
you want to input. To search more smileys, press
Soft key 1(Next) or up/down key button.
- TT99HHiinnddiiMMooddee: Type text using keystroke per
letter in Hindi with the help of T9 Hindi dictionary
function.
- HHiinnddiiMMooddee: Use Hindi mode to input text in
Hindi language.
* If you want an instant input of numbers in Hindi
mode without converting to 123 mode, press the
button until number is displayed in Hindi mode.
Initial Cap(T9En/Abc)
Only the first letter is capitalized.
Caps Lock(T9EN/ABC)
All subsequent letters are capitalized.
Lowercase(T9en/abc)
All subsequent letters are lowercase.
Examples Using T9 Text Input for
English
Typing In T9 Mode
When you want to use T9 Mode, check that T9En is
shown at the right bottom of the display. To write the
word, press each key once for one letter.
For example, to write “Call the office”, follow these
Basic Operations
Basic Operations
17

steps:
1. Press: Soft key 2 to change letter case to T9En
mode.
2. Press:
3. Press: # to complete the word and add a space.
4. Press:
5. Display: Call the office
As you can see, the word changes after each key
press. Therefore, you don’t need to pay much
attention to what happens on the display before you
have keyed in the whole word.
Using the NEXT key
After you have finished typing a word, if the word
displayed is not the word you want, press “0” to
display additional choices. For example, follow these
steps:
1. Press:
2. Display: Good
3. Press:
4. Display: Home, Gone, Hood ............
Adding Words to the T9 Database
If a word is not in the T9 database, add it by using Abc
mode text entry. The word is automatically added to
the T9 database when you complete a word.
For example, follow these steps:
1. Press: Soft Key 2 to change letter case to Abc
mode.
2. Press:
3. Display: Imt
4. Press: Soft Key 2 to change letter case to T9En
mode and then the word ‘Imt’ will be
automatically added to the T9 database.
5. Press: to erase the existing word.
6. Press:
7. Display: Got
8. Press:
9. Display: Imt
Basic Operations
Basic Operations
18

Examples ABC Text input
Typing In ABC(Multi-tap) Mode
For example, to type ‘RELIANCE’, follow these steps:
1. Press: Soft key 2 to change letter case ABC
mode.
2. Press: Shift key to change to ABC Caps Lock
mode.
3. Press:
4. Display: RELIANCE
Hindi Keys are mapped as following
Key Mapping for Hindi Entry
Basic Operations
Basic Operations
19
