LG SKSGT3054S User manual

INSTALLATION MANUAL
GAS COOKTOP
Read this installation manual thoroughly before installing the appliance and
keep it handy for reference at all times.
ENGLISH
SKSGT3054S SKSGT3654S
MFL72000001
Rev.01_040523
www.signaturekitchensuite.com
Copyright © 2023 Signature Kitchen Suite. All Rights Reserved.
en-us_main.book.book Page 1 Wednesday, April 5, 2023 8:55 AM

Safety for a Gas Cooktop
WARNING:If the information in these instructions is not
followed exactly, a fire or explosion may result causing property damage,
personal injury or death.
•Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
•WHAT TO DO IF YOU SMELL GAS
-Do not try to light any appliance.
-Do not touch any electrical switch.
-Do not use any phone in your building.
-Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
-If you cannot reach your gas supplier, call the fire department.
•Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
WARNING:
Never Operate the Top Surface Cooking Section of this Appliance
Unattended.
•Failure to follow this warning statement could result in fire,
explosion, or burn hazard that could cause property damage,
personal injury, or death.
•If a fire should occur, keep away from the appliance and
immediately call your fire department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH
WATER.
us_main.book.book Page 6 Tuesday, May 3, 2022 10:34 AM

TABLE OF CONTENTS
3
4 IMPORTANT SAFETY
INSTRUCTIONS
4 READ ALL INSTRUCTIONS BEFORE USE
4 WARNING STATEMENTS
6 INSTALLATION
6 Before Installing
8 Installing the Cooktop
13 APPENDIX
13 Checking Operation
en-us_main.book.book Page 3 Wednesday, April 5, 2023 8:51 AM

4IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
WARNING STATEMENTS
WARNING
• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this
product, follow basic precautions, including the following:
Installation
• Remove all tape and packing materials before using the cooktop. Dispose of all plastic bags after
unpacking the cooktop. Never allow children to play with packing materials.
• Never reuse old flexible connectors. The use of old flexible connectors can cause gas leaks and personal
injury. Always use NEW flexible connectors when installing a gas appliance.
• Remove all packing material and literature before connecting gas and electrical supply.
• Have your cooktop installed by a qualified installer.
• Your cooktop must be electrically grounded in accordance with local codes or, in the absence of local
codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada,
electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1
and/or local codes. Refer to step 3, Electrical Connections, in this manual.
• Be sure the wall coverings around the cooktop can withstand heat generated by the cooktop up to 200
℉.
• The ventilating hood must be constructed of sheet metal not less than 0.0122″thick. Install above the
cooktop with a clearance of not less than 1/4″between the hood and the underside of the combustible
material or metal cabinet. The hood must be at least as wide as the appliance and centered over the
appliance. Clearance between the cooking surface and the ventilation hood surface MUST NEVER BE
LESS THAN 24 INCHES.
EXCEPTION: Installation of a listed microwave oven or cooking appliance over the cooktop shall conform
to the installation instructions packed with that appliance.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
en-us_main.book.book Page 4 Wednesday, April 5, 2023 8:51 AM

5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
SAVE THESE INSTRUCTIONS
• If cabinets are located above the cooktop, allow a minimum clearance of 30″between the cooking
surface and the bottom of unprotected cabinets.
•Ifa30″clearance between cooking surface and overhead combustible material or metal cabinets cannot
be maintained, protect the underside of the cabinets above the cooktop with not less than 1/4″
insulating millboard covered with sheet metal not less than 0.0122″thick. Clearance between the
cooking surface and protected cabinets MUST NEVER BE LESS THAN 24 INCHES.
• The vertical distance from the plane of the cooking surface to the bottom of adjacent overhead cabinets
extending closer than 1″to the plane of the cooktop sides must not be less than 18″. (See the
Dimensions and Clearances illustration in this manual.)
• Do not obstruct the combustion or ventilation air vents.
• Leak testing of the appliance must be conducted according to the manufacturer’s instructions.
• Items of interest to children should not be placed in cabinets above the cooktop.
- Children climbing on the cooktop to reach items could be seriously injured.
• This appliance must not be installed with a ventilation system that blows air downward toward the
cooktop. This type of ventilation system may cause ignition and combustion problems with the gas
cooking appliance resulting in personal injury or unintended operation.
en-us_main.book.book Page 5 Wednesday, April 5, 2023 8:51 AM

6INSTALLATION
INSTALLATION
Before Installing
Before You Begin
Read these instructions completely and carefully.
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. For assistance or additional
information, consult a qualified installer, service
agency, manufacturer (dealer) or your gas
supplier.
Installation of this cooktop must conform with
local codes, or in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.1/NFPA 54
or, in Canada, the Natural Gas and Propane
Installation Code, CSA B149.1.
As with any appliance using gas and generating
heat, there are certain safety precautions you
should follow. You will find these precautions in
the IMPORTANT SAFETY INSTRUCTIONS chapter.
Read them carefully.
IMPORTANT:
• Save these instructions for the local electrical
inspector's use.
• Observe all governing codes and ordinances.
NOTE
• Installer: Leave these instructions with the
appliance after installation is completed.
• Consumer: Keep the owner's manual and
installation manual for future reference.
• This appliance must be properly grounded.
• The electrical diagram is in an envelope attached
to the back of the cooktop.
• Skill level – Installation of this appliance requires
basic mechanical skills.
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is
not covered under the Warranty.
• Remove all tape and packaging.
• Make sure the burners are properly seated and
level.
• Take the accessory pack off of the cooktop.
• Check to be sure that no cooktop parts have
come loose during shipping.
In the Commonwealth of
Massachusetts
• This product must be installed by a licensed
plumber or gas fitter.
• When using ball type gas shut-off valves, they
must be the T-handle type.
• A flexible gas connector, when used, must not
exceed 3 feet in length.
Tools and Materials
Tools You Will Need
aPhillips Screwdriver
bFlat-blade Screwdriver
cOpen-end or Adjustable Wrench
dPencil and Ruler
ePipe Wrench (2 ea) (one for support)
Materials You May Need
aJoint Sealant
bPipe Fittings
cShut Off Valve
dFlexible Connector
• Gas line shut-off valve
en-us_main.book.book Page 6 Wednesday, April 5, 2023 8:51 AM

7INSTALLATION
ENGLISH
• To reduce the possibility of gas leaks, apply
Teflon tape or a thread compound approved for
use with LP or natural gases to all threaded
connections.
• Flexible metal appliance connector (5/8” I.D.) A 3-
foot length is recommended for ease of
installation but other lengths are acceptable.
Never use an old connector when installing a
new cooktop.
• Flare union adapter for connection to gas supply
line (3/4” or 1/2” NPT x 5/8” I.D.)
• Flare union adapter for connection to pressure
regulator on cooktop. (1/4” NPT x 1/2” I.D.)
• Liquid leak detector or soapy water
Dimensions and Clearances
Provide enough clearance between the cooktop and adjacent combustible surfaces. These dimensions
must be met for safe use of your cooktop. The location of the electrical outlet and pipe opening may be
adjusted to meet specific requirements.
The cooktop must be placed with at least 2 3/4” of clearance to the back wall.
aMake sure wall coverings, countertop and cabinets around cooktop can withstand the heat (up to 200
℉) generated by the cooktop
bTo ensure accuracy, it is best to make a template when cutting the opening in the counter
aRecommended gas supply location
bFrom cutout center line
c1” min. from back wall
&
(
%
'
$
)
*
,
-
.
L
0
1
+
+
C
L
en-us_main.book.book Page 7 Wednesday, April 5, 2023 8:51 AM

8INSTALLATION
Installing the Cooktop
Installing the Cooktop Unit
1 Locate the electrical outlet and gas shut-off
valve beneath the cabinet.
Never reuse old flexible connectors.
Install a manual shut-off valve bin the gas
line in an easily accessible location outside the
cooktop. Be sure you know how and where to
shut off the gas supply to the cooktop. Install
the electrical outlet 12˝abelow the
countertop.
2 Carefully lower the cooktop into the
countertop cutout, making sure not to trap
any wires.
3 Remove the retainer brackets from the
literature package.

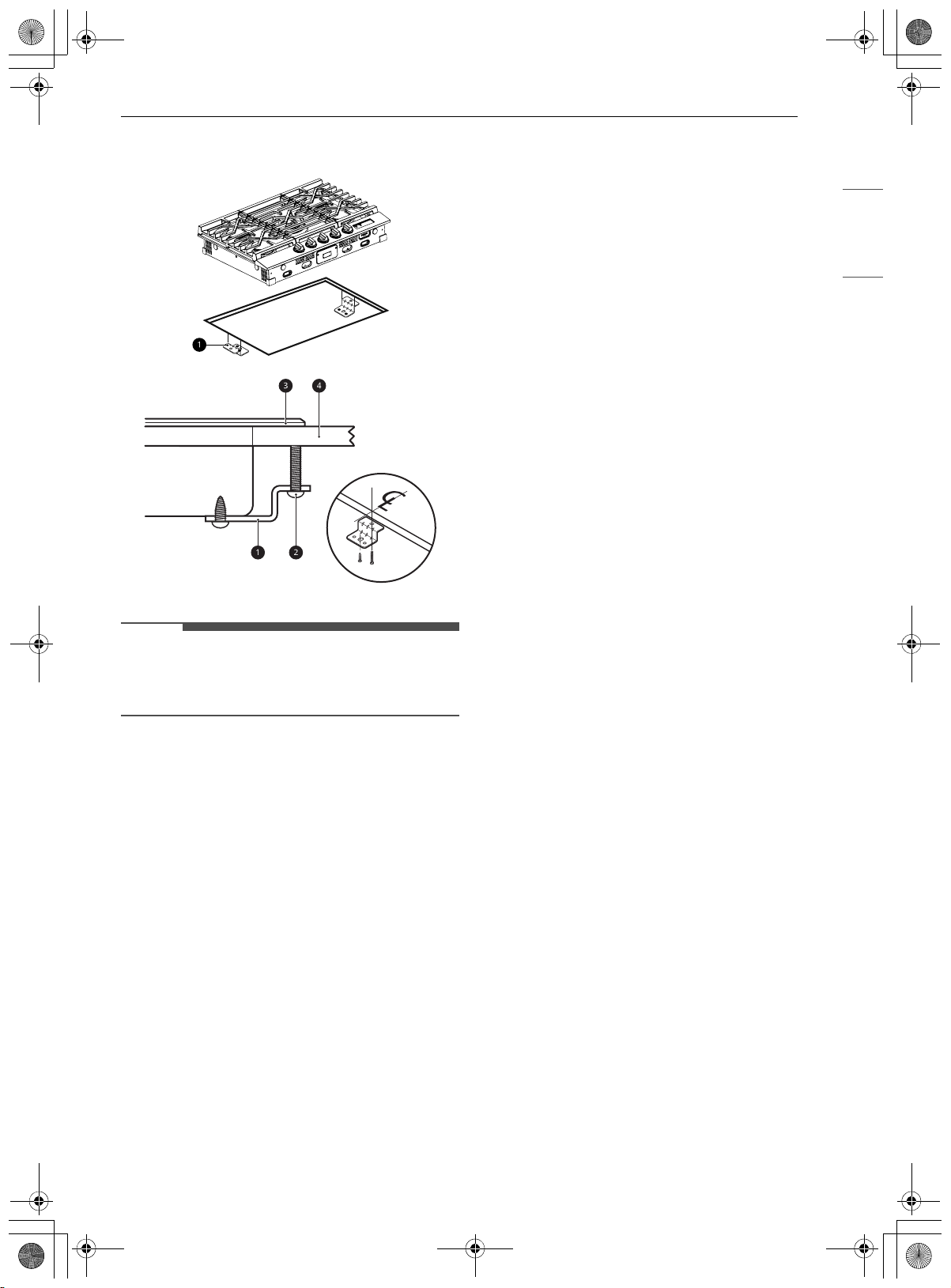

4 Install the retainer brackets ato the bottom
of the cooktop unit c. then snug the screws
-Dimension/Clearance 30" Cooktop 36" Cooktop
A Width of upper plate 30" (760 mm) 36" (915 mm)
B Depth of upper plate 21" (533 mm)
C Height of cooktop base 3 3/4" (95 mm)
D Width of cooktop base 28 1/4" (717 mm) 33 5/8" (854 mm)
E Depth of cooktop base 19 3/8" (492 mm)
F Width of cutout 28 1/2" (724 mm) 33 7/8" (860 mm)
G Depth of cutout 19 5/8" (498 mm)
H Distance from cutout to side wall on the left of unit. /
Distance from cutout to side wall on the right of the
unit.
211 13/16" (300 mm)
I Distance from front edge of cutout to front edge of
countertop
21 5/8" (41 mm)
J Distance between cutout and the wall behind the
cooktop
22 3/4" (69 mm)
K Width of unprotected overhead cabinets 230" (760 mm) 236" (915 mm)
L Depth of unprotected overhead cabinets 113" (330 mm)
M Clearance from countertop to unprotected overhead
surface
230" (760 mm)
N Clearance from countertop to nearest cabinet on
either side of unit
218" (457 mm)
en-us_main.book.book Page 8 Wednesday, April 5, 2023 8:51 AM

9INSTALLATION
ENGLISH
bagainst the bottom of the countertop das
shown.
NOTE
• The retainer brackets MUST be installed to meet
local codes or, in their absence, the National
Electrical Code ANSI/NFPA No. 70, latest edition.
1. Providing Adequate Gas Supply
This cooktop is designed to operate at a pressure
of 5” of water column with natural gas or 10” of
water column with LP, propane or butane gas.
Make sure you are supplying your cooktop with
the type of gas for which it is designed.
This cooktop is convertible for use with natural or
propane gas. When using this cooktop with LP gas,
the conversion must be made by a qualified LP
installer before attempting to operate the cooktop
using that gas.
For correct operation, the pressure of natural gas
supplied to the regulator should be between 5”
and 13” of water column.
For LP gas, the pressure supplied must be between
10” and 13” of water column.
When checking for correct operation of the
regulator, the inlet pressure must be at least 1”
more than the operating (manifold) pressure as
given above.
The pressure regulator located at the inlet of the
cooktop manifold must remain in the supply line
regardless of whether natural or LP gas is being
used.
A flexible metal appliance connector used to
connect the cooktop to the gas supply line must
have an I.D. of 5/8” and must be a maximum of 3
feet in length for easy installation. In Canada,
flexible connectors should be single wall metal
connectors less than 6 feet in length.
2. Connecting the Cooktop to Gas
Shut off the main gas supply valve before
removing the old cooktop and leave it off until the
new hook-up has been completed. Don’t forget to
relight the pilot on other gas appliances when you
turn the gas back on.
Because hard piping restricts movement of the
cooktop, the use of a CSA International-certified
flexible metal appliance connector is
recommended unless local codes require a hard-
piped connection.
Never reuse an old connector when installing a
new cooktop. If the hard piping method is used,
you must carefully align the pipe; the cooktop
cannot be moved after the connection is made.
To prevent gas leaks, put pipe joint compound on
all male (external) pipe threads.
1 Install a manual gas line shut-off valve in the
gas line in an easily accessed location outside
of the cooktop. Be sure everyone operating
the cooktop knows where and how to shut off
the gas supply to the cooktop.
2 Install a male 1/2” flare union adapter to the
1/2” NPT internal thread at the inlet of the
pressure regulator. Use a backup wrench on
the pressure regulator fitting to prevent
damage.
3 Install a male 1/2” or 3/4” flare union adapter
to the NPT internal thread of the manual shut-
off valve, taking care to back-up the shut-off
valve to keep it from turning.
4 Connect a flexible metal connector to the
adapter on the cooktop. Position the cooktop
to permit connection at the shut-off valve.
en-us_main.book.book Page 9 Wednesday, April 5, 2023 8:51 AM

10 INSTALLATION
5 When all connections have been made, be
sure all cooktop controls are in the off
position and turn on the main gas supply
valve. Check for gas leaks using a manometer.
If a manometer is not available, turn the gas
supply to the cooktop on and use a liquid leak
detector at all joints and connections to check
for leaks. Tighten all connections, if necessary,
to prevent gas leakage in the cooktop or
supply line.
WARNING
• DO NOT USE A FLAME TO CHECK FOR GAS LEAKS.
• The appliance and its individual shutoff valve
must be disconnected from the gas supply
piping system during any pressure testing of
that system at test pressures in excess of 1/2 psi
(3.5 kPa).
• The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
Flexible Connector Hookup
aPressure Regulator
bAdapter
cGas Flow into Range
dFlex Connector (3 ft. max. in US, 6 ft. max. in
Canada)
eAdapter
fGas Shut-off Valve
g1/2” or 3/4” Gas Pipe
NOTE
• Installer: Inform the consumer of the location of
the gas shut-off valve.
3. Electrical Connections
Electrical Requirements
This cooktop requires a 120 Volt, 60 Hertz,
properly grounded dedicated circuit protected by
a 15 A or 20 A circuit breaker or time-delay fuse.
The appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical
Code, NFPA70 or the Canadian Electric Code, CSA
C22.1-02.
Grounding
IMPORTANT: FOR PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED.
Preferred Method
aEnsure proper ground exists before use.
The power cord of this appliance should be
equipped with a three-prong (grounding) plug
which mates with a standard three-prong
grounding wall receptacle to reduce the possibility
of electric shock hazard from this appliance.
The customer should have the wall receptacle and
circuit checked by a qualified technician to be sure
the receptacle is properly grounded.
When connecting this cooktop, it is the personal
responsibility and obligation of the customer to
have a standard two-prong wall receptacle
replaced with a properly grounded three-prong
wall receptacle.
en-us_main.book.book Page 10 Wednesday, April 5, 2023 8:51 AM
