LG 55XF3E User manual

Please read this manual carefully before operating your set and retain it
for future reference.
OWNER’S MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
49XF3E 55XF3E

ENGLISH
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS.........3
- Electrical Power Related Precautions....................3
- Precautions In Installing the Product.....................5
- Precautions for Moving the Product......................6
- Precautions for Using/Cleaning the Product.....7
- Product Disposal (Only, Hg lamp used LCD
Monitor).................................................................................7
LICENSES.......................................8
ASSEMBLY AND PREPARATION ..9
- Optional Accessories.......................................................9
- Parts .....................................................................................10
- Portrait Layout................................................................10
- Safety and Precaution Guide for Enclosure
Installation.........................................................................11
- Enclosure Installation Guide ....................................12
- Safety and Precaution Guide for Installation .14

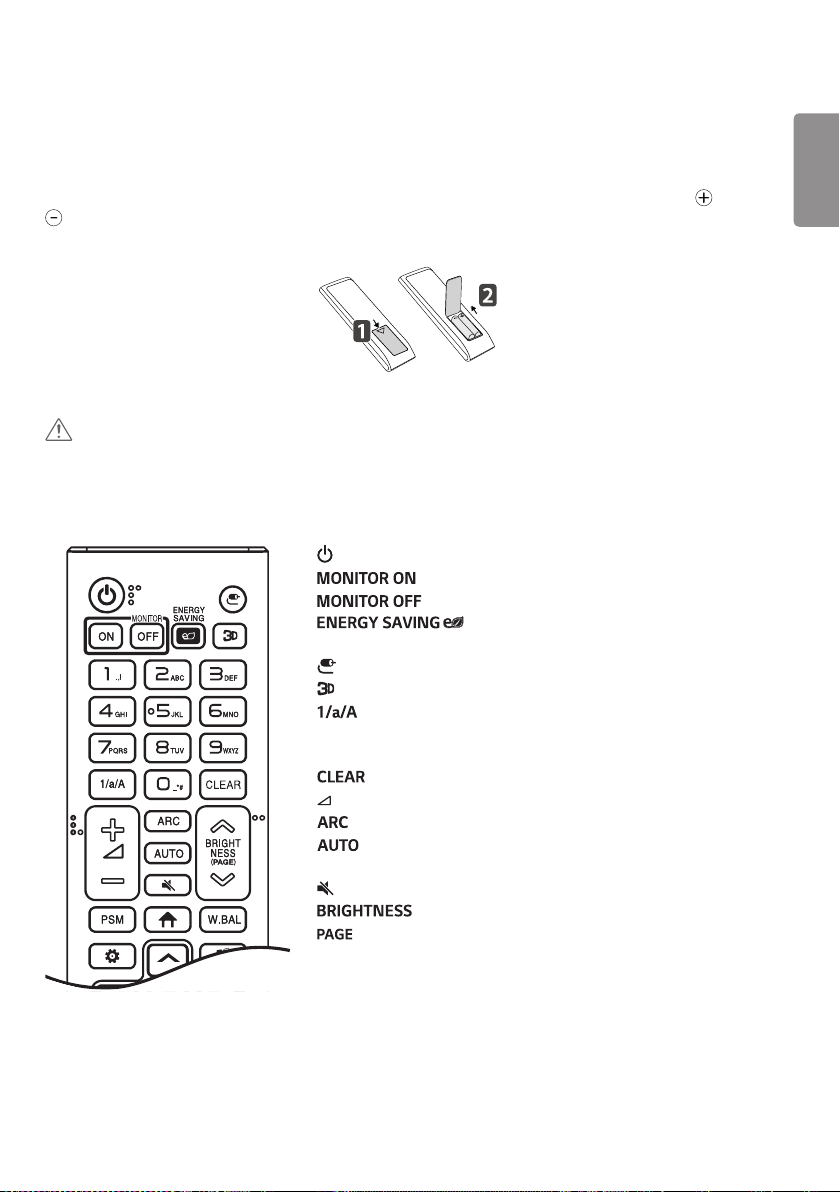

REMOTE CONTROL .................... 15
MAKING CONNECTIONS........... 17
- Connecting to a PC.......................................................17
- External Device Connection.....................................17

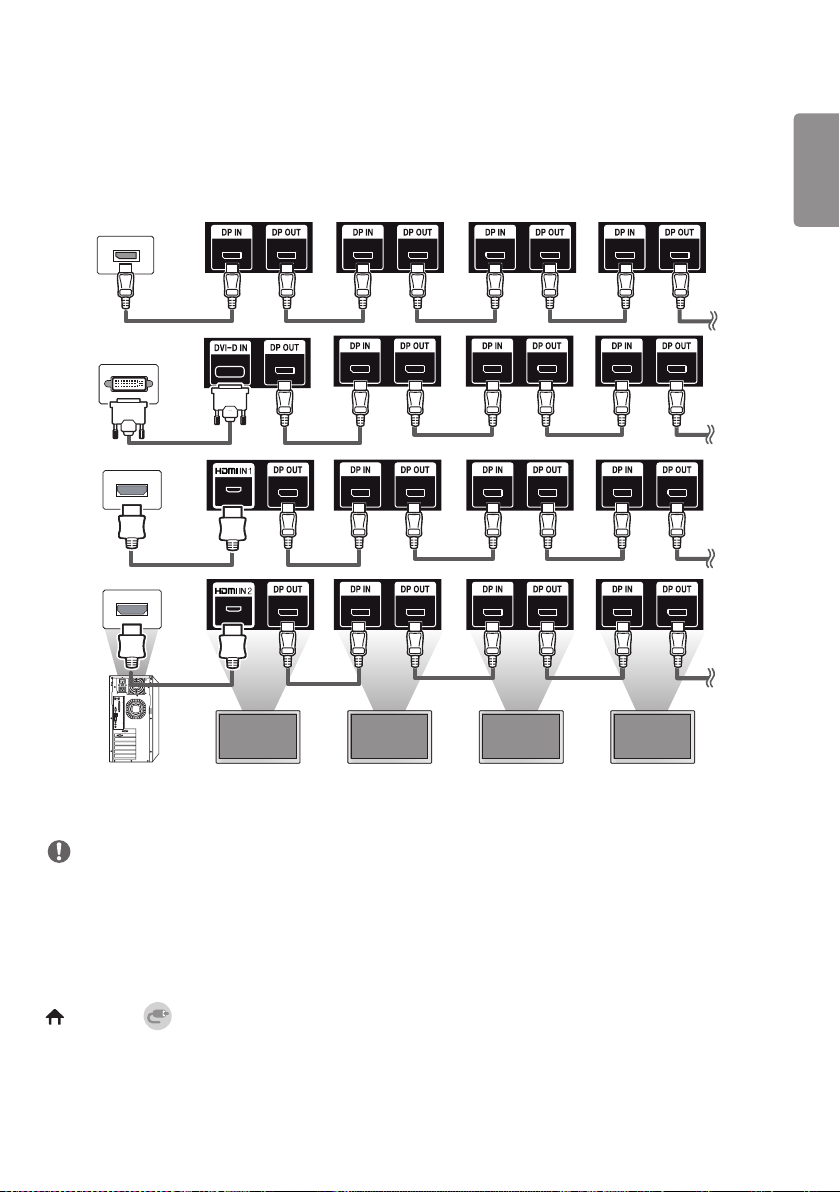

- Connecting Multiple Monitors................................19
- Using the Input List ......................................................19
TROUBLESHOOTING.................. 20
PRODUCT SPECIFICATIONS...... 23

ENGLISH
3
WARNING: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
IMPORTANT PRECAUTIONS
Please read these safety precautions carefully before using the product.
WARNING
Failure to follow those warnings may result in death, serious injury or damage to the product or other property.
CAUTION
If you ignore the caution message, you may be slightly injured or the product may be damaged.
Electrical Power Related Precautions
WARNING
•Use only the power cord supplied with the unit or another manufacturer’s authorized cord.
- Failure to do so may result in fire or electrical shock or damage to the product.
•Use only a properly grounded plug and receptacle.
- If you do not you may be electrocuted or injured. Or the product might be damaged.
•Do not use a damaged or loose plug.
- This may cause electrical shock or fire.
•Operate the display only from a power source(i.e. voltage) indicated in the product specification.
- Otherwise the product can be damaged, fire can occur or you may be electrocuted. If you are not sure what type of
power supply you have, consult a certified electrician.
•In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very
dangerous.
- It can cause electric shock.
•Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a power strip
with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
•Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power
plug completely or wipe dust off before plugging in the cord.
- You may be electrocuted due to excess moisture.

ENGLISH
4
•If you don’t intend to use the product for a long time, unplug the power cable from the product.
- Layers of dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
•Insert the power plug firm so it cannot come loose.
- A loose connection can cause fire.
•Hold the plug when pulling out the power cable. Do not pull the plug out by the wire. Do not bend the power cord
with excessive force or put heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
•Do not insert metal or other conductive materials into the product openings. Additionally, do not touch the power
cable right after plugging into the wall input terminal.
- You may be electrocuted.
•Use an appliance coupler as a disconnect device.
•Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily
accessible.
•Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
•As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the
unit is turned off.

ENGLISH
5
Precautions In Installing the Product
WARNING
•Keep away from heat sources like heaters or open flames.
- Electrical shock, fire, malfunction or deformation may occur.
•Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
•Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Prevent Children from climbing or pulling on the unit.
•Do not leave the power or signal cable where someone can trip over it.
- Pedestrians may become entangled in the cables and cause the device to become damaged causing electrical shock,
fire, or serious injury.
•Install the product in a neat and dry place. Do not use near water.
- Dust or moisture can cause electrical shock, fire or product damage.
•Do not add accessories that have not been designed for this display.
•If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG
Customer Service.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
•If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact LG Customer
Service.
•Do not drop an object on or apply impact to the product. Do not throw any toys or objects at the product.
- It can cause injury to humans, problems to the product and damage the display.
•Keep out of reach of children and do not place toys near the product.
•Make sure the product ventilation hole is not blocked. Install the product more than 100 mm (3.9 inches) from the
wall.
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat build-
up.
•Do not cover the product with cloth or other material (eg. plastic) while plugged in.
- The product can be deformed or fire can break out due to internal overheating.
•Place the product on a flat and stable surface that is large enough to support the product.
- If the product is dropped, you may be injured or the product may be broken.
•Install the product where no Electromagnetic Interference occurs.
•Keep the product away from direct sunlight.
- The product can be damaged.
•Do not place the product on the floor.
- Small Children and others may trip over it.
•Do not install this product on a wall if it could be exposed to oil or oil mist.
- This may damage the product and cause it to fall.
•For displays with glossy bezels the user should consider the placement of the display as the bezel may cause
unwanted reflections from surrounding light and bright surfaces.

ENGLISH
6
Precautions for Moving the Product
WARNING
•Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
•Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
•When lifting or moving the product, do not hold it upside down while holding only the stand.
- This may cause the product to fall resulting in damage or injury.
•Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
•Make sure the panel faces forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire.
•Do not place the product face down.
- This may damage the TFT-LCD screen.

ENGLISH
7
Precautions for Using/Cleaning the Product
WARNING
•Do not attempt to disassemble, repair or modify the product yourself.
- Fire or electric shock can occur.
- Contact LG Customer Service for repair.
•When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not
clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not
use chemicals such as benzene, paint thinners or alcohol.)
•Keep the product away from water.
- Fire or electric shock accident can occur.
•Avoid high temperatures and humidity.
•Do not put or store flammable substances near the product.
- There is a danger of explosion or fire.
•Keep the product clean at all times.
•Take a comfortable and natural position when working with the product.
•Take a regular break when working with the product for a long time.
•Do not press on the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
•Keep proper distance from the product and rest from time-to-time.
- Your vision may be impaired if you look at the product too closely or for too long.
•Set the appropriate resolution by referring to the User’s Guide.
•Keep small accessories out of the reach of children.
•Displaying a still image for long time on the monitor may leave persistent image or stain on the monitor screen. To
avoid this problem, use a screen saver and power off when this product is not used. Persistent image or stain caused
by long time usage are not covered by the warranty on this product.
•Do not use products using high voltage around the Monitor. (ex. Electrical Swatter)
- Monitor may have malfunction as its electrical shock.

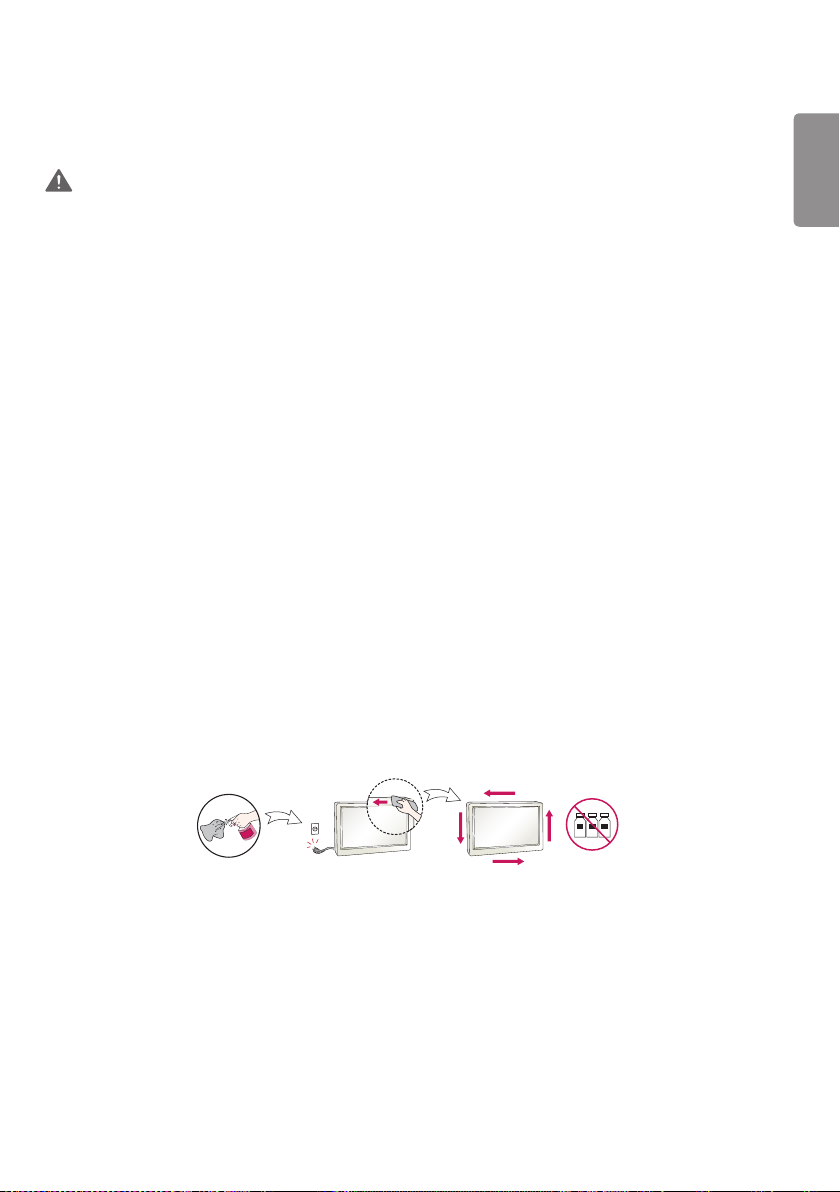

•Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame;wipe in one direction only. Too much
moisture may cause staining.
WATER CHEMICALS
Product Disposal (Only, Hg lamp used LCD Monitor)
•The fluorescent lamp used in this product contains a small amount of mercury.
•Do not dispose of this product with general household waste.
•Disposal of this product must be carried out in accordance to the regulations of your local authority.

ENGLISH
8
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, Dolby Atmos, and the double-D
symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and DTS Virtual:X are registered
trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

ENGLISH
9
ASSEMBLY AND PREPARATION
CAUTION
•Always use genuine components to ensure safety and product performance.
•The product warranty will not cover damage or injury caused by the use of counterfeit components.
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model.
•The warranty will not cover any damage caused by using the product in an excessively dusty environment.

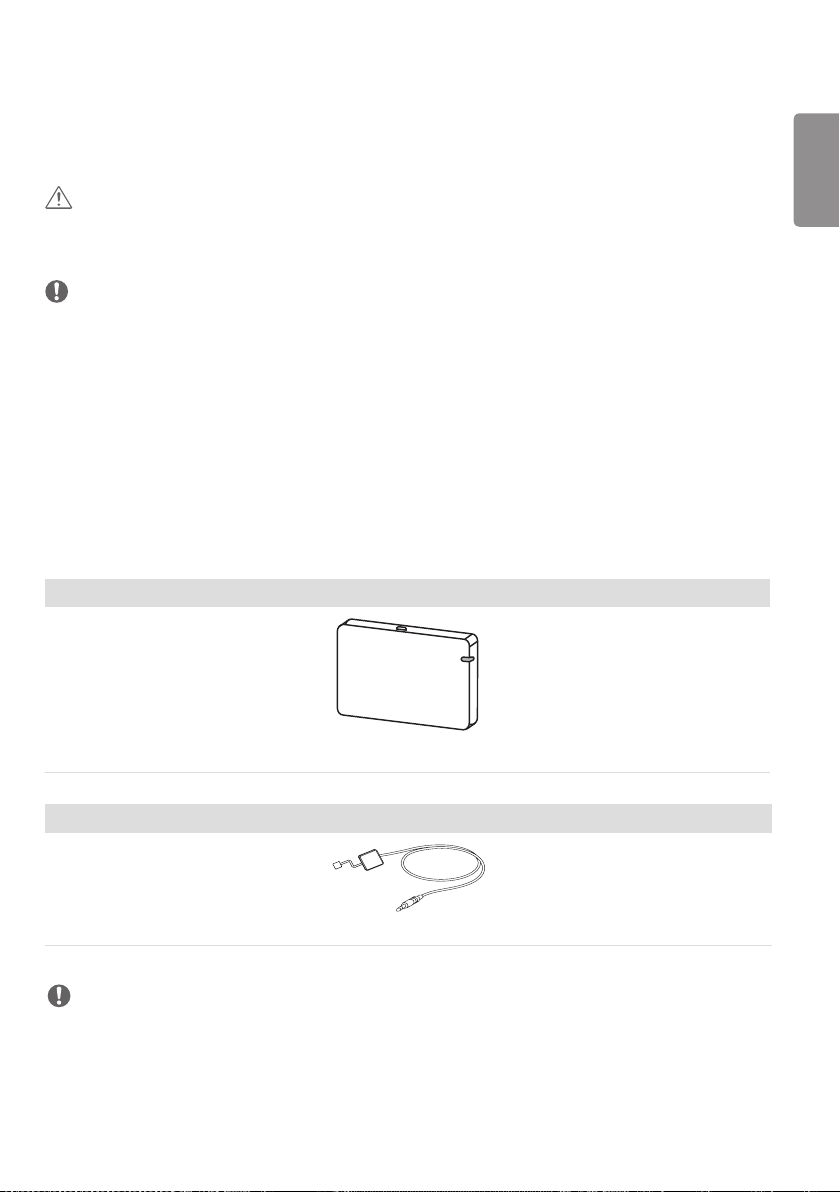

Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product, and new
accessories may be added. The illustrations in this manual may differ from the actual product and accessories.
Wi-Fi Dongle kit
AN-WF500
Pixel sensor kit
KT-SP0
NOTE
•Optional accessories are available for some models. If necessary, please purchase them separately.
•Please turn off the power before connecting or removing the Wi-Fi dongle kit.
•Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.

ENGLISH
10
Parts
The image may be different according to the model.
Illuminance sensor / IR Receiver
Power Indicator
Illuminance sensor: Adjusts the screen brightness by measuring the amount of light.
IR Receiver: This is where the unit receives signals from the remote control.
Power Indicator: This Indicator lights up red when the display operates normally (on mode). If the display is in sleep
mode (in Power Saving mode), this indicator changes color to amber.
NOTE
•You can set the status of the power indicator in Installation →Signage Setup.
•You can adjust the volume by using the remote control.
Portrait Layout
When installing in a portrait layout, rotate the monitor clockwise 90 degrees (when facing the screen).

ENGLISH
11

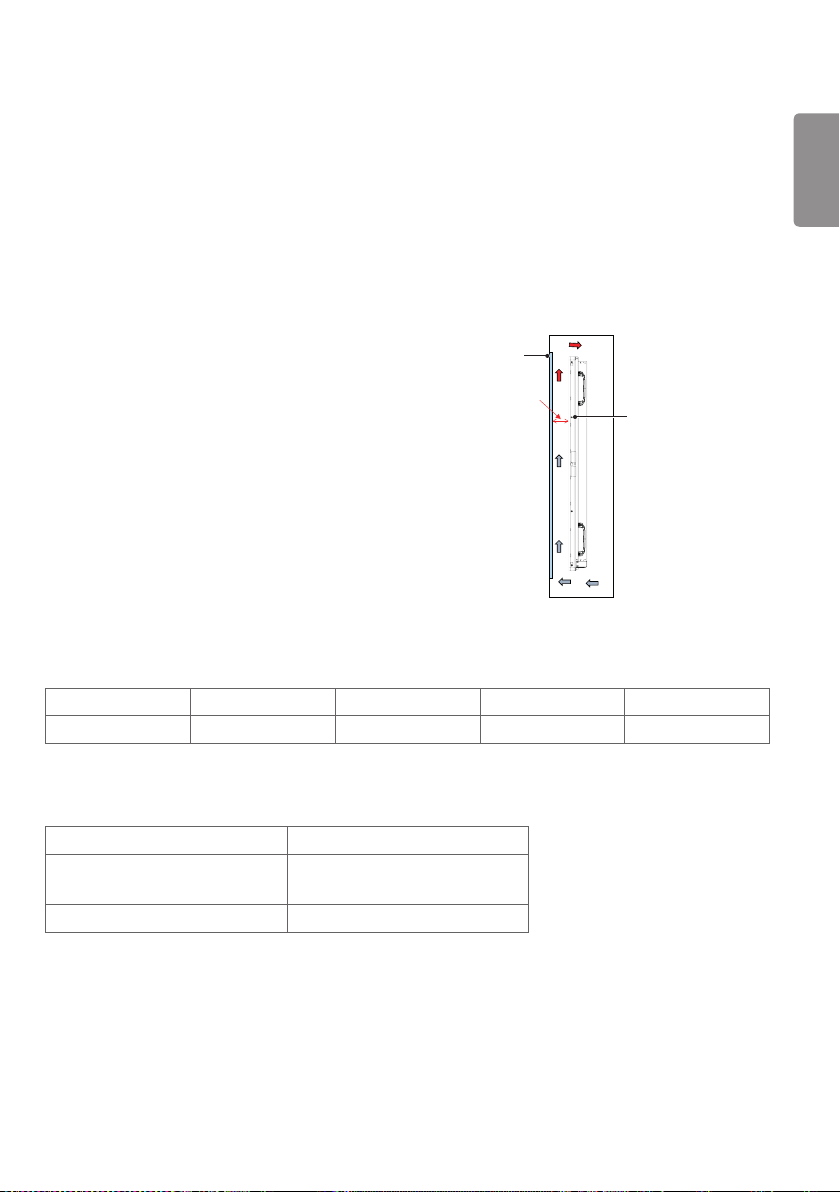

Safety and Precaution Guide for Enclosure Installation
Enclosure Design Guide
•Design the heat dissipation system so that the panel surface temperature does not exceed 75 °C (167 °F) under
direct sunlight in the installation area. Quality assurance is not provided for failures such as yellowing and black circles
that occur when the panel temperature exceeds 75 °C (167 °F) due to lack of Air Gap 10 mm (0.39 inches), not
applying UV protection function, and insufficient heat dissipation performance.
•Observe the following to ensure that the panel surface temperature does not exceed 75 °C (167 °F).
Air Gap
•Keep at least 10 mm (0.39 inches)
between the panel and the enclosure
protective glass to allow air to flow.
Air Gap
Enclosure Protective Glass
LG Open Frame
UV Protection
•To prevent heat from direct sunlight, apply UV protection to the enclosure protective glass.
Spectrum (nm) 300 ~ 370 ~ 380 ~ 390 ~ 400
Blocking Rate > 96 % > 97 % > 80 % > 60 %
Fan Capacity
•Select the fan capacity for sufficient heat dissipation performance. See the total fan capacity required for your model.
Total Fan Capacity
Display Front
(Panel ~ Enclosure Protective Glass) 200 ~ 240 CFM
Display Back 100 ~ 140 CFM

ENGLISH
12
Enclosure Installation Guide
FIXING THE PANEL SCREW HOLES
•Use the side screw holes when mounting the panel.
Unit : mm (inches)
62.9
(2.4)
250
(9.8)
63.5
(2.5)
246.35
(9.6)
600 (23.6)
400 (15.7)
113.2
(4.4)
30.2(1.1)
530(20.8)
16.35
(0.6) 530(20.8)
16.35
(0.6)
30.2(1.1)
250
(9.8)
62.9
(2.4)
250
(9.8)
63.5
(2.5)
30.2(1.1)
250
(9.8)
30.2(1.1)
530(20.8)
16.35
(0.6) 530(20.8) 16.35
(0.6)
49XF3E
•Side screw hole: M4, Torque - 5 to 7 kgf · cm (Top and bottom sides: 3 holes for each, left and right sides: 3 holes for each)
•As the depth of screw hole for the panel module is 7.0 mm (0.2 inches), please use the 9.0 mm (0.35 inches) screws.
•Using a screw longer than 9.0 mm (0.35 inches) may cause damage to the LCD module.
Unit : mm (inches)
54.7
(2.1)
300
(11.8)
19.7
(0.7)
43.7
(1.7) 574 (22.5)
317.8 (12.5)
154.7
(6.0)
600 (23.6)
400 (15.7)
574 (22.5)
43.7
(1.7)
19.7
(0.7)
54.7
(2.1)
300
(11.8)
54.7
(2.1)
300
(11.8)
19.7
(0.7)
54.7
(2.1) 300
(11.8)
19.7
(0.7)
43.7
(1.7)
574 (22.5) 574 (22.5) 43.7
(1.7)
55XF3E
•Side screw hole: M6, Torque - 5 to 7 kgf · cm (Top and bottom sides: 3 holes for each, left and right sides: 3 holes for each)
•As the depth of screw hole for the panel module is 10.0 mm (0.39 inches), please use the 12.0 mm (0.4 inches) screws.
•Using a screw longer than 12.0 mm (0.4 inches) may cause damage to the LCD module.

ENGLISH
13
INSTALLING THE IR UNIT, SENSOR, LED, AND EXPANSION PCB
Expansion PCB
Protection Vinyl
IR Unit
•Only remove the protection vinyl when using a side
screw hole.
Unit : mm (inches)
9.4 (0.37)
17.8
(0.7) 13.9
(0.5)
0.3
(0.01)
1.3
(0.05)
11.9
(0.4)
3.8
(0.1)
76.3 (3.0)
91.9 (3.6)
41 (1.6)
23 (0.9)
Φ7.3
(0.28)
Hole2-Φ4 (0.15)
Φ7.3
(0.28)
<IR Unit>
•Remove the cable from the sensor.
•Mount the Expansion PCB after removing the sensor.
Enclosure
Cable
IR Unit
•Open the cable holder and pull out the cables.
•Loosen the screws and remove the IR unit.
•Install the IR unit in the enclosure in a distance where the cable can be
reached.

ENGLISH
14
Safety and Precaution Guide for Installation
Installing the Enclosure
•Create a cooling system for the enclosure to maintain the operating temperature of the product.
•Ensure that the cooling system of the enclosure is constantly in operation, even when the display is not.
- This can protect the product against high temperatures.
•Use an enclosure glass with UV-blocking properties.
- This can prevent faults such as black spots, creases, and yellowing.
Direct Sunlight
•While powered off, make sure the device is not exposed to direct sunlight for a prolonged period.
- Protect the display with cloth or a box when storing the device after it has been powered off.
- This can prevent faults such as black spots, creases, and yellowing.
CAUTION

ENGLISH
15
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to
use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and
terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the
installation actions in reverse. The illustrations may differ from the actual accessories.
CAUTION
•Do not mix old and new batteries, as this may damage the remote control.
•Be sure to point the remote control toward the remote control sensor on the monitor.
•Some features of the remote control may not be supported in certain models.
",#
(POWER) Turns the monitor on or off.
Turns the monitor on.
Turns the monitor off.
Reduces power consumption by adjusting peak
screen brightness.
(INPUT) Selects the input mode.
Used for viewing 3D videos.
Toggles between numerical and alphabetical.
Number and Alphabet buttons Enters numerical or alphabetical
characters depending upon the setting.
Deletes the entered numerical or alphabetical character.
Volume Up/Down Button Adjusts the volume.
Selects the Aspect Ratio mode.
Automatically adjusts picture position and minimizes image
instability (available for RGB input only).
(MUTE) Mutes all sounds.
Adjusts the brightness of the display.
function is not supported in this model.

ENGLISH
16
Selects the Picture Mode.
(HOME) Activates the Launcher.
Enters the White Balance menu.
(SETTINGS) Accesses the main menus or saves your input and exit menus.
SuperSign menu key.
Navigation Buttons Scrolls through menus or options.
Selects menus or options and confirms your input.
(BACK) Allows you to move back one step in the user interaction function.
Quit all OSD tasks and applications.
Allows you to control various multimedia devices to enjoy
multimedia simply by using the remote control through the SimpLink menu.
Selects the TILE mode.
When the Picture ID number matches the Set ID number,
you can control whichever monitor you want in multi-display format.
USB Menu Control Buttons Controls media playback.

ENGLISH
17
MAKING CONNECTIONS
You can connect various external devices to your monitor. Change the input mode and select the external device you
want to connect.
For more information about external device connections, see the user manual provided with each device.
Connecting to a PC
Some of the cables are not provided.
This monitor supports the Plug and Play* feature.
* Plug and Play: a feature that enables a PC to recognize devices attached by the user without device configuration or
user intervention when powering up.
External Device Connection
Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.
Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your
monitor using HDMI cables is recommended.

ENGLISH
18
NOTE
•For the best image quality, using the monitor with HDMI connection is recommended.
•To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a DVI-D
cable.
•If you turn the monitor on when the set is cold, the screen may flicker. This is normal.
•Sometimes red, green, or blue spots may appear on the screen. This is normal.
•Use a High Speed HDMI®/TM cable.
•Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
•Recommended HDMI Cable Types
- High Speed HDMI®/TM Cable
- High Speed HDMI®/TM Cable with Ethernet
•If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to manually change
the default audio output to HDMI.
•If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.
•You may experience compatibility issues if you use HDMI-PC mode.
•Make sure the power cable is disconnected.
•If you connect a gaming device to the monitor, use the cable provided with the gaming device.
•It is recommended to use the speakers that are provided as optional accessories.
•High Speed HDMI®/TM cables transmit a HD signal up to 1080p and higher.
CAUTION
•Connect the signal input cable and tighten it by turning the screws clockwise.
•Do not press the screen with your finger for an extended period of time as this may result in a temporary distortion
of the screen.
•Avoid displaying static images on the screen for a long period of time to prevent image burn. Use a screensaver if
possible.
•A wireless communication device near your monitor can affect the image.

ENGLISH
19
Connecting Multiple Monitors
To use different products connected to each other, connect one end of the signal input cable (DP Cable) to the DP Out
connector of Monitor 1 and connect the other end to the DP In connector of the other product.
MONITOR 1 MONITOR 2 MONITOR 3 MONITOR 4
NOTE
•If you set the tile mode using DVI-D or HDMI, you will not be able to watch HDCP-encrypted content.
•If the signal cable connecting the product to your PC is too long, make sure to use a booster or optical cable.
•DP Cable - Use a DP cable that is certified to DP 1.1a standard or higher.
Using the Input List
(HOME) →
•HDMI1 →HDMI2 →DVI-D →DISPLAYPORT

ENGLISH
20
TROUBLESHOOTING
No image is displayed.
Problem Action
Is the product power cord connected? •Check if the power cord is correctly plugged into the power outlet.
Does the “Invalid Format” message
appear?
•The signal from the PC (Graphic card) is out of Vertical or Horizontal
frequency range of the product. Adjust the frequency range by referring
to the Specifications in this manual.
Does the “No Signal” message appear? •The signal cable between PC and product is not connected. Check the
signal cable.
•Access the input menu to check the input signal.
The Unknown Product message appears when the product is connected.
Problem Action
Did you install the driver? •Check if the Plug and Play function is supported by the graphics card
user manual.
The screen image looks abnormal.
Problem Action
Is the screen position wrong? •Check if the graphics card resolution and frequency are supported by
the product. If the frequency is out of range, set to the recommended
resolution in the [Control Panel] →[Display] →[Setting] menu. (The
settings may differ depending on your operating system.)
The screen is displayed abnormally. •The proper input signal is not connected to the signal port. Connect the
signal cable that matches with the source input signal.
