LG NC1000-BAAB User manual
OWNER’S MANUAL
DIGITAL SIGNAGE MEDIA PLAYER
DIGITAL SIGNAGE MEDIA PLAYER
NC1000
NC2000
www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
ENGLISH
4
Dimensions
250 mm (W) x 220 mm (H) x 45 mm (D) (only Set)
Weight
1.321 kg (only Set)
CPU
Intel ATOM Processor 330 1.6 GHz(Dual Core), FSB 533 MHz
Chip Set
Nvidia MCP7A-I ON
Main Memory
DDR3 1066 SODIMM type 1 GB, 2 GB
Secondary Storage Device
SATA SSD 8 GB, 16 GB, 32 GB
O/S
Windows Embedded Standard
General Specifications
Resolution
Maximum Resolution 1920 x 1080 @ 60 Hz
Recommended Resolution 1920 x 1080 @ 60 Hz
Power
Rated Voltage AC 100-240 V~, 50 / 60 Hz, 1.2 A
Sound Output Wattage
RMS Audio Output 10 W + 10 W (R + L) : When connected to the monitor (model name : M4224C)
Operating Condition
Sync (H/V) Video LED
Normal Mode On/On Active On
Deep Sleep Mode
(Set = Off) Off/Off Off Off
Operating Conditions
Operating Conditions Temperature 5 ℃ to 35 ℃Humidity 10 % to 80 %
Storage Conditions Temperature -20 ℃ to 60 ℃Humidity 5 % to 95 %
Operational Specifications
Multi I/O port
Serial Port One external RS-232 Serial port
USB Port Hi-Speed USB 2.0 port 480 Mbps rate (x5)
LAN Port Realtek RTL8103E 10/100 Mbps Ethernet controller
VGA / HDMI Nvidia MCP7A-ION integrated Graphic chipset
4-in-1 Card Secure Digital (SD) / MultiMedia Card (MMC/MMC4.0) /
Memory Stick (MS/MS-Pro) / xD Memory Card
PCI Express Card Slot Supported
LINE OUT Supported
SPDIF
(Digital Audio Out)
5.1 Channel Supported (depend on source signal)
Attention
● Product specifications may change without prior notice to improve
performance.
NC1000
Specifi cations
NC1000
SSD
8G 16G 32G
DDR 1GB
NC1000-BAAB NC1000-CAAB NC1000-DAAB
2GB
NC1000-BABB NC1000-CABB NC1000-DABB
Attention

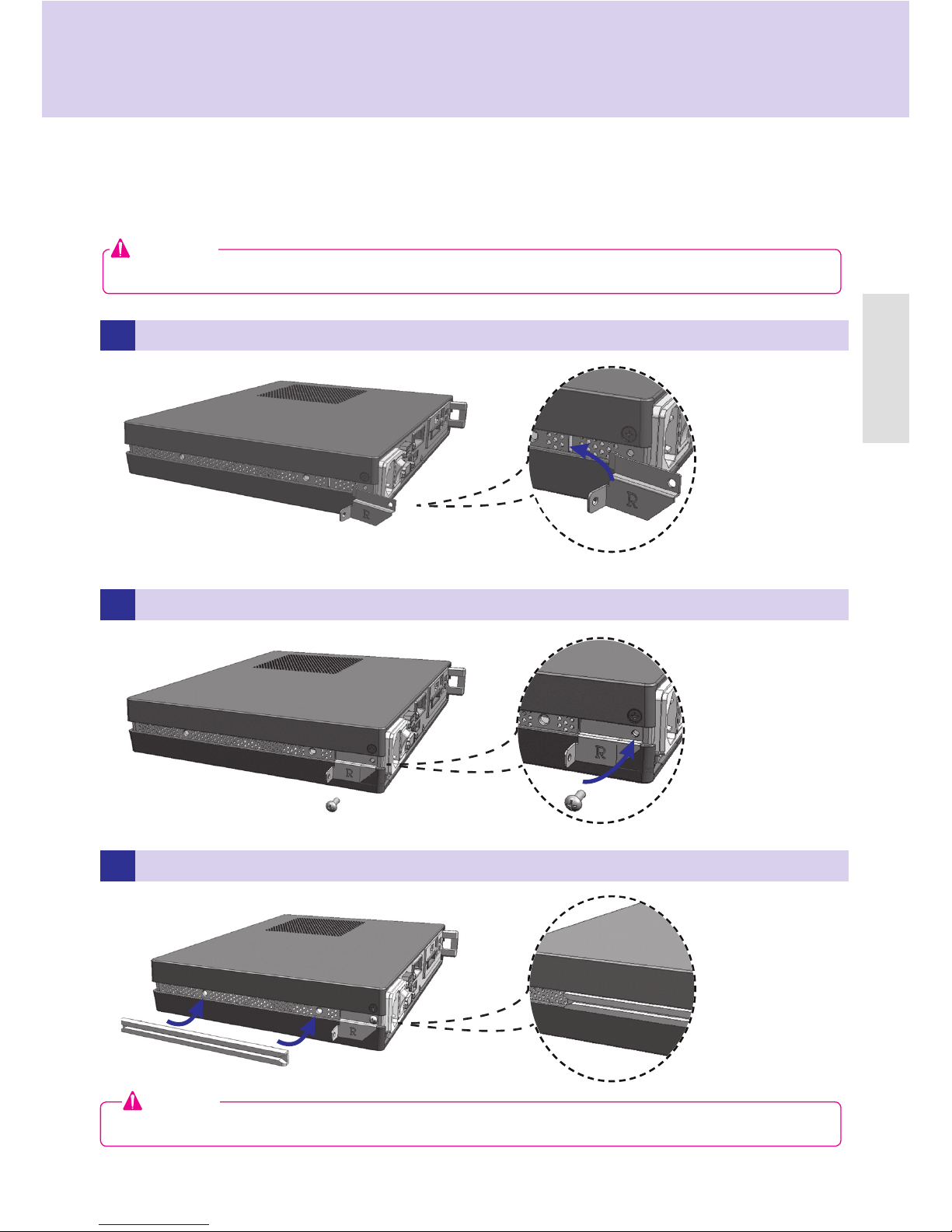

NC1000
NC1000
1
2
3
Attention
Warning
NC1000
4
5
6
NC1000
1
Turning NC1000 On
Attention
Attention
●
Note
●
Note
NC1000
2
3
NC1000
5
4
NC1000
2
1
Turning NC1000 On
●
●
●
Note
Attention
NC1000
4
3

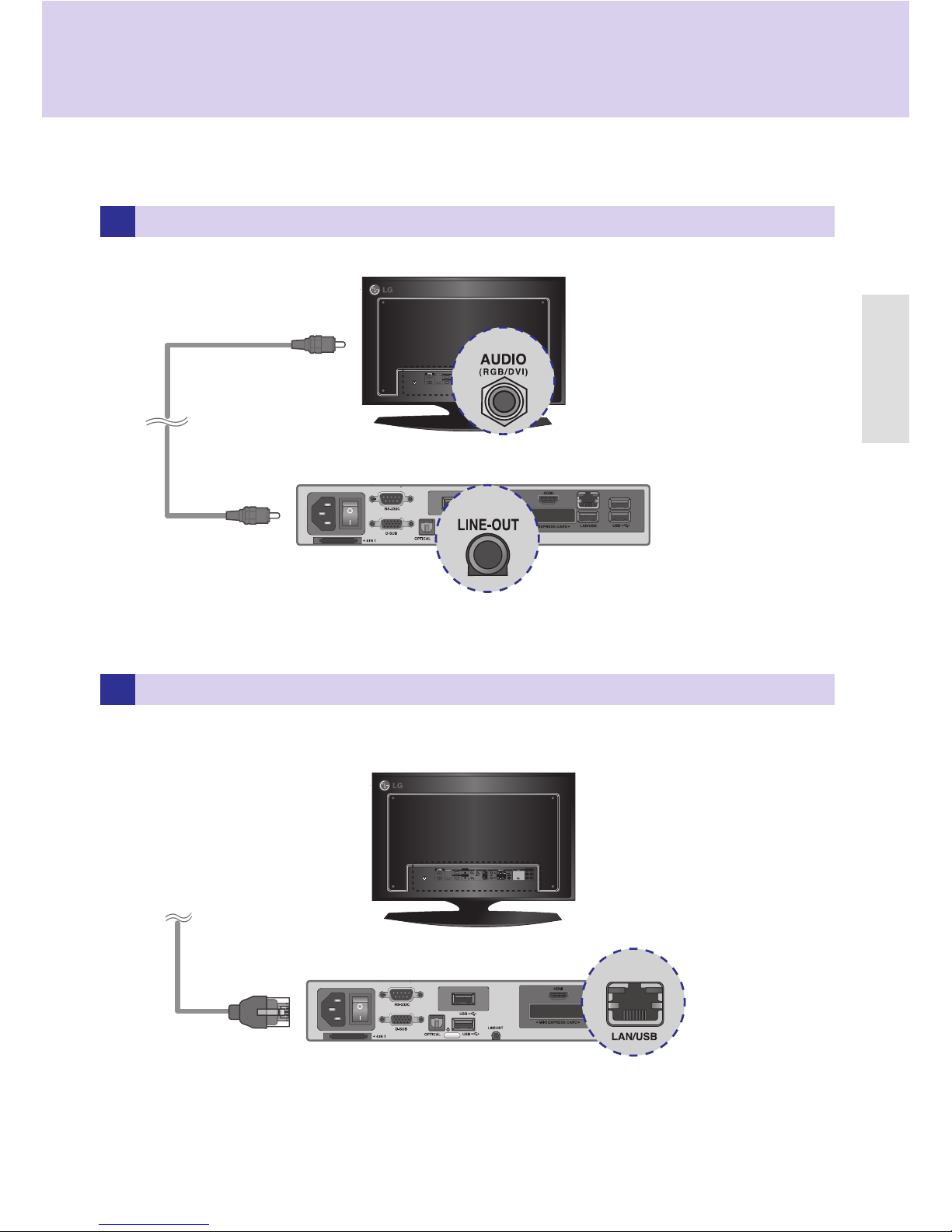

NC1000
1
2 Start > Control Panel > Sounds and Audio Devices > Audio.
3Play Sounds > NVIDIA High Defi nition Audio from the listOK
1
2 Start > Control Panel > Sounds and Audio Devices > Audio.
3Play Sounds > Realtek HD Audio output from the listOK
Connecting HDMI
Disconnecting HDMI
Attention
NC1000
3

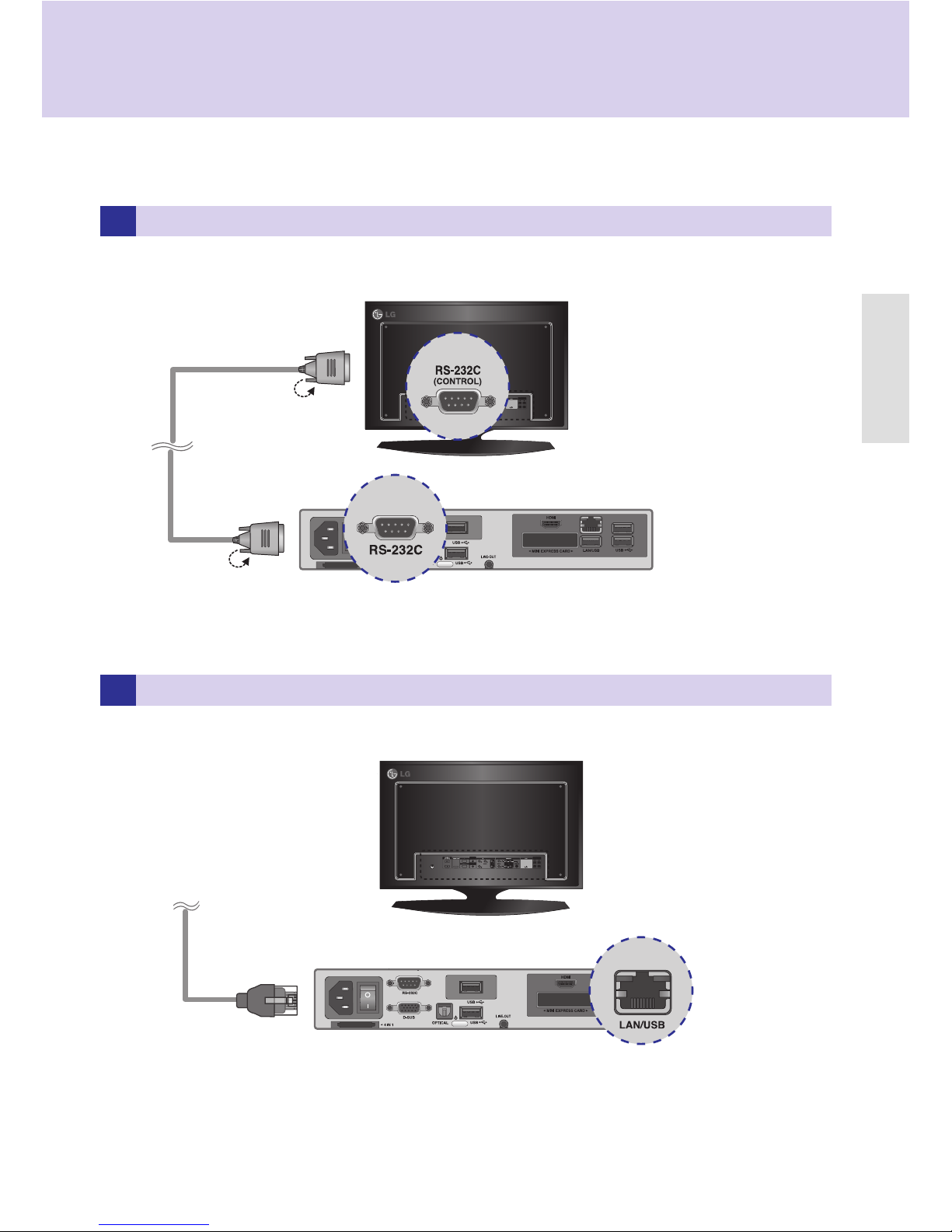

RS-232C OUTRS-232C INSET ID = 1
4
IN/OUT
1D-SUB OUTD-SUB INSET ID = 1
2D-SUBIN/OUT
Attention
Creating Tile
Mode > Create Tile
Note
NC1000
16
Specifi cations
NC2000
Dimensions 99.8 mm (W) x 183.3 mm (H) x 28.4 mm (D) (only Set)
Weight 0.215 kg (only Set)
CPU Intel ATOM Processor 330 1.6 GHz(Dual Core), FSB 533 MHz
Chip Set Nvidia MCP7A-I ON
Main Memory DDR3 1066 SODIMM type 1 GB, 2 GB
Secondary Storage
Device SATA SSD 8 GB, 16 GB, 32 GB
O/S Windows Embedded Standard
General Specifications
Resolution
Maximum Resolution 1920 x 1080 @ 60 Hz
Recommended Resolution 1920 x 1080 @ 60 Hz
Power
Rated Voltage DC 12 V / 3.5 A
Sound Output Wattage N/A
Operating Condition
Sync (H/V) Video LED
Normal Mode On/On Active On
Deep Sleep Mode
(Set = Off) Off/Off Off Off
Operating Conditions
Operating Conditions Temperature 5 ℃ to 35 ℃Humidity 10 % to 80 %
Storage Conditions Temperature -20 ℃ to 60 ℃Humidity 5 % to 95 %
Operational Specifications
Multi I/O port
Serial Port N/A
USB Port Hi-Speed USB 2.0 port 480 Mbps rate (x3)
LAN Port Realtek RTL8103E 10/100 Mbps Ethernet controller
VGA / HDMI Nvidia MCP7A-ION integrated Graphic chipset
4-in-1 Card N/A
PCI Express Card Slot Supported
LINE OUT N/A
SPDIF
(Digital Audio Out)
N/A
Attention
● Product specifications may change without prior notice to improve
performance.
NC2000
SSD
8G 16G 32G
DDR 1GB
NC2000-BAAB NC2000-CAAB NC2000-DAAB
2GB
NC2000-BABB NC2000-CABB NC2000-DABB
Attention
screw x 2
NC2000
A B C
CD
A
B
C
D
NC2000
1
2
3
Attention

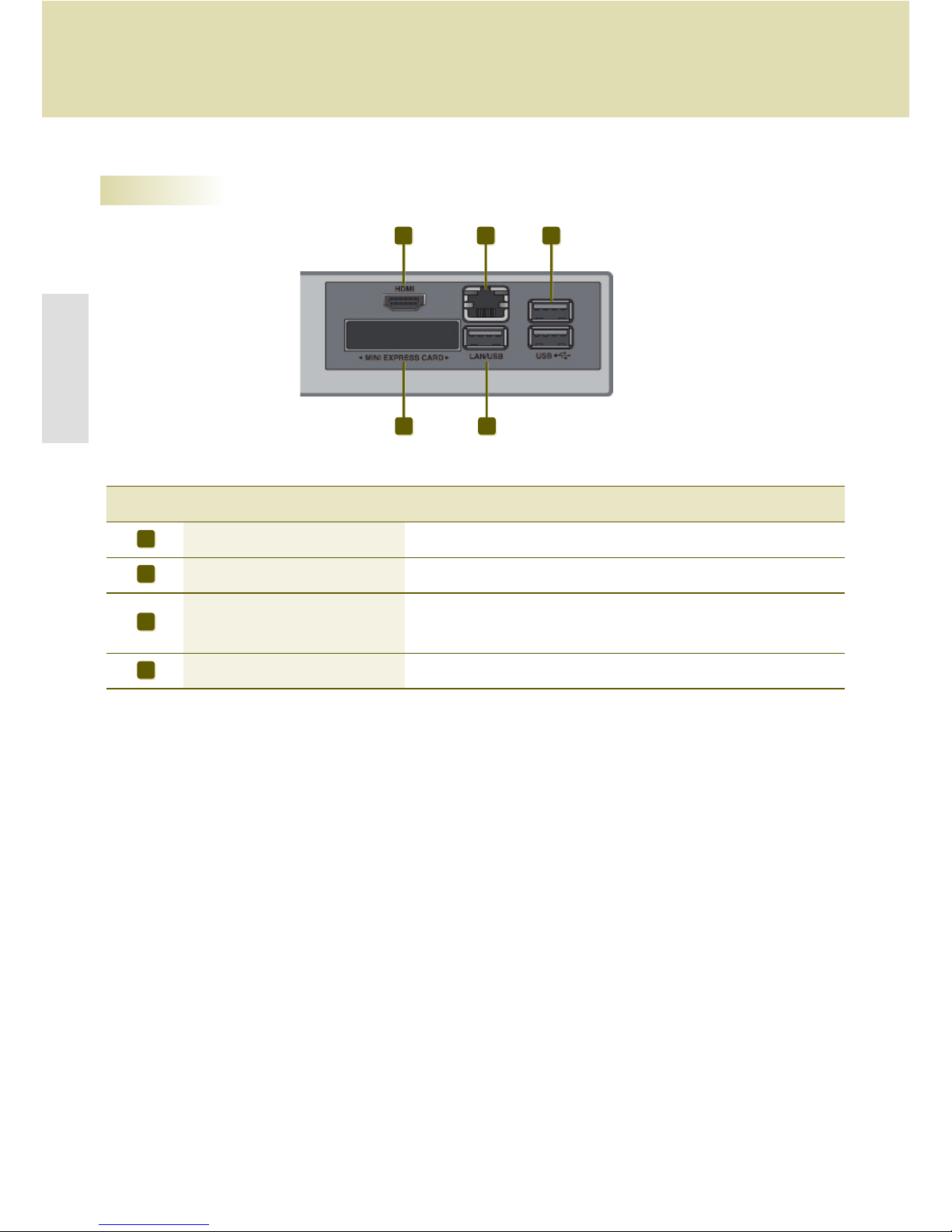

NC2000
Component
LG SuperSign Solution
LG
SuperSign Manager section
Note
Appendix
Note
Note
