LG LPLG001 User manual
2
ENGLISH_index
TABLE OF CONTENTS
SAFETY PRECAUTION ...............3
- Precautions In Installing the Product ............... 3
- Precautions to the AC Adapter and Electrical
Power................................................................................. 5
- Precautions In Moving the Product................... 7
- Precautions In Using the Product ...................... 8
- Mounting on a Wall ................................................... 9
ASSEMBLING AND PREPARING
.................................................. 10
- Optional Accessories.............................................. 11
- Terminal Buttons and Status Display............ 12
- Rack Installation (Optional)................................13
- Connecting LPLG001 to LAN Hub.................14

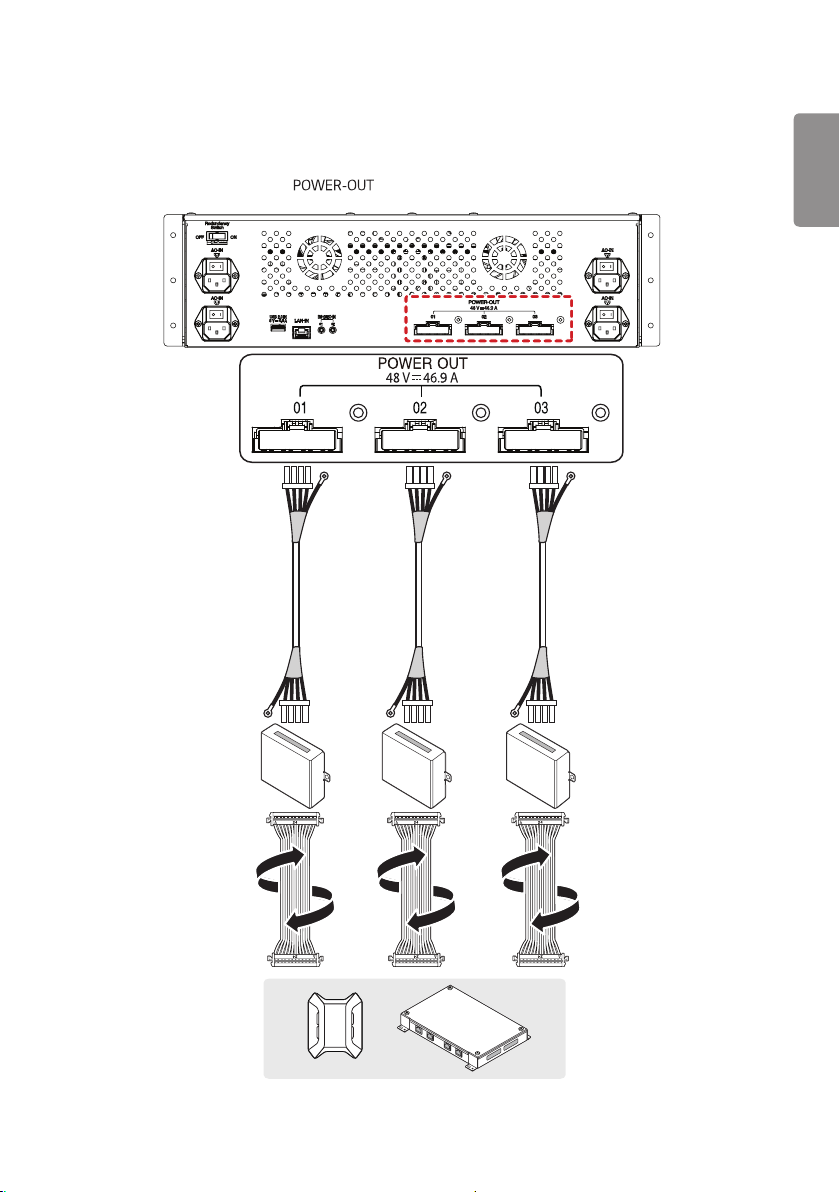

- Power Supply to LPLG001 .................................15
- Power Redundancy Feature ............................... 17

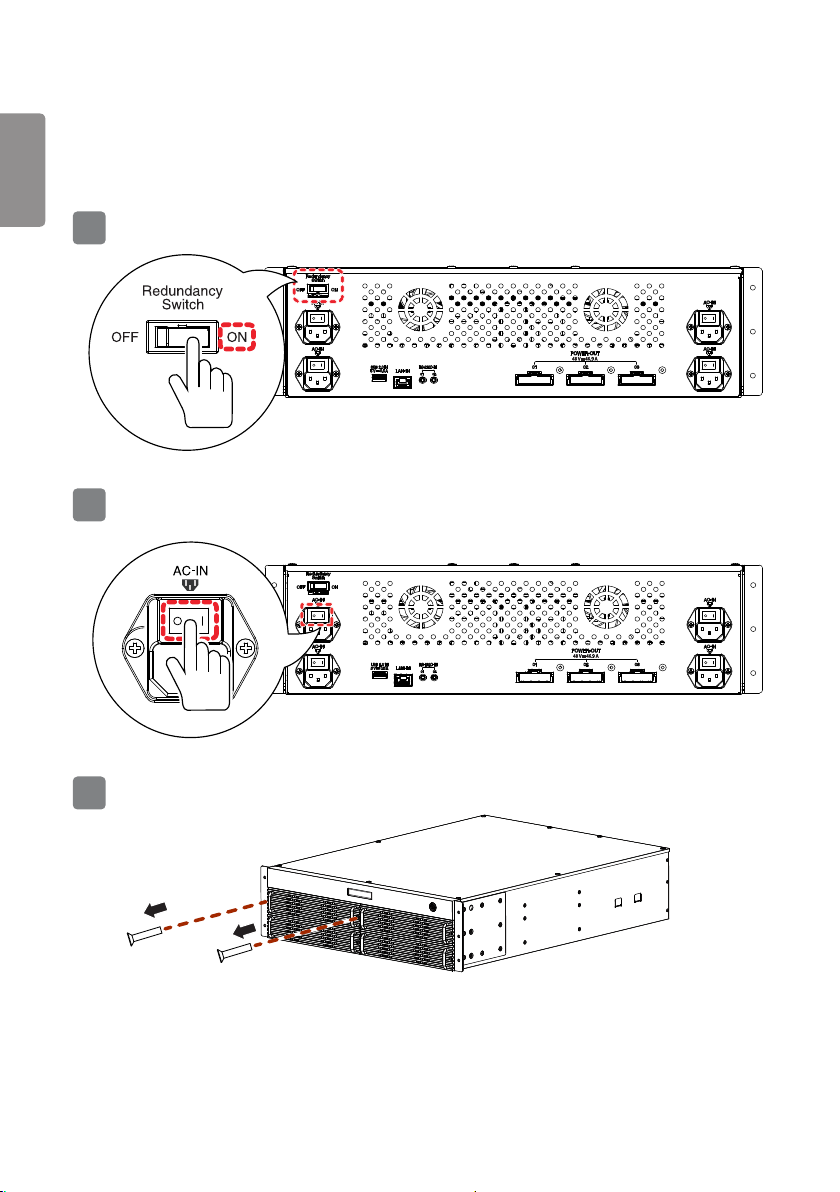

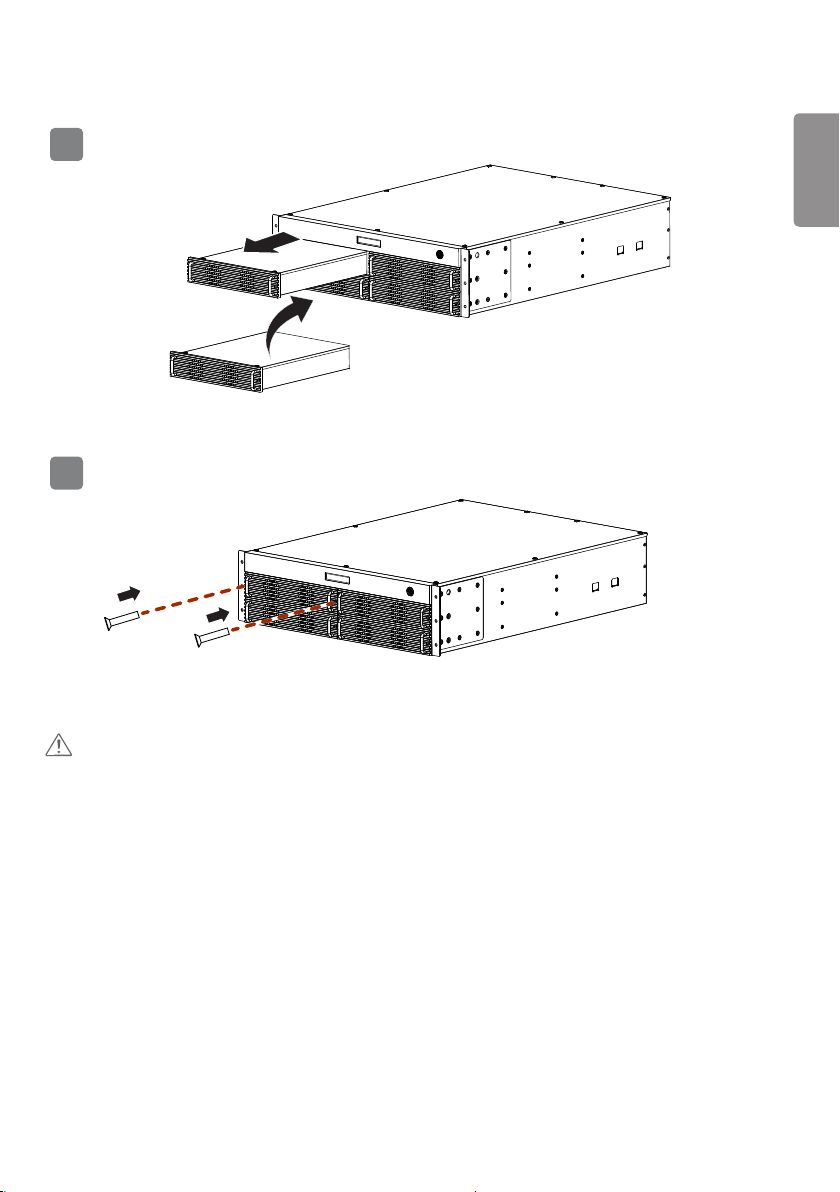

- Hot Swap Feature and Sequence....................18
TROUBLESHOOTING............... 20
PRODUCT SPECIFICATIONS... 21
3
ENGLISH_index
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
SAFETY PRECAUTION
Please read these safety precautions carefully before using the product.
WARNING
• If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
• If you ignore the caution message, you may be slightly injured or the product may be damaged.
WARNING
• Indoor Use Only.
Precautions In Installing the Product
WARNING
• Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction, or deformation may occur.
• Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
• Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Children must pay particular attention.
• Do not leave the power or signal cable unattended on the pathway.
- The passerby can trip or fall, which can cause electrical shock, fire, product breakdown, or injury.
• Install the product in a neat and dry place.
- Dust or moisture can cause electrical shock, fire or product damage.
• If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center.
4
ENGLISH_index
• Do not drop an object on or apply pressure to the product. Do not throw any toys or objects on the product screen.
- It can cause injury to human, problem to product and damage the display.
• Do not let the product fall or drop when connecting it with an external device.
- This may cause injury and/or damage to the product.
• Do not install this product on a wall where there is high risk of exposure to oil fumes or mist.
- This may damage product and cause it to fall.
• Install the product firmly fixed on a floor, wall, etc. to prepare against external impact such as wind and earthquake.
- You must refer to the installation guide.
• Safely install the product in a place that can hold the weight of the product.
- A lack of strength may cause the product to fall.
CAUTION
• Make sure the product ventilation holes are not blocked. Install the product in a suitably wide place (more than 100
mm from the wall).
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat.
• When installing the product on a shelf or cabinet, make sure that the bottom end of the product is not protruding
forward.
- The product may fall due to unbalanced centre of gravity, which may cause personal injury or damage to the
product. Be sure to use cabinets or shelves that fit your product.
• Do not block the ventilation hole of the product with a tablecloth or curtain.
- The product can be deformed or fire can break out due to overheating inside the product.
• Install the product on a flat and stable place that has no risk of dropping the product.
- If the product is dropped, you may be injured or the product may be broken.
• Install the product where no EMI occurs.
• Keep the product away from direct sunlight.
- The product can be damaged.
• If you install the product in a place that does not meet the recommended conditions, this may cause serious damage
to the product’s picture quality, life cycle, and appearance. Please check with LG or a qualified installer before
installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are
used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a
long period of time (airport and train station). failure to do so will invalidate the warranty.
• Do not install the product in an area with poor ventilation (e.g. on a bookshelf, in a closet) or outside and avoid placing
on cushions or carpets.
• In addition, do not install it where there are heating objects such as lighting equipment.
5
ENGLISH_index
Precautions to the AC Adapter and Electrical Power
WARNING
• If water or any foreign substance goes inside the product (TV, monitor, power cord, or AC adapter), disconnect the
power cord immediately and contact the service center.
- Otherwise, this may cause a fire or electric shock due to damage to the product.
• Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe and dry
them before use.
- Otherwise, this may cause a fire or electric shock.
• Make sure to completely insert the power cord into the AC adapter.
- If loosely connected, the poor connection may cause a fire or electric shock.
• Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.
- The use of non-approved products may cause a fire or electric shock.
• When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force.
- The power line can be damaged, which may cause electric shock or fire.
• Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter.
Be careful not to damage the power cord or AC adapter with sharp objects.
- Damaged power cords may cause a fire or electric shock.
• Never disassemble, repair or modify the power cord or AC adapter.
- This may cause a fire or electric shock.
• Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
• Use the rated voltage only.
- The product can be damaged, or you may be electrocuted.
• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very
dangerous.
- It can cause electric shock.
• Do not connect several extension cords, electrical appliances, or electrical heaters to a single outlet. Use a power strip
with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power
plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
6
ENGLISH_index
• If you don’t intend to use the product for a long time, unplug the power cable from the product.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
• Fix the power cable completely.
- If the power cable is not fixed completely, a fire can break out.
• Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected
to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input
terminal.
- You may be electrocuted.
• The appliance coupler is used as the disconnect device.
• Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily
accessible.
• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the
unit is turned off.
CAUTION
• Be sure to keep the outlet, AC adapter, and pins of the power plug clean from dust and etc.
- This may cause a fire.
• Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
• Use only the power cord supplied with the unit. If you use another power cord, make sure that it is certified by the
applicable national standards when not provided by the supplier. If the power cable is faulty in any way, please contact
the manufacturer or the nearest authorized repair service provider for a replacement.
• Ensure the power cord does not come into contact with hot objects such as a heater.
- This may cause a fire or an electric shock hazard.
7
ENGLISH_index
Precautions In Moving the Product
WARNING
• Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
• Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
• Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged
product can cause electric shock or fire. Contact an authorized the service center for repair.
• Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to
carry larger apparatus. Do not press against or put stress on the front panel of the apparatus.
CAUTION
• Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
• Do not dispose the product-packing box. Use it when you move.
8
ENGLISH_index
Precautions In Using the Product
WARNING
• Do not disassemble, repair or modify the product at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
• When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.
• Do not shock or scratch the front and sides of the screen with metallic objects.
- Otherwise, it may cause damage to the screen.
• Never touch the wall outlet when there is leakage of gas, open the windows and ventilate.
- It may cause a fire or a burn by a spark.
• Keep the product away from water.
- Fire or electric shock accident can occur.
• If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center.
- Fire or electric shock accident can occur.
• Do not touch the surface to overheat.
• Avoid high temperatures and humidity.
• Do not use high voltage electrical goods near the product(e.g. electric swatter).
- This may result in product malfunction.
CAUTION
• All the power sources must be disconnected by removing the power cables to remove all power from the unit.
• Do not put or store inflammable substances near the product.
- There is a danger of explosion or fire due to careless handling of the inflammable substances.
• When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not
clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not
use chemicals such as benzene, paint thinners, or alcohol.)
• Take a rest from time to time to protect your vision.
• Keep the product clean at all times.
• Take a comfortable and natural position when working with a product to relax the muscles.
• Take a regular break when working with a product for a long time.
• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil, or pen, or make a scratch on it.
• Keep the proper distance from the product.
- Your vision may be impaired if you look at the product too closely.
• Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image retention.
- Image retention and related problems are not covered by the warranty on this product.
9
ENGLISH_index
• Set the appropriate resolution and clock by referring to the User’s Guide.
- Your vision can be impaired.
• Use authorized detergent only when cleaning the product. (Do not use benzene, thinner, or alcohol.)
- Product can be deformed.
• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over
the apparatus (e.g. on shelves above the unit).
• Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace, and
electric heaters.
• Do not place non-rechargeable batteries in charging device.
• Since the LED Signage uses a high technology to produce a screen comprised of millions of LED packages, a few pixel
spots (red, green, white, and black) may occasionally appear on the screen during use.
- This is a phenomenon that can occur due to the unique properties of the LED Signage and does not indicate any
performance issues or malfunction.
• To clean the product, use an air gun to lightly remove dust from the front frame and the screen. If there are foreign
substances in between the LEDs on the screen, it may cause a defect in the screen.
- Do not physically come in contact with the screen of the LED Package. This may cause damage to the product.
Mounting on a Wall
• Do not install this product by yourself as you may injure yourself or cause damage to product. Please contact service
personnel authorised by manufacturer.
10
ENGLISH_index
ASSEMBLING AND PREPARING
CAUTION
• Always use genuine components to ensure safety and durability of the product.
• The product warranty will not cover damage or injury caused by the use of unauthorised components.
• Replacing the batteries with the wrong type may result in explosion.
• Batteries that have reached end-of-life should be disposed in an appropriate manner.
NOTE
• The accessories provided with your product may vary depending on the model.
• Product specifications or content in this user manual may be changed without prior notice due to the upgrade of
product functions.
• The warranty will not cover any damage caused by using the product in an excessively dusty environment.
• SuperSign Software & Manual
- Visit
http://partner.lge.com
to download the latest SuperSign software and manual.
11
ENGLISH_index
Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the product, and new
accessories may be added.
The images in this user manual may differ from the actual product and optional accessories.
System Controller LED Controller
LCLG003* LLLG003*
LED Display Module Unit Frame
LAP020EL6B, LAP025EL4D, LAP020EL7B,
LAP025EL7B, LAP020EL7N, LAP025EL7N
LAP015EL6B, LAP015EL7B, LAP015EL7N,
LAP015EL9N LFLG000E
LED Accessory
ACC-LAPPC*
NOTE
• Optional accessories are only available for some models. If necessary, please purchase them separately.
12
ENGLISH_index
Terminal Buttons and Status Display
The illustrations may differ depending on the model.
3,'2.
No. Explanation
• Turns the power of the set on and off. (Off: red, On: white)
• Turns on and off.
• Turns the power on or off of the relevant power board.
• Supplies the AC power.
• Updates the SVC firmware.
• Enables the user to control the LPLG001 via the connection with the LAN hub.
• Checks when a problem occurs in the operation of a set for SVC.
• Power output terminal.
• An LCD screen to display the status of the set.
13
ENGLISH_index
Rack Installation (Optional)
Rack
(*Not provided)
NOTE
• Use the bolts included in the rack to fasten the product.
14
ENGLISH_index
Connecting LPLG001 to LAN Hub
The user can turn the power of the LPLG001 model on and off via the LAN connection.
Via the LAN connection, the user can monitor the operational status of the connected LPLG001 sets.
HUB
(*Not provided)
CAUTION
• Check the direction so that the LAN cable is not damaged.
• Inserting the LAN cable with excessive force may damage the contact point.
• Check if the LAN cable is properly connected.
• Check if the System Controller is connected to the LAN hub that has been already connected. Only when the System
Controller is connected to the LAN hub, the LPLG001 can be controlled, and the function to monitor the operational
status becomes available.
15
ENGLISH_index
Power Supply to LPLG001
The main purpose of LPLG001 is to supply power to the LED Display module and the LED Controller.
There are three power output terminals ( terminal), through which power is supplied.
16
ENGLISH_index
NOTE
• Fasten the cables with cable ties to minimise electromagnetic interference.
CAUTION
• When connecting the cable, rotate it more than five times to complete the connection.
• Check the direction so that the cable is not damaged.
• When connecting the power output terminal ( terminal) of the LPLG001 to the interface board, always
use the 4-pin power cable that came with the product.
• When connecting the interface board to the LED Display Module, power gender, and LED Controller, make sure to use
the provided 24-pin power cable.
• The ON/OFF status of the function decides the maximum number of the LED Display Modules that can
be connected to each power output terminal ( terminal). Refer to the manual of LED Display Module.
17
ENGLISH_index
Power Redundancy Feature
The user can turn the feature of the LPLG001 model on or off via the switch on the rear side.
Feature ON
- Even if a problem occurs in one of the four power boards, the set will not be off, and the power will be supplied to
the LED screen.
- If a problem occurs in two or more of the four power boards, the set will be off, and the power will not be supplied
to the LED screen.
- It supports the hot swap of the power board.
- Refer to the user manuals of the LED Display Module for the number of LED Display Modules that can be
connected to a single set.
Feature OFF
- If a problem occurs in one or more of the four power boards, the set will be off, and the power will not be supplied
to the LED screen.
- It does not support the hot swap of the power board. (If one or more of the power boards are removed from the
slot, the set will not normally work.)
- Refer to the user manuals of the LED Display Module for the number of LED Display Modules that can be
connected to a single set.
18
ENGLISH_index
Hot Swap Feature and Sequence
Even if the set is not off (when the power is supplied to the LED screen), you can replace the power boards that need
to be repaired one by one. While you are replacing the power boards, the LED screen will not be off.
1
2
3
4
5
19
ENGLISH_index
1
2
3
4
5
CAUTION
• Always replace them in the same sequence as described in the figure.
20
ENGLISH_index
TROUBLESHOOTING
There is no power output.
Problem Solution
Is the power cord connected to the
product?
• Check if all four power cords are properly plugged into the power
outlet.
Is the power cord terminal switched off? • Check if all switches of the power cord terminal are on.
Are you using the product properly
depending on whether the
switch is ON or OFF?
• When the switch is ON
- Check if more than three of the four power cords are correctly
plugged into the power outlet.
• When the switch is OFF
- Check if all four power cords are properly plugged into the power
outlet.
The message will appear on the LCD screen.
Problem Solution
Does the message including the
statement “ ” appear on the LCD
screen?
• Repair is required. Contact the service center.
There is too much noise.
Problem Solution
Is the number of connected LED Display
Modules proper?
• The maximum number of the LED Display Modules that can be
connected varies depending on whether the is on or off.
Refer to the manual of LED Display Module.
Is the surrounding temperature too high? • Check if you are using the product in proper environmental conditions.
Table of contents
Other LG Digital Signage manuals
