LG 19LD35 Series User manual

www.lg.com
OWNER’S MANUAL
LCD TV / LED LCD TV
Please read this manual carefully before operating
your set and retain it for future reference.
ENGLISH
Ofrecido por www.electromanuales.com

HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or regis-
tered trademarks of HDMI Licensing LLC.
Wall Mounting Bracket
Separate purchase
(19/22/26/32LD3***,
32LD4***, 32LD5***,
19/22/26/32LE3***,
32LE4***, 22/26LE5***,
32LE5***)
LSW100B or
LSW100BG
(37/42/47LD4***,
42/46LD5***,
37/42LE4***,
37/42/47LE5***)
LSW200B or
LSW200BG
(52/60LD5***,
55LE5***)
LSW400B or
LSW400BG or
DSW400B or
DSW400BG
Wireless Media Box
(32/42/46/52/60LD5***,
32LE3***, 32/37/42LE4***,
32/37/42/47/55LE5***)
Optional extras can be changed or
modified for quality improvement
without any notification.
Contact your dealer for buying these
items.
This device only works with compatible
LG LED LCD TV or LCD TV.
Ofrecido por www.electromanuales.com

I
CONTENTS
CONTENTS
PREPARATION
LCD TV Models : 19/22/26/32LD35**,
19/22/26/32LD34**.......................................... A-1
LCD TV Models : 32/37/42/47LD4***, 26/32LD32**
26/32LD33**...........................................................A-14
LCD TV Models : 32/42/46/52/60LD5*** ...... A-24
LED LCD TV Models : 19/22/26/32LE3***, 32/37/
42LE4***, 22/26LE5***, 32/37/42/47/55LE5*** ...... A-33
EXTERNAL EQUIPMENT SETUP
Antenna Connection............................................1
Connecting with a Component cable..................2
Connecting with an HDMI cable .........................3
Connecting with an HDMI to DVI cable ..............4
Connecting with a Euro Scart cable ...................5
USB setup ...........................................................6
Connecting with a RF Cable ...............................6
Connecting with a RCA cable .............................7
Connecting with a D-sub 15 pin cable................8
Insertion of CI Module.........................................9
Headphone Setup ...............................................9
Digital audio out Setup......................................10
External Equipment WIreless Connection ........11
Supported Display Resolution...........................12
Screen Setup for PC mode...............................13
WATCHING TV / PROGRAMME CON-
TROL
Turning on the TV .............................................17
Initializing Setup ...............................................17
Programme Selection........................................17
Volume Adjustment ...........................................17
Quick Menu .......................................................18
On Screen Menus Selection and adjustment ...19
Auto programme tuning ...................................20
Cable DTV setting.............................................25
Manual programme Tuning...............................26
Programme Edit ...............................................30
CI [Common Interface] Information...................34
Software Update ...............................................35
Picture/Sound test.............................................37
Diagnostics........................................................38
Product/service information...............................39
Simple Manual ..................................................40
Selecting the Programme List...........................41
Input List............................................................43
Input Label ........................................................44
Data Service......................................................45
SIMPLINK..........................................................46
AV Mode............................................................50
Initializing(Reset to original factory settings) ....51
TO USE A USB DEVICE
When connecting a USB device .......................52
Movie list ..........................................................54
Photo list............................................................65
Music list............................................................75
DivX Registration Code ....................................84
Deactivation .....................................................85
EPG(ELECTRONIC PROGRAMME
GUIDE)(IN DIGITAL MODE)
Switch on/off EPG.............................................87
Select a programme..........................................87
Button Function in NOW/NEXT Guide Mode ...87
Button Function in 8 Day Guide Mode .............88
Button Function in Date Change Mode ............89
Button Function in Extended Description Box ..89
Button Function in Record/Remind Setting Mode 90
Button Function in Schedule List Mode............91
Ofrecido por www.electromanuales.com

II
CONTENTS
CONTENTS
PICTURE CONTROL
Picture Size (Aspect Ratio) Control ..................92
Picture Wizard...................................................94
Energy Saving...................................................95
Preset Picture Settings .....................................96
Manual Picture Adjustment ...............................97
Picture Improvement Technology......................98
Expert Picture Control.......................................99
Picture Reset...................................................102
Trumotion ........................................................103
Power Indicator ..............................................104
Mode Setting ...................................................105
Demo Mode.....................................................106
SOUND & LANGUAGE CONTROL
Auto Volume Leveler.......................................107
Clear Voice II...................................................108
Preset Sound Settings-Sound Mode ..............109
Sound Setting Adjustment -User Mode ..........110
Infinite Sound ..................................................110
Balance ........................................................... 111
TV Speakers On/ Off Setup ............................112
DTV Audio Setting (in digital mode only)........113
Selecting Digital Audio out ..............................114
Audio Reset.....................................................115
Audio Description (In digital mode only) .........116
I/II
-
Stereo/Dual Reception (In Analogue Mode Only) 117
- NICAM Reception (In Analogue Mode Only)118
- Speaker Sound Output Selection ................118
On-Screen Menu Language / Country Selection 119
Language Selection ........................................120
TIME SETTING
Clock Setup.....................................................122
Auto on/off time setting ...................................123
Sleep Timer setting .........................................124
PARENTAL CONTROL / RATINGS
Set Password & Lock System.........................125
Block Programme............................................126
Parental Control (In Digital Mode only)...........127
External Input Blocking ...................................128
Key Lock..........................................................129
TELETEXT
Switch on/off ...................................................130
SIMPLE Text....................................................130
TOP Text..........................................................131
FASTEXT ........................................................131
Special Teletext Functions ..............................132
DIGITAL TELETEXT
Teletext within Digital Service .........................133
Teletext in Digital Service................................133
APPENDIX
Troubleshooting...............................................134
Maintenance....................................................136
Product Specifications.....................................137
IR Codes .........................................................148
External Control Device Setup........................149
Open source software notice ..........................156
Ofrecido por www.electromanuales.com

A-1
PREPARATION
PREPARATION
ACCESSORIES
LCD TV MODELS : 19/22/26/32LD35**, 19/22/26/32LD34**
Ensure that the following accessories are included with your TV. If an accessory is missing, please
contact the dealer where you purchased the TV.
■Image shown may differ from your TV.
Owner’s Manual Batteries
(AAA)
Remote Control
Power Cord
Polishing Cloth
Polishing cloth for
use on the screen.
This item is not included for all models.
* Lightly wipe any stains or
fingerprints on the surface
of the TV with the polish-
ing cloth.
Do not use excessive
force. This may cause
scratching or discoloura-
tion.
Ferrite Core
(
This item is not included
for all models.
)
Use of ferrite core (This feature is not available for all models.)
Ferrite core can be used to reduce the electromagnetic
wave when connecting the power cord.
The closer the location of the ferrite core to the power
plug, the better it is.
Install the power plug closely.
Protection Cover
Only 19/22LD35**, 19/22LD34**

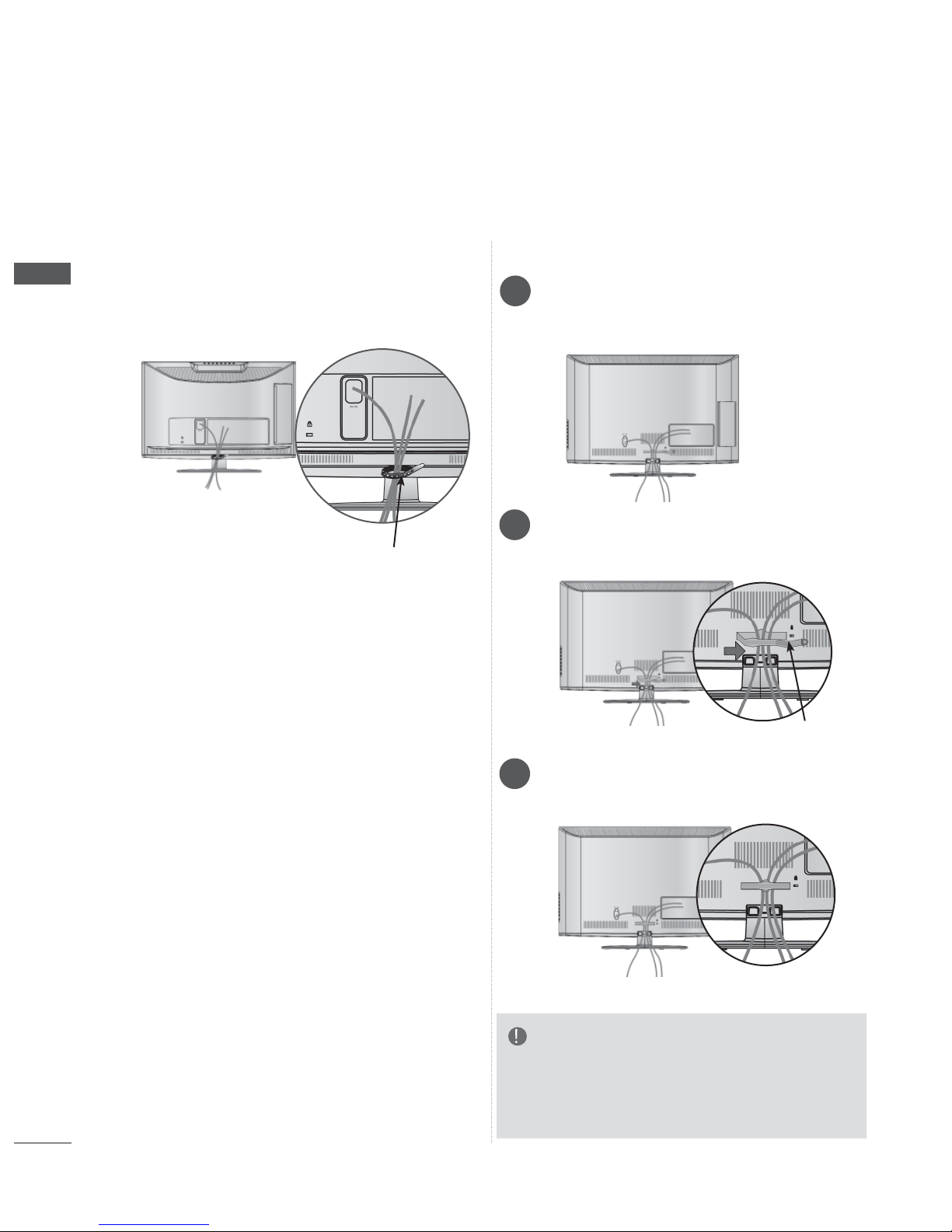

Cable Holder

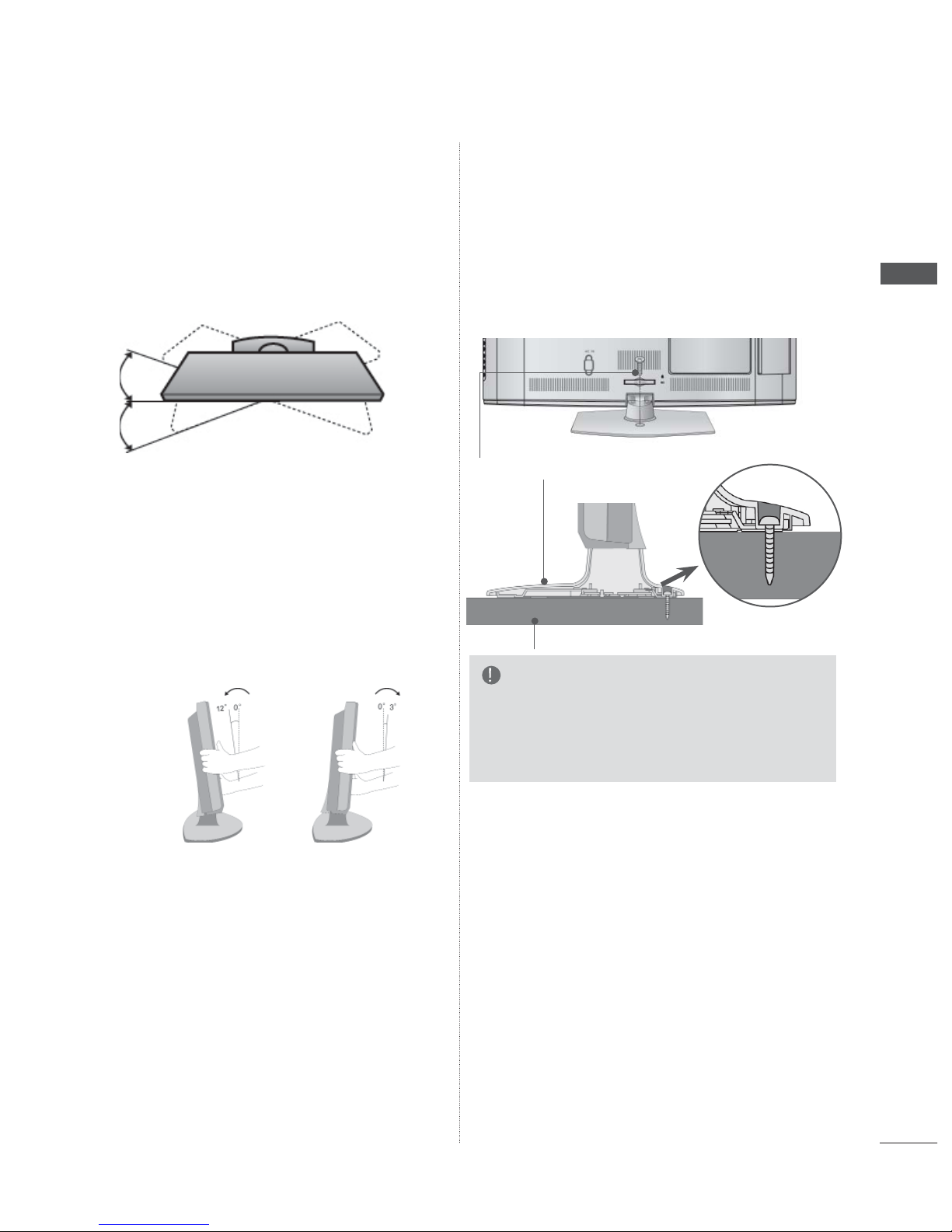

1-screw for stand fixing
Bolts for stand assembly Protection Cover
Only 26/32LD35**, 26/32LD34**
(M4x20)
x 8
Ofrecido por www.electromanuales.com

A-2
PREPARATION
PREPARATION
FRONT PANEL CONTROLS
■Image shown may differ from your TV.
NOTE
►TV can be placed in standby mode in order to reduce the power consumption. And TV should be
switched off using the power switch on the TV if it will not be watched for some time, as this will
reduce energy consumption.
►The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
CAUTION
►Do not step on the glass stand or subject it to any impact. It may break, causing possible injury
from fragments of glass, or the TV may fall.
►Do not drag the TV. The floor or the product may be damaged.
VOLUME
PROGRAMME
OK
MENU
INPUT
POWER
Power/Standby Indicator
• Illuminates red in standby mode.
• Illuminates blue when the TV is switched on.
Remote Control Sensor
SPEAKER
Only 26/32LD35**,
26/32LD34**
PROGRAMME
VOLUME
MENUPOWER
OKINPUT
Only 19/22LD35**, 19/22LD34**
Ofrecido por www.electromanuales.com

A-3
PREPARATION
BACK PANEL INFORMATION
■Image shown may differ from your TV.
Power Cord Socket
This TV operates on an AC power. The volt-
age is indicated on the Specifications page.
(►p.137 to 147) Never attempt to operate
the TV on DC power.
HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to
HDMI cable.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of
equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Euro Scart Socket (AV1)
Connect scart socket input or output from an
external device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
RGB IN Input
Connect the output from a PC.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
Antenna Input
Connect antenna or cable to this jack.
USB Input
Connect USB storage device to this jack.
PCMCIA (Personal Computer Memory
Card International Association) Card Slot
Insert the CI Module to PCMCIA CARD
SLOT.
(This feature is not available in all countries.)
Headphone Socket
Plug the headphone into the headphone
socket.
1
2
3
4
5
6
7
8
9
10
11
12
13
1
234 6 7
5
9 10
8
11
12
13
Only 19/22LD35**, 19/22LD34**
Ofrecido por www.electromanuales.com

A-4
PREPARATION
PREPARATION
■Image shown may differ from your TV.
Power Cord Socket
This TV operates on an AC power. The volt-
age is indicated on the Specifications page.
(►p.137 to 147) Never attempt to operate
the TV on DC power.
HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to
HDMI cable.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of
equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
Euro Scart Socket (AV1)
Connect scart socket input or output from an
external device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
RGB IN Input
Connect the output from a PC.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
Antenna Input
Connect antenna or cable to this jack.
USB Input
Connect USB storage device to this jack.
PCMCIA (Personal Computer Memory
Card International Association) Card Slot
Insert the CI Module to PCMCIA CARD
SLOT.
(This feature is not available in all countries.)
Headphone Socket
Plug the headphone into the headphone
socket.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
1
2
3
4
5
6
7
8
9
10
11
12
1
234 5 6
8 9
7
Only 26LD35**, 26LD34**
10
11
2
12
13
13
Ofrecido por www.electromanuales.com

A-5
PREPARATION
Only 32LD35**, 32LD34**
■Image shown may differ from your TV.
Power Cord Socket
This TV operates on an AC power. The volt-
age is indicated on the Specifications page.
(►p.137 to 147) Never attempt to operate
the TV on DC power.
HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to
HDMI cable.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of
equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
Euro Scart Socket (AV1)
Connect scart socket input or output from an
external device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
RGB IN Input
Connect the output from a PC.
Antenna Input
Connect antenna or cable to this jack.
USB Input
Connect USB storage device to this jack.
PCMCIA (Personal Computer Memory
Card International Association) Card Slot
Insert the CI Module to PCMCIA CARD
SLOT.
(This feature is not available in all countries.)
Headphone Socket
Plug the headphone into the headphone
socket.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
1
2
3
4
5
6
7
8
9
10
11
12
13
23 4 5 6
7 98
10
11
2
12
13
1
Ofrecido por www.electromanuales.com

A-6
PREPARATION
PREPARATION
STAND INSTALLATION
Only 19/22LD35**, 19/22LD34**
■Image shown may differ from your TV.
When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully,
the product can tilt forward after the product installation.) If you tighten the bolt with excessive force,
the bolt can deviate from abrasion of the tightening part of the bolt.
Only 26/32LD35**, 26/32LD34**
Carefully place the TV screen side down
on a cushioned surface to protect the
screen from damage.
Assemble the TV as shown.
Fix the 4 bolts securely using the holes in
the back of the TV.
1
3
4
Assemble the parts of the Stand Body with
the Stand Base of the TV.
2
Stand Body
Stand Base
Carefully place the TV screen side down
on a cushioned surface to protect the
screen from damage.
1
Assemble the TV as shown.
2
Ofrecido por www.electromanuales.com
