LG 26LC2D User manual

Please read this manual
carefully
before
operating your
set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and
quote
this information to
your
dealer
when
you require
service.
ENERGYSTAR is a set of
power-saving
guidelines
issued
by
the U.S.
Environmental Protection
Agency(EPA).
As an
ENERGY
STAR
Partner LGE U. S.
A.,Inc.
has determined that this
product
meets the
ENER-
GY STAR
guidelines
for
energy efficiency.
P/NO : 38289U0527M
(0611-REV02)
Printed in Korea
OWNER'S MANUAL
LCD
TV
MODEL: 26LC2D
Internet Home
Page
:
http://www.lge.com
http://www.lg.ca

2

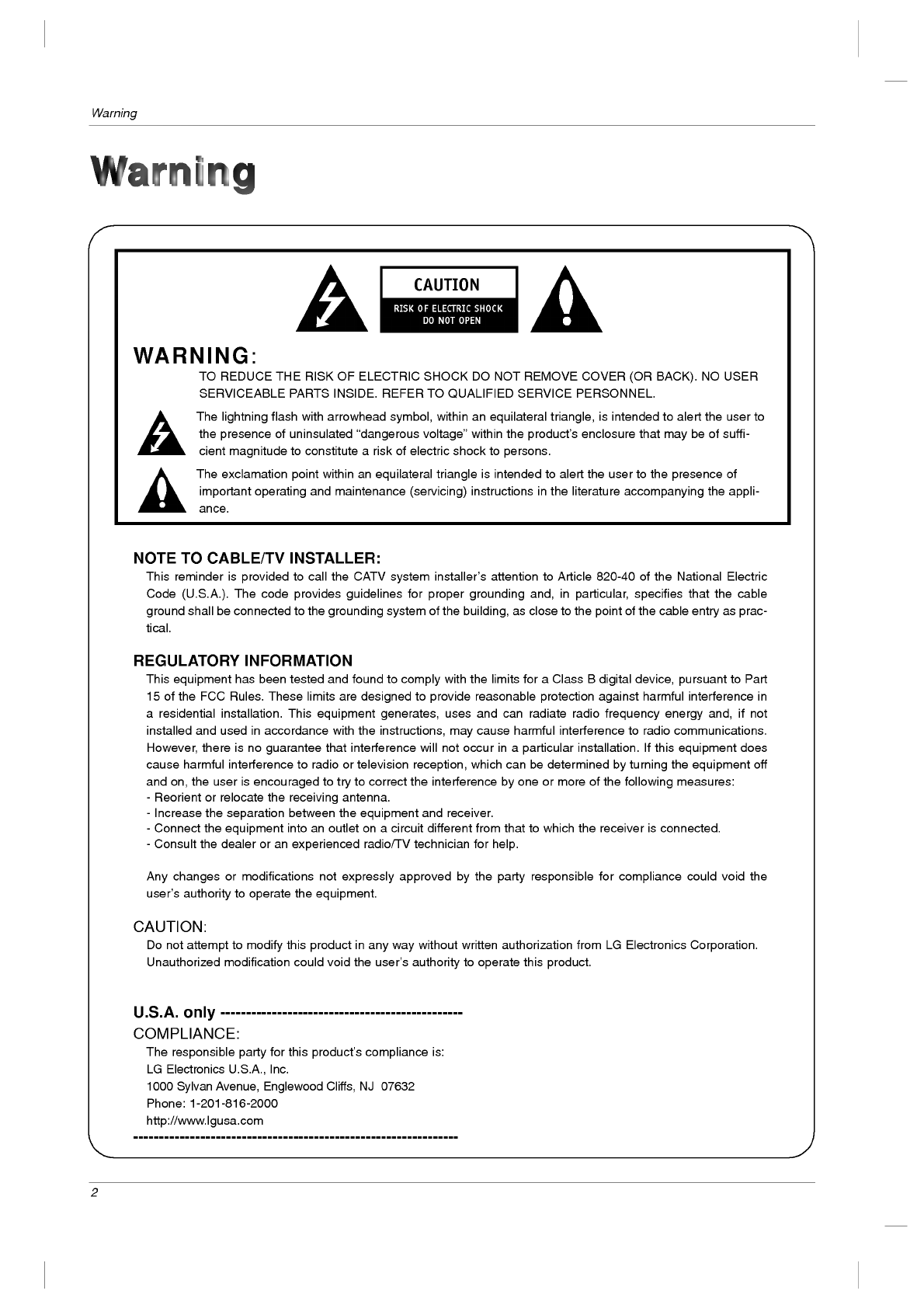

Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK).
NO USER
SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED
SERVICE PERSONNEL.
The
lightning
flash with arrowhead
symbol,
within an
equilateral triangle,
is intended to alert the user to
the
presence
of uninsulated
"dangerous voltage"
within the
product's
enclosure that
may
be of suffi-
cient
magnitude
to constitute a risk of electric shock to
persons.
The exclamation
point
within an
equilateral triangle
is intended to alert the user to the
presence
of
important operating
and maintenance
(servicing)
instructions in the literature
accompanying
the
appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is
provided
to call the CATV
system
installer 's attention to Article 820-40 of the National Electric
Code
(U.S.A.).
The code
provides guidelines
for
proper grounding
and,
in
particular, specifies
that the cable
ground
shall be connected to the
grounding system
of the
building,
as close to the
point
of the cable
entry
as
prac-
tical.
REGULATORY INFORMATION
This
equipment
has been tested and found to
comply
with the limits for a Class B
digital
device,
pursuant
to Part
15 of the FCC Rules. These limits are
designed
to
provide
reasonable
protection against
harmful interference in
a residential installation. This
equipment generates,
uses and can radiate radio
frequency energy
and,
if not
installed and used in accordance with the
instructions,
may
cause harmful interference to radio communications.
However,
there is no
guarantee
that interference will not occur in a
particular
installation. If this
equipment
does
cause harmful interference to radio or television
reception,
which can be determined
by turning
the
equipment
off
and
on,
the user is
encouraged
to
try
to correct the interference
by
one or more of the
following
measures:
-
Reorient or relocate the
receiving
antenna.
-
Increase the
separation
between the
equipment
and receiver.
-
Connect the
equipment
into an outlet on a circuit different from that to which the receiver is connected.
-
Consult the dealer or an
experienced
radio/TV technician for
help.
Any changes
or modifications not
expressly approved by
the
party responsible
for
compliance
could void the
user's
authority
to
operate
the
equipment.
CAUTION:
Do not
attempt
to
modify
this
product
in
any way
without written authorization from LG Electronics
Corporation.
Unauthorized modification could void the user's
authority
to
operate
this
product.
U.S.A.
only
-----------------------------------------------
COMPLIANCE:
The
responsible party
for this
product's compliance
is:
LG Electronics
U.S.A.,
Inc.
1000
Sylvan
Avenue,
Englewood
Cliffs,
NJ 07632
Phone: [phone]
http://www.lgusa.com
---------------------------------------------------------------
CAUTION
W
W
arning
arning

3
Safety
Instructions
WARNING
:
To reduce the risk of fire or electric
shock,
do not
expose
this
apparatus
to rain or moisture.
Apparatus
shall not be
exposed
to
dripping
or
splashing
and no
objects
filled with
liquids,
such as
vases,
shall be
placed
on the
apparatus.

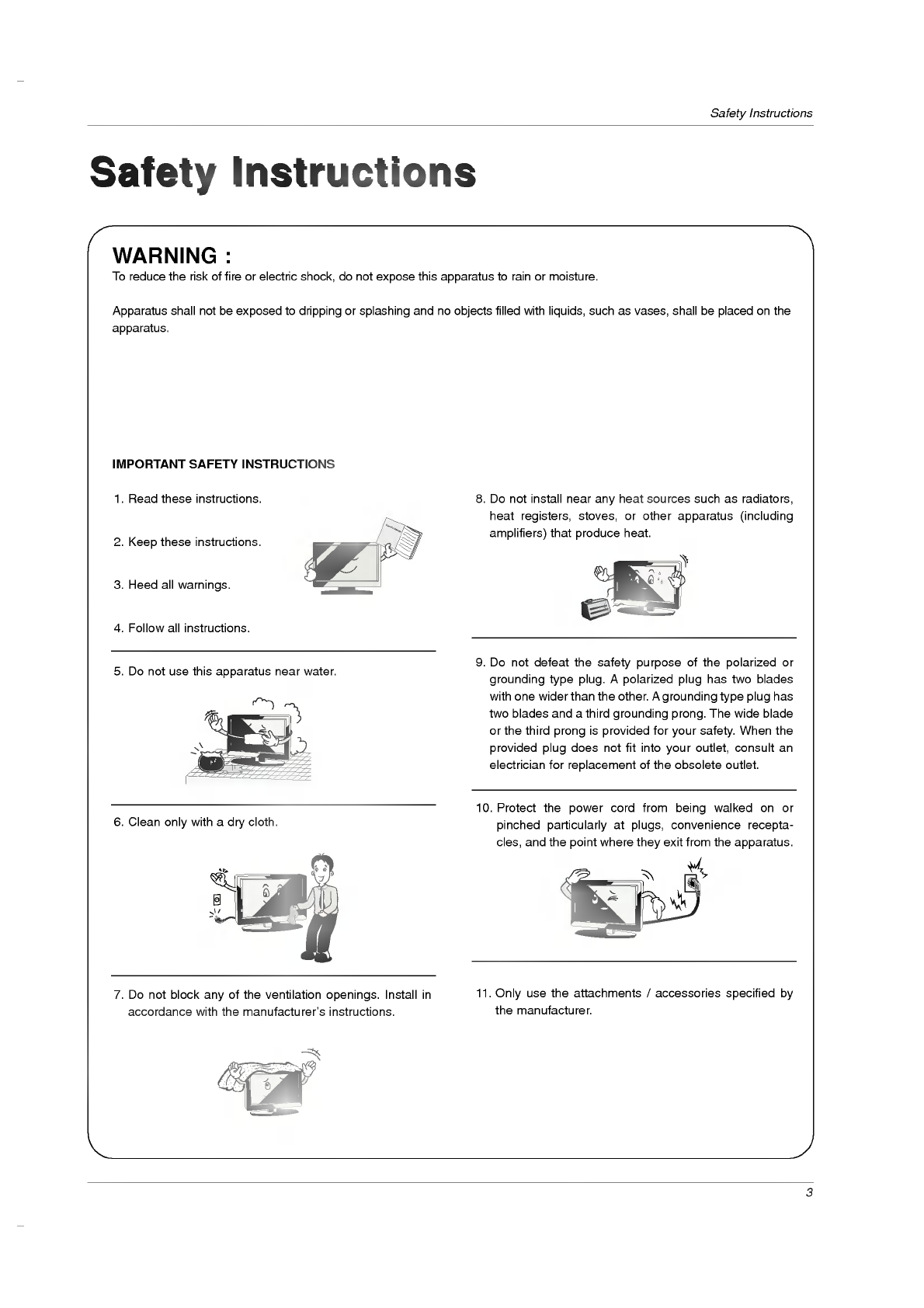

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2.
Keep
these instructions.
3. Heed all
warnings.
4. Follow all instructions.
5. Do not use this
apparatus
near water.
6. Clean
only
with a
dry
cloth.
7. Do not block
any
of the ventilation
openings.
Install in
accordance with the manufacturer's instructions.
8. Do not install near
any
heat sources such as
radiators,
heat
registers,
stoves,
or other
apparatus (including
amplifiers)
that
produce
heat.
9. Do not defeat the
safety purpose
of the
polarized
or
grounding type plug.
A
polarized plug
has two blades
with one wider than the other. A
grounding type plug
has
two blades and a third
grounding prong.
The wide blade
or the third
prong
is
provided
for
your safety.
When the
provided plug
does not fit into
your
outlet,
consult an
electrician for
replacement
of the obsolete outlet.
10. Protect the
power
cord from
being
walked on or
pinched particularly
at
plugs,
convenience
recepta-
cles,
and the
point
where
they
exit from the
apparatus.
11.
Only
use the attachments / accessories
specified by
the manufacturer.
Safety
Instructions
Safety
Instructions
O
wne
r
'
s
M
an
u
a l

4
Safety
Instructions
12. Use
only
with a
cart, stand,
tripod,
bracket,
or table
specified by
the
manufacturer,
or sold with the
appa-
ratus. When a cart is
used,
use caution when
moving
the cart /
apparatus
combination to avoid
injury
from
tip-over.
13.
Unplug
this
apparatus during lightning
storms or when
unused for
long periods
of time.
14. Refer all
servicing
to
qualified
service
personnel.
Servicing
is
required
when the
apparatus
has been
damaged
in
any way,
such as
power supply
cord or
plug
is
damaged, liquid
has been
spilled
or
objects
have fallen into the
apparatus,
the
apparatus
has been
exposed
to rain or
moisture,
does not
operate
normal-
ly,
or has been
dropped.
15. DISCONNECTING DEVICE FROM MAINS
Main
plug
is the
disconnecting
device.The
plug
must remain
redily operable.
Note
-
If the TV feels cold to the
touch,
there
may
be a small "flicker" when when it is turned on. This is
normal,
there is
nothing
wrong
with TV.
-
Some minute dot defects
may
be visible on the
screen,
appearing
as
tiny
red,
green,
or blue
spots.
However,
they
have no
adverse effect on the monitor's
performance.
-
Avoid
touching
the LCD screen or
holding your finger(s) against
it for
long periods
of time.
Doing
so
may produce
some
temporary
distortion effects on the screen.
On
Disposal
a. The fluorescent
lamp
used in this
product
contains a small amount of
mercury.
b. Do not
dispose
of this
product
with
general
household waste.
Disposal
of this
product
must be carried out in accordance to the
regulations
of
your
local
authority.
CAUTION
concerning
the
Power Cord
Most
appliances
recommend
they
be
placed upon
a dedicated
circuit;
that
is,
a
single
outlet circuit which
powers only
that
appliance
and has no additional outlets or branch circuits. Check the
specification page
of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets,
loose or
damaged
wall
outlets,
extension
cords,
frayed power
cords,
or
damaged
or cracked wire insulation are
dangerous. Any
of these conditions could result in electric shock or fire.
Periodically
examine the cord of
your appliance,
and if its
appearance
indicates
damage
or
deterioration,
unplug
it,
discon-
tinue use of the
appliance,
and have the cord
replaced
with an exact
replacement part by
an authorized servicer.
Protect the
power
cord from
physical
or mechanical
abuse,
such as
being
twisted, kinked,
pinched,
closed in a
door,
or
walked
upon. Pay particular
attention to
plugs,
wall
outlets,
and the
point
where the cord exits the
appliance.

5
Contents
Contents
Contents
Introduction
Installation
Operation
27
Turning
on the TV
27 Volume
Adjustment
27 Channel Selection
27 On Screen Menus
Language
Selection
28 On Screen Menus Selection and
Adjustment
29 EZ Scan
(Channel Search)
29 Manual Scan
30 Channel Edit
31 DTV
Signal Strength
31
Input
Source
32
Input
Label
33 Auto Picture
Control(EZ Picture)
33~34 Color
Temperature
Control
35 XD
36 Advanced-Cinema 3:2 Mode
36 Black Level
37 Video Reset
38 Audio
Language
38 Auto Sound
Control(EZ Sound)
39 Manual Sound Control
(EZ
Sound-User
option)
40 Balance
40 TV
Speakers
On/Off
Setup
2
Warning
3~4
Safety
Instructions
7
Accessories
/
Optional
Extras

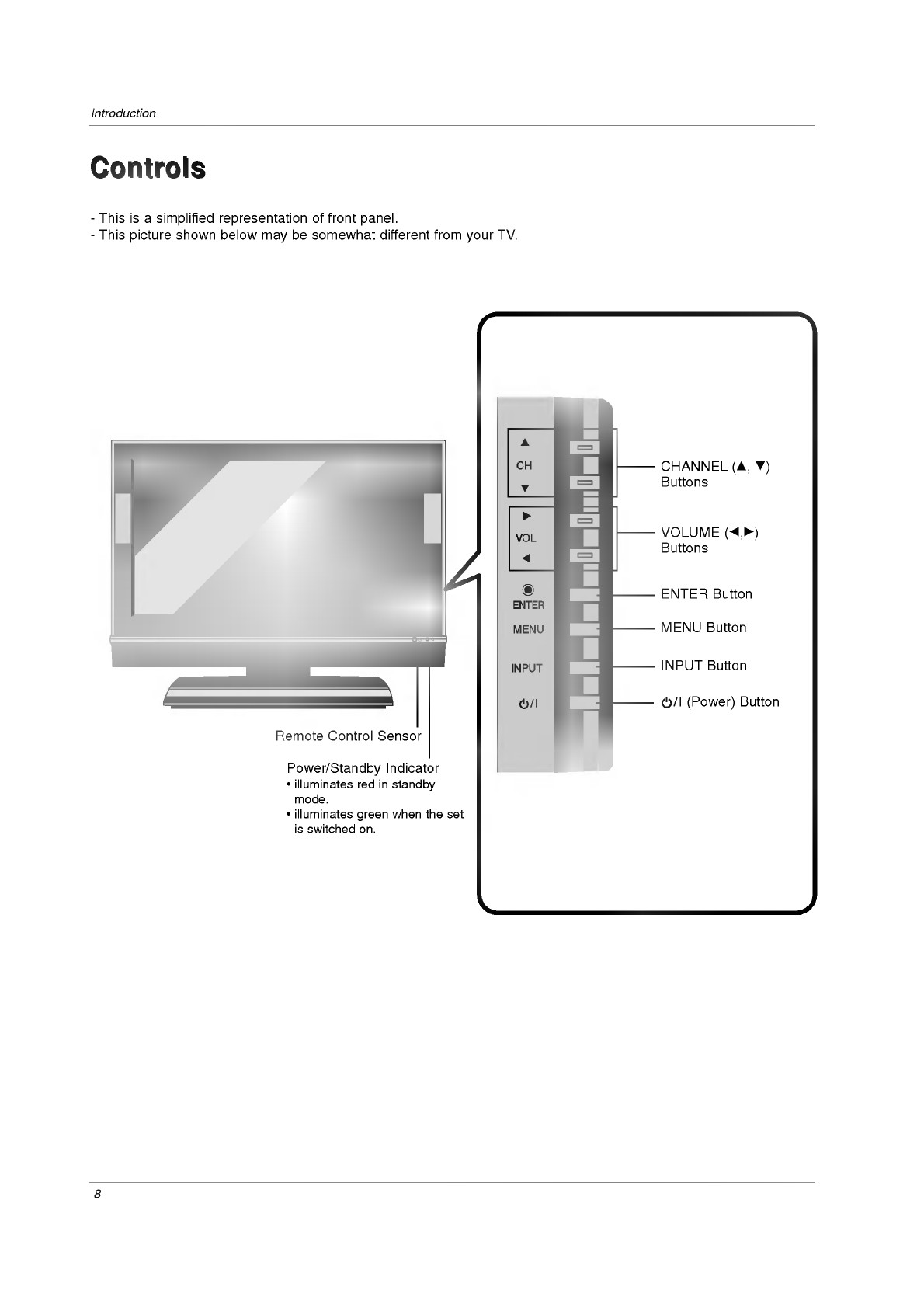

8
Controls
9
Connection
Options
10~11
Remote Control
Key
Function
12
Attaching
the TV to a wall
13

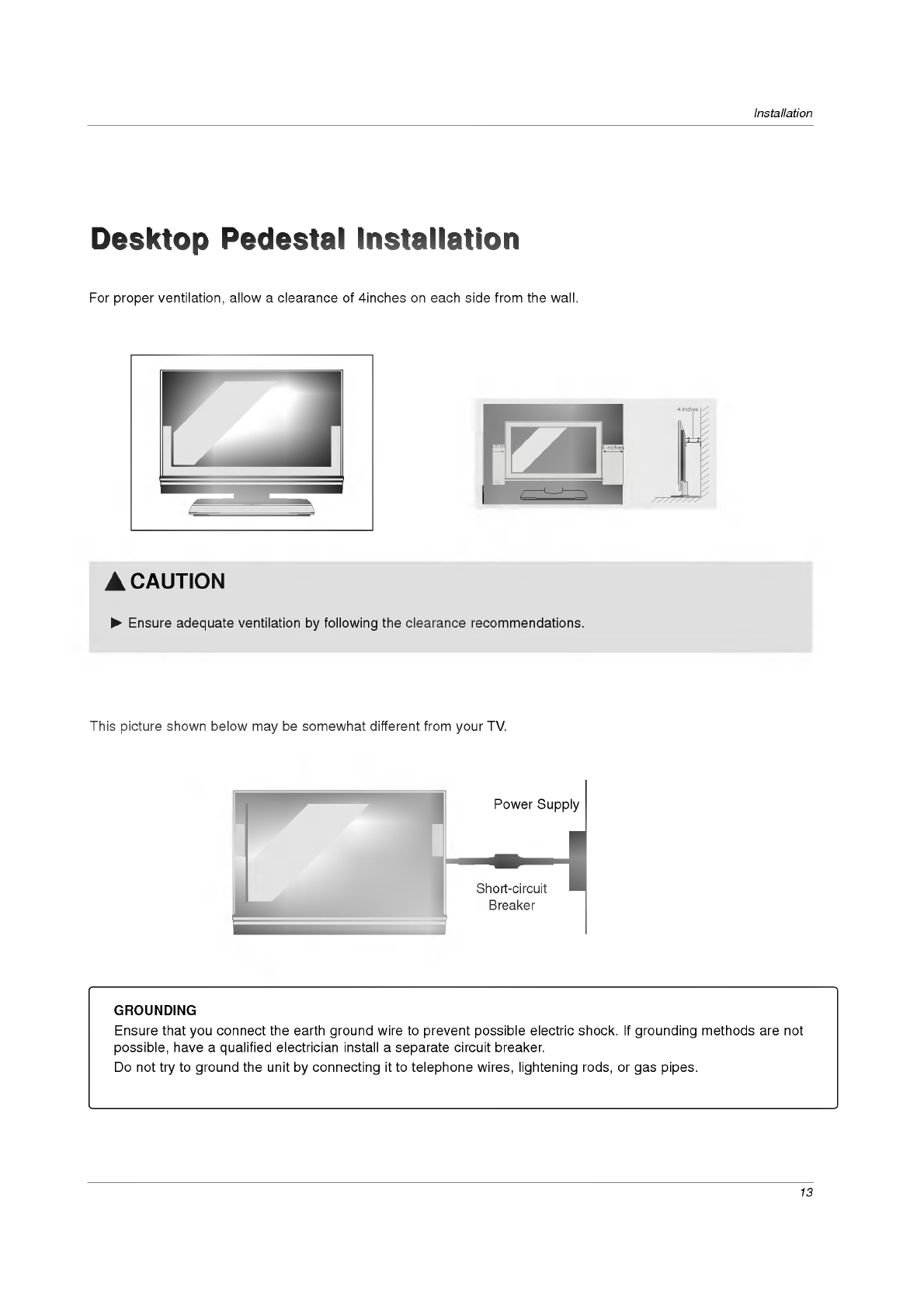

Desktop
Pedestal Installation
14 Basic Connection
15 Antenna or Cable Connection
16~17 VCR
Setup
18~19 DVD
Setup
20~21 HDSTB
Setup
22 External AV Source
Setup
22 AV Out
Setup
23
Digital
Audio
Output
24~26 PC
Setup
Setup
Menu
Options
Video Menu
Options
Audio Menu
Options
Basic
operation
External
Equipment
Connections

6
Contents
Reference
41 Manual Clock
Setup
41 Auto Clock
Setup
42 On/Off Timer
Setup
42
Sleep
Timer
43 Auto Off
44
Aspect
Ratio Control
45
Caption/Text
46
Caption Option
47~48 Parental Lock
Setup
49~53
External Control
Device
Setup
54~55 IR
Codes
56
Programming
the Remote
57~58
Programming
Codes
59~60
Troubleshooting
Checklist
61
Maintenance
62
Product
Specifications
Operation

7
Introduction

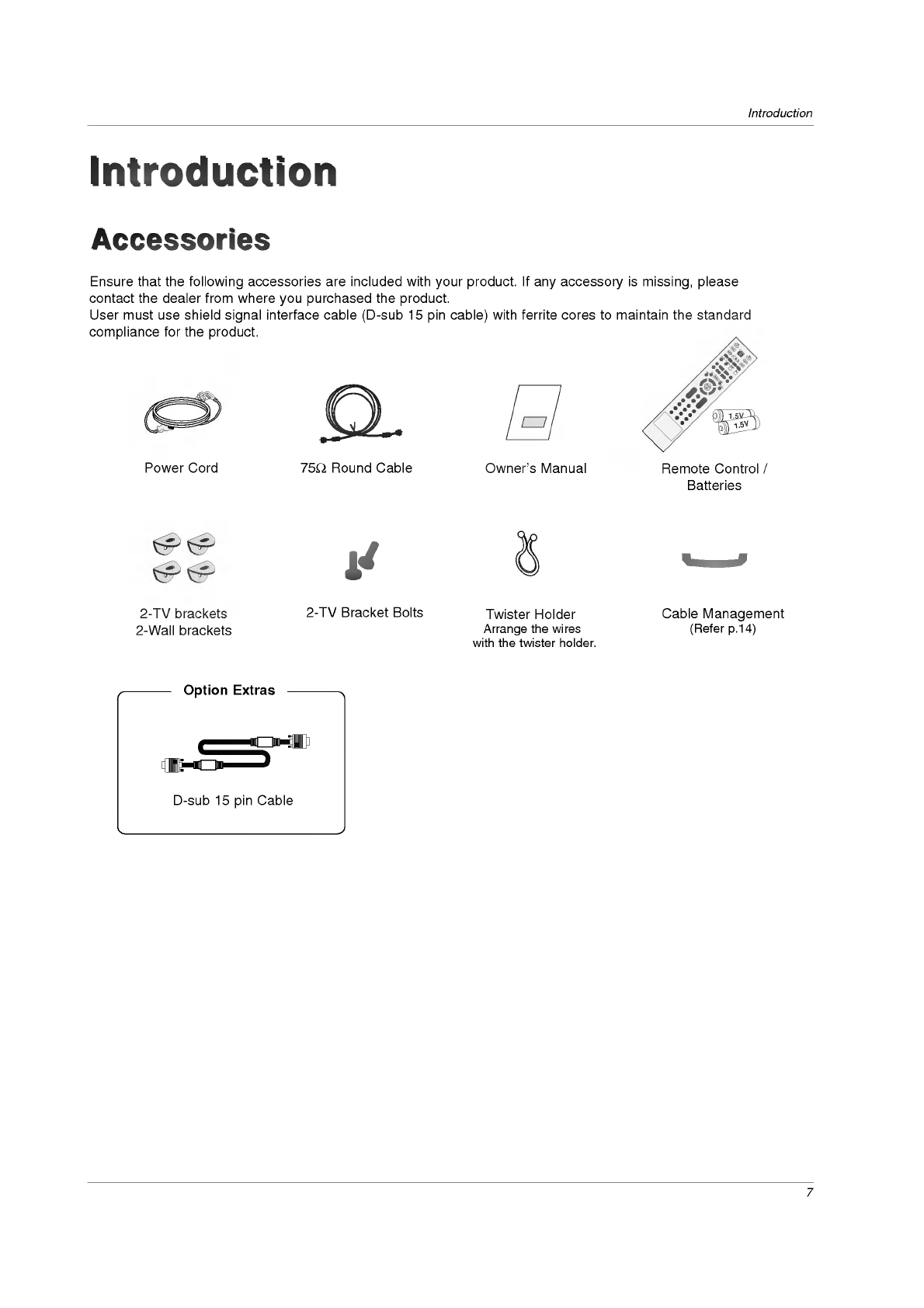

Accessories
Accessories
Introduction
Introduction
Owner's Manual
75Ω Round Cable Power Cord
Ensure that the
following
accessories are included with
your product.
If
any accessory
is
missing, please
contact the dealer from where
you purchased
the
product.
User must use shield
signal
interface cable
(D-sub
15
pin cable)
with ferrite cores to maintain the standard
compliance
for the
product.
1.5V
1
.
5
V
E
N
T
E
R
TV
TV
I
N P
U
T
I
NP
UT
DVD
R
A
T
I
O
E
X
IT
V
O
L
E
ZS
O
U
N
D
IN
F
O
A D
J
U
S
T
EZ
P
I
C
F
L
A
S
H
BA
C
K
M
UT
E
CH
T
IM
E
R
C
C
S
A
P
M
E
NU
V
C
R
P
OW
E
R
1
2
3
4
5
6
7
8
9
0
F
AV
C
O
M
P
1
M
O
D
E
C
O
M
P
2H
D
M I
R
G
B-P
C
Remote Control /
Batteries
2-TV brackets
2-Wall brackets
2-TV Bracket Bolts
Twister Holder
Arrange
the wires
with the twister holder.
Cable
Management
(Refer p.14)
D-sub 15
pin
Cable
Option
Extras

Introduction
Controls
Controls
-
This is a
simplified representation
of front
panel.
-
This
shown below
may
be somewhat different from
your
TV.
8
R
CH
VOL
ENTER
MENU
INPUT
CHANNEL
(D, E)
Buttons
VOLUME
(F,G)
Buttons
ENTER Button
MENU Button
INPUT Button
Remote Control Sensor
Power/Standby
Indicator
?
illuminates red in
standby
mode.
?
illuminates
green
when the set
is switched on.
(Power)
Button

9
Introduction
Connection
Options
Connection
Options
-
This
shown below
may
be somewhat different from
your
TV.
V DEO
AUD O
V DEO AUD O
MONO
SVDEO
AV
IN1
AV
OUT
AN ENNA/
CABLE N
REOE
CON ROL N
RS 232C IN
(CONTROL & SERV CE
RGB IN
(PC)
AUDON
(RGB DV
COMPONENT
IN
DGTAL
OPT CAL
AUD O OUT
SERVICE
HDMI IN
1(DV
S-VIDEO
Input
Provides better
picture quality
than the
video
input.
VIDEO
Input
Connects the video
signal
from a video
device.
AUDIO
Input
Connections are available for
listening
to
stereo sound from an external device.
COMPONENT IN
Connect a
component
video/audio device to these
jacks.
AV OUT
Connect a second TV or monitor.
AV
(Audio/Video)
IN 1
Connect audio/video
output
from an external device
to these
jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
ANTENNA/CABLE IN
Connect over-the air
signals
to this
jack.
Connect cable
signals
to this
jack.
DIGITAL OPTICAL AUDIO OUT
Connect
digital
audio from various
types
of
equipment.
Note: In
standby
mode,
these
ports
do not work.
HDMI IN
Connect a HDMI
signal.
Or DVI
(VIDEO)signal
to the this
port
with a HDMI to
DVI cable.
RGB IN
(PC)
Connect the monitor
output
from a PC to the
appro-
priate input port.
Remote Control Port
Connect
your
wired remote control.
AUDIO IN
(RGB/DVI)
Connect the monitor
output
from a PC to the
appro-
priate input port.
RS-232C IN
(CONTROL
&
SERVICE)
PORT
Connect to the RS-232C
port
on a PC.
SERVICE
Power Cord
Socket
For
operation
with AC
power.
Caution:
Never
attempt
to
operate
the TV on DC
power.
1
2
3
4
1
7
8
9
10
2
3
4
5
6
7
8
9
5
11
6
11
10

10
Introduction
Remote Control
Key
Functions
Remote Control
Key
Functions
ENTER
TV TV
INPUT
DVD
RATIO
EXIT
VOL
EZ SOUND
INFO
ADJUST
EZ PIC
FLASH
BACK
MUTE
CH
TIMER
CC SAP
MENU
VCR
POWER
123
456
789
0
FAV
COMP1
MODE
COMP2
HDMI
RGB-PC
INPUT
TV INPUT
INPUT
POWER
RATIO
+/-
THUMBSTICK
(Up/Down/Left
Right)
ENTER
VOLUME UP
/DOWN
MUTE
FLASHBK
CHANNEL
UP/DOWN
FAV
In AV
1-2,
Component
1-2, RGB-PC,
HDMI1/DVI or HDMI2
input
sources,
screen returns to the last TV channel.
External
input
modes rotate in
regular sequence:
TV, AV1-2,
Component
1-2, RGB-PC,
HDMI1/DVI or HDMI2.
(AV
1-2,
Component
1-2,
RGB-PC
,
HDMI1/DVI or HDMI2
input
sources are linked
automatically, only
if these are con-
nected.)
Turns
your
TV or
any
other
programmed equipment
on or
off,
depending
on the mode.
Change
the
aspect
ratio.
G
p.44
Adjust brightness
on screen.
It turns to the default
settings brightness by changing
mode source.
Navigate
the on-screen menus and
adjust
the
system
set-
tings
to
your preference.
Accepts your
selection or
displays
the current mode.
Increase/decrease the sound level.
Switch the sound on or off.
Tune to the last channel viewed.
Select available channels.
Input
the channel number.
Scroll
through
the
programmed
Favorite channels.
NUMBER button

11
Introduction
Installing
Batteries
Open
the
battery compartment
cover on the
back side and install the batteries
matching
correct
polarity
(
+with
+,-with
-
)
.
Install two 1.5V AA batteries. Don't mix old or
used batteries with new ones.
Close cover.
TV, DVD,
VCR
COMP1
COMP2
HDMI
RGB-PC
EZ PIC
EZ SOUND
ADJUST
INFO
EXIT
CC
MENU
SAP
TIMER
Selects the remote
operating
mode:
TV, VCR,
DVD. Select other
operating
modes,
for the
remote to
operate
external devices.
Directly,
select
Component1 input.
Directly,
select
Component2 input.
Directly,
select HDMI1/DVI
input.
Directly,
select RGB
input.
Adjust
the
factory preset picture depend
on the
viewing environment.(red)
G
p.33
Select the
appropriate type
of sound for
type
of
program.(green)
G
p.38
Adjust
the screen
position,
size,
and
phase
in PC
mode.(yellow)
G
p.26
Display
information at the
top
of the screen.
(blue)
Control video cassette recorders or DVD
players.
Clear all on-screen
displays
and return to TV
viewing
from
any
menu.
Select a closed
caption. (*In
DTV/CADTV
mode)
G
p.45
Displays
the main menu.
Analog
mode: Selects MTS
sound(Mono,
Stereo,
and a
SAP)
DTV mode:
Change
the audio
language.
Select the amount of time before
your
TV turns off
automatically.
G
p.42
VCR/DVD
control buttons
Use a remote control
up
to 7 meters distance and 30
degree (left/right)
within the
receiving
unit
scope.
Dispose
of used batteries in a
recycle
bin to
preserve
environment.
OK
TV TV
NPUT
NPUT
DVD
ARC
EXIT
PIPPR+ PP INPUT
SWAP
PIPPR -
SLEEP
LIST I/I
MENU
TEXT PP SIZE POSTON
VCR
POWER
Remote control effective
range

12
Installation
Installation
Installation
Attaching
the
TV
to a wall
Attaching
the
TV
to a wall
We recommend that
you
set
up
the TV close to a wall so it cannot fall over if
pushed
backwards.
Additionally,
we recommend that the TV be attached to a wall so it cannot be
pulled
in a forward
direction,
poten-
tially causing injury
or
damaging
the
product.
Caution: Please make sure that children don't climb on or
hang
from the TV.
Insert the
eye-bolts (or
TV brackets and
bolts)
to
tighten
the
product
to the wall as shown in the
picture.
*
If
your product
has the bolts in the
eye-bolts position,
loosen the bolts.
Secure the wall brackets with the bolts
(not provided
as
parts
of the
product,
must
purchase separately)
on the
wall. Match the
height
of the bracket that is mounted on the wall to the holes in the
product.
Ensure the
eye-bolts
or brackets are
tightened securely.
Use a
sturdy rope (not provided
as
parts
of the
product,
must
purchase sepa-
rately)
to tie the
product.
It is safer to tie the
rope
so it becomes horizontal
between the wall and the
product.

13
Installation
For
proper
ventilation,
allow a clearance of 4inches on each side from the wall.
G
Ensure
adequate
ventilation
by following
the clearance recommendations.
CAUTION
Power
Supply
Short-circuit
Breaker
This
shown below
may
be somewhat different from
your
TV.
GROUNDING
Ensure that
you
connect the earth
ground
wire to
prevent possible
electric shock. If
grounding
methods are not
possible,
have a
qualified
electrician install a
separate
circuit breaker.
Do not
try
to
ground
the unit
by connecting
it to
telephone
wires,
lightening
rods,
or
gas pipes.
Desktop
Pedestal Installation
Desktop
Pedestal Installation
4 inches
4 inches
4 inches
4 inches

14
Connect the cables as
necessary.
After
connecting
the cables
neatly, arrange
the
cables to the Cable Holder.
To connect an additional
equipment,
see the
External
equipment
Connections
section.
Reinstall the CABLE MANAGEMENT as
shown.
1
2
Bundle the cables
using
the
supplied
twister holder.
3
Basic Connection
Basic Connection
Cable holder
Do not hold the CABLE MANAGEMENT when
moving
the
product.
-
If the
product
is
dropped, you may
be
injured
or the
product may
be broken.
How to remove
the CABLE MANAGEMENT
-
Hold the CABLE MANAGEMENT with both hands
and
pull
it
upward.
CABLE
MANAGEMENT
CABLE MANAGEMENT

15
Installation
Antenna Or Cable Connection
Multi-family Dwellings/Apartments
(Connect
to wall antenna
socket)
Single-family Dwellings
/Houses
(Connect
to wall
jack
for outdoor
antenna)
Outdoor Antenna
Wall Antenna Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire
(75 ohm)
Turn clockwise to
tighten.
AN ENNA/
CABLE N
Bronze Wire
Be careful not to bend the bronze wire when
connecting
the antenna.
Analog
and
Digital
TV
signals provided
on antenna
-
Antenna or Cable Service without a Cable Box Connection.
-
For
optimum picture quality, adjust
antenna direction if needed.
Analog
and
DTV
signals provided
on two
separate
antennas
Cable TV Wall Jack
RF Coaxial Wire
(75 ohm)
Bronze Wire
Bronze Wire
Turn clockwise to
tighten.
Antenna
RF Coaxial Wire
(75 ohm)
?
In a
poor signal
area to
improve picture quality, purchase
and install a
sig-
nal
amplifier.
?
If the antenna needs to be
split
for two
TV's,
install a
"2-Way Signal Splitter"
in the connections.
?
If the antenna is not installed
properly,
contact
your
dealer for assistance.
ANTENNA
LE IN
External
Equipment
Connections
External
Equipment
Connections
signal
amplifier
AN ENNA/
CABLE N
NOTE:
All
cables shown are not included with the
TV
Cable TV Wall Jack
RF Coaxial Wire
(75 ohm)
Turn clockwise to
tighten.
Analog
and
Digital
TV
signals provided
on cable
AN ENNA/
CABLE N

16
-
To avoid
noise
(interference),
leave an
adequate
distance between the
VCR and TV.
-
Typically
a frozen
still
from a VCR. If
the
4:3
format is
used;
the
fixed
images
on
the sides
of
the screen
may
remain
visible
on
the screen.
VCR
Setup
When
connecting
with an antenna
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
O O
CO
TROL&SER CE
( C)
DON
D
SE VCE
When
connecting
with a RCA cable
V
DEO
UDO
V
DEO
MONO
DGTAL
OPT CAL
UDOOUT
S-VIDEO OUT
IN
(AUDI L)VEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
VCR
1
2
3
Connect the AUDIO/VIDEO
jacks
between TV
and VCR. Match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red)
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
Select AV1
input
source
using
the INPUT button
on the remote control.
-
If connected to AV I N 2
,
select AV2
input
source.
?
If
you
have a mono
VCR,
connect the audio cable from the VCR to the AUDIO L/MONO
jack
of the
set.
1
1
2
3
4
Connect the RF antenna out socket of the VCR to
the ANTENNA/CABLE IN socket on the set.
Connect the antenna cable to the RF antenna in
socket of the VCR.
Set VCR
output
switch to 3 or 4 and then tune TV
to the same channel number.
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
VCR
1
2
Installation

17
Installation
When
connecting
with an S-Video cable
V
DEO
UDO
V
DEO
MONO
DGTAL
OPT CAL
UDOOUT
S-VID
OUT
IN
(AUDIL)VEO
34
OUTP
SWITC
ANT OUT
ANT IN
VCR
1
1
2
2
3
4
Connect the S-VIDEO
output
of the VCR to the S-
VIDEO
input
on the set. The
picture quality
is
improved; compared
to normal
composite (RCA
cable) input.
Connect the audio
outputs
of the VCR to the
AUDIO
input jacks
on the set.
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
Select AV 1
input
source with
using
the INPUT
button on the remote control.
-
If connected to AV I N 2
,
select AV2
input
source.
Do not connect to both Video and S-Video at the same time. In the event that
you
connect
both Video and the S-Video
cables,
only
the S-Video will work.

18
DVD
Setup
When
connecting
with a S-Video cable
MONO
S-VIDEO
(R)
AUDIO
(L)
DVD
1
1
2
2
3
4
5
Connect the S-VIDEO
output
of the DVD to the S-VIDEO
input
on the set.
Connect the audio
outputs
of the DVD to the AUDIO
input jacks
on the set.
Turn on the DVD
player,
insert a DVD.
Select AV 1
input
source with
using
the INPUT button on the remote control.
-
If connected to AV I N 2
,
select AV 2
input
source.
Refer to the DVD
player's
manual for
operating
instructions.
When
connecting
with a
HDMI
cable
1
2
3
Connect the HDMI
output
of the DVD to the HDMI
IN1(DVI)or2jackontheset.
Select HDMI1/DVI or HDMI2
input
source with
using
the INPUT button on the remote control.
Refer to the DVD
player's
manual for
operating
instructions.
HDMI-DVD OUTPUT
DV
DVD
1
?
TV can receive the video and audio
signal
simultaneously
with
using
a HDMI cable.
?
If the DVD
supports
Auto HDMI
function,
the
DVD
output
resolution will be
automatically
set to
1280x720p.
?
If the DVD does not
support
Auto
HDMI,
you
need to set the
output
resolution
appropriate-
ly.
To
get
the best
picture quality, adjust
the
output
resolution of the DVD to
1280x720p.
Installation

19
Installation
When
connecting
with a
component
cable
1
2
3
4
5
Connect the video
outputs (Y,
PB,
PR)
of the DVD to the COMPONENT IN VIDEO1
jacks
on the set.
Connect the audio
outputs
of the DVD to the COMPONENT IN AUDIO1
jacks
on the set.
Turn on the DVD
player,
insert a DVD.
Select
Component
1
input
source with
using
the INPUT button on the remote control.
-
If connected to COMPONENT IN
2,
select
Component
2
input
source.
Refer to the DVD
player's
manual for
operating
instructions.
?
Component Input ports
To
get
better
picture quality,
connect a DVD
player
to the
component input ports
as shown below.
YPBPR
Component ports
on the TV
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
Video
output ports
on DVD
player
MONO
COMPONENT
B R
(R)
AUDIO
(L)
DVD
1
2

20
-
This
TV can receive
Digital
Over-the-air/Cable
signals
without
an
external
digital set-top
box.
However,
if
you
do receive
Digital signals
from a
digital set-top
box or
other
digital
external
device,
refer
to the
figure
as shown
below.
HDSTB
Setup
When
connecting
with a
HDMI
cable
1
2
3
Connect the HDMI
output
of the
digital set-top
boxtotheHDMIIN1(DVI)or2jackontheset.
Select HDMI1/DVI or HDMI2
input
source with
using
the INPUT button on the remote control.
Turn on the
digital set-top
box.
(Refer
to the
owner's manual for the
digital set-top box.)
Digital Set-top
Box
?
TV can receive the video and audio
signal simultaneously using
a HDMI cable.
?
If the
digital set-top
box
supports
Auto HDMI
function,
output
resolution of the
digital set-top
box will
be
automatically
set to
1280x720p.
?
If the
digital set-top
box does not
support
Auto
HDMI,
you
need to set the
output
resolution
appro-
priately.
To
get
the best
picture quality, adjust
the
output
resolution of the
digital set-top
box to
1280x720p.
REMOTE
RS-232C N
CONTROL & SERVICE
PC)
HDMI-DTV OUTPUT
SERV CE
1
When
connecting
with a
Component
cable
1
2
3
4
Connect the video
outputs (Y,
PB,
PR)
of the
digi-
tal
set-top
box to the COMPONENT IN VIDEO
1jacks
on the set.
Connect the audio
output
of the
digital set-top
box
to the COMPONENT IN AUDIO1
jacks
on the set.
Turn on the
digital set-top
box.
(Refer
to the
owner's manual for the
digital set-top box.)
Select
Component
1
input
source with
using
the
INPUT button on the remote control.
-
If connected to COMPONENT IN
2,
select
Component
2
input
source.
UDO
MONO
SVDEO
COMPONENT
B R
(R)
AUDIO
(L)
Signal
480i
480p/720p/1080i
Component1/2
Yes
Yes
HDMI1/DVI,
HDMI2
No
Yes
2 1
Digital Set-top
Box
Installation
