LG 26LC2R Series User manual

Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer
when you require service.
P/NO 38289U0577G (0608-REV01)
Printed in Korea
LCD TV PLASMA TV
OWNER’S MANUAL
LCD TV MODELS
26LC2R*
32LC2R*
PLASMA TV MODELS
42PC3RV*
www.lg.ca
All manuals and user guides at all-guides.com
all-guides.com

All manuals and user guides at all-guides.com

WARNING
1
WARNING / CAUTION
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or oisture.
FCC NOTICE
Class B digital device
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pur-
suant to Part 15 of the CC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or televi-
sion reception, which can be determined by turning
the equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
Any changes or odifications not expressly
approved by the party responsible for co pliance
could void the user’s authority to operate the
equip ent.
CAUTION
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
577Gen-1 06/8/24 8:33 AM Page 1
All manuals and user guides at all-guides.com

WARNING
2
SAFETY INSTRUCTION
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers)that produce heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong, The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
I portant safety instructions shall be provided with each apparatus. This infor ation shall be given in a separate
booklet or sheet, or be located before any operating instructions in an instruction for installation for use and
supplied with the apparatus.
This infor ation shall be given in a language acceptable to the country where the apparatus is intended to
be used.
The i portant safety instructions shall be entitled “I portant Safety Instructions”. The following safety
instructions shall be included where applicable, and, when used, shall be verbati as follows. Additional safety
infor ation ay be included by adding state ents after the end of the following safety instruction list. At
the anufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction ay
be placed i ediately adjacent to that safety instruction :
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner ManualOwner Manual
Owner Manual
1
2
3
4
5
6
7
577Gen-1 06/8/24 8:33 AM Page 2
All manuals and user guides at all-guides.com

WARNING
3
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service person-
nel. Servicing is required when the apparatus
has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has exposed to rain
or moisture, does not operate normally, or
has been dropped.
CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and
has no additional outlets or branch circuits.
Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of
these conditions could result in electric shock
or fire. Periodically examine the cord of your
appliance, and if its appearance indicates
damage or deterioration, unplug it, discontinue
use of the appliance, and have the cord
replaced with an exact replacement part by
an authorized servicer. Protect the power
cord from physical or mechanical abuse, such
as being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance.
Outdoor Use Marking :
WARNING - To Reduce The Risk Of ire Or
Electric Shock, Do Not Expose This Appliance
To Rain Or Moisture
Wet Location Marking : Apparatus shall not
be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
Owner Manual
8
9
10
11
12
13
577Gen-1 06/8/24 8:33 AM Page 3
All manuals and user guides at all-guides.com

4

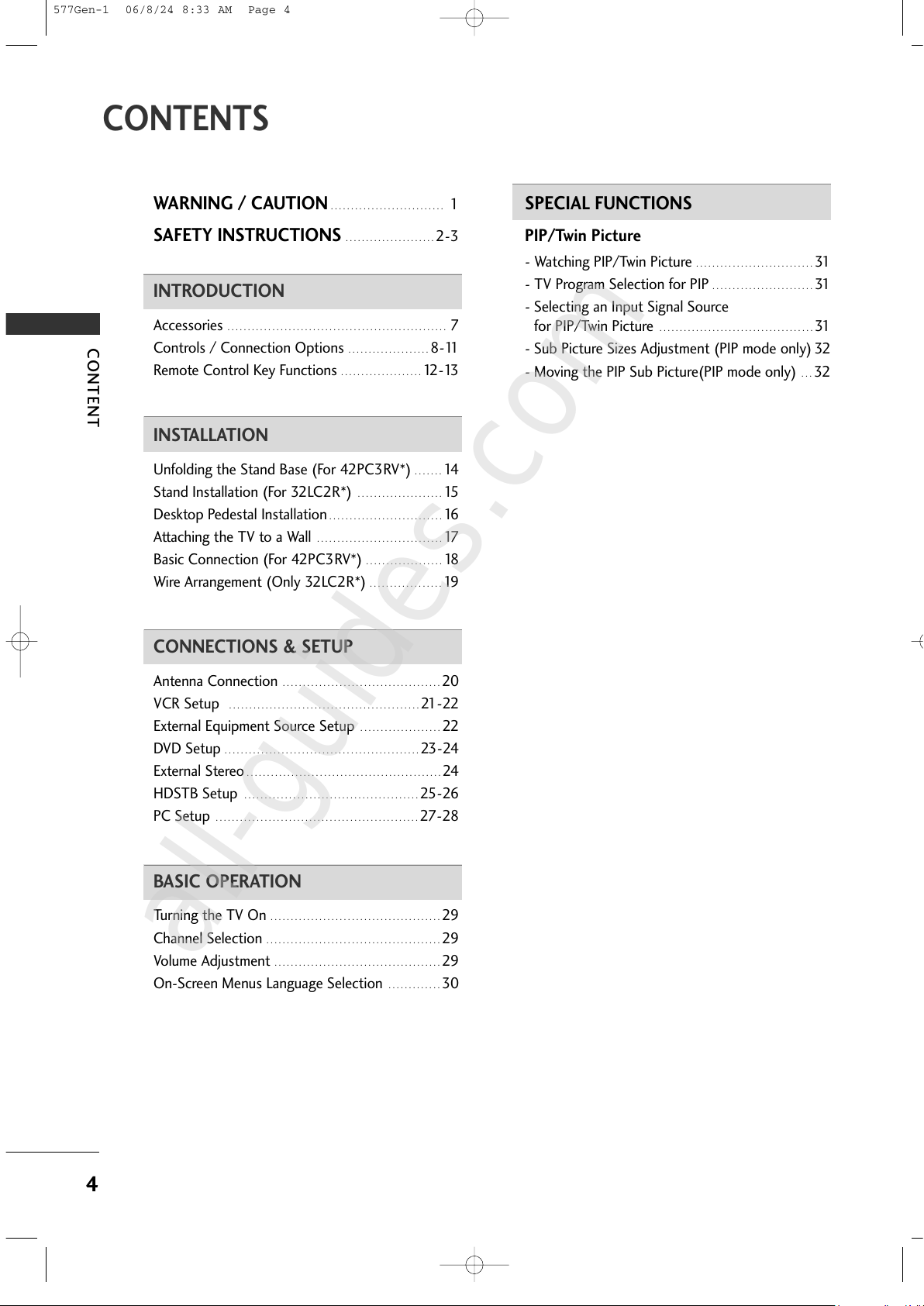

CONTENT
CONTENTS
WARNING / CAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . 2-3
INTRODUCTION

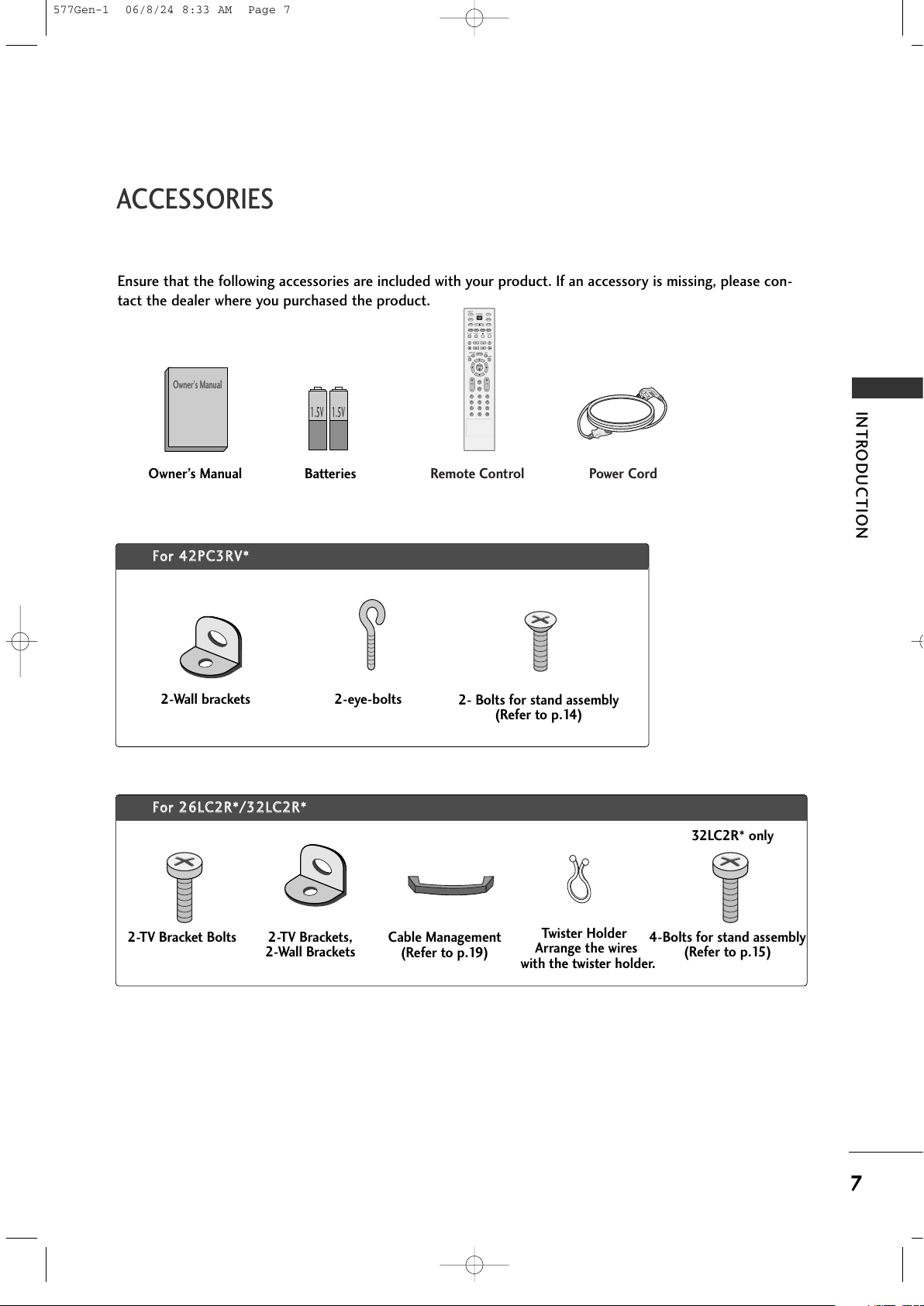

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

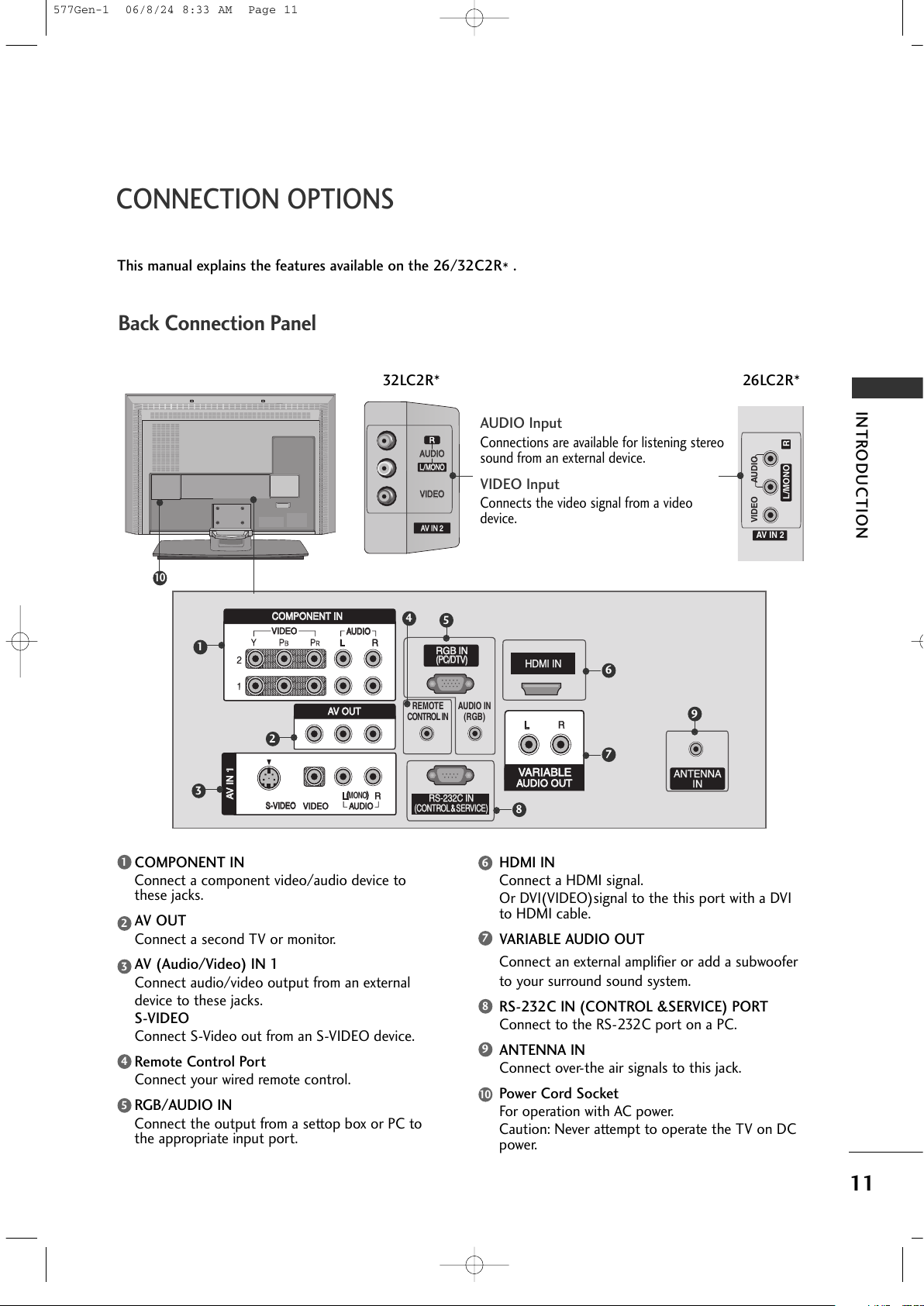

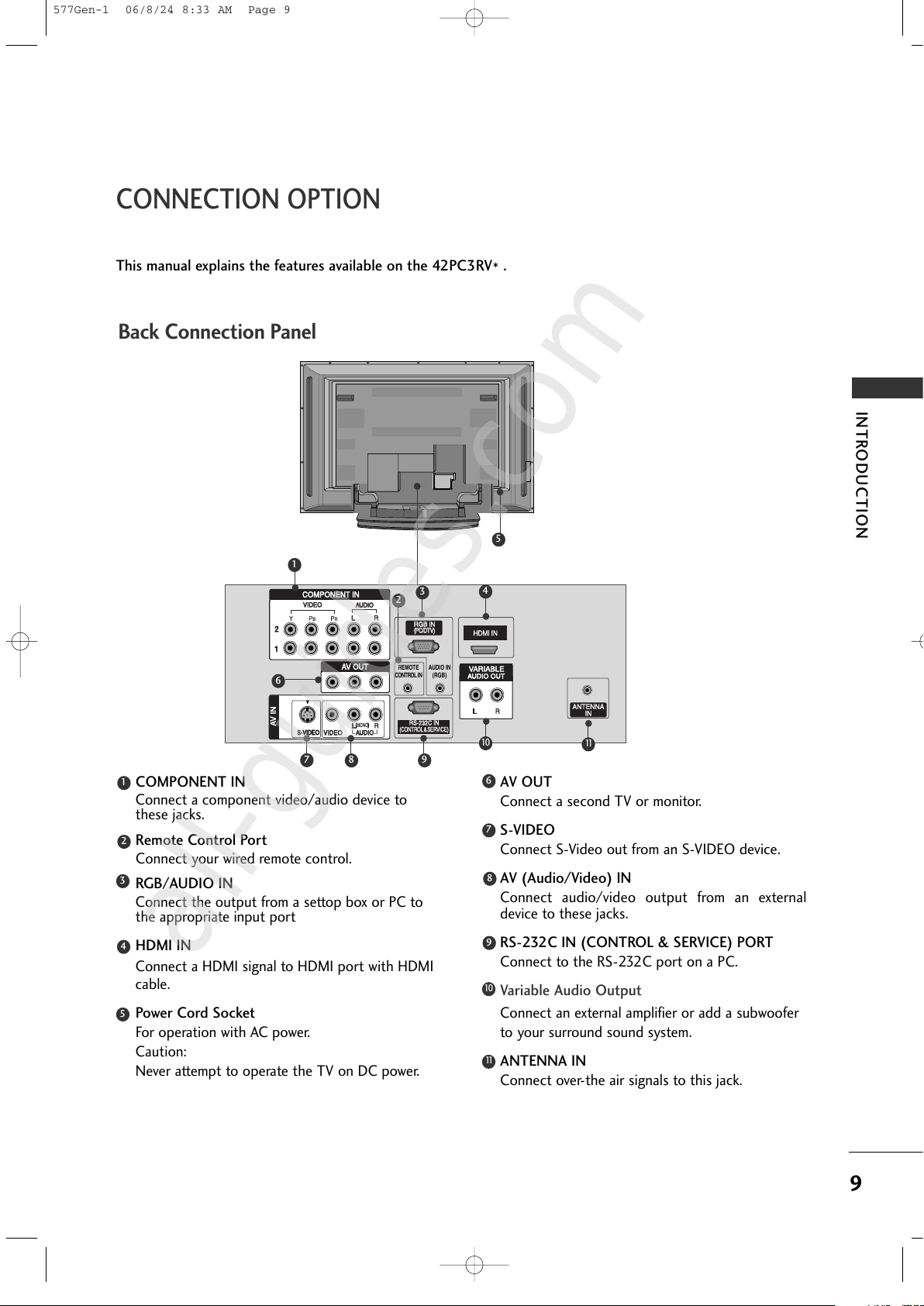

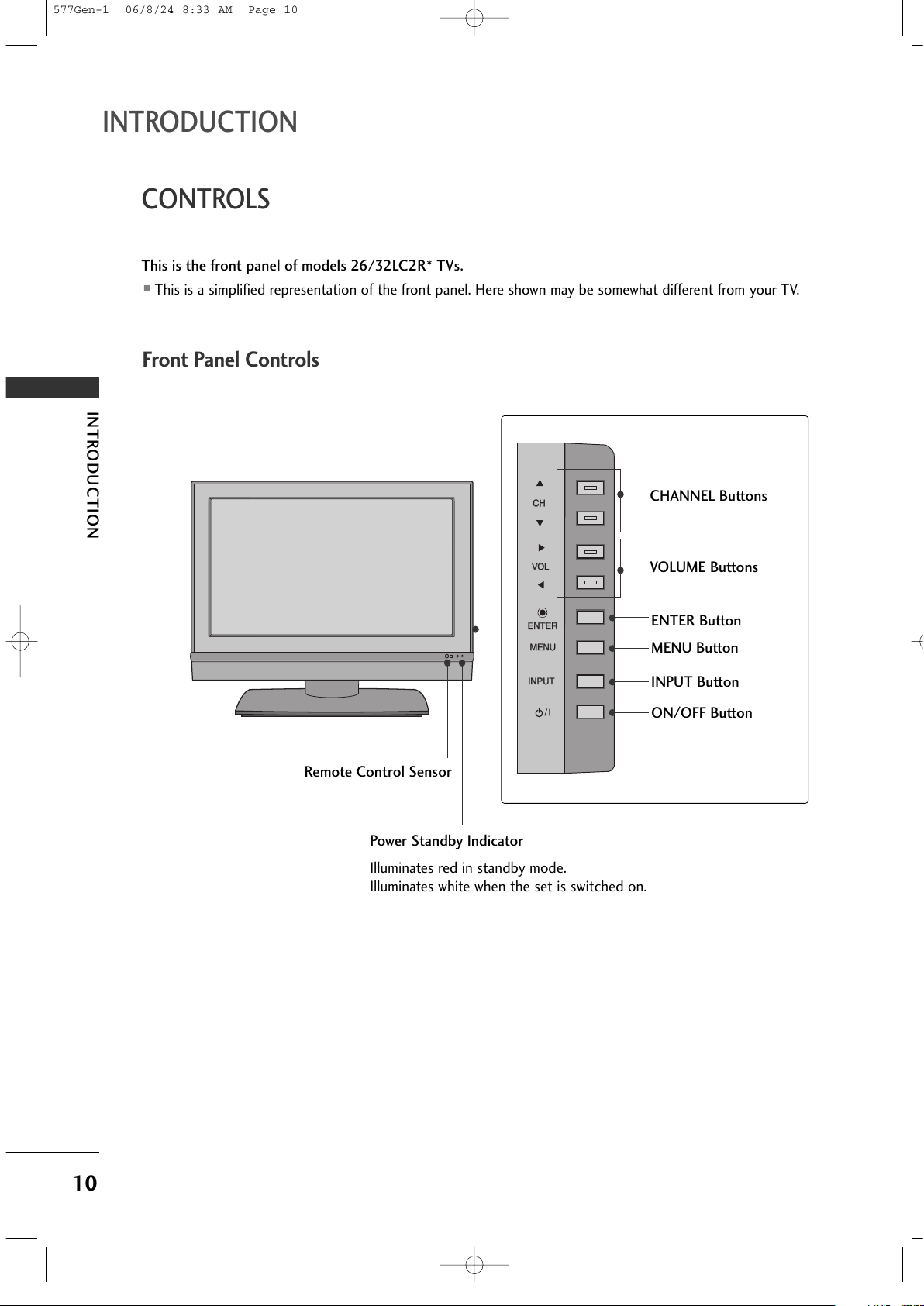

Controls / Connection Options . . . . . . . . . . . . . . . . . . . . 8-11

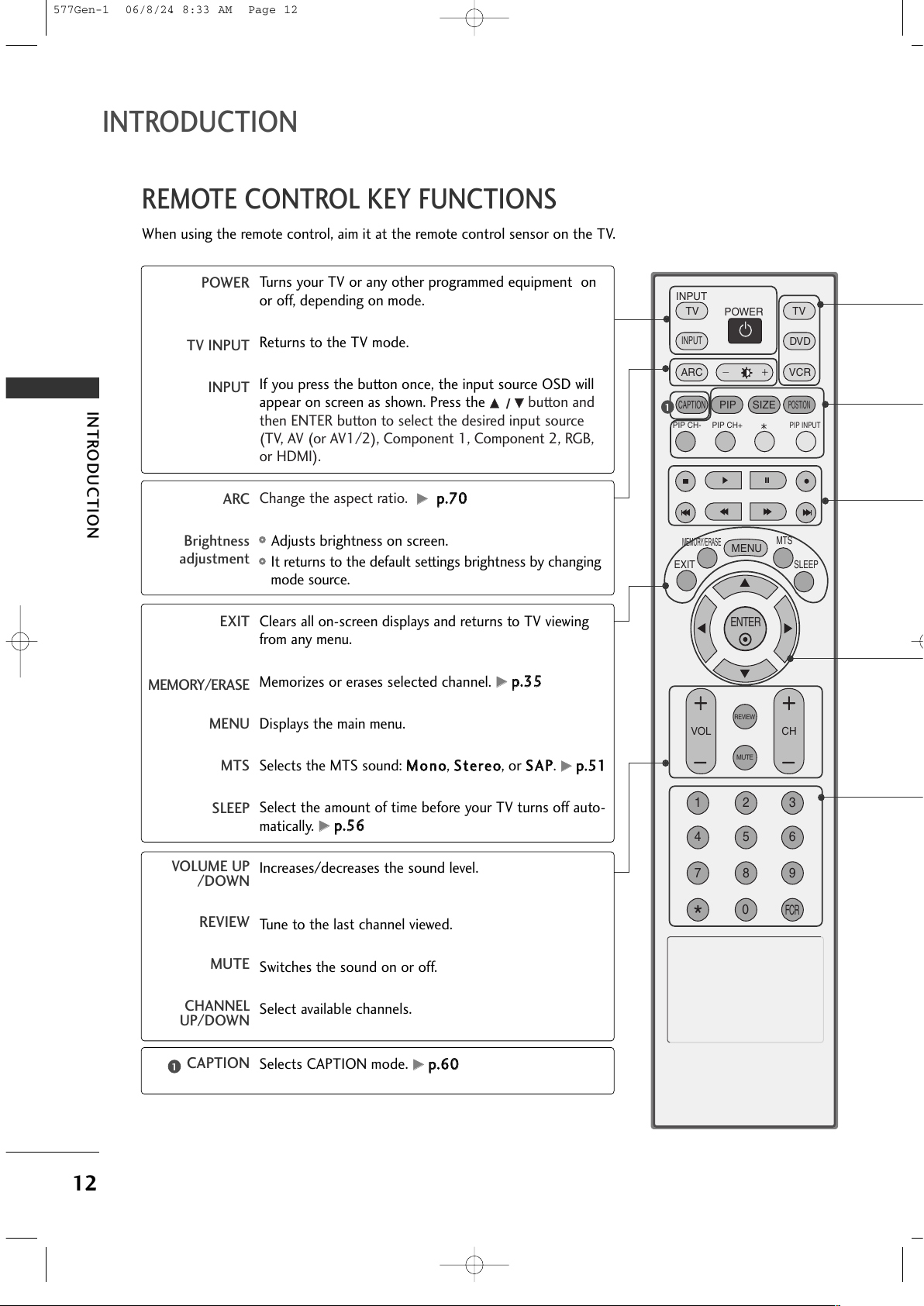

Remote Control Key unctions . . . . . . . . . . . . . . . . . . . . 12-13
INSTALLATION
Unfolding the Stand Base ( or 42PC3RV*) . . . . . . . 14
Stand Installation ( or 32LC2R*) . . . . . . . . . . . . . . . . . . . . . 15
Desktop Pedestal Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Attaching the TV to a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

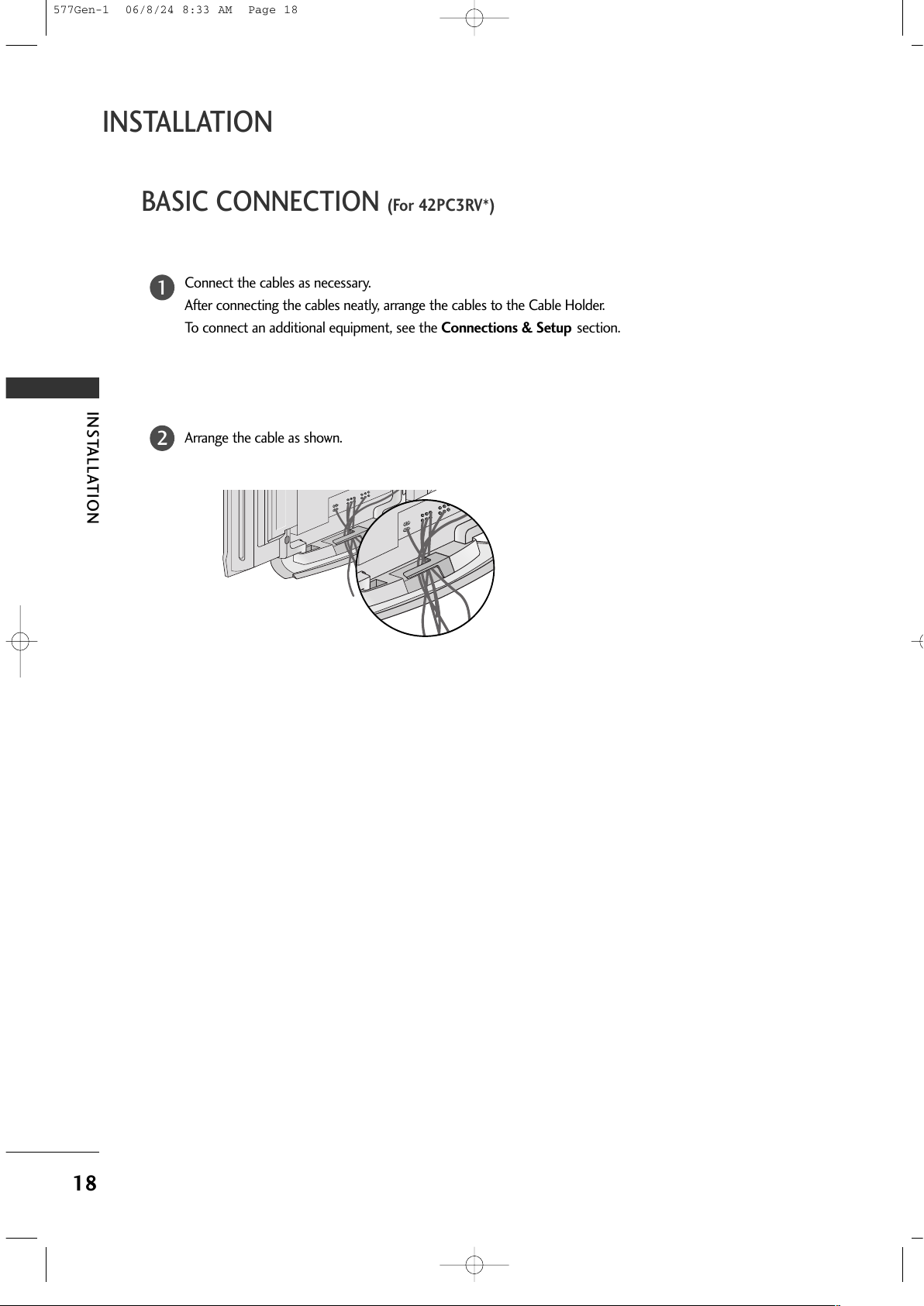

Basic Connection ( or 42PC3RV*) . . . . . . . . . . . . . . . . . . . 18
Wire Arrangement (Only 32LC2R*) . . . . . . . . . . . . . . . . . . 19
CONNECTIONS & SETUP
Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
External Equipment Source Setup . . . . . . . . . . . . . . . . . . . . 22
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
External Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-28
BASIC OPERATION
Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
On-Screen Menus Language Selection . . . . . . . . . . . . . 30
SPECIAL FUNCTIONS
PIP/Twin Picture
- Watching PIP/Twin Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
- TV Program Selection for PIP . . . . . . . . . . . . . . . . . . . . . . . . . 31
- Selecting an Input Signal Source
for PIP/Twin Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
- Sub Picture Sizes Adjustment (PIP mode only) 32
- Moving the PIP Sub Picture(PIP mode only) . . . 32
577Gen-1 06/8/24 8:33 AM Page 4
All manuals and user guides at all-guides.com
all-guides.com

5
CONTENT

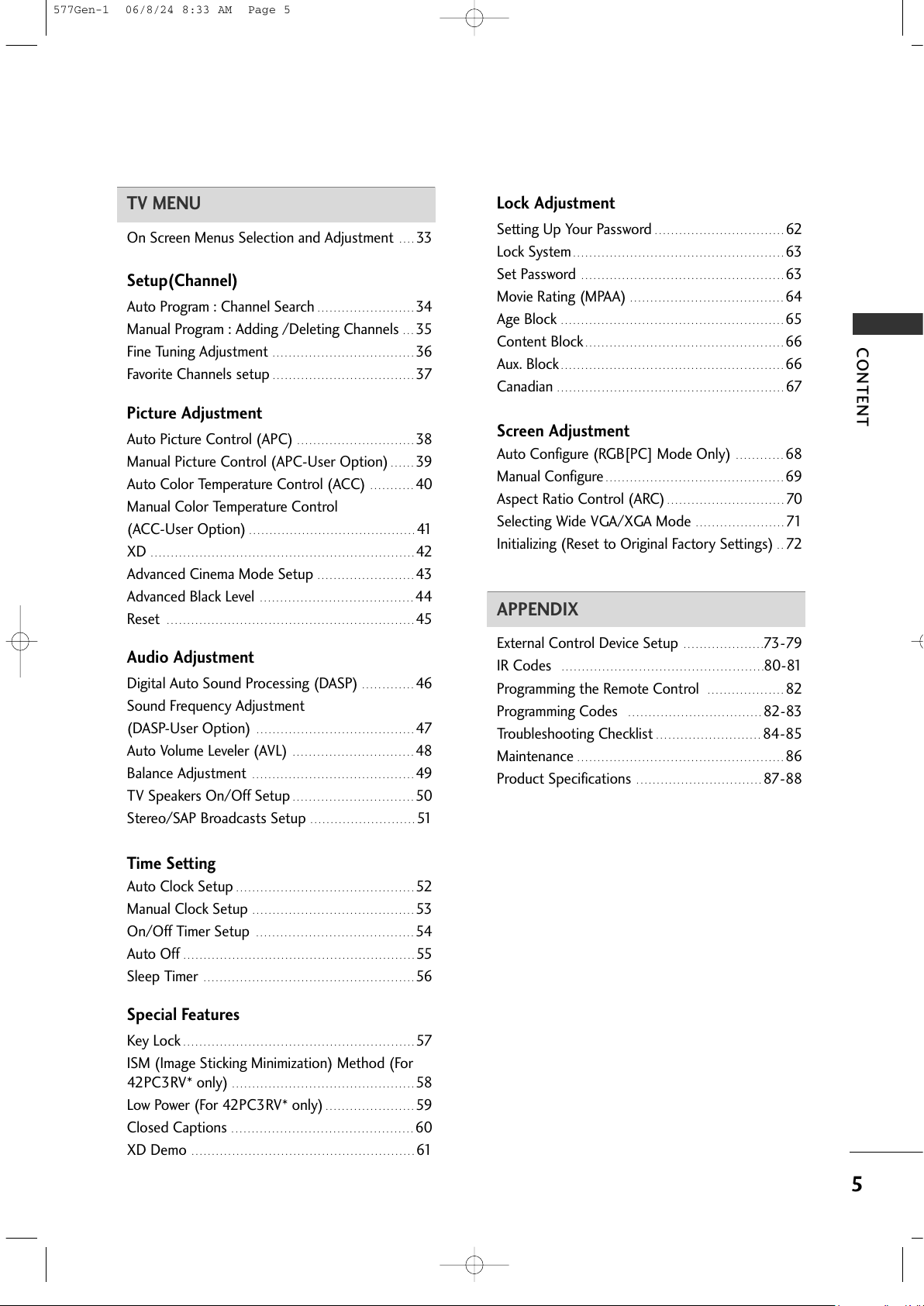

TV MENU
On Screen Menus Selection and Adjustment . . . . 33
Setup(Channel)
Auto Program : Channel Search . . . . . . . . . . . . . . . . . . . . . . . . 34
Manual Program : Adding /Deleting Channels . . . 35
ine Tuning Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
avorite Channels setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Picture Adjust ent
Auto Picture Control (APC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Manual Picture Control (APC-User Option) . . . . . . 39
Auto Color Temperature Control (ACC) . . . . . . . . . . . 40
Manual Color Temperature Control
(ACC-User Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Advanced Cinema Mode Setup . . . . . . . . . . . . . . . . . . . . . . . . 43
Advanced Black Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Audio Adjust ent
Digital Auto Sound Processing (DASP) . . . . . . . . . . . . . 46
Sound requency Adjustment
(DASP-User Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Auto Volume Leveler (AVL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Balance Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
TV Speakers On/Off Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Stereo/SAP Broadcasts Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Ti e Setting
Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Manual Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Special Features
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
ISM (Image Sticking Minimization) Method ( or
42PC3RV* only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Low Power ( or 42PC3RV* only) . . . . . . . . . . . . . . . . . . . . . . 59
Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Lock Adjust ent
Setting Up Your Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Lock System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Set Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Movie Rating (MPAA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Age Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Content Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Aux. Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Canadian . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Screen Adjust ent
Auto Configure (RGB[PC] Mode Only) . . . . . . . . . . . . 68
Manual Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Aspect Ratio Control (ARC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Selecting Wide VGA/XGA Mode . . . . . . . . . . . . . . . . . . . . . . 71
Initializing (Reset to Original actory Settings) . . 72
APPENDIX
External Control Device Setup . . . . . . . . . . . . . . . . . . . .73-79
IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80-81
Programming the Remote Control . . . . . . . . . . . . . . . . . . . 82
Programming Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82-83
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . 84-85
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87-88
577Gen-1 06/8/24 8:33 AM Page 5
All manuals and user guides at all-guides.com

6
INTRODUCTION
INTRODUCTION
What is a Plas a TV ?
Using plasma is the best way to achieve flat panel
displays with excellent image quality and large
screen sizes that are easily viewable. The Plasma TV
can be thought of as a descendant of the neon
lamp and or a series of fluorescent lamps.
How does it work?
Plasma TV is an array of cells, known as pixels, which
are comprised of three sub-pixels, corresponding to
the colors red, green, and blue. Gas in a plasma
state is used to react with phosphors in each sub-
pixel to produce colored light (red, green, or blue).
These phosphors are the same types used in
Cathode Ray Tube (CRT) devices such as televisions
and common computer monitors.
Plasma TV offers a rich, dynamic display because
each sub-pixel is individually controlled by advanced
electronics to produce over 16 million different col-
ors. This means that you get perfect images that are
easily viewable in a display that is fewer than five
inches thick.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally
broad viewing angle of over 160 degrees. This
means that the display is clear and visible to viewers
anywhere in the room.
Wide Screen
The wide screen offers a theater-like experience in
your own home.
Multi edia
Connect your plasma display to a PC and use it for
conferencing, games, and Internet browsing. The
Picture-in-Picture feature allows you to view your PC
and video images simultaneously.
Versatile
The light weight and thin size makes it easy to
install your plasma display in a variety of locations
where conventional TVs do not fit.
The Plas a TV Manufacturing Process: a few
inute colored dots ay be present on the
Plas a TV screen
The Plasma TV is composed of 0.9 to 2.2 million
cells. A few cell defects will normally occur in the
Plasma TV manufacturing process. Several tiny,
minute colored dots visible on the screen should be
acceptable. This also occurs in other Plasma TV
manufacturers' products. The tiny dots appearing
does not mean that this Plasma TV is defective.
Thus a few cell defects are not sufficient cause for
the Plasma TV to be exchanged or returned. Our
production technology minimizes these cell defects
during the manufacture and operation of this product.
FOR LCD TV
If the TV feels cold to the touch, there may be a
small “flicker” when it is turned on. This is normal,
there is nothing wrong with TV.
Some minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the moni-
tor's performance.
Avoid touching the LCD screen or holding your finger(s)
against it for long periods of time. Doing so may pro-
duce some temporary distortion effects on the screen.
OOnn DDiissppoossaall
a. The fluorescent lamp used in this product con-
tains a small amount of mercury.
b. Do not dispose of this product with general
household waste.
c. Disposal of this product must be carried out in
accordance to the regulations of your local
authority.
577Gen-1 06/8/24 8:33 AM Page 6
All manuals and user guides at all-guides.com

7
ACCESSORIES
INTRODUCTION
Ensure that the following accessories are included with your product. If an accessory is issing, please con-
tact the dealer where you purchased the product.
Owner's Manual
1.5V 1.5V
Owner’s Manual Batteries
ENTER
INPUT
TVTV
INPUT
PIPCH- PIPCH+ PIPINPUT
DVD
ARC
EXIT
VOL
REVIEW
MUTE
CH
SLEEP
MEMORY/ERASE
MENU
CAPTION PIP SIZE POSTION
VCR
POWER
123
456
789
*
0
FCR
MTS
Re ote Control Power Cord
oorr 4422PPCC33RRVV**
oorr 2266LLCC22RR**//3322LLCC22RR**
2-TV Bracket Bolts 4-Bolts for stand asse bly
(Refer to p.15)
Cable Manage ent
(Refer to p.19)
Twister Holder
Arrange the wires
with the twister holder.
2-TV Brackets,
2-Wall Brackets
2- Bolts for stand asse bly
(Refer to p.14)
2-Wall brackets 2-eye-bolts
32LC2R* only
577Gen-1 06/8/24 8:33 AM Page 7
All manuals and user guides at all-guides.com

8
INTRODUCTION
CONTROLS
INTRODUCTION
This is the front panel of odels 42PC3RV* TVs.
■
This is a simplified representation of the front panel.
■
Here shown may be somewhat different from your TV.
Front Panel Controls
CH
CH
VOL
VOL
ENTER
ENTER
MENU
MENU
INPUT
INPUT
Re ote Control Sensor
Power Standby Indicator
Illuminates red in standby mode.
Illuminates white when the set is switched on.
CHANNEL Buttons
VOLUME Buttons
ENTER Button
MENU Button
INPUT Button
ON/OFF Button
577Gen-1 06/8/24 8:33 AM Page 8
All manuals and user guides at all-guides.com

9
INTRODUCTION
CONNECTION OPTION
REMOTE
CONTROL IN
AUDIO IN
(RGB)
MONO
()
AUDIO
RGB INRGB IN
(PC/DTV)(PC/DTV)
RS-232C IN
(CONTR(CONTROLOL&SERSERVICE)VICE)
HDMI IN
ANTENNA
IN
VIDEO
S-VIDEO
AUDIO OUT
VARIABLE
VIDEO
AUDIO
COMPONENT IN
1
2
AV IN
AV OUT
This anual explains the features available on the 42PC3RV*.
Back Connection Panel
COMPONENT IN
Connect a component video/audio device to
these jacks.
Re ote Control Port
Connect your wired remote control.
RGB/AUDIO IN
Connect the output from a settop box or PC to
the appropriate input port
HDMI IN
Connect a HDMI signal to HDMI port with HDMI
cable.
Power Cord Socket
or operation with AC power.
Caution:
Never attempt to operate the TV on DC power.
AV OUT
Connect a second TV or monitor.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
AV (Audio/Video) IN
Connect audio/video output from an external
device to these jacks.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
Variable Audio Output
Connect an external amplifier or add a subwoofer
to your surround sound system.
ANTENNA IN
Connect over-the air signals to this jack.
1
2
3
4
7
6
5
8
9
10
11
6
78
1
3
2
9
4
10 11
5
577Gen-1 06/8/24 8:33 AM Page 9
All manuals and user guides at all-guides.com
all-guides.com

10
INTRODUCTION
INTRODUCTION
This is the front panel of odels 26/32LC2R* TVs.
■
This is a simplified representation of the front panel. Here shown may be somewhat different from your TV.
Front Panel Controls
R
CH
CH
VOL
VOL
ENTER
ENTER
MENU
MENU
INPUT
INPUT
Re ote Control Sensor
Power Standby Indicator
Illuminates red in standby mode.
Illuminates white when the set is switched on.
CHANNEL Buttons
VOLUME Buttons
ENTER Button
MENU Button
INPUT Button
ON/OFF Button
CONTROLS
577Gen-1 06/8/24 8:33 AM Page 10
All manuals and user guides at all-guides.com

11
CONNECTION OPTIONS
INTRODUCTION
This anual explains the features available on the 26/32C2R*.
VIDEO
AV IN 2
L/MONO R
( )
AUDIO
RGB IN
(PC/DTV)
RS-232C IN
(CONTROL & SERVICE)
HDMI IN
ANTENNA
IN
VIDEO
S-VIDEO
AV IN 1
AUDIO OUT
VARIABLE
VIDEO
AUDIO
COMPONENT IN
AV OUT
AV IN 2AV IN 2
L/L/MONOMONO
R
AUDIOAUDIO
VIDEOVIDEO
AUDIO
REMOTE
CONTROL IN
AUDIO IN
(RGB)
MONO
()
AUDIOAUDIO
RGB INRGB IN
(PC/DTV)(PC/DTV)
RS-232C INRS-232C IN
(CONTROL(CONTROL & SERVICE)SERVICE)
HDMI INHDMI IN
ANTENNAANTENNA
ININ
VIDEOVIDEO
S-VIDEOS-VIDEO
AV IN 1AV IN 1
AUDIO OUTAUDIO OUT
VARIABLEVARIABLE
VIDEOVIDEO
AUDIOAUDIO
COMPONENT INCOMPONENT IN
AV OUTAV OUT
AV IN 2
L/MONO
R
AUDIO
VIDEO
Back Connection Panel
AUDIO Input
Connections are available for listening stereo
sound from an external device.
VIDEO Input
Connects the video signal from a video
device.
COMPONENT IN
Connect a component video/audio device to
these jacks.
AV OUT
Connect a second TV or monitor.
AV (Audio/Video) IN 1
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
Re ote Control Port
Connect your wired remote control.
RGB/AUDIO IN
Connect the output from a settop box or PC to
the appropriate input port.
HDMI IN
Connect a HDMI signal.
Or DVI(VIDEO)signal to the this port with a DVI
to HDMI cable.
VARIABLE AUDIO OUT
Connect an external amplifier or add a subwoofer
to your surround sound system.
RS-232C IN (CONTROL &SERVICE) PORT
Connect to the RS-232C port on a PC.
ANTENNA IN
Connect over-the air signals to this jack.
Power Cord Socket
or operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
2
3
1
7
6
8
9
10
2
3
4
5
5
9
4
6
7
8
10
32LC2R* 26LC2R*
577Gen-1 06/8/24 8:33 AM Page 11
All manuals and user guides at all-guides.com

INTRODUCTION
12
INTRODUCTION
REMOTE CONTROL KEY FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
ENTER
INPUT
TVTV
INPUT
PIP CH- PIP CH+ PIP INPUT
DVD
ARC
EXIT
VOL
REVIEW
MUTE
CH
SLEEP
MEMORY/ERASE
MENU
CAPTION PIP SIZE POSTION
VCR
POWER
123
456
789
*
0
MTS
FCR
POWER
TV INPUT
INPUT
ARC
Brightness
adjust ent
EXIT
MEMORY/ERASE
MENU
MTS
SLEEP
VOLUME UP
/DOWN
REVIEW
MUTE
CHANNEL
UP/DOWN
CAPTION
Turns your TV or any other programmed equipment on
or off, depending on mode.
Returns to the TV mode.
If you press the button once, the input source OSD will
appear on screen as shown. Press the DD/ EEbutton and
then ENTER button to select the desired input source
(TV, AV (or AV1/2), Component 1, Component 2, RGB,
or HDMI).
Change the aspect ratio. GGpp..7700
Adjusts brightness on screen.
It returns to the default settings brightness by changing
mode source.
Clears all on-screen displays and returns to TV viewing
from any menu.
Memorizes or erases selected channel. GGpp..3355
Displays the main menu.
Selects the MTS sound: MMoonnoo, SStteerreeoo, or SSAAPP. GGpp..5511
Select the amount of time before your TV turns off auto-
matically. GGpp..5566
Increases/decreases the sound level.
Tune to the last channel viewed.
Switches the sound on or off.
Select available channels.
Selects CAPTION mode. GGpp..6600
1
1
577Gen-1 06/8/24 8:33 AM Page 12
All manuals and user guides at all-guides.com

13
INTRODUCTION
■
Open the battery compartment cover on the back
side and install the batteries matching correct
polarity (+with +,-with -).
■
Install two 1.5V AA batteries. Don’t mix old or
used batteries with new ones.
■
Close cover.
■
Use a remote control up to 7 meters distance and
30 degree (left/right) within the receiving unit
scope.
■
Dispose of used batteries in a recycle bin to
preserve environment.
TVD/A
INPUT
INPUT
DVD
ARC
LIST I/II
MENU
TEXT PIP
GUIDE INFO
VCR
POWER
R
TVD/A
INPUT
INPUT
DVD
ARC
TEXT PIP
GUIDE INFO
VCR
POWER
Installing Batteries Re ote control effective range
Selects the remote operating mode: TV, VCR, DVD.
Switches the sub picture PIP, DW mode. GGpp..3311
Adjusts the sub picture size. GGpp..3322
Moves the sub picture. GGpp..3322
Selects a channel for the sub picture. GGpp..3311
Not functional
Select the connected input source for the sub-picture. GGpp..3311
Control video cassette recorders or DVD players.
Navigate the on-screen menus and adjust the system settings to your preference.
Not functional
Scroll through the programmed avorite channels.
NUMBER button
VCR/DVD
control buttons
*
*
MODE
PIP
SIZE
POSITION
PIP CH - /+
PIP INPUT
THUMBSTICK
(Up/Down/Left
/Right/ENTER)
FCR
577Gen-1 06/8/24 8:33 AM Page 13
All manuals and user guides at all-guides.com

INSTALLATION
14
UNFOLDING THE STAND BASE (For 42PC3RV*)
INSTALLATION
NOTE
!
(B)
(A)
(D)
(C)
Place the set with the screen facing
down on a cushion or soft cloth as
shown.
Before unfolding the stand, please make
sure two locks (A) on the bottom of the
stand push outward.
Pull the stand out as shown.
After unfolding the stand, please insert
and tighten the screws (provided as
parts of the product) in the holes (B) on
the bottom of the stand.
1
2
When connecting cables to the set, Do
not disengage the lock (C).
This may cause the set to fall, causing
serious bodily injury and serious damage
to the set.
3
(A)
(B)
GGWWhheenn cclloossiinngg tthhee ssttaanndd ffoorr ssttoorraaggee
■ irst remove the screws in the holes (B) on the
bottom of the stand. And then pull two Hooks
(D) of the stand bottom and fold the stand into
the back of the set.
■ After folding, push the two Locks (A) of the
stand bottom outward.
Image shown here may be slightly different from your set.
577Gen-1 06/8/24 8:33 AM Page 14
All manuals and user guides at all-guides.com
all-guides.com

INSTALLATION
15
STAND INSTALLATION (For 32LC2R*)
Carefully place the product screen
side down on a cushioned surface that
will protect product and screen from
damage.
Place the product stand on the product
as shown.
Install the 4 bolts securely, in the back
of the product in the holes provided.
1
2
3
577Gen-1 06/8/24 8:33 AM Page 15
All manuals and user guides at all-guides.com

16
DESKTOP PEDESTAL INSTALLATION
INSTALLATION
INSTALLATION
For proper ventilation, allow a clearance of 4inches on each side fro the wall.
4 inches
4 inches
R
4 inches
4 inches
26/32LC2R*42PC3RV*
GGEnsure adequate ventilation by following the clearance recommendations.
CAUTION
4 inches 4 inches 4 inches 4 inches
Power Supply
Short-circuit
Breaker
■Here shown may be somewhat different from your TV.
GROUNDING
Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods
are not possible, have a qualified electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.
577Gen-1 06/8/24 8:33 AM Page 16
All manuals and user guides at all-guides.com

17
INSTALLATION
ATTACHING THE TV TO A WALL
We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,
potentially causing injury or damaging the product.
Caution: Please make sure that children don’t climb on or hang from the TV.
26LC2R*/32LC2R*42PC3RV*
■Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.
* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on
the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
■Use a sturdy rope (not provided as parts of the product, must purchase
separately) to tie the product. It is safer to tie the rope so it becomes
horizontal between the wall and the product.
577Gen-1 06/8/24 8:33 AM Page 17
All manuals and user guides at all-guides.com

INSTALLATION
BASIC CONNECTION (For 42PC3RV*)
18
INSTALLATION
Arrange the cable as shown.
2
Connect the cables as necessary.
After connecting the cables neatly, arrange the cables to the Cable Holder.
To connect an additional equipment, see the Connections & Setup section.
1
577Gen-1 06/8/24 8:33 AM Page 18
All manuals and user guides at all-guides.com
