LG 32LC2DU User manual

Please read this manual
carefully
before
operating your
set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and
quote
this information to
your
dealer
when
you require
service.
ENERGYSTAR is a set of
power-saving
guidelines
issued
by
the U.S.
Environmental Protection
Agency(EPA).
As an
ENERGY
STAR
Partner LGE U. S.
A.,Inc.
has determined that this
product
meets the
ENER-
GY STAR
guidelines
for
energy efficiency.
P/NO : 38289U0527F
Printed in Korea
OWNER'S MANUAL
LCD
TV
MODELS: 32LC2D
32LC2DU
37LC2D
42LC2D
PLASMA
TV
MODELS: 42PC3D
42PC3DV
50PC3D
60PC1D
Internet Home
Page
:
http://www.lge.com
http://www.lg.ca
d
-
Applied
models: 42PC3D/3DV/50PC3D
32/37/42LC2D,
32LC2DU

2
Warning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK).
NO USER
SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED
SERVICE PERSONNEL.
The
lightning
flash with arrowhead
symbol,
within an
equilateral triangle,
is intended to alert the user to
the
presence
of uninsulated
"dangerous voltage"
within the
product's
enclosure that
may
be of suffi-
cient
magnitude
to constitute a risk of electric shock to
persons.
The exclamation
point
within an
equilateral triangle
is intended to alert the user to the
presence
of
important operating
and maintenance
(servicing)
instructions in the literature
accompanying
the
appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is
provided
to call the CATV
system
installer 's attention to Article 820-40 of the National Electric
Code
(U.S.A.).
The code
provides guidelines
for
proper grounding
and,
in
particular, specifies
that the cable
ground
shall be connected to the
grounding system
of the
building,
as close to the
point
of the cable
entry
as
prac-
tical.
REGULATORY INFORMATION
This
equipment
has been tested and found to
comply
with the limits for a Class B
digital
device,
pursuant
to Part
15 of the FCC Rules. These limits are
designed
to
provide
reasonable
protection against
harmful interference in
a residential installation. This
equipment generates,
uses and can radiate radio
frequency energy
and,
if not
installed and used in accordance with the
instructions,
may
cause harmful interference to radio communications.
However,
there is no
guarantee
that interference will not occur in a
particular
installation. If this
equipment
does
cause harmful interference to radio or television
reception,
which can be determined
by turning
the
equipment
off
and
on,
the user is
encouraged
to
try
to correct the interference
by
one or more of the
following
measures:
-
Reorient or relocate the
receiving
antenna.
-
Increase the
separation
between the
equipment
and receiver.
-
Connect the
equipment
into an outlet on a circuit different from that to which the receiver is connected.
-
Consult the dealer or an
experienced
radio/TV technician for
help.
Any changes
or modifications not
expressly approved by
the
party responsible
for
compliance
could void the
user's
authority
to
operate
the
equipment.
CAUTION:
Do not
attempt
to
modify
this
product
in
any way
without written authorization from LG Electronics
Corporation.
Unauthorized modification could void the user's
authority
to
operate
this
product.
COMPLIANCE:
The
responsible party
for this
product's compliance
is:
LG Electronics
U.S.A.,
Inc.
1000
Sylvan
Avenue,
Englewood
Cliffs,
NJ 07632
Phone: [phone]
http://www.lgusa.com
CAUTION
W
W
arning
arning

3
Safety
Instructions
WARNING
:
To reduce the risk of fire or electric
shock,
do not
expose
this
apparatus
to rain or moisture.
Apparatus
shall not be
exposed
to
dripping
or
splashing
and no
objects
filled with
liquids,
such as
vases,
shall be
placed
on the
apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2.
Keep
these instructions.
3. Heed all
warnings.
4. Follow all instructions.
5. Do not use this
apparatus
near water.
6. Clean
only
with a
dry
cloth.
7. Do not block
any
of the ventilation
openings.
Install in
accordance with the manufacturer's instructions.
8. Do not install near
any
heat sources such as
radiators,
heat
registers,
stoves,
or other
apparatus (including
amplifiers)
that
produce
heat.
9. Do not defeat the
safety purpose
of the
polarized
or
grounding type plug.
A
polarized plug
has two blades
with one wider than the other. A
grounding type plug
has
two blades and a third
grounding prong.
The wide blade
or the third
prong
is
provided
for
your safety.
When the
provided plug
does not fit into
your
outlet,
consult an
electrician for
replacement
of the obsolete outlet.
10. Protect the
power
cord from
being
walked on or
pinched particularly
at
plugs,
convenience
recepta-
cles,
and the
point
where
they
exit from the
apparatus.
11.
Only
use the attachments / accessories
specified by
the manufacturer.
Safety
Instructions
Safety
Instructions
O
wne
r
'
s
M
an
u
a
l

4
Safety
Instructions
12. Use
only
with a
cart, stand,
tripod,
bracket,
or table
specified by
the
manufacturer,
or sold with the
appa-
ratus. When a cart is
used,
use caution when
moving
the cart /
apparatus
combination to avoid
injury
from
tip-over.
13.
Unplug
this
apparatus during lightning
storms or when
unused for
long periods
of time.
14. Refer all
servicing
to
qualified
service
personnel.
Servicing
is
required
when the
apparatus
has been
damaged
in
any way,
such as
power supply
cord or
plug
is
damaged, liquid
has been
spilled
or
objects
have fallen into the
apparatus,
the
apparatus
has been
exposed
to rain or
moisture,
does not
operate
normal-
ly,
or has been
dropped.
15. DISCONNECTING DEVICE FROM MAINS
Main
plug
is the
disconnecting
device.The
plug
must remain
redily operable.
On
Disposal
a. The fluorescent
lamp
used in this
product
contains a small amount of
mercury.
b. Do not
dispose
of this
product
with
general
household waste.
Disposal
of this
product
must be carried out in accordance to the
regulations
of
your
local
authority.
Note
-
If the TV feels cold to the
touch,
there
may
be a small "flicker" when when it is turned on. This is
normal,
there is noth-
ing wrong
with TV.
-
Some minute dot defects
may
be visible on the
screen,
appearing
as
tiny
red,
green,
or blue
spots.
However,
they
have
no adverse effect on the monitor's
performance.
-
Avoid
touching
the LCD screen or
holding your finger(s) against
it for
long periods
of time.
Doing
so
may produce
some
temporary
distortion effects on the screen.
CAUTION
concerning
the
Power Cord
Most
appliances
recommend
they
be
placed upon
a dedicated
circuit;
that
is,
a
single
outlet circuit which
powers only
that
appliance
and has no additional outlets or branch circuits. Check the
specification page
of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets,
loose or
damaged
wall
outlets,
extension
cords,
frayed power
cords,
or
damaged
or cracked wire insulation are
dangerous. Any
of these conditions could result in electric shock or fire.
Periodically
examine the cord of
your appliance,
and if its
appearance
indicates
damage
or
deterioration,
unplug
it,
discon-
tinue use of the
appliance,
and have the cord
replaced
with an exact
replacement part by
an authorized servicer.
Protect the
power
cord from
physical
or mechanical
abuse,
such as
being
twisted, kinked,
pinched,
closed in a
door,
or
walked
upon. Pay particular
attention to
plugs,
wall
outlets,
and the
point
where the cord exits the
appliance.
FOR LCD
TV

5
Contents
Contents
Contents
Introduction
Installation
Operation
29
Turning
on the TV
29 Volume
Adjustment
29 Channel Selection
29 On Screen Menus
Language
Selection
30 On Screen Menus Selection and
Adjustment
31 EZ Scan
(Channel Search)
31 Manual Scan
32 Channel Edit
33 DTV
Signal Strength
33
Input
Source
34
Input
Label
35 Auto Picture
Control(EZ Picture)
35~36 Color
Temperature
Control
37 XD
38 Advanced-Cinema 3:2 Mode / Black Level
39 Video Reset
40 Audio
Language
41 Auto Sound
Control(EZ Sound)
41~42 Manual Sound Control
(EZ
Sound-User
option)
43 Balance
43 TV
Speakers
On/Off
Setup
2
Warning
3~4
Safety
Instructions
7
Accessories

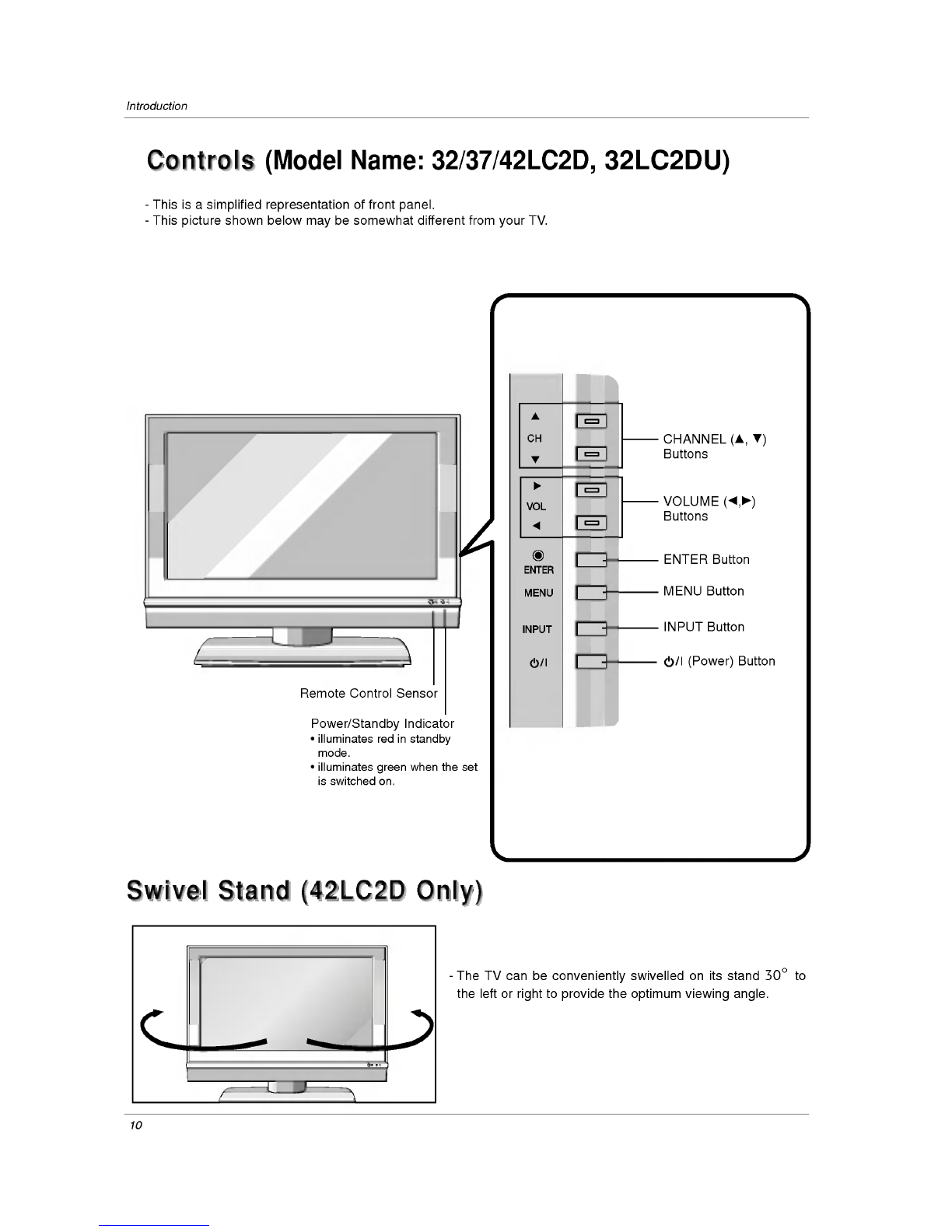

8~11
Controls
Connection
Options
12~13
Remote Control
Key
Functions
14
Attaching
the TV to a wall
15
Desktop
Pedestal Installation
16~17 Basic Connection
18 Antenna or Cable Connection
19~20 VCR
Setup
20 External AV Source
Setup
21~22 DVD
Setup
23~24 HDSTB
Setup
25 AV Out
Setup
25
Digital
Audio
Output
26~28 PC
Setup
Setup
Menu
Options
Video Menu
Options
Audio Menu
Options
Basic
operation
External
Equipment
Connections

6
Contents
Reference
44 Manual Clock
Setup
44 Auto Clock
Setup
45 On/Off Timer
Setup
45
Sleep
Timer
46 Auto Off
47
Aspect
Ratio Control
48
Caption/Text
49
Caption Option
49 Low Power
(42PC3D/3DV,
50PC3D,
60PC1D
Only)
50 ISM
(Image Sticking Minimization)
Method
(42PC3D/3DV,
50PC3D,
60PC1D
Only)
51~52 Parental Lock
Setup
53~58
External Control
Device
Setup
59~60 IR
Codes
61
Programming
the Remote
62~63
Programming
Codes
64~65
Troubleshooting
Checklist
65
Maintenance
66~67
Product
Specifications
Operation

7
Introduction
Accessories
Accessories
Introduction
Introduction
Owner's Manual
75Ω Round Cable Power Cord
Ensure that the
following
accessories are included with
your
TV. If
any accessory
is
missing, please
contact the
dealer from where
you purchased
the
product.
User must use shielded
signal
interface
cables(D-sub
15
pin cable)
with ferrite cores to maintain standard
compliance
for the
product.
1.5V
1
.
5
V
V
OL
C
H
P
O
W
E
R
1
2
3
4
5
6
7
8
09
M
EN
U
M
U
TE
F
A
V
DAY
-
G
UDE
D
A
Y
+
RA
TI
O
V
C
R
T
V
D
VD
E
N T
E
R
A
P
M
A
D
J
U
S
T
S
A
P
E
Z
S
OU
N
D
E
Z
P
C
F
RE
E
Z
E
F
L A
S
HB
K
P
A
G
E
P
A
G
E
E
X
IT
T
IM
E
R
CC
I
NF
O
A
UD
IO
C
A
B
L
E
S
T
B
MO
DE
T
V
IN P
UT
IN
P
UT
Remote Control /
Batteries
2-eye-bolts
2-TV brackets
2-Wall brackets
2-TV Bracket Bolts
For
32/37/42LC2D,
32LC2DU
For
42PC3D/3DV,
50PC3D
Twister Holder
Arrange
the wires
with the twister holder.
Cable
Management
(Refer p.16)
2-Wall brackets
42PC3D/3DV
only
2-bolts
(Refer p.14)
4-bolts for stand
assembly
See below for detail
information.
32LC2D/U
only
42LC2D
only
Polishing
Cloth
Polish the TV with
the cloth.
Carefully place
the
product
screen side down on a
cushioned surface that will
protect product
and
screen from
damage.
1
Place the hook of the stand in the back of the
product
as shown.
2
Install the 4 bolts
provided securely,
in the back of the
product.
3
Stand Installation for 32LC2D/U
[Polishing Cloth]
Slightly wipe
stained
spot
on the exterior
only
with the
cleansing
cloths for the
product
exterior if
there is stain or
fingerprint
on surface of the exterior.
Do not
wipe roughly
when
removing
stain. Please be cautious of that excessive
power may
cause
scratch or discoloration.
Option
Extras
D-sub 15
pin
cable
4-RING SPACER
For 60PC1D
2-TV brackets
2-Wall brackets
4- Bolts
Polishing
Cloth
Polish the TV
with the cloth.

8
Introduction
Controls
Controls
(Model
Name:
42PC3D/3DV, 50PC3D,
60PC1D)
-
This is a
simplified representation
of front
panel.
-
This
shown below
may
be somewhat different from
your
TV.
POWER
Button
INPUT
Button
ENTER
Button
VOLUME
(F,G)Buttons
CHANNEL
(E,D)Buttons
Power
Standby
Indicator
Illuminates red in stand-
by
mode.
Illuminates white when
the set is switched on.
MENU
Button
N
Remote
Control Sensor
CH
OL
ENTER
MENU
INPUT
CHANNEL
(D, E)
Buttons
VOLUME
(F,G)
Buttons
ENTER Button
MENU Button
INPUT Button
Remote Control Sensor
Power/Standby
Indicator
?
illuminates red in
standby
mode.
?
illuminates
green
when the set is switched on.
(Power)
Button
42PC3D/3DV,
50PC3D
60PC1D

9
Introduction
Connection
Options
Connection
Options
(Model
Name:
42PC3D/3DV, 50PC3D,
60PC1D)
-
This
shown below
may
be somewhat different from
your
TV.
AVIN2
/MONO
R
HDMI
IN
V DEO
AUD O
V DEO AUD O
MONO
SVDEO
AVIN1
AV OUT
ANTENNA
CAB EIN
(CONTRO SERVICE
RGB N
COMPONENT IN
OUT
OPT CAL
(D)
2
SERVICE
S-VIDEO
Input
Provides better
picture quality
than the video
input.
AUDIO
Input
Connections are available for lis-
tening
to stereo sound from an
external device.
VIDEO
Input
Connects the video
signal
from a
video device.
1
2
4
5
6
7
8
3
9
11
10
COMPONENT IN
Connect a
component
video/audio
device to
these
jacks.
AV OUT
Connect a second TV or monitor.
AV
(Audio/Video)
IN 1
Connect
audio/video
output
from an external
device to these
jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
ANTENNA/CABLE
IN
Connect over-the air
signals
to this
jack.
Connect cable
signals
to this
jack.
DIGITAL AUDIO OUT
Connect
digital
audio from various
types
of
equip-
ment.
Note: In
standby
mode,
these
ports
do not work.
HDMI IN
Connect a HDMI
signal
to
1(DVI)
or 2.
Or DVI
(VIDEO)signal
to the
1(DVI)
port
with a
DVI to HDMI cable.
RGB IN
(PC)
Connect the monitor
output
from a PC to the
appropriate input port.
Remote Control Port
Connect
your
wired remote control.
AUDIO IN
(RGB/DVI)
Connect the monitor
output
from a PC to the
appropriate input port.
RS-232C IN
(CONTROL
&
SERVICE)
PORT
Connect to the RS-232C
port
on a PC.
SERVICE
Power Cord Socket
For
operation
with AC
power.
Caution:
Never
attempt
to
operate
the TV on DC
power.
1
7
8
9
10
2
3
4
5
6
11

Introduction
Controls
Controls
(Model
Name:
32/37/42LC2D,
32LC2DU)
-
This is a
simplified representation
of front
panel.
-
This
shown below
may
be somewhat different from
your
TV.
10
R
CH
VOL
ENTER
MENU
INPUT
CHANNEL
(D, E)
Buttons
VOLUME
(F,G)
Buttons
ENTER Button
MENU Button
INPUT Button
Remote Control Sensor
Power/Standby
Indicator
?
illuminates red in
standby
mode.
?
illuminates
green
when the set
is switched on.
(Power)
Button
Swivel Stand
(42LC2D
Only)
Swivel Stand
(42LC2D
Only)
R
-
The TV can be
conveniently
swivelled on its stand 30° to
the left or
right
to
provide
the
optimum viewing angle.

11
Introduction
Connection
Options
Connection
Options
(Model
Name:
32/37/42LC2D,
32LC2DU)
-
This
shown below
may
be somewhat different from
your
TV.
AC IN
V DEO
AUD O
V DEO AUD O
MONO
SVDEO
AVIN1
AV OUT
ANTENNA
ABN
RS-232C IN
CO TROL
&
SER CE)
RGB IN
(PC)
COMPONENT IN
DGTA
AUDO
OUT
OP ICAL
SERVICE
HDM N
1D
2
S-VIDEO
Input
Provides better
picture quality
than the
video
input.
VIDEO
Input
Connects the video
signal
from a video
device.
AUDIO
Input
Connections are available for
listening
to
stereo sound from an external device.
COMPONENT IN
Connect a
component
video/audio
device to
these
jacks.
AV OUT
Connect a second TV or monitor.
AV
(Audio/Video)
IN 1
Connect
audio/video
output
from an external
device to these
jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
ANTENNA/CABLE
IN
Connect over-the air
signals
to this
jack.
Connect cable
signals
to this
jack.
DIGITAL AUDIO OUT
Connect
digital
audio from various
types
of
equip-
ment.
Note: In
standby
mode,
these
ports
do not work.
HDMI IN
Connect a HDMI
signal
to
1(DVI)
or 2.
Or DVI
(VIDEO)signal
to the
1(DVI)
port
with a
DVI to HDMI cable.
RGB IN
(PC)
Connect the monitor
output
from a PC to the
appropriate input port.
Remote Control Port
Connect
your
wired remote control.
AUDIO IN
(RGB/DVI)
Connect the monitor
output
from a PC to the
appropriate input port.
RS-232C IN
(CONTROL
&
SERVICE)
PORT
Connect to the RS-232C
port
on a PC.
SERVICE
Power Cord Socket
For
operation
with AC
power.
Caution:
Never
attempt
to
operate
the TV on DC
power.
1
2
4
1
7
8
9
10
2
3
4
5
5
6
7
8
3
9
11
6
11
10

12
Introduction
Remote Control
Key
Functions
Remote Control
Key
Functions
POWER
Turns
your
TV or
any
other
programmed equipment
on or
off,
depending
on mode.
VOL CH
POWER
1 2 3
4 5 6
78
0
9
ME
NU
MUTE FAV
B
R
I
GH
T
+
V
C
R
TV
DVD
ENTER
ADJUST
SAP EZ SOUND EZ PIC CC
FLASHBK
E
X
I
T
T I
M
E
R
R
A
T
I
O
I
N
F
O
A
UD
I
O
CABLE
S
T
B
MODE
TV INPUT INPUT
B
R
I
G
H
T
-
TV INPUT
In
AV1-2,
Component
1-2,
or
RGB-PC, HDMI1/DVI,
and HDMI2
input
sources,
screen returns to the last TV channel.
MODE
Selects the remote
operating
mode:
TV, DVD, VCR, AUDIO,
CABLE,
or STB. Select a mode other than
TV,
for the remote
to
operate
an external device.
INPUT
External
input
modes rotate in
regular sequence:
TV, AV1-2,
Component
1-2, RGB-PC,
HDMI1/DVI or HDMI2.
(AV
1-2,
Component
1-2,
RGB-PC
,
HDMI1/DVI or HDMI2
input
sources are linked
automatically, only
if these are con-
nected.)
EXIT
Clears all on-screen
displays
and returns to TV
viewing
from
any
menu.
TIMER G
p.45
Lets
you
select the amount of time before
your
TV turns
itself off
automatically.
RATIO
G
p.47
Changes
the
aspect
ratio.
MENU
Brings up
the main menu to the screen.
BRIGHT+/-
-
Adjust brightness
on screen.
-
It turns to the default
settings brightness by changing
mode
source.
THUMBSTICK
(Up/Down/Left/Right/ENTER)
Allows
you
to
navigate
the on-screen menus and
adjust
the
system settings
to
your preference.
INFO
When
you
watch the
TV,
information
displays
on
top
of the
screen. Not available in
Component
1-2, RGB,
HDMI1/DVI
and HDMI2 mode.

13
Introduction
EZ PIC G
p.35
Selects a
factory preset picture
mode
depending
on the view-
ing
environment.
EZ SOUND
G
p.41
Selects the sound
appropriate
for the
program's
character.
SAP
Selects MTS sound:
Mono, Stereo,
and SAP in
analog
mode.
Change
the audio
language
in DTV mode.
CC
G
p.48
(*In
DTV/CADTV
mode
G
p.48)
Select a closed
caption:
Off, CC1~4,
Text1~4.
ADJUST
Adjusts
screen
position,
size,
and
phase
in PC mode.
FAV
Use to scroll the Favorite channels.
MUTE
G
p.29
Switches the sound on or off.
CHANNEL UP/DOWN
Selects available channels found with EZ scan and Manual scan.
VOLUME UP/DOWN
Increases/decreases the sound level.
VOL CH
POWER
1 2 3
4 5 6
78
0
9
MENU
MUTE FAV
B
R
I
GH
T
+
V
C
R
TV
DVD
ENTER
ADJUST
SAP EZ SOUND
EZ PIC
CC
FLASHBK
E
X
I
T
T I
M
E R
R
A
T I
O
I
N
F
O
A
UD
I
O
CABLE
S
T
B
MODE
TV INPUT INPUT
B
R
I
G
H
T
-
---
(DASH)
Used to enter a
program
number for
multiple program
chan-
nels such as
2-1, 2-2,etc.
NUMBER BUTTONS
FLASHBK
Returns to the last channel viewed.
VCR/DVD/DVHS/Camcorder BUTTONS
Control some video cassette recorders or DVD
players
("RECORD"
button is not available for DVD
player).

14
Introduction
ATTACHING
THE TV
TO
A WALL
We recommend that
you
set
up
the TV close to a wall so it cannot fall over if
pushed
backwards.
Additionally,
we recommend that the TV be attached to a wall so it cannot be
pulled
in a forward
direction,
poten-
tially causing injury
or
damaging
the
product.
Caution: Please make sure that children don't climb on or
hang
from the TV.
Insert the
eye-bolts (or
TV brackets and
bolts)
to
tighten
the
product
to the wall as shown in the
picture.
*
If
your product
has the bolts in the
eye-bolts position,
loosen the bolts.
Secure the wall brackets with the bolts
(not provided
as
parts
of the
product,
must
purchase separately)
on the wall. Match the
height
of the bracket that is mounted on the wall to the holes in the
product.
Ensure the
eye-bolts
or brackets are
tightened securely.
Use a
sturdy rope (not provided
as
parts
of the
product,
must
purchase sepa-
rately)
to tie the
product.
It is safer to tie the
rope
so it becomes horizontal
between the wall and the
product.
42PC3D/3DV,
50PC3D
32/37/42LC2D,
32LC2DU
Open
the
battery compartment
cover on the
back side and install the batteries
matching
cor-
rect
polarity
(
+with
+,-with
-
)
.
Install two 1.5V AA batteries. Don't mix old or
used batteries with new ones.
Close cover.
Use a remote control
up
to
7
meters distance and
30
degree
(left/right)
within the
receiving
unit
scope.
Dispose
of used batteries in a
recycle
bin to
pre-
serve environment.
POWER
MENU
BRIGHT
+
VCR TV
DVD
ENTER
EXIT T
IMER RAT
ON
FO
AUDO
CABLE
ST
B
MODE
TVINPUT NPUT
B
RIG
HT
POWER
MENU B
RIGHT+
VCR
TV
DVD
ENTER
E
XIT TIM
ER RATO
INFO
AUD
O
CABLE
STB
MODE
TVINPUT NPUT
BRIG
HT
POWER
MENU
BRIG
HT+
VCR TV
DVD
ENTER
EXI TT
IMER RATI
ON
FO
A
UDIO
CABLE
STB
MODE
TVINPUT INPUT
B
RIG
HT
32/37/42LC2D,
32LC2DU
42PC3D/3DV,
50PC3D 60PC1D
Installing
Batteries
Remote control effective
range
60PC1D

15
Installation
Installation
Installation
For
proper
ventilation,
allow a clearance of 4inches on each side from the wall.
G
Ensure
adequate
ventilation
by following
the clearance recommendations.
CAUTION
Power
Supply
Short-circuit
Breaker
This
shown below
may
be somewhat different from
your
TV.
GROUNDING
Ensure that
you
connect the earth
ground
wire to
prevent possible
electric shock. If
grounding
methods
are not
possible,
have a
qualified
electrician install a
separate
circuit breaker.
Do not
try
to
ground
the unit
by connecting
it to
telephone
wires,
lightening
rods,
or
gas pipes.
DESKTOP PEDESTAL INSTALLATION
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches 4 inches
32/37/42LC2D,
32LC2DU
42PC3D/3DV, 50PC3D,
60PC1D

16
Connect the cables as
necessary.
After
connecting
the cables neat-
ly, arrange
the cables to the
Cable Holder.
To connect an additional
equip-
ment,
see the
External
equip-
ment Connections
section.
Reinstall the CABLE MANAGE-
MENT as shown.
1
2
Bundle the cables
using
the
sup-
plied
twister holder.
3
Basic Connection
(For
32/37/42LC2D,
32LC2DU)
Basic Connection
(For
32/37/42LC2D,
32LC2DU)
32LC2D/U
Cable holder
37/42LC2D
32LC2D/U
37/42LC2D
32LC2D/U
37/42LC2D
Do not hold the CABLE MANAGEMENT when
moving
the
product.
-
If the
product
is
dropped, you may
be
injured
or the
product may
be broken.
How to remove
the CABLE MANAGEMENT
-
Hold the CABLE MANAGEMENT with both hands
and
pull
it
upward.
CABLE
MANAGEMENT
CABLE MANAGEMENT

17
Place the set with the screen
facing
down on
a cushion or soft cloth as shown.
Before
unfolding
the
stand,
please
make sure
two locks
(A)
on the bottom of the stand
push
outward.
Pull the stand out as shown.
After
unfolding
the
stand,
please
insert and
tighten
the screws
(provided
as
parts
of the
product)
in the holes
(B)
on the bottom of the
stand.
1
2
When
connecting
cables to the
set,
Do not
disengage
the lock
(C).
This
may
cause the set to
fall,
causing
serious
bodily injury
and serious
damage
to the set.
3
Basic Connection
Basic Connection
(C)
Hold the CABLE MANAGEMENT with both
hands and
push
it as shown.
Connect the cables as
necessary.
To connect an additional
equipment,
see the
External
equipment
Connections
section.
Reinstall the CABLE MANAGEMENT as
shown.
1
2
3
*
shown here
may
be
slightly
different from
your
set.
When
closing
the stand for
storage
-
First remove the screws in the holes
(B)
on the bottom
of the stand. And then
pull
two Hooks
(D)
of the stand
bottom and fold the stand into the back of the set.
-
After
folding, push
the two Locks
(A)
of the stand
bottom outward.
(A)
(B)
(D)
(A) (B)
How to use stand
(For 42PC3D/3DV)
How to
arrange
the cable
(For 50PC3D)
For
60PC1D,
42PC3D/3DV
Arrange
the cable as shown.

18
Installation
Antenna Or Cable Connection
Multi-family Dwellings/Apartments
(Connect
to wall antenna
socket)
Single-family Dwellings
/Houses
(Connect
to wall
jack
for outdoor
antenna)
Outdoor Antenna
Wall Antenna Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire
(75 ohm)
Turn clockwise to
tighten.
ANTENNA
CABLE IN
Bronze Wire
Be careful not to bend the bronze wire when
connecting
the antenna.
Analog
and
Digital
TV
signals provided
on antenna
-
Antenna or Cable Service without a Cable Box Connection.
-
For
optimum picture quality, adjust
antenna direction if needed.
Analog
and
DTV
signals provided
on two
separate
antennas
Cable TV Wall Jack
RF Coaxial Wire
(75 ohm)
Bronze Wire
Bronze Wire
Turn clockwise to
tighten.
Antenna
RF Coaxial Wire
(75 ohm)
?
In a
poor signal
area to
improve picture quality, purchase
and install a
sig-
nal
amplifier.
?
If the antenna needs to be
split
for two
TV's,
install a
"2-Way Signal Splitter"
in the connections.
?
If the antenna is not installed
properly,
contact
your
dealer for assistance.
N
NNA
C
B
N
External
Equipment
Connections
External
Equipment
Connections
signal
amplifier
ANTENNA
CABLE N
NOTE:
All
cables shown are not included with the
TV
Cable TV Wall Jack
RF Coaxial Wire
(75 ohm)
Turn clockwise to
tighten.
Analog
and
Digital
TV
signals provided
on cable
ANTENNA
CABEN

19
Installation
-
To avoid
noise
(interference),
leave an
adequate
distance between the
VCR and TV.
-
Typically
a frozen
still
from a VCR. If
the
4:3
format is
used;
the
fixed
images
on
the sides
of
the screen
may
remain
visible
on
the screen.
VCR
Setup
When
connecting
with an antenna
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
AN ENNA
CABLE N
O O
RS
232C N
CO
TROL&SER CE
(C)
DON
D
SE VCE
1
When
connecting
with a RCA cable
S-VIDEO
OUT
IN
(AUDIL)VEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
V DEO
DO
V DEO
A
D
MONO
S
D
COMPONENT
OUT
PTC L
VCR
1
2
3
Connect the AUDIO/VIDEO
jacks
between TV
and VCR. Match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red)
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
Select AV 1
input
source
using
the INPUT button
on the remote control.
-
If connected to AV I N 2
,
select AV2
input
source.
?
If
you
have a mono
VCR,
connect the audio cable from the VCR to the AUDIO L/MONO
jack
of the
set.
1
1
2
3
4
Connect the RF antenna out socket of the VCR to
the
Antenna
socket on the set.
Connect the antenna cable to the RF antenna in
socket of the VCR.
Set VCR
output
switch to 3 or 4 and then tune TV
to the same channel number.
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
VCR
1
2

20
Installation
When
connecting
with an S-Video cable
ADO
DO
MONO
S
VDO
COMPONEN
DGTALAUDO
PT
CAL
S-V DEO OUT
IN
(AUDI L)VEO
34
O PUT
SW CH
ANT OUT
ANT IN
VCR
1
1
2
2
3
4
Connect the S-VIDEO
output
of the VCR to the S-
VIDEO
input
on the set. The
picture quality
is
improved; compared
to normal
composite (RCA
cable) input.
Connect the audio
outputs
of the VCR to the
AUDIO
input jacks
on the set.
Insert a video
tape
into the VCR and
press
PLAY
on the VCR.
(Refer
to the VCR owner's
manual.)
Select AV1
input
source with
using
the INPUT
button on the remote control.
-
If connected to AV I N
2,
select AV2
input
source.
Do not connect to both Video and S-Video at the same time. In the event that
you
connect
both Video and the S-Video
cables,
only
the S-Video will work.
R L
AUDIO VIDEO
Camcorder
Video Game Set
1
1
2
3
Connect the AUDIO/VIDEO
jacks
between TV
and external
equipment.
Match the
jack
colors
(Video
=
yellow,
Audio Left
=
white,
and Audio
Right
=
red).
Select AV2
input
source with
using
the INPUT
button on the remote control.
-
If connected to AV I N 1
input,
select AV1
input
source.
Operate
the
corresponding
external
equipment.
Refer to external
equipment operating guide.
External
AV
Source
Setup
?
This TV finds the connected
input
sources
automatically
for
AV1, AV2,
Component
1-2,
RGB,
HDMI1/DVI and HDMI2 sources are
connected.
