LG 32LH35FD User manual
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LJ91A
MODEL : 32LH35FD 32LH35FD-SF
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
Printed in KoreaP/NO : MFL61862407 (0911-REV00)
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
SPECIFICATION........................................................................................6
ADJUSTMENT INSTRUCTION ...............................................................10
EXPLODED VIEW .................................................................................. 17
SVC. SHEET ...............................................................................................
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1
*Base on Adjustment standard
IMPORTANT SAFETY NOTICE
0.15uF
Ω
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
4. Electrical specification
4.1 General Specification
1. Application range
This specification is applied to the LCD TV used LJ91A
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature : 25±5ºC (77±9ºF), CST : 40±5ºC
2) Relative Humidity : 65±10%
3)
Power Voltage : Standard input voltage(100~240V@50/60Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety: UL, CSA, IEC specification, CE
- EMC: FCC, ICES, IEC specification, CE
No Item Specification Remark
1. Receiving System 1)SBTVD / NTSC / PAL-M / PAL-N
2.
Available Channel 1) VHF : 02~13
2) UHF : 14~69
3) DTV : 02-69
4) CATV : 01~135
3. Input Voltage 1) AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz
4. Market Central and South AMERICA
5. Screen Size 32 inch Wide (1920 X 1080) 32LH35FD-SF
37 inch Wide (1920 X 1080) 37LH35FD-SF
42 inch Wide (1920 X 1080) 42LH35FD-SF
LC320WUN-SAB2 (VITIAZ 3) 32LH35FD-SF
LC370WUE-SBB2 (VITIAZ 4) 37LH35FD-SF
LC420WUE-SBC1 (VITIAZ 4) 42LH35FD-SF
6. Aspect Ratio 16:9
7. Tuning System FS
8. Module
9. Operating Environment 1) Temp : 0 ~ 40 deg
2) Humidity : ~ 80 %
10. Storage Environment 1) Temp : -20 ~ 60 deg
2) Humidity : ~ 85 %
- 7 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
5. Chromiance & Luminance spec.
No Item Min Typ Max Unit Remark
Module cd/m LC320WUN-SAB2(V3-P7)1. Max Luminance
(Center 1-point / Full White
Pattern) Set 400 500
400 500 cd/m
2.
3. Luminance uniformity 77 % Full white
0.638
0.334
4.
5.
RED
0.291
0.607
6.
7.
GREEN
0.145
0.062
8.
9.
BLUE
0.279
10.
Color
coordinate
WHITE
Y
X
Y
X
Y
X
Y
X
Typ.
-0.03
0.292
Typ.
+0.03
11. Color coordinate uniformity N/A
900:1 NORMAL
Contrast ratio 30000:1 1300:1
80000:1 DCR
Cool 0.281
0.274 0.276
0.283 0.278
0.285
Standard 0.291
0.283
0.311
0.285
0.293 0.287
0.295
12. Color
Temperature
Warm 0.327 0.313
0.329 0.315
0.331
<Test Condition>
85% Full white pattern
** The W/B Tolerance is
–0.015 for Adjustment
Dynamic contrast : off
Dynamic color : off
OPC : off
13. Color Distortion, DG 10.0 %
14. Color Distortion, DP 10.0 deg
15. Color S/N, AM/FM 43.0 dB
16. Color Killer Sensitivity -80 dBm
6. Component Input (Y, CB/PB, CR/PR)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I
2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I
3. 720*480 31.47 60 27.027 SDTV 480P
4. 720*480 31.47 59.94 27.0 SDTV 480P
5. 1280*720 45.00 60.00 74.25 HDTV 720P
6. 1280*720 44.96 59.94 74.176 HDTV 720P
7. 1920*1080 33.75 60.00 74.25 HDTV 1080I
8. 1920*1080 33.72 59.94 74.176 HDTV 1080I
9. 1920*1080 67.500 60 148.50 HDTV 1080P
10. 1920*1080 67.432 59.939 148.352 HDTV 1080P
11. 1920*1080 27.000 24.000 74.25 HDTV 1080P
12. 1920*1080 26.97 23.976 74.176 HDTV 1080P
13. 1920*1080 33.75 30.000 74.25 HDTV 1080P
14. 1920*1080 33.71 29.97 74.176 HDTV 1080P
15. 1920*1080 56.25 50.000 148.5 HDTV 1080P
16. 1920*1080 28.125 25.000 74.25 HDTV 1080P
- 8 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
7. RGB Input (PC)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC DDC
1. 640*350 31.468 70.09 25.17 EGA X
O
O
O
O
O
O
O
O
O
O
2. 720*400 31.469 70.08 28.32 DOS
3. 640*480 31.469 59.94 25.17 VESA(VGA)
4. 800*600 35.156 56.25 36.00 VESA(SVGA)
5. 800*600 37.879 60.31 40.00 VESA(SVGA)
6. 1024*768 48.363 60.00 65.00 VESA(XGA)
7. 1280*768 47.776 59.870 79.5 CVT(WXGA)
8. 1360*768 47.712 60.015 85.50 VESA (WXGA)
9. 1280*1024 63.981 60.020 108.00 VESA
10. 1600*1200 75.00 60.00 162 VESA (UXGA)
11 1920*1080 67.5 60 138.5 HDTV
reduced timing
1080P
** RGB PC Monitor Range Limits
- Min Vertical Freq - 56 Hz
- Max Vertical Freq - 62 Hz
- Min Horiz. Freq - 30 kHz
- Max Horiz. Freq - 80 kHz
- Pixel Clock - 170 MHz
8. HDMI Input (PC/DTV)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC DDC
1 640*350 31.468 70.09 25.17 EGA X
O
O
O
O
O
O
O
O
O
O
2 720*400 31.469 70.08 28.32 DOS
3 640*480 31.469 59.94 25.17 VESA(VGA)
4 800*600 35.156 56.25 36.00 VESA(SVGA)
5 800*600 37.879 60.31 40.00 VESA(SVGA)
6 1024*768 48.363 60.00 65.00 VESA(XGA)
7 1280*768 47.776 59.870 79.5 CVT(WXGA)
8 1360*768 47.712 60.015 85.50 VESA (WXGA)
9 1280*1024 63.981 60.020 108.00 VESA (SXGA)
10 1600*1200 75.00 60.00 162 VESA (UXGA)
11 1920*1080 66.587 59.934 138.5 HDTV 1080P
DTV
1 720*480 31.50 60 27.027 SDTV 480P
2 720*480 31.47 59.94 27.00 SDTV 480P
3 1280*720 45.00 60.00 74.25 HDTV 720P
4 1280*720 44.96 59.94 74.176 HDTV 720P
5 1920*1080 33.75 60.00 74.25 HDTV 1080I
6 1920*1080 33.72 59.94 74.176 HDTV 1080I
7 1920*1080 67.500 60 148.50 HDTV 1080P
8 1920*1080 67.432 59.939 148.352 HDTV 1080P
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
10 1920*1080 26.97 23.976 74.176 HDTV 1080P
11 1920*1080 33.75 30.000 74.25 HDTV 1080P
12 1920*1080 33.71 29.97 74.176 HDTV 1080P
17. 1920*1080 56.25 50.000 148.5 HDTV 1080P
18. 1920*1080 28.125 25.000 74.25 HDTV 1080P
** HDMI Monitor Range Limits
- Min Vertical Freq - 56 Hz
- Max Vertical Freq - 62 Hz
- Min Horiz. Freq - 30 kHz
- Max Horiz. Freq - 80 kHz
- Pixel Clock - 170 MHz
- 9 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
9. Consignment Setting (OUTGOING CONDITION)
No Item Condition
1. Input Mode TV02CH
2. Volume Level 10
3. Mute Off
4. Aspect Ratio 16:9
5. System Color PAL-M
6 Booster On
Picture Mode Vivid
Backlight
Contrast
Brightness
Sharpness
Color 70
70
0
0
100
100
50
Tint
Color Temperature Cool
7. Picture
Picture Reset
Sound Mode Standard
Auto Volume Off
Clear Voice Off
SRS TruSurround XT Off
Balance
8. Audio
TV Speaker On
On
Clock Auto9. Time Off Timer / On Timer
Sleep Timer / Auto Sleep Off
Language (Menu/Audio) Portugues
SimpLink
Key Lock Off
Off
Caption
10. Option
Set ID 1
11. Channel Memory RF : 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
14, 30, 51, 63
CATV : 15, 16, 17
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 10 -
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied all of the LJ91A LCD TV
models, which produced in manufacture department or similar
LG TV factory.
2. Notice
1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
2) Adjustment must be done in the correct order. But it is
flexible when its factory local problem occurs. .
3) The adjustment must be performed in the circumstance of
25 ±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
4) The input voltage of the receiver must keep 100~220V,
50/60Hz.
5) Before adjustment, execute Heat-Run for 5 minutes.
•After Receive 100% Full white pattern (06CH) then process
Heat-run
(or “8. Test pattern”condition of Ez-Adjust status)
•How to make set white pattern
1) Press Power ON button of Service Remocon
2) Press ADJ button of Service remocon. Select “8. Test
pattern”and, after select “White”using navigation button,
and then you can see 100% Full White pattern.
* In this status you can maintain Heat-Run useless any
pattern generator
* Notice: if you maintain one picture over 20 minutes
(Especially sharp distinction black with white pattern –
13Ch, or Cross hatch pattern –09Ch) then it can appear
image stick near black level.
3. Adjustment Items
3.1 PCB Assembly adjustment
•CPLD DOWNLOAD
•Adjust 480i Comp1
•Adjust 1080p Comp1/RGB
- If it is necessary, it can adjustment at Manufacture Line
-You can see set adjustment status at “1. ADJUST
CHECK”of the “In-start menu”
3.2 Set Assembly Adjustment
•EDID (The Extended Display Identification Data ) / DDC
(Display Data Channel) download
•Color Temperature (White Balance) Adjustment
•Make sure RS-232C control
•Selection Factory output option
4. PCB Assembly Adjustment
4.1. CPLD DOWNLOAD : JTAG MODE
4.2. << PRINT PORT >> PIN MAP
Pin JTAG Mode Signal Name
2 TCK
3 TMS
8 TDI
11 TDO
13 -
15 VCC
18 TO 25 GND
- 11 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4.3. << 10P WAFER >> PIN MAP
- 12 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
4.4. Using RS-232C
Adjust 3 items at 3.1 PCB assembly adjustments “4.1.3
sequence”one after the order.
O Adjustment protocol
See ADC Adjustment RS232C Protocol_Ver1.0
O Necessary items befire Adjustment items
- Patterb Generator : MSPG-925FA
-Adjust 480i Comp1(MSPG-925FA:model:209,
pattern:65) - Comp1 Mode
-Adjust 1080p Comp1(MSPG-925FA:model:225,
pattern:65)-Comp1 Mode
- Adjust RGB(MSPG-925FA:model:225, pattern:65) -
RGB-PC Mode
* If you want more information then see the below Adjustment
method (Factory Adjustment)
O Adjustment protocol
- Pattern Generator : (MSPG-925FA)
- Adjust 480i Comp1 (MSPG-925FA : model :209 , pattern
: 65)
- Adjust 1080p Comp1/RGB(MSPG-925FA:model : 225 ,
pattern : 65)
- Adjust RGB (MSPG-925FA:model :225 , Pattern :65) –
RGB-PC Mode
O Adjustment sequence
- ad 00 00 : Enter the ADC Adjustment mode.
- xb 00 40: Change the mode to Component1 (No actions)
- ad 00 10: Adjust 480i Comp
- ad 00 10: Adjust 1080p Comp
- xb 00 60: Change to RGB-PC mode(No action)
- ad 00 10: Adjust 1080p RGB
- ad 00 90: End of the adjustment
Order
Command
Set response
1. Inter the ad 00 00 d 00 OK00x
Adjustment mode
2. Change the kb 00 40
b 00 OK40x (Adjust 480i Comp1/1080p Comp1)
Source kb 00 60
b 00 OK60x (Adjust 1080p RGB)
3.
Start Adjustment
ad 00 10
4.Return the OKx ( Success condition )
Response NGx ( Failed condition )
5.Read (main)
(main : component1 480i, RGB 1080p)
Adjustment data
ad 00 20
000000000000000000000000007c007b006dx
(main) (main : component1 1080p)
ad 00 30
000000070000000000000000007c00830077x
6.Confirm ad 00 99 NG 03 00x (Failed condition)
Adjustment NG 03 01x (Failed condition)
NG 03 02x (Failed condition)
OK 03 03x (Success condition)
7.
End of Adjustment
ad 00 90 d 00 OK90x
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes - 13 -
5. Factory Adjustment
5.1 Manual Adjust Component 480i/1080p
RGB 1080p
O Summary : Adjustment component 480i/1080i and RGB
1080p is Gain and Black levelsetting at Analog
to Digital converter, and compensate the RGB
deviation
O Using instrument
- Adjustment remocon, 801GF(802B, 802F, 802R) or
MSPG925FA pattern generator (It can output 480i/1080i
horizontal 100% color bar pattern signal, and its output
level must setting 0.7V±0.1V p-p correctly)
<Pic.4 Adjustment pattern : 480i / 1080p 60Hz Pattern >
* You must make it sure its resolution and pattern cause every
instrument can have different setting
O Adjustment method 480i Comp1, Adjust 1080p
Comp1/RGB (Factory adjustment)
•ADC 480i Component1 adjustment
- Check connection of Component1
- MSPG-925FA ËModel: 209, Pattern 65
•Set Component 480i mode and 100% Horizontal Color
Bar Pattern(HozTV31Bar), then set TV set to
Component1 mode and its screen to “NORMAL”
•ADC 1080p Component1 / RGB adjustment
- Check connection both of Component1 and RGB
- MSPG-925FA Model: 225, Pattern 65
•Set Component 1080p mode and 100% Horizontal Color
Bar Pattern(HozTV31Bar), then set TV set to
Component1 mode and its screen to “NORMAL”
•After get each the signal, wait more a second and enter
the “IN-START”with press IN-START key of Service
remocon. After then select “7. External ADC”with
navigator button and press “Enter”.
•After Then Press key of Service remocon “Right
Arrow(VOL+)”
•You can see “ADC Component1 Success”
•Component1 1080p, RGB 1080p Adjust is same
method.
•Component 1080p Adjustment in Component1 input
mode
•RGB 1080p adjustment in RGB input mode
•If you success RGB 1080p Adjust. You can see “ADC
RGB-DTV Success”
5.2 EDID (The Extended Display
Identification Data) / DDC (Display Data
Channel) Download.
O Summary
•It is established in VESA, for communication between
PC and Monitor without order from user for building user
condition. It helps to make easily use realize “Plug and
Play”function.
•For EDID data write, we use DDC2B protocol.
O Auto Download
•After enter Service Mode by pushing “ADJ”key,
•Enter EDID D/L mode.
•Enter “START”by pushing “OK”key.
Caution: - Never connect HDMI & D-sub Cable when the user
downloading .
- Use the proper cables below for EDID Writing.
- 14 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
O Manual Download
•Write HDMI EDID data
- Using instruments
=> Jig. (PC Serial to D-Sub connection) for PC, DDC
adjustment.
=> S/W for DDC recording (EDID data write and
read)
=> D-sub jack
=> Additional HDMI cable connection Jig.
- Preparing and setting.
=> Set instruments and Jig. Like pic.5), then turn on
PC and Jig.
=> Operate DDC write S/W (EDID write & read)
=> It will operate in the DOS mode.
Pic.3) For write EDID data, setting Jig and another instruments.
•EDID data for LJ91D Chassis (Model name = LG TV)
- HDMI-1 EDID table (0x3D, 0x2C)
- HDM2 EDID table (0x3D, 0x1C)
- HDMI-3 EDID table (0x3D, 0x0C)
- Analog (RGB) EDID table (0xA5, 0x25)
PC
Download jig
RGB cable
Main
B/D
Edid data and Model option download (RS232)
NO Item CMD 1 CMD 2 Data 0
Enter
download MODE Download
ModeIn A E 0 0 When transfer the ’Mode In’ ,
Carry the command.
Edid data and
Modeloption
download Download A E *Note1 *Note2 Automatically download
(The use of a internalData)
Adjust Mode Out
A E 9 0
Adjustment
Confirmation A E 9 9 To check Download
on Assembly line.
5.3 Adjustment Color Temperature(White
balance)
O Using Instruments
•Color Analyzer: CA-210 (CH 9)
- Using LCD color temperature, Color Analyzer (CA-210)
must use CH 9, which Matrix compensated (White, Red,
Green, Blue compensation) with CS-2100. See the
Coordination bellowed one.
•Auto-adjustment Equipment (It needs when Auto-
adjustment –It is availed communicate with RS-232C :
Baud rate: 115200)
•Video Signal Generator MSPG-925F 720p, 216Gray
(Model: 217, Pattern 78)
O Connection Diagram (Auto Adjustment)
•Using Inner Pattern
•Using HDMI input

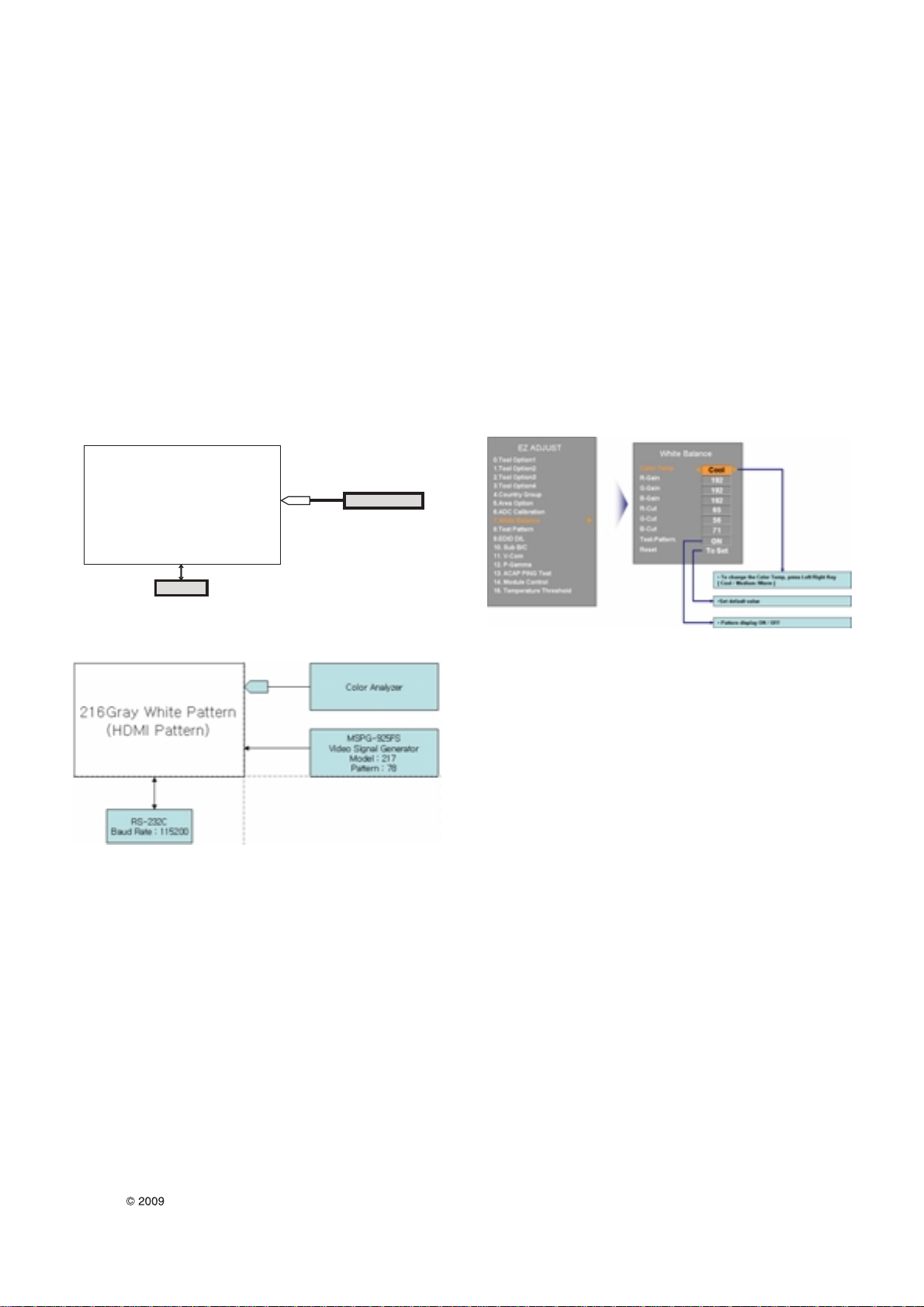

<Pic.5 Connection Diagram for Adjustment White balance> .
O White Balance Adjustment
If you can’t adjust with inner pattern, then you can adjust
it using HDMI pattern. You can select option at "Ez-Adjust
Menu –7. White Balance" there items "NONE, INNER,
HDMI". It is normally setting at inner basically. If you can’t
adjust using inner pattern you can select HDMI item, and
you can adjust.
In manual Adjust case, if you press ADJ button of service
remocon, and enter "Ez-Adjust Menu –7. White
Balance", then automatically inner pattern operates. (In
case of "Inner" originally "Inner" will be selected.
•Connect all cables and equipments like Pic.5)
•Set Baud Rate of RS-232C to 115200. It may set
115200 orignally.
•Connect RS-232C cable to set
•Connect HDMI cable to set
¢ RS-232C Command (Commonly apply)
wb 00 00 White Balance adjustment start.
wb 00 10 Start of adjust gain (Inner white
pattern)
wb 00 1f End of gain adjust
wb 00 20 Start of offset adjust(Inner white
pattern)
wb 00 2f End of offset adjust
wb 00 ff End of White Balance adjust(Inner
pattern disappeared)
•"wb 00 00": Start Auto-adjustment of white balance.
•"wb 00 10": Start Gain Adjustment (Inner pattern)
•"jb 00 c0" :
• …
•"wb 00 1f": End of Adjustment
* If it needs, offset adjustment (wb 00 20-start, wb 00
2f-end)
•"wb 00 ff": End of white balance adjustment (inner
pattern disappear)
- 15 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
CA-100+
COLOR
ANALYZER
TYPE; CA-100+
Full W hite Pattern
RS-232C
- 16 - LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
O White Balance Adjustment (Manual adjustment)
•Test Equipment: CA-210
- Using LCD color temperature, Color Analyzer (CA-
210) must use CH 9, which Matrix compensated
(White, Red, Green, Blue compensation) with CS-
2100. See the Coordination bellowed one.
•Manual adjustment sequence is like bellowed one.
- Turn to "Ez-Adjust" mode with press ADJ button of
service remocon.
- Select "10.Test Pattern" with CH+/- button and press
enter. Then set will go on Heat-run mode. Over 30
minutes set let on Heat-run mode.
- Let CA-210 to zero calibration and must has gap more
10cm from center of LCD module when adjustment.
- Press "ADJ" button of service remocon and select
"7.White-Balance" in "Ez-Adjust" then press "▶"
button of navigation key.
(When press "▶" button then set will go to full white
mode)
- Adjust at three mode (Cool, Medium, Warm)
- If "cool" mode
Let B-Gain to 192 and R, G, B-Cut to 64 and then
control R, G gain adjustment High Light adjustment.
- If "Medium" and "Warm" mode
Let R-Gain to 192 and R, G, B-Cut to 64 and then
control G, B gain adjustment High Light adjustment.
- All of the three mode
Let R-Gain to 192 and R, G, B-Cut to 64 and then
control G, B gain adjustment High Light adjustment.
- With volume button (+/-) you can adjust.
- After all adjustment finished, with Enter (■key) turn
to Ez-Adjust mode. Then with ADJ button, exit from
adjustment mode
Attachment: White Balance adjustment coordination and color
temperature.
O Using CS-1000 Equipment.
- COOL : T=11000K, △uv=0.000, x=0.276 y=0.283
- MEDIUM : T=9300K, △uv=0.000, x=0.285 y=0.293
- WARM : T=6500K, △uv=0.000, x=0.313 y=0.329
LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 17 -
300 200
521
530
804
510
120
A2
900
500 320
540
806
550
802
801
LV1
803
805
400
A10
310
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
Fiber Optic
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2009.01.20

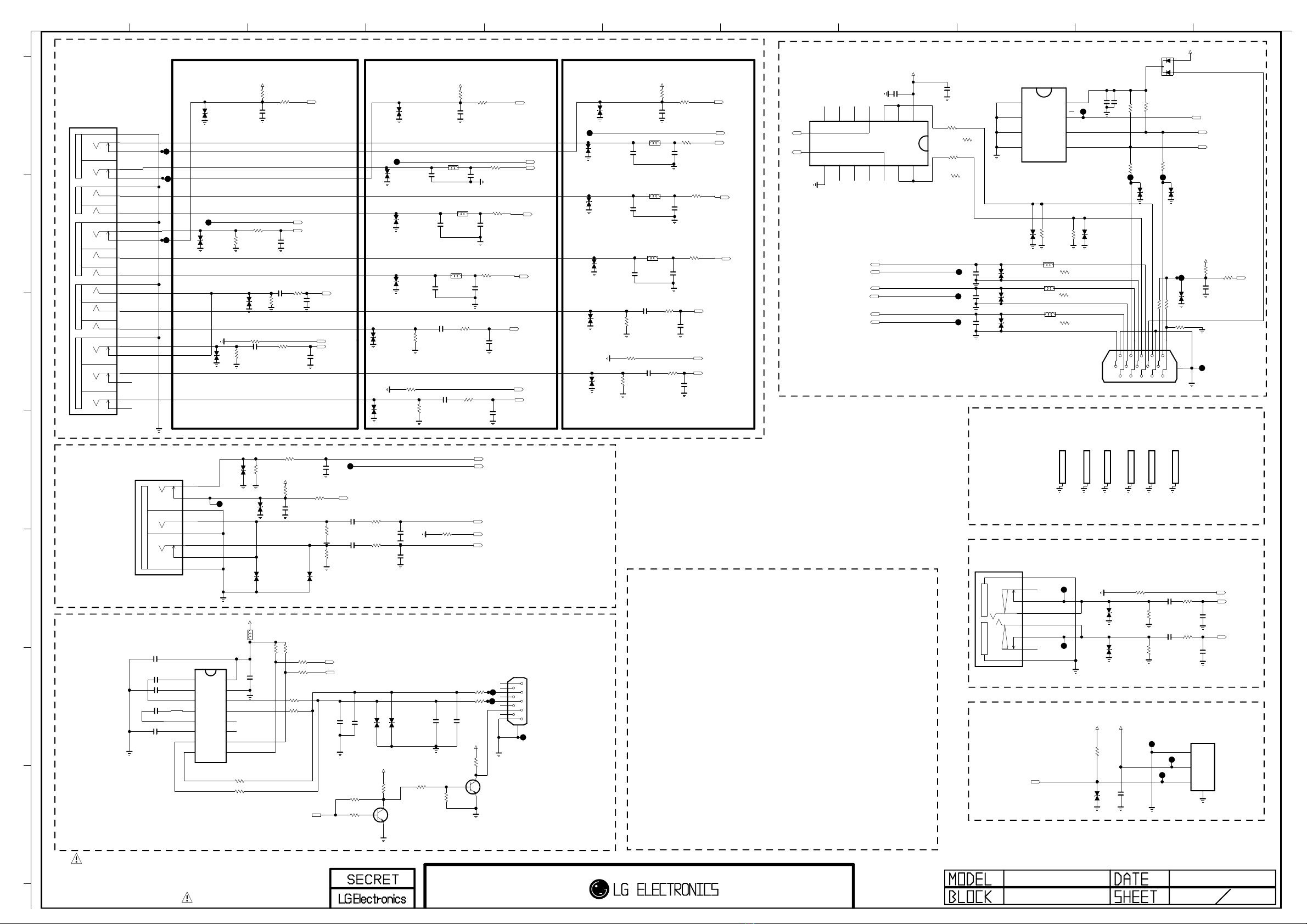

VIDEO EXT.INPUT
BRAZIL DVR DV
RGB_HSYNC
RGB_VSYNC
D3.3V
R705
5.1
L708
120ohm
BG1608B121F
R768
4.7K
DDC_SDA 12:E4
PC_R_IN 5:J4
L709-*1
0RGB_0OHM
C706
0.1uF
AV1_L_IN
5:E2
SIDE_CVBS_IN 5:G4
D734
5.6V
ADMC5M03200L
C734
100pF
D712
5.5V
ADLC 5S 03 015
Q702
2SC3052
US_Commercial
E
B
C
C759
47pF
C705
0.1uF
D705
5.6V
ADMC5M03200L
R706
15
C735
27pF
C745
1uF
25V
R749 5.1
L706
270nH
C714
100pF G_VID_INCM
3:T15
/W_PROTECT 12:J4
AV1_CVBS_INCM
3:T19
D729
5.6V
ADMC5M03200L
C763
1uF
25V
COMP2_Y
11:M17
JP718
Q701
2SC3052
OPT
E
B
C
L704
270nH
D726
30V
ADUC30S03010L
C738
100pF
L710
120ohm
BG1608B121F
D3.3V
R772
22
R732
470K
R743
220
JP734
C727
27pF
RGB_SW
9:H6
D720
5.6V
ADMC5M03200L
IC703
M24C02-RMN6T
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
R751
100
COMP1_Y
11:M18
R709
4.7K
R719
100 OPT
C710
22uF
16V
C733
47pF
D711
30V
ADUC30S03010L
C711
47pF
OPT
D721
5.5V
ADLC 5S 03 015
COMP2_Pr
11:M17
R713
4.7K
L705
270nH
COMP1_INCM
3:T24
R718
100 OPT
R763
10K
R744
15
C768
100pF
C720
1uF
25V
R724
10K
OPT
1/16W
5%
SIDE_INCM
3:T18
C736
27pF
AV1_R_IN 5:E2
R_VID_INCM
3:T15
R701
75
R769
470K
COMP2_Pb
11:M16
IR
12:D4;14:U23
D3.3V
R764
1K
L702
270nH
D722
5.6V
ADMC5M03200L
C724
27pF
D733
ENKMC2838-T112
A1
C
A2
JP730
R723
0
C761
4700pF
D3.3V
R778
1K
+5.0V_ST
R736
2.7K
RGB_R
11:M19
COMP2_INCM
3:T22
D715
5.5V
ADLC 5S 03 015
COMP1_VID_INCM
11:M17
C743
27pF
C729
1uF
25V
D704
5.6V
ADMC5M03200L
C752
100pF
L701
BLM18PG121SN1D
COMP1_Pb 11:M18
R756
15
D703
5.5V
ADLC 5S 03 015
C753
0.1uF
PC_INCM 3:T14
R777
2.7K
R721
470K
COMP1_R_IN
5:H3
JK705
KCN-DS-1-0088
1
2
3
4
5
6
7
8
9
10
JK704
PPJ218-01
5C [RD]CONTACT
2C [RD]U_CAN
4C [RD]O_SPRING
2B [WH]U_CAN
3B [WH]C_LUG
2A [YL]U_CAN
5A [YL]CONTACT
4A [YL]O_SPRING
D732
5.5V
ADLC 5S 03 015
R771 0 OPT
R774 0
OPT
R773 0
JK701
KCN-DS-1-0089
1RED
2GREEN
3BLUE
4GND_1
5DDC_GND
6RED_GND
7GREEN_GND
8BLUE_GND
9NC
10 SYNC_GND
11 GND_2
12 DDC_DATA
13 H_SYNC
14 V_SYNC
15 DDC_CLOCK
16SHILED
RGB_VS
11:K10
R739
3.3K
US_Commercial
+5.0V
RGB_G
11:M19
R754
15
IC702
74F08D
3
Q0
2
D0B
4
D1A
1
D0A
6
Q1
5
D1B
7
GND 8Q2
9D2A
10 D2B
11 Q3
12 D3A
13 D3B
14 VCC
C762
0.1uF
D710
5.6V
ADMC5M03200L
JP720
D713
30V
ADUC30S03010L
R710
100
R766
22
C760
0.1uF
BCM_SPDIF_OUT
11:W20
D707
5.6V
ADMC5M03200L
R770
470K
D709
5.6V
ADMC5M03200L
AV1_CVBS_IN 5:E2
C731
1uF
25V
C748
27pF
TP4
RS232C_TxD 14:X7
D731
5.5V
ADLC 5S 03 015
C767
100pF
C703 0.1uF
R753
1K
D724
30V
ADUC30S03010L
R707
2.7K
JK703
PEJ024-01
6B T_TERMINAL2
8SHIELD_PLATE
7B B_TERMINAL2
5T_SPRING
4R_SPRING
7A B_TERMINAL1
6A T_TERMINAL1
3
E_SPRING
COMP2_VID_INCM
11:M16 DDC_SCL 12:E5
D3.3V
COMPOSITE1_SW
9:H5
JP729
R761 22
R726
100
D730
5.6V
ADMC5M03200L
R748
470K
D718
5.5V
ADLC 5S 03 015
+3.3V_ST
C747
100pF
R750
2.7K
D701
5.6V
ADMC5M03200L
JP732
C757
47pF
C751
100pF
RGB_HS
11:K10
R745
15
SIDE_R_IN
5:J4
C749
27pF
C766
100pF
COMP1_L_IN
5:H3
D717
5.5V
ADLC 5S 03 015
R759-*1
1K
RGB_HV_1K
R741
15
C717
220pF
R740
1K
R737
100
C750
27pF
R735
100K
US_Commercial
RGB_B
11:M18 L708-*1
0RGB_0OHM
D725
30V
ADUC30S03010L
C712
1uF
25V
PC_L_IN
5:J4
R755
15
R722
470K
C702
0.1uF
D727
30V
ADUC30S03010L
R704
100
D714
5.5V
ADLC 5S 03 015
JK700
PPJ227-01
9N [GN]E-LUG
5K [GN]O-SPRING-L
6K [GN]CONTACT-L
4E [GN]O-SPRING-S
3E [GN]CONTACT-S
9M [BL]E-LUG
7J [BL]C-LUG-L
8D [BL]C-LUG-S
9L [YL]E-LUG
4L [YL]O-SPRING-S
3L [YL]CONTACT-S
7H [RD]C-LUG-L
8C [RD]C-LUG-S
9G [WH]E-LUG
8M [WH]C-LUG-S_1
7G [WH]C-LUG-L
8B [WH]C-LUG-S_2
9F [RD]E-LUG
4N [RD]O-SPRING-S_1
3N [RD]CONTACT-S_1
5F [RD]O-SPRING-L
6F [RD]CONTACT-L
4A [RD]O-SPRING-S_2
3A [RD]CONTACT-S_2
D716
5.6V
ADMC5M03200L
C723
27pF
R775
100
R716
0
D723
30V
ADUC30S03010L
R734 5.1
TP3
R712
2.7K
COMP1_Pr 11:M18
COMP2_SW
9:H4
C739
100pF
+5.0V_ST
R738
100
R730
470K
C718
220pF
C701
0.1uF
SIDE_L_IN 5:J4
B_VID_INCM
3:T15
D3.3V
JK702
JST1223-001
1
GND
2
VCC
3
VINPUT
4
FIX_POLE
COMPOSITE2_SW
9:H6
L703
270nH
R702
470K
C719
1uF
25V
C741
27pF
C721
100pF
C704
0.1uF
R720
1K
R776
100
R733
100K
US_Commercial
C722
100pF
R714
100
R762
10K
COMP2_L_IN 5:H3
C737
27pF
L707
270nH
L710-*1
0RGB_0OHM
C716
47pF
50V
OPT
R729
75
+5.0V_ST
L709
120ohm
BG1608B121F
C708
100pF
C715
100pF
+5.0V
C742
27pF
R711
1K
R725
100
R761-*1
1K
RGB_HV_1K
COMP1_SW
9:H4
D719
5.6V
ADMC5M03200L
C764
1uF
25V
AV1_INCM 3:T20
SIDE_CVBS_INCM 3:T19
R727
3.3K
OPT
JP722
TP1
R715
15
D708
5.6V
ADMC5M03200L
TP2
R752
100
R708
470K
C713
100pF
R717
0
TP5
R765
4.7K
TP7
R728 5.1
C758
47pF
R759 22
R742
220
D706
5.5V
ADLC 5S 03 015
R767 5.1
JP721
R747
470K
R703
100
C726
47pF
C744
1uF
25V
C707
1uF
25V
D728
30V
OPT
ADUC30S03010L
COMP2_R_IN 5:H3
IC701
MAX3232CDR
3
C1-
2
V+
4
C2+
1
C1+
6
V-
5
C2-
7
DOUT2
8
RIN2 9ROUT2
10 DIN2
11 DIN1
12 ROUT1
13 RIN1
14 DOUT1
15 GND
16 VCC
RS232C_RxD 14:X8
D702
5.6V
ADMC5M03200L
TP6
MDS61887701
GAS1
MDS61887701
GAS2
MDS61887701
GAS3
MDS61887701
GAS4
MDS61887701
GAS5
MDS61887701
GAS6
117
TxD
RxD
AV
COMPONENT1/2,AV1
COMPONENT1 COMPONENT2
RS-232C
SIDE_AV
INCM
PC AUDIO
SPDIF OPTIC JACK
Place this INCM
near connector
Run alongG, B, R traces
Run alongY, PB, Pr traces
R,G,B PC INPUT
SMD Gasket Option
ABCDEFGHIJ
1
2
3
4
5
6
7
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2009.01.20

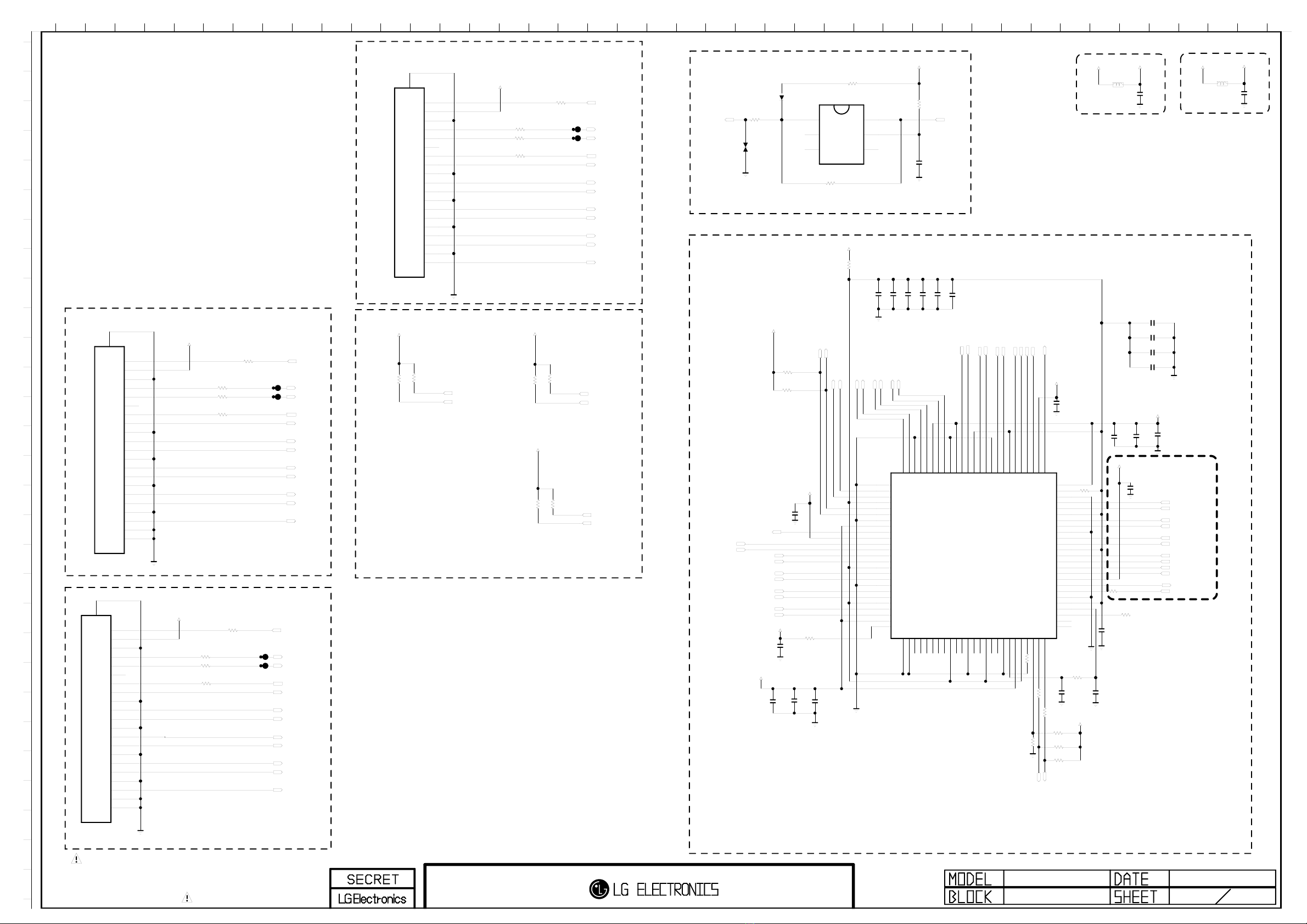

HDMI INPUT
BRAZIL DVR DV
HPD1
Y13
R634
47K
C604
0.1uF
D2-_HDMI4
AE19
HDMI0_RXC-_BCM 11:W17
+5.0V
5V_HDMI_2
R628
0
C621
0.1uF
CK-_HDMI2
D2-_HDMI2
AL14
D2-_HDMI2
CK-_HDMI1
R618 0
DDC_SDA_4
R14;AG19
JK501
QJ41193-CFEE1-7F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
C623
0.1uF
C629
0.1uF
C622
0.1uF
CEC_REMOTE
H17;R26;W27;AL11
C608
0.1uF
D0+_HDMI4
R671 0
R658
0
D2-_HDMI1
Y10
CK+_HDMI4
D0-_HDMI4
D601
MMBD301LT1G
D1+_HDMI1
Y11
R677
0
GND
VR607
AVRL161A1R1NT
HDMI0_RX2+_BCM 11:W16
IC601
TDA9996HL
1
VSS_1
2
OUT_C+
3
OUT_C-
4
VDDO[3V3]
5
OUT_DDC_CLK
6
OUT_DDC_DAT
7
VSS_2
8
VDDC[1V8]_1
9
RXA_HPD
10
RXA_5V
11
RXA_DDC_DAT
12
RXA_DDC_CLK
13
RXA_C-
14
RXA_C+
15
VDDH[3V3]_1
16
RXA_D0-
17
RXA_D0+
18
VSS_3
19
RXA_D1-
20
RXA_D1+
21
VDDH[3V3]_2
22
RXA_D2-
23
RXA_D2+
24
VDDH[1V8]_1
25
NC
26
VSS_4
27
TEST
28
RXB_HPD
29
RXB_5V
30
RXB_DDC_DAT
31
RXB_DDC_CLK
32
RXB_C-
33
RXB_C+
34
VDDH[3V3]_3
35
RXB_D0-
36
RXB_D0+
37
VSS_5
38
RXB_D1-
39
RXB_D1+
40
VDDH[3V3]_4
41
RXB_D2-
42
RXB_D2+
43
VSS_6
44
CDEC_DDC
45
VDDC[1V8]_2
46
VDDC[3V3]
47
MODE
48
PD
49
SDA/SEL1
50
SCL/SEL0
51 XTAL_IN
52 XTAL_OUT
53 INT/HP_CTRL
54 CDEC_STBY
55 VDDS[3V3]
56 VSS_7
57 CEC
58 RXC_HPD
59 RXC_5V
60 RXC_DDCC_DAT
61 RXC_DDC_CLK
62 RXC_C-
63 RXC_C+
64 VDDH[3V3]_5
65 RXC_D0-
66 RXC_D0+
67 VSS_8
68 RXC_D1-
69 RXC_D1+
70 VDDH[3V3]_6
71 RXC_D2-
72 RXC_D2+
73 VSS_9
74 R12K
75 VDDH[1V8]_2
76 RXD_HPD
77 RXD_5V
78 RXD_DDC_DAT
79 RXD_DDC_CLK
80 RXD_DC-
81 RXD_DC+
82 VDDH[3V3]_7
83 RXD_D0-
84 RXD_D0+
85 VSS_10
86 RXD_D1-
87 RXD_D1+
88 VDDH[3V3]_8
89 RXD_D2-
90 RXD_D2+
91 VDDC[1V8]_3
92 VSS_11
93 OUT_D2+
94 OUT_D2-
95 VDDO[1V8]
96 OUT_D1+
97 OUT_D1-
98 VSS_12
99 OUT_D0+
100 OUT_D0-
D0+_HDMI1
CK-_HDMI2
AL12
D2+_HDMI1
C625
0.1uF
R639 0
R675
OPT
0
GND
R657
47K
GND
C607
0.1uF
JP604
L601
BLM18PG121SN1D
JP605
D1+_HDMI4
AF19
DDC_SCL_1
HDMI0_RX1-_BCM 11:W16
DDC_SDA_1
+3.3V_HDMI
CK+_HDMI1
HDMI0_RX1+_BCM 11:W16
R668 0
R655
47K
R606 0
C614
0.1uF
R665
0
R663
0
CEC_REMOTE
H8;H17;R26;AL11
C606
0.1uF
HDMI_SDA
DDC_SDA_2
C615
0.1uF
+1.8V_HDMI
HPD4
R616 0
+1.8V_AMP
D1+_HDMI2
AL13
C611
0.1uF
C627
0.1uF
D1-_HDMI1
Y11
DDC_SCL_2
CK+_HDMI1
Y12
HDMI_CEC
12:F6
JK500
QJ41193-CFEE1-7F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
DDC_SCL_4
R13;AG19
HPD1
DDC_SCL_4
R641
0
HPD2
D0+_HDMI1
Y11
C605
0.1uF
HPD2
AL11
HDMI0_RX0+_BCM 11:W17
DDC_SDA_1
D3.3V
D2+_HDMI2
C613
0.1uF
DDC_SDA_4
D1-_HDMI4
CK-_HDMI1
Y12
C612
0.1uF
CK+_HDMI2
AL12
R656
47K
JP606
CEC_REMOTE
H8;R26;W27;AL11
DDC_SCL_2
C628
0.1uF
R670 0
5V_HDMI_2
DDC_SCL_2
R17;AL12
DDC_SCL_1
M17;X12
CK+_HDMI4
AG19
R627
0
C610
0.1uF
JP603
D2+_HDMI4
+5.0V
D1+_HDMI1
C626
0.1uF
SDA1_3.3V
5:G5;16:G14
R605 0
DDC_SDA_2
R18;AL12
+3.3V_HDMI
JP602
R672
OPT4.7K
5V_HDMI_2
P19;AJ15
HDMI_SCL
L602
BLM18PG121SN1D
C616
0.1uF
R666
68K
R673
OPT
4.7K
CEC_REMOTE
+3.3V_ST
CK-_HDMI4
+1.8V_HDMI
5V_HDMI_4
D2+_HDMI2
AL14
R661
1.8K
D0-_HDMI2
AL13
DDC_SCL_4
R635
47K
D0+_HDMI4
AF19
D1-_HDMI2
D1+_HDMI4
D0-_HDMI4
AF19
5V_HDMI_1
D0+_HDMI2
CK-_HDMI4
AG19
5V_HDMI_1
HDMI0_RX2-_BCM 11:W16
Q601
SSM6N15FU
3DRAIN2
2GATE1
1SOURCE1
4
SOURCE2
5
GATE2
6
DRAIN1
DDC_SCL_1
R662
1.8K
DDC_SDA_2
5V_HDMI_4
Q16;AH18
D2+_HDMI4
AE19
SCL1_3.3V
5:G5;16:G14
R642 0
C619
0.1uF
R653
47K
R667
9.1K
R664
0
OPT
DDC_SDA_4
GND
D1+_HDMI2
CEC_REMOTE
H8;H17;W27;AL11
+3.3V_HDMI
C620
0.1uF
DDC_SDA_1
M18;X13
R676
12K
HDMI0_RX0-_BCM 11:W17
HPD4
AH19
D0-_HDMI1
D1-_HDMI4
AF19
D0-_HDMI2
GND
R669
0
JP601
R617 0
D2-_HDMI4
D1-_HDMI1
C624
0.1uF
HDMI0_RXC+_BCM 11:W17
5V_HDMI_4
C617
0.1uF
D2-_HDMI1
D2+_HDMI1
Y10
+1.8V_HDMI
D1-_HDMI2
AL13
JK503
KJA-ET-0-0032
14 NC
13 CEC
5DATA1_SHIELD
20
JACK_GND
12 CLK-
11 CLK_SHIELD
2DATA2_SHIELD
19 HPD
18 +5V_POWER
10 CLK+
4DATA1+
1DATA2+
17 DDC/CEC_GND
9DATA0-
8DATA0_SHIELD
3DATA2-
16 SDA
7DATA0+
6DATA1-
15 SCL
R674
OPT
4.7K
5V_HDMI_1
L19;Z14 R678 0
OPT
CK+_HDMI2
C609
0.1uF
R643 0
D0-_HDMI1
Y12
D0+_HDMI2
AL13
R607 0
C618
5.6nF
217
* HDMI CEC
UI_HW_PORT1
Net Labels changed for HDMI2
UI_HW_PORT2 EDID Pull-up
VARISTORS(VR500/501/502/503/504/505/506/507) on lines-HPD1/2/3/4 are all options
HDMI S/W For MSTAR Platform
SIDE_HDMI_PORT4
in case HDMI Switch doesn’t support ’ESD protection’
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

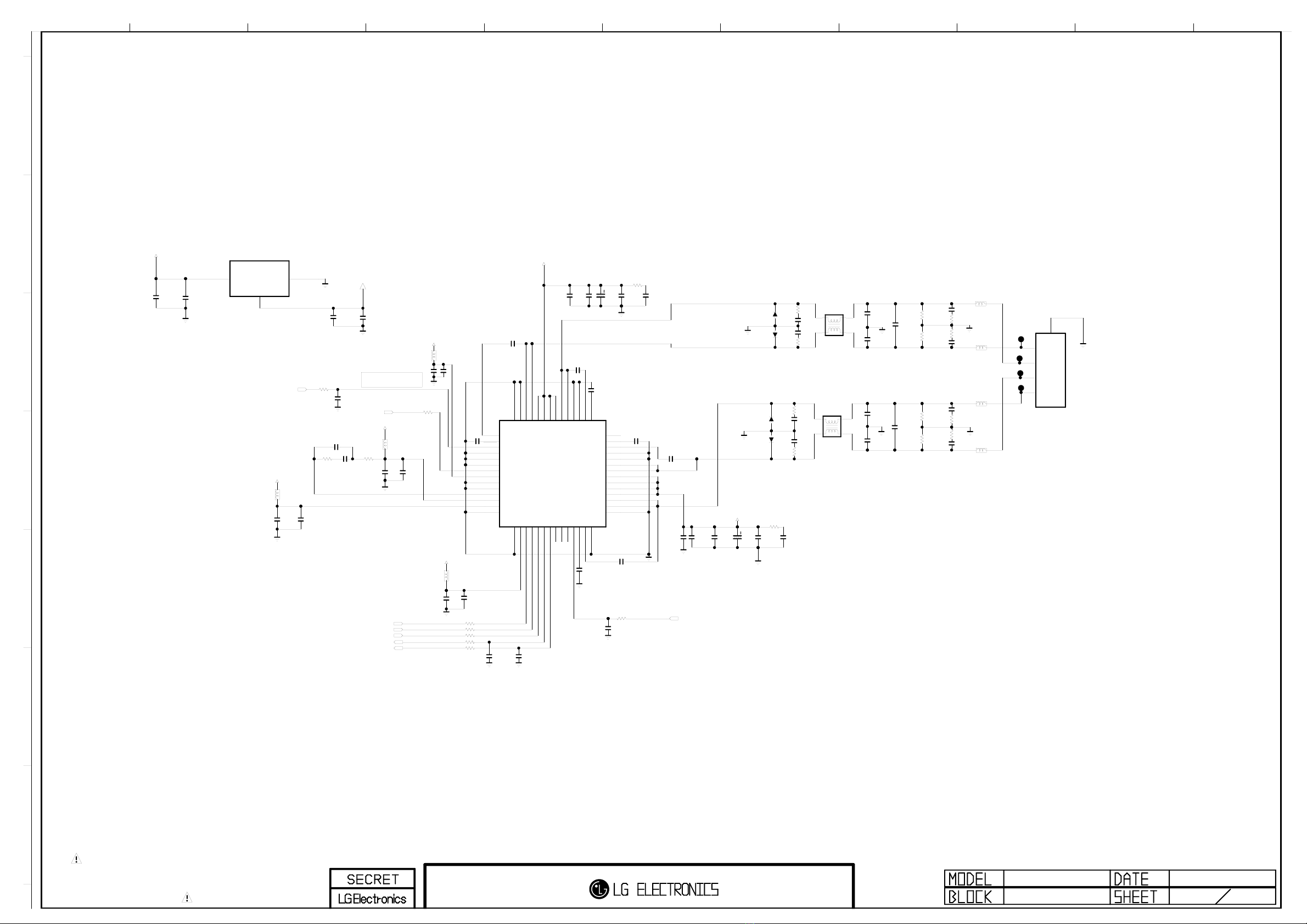

AUDIO
BRAZIL DVR DV 2009.01.20
C519
10uF
R528
100
P500
SMAW250-04Q
1SPK_R-
2SPK_R+
3SPK_L-
4SPK_L+
5
.
R522
100
+20.0V
MICOM_RESET
12:I4
C523
22000pF
C522
1uF
C504
0.1uF
C544
0.47uF
C513
330uF
R525
3.3
C532
0.1uF
R535
4.7K
R537
4.7K
C525
1uF
GND
C515
22000pF
D504
100V
1N4148W
OPT
+1.8V_AMP
R524
100
D3.3V
C505
10uF
C531
1000pF
C500
100pF
JP506
L502
BLM18PG121SN1D
R527
0
R531
5.6
C541
0.1uF
SCL1_3.3V
5:G5;16:G14
C528
0.1uF
R523
100
R538
3.3
C538
1000pF
R541
3.3
C566
33pF
L509
MLB-201209-0120P-N2
C512
22000pF
IC500
NTP-3100L
1
BST1A
2
VDR1A
3
RESET
4
AD
5
DVSS_1
6
VSS_IO
7
CLK_I
8
VDD_IO
9
DGND_PLL
10
AGND_PLL
11
LFM
12
AVDD_PLL
13
DVDD_PLL
14
TEST0
15
DVSS_2
16
DVDD
17
SDATA
18
WCK
19
BCK
20
SDA
21
SCL
22
MONITOR_0
23
MONITOR_1
24
MONITOR_2
25
FAULT
26
VDR2B
27
BST2B
28
PGND2B_1
29 PGND2B_2
30 OUT2B_1
31 OUT2B_2
32 PVDD2B_1
33 PVDD2B_2
34 PVDD2A_1
35 PVDD2A_2
36 OUT2A_1
37 OUT2A_2
38 PGND2A_1
39 PGND2A_2
40 BST2A
41 VDR2A
42 NC
43 VDR1B
44 BST1B
45 PGND1B_1
46 PGND1B_2
47 OUT1B_1
48 OUT1B_2
49 PVDD1B_1
50 PVDD1B_2
51 PVDD1A_1
52 PVDD1A_2
53 OUT1A_1
54 OUT1A_2
55 PGND1A_1
56 PGND1A_2
C518
0.1uF
D503
100V
1N4148W
OPT
C526
0.1uF
C520
0.01uF
C543
0.47uF
C507
0.1uF
L508
MLB-201209-0120P-N2
L500
BLM18PG121SN1D
C539
0.1uF
C501
1000pF
L510
MLB-201209-0120P-N2
C529
0.1uF
C509
1uF
10V
C503
0.1uF
C506
0.1uF
BCM_I2S_LRCLK_OUT
11:V25
+1.8V_AMP
C521
1uF
L503
BLM18PG121SN1D
IC504
AZ1117H-1.8TRE1(EH13A)
2
OUTPUT
3
INPUT 1ADJ/GND
D3.3V
R526
100
JP504
C564
0.01uF
C537
1000pF
C542
0.1uF
JP503
R536
4.7K
MUTE1 12:G3
R532
5.6
C534
10uF
L501
BLM18PG121SN1D
C530
0.01uF
D501
100V
1N4148W
OPT
C527
330uF
C565
33pF
R530
5.6
C552
10uF
C540
0.1uF
C547
0.01uF
R542
100
C508
33pF
R529
100
L504
DA-8580
22uH
2S
1S 1F
2F
+1.8V_AMP
D502
100V
1N4148W
OPT
C567
0.1uF
R539
3.3
BCM_I2S_DATA_OUT
11:V25
C517
0.1uF
R556
0
R533
5.6
R534
4.7K
SDA1_3.3V
5:G5;16:G14
C535
1000pF
C514
0.1uF
C536
1000pF
C548
0.01uF
C524
22000pF
L506
DA-8580
22uH
2S
1S 1F
2F
C533
10uF
BCM_AUD_MCLK
9:H6
L511
MLB-201209-0120P-N2
BCM_I2S_SCLK_OUT
11:V26
R501
3.3
C546
0.01uF
JP505
R521
3.3K
+1.8V_AMP
C545
0.01uF
+20.0V
R540
3.3
C516
0.1uF
3 17
IIC CH4
0x54
MCLK : 12.288MHz
ABCDEFGHIJ
1
2
3
4
5
6
7
This manual suits for next models
1
Table of contents
Other LG LCD TV manuals
LG
LG 37LE5500 User manual
LG
LG 55LW6500 User manual
LG
LG 26LC7D Series User manual
LG
LG 19LS4R Series User manual
LG
LG 32LX50C User manual
LG
LG 37LG710H User manual
LG
LG 323DCH - 32In Wide Lcd Hdtv Spk 1366X768 Hospital... User manual
LG
LG 47LM7600 User manual
LG
LG 47LV3700UD User manual
LG
LG 32LD420-SA User manual
