LG 42LB1DRA User manual

42" LCD Integrated HDTV
with Built-in HD DVR
• Built-in HD DVR (160 GB)
• TV Guide On Screen®
• 14-Bit Color Processor
• 1600:1 Contrast Ratio
• 60,000 Hours to Half Brightness
• Digital Cable Ready (CableCARD™)
• XD Engine™
• ATSC/NTSC/QAM Clear Tuners
• Super IPS Technology
• HDMI with HDCP
• 1366 x 768p Resolution
Built-in HDTV Digital Video Recorder (DVR)
Record from cable or antenna to a built-in 160 GB hard disk drive with
TV Guide On Screen®interactive program guide.
LG’s Exclusive XD EngineTM
Six distinct processes contribute to picture improvement. LG’s XD Engine
takes the low resolution of analog signals to near HD levels by improving
brightness, contrast, detail and enhancing color as well as reducing signal
noise. This total solution results in cinema-like high resolution images.
Super IPS Technology
Reduces common distortion and blurring caused by fast motion video
and also provides one of the industry’s widest viewing angles (178˚).
42LB1DRA

System
ATSC/NTSC/QAM Tuners •
Digital Cable Ready (DCR) •
Program Guide Type TV Guide On Screen
Digital Video Recorder (DVR) 160GB
Video
Native Display Resolution 1366 x 768p
Contrast Ratio 1600:1
Brightness 500 cd/m2
Lifetime 60,000 hours*
Viewing Angle 178º x 178º
Super IPS •
Response Time (Grey to Grey) 8ms
Comb Filter 3D Y/C
Color Temperature Adjustment 3 Modes
Aspect Ratio Adjustment 7 Modes
3:2 Pull-down Cinema Correction 480i
EZ Video/Picture Selection Mode 5 Modes
XD Engine •
Black Stretcher (Black Level Enhancer) •
DTV Signal Strength Indicator •
Displayable Colors 68.7 Billion
Color Processor 14 Bit
Noise Reduction (Video Noise Filter) 3D
Decoder Formats MPEG2
Screen Pitch 0.681 (Pixel Pitch)
DVR Features
HDD Size 160GB
Time Shift Recording •
Record Time (HD) 15 Hours
Record Time(SD) Up to 66 Hours
One-Touch and Series Recording •
Manual Recording •
Record signal of external AV equipment Composite
Audio
Audio Output Power 30W (15W x 2)
Speaker System Details 2 Way 4 Speaker
Surround System Type SRS TruSurround
3D EchoSound System •
BBE •
Bass/Treble/Balance •
EZ SoundRite (Volume Leveler) •
EZ Sound/Sound Selection Mode 5 Modes
Mute •
Mono/Stereo/SAP •
Cabinet/Accessories
Cabinet Style Table Top
Table Stand Included •
Cabinet Color Gloss Black
Remote Control Type Universal
Backlit Remote •
VESA Compatible •
Front Lighted Display (LED) •
Special Features
Custom Input Labels •
Defeatable Inputs •
Auto Input Detect •
Channel Block •
PIP 2 Tuner
PIP Exchange (Swap) •
PIP Move •
POP •
Split Screen •
Discrete IR Codes •
Favorite Channel Selection/Surf •
Trilingual Menus English, Spanish, French
On/Off Timer •
Sleep Timer •
Auto Off (When no video is present) •
Flashback (Previous Channel) •
Parental Control With V-Chip •
EZ Menus (High Performance Interface) •
EZ Scan (Auto Channel Programming) •
Closed Caption •
Automatic PC Screen Resolution Adjustment •
Audio/Video Inputs/Outputs
TV Rear
- Antenna In (RF) 1
- Cable In (RF) 1
- HDMI (DVI with Adapter) 2
- Digital Cable Card Slot 1
- Digital Audio Out (Optical) 1
- RS-232c In (Software Upgrade Interface & Control) 1
- Remote Control In (IR) 1
- RGB In (PC/DTV Input) 1
- Audio In (RGB / DVI with Adapter) 1
- Composite Video & Audio L/R In 1
- Composite Video & Audio L/R Out 1
- Component HD/DVD & Audio L/R In 2
- S-Video In 1
TV Side
- Composite Video & Audio L/R In 1
- S-Video In 1
Dimensions
Cabinet Dimensions without Stand
- Width x Height x Depth 46.3" x 26.4" x5.7"
- Weight Out of Package 80.8 lbs.
Cabinet Dimensions with Stand
- Width x Height x Depth 46.3" x 30.2" x 11.8"
- Weight Out of Package 99.6 lbs.
Dimensions with Packaging
- Width x Height x Depth 50.5" x 36.3" x 15.2"
- Weight In Package 110.4 lbs.
UPC 719192169753
Warranty 1 Year Parts/Labor

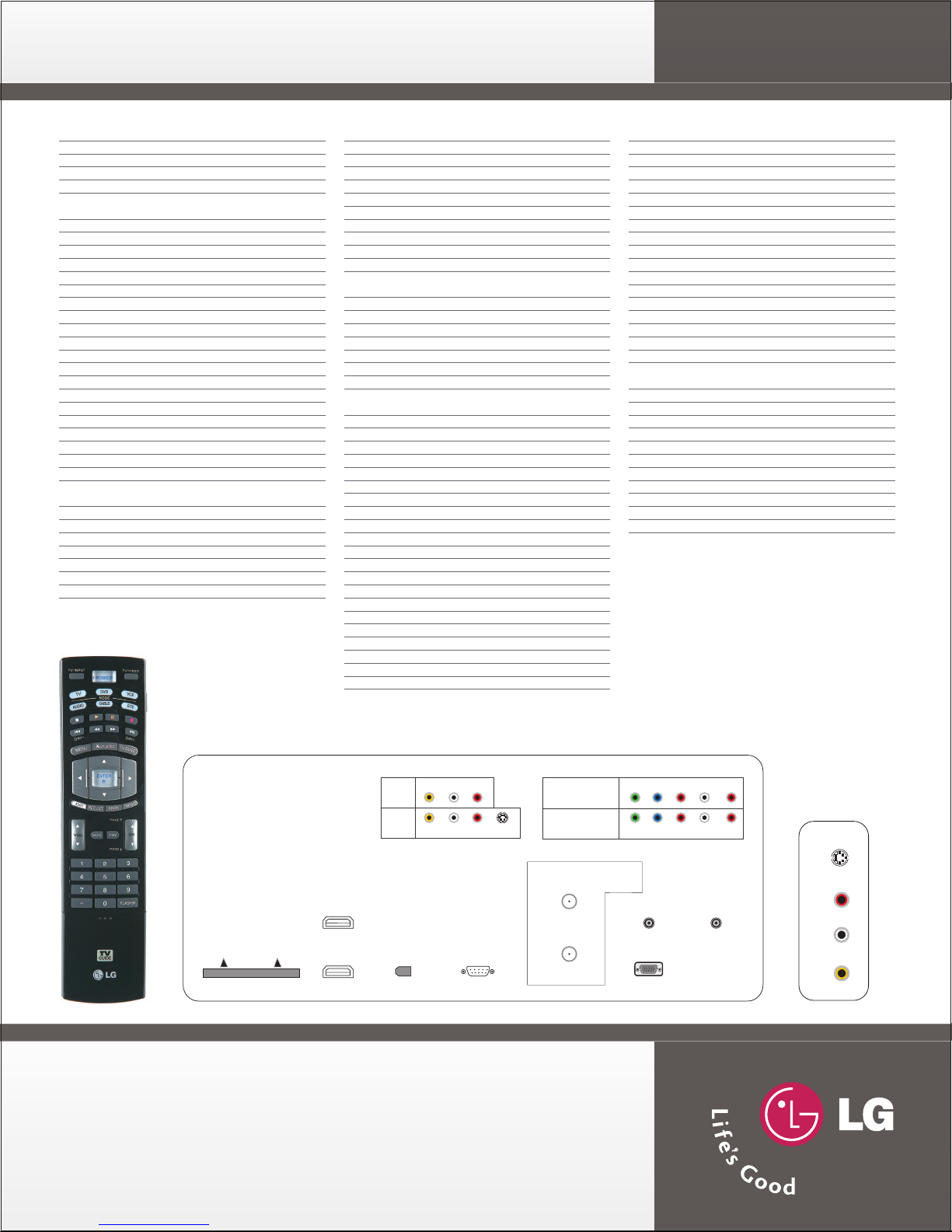

TV Rear
42LB1DRA
HDMI IN 1 (DVI)
HDMI IN 2
DIGITAL AUDIO OUT
(OPTICAL)
RS-232c IN
(CONTROL & SERVICE)
ANTENNA IN
CABLE IN
AUDIO IN (RGB/DVI) REMOTE CONTROL IN
RGB IN (PC/DTV)
AUDIO (R)(L)
AUDIO (R)(L)
AUDIO (R)(L)PrPbY
AUDIO (R)(L)PrPbY
COMPONENT IN 2
(480i, 480p, 720p, 1080i)
COMPONENT IN 1
(480i, 480p, 720p, 1080i)
S-VIDEO
VIDEO
VIDEO
AV OUT
AV IN 1
CABLE CARD
(L) - AUDIO IN - (R)
VIDEO IN S-VIDEO IN
TV Side
42" LCD Integrated HDTV
with Built-in HD DVR
* 60,000 Hours to half brightness (MTBF).
