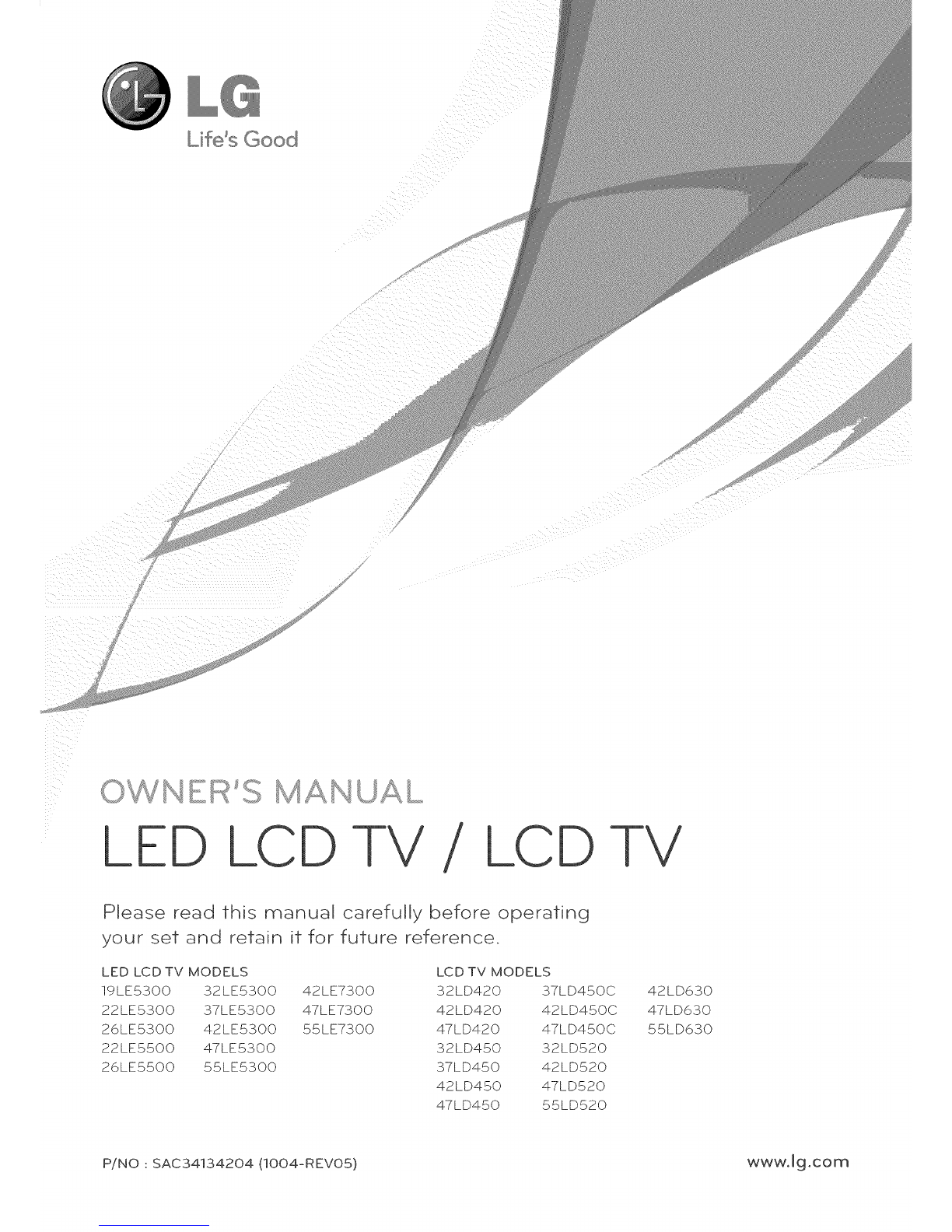

LG 42LD450C User manual

iiil kiill _i_
LCD TV /LCD -FV
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD TV MODELS LCD TV MODELS
19LE5300 32LE5300 42LE7300 32LD420
22LE5300 37LE5300 47LE7300 42LD420
26LE5300 42LE5300 55LE7300 47LD420
22LE5500 47LE5300 32LD450
26LE5500 55LE5300 37LD450
42LD450
47LD450
37LD450C
42LD450C
47LD450C
32LD520
42LD520
47LD520
55LD520
42LD630
47LD630
55LD630
P/NO :SAC34134204 (IO04-REV05) www.lg.com

WARNING /CAUTION
2
TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK; DO NOT EXPOSE THIS
PRO DUCTTO R A !N 0 R MO!STU R
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guide-
lines for proper grounding and, in particular, speci-
fies that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
WARNING /CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
Class B digital device
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable pro-
tection against harmful interference in a residen-
tial installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encour-
aged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
-Increase the separation between the equip-
ment and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two condi-
tions: (1) This device may not cause (harmful)
interference, and (2) this device must accept
any interference received, including interference
that may cause undesired operation (of the
device).
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user's authority to operate the equipment.
Do not attempt to modify this product in any
way without written authorization from LG
Electronics.
Unauthorized modification could void the user's
authority to operate this product.

SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
O Do not use this apparatus near water.
O Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the ma nufacturer's instruc-
tions.
O o not install near any heat sources such as
radiators, heat registers, stoves, or other appa-
ratus (including amplifiers) that produce heat.
0Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
0Protect the power cord from being walked
on or pinched particularly at plugs, conve-
nience receptacles, and the point where
they exit from the apparatus.
O nly use attachments/accessories speci-
fied by the manufacturer.
QUse only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
Unplug this apparatus during lighting
storms or when unused for long periods
of time.
@Refer all servicing to qualified service per-
sonnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
3

SAFETY INSTRUCTIONS
®
@
Never touch this apparatus or antenna during
a thunder or lighting storm.
When mounting a TV on the wall, make sure
not to install the TV by the hanging power
and signal cables on the back of the TV.
Do not allow an impact shock or any objects
to fall into the product, and do not drop onto
the screen with something.
CAUTION concerning the Power Cord:
It is recommend that appliances be placed
upon a dedicated circuit; that is, a single
outlet circuit which powers only that appli-
ance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain.
Do not connect too many appliances to the
same AC power outlet as this could result in
fire or electric shock.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, exten-
sion cords, frayed power cords, or damaged
or cracked wire insulation are dangerous. Any
of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indicates
damage or deterioration, unplug it, discon-
tinue use of the appliance, and have the cord
replaced with an exact replacement part by
an authorized servicer. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not use a damaged or loose power cord.
Do not pull on the power cord to unplug the
TV. Grasp the plug when unplugging the
power cord.
WARNING - To reduce the risk of fire or elec-
trical shock, do not expose this product to
rain, moisture or other liquids. Do not touch
the TV with wet hands. Do not install this
product near flammable objects such as
gasoline or candles or expose the TV to
direct air conditioning.
@Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the appara-
tus (e.g. on shelves above the unit).
0GROUNDING
Ensure that you connect the earth ground
wire to prevent possible electric shock (i.e. a
TV with a three-prong grounded AC plug
must be connected to a three-prong ground-
ed AC outlet). If grounding methods are not
possible, have a qualified electrician install a
separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas
pipes.
_ Power
Supply
Short-circuit
Breaker
@
DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The
plug must remain readily operable.
As long as this unit is connected to the AC
wall outlet, it is not disconnected from AC
power even if you turn off the power switch
on the unit.
4

ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna sys-
tem should not be located in the vicinity of
overhead power lines or other electric light or
power circuits, or where it can come in contact
with such power lines or circuits as death or
serious injury can occur.
Be sure the antenna system is grounded so as
to provide some protection against voltage
surges and built-up static charges.
Section $10 of the National Electrical Code
(NEC) in the U.S.A. provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding elec-
trodes and requirements for the grounding
electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Ground Clamp Antenna Lead in Wire
Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
NEC: National Electrical Code
Cleaning
When cleaning, unplug the power cord and
rub gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur.
Do not clean with chemicals such as alcohol,
thinners or benzene.
_ oving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take
2 or more people to carry larger TVs. Do not
press against or put stress on the front panel
of the TV.
@
Ventilation
Install your TV where there is proper ventila-
tion. Do not install in a confined space such
as a bookcase. Do not cover the product
with cloth or other materials (e.g.) plastic
while plugged in. Do not install in exces-
sively dusty places.
Take care not to touch the ventilation open-
ings. When watching the TV for a long
period, the ventilation openings may
become hot.
If you smell smoke or other odors coming
from the TV or hear strange sounds, unplug
the power cord contact an authorized service
center.
Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make a scratch on it.
_1_ Keep the product away from direct sunlight.
If the TV feels cold to the touch, there may be
a small "flicker" when it is turned on. This is
normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the monitor's performance.
Avoid touching the LCD screen or holding
your finger(s) against it for long periods of
time. Doing so may produce some tempo-
rary distortion effects on the screen.
5

CONTENTS
WARNING /CAUTION ...............................2
SAFETY INSTRUCTIONS
Important Safety Instructions .............................. _3

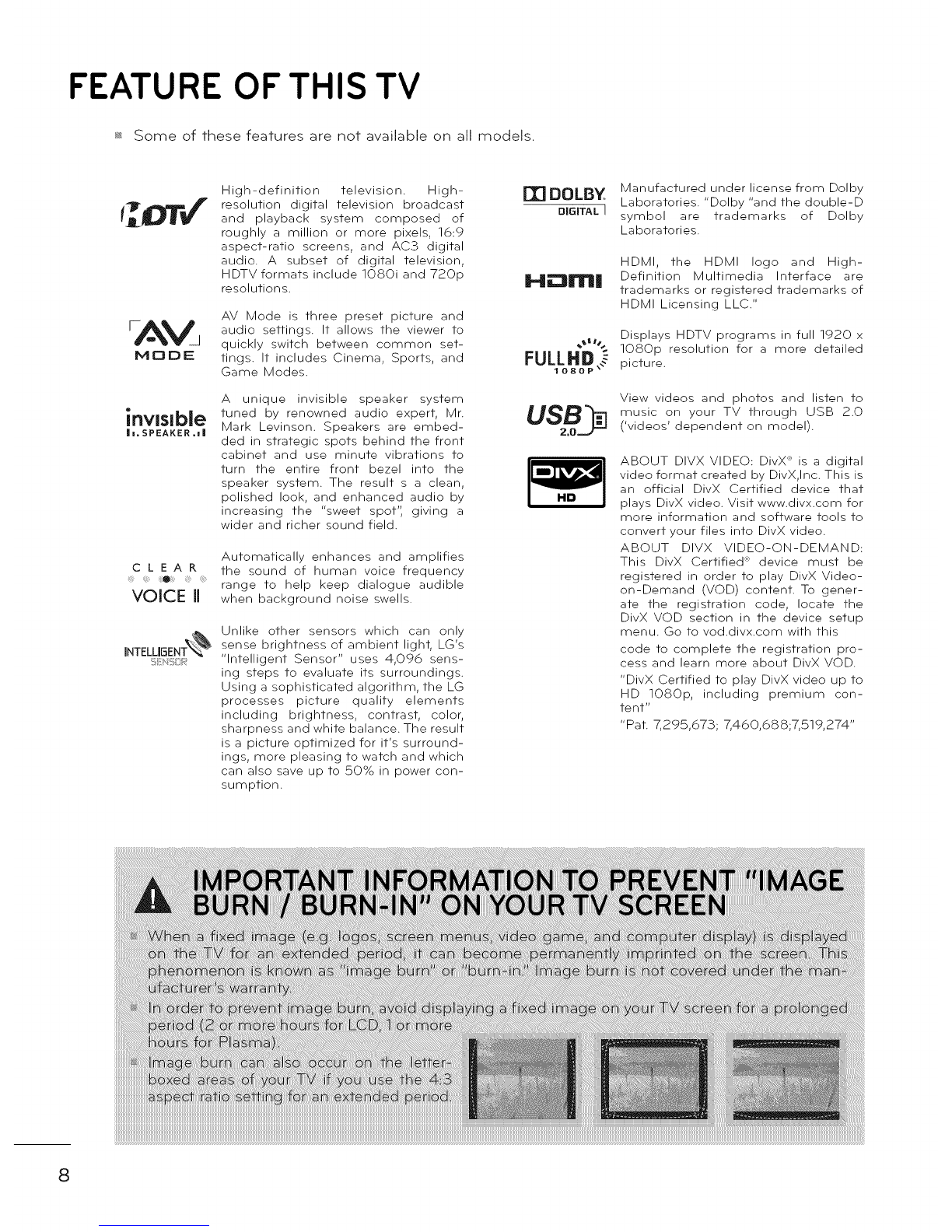

FEATURE OF THIS TV ................................8
Accessories ............................................................. 9

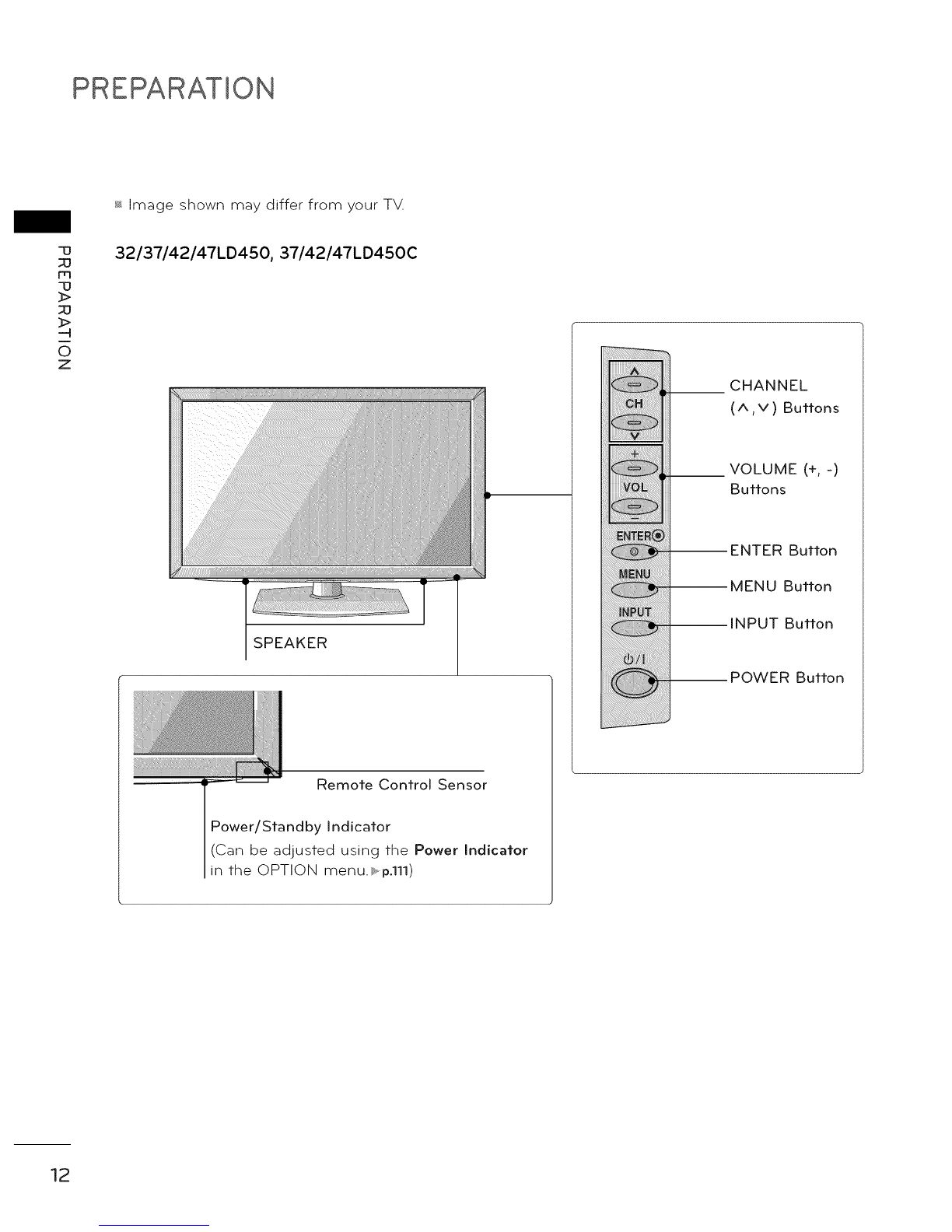

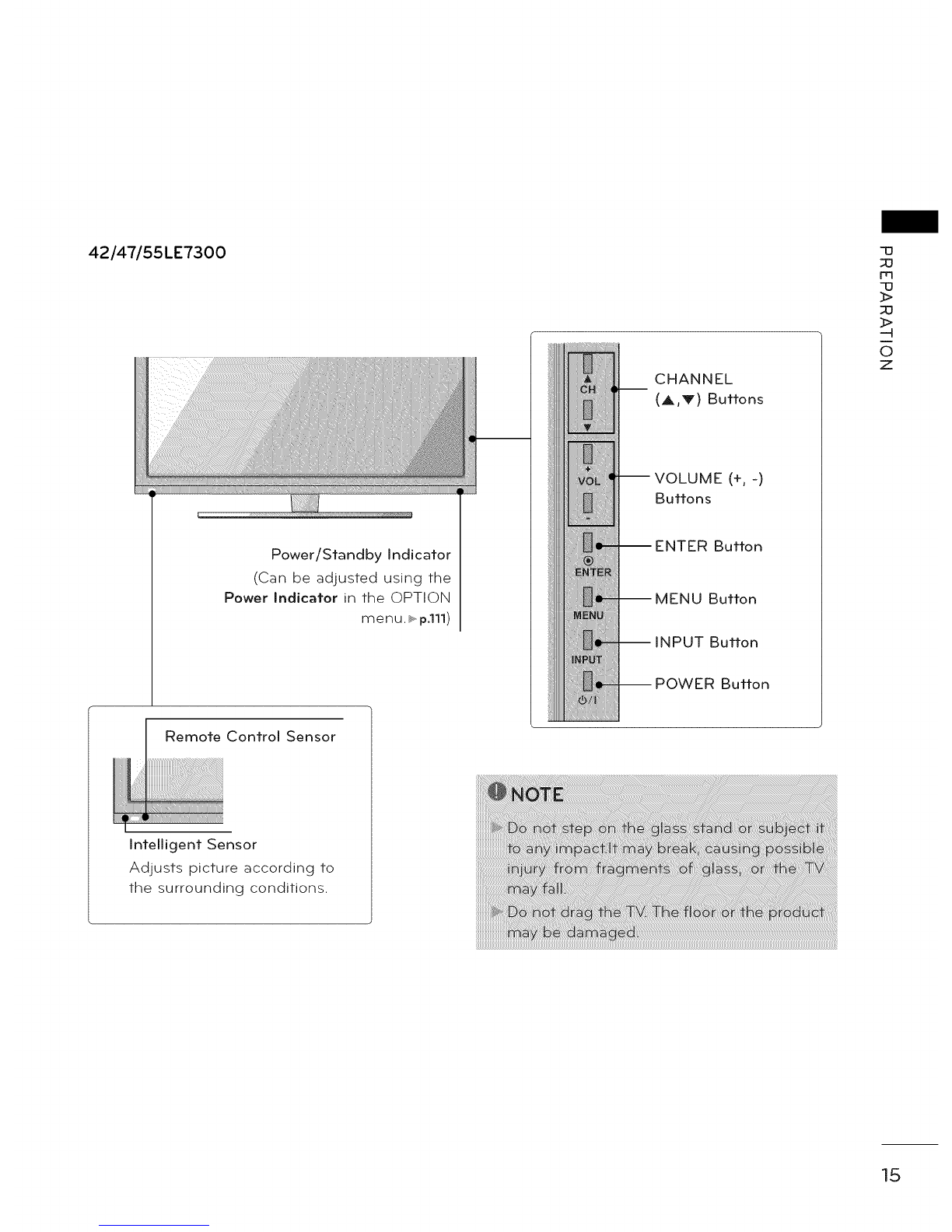

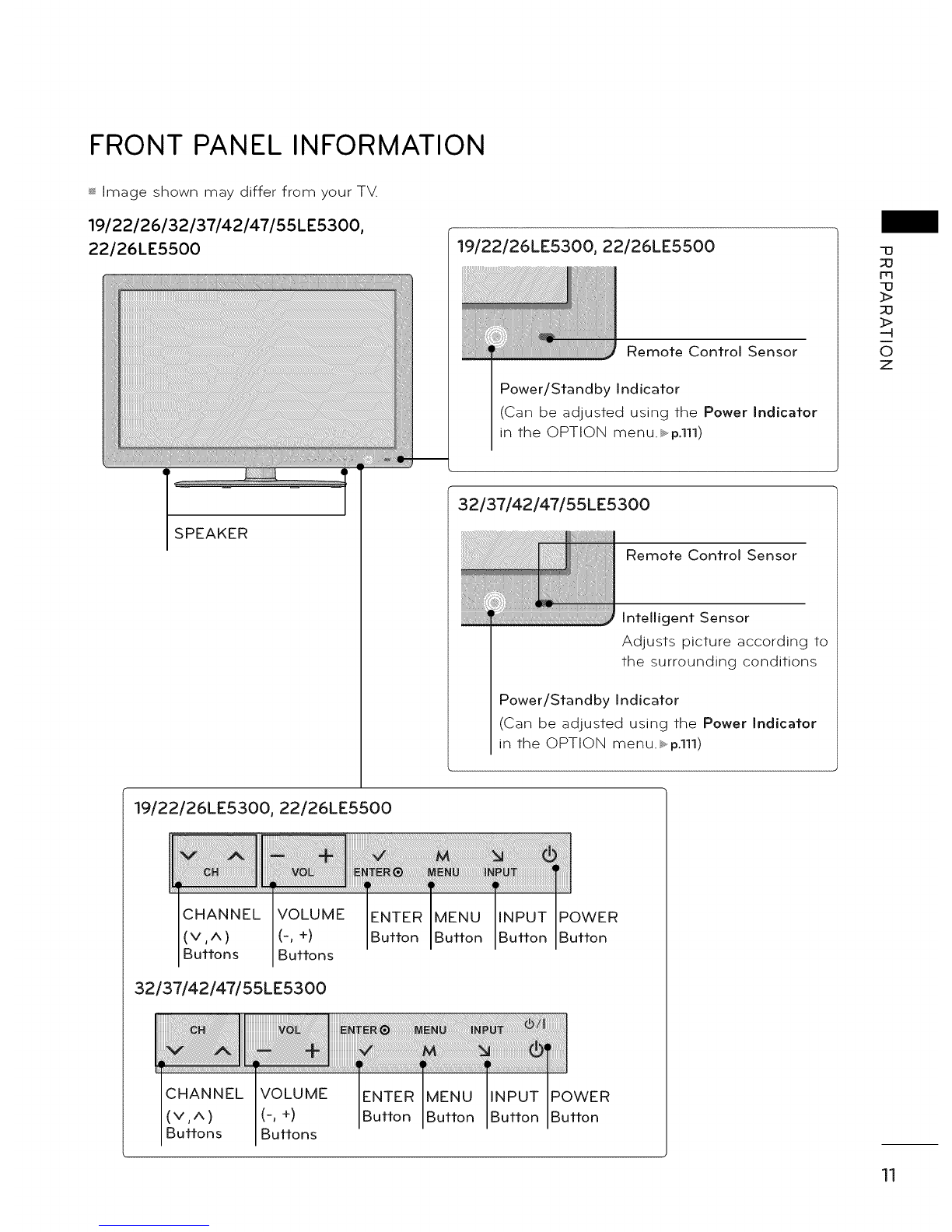

Front Panel Information ..................................... 11

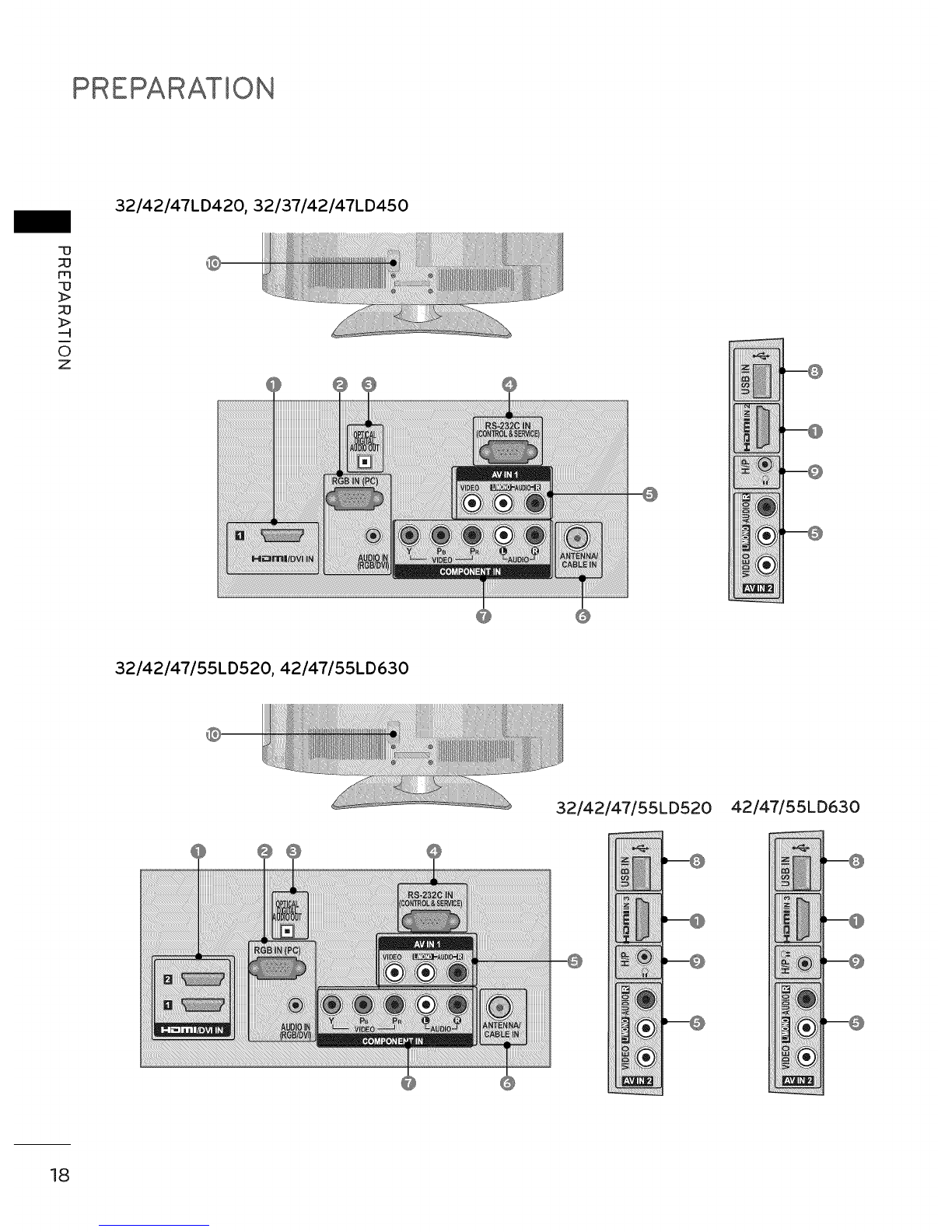

Back Panel Information ..................................... 16

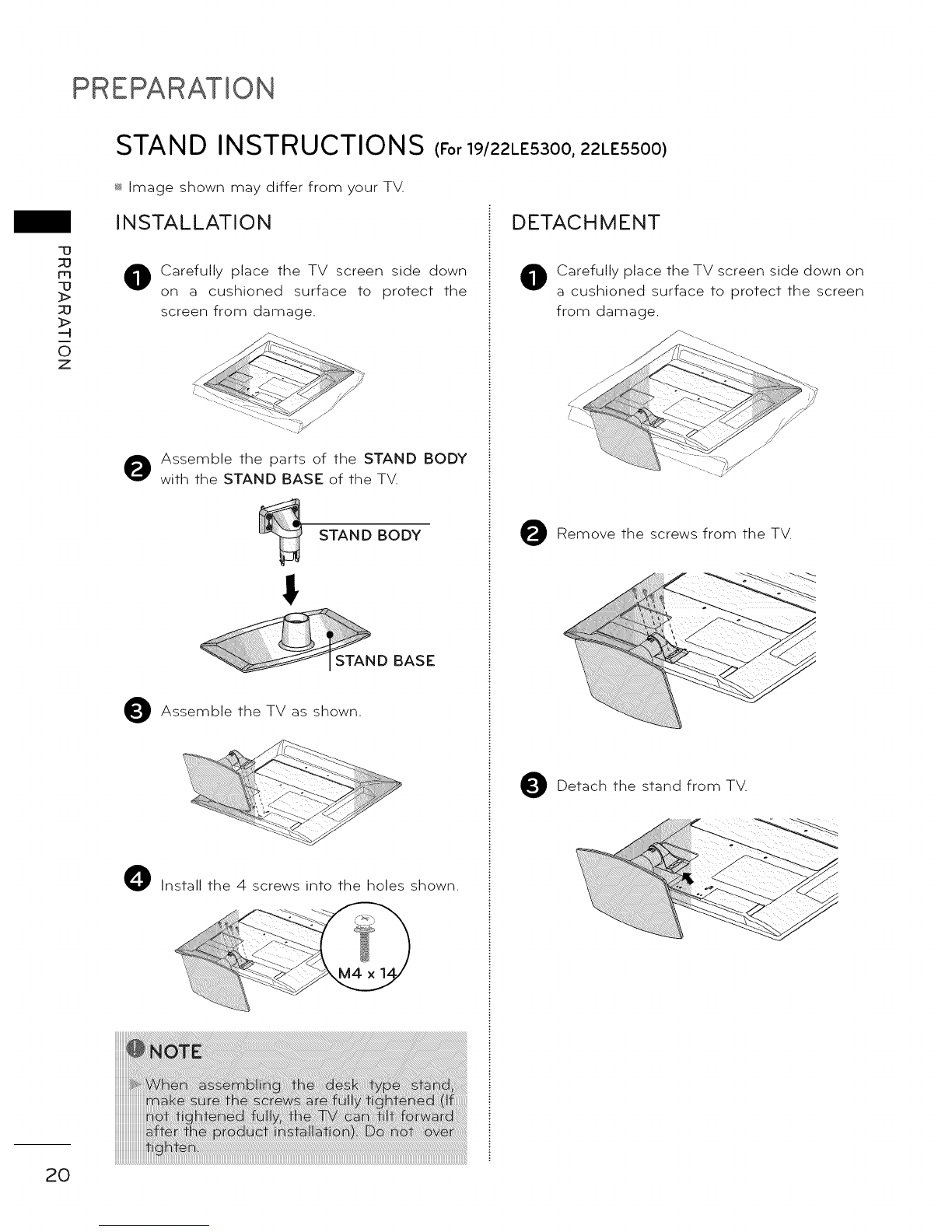

Stand Instructions ............................................... 20
VESA wall mounting ......................................... 28
Cable Management .......................................... 30
Desktop Pedestal Installation ......................... 32
Swivel Stand ........................................................ 32
Kensington Security System .......................... 32
Attaching the TV to a Desk ............................ 33
Securing the TV to the Wall to Prevent Falling
when the TV is used on a stand ................... 34
Antenna or Cable Connection ....................... 35
HD Receiver setup ............................................. 36
DVD setup ............................................................ 39
VCR SETUP .......................................................... 41
Other A/V Source Setup ................................. 42
USB Connection ................................................ 43
Headphone Setup ............................................ 43
Audio out Connection ...................................... 44
PC Setup .............................................................. 45
Remote Control Functions .............................. .52
Turning on the TV .............................................. 54
Channel Selection .............................................. .54
Volume Adjustment .......................................... 54
Initial Setting ....................................................... .55
On-Screen Menus Selection .......................... .57
Quick menu ......................................................... 59
6
Customer Support
- Picture Test /Sound Test ........................... 60
- Product/Service Info ....................................... 61
Simple Manual .................................................... 62
Channel Setup
- Auto Scan (Auto Tuning) .............................. 63
- Add/Delete Channel (Manual Tuning) .....64
- Channel Editing ............................................... 65
Favorite Channel Setup .................................... 66
Favorite Channel List ........................................ 66
Channel List ........................................................ 67
Channel Information ......................................... 68
Channel Brief Information ............................... 69
Input List .............................................................. 70
Input Label ............................................................ 71
Reset to factory default (initial Setting) ...... 72
Mode Setting ...................................................... 73
Demo Mode ........................................................ 74
AV Mode ............................................................... 75
SIMPLINK ............................................................. 76
Connection Method .......................................... 78
Entry Mode .......................................................... 79
Movie List ............................................................ SO
Photo List ............................................................. 87
Music List ............................................................. 93
DivX Registration Code .................................... 98
Deactivation ......................................................... 99
Picture Size (Aspect Ratio) Control ............ 100
Picture Wizard ................................................... 102
Energy Saving ............................................ 104
Preset Picture Settings (Picture mode) ..... 105
Manual Picture Adjustment - User Mode 106
Picture Improvement Technology (Advanced
Control) ................................................................ 107
Expert Picture Control .................................... 108
Picture Reset ........................................................ 111
Power Indicator .................................................... 111
TruMotion ............................................................ 112

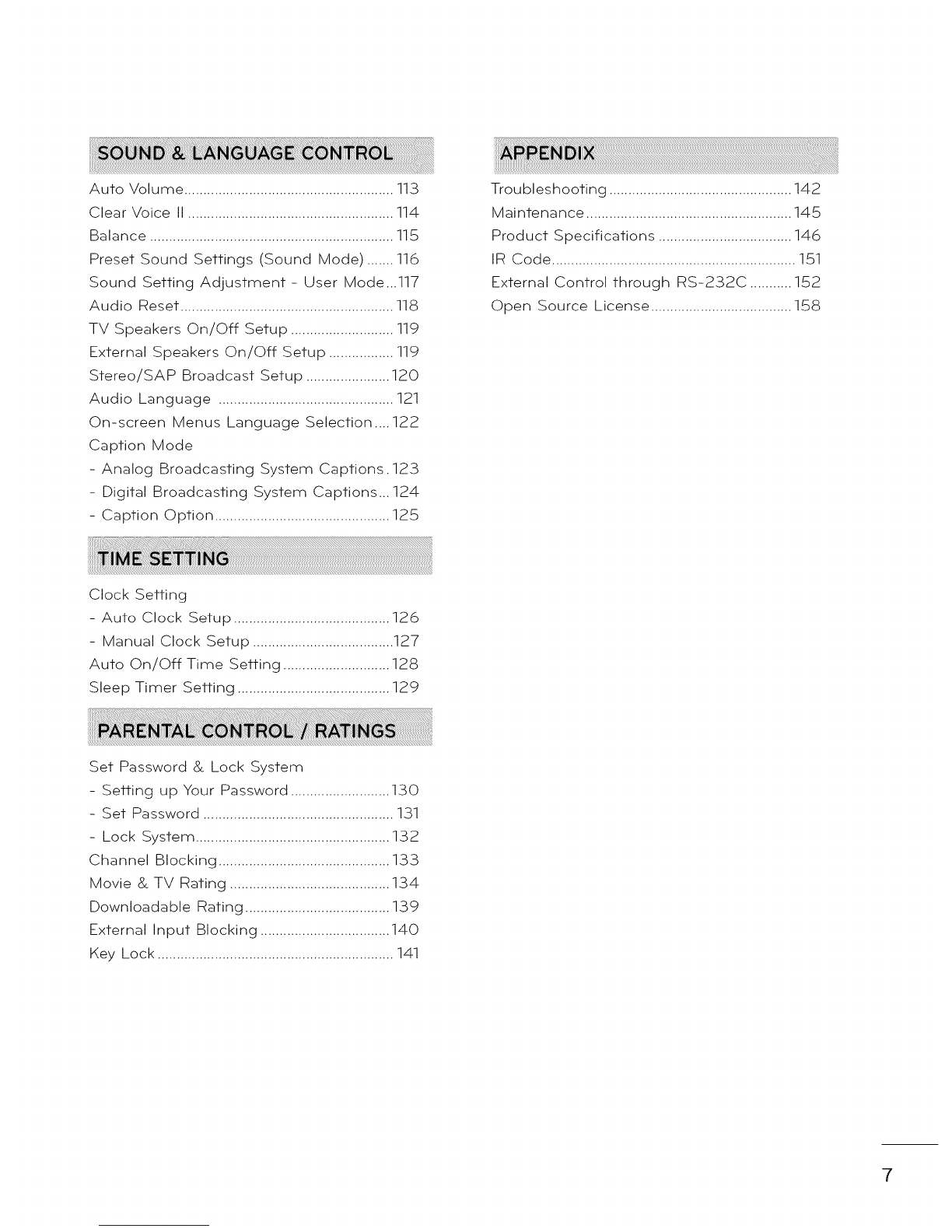

AutoVolume.......................................................113
ClearVoiceII......................................................114
Balance................................................................115
PresetSoundSettings(SoundMode).......116
SoundSettingAdjustment- UserMode...117
AudioReset........................................................118
TVSpeakersOn/Off Setup...........................119
ExternalSpeakersOn/OffSetup.................119
Stereo/SAPBroadcastSetup......................120
AudioLanguage..............................................121
On-screenMenusLanguageSelection....122
CaptionMode
- AnalogBroadcastingSystemCaptions.123
- DigitalBroadcastingSystemCaptions...124
- CaptionOption..............................................125
Troubleshooting................................................142
Maintenance......................................................145
ProductSpecifications...................................146
IRCode................................................................151
ExternalControlthroughRS-232C...........152
OpenSourceLicense.....................................158
ClockSetting
- AutoClockSetup.........................................126
- ManualClockSetup.....................................127
AutoOn/OffTimeSetting............................128
SleepTimerSetting........................................129
SetPassword& LockSystem
- SettingupYourPassword..........................130
- SetPassword..................................................131
- LockSystem...................................................132
ChannelBlocking.............................................133
Movie&TVRating..........................................134
DownloadableRating......................................139
ExternalInputBlocking..................................140
KeyLock..............................................................141
7

FEATURE OF THIS TV
_ Some of these features are not available on all models.
CLEAR
VOICE II
High-definition television. High-
resolution digital television broadcast
and playback system composed of
roughly a million or more pixels, 16:9
aspect-ratio screens, and AC3 digital
audio. A subset of digital television,
HDTV formats include lOSOi and 720p
resolutions.
AV Mode is three preset picture and
audio settings. It allows the viewer to
quickly switch between common set-
tings. It includes Cinema, Sports, and
Game Modes.
A unique invisible speaker system
tuned by renowned audio expert, Mr.
Mark Levinson. Speakers are embed-
ded in strategic spots behind the front
cabinet and use minute vibrations to
turn the entire front bezel into the
speaker system. The result s a clean,
polished look, and enhanced audio by
increasing the "sweet spot", giving a
wider and richer sound field.
Automatically enhances and amplifies
the sound of human voice frequency
range to help keep dialogue audible
when background noise swells.
Unlike other sensors which can only
sense brightness of ambient light, LG's
"Intelligent Sensor" uses 4,096 sens-
ing steps to evaluate its surroundings.
Using a sophisticated algorithm, the LG
processes picture quality elements
including brightness, contrast, color,
sharpness and white balance. The result
is a picture optimized for it's surround-
ings, more pleasing to watch and which
can also save up to 50% in power con-
sumption.
FT1DOLBY
DIGITAL I
H_::Bm|
FULL
USB_
Manufactured under license from Dolby
Laboratories. "Dolby "and the double-D
symbol are trademarks of Dolby
Laboratories.
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trademarks of
HDMI Licensing LLC."
Displays HDTV programs in full 1920 x
1080p resolution for a more detailed
picture.
View videos and photos and listen to
music on your TV through USB 2.0
('videos' dependent on model).
ABOUT DIVX VIDEO: DivX _ is a digital
video format created by DivX,Inc. This is
an official DivX Certified device that
plays DivX video. Visit www.divx.com for
more information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified _ device must be
registered in order to play DivX Video-
on-Demand (VOD) content. To gener-
ate the registration code, locate the
DivX VOD section in the device setup
menu. Go to vod.divx.com with this
code to complete the registration pro-
cess and learn more about DivX VOD.
"DivX Certified to play DivX video up to
HD lOSOp, including premium con-
tent"
"Pat. 7,295,673; 7,460,688;7,519,274"
8

PREPARATION
ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please con-
tact the dealer where you purchased the TV.
The accessories included may differ from the images below.
q0
;o
m
q3
;O
-4
0
Z
Owner's Manual CD Manual Remote Control,
Batteries (AAA)
Not included with all models
Polishing Cloth
Wipe spots on the exterior only with the
polishing cloth.
Do not wipe roughly when removing
stains. Excessive pressure may cause
scratches or discoloration. D-sub 15 pin Cable
When using the VGA (D-sub 15
pin cable) PC connection, the user
must use shielded signal interface
cables with ferrite cores to main-
tain standards compliance.
(For 26LE5300,
26LE5500)
x4 x4
(M4 x 14) (M4 x 20)
Screws for stand assembly
(Refer to R20, 22) Cable Holder
(Refer to p.31)
(For 26LE5300,
26LE5500)
x4
Ring spacers
(Refer to p.29) AC/DC Adapter Power Cord
x8
(For 32/37/42LD450,
37/42LD450C, 42LD630)
(M4 x 20)
Screws for stand
assembly
(Refer to R24)
Screw for stand
fixing
(Refer to R33)
Protection Cover
(Refer to R25) Power Cord Protective Bracket
and Screw for
Power Cord
(Refer to R30)
9

PREPARATION
-U
m
-U
_>
_>
-q
0
Z
(Except 55LD520)
x4
(M4 x 24)
Screws for stand assembly
(Refer to R26)
(Except 47LD420,
47/55LD520)
Screw for stand fixing
(Refer to R33) Protection Cover (Refer to R27)
_!_!i_!ii!ii!i!ii_i,_i_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii!i!_i!i!_!i_i,if!i!_i_ii_ii!i!_i!i!i!i_i,ii!i!_i!i!i!i_i_i_]ii_i_i!iii_iiii!i!!i!i!i!i_i_ii!i!_i!i!i!i_i,if!i!_iiiiiiiiii!i!i_i_iii_!_ii_!!i!_!i_i_i,!_!_i_!iiiiiii_i!!ii_i!iii_i_i,!_!i_!i_i!_i_ii_!ii!_!i_i_i,!i!_i_i!i!i_iiii!_!_i_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii!i!_i!i!i!i_i,ii!i!_i!i!i!i_i_i_]ii_i_i!iii_iiii!i!!i!i!i!i_i_ii!i!_i!i!i!i_i,ii!i!_i!i!i!i_i_i_]ii_i_i!iii_iii_!_!!i!i!i!i_i_ii!i!_i!i!_!i_i_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_5i_iii_i_!]!_i_i!i!i_iiii!i!_i!i!i!i_i_i_]ii_i_i!iii_iiii!i!!i!i!i!i_i_ii!i!_i!i!i!i_i,ii!i!_i!i!i!i_i_i_]ii_i_i!iii_iiii!i!!i!i!i!i_i_ii!i!_i!i!i!i_i,ii!i!_i!i!i!i_i_ii_ii_ii_ii_ii_i_]ii_i_i!iii_iiii!i!!i!i!i!i_i_ii!i!_i!i!i!i_i,ii!i!_i!i!i!i_i_i_]ii_i_i!iii_iiii!i!!i_i__ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i_!!_i_ii_il_ii_i_ii!_
Power Cord
x2
(For 42/47/55LE7300) (For 32LE5300)
Cable Holder Component gender cable,
(Refer to p.31) AV gender cable Cable Management Clip Screw for stand fixing (Refer to p.31) (Refer to R33)
10

FRONT PANEL INFORMATION
_ Image shown may differ from your TV.
19122126132137142147155LE5300,
22/26LE5500
SPEAKER
19/22/26LE5300, 22/26LE5500
Remote Control Sensor
Power/Standby Indicator
(Can be adjusted using the Power Indicator
in the OPTION menu._.p.111)
32/37/42/47/55LE5300
Remote Control Sensor
intelligent Sensor
Adjusts picture according to
the surrounding conditions
Power/Standby Indicator
(Can be adjusted using the Power Indicator
in the OPTION menu._, p.111)
"13
m
q3
_>
_>
-4
O
Z
19/22/26LE5300, 22/26LE5500
CHANNEL VOLUME
(v,A) (-, +)
Buttons Buttons
32/37142/47155LE5300
POWER
Button
CHANNEL VOLUME
(v,A) (-, +)
Buttons Buttons
ENTER
Button POWER
Button
11

PREPARATION
_ Image shown may differ from your TV.
-13
m
-13
_>
_>
--4
0
Z
32/37/42/47LD450, 37/42/47LD450C
SPEAKER
Remote Control Sensor
Power/Standby Indicator
(Can be adjusted using the Power indicator
in the OPTION menu.l_,p.111)
CHANNEL
(^,v)Buttons
__ VOLUME (% -)
Buttons
Button
Button
NPUT Button
Button
12

42/47/55LD630
SPEAKER
CHANNEL
(A,V) Buttons
__ VOLUME (% -)
Buttons
ENTER Button
MENU Button
INPUT Button
POWER Button
"13
m
"13
_>
_>
--4
O
Z
Power/Standby Indicator
(Can be adjusted using the Power Indicator
in the OPTION menu._, p.111)
Remote Control Sensor
Intelligent Sensor
Adjusts picture according to the surrounding conditions.
13

PREPARATION
_ Image shown may differ from your TV.
q3
m
q3
_>
_>
-4
0
Z
32/42/47LD420
SPEAKER
Remote Control Sensor
Power/Standby Indicator
(Can be adjusted using the Power Indicator
in the OPTION menu.b.,p.111)
CHANNEL
(A,v) Buttons
__ VOLUME (% -)
Buttons
-- ENTER Button
-- MENU Button
-- INPUT Button
-- POWER Button
32/42/47/55LD520
SPEAKER
Remote Control Sensor,
Intelligent Sensor
Adjusts picture according to
the surrounding conditions
Power/Standby Indicator
(Can be adjusted using the Power Indicator in
the OPTION menu._, p.111)
iiiiiiii
i!iiiiiii¸ii¸ii'ii iiiiiiiii i
iiiiiiiiiiiiiiiii_ili
CHANNEL
(A,v) Buttons
VOLUME (+, -)
Buttons
ENTER Button
MENU Button
INPUT Button
POWER Button
14

42/47/55LE7300
Power/Standby Indicator
(Can be adjusted using the
Power Indicator in the OPTION
menu. _,.p.111)
CHANNEL
(A,V) Buttons
ME (% -)
Buttons
-- ENTER Button
-- MENU Button
-- INPUT Button
-- POWER Button
"13
m
_>
_>
-4
O
z
Remote Control Sensor
Intelligent Sensor
Adjusts picture according to
the surrounding conditions.
15

PREPARATION
BACK PANEL INFORMATION
_ Image shown may differ from your TV.
-u
m
-u
_>
_>
O
z
19/22/26LE5300, 22/26LE5500
19/22LE5300,
22LE5500 26LE5300, 26LE5500
Power Connecfion
@ Connect the AC/DC adapter plug to the
power input jack on the TV.
@ Connect the power cord to the AC/DC
adapter first, then plug the power cord into
the wall power outlet.
AC/DC Adaptor
16

32137142147155LE5300
42/47/55LE7300
A CAUTION
For HDMI IN 4 and USB IN
_, For an optimal connection,
HDMI cables and USB
devices should have bezels
less than 10 mm (0.39
inches) thick.
*A=< 10 mm (0.39 inches)
"13
m
"13
_>
:;D
_>
--4
O
Z
17

PREPARATION
32/42/47LD420, 32137/42/47LD450
"13
;;D
rrl
"13
--4
0
Z
_!!_!!_!!_!!_!!_!!_!;!;!iiiiiiiilili!!iiiif_?!ii!ii!
32/42/47/55LD520, 42/47/55LD630
32/42/47/55LD520 42/47/55LD630
18

37/42/47LD450C
m
_>
_>
0
z
@ HDMI/DVl IN, HDMI IN
Digital Connection.
Supports HD video and Digital audio. Doesn't
support 480i.
Accepts DVI video usin 9 an adapter or HDMI
to DVI cable (not included).
@ RGB IN (PC)
Analog PC Connection. Uses a D-sub 15 pin
cable (VGA cable).
AUDIO IN (RGB/DVl)
0.32 cm (1/8 inch) headphone jack for analo 9
PC audio input.
0 OPTICAL DIGITAL AUDIO OUT
Digital optical audio output for use with amps
and home theater systems.
Note: In standby mode, this port doesn't work.
@ RS-232C IN (CONTROL & SERVICE)
Used by third party devices.
This port is used for service or Hotel mode.
AV (Audio/Video) IN
Analog composite connection. Supports stan-
dard definition video only (480i).
@ ANTENNA/CABLE IN
Connect over-the-air or cable signals to this
jack.
COMPONENT IN
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for video &
red and white for audio.
USB INPUT
Used for viewin 9 videos, photos and listenin 9
to MP3s.
HEADPHONE
0.32 cm (1/8 inch) headphone jack
Impedance 16 0, Maximum audio out 15 mW
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on
DC pwer.
@ REMOTE CONTROL IN
For a wired remote control.
@ EXTERNARL SPEAKER OUT
For use with external speakers.
® RaP
Connect this to an LG remote jack pack sys-
tem.
19

PREPARATION
_]
m
-D
_>
_]
_>
0
Z
20
STAND INSTRUCTIONS IFor19/22LE5300, 22LE5500)
_ Image shown may differ from your TV.
INSTALLATION
0Carefully place the TV screen side down
on a cushioned surface to protect the
screen from damage.
Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
STAND BODY
I
D BASE
Assemble the TV as shown.
O Install the 4 screws into the holes shown.
DETACHMENT
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
zi....
Remove the screws from the TV.
Detach the stand from TV.
