LOCATION AND FUNCTION OF CONTROLS
* Image shown may differ from your TV.
This TV can be connected to a LED Clock via the CLOCK port.
LED Clock connection
Parts and buttons
Screen
Joystick button
(* This button is located below the TV screen.)
Remote control sensor
Power Indicator
Speakers
IN 1(ARC)
CLOCK
e
CLOCK
13/18V
700mA Max
LNB
Satellite IN
OPTICAL
DIGITAL
AUDIO OUT
ANTENNA/
CABLE IN
AUX LAN LAN
AV
IN / OUT
RS-232C IN
(CONTROL & SERVICE)
VOLUME
CONTROL
STEREO
(8 Ω)
SPEAKER OUT
+
-
LED Clock
(*Not Provided)

3
EZMANAGER
EZ-Manager Wizard
yImage shown may differ from your TV.
Introduction
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.
The default Domain "procentric.local" and IP Server Address are needed to be registered in DNS
TV will contact the IP Server using the default Domain "procentric.local" via IP on server search page.
If TV doesn't contact the Server, TV will search the pre-defined channel earlier than all channels
(DVB-C only)
The frequencies of pre-defined channels are ‘52500, 866000, 794000, 714000, 634000, 554000,
474000, 387000, 307000, 227000, 147000 khz’.
EZ-Manager Wizard
Exit Next
No Pro:Centric
Welcome to LG’s EZ-Manager Wizard
Use this setup wizard to configure the TV for Pro:Centric and/or Free-
To-Guest (FTG) operation.
Select ‘Next’ to continue.
If a Pro:Centric Server will not be installed and/or you do not wish to
use the wizard to configure this TV for FTG Mode, you may exit the wizard.
Select ‘No Pro:Centric’ to disable the Pro:Centric feature of this TV, or
select ‘Exit’ to quit.
This setup wizard will start automatically in 10 seconds.
- If you are using Pro:Centric, this setup wizard till help you easily set up the TV.
Select 'Next' to continue.
- Otherwise, you may select either 'No Pro:Centric',
if you will not be installing a Pro:Centric Server or 'Exit' to quit.

4
EZ-Manager Wizard - Automatically for Setup
- If you intend to set Room Number as part of the TV configuration, use the Room Number option to
assign the Room # for this TV before you continue with additional configuration.
- In the Label field, use the Up/Down arrow keys to specify a North, South, East, or West designation
for this TV.
- In the Room Number field, you can use the number keys on the Installer Remote to direct enter a
room number.
- To continue, move and select 'Next'.

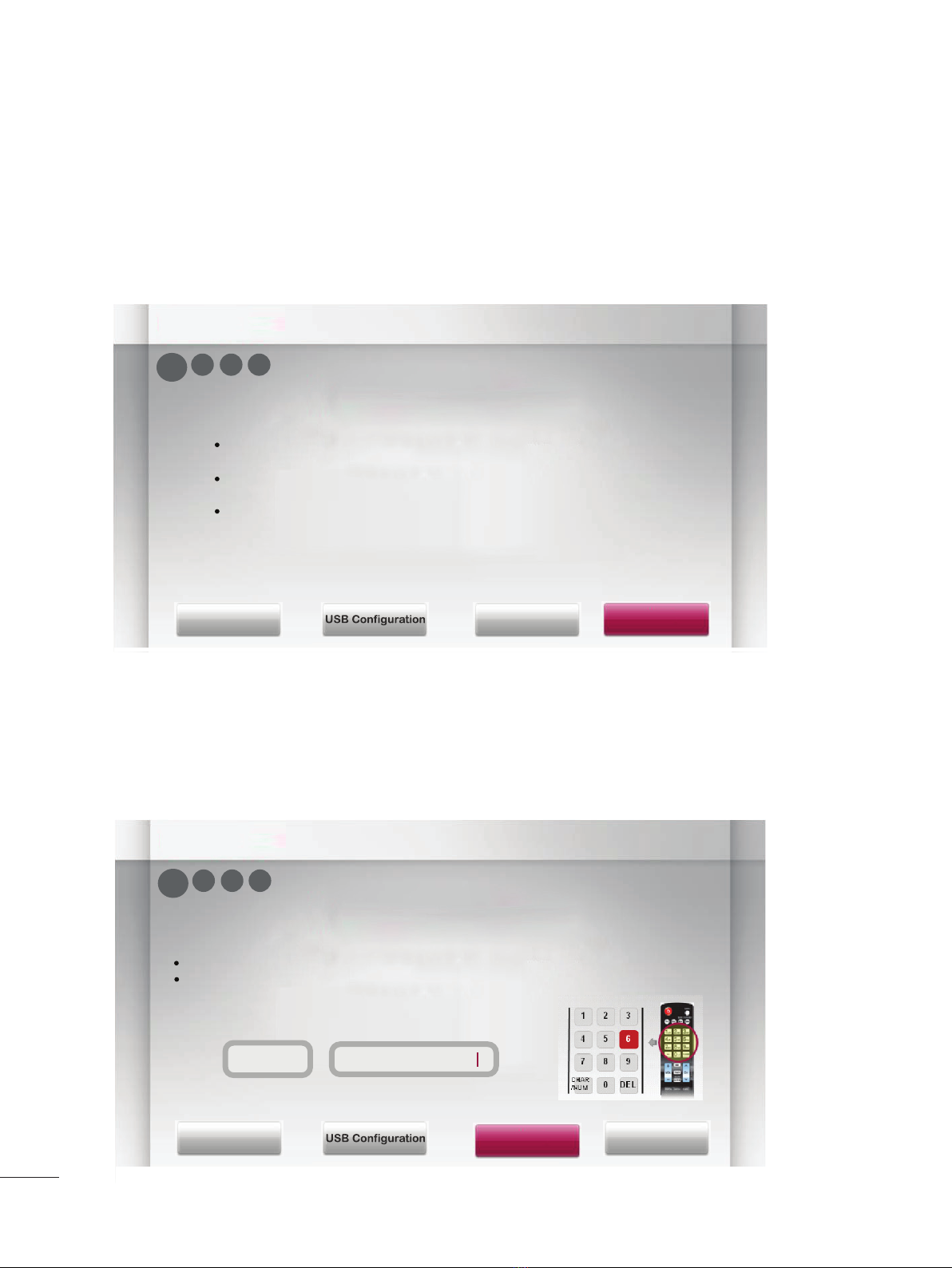

1. From the TV Configuration Options screen, you can choose how to proceed with the configuration
of this TV. Whether you will configure the TV for Pro:Centric operation via the wizard or use
a USB memory device to configure the TV, you may first wish to set the Room Number on the TV.
EZ-Manager Wizard
12 3 4
Exit Next
Room Number
USB Configuration
TV Configuration Options
To configure the TV for Pro:Centric operation, select ‘Next’.
To set the optional Room Number, select ‘Room Number’.
To access the TV’s USB Download Menu, select ‘USB Configuration’.
This setup wizard will continue automatically in 60 seconds.
EZ-Manager Wizard
12 3 4
Exit Next
Room Number
USB Configuration
Label, Room Number
Select a Label and/or use the alpha/numeric keypad on the remote to input the Room Number.
When done, select ‘Next’ to continue.
Label Room Number
1 7 1 6

5

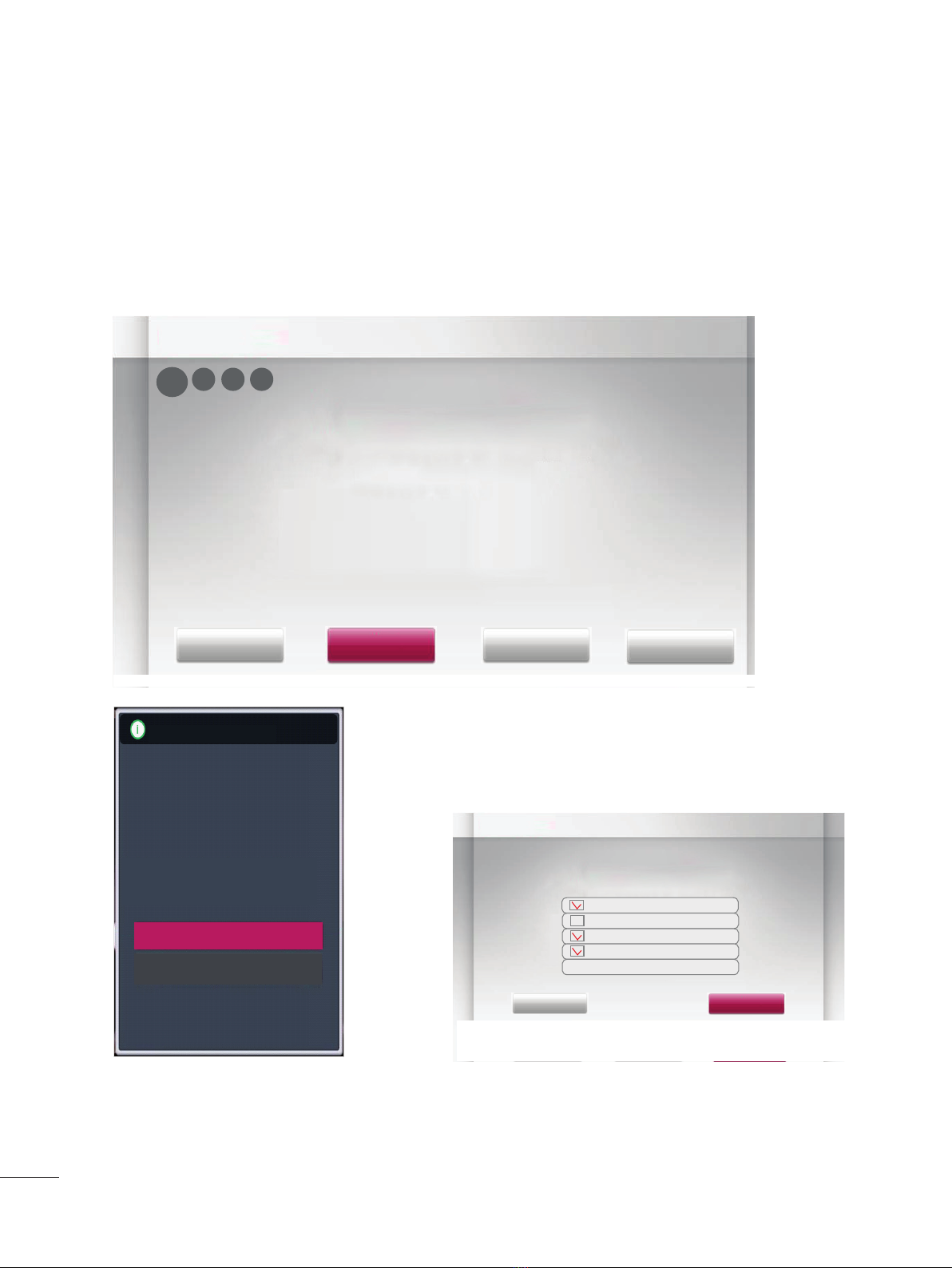

2. This step automatically searches for the Pro:Centric Server.
If was found the Pro:Centric data channel, select the "Next".
EZ-Manager Wizard Room # 1716
2
1 3 4
Exit Manual Pro:Centric
Back
Pro:Centric Server was found...
It may take 5 min 00 second(s).
The Pro:Centric data channel was found!! (Data Channel: 698000, Mode:GEM)
The Download window will open in 5 seconds. You may wait or select ‘Next’.
Otherwise, if you select ‘Exit’, the Pro:Centric Server settings can be retained
and used during the next download when you select ‘Save & Exit’ in the Exit Window.
Status : Tuning Frequency 698000 (KHz)
The Pro:Centric data channel is found!!
(Data Channel: 698000, Mode: GEM)
EZ-Manager Wizard Room # 1716
2
1 3 4
Exit Manual Pro:Centric
Back

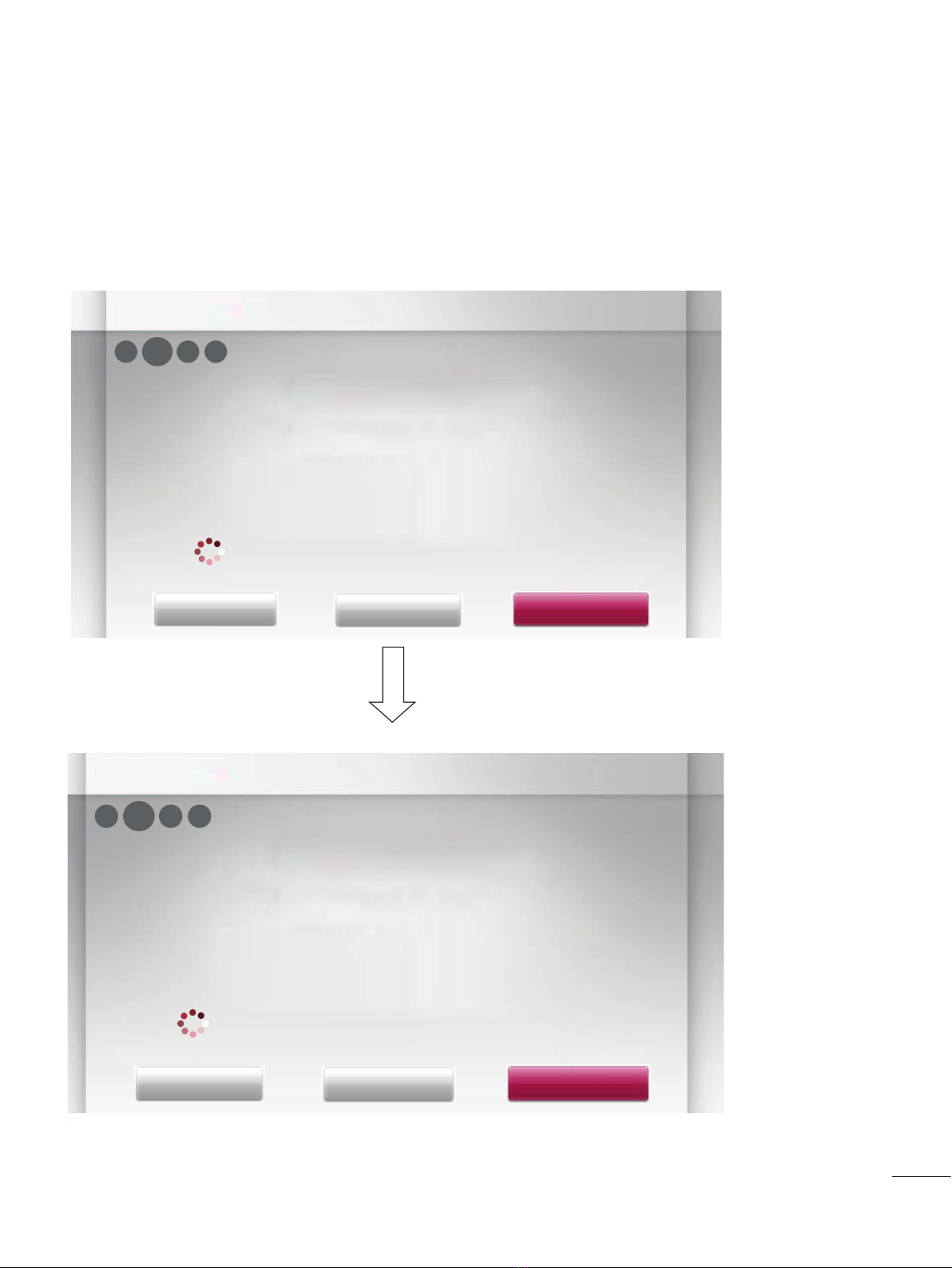

Searching for Pro:Centric Server...
It may take 1 min 00 second(s).
This step automatically searches for the pro:centric Server.
If there is no Pro:Centric Server installed, you do not need continue
with this procedure. Please select either ‘Exit’ or ‘Manual Pro:Centric’.
Status : Tuning Frequency 698000 (KHz)
TV is now searching all of the channels for the data channel...

6
EZ-Manager Wizard Room # 1716
3
1 2 4
Processing the Pro:Centric Configuration...
Downloading the Pro:Centric application files takes a few minutes.
Please wait...
Application files
Maintenance files
- Updating Configuration File
- Updating Splash Logo Image
In progress...
Pending...
10%
Retrieving files from data Freuquency 698000
Warning - Do not remove AC power or the signal cables during these steps.

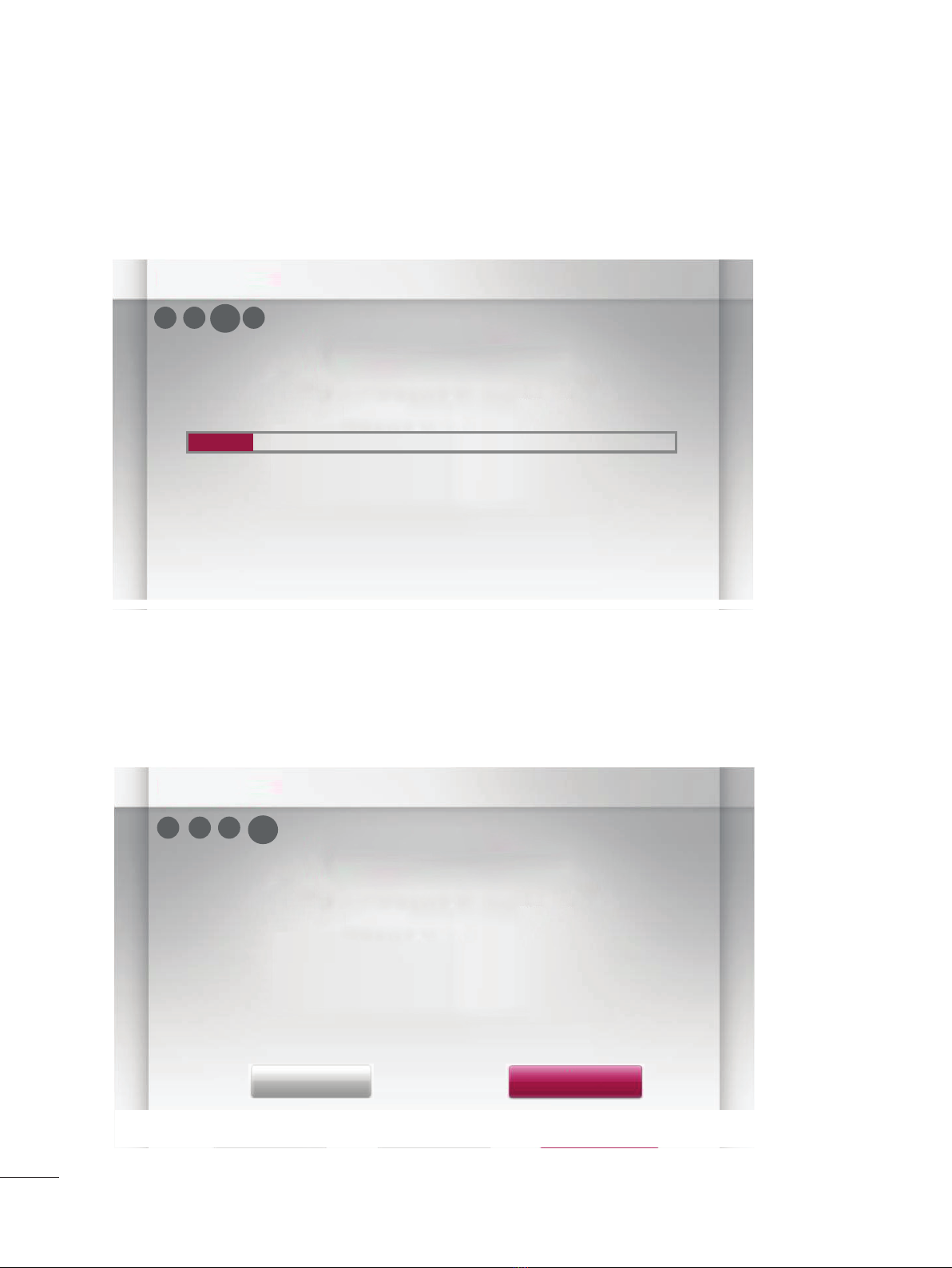

3. Downloading the Pro:Centric application files takes few minutes.
4. After the installation is completed, the following screen will be displayed..
EZ-Manager Wizard Room # 1716
4
1 32
Turn OffReboot
EZ-Manager Configuration Complete
The TV will turn off in 10 second(s).
Installed Components
Pro:Centric Application
Maintenance Files
GEM application downloaded
Internal _CATV_ChMap_chOnly.tll

7
EZ-Manager Wizard - Manually for Setup
2.Please select the 'Pro:Centric Manually'.

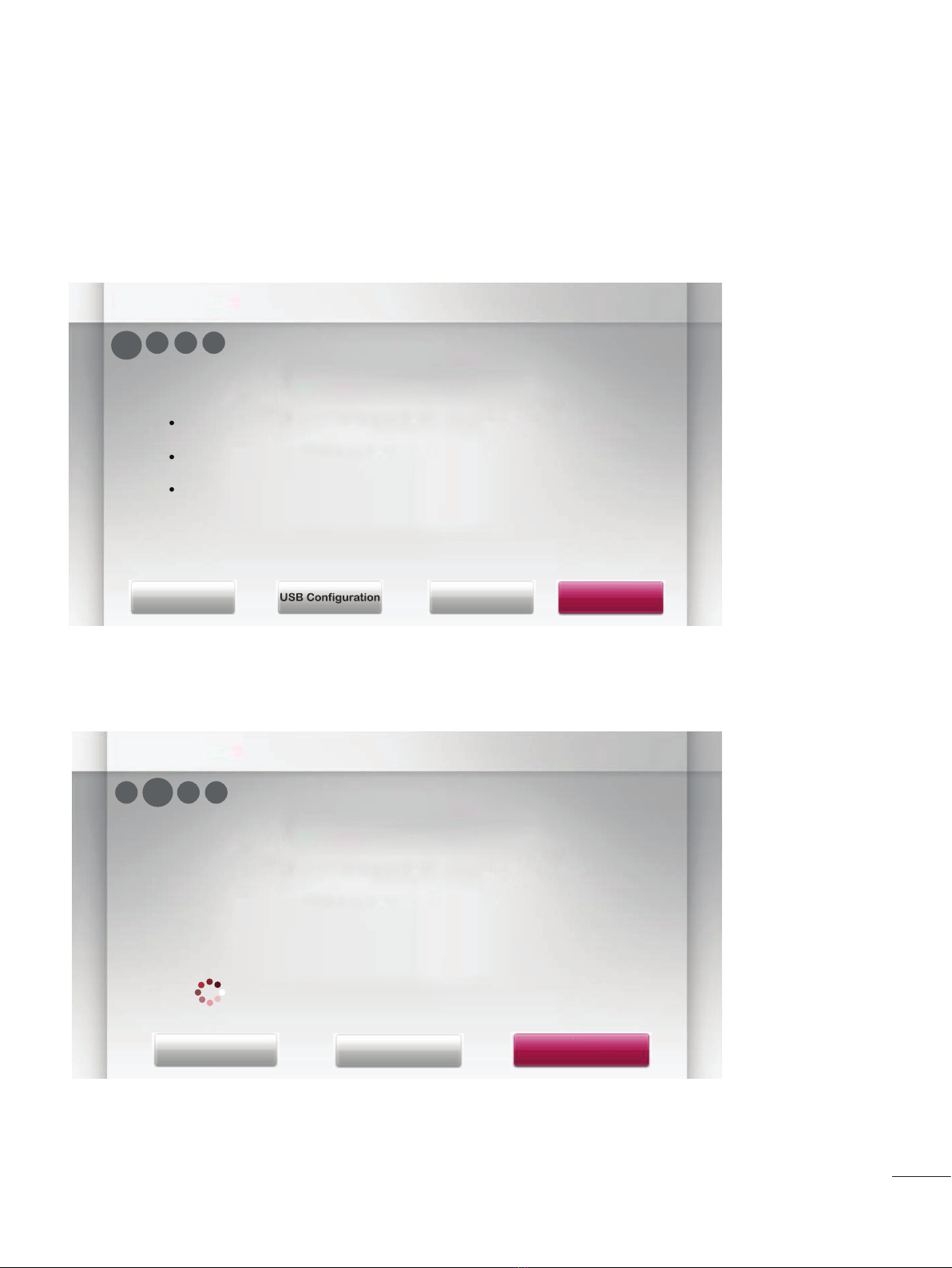

1. Select a Label and/or enter the Room Number using the numeric keypad on the remotes.
To continue, move and select 'Next'.
EZ-Manager Wizard
12 3 4
Exit Next
Room Number
USB Configuration
TV Configuration Options
To configure the TV for Pro:Centric operation, select ‘Next’.
To set the optional Room Number, select ‘Room Number’.
To access the TV’s USB Download Menu, select ‘USB Configuration’.
This setup wizard will continue automatically in 60 seconds.
EZ-Manager Wizard Room # 1716
2
1 3 4
Exit Manual Pro:Centric
Back
Searching for Pro:Centric Server...
It may take 1 min 00 second(s).
This step automatically searches for the pro:centric Server.
If there is no Pro:Centric Server installed, you do not need continue
with this procedure. Please select either ‘Exit’ or ‘Manual Pro:Centric’.
Status : Tuning Frequency 698000 (KHz)
TV is now searching all of the channels for the data channel...

8
EZ-Manager Wizard Room # 1716
2
1 3 4
Exit Next
Back
Pro:Centric Mode
GEM
Mainland China
RF
698000
6900
data channel found
256QAM
99%
99%
Country
Media Type
Frequency (KHz)
Symbolrate (kS/s)
Modulation
Signal Strength
Signal Qualit
y

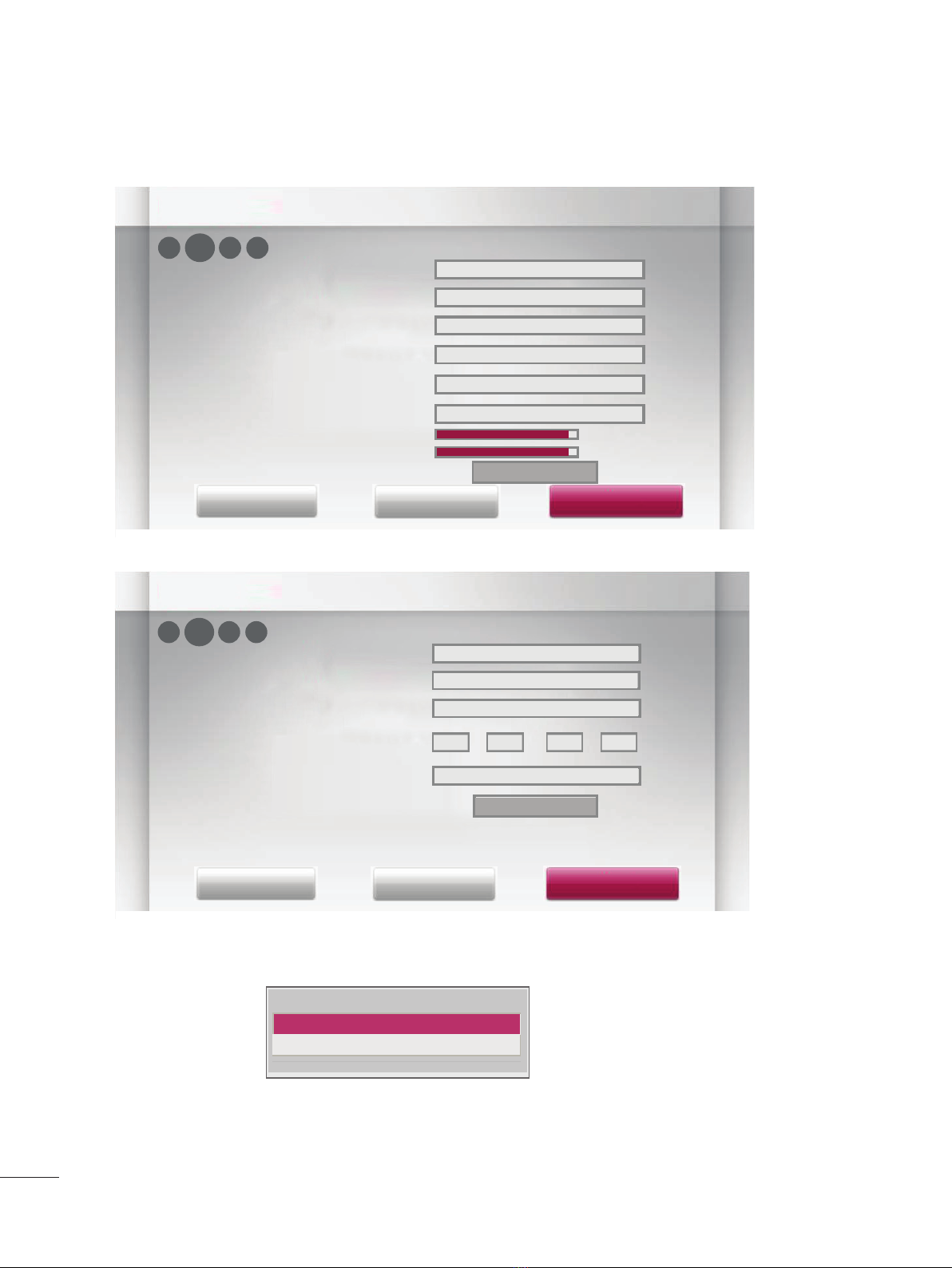

3. Configure the appropriate Pro:Centric settings in the TV.
EZ-Manager Wizard Room # 1716
2
1 3 4
Exit Next
Back
Pro:Centric Mode GEM
IP
192 168 05
80
IP Server found
Mainland China
Country
Media Type
IP Address
Port
- If you select Country, you can change a city. (Mainland China / Hong Kong)
City
Mainland China
Hong Kong
