LG EG96 series User manual

www.lg.com
OWNER’S MANUAL
Please read this manual carefully before operating your set and retain
it for future reference.
*MFL68823613*
P/NO : MFL68823613 (1502-REV01)
Printed in Korea
EG96** EF95**

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-7 Tidying cables
A-8 MAKING CONNECTIONS
A-8 Antenna connection
A-10 Satellite dish connection
A-11 HDMI connection
A-15 - ARC (Audio return channel)
A-16 DVI to HDMI connection
A-17 Component connection
A-19 Composite connection
A-20 Headphone connection
A-22 Audio connection
A-22 - Digital optical audio connection
A-24 USB connection
A-26 CI module connection
A-28 Euro scart connection
LANGUAGE LIST
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
PORTUGUÊS
NEDERLANDS
ΕΛΛΗΝΙΚΆ
 SLOVENŠČINA
B-1 SPECIFICATIONS
B-2 REGULATORY
COMMON
COMMON
LANGUAGE

A-3
SETTING UP THE TV
55EG96**
1
1
1
Stand cover
Protective package

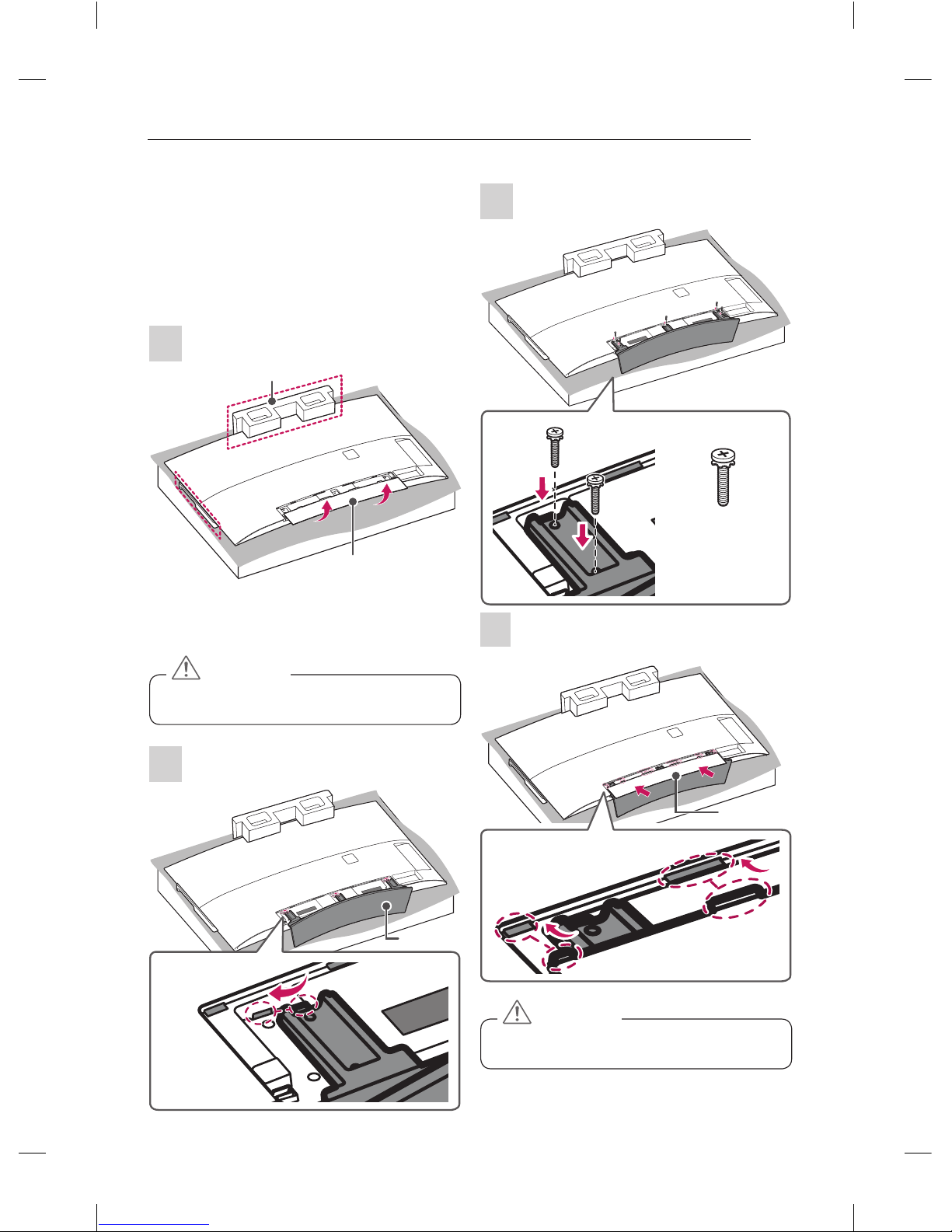

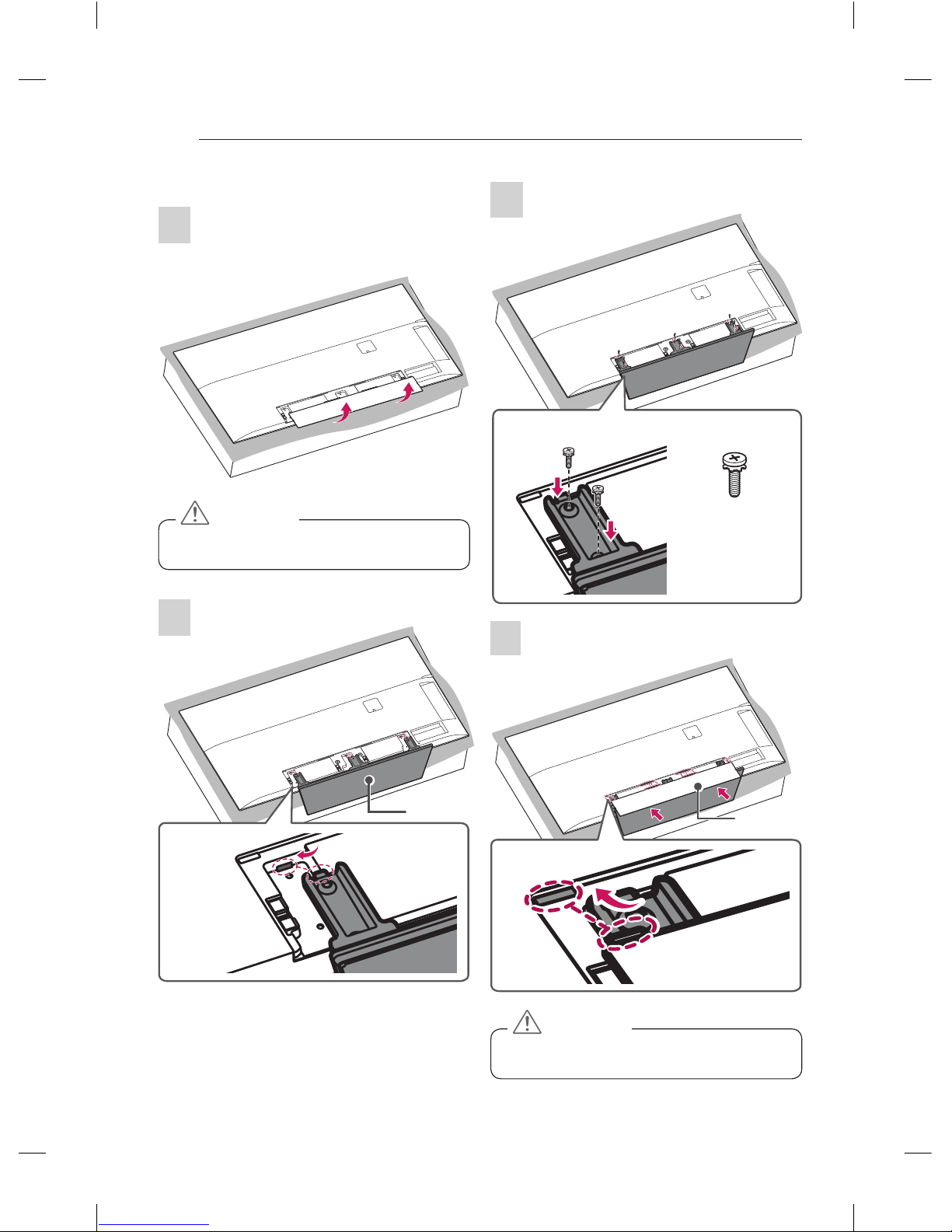

1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective Package.
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand assy
3
M4 x L20
5 EA
4
Stand cover
yInsert the protruding parts of the Stand Cover into
the holes.
CAUTION

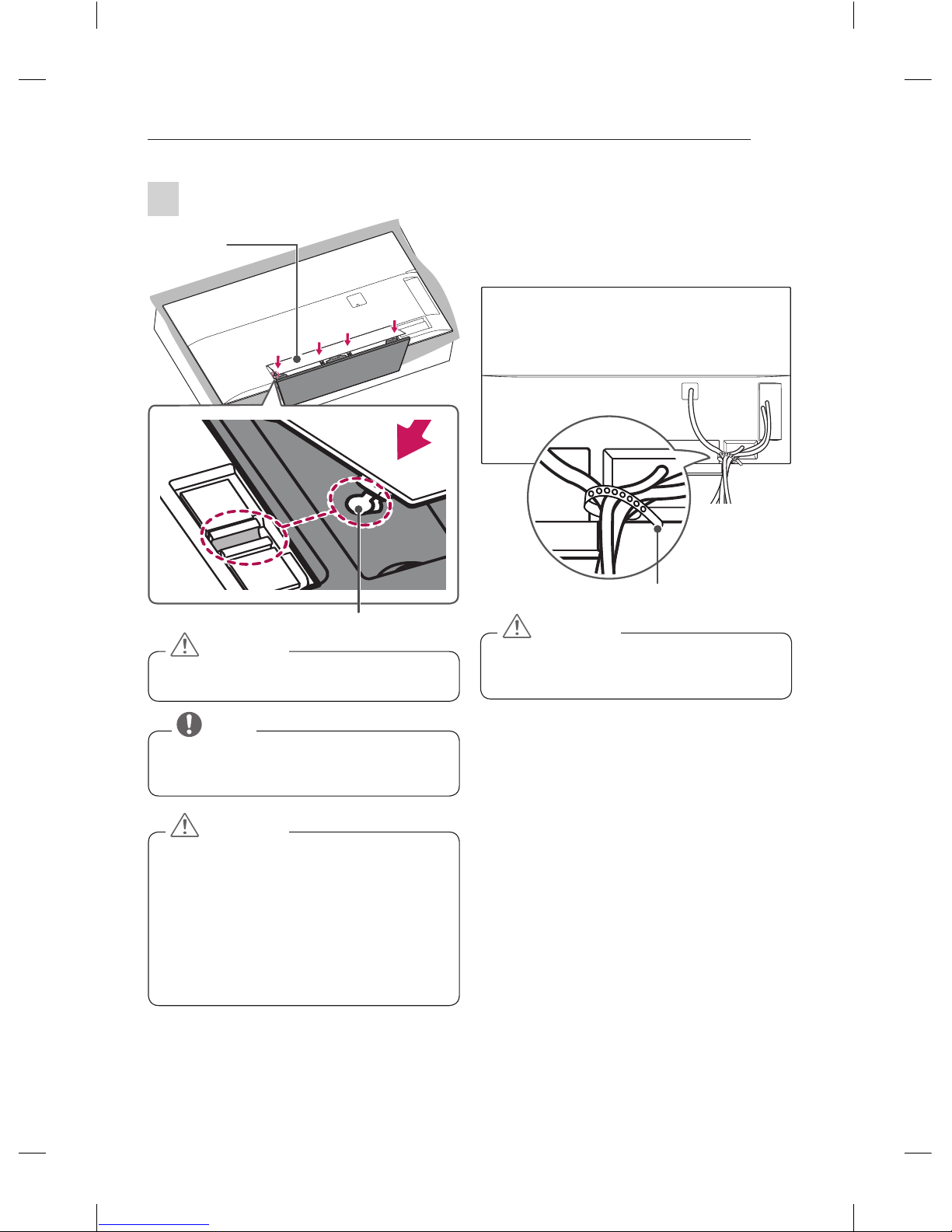

SETTING UP THE TV
Image shown may dier from your TV.
Attaching the stand

A-4 SETTING UP THE TV
65EG96**
1
Stand cover
1
1
Protective package
1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective Package.
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand assy

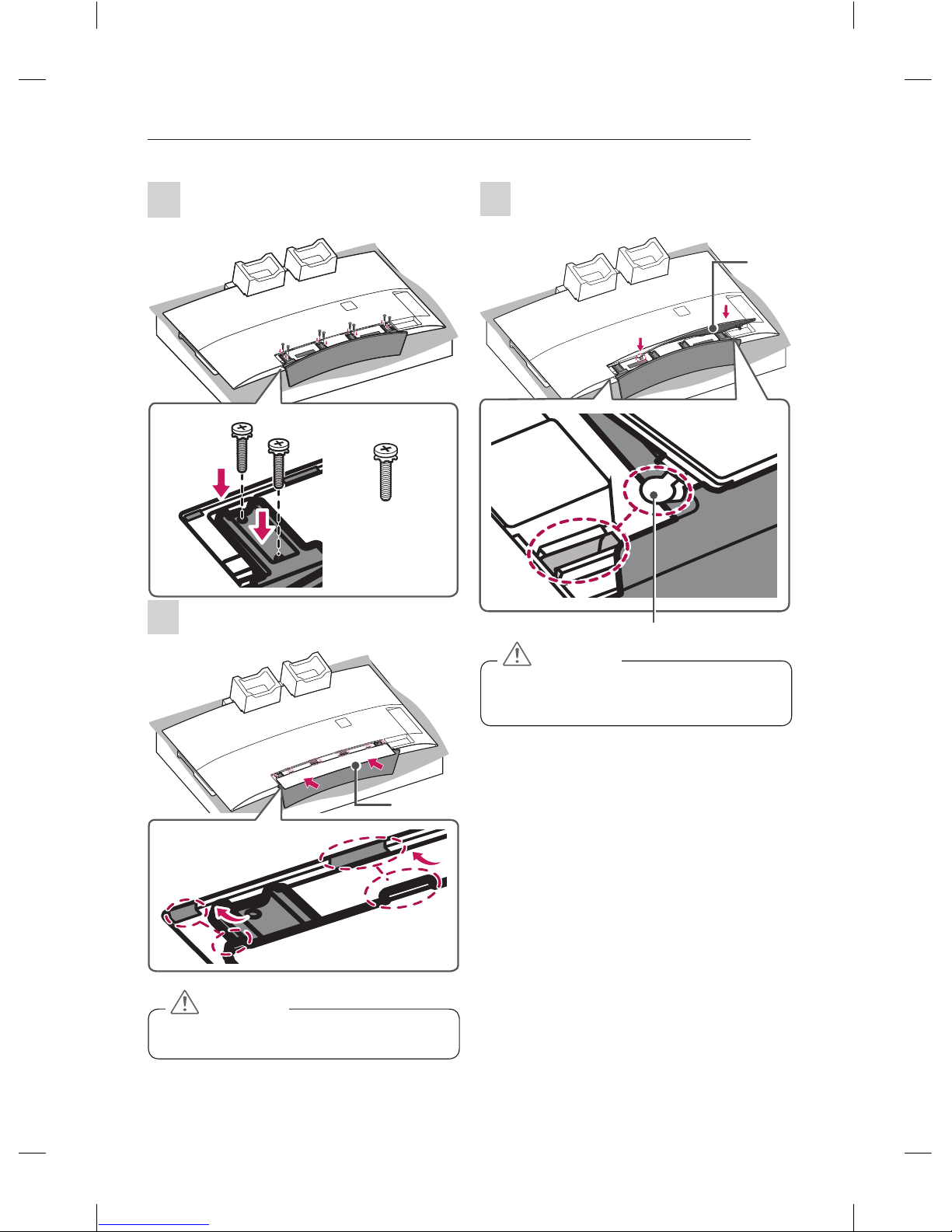

5
Cover holder
Stand
cover
yInsert the Cover Holder of the Stand Cover into the
holes until it clicks. Press the Stand Cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION

A-5
SETTING UP THE TV
5
Cover holder
Stand
cover
yInsert the Cover Holder of the Stand Cover into the
holes until it clicks. Press the Stand Cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION
3
M4 x L20
8 EA
4
Stand cover
yInsert the protruding parts of the Stand Cover into
the holes.
CAUTION

A-6 SETTING UP THE TV
55EF95**
1
yDo not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand Assy
3
M4 x L14
6 EA
4
Stand cover
yInsert the protruding parts of the Stand Cover into
the holes.
CAUTION

A-7
SETTING UP THE TV
5
Cover holder
Stand
cover
yInsert the Cover Holder of the Stand Cover into the
holes until it clicks.
CAUTION
yRemove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
NOTE
yWhen attaching the stand to the TV set, place the
screen facing down on a cushioned table or flat
surface to protect the screen from scratches.
yMake sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after being
installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and not
tighten correctly.
CAUTION
Tidying cables
Image shown may dier from your TV.
Gather and bind the cables with the cable holder.
Cable holder
yDo not move the TV by holding the cable holder,
as the cable holder may break, and injuries and
damage to the TV may occur.
CAUTION

A-8 MAKING CONNECTIONS
Deutsch
Schließen Sie das TV-Gerät mit einem HF-Kabel (75 Ω) an
eine Wandantennenbuchse an.
yDer Anschluss für externe Geräte kann von Modell
zu Modell unterschiedlich sein.
yBei Verwendung von mehr als 2 TV-Geräten
verwenden Sie einen Signalsplitter.
yIst das Bild schlecht, installieren Sie einen
Signalverstärker, um die Bildqualität zu verbessern
yWenn die Bildqualität bei angeschlossener Antenne
schlecht ist, richten Sie die Antenne richtig aus
yAntennenkabel und Wandler sind nicht im
Lieferumfang enthalten.
yUnterstützter DTV-Ton: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC
yAn Standorten, an denen Ultra HD-Übertragungen
nicht unterstützt werden, kann dieses TV-Gerät Ultra
HD-Übertragungen nicht direkt empfangen. Dieses
TV-Gerät kann u.U. keine Ultra HD-Übertragungen
(3.840 x 2.160 Pixel) direkt empfangen, da die
entsprechenden Standards nicht bestätigt wurden.
(abhängig vom Modell)
HINWEIS
Français
Connectez la TV à une prise d’antenne murale avec un
câble RF (75 Ω).
yLe raccordement du périphérique externe peut
différer du modèle.
yUtilisez un séparateur de signaux pour utiliser plus
de deux téléviseurs.
ySi la qualité d’image est mauvaise, installez
correctement un amplificateur de signaux pour
l’améliorer.
ySi vous utilisez une antenne et que la qualité d’image
est mauvaise, essayez de réaligner l’antenne dans la
bonne direction.
yLe câble et le convertisseur d’antenne ne sont pas
fournis.
yTechnologies audio TNT prises en charge : MPEG,
Dolby Digital, Dolby Digital Plus, HE-AAC
ySi l'emplacement ne prend pas en charge la
diffusion Ultra HD, ce téléviseur ne peut pas recevoir
de diffusion Ultra HD directement. Votre TV ne peut
pas recevoir de diffusions Ultra HD (3840 x 2160
pixels) directement car les normes à ce sujet n'ont
pas été confirmées. (selon le modèle)
REMARQUE
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses
diagrams for the EG9609 models.
Antenna connection
Wall
antenna
socket
(*Not
provided)
English
Connect the TV to a wall antenna socket with an RF cable
(75 Ω).
yThe external device connection may differ from the
model.
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplifier
properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the correct
direction.
yAn antenna cable and converter are Not provided.
ySupported DTV Audio: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC
yFor a location that is not supported with Ultra
HD broadcasting, this TV cannot receive Ultra HD
broadcasts directly. This TV cannot receive Ultra HD
(3840 x 2160 pixels) broadcasts directly because
the related standards have not been confirmed.
(Depending on model)
NOTE

A-9
MAKING CONNECTIONS
Italiano
Collegare il televisore all’antenna centralizzata con un cavo
RF (75 Ω).
yIl collegamento del dispositivo esterno può variare
in base al modello.
yUtilizzare uno sdoppiatore del segnale per usare più
di 2 televisori.
ySe la qualità dell’immagine è scarsa, installare
correttamente un amplificatore del segnale per
migliorarla.
ySe la qualità dell’immagine è scarsa con un’antenna
collegata, provare a riallineare l’antenna nella
direzione corretta.
yIl cavo e il convertitore dell’antenna non sono in
dotazione.
yAudio DTV supportato: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC
yPer posizioni non supportate da broadcasting Ultra
HD, il TV non è in grado di ricevere direttamente
programmi Ultra HD. Questa TV non può ricevere
direttamente trasmissioni Ultra HD (pixel 3840 x
2160) perché non sono stati confermati i relativi
standard. (in base al modello)
NOTA
Español
Conecte la TV a una toma de pared de antena con un cable
RF (75 Ω).
yLa conexión de dispositivos externos puede variar
entre distintos modelos.
yEmplee un divisor de señal cuando desee utilizar
más de dos TV.
ySi la imagen es de poca calidad, instale un
amplificador de señal correctamente para mejorar
la calidad de imagen.
ySi la imagen es de poca calidad con una antena
conectada, intente volver a orientar la antena en la
dirección adecuada.
yNo se suministran el cable de antena ni el conversor.
yAudio DTV admitido: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC
yEn una ubicación que no sea compatible con
la emisión Ultra HD, esta TV no puede recibir
emisiones Ultra HD directamente. Esta TV no puede
recibir emisiones Ultra HD (3840 x 2160 píxeles)
directamente porque no se han confirmado los
estándares relacionados. (En función del modelo)
NOTA
Português
Ligue a TV a uma tomada de antena de parede com um
cabo RF (75 Ω).
yA ligação do dispositivo externo pode ser diferente
da do modelo.
yUtilize um separador de sinal se quiser utilizar mais
de 2 TVs.
ySe a qualidade de imagem for fraca, instale um
amplificador de sinal para melhorar a qualidade de
imagem.
ySe a qualidade de imagem for fraca mesmo que
tenha uma antena ligada, tente orientar a antena
para a direcção correcta.
yO cabo da antena e o conversor não são fornecidos.
yÁudio DTV suportado: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC
yEsta TV não consegue receber transmissões Ultra HD
directamente em localizações que não suportam
transmissões Ultra HD. Esta TV não pode receber
directamente transmissões Ultra HD (3840 x 2160
píxeis), uma vez que as normas relacionadas não
foram confirmadas. (Dependendo do modelo)
NOTA
Nederlands
Sluit de TV met behulp van een RF-kabel (75 Ω) aan op een
antenneaansluiting op de muur.
yDe aansluiting van externe apparaten kan per model
verschillen.
yGebruik een signaalsplitter om meer dan twee TV’s
te gebruiken.
yAls de beeldkwaliteit slecht is, installeert u
een signaalversterker om de beeldkwaliteit te
verbeteren.
yAls de beeldkwaliteit slecht is terwijl een antenne
is aangesloten, probeert u de antenne in de juiste
richting te draaien.
yAntennekabel en converter worden niet
meegeleverd.
yOndersteunde DTV-au dio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yAls een locatie Ultra HD-uitzendingen niet
ondersteunt, kan deze TV geen rechtstreekse Ultra
HD-uitzendingen ontvangen. Deze TV kan niet
direct uitzendingen van Ultra HD (3840 x 2160
pixels) ontvangen omdat de bijbehorende normen
niet zijn bevestigd. (afhankelijk van het model)
OPMERKING

A-10 MAKING CONNECTIONS

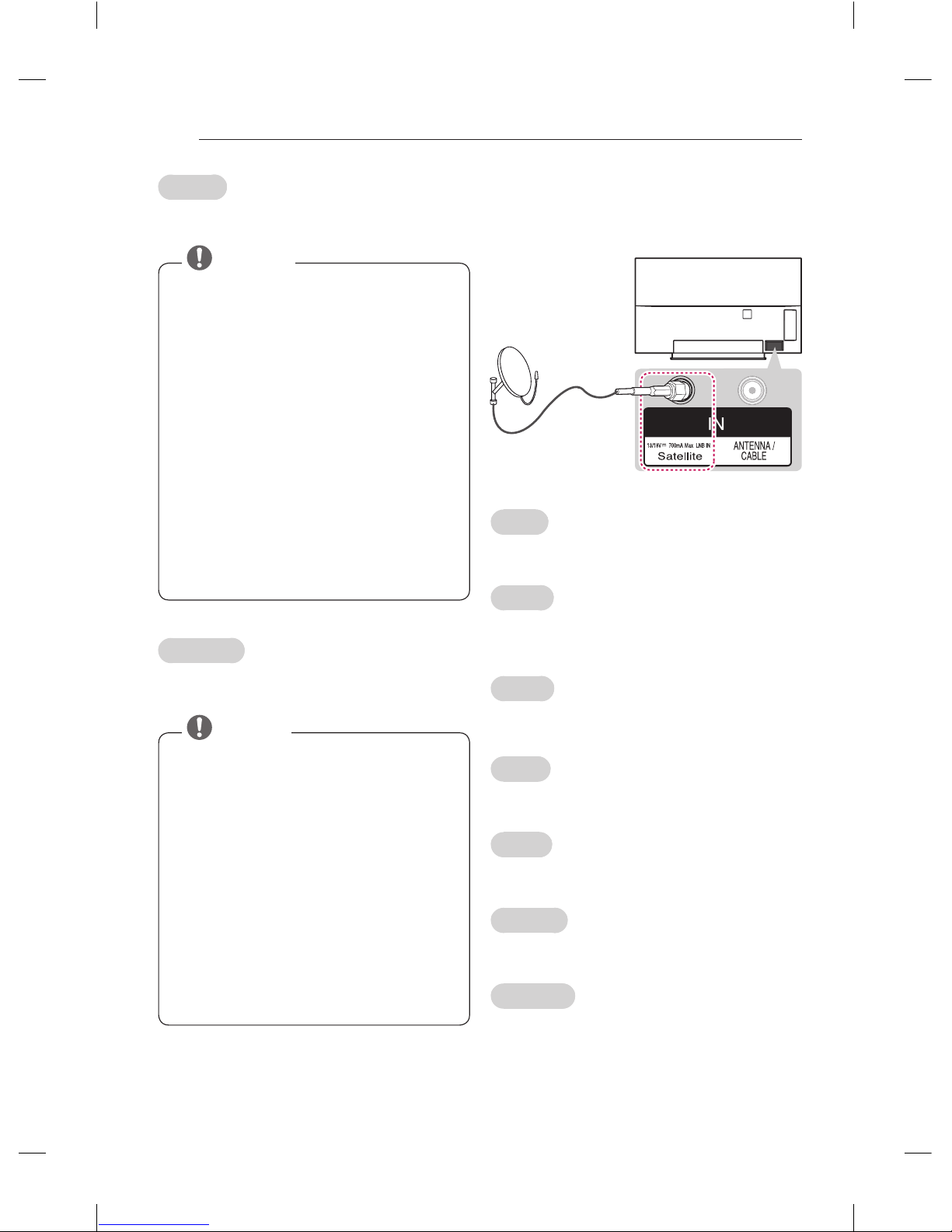

Satellite dish connection
(Only satellite models)
(*Not provided)
Satellite
Dish
English
Connect the TV to a satellite dish to a satellite socket with a
satellite RF cable (75 Ω).
Deutsch
Schließen Sie das TV-Gerät mit einem Satelliten-HF-Kabel
(75 Ω) an eine Satellitenschüssel oder an eine Satelliten-
buchse an.
Français
Connectez la TV à une parabole satellite ou à une prise
satellite à l’aide d’un câble satellite RF (75 Ω).
Italiano
Collegare la TV a un’antenna satellitare e a una presa satel-
litare con un cavo RF satellitare (75 Ω).
Español
Para conectar la TV a una antena parabólica, enchufe un
cable de RF de satélite a una toma de satélite (75 Ω).
Português
Ligue a TV a uma antena parabólica ou uma tomada de
satélite com um cabo RF para satélite (75 Ω).
Nederlands
Sluit de TV met behulp van een RF-satellietkabel (75 Ω) aan
op een satellietschotel.
Ελληνικά
Συνδέστε την τηλεόραση σε μια υποδοχή κεραίας στον
τοίχο με ένα καλώδιο RF (75 Ω).
yΗ σύνδεση εξωτερικών συσκευών ενδέχεται να
διαφέρει ανάλογα με το μοντέλο.
yΧρησιμοποιήστε ένα διαχωριστή σήματος για τη
χρήση περισσότερων από 2 τηλεοράσεων.
yΆν η ποιότητα της εικόνας δεν είναι καλή,
εγκαταστήστε έναν ενισχυτή σήματος για τη
βελτίωση της ποιότητας εικόνας.
yΆν η ποιότητα της εικόνας δεν είναι καλή μετά
τη σύνδεση της κεραίας, δοκιμάστε να αλλάξετε
τον προσανατολισμό της κεραίας στη σωστή
κατεύθυνση.
yΔεν παρέχεται καλώδιο κεραίας και μετατροπέας.
yΥποστηριζόμενος ήχος DTV: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yΓια μια θέση που δεν υποστηρίζεται με μετάδοση
Ultra HD, αυτή η τηλεόραση δεν μπορεί να λάβει
απευθείας μεταδόσεις Ultra HD. Άυτή η τηλεόραση
δεν μπορεί να λάβει μεταδόσεις Ultra HD (3840 x
2160 pixel) απευθείας καθώς τα σχετικά πρότυπα
δεν έχουν επιβεβαιωθεί. (Άνάλογα με το μοντέλο)
ΣΗΜΕΙΩΣΗ
Slovenščina
Televizor priključite v stensko antensko vtičnico s kablom
RF (75 Ω).
yPovezava z zunanjo napravo je lahko odvisna od
modela.
yČe želite uporabljati več kot 2 televizorja, uporabite
razcepnik za signal.
yČe je kakovost slike slaba, jo izboljšajte tako, da
ustrezno namestite ojačevalnik signala.
yČe je kakovost slike slaba in uporabljate anteno,
usmerite anteno v ustrezno smer.
yKabel antene in pretvornik nista priložena.
yPodprte oblike zvoka za DTV: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yNa območjih, kjer ni podprto oddajanje v Ultra
HD, televizor ne more neposredno prejemati
oddajanih signalov Ultra HD. Televizor ne sprejema
oblike zapisa Ultra HD (3840 x 2160 slikovnih pik)
neposredno, ker niso potrjeni ustrezni standardi.
(Odvisno od modela)
OPOMBA
